Эпоксидная смола NTC термистор 10k 3950 Макс 2 5 мм шарик датчик температуры для автомобильного кондиционирования воздуха
- Категория: >>>
- Поставщик: Focus Sensing And Control Technology Co. Ltd.
Сохранить в закладки 1600294037676:
Описание и отзывы
Характеристики
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

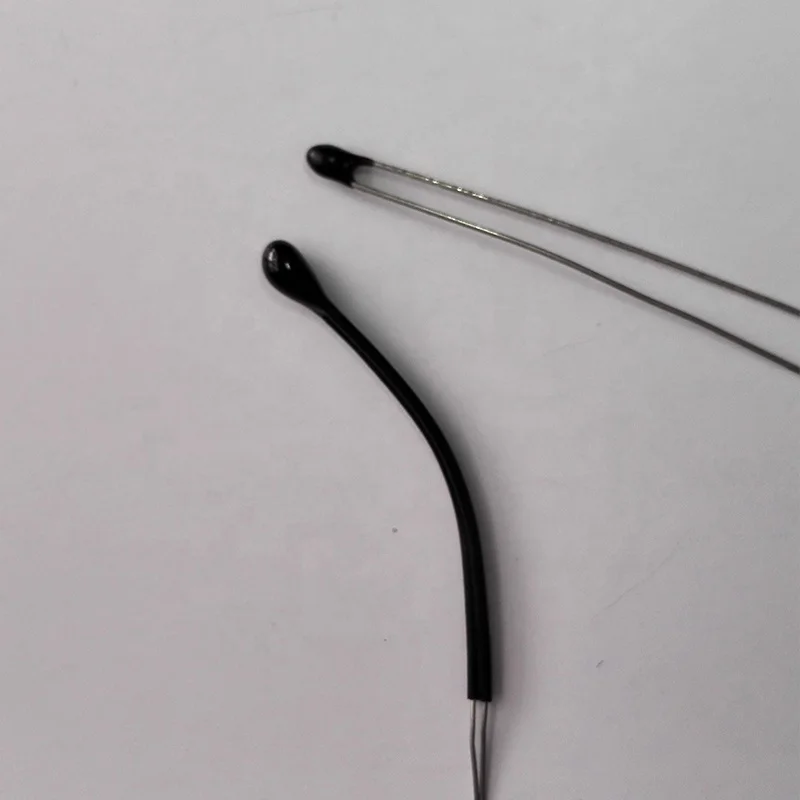

MF5A series bead temperature thermistor is made of new materials, new technology of production of small type epoxy resin coating of thermistor, has the advantages of high precision and fast response. It is used for the measurement and control of the cooling water temperature of the automobile engine and is the core component of the automobile water temperature sensor. It can also be used in car air conditioners, condensers, etc.
See detailed product info below.
Unit: mm
No. | Name | Qty. | Unit | Material | Remark |
1 | Component | 1 | PCS | NTC thermistor | |
2 | Epoxy | 1 | PCS | Epoxy resin | Black |
3 | Wire | 2 | PCS | AF200 28AWG 7/0.12 OD0.8 | Black |
Item | Symbol | Test Condition | Performance | Unit |
Rated resistance | R25 | +25℃±0.02 | 10±1% | kohm |
B value | B25/50 | 25±0.02℃, +50±0.02℃ | 3950±1% | K |
Time constant | τ | in still air | ≤ 16 | Sec. |
Dissipation factor | δ | in still air | ≥ 2.1 | mW/℃ |
Voltage withstanding | U | AC 750V (Peak value) | No destroy or spark | V |
Insulation resistance | Ri | DC500V | ≥ 100 | Mohm |
Max. power | Pmax | Ambient Temp. +25℃ | 60 | mW |
Operating Temp. range | Topr | — | -40 ~ +125 | ℃ |
Declaration: The price showing here only for your reference,It is may not the final actual transaction price,due to raw material costs and exchange rate changes frequently, also your requirements(includes but is not limited to the specification, model, workmanship,quantity per time, quality requirements,customized service) different to this product information.
About us
Focusens is a Chinese sensor expert that have more than 15 years manufacturing experience. We are committed to provide high quality thermal components, NTC thermistors, PTC thermistors, NTC sensors, PT100 PT1000 RTD sensors, thermocouples, silicone liner PTC sensors, DS18B20 STS35 digital temperatures, etc.
Our activities cover all over the world. Key players like Bosch, Schneider Samsung as well as Chinese manufacturers like Galanz, Medtronic, Mindray, BYD etc. are among our clients list.
Flexible custom designs and prompt delivery are our always advantages. Meanwhile we accept OEM on customers design.
Contact us now for details and improve projects efficiency with our expertise.
Custom Designs

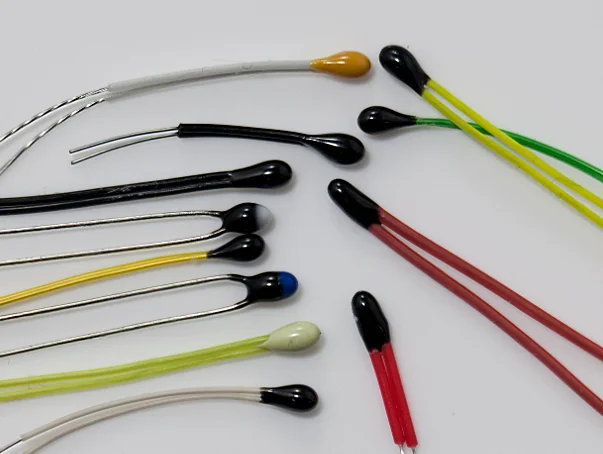

Focusens also accept customized business. If you are looking for a temperature sensor with your special requirements, tell it to us and we will provide suitable solutions to you.
All parameters can be customized. Please see below information for your reference.
Part A: Sensing Elements
Item | Specification |
Thermistor | NTC, PTC |
RTD series | PT10, PT20, PT100, PT200, PT500, PT1000 |
Digital series | DS18B20, STS35, TMP117 etc. |
Analog series | LM35 |
Part B: Housings
Part C: Wires
Item | Specification |
AWG | 18, 20, 22, 24, 28 etc. |
Material | PVC, Teflon, Silicone, Fiberglass |
Outer diameter | 2.5mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm |
Part D: Connectors
1. Stable supply capacity. With near 10 years manufacturing experience, over 7 years export experience, Focusens promise you a guaranteed quality, quantity and lead time.
2. Quick products iteration. Focusens possesses multiple production lines, therefore whatever your requirements are, a quickly respond can be provided.
3. Efficient service. Your request will be responded no more than 12 hours.
Certificates
\t\t\t\t\t\t\t\t\tFactory Tour \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
1. How can I get samples?
Discuss to one of our sales, tell him or her your requirements. After confirmed details, we will arrange samples production. Customer need to pay for shipping cost. (Check with sales whether your samples can be free)
2. When can I receive samples?
Normally it takes 15-30 days to produce samples.3. How to pay?
We accept Telegraphic Transfer and Trade Assurance. Negotiate with sales if you have questions.
4. Do you accept customized?
Yes, we accept ODM&OEM. Products can be customised upon customer's requirements.
5. How long is your lead time?
Generally, 2-3 weeks for regular products. Sometimes, it needs more time to prepare materials and do more tests to ensure products' accuracy.
How to ensure the quality of your order products?
