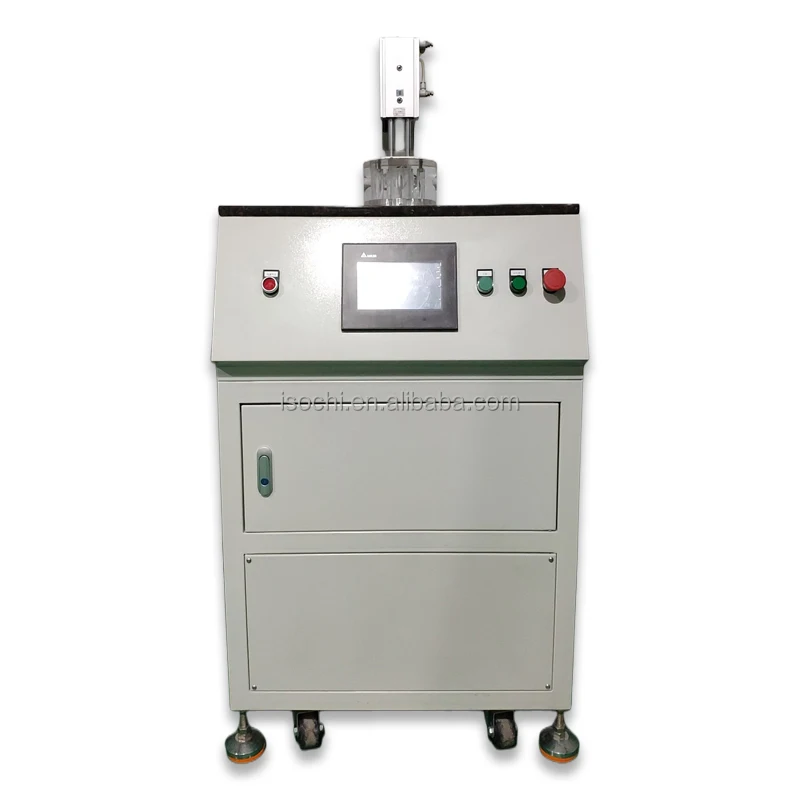

Хорошее качество ISC-QY02 автоматическая машина для резки образцов микро-секции
44 499 665,00 ₽

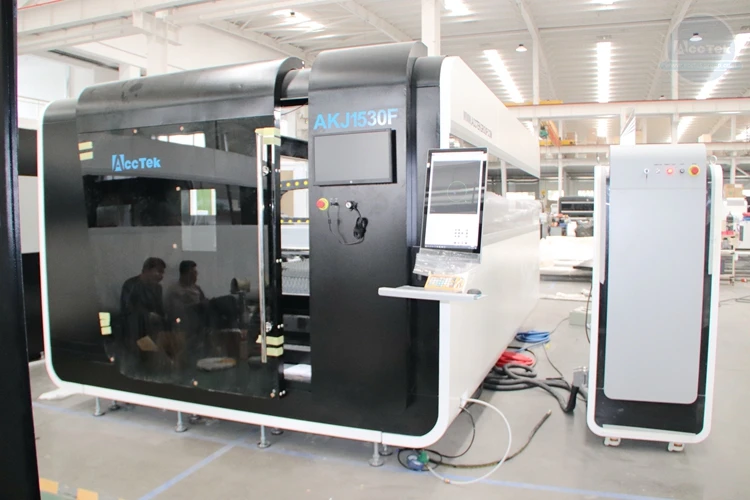

1000 Вт 2000 3000 волоконная лазерная машина для резки волокна 8 мм алюминия AKJ1530FB
- Категория: >>>
- Поставщик: Acctek Machinery Co. Ltd.(shandong)Acctek Ltd.(shandong)
Сохранить в закладки 1600296098247:
Описание и отзывы
Характеристики
1000W 2000W 3000W fiber laser cutting machine lazer machine laser cutting fiber for cut 8mm aluminum AKJ1530FB
Why choose us?
ACCTEK fiber laser cutting machine adopts RAYCUS/ IPG laser source which has international advanced laser technology. Equipped with an efficient transmission system by Taiwan high-precision gear rack after grinding process and high-precision linear guide. Advanced Cypcut control system, group into high precision CNC fiber laser cutting machine.
Product Description
Configuration of fiber laser cutting machine
#Fully enclosed heavy duty structure 5000KG
#Raycus/IPG laser generator
#Raytools brand cutting head
#Cypcut FSCUT2000C controller system with wireless hand-wheel
#X Y axis Japanese Yaskawa servo motor 850w
#Z axis Japanese servo motor 400w
#Taiwan APEX gear and rack
#Taiwan lappling guide rails 30mm
#Rack and pinion transmission
#Japanese SMC/Airtac pneumatic element
#Industrial water chiller
#French MOTOVARIO reducer
#French Schneider Electronic components
#Computer
#10 pcs of cutting nozzle
#5 pcs of protection lens
#2 pcs of ceramic ring
Configurations & technical parameter | ||
Working area | 1500*3000mm | |
Control System | Cypcut controller with wireless hand-wheel | |
Laser head | Raytools brand | |
Guide rail | Taiwan Lapping linear guide rail 30mm | |
Transmission | Rack and pinion transmission | |
Electronic Components | French Schneider | |
Motor | X axis Japanese Yaskawa servo motor Y axis Japanese Yaskawa servo motor Z axis Panasonic servo motor | |
Max Cutting Speed | 35m/min | |
X axis max speed | 65m/min | |
Y axis max speed | 70m/min | |
Z axis max speed | 30m/min | |
Cooling Way | Water Cooling | |
Min line width | 0.1mm | |
Power Requirements | 380V ,50/60hz ,3 phases | |
Machine Details

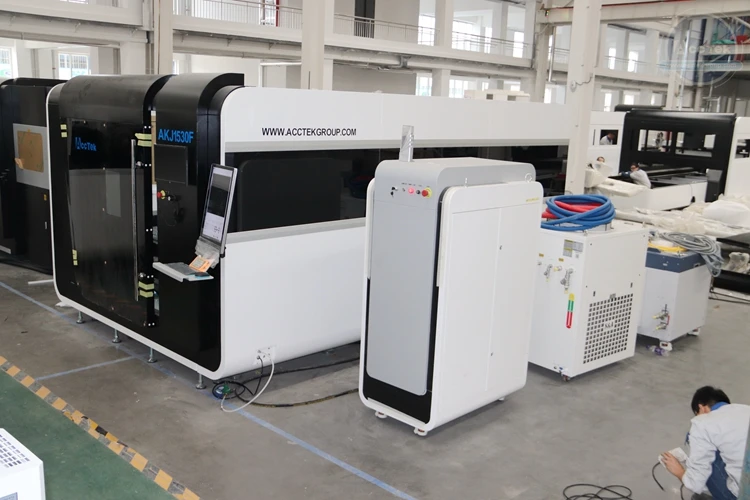

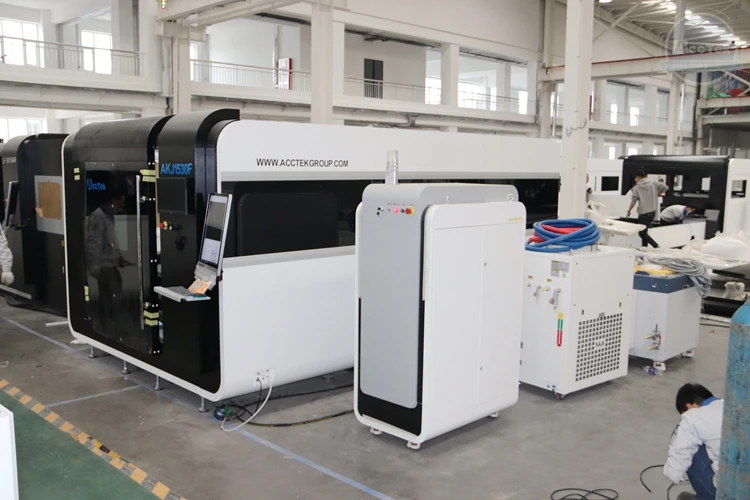

Heavy duty structure 5000kg
Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
Raytools laser generator
Highly dust-proof: the dust-proof grade is IP65, and the light path is fully enclosed, so the possibility of lens contamination is almost zero. Efficient water cooling: The focusing lens, collimating lens and nozzle have built-in cooling function, which can solve the problem of cutting heating.
Cypcut FSCUT2000C controller
Advanced technology, suit for all kinds of metal materials cutting. Automatic optimization of imported graphics, Concise and clear process settings, For the use of machine tools, it can provide rich and timely statistics. Accurate edge finding aid.
Yaskawa servo motor 850w
Faster speed with signal feedback .Low heat radiation .Run smoothly at ultra-low speed.
Simple operation, excellent stability, high-speed,high-precision processing can be achieved,even if the machine has not been
replaced for many years or the equipment has different differences,there will be no oscillation,and stable operation can be
achieved.
Simple operation, excellent stability, high-speed,high-precision processing can be achieved,even if the machine has not been
replaced for many years or the equipment has different differences,there will be no oscillation,and stable operation can be
achieved.
Samples
Packing & Delivery
1. Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool
2. Fumigation wooden box
3. Whole film packaging machine
4. The package is tandard exporrt plywood box,customized for every size machine.
2. Fumigation wooden box
3. Whole film packaging machine
4. The package is tandard exporrt plywood box,customized for every size machine.
Our Services
1. 24 months guarantee of the whole machine. 1.5 years for fiber lase generator.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our technician can be sent to your company to install or calibrate if necessary.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our technician can be sent to your company to install or calibrate if necessary.
Company Profile
Похожие товары
Высокоскоростной 1315 волоконно-лазерный гравировальный станок для резки 3KW металлический лазерный резак
1 130 037,21-1 500 274,42 ₽
Cnc вибронож лезвие кожаная текстильная ткань пены ПВХ cardbox углерода prepreg стекловолокна режущий плоттер машина

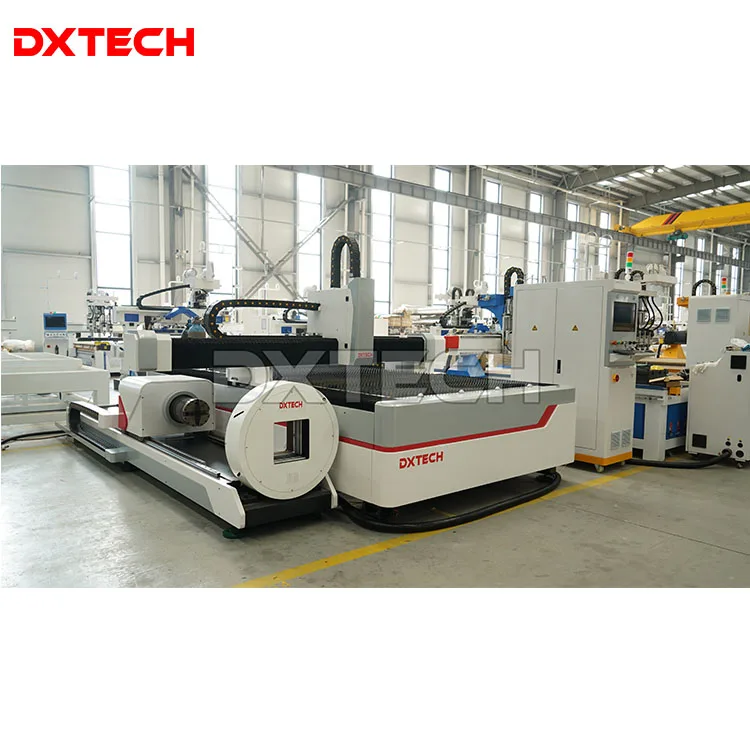

Dxtech высокой точности 3015 Raycus Ipg Max 1000w 1500w 2000w 3000W 4000W 6000W волоконно-оптический лазерный станок для резки листового металла цена
