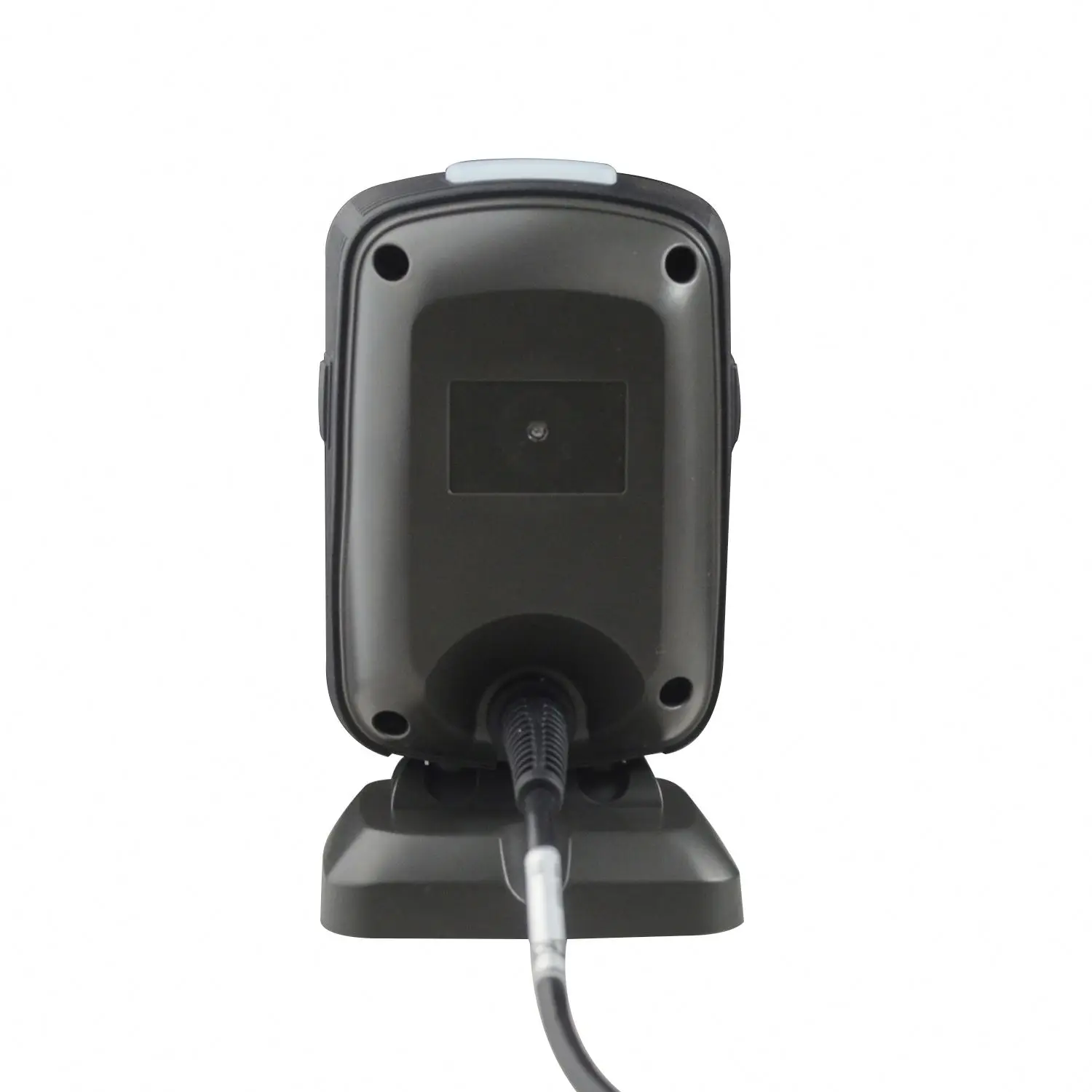

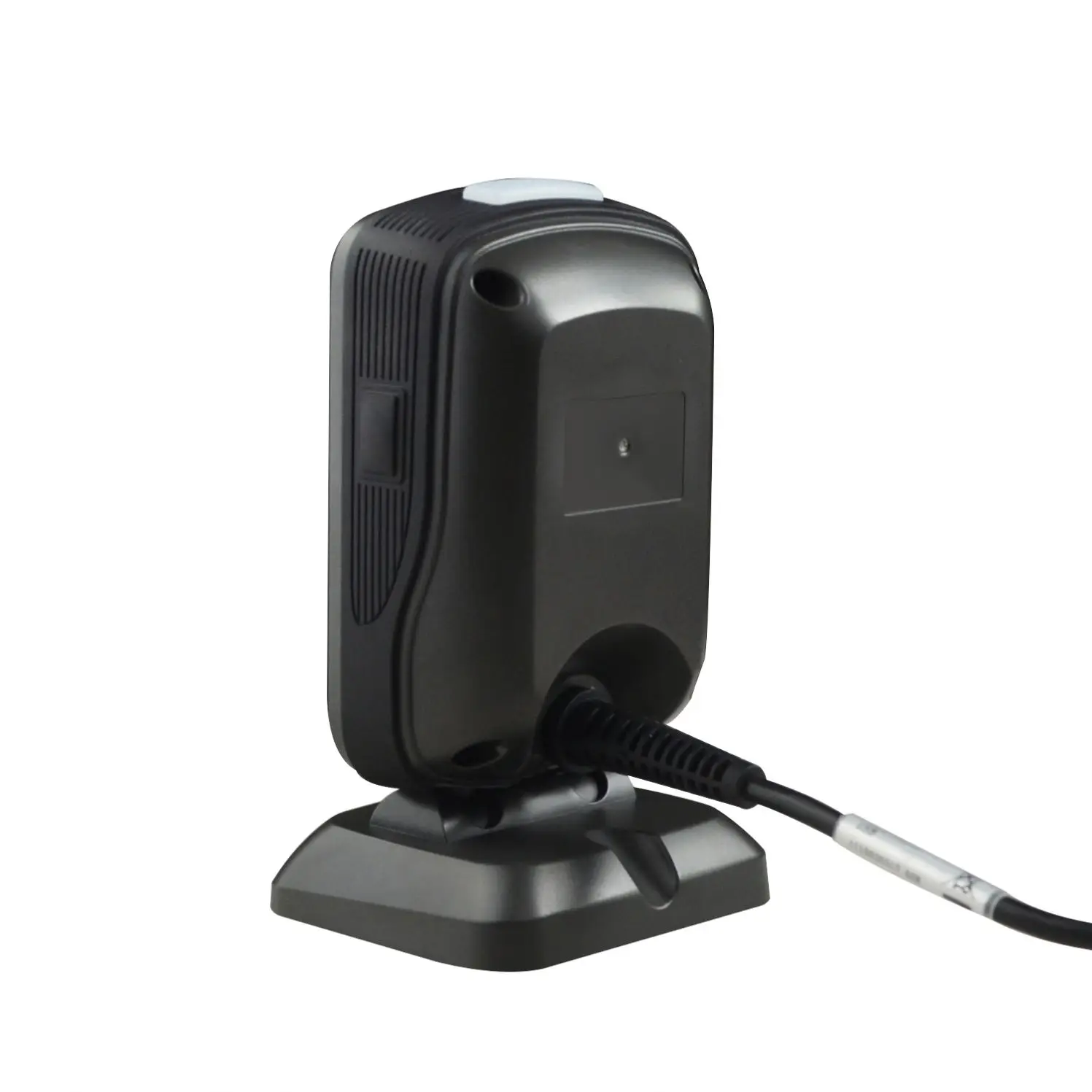

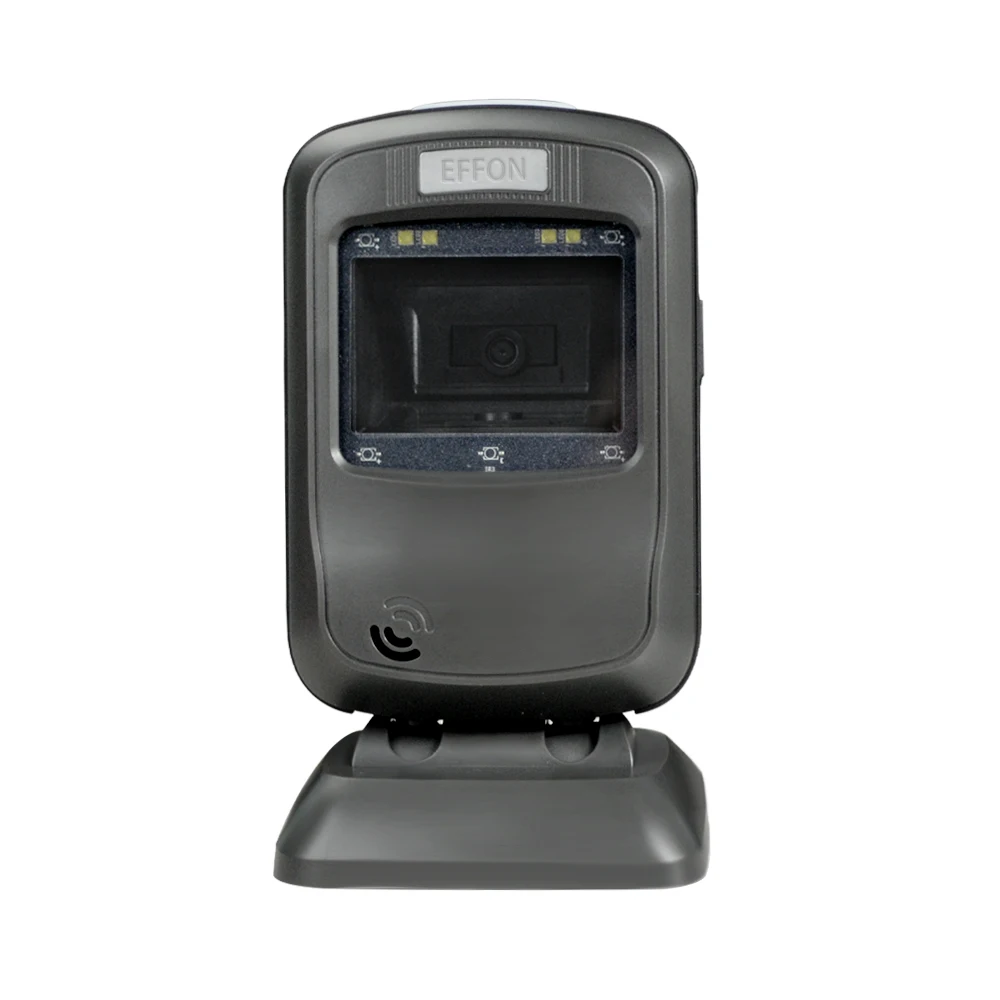

The TS40 barcode scanner is area imager, omnidirectional presentation scanner is capable of reading 1D/2D barcodes printed on paper or displayed on a mobile phone screen.
Designed for a wide variety of applications in retail such as Pharmacy, Cosmetics & drug stores, smaller sized stores, kiosks and in a ticketing booth for reading and validating mobile or paper tickets.
Features:
- fast 1D & 2D barcode scanning
- omnidirectional scanning
- reading from LCD glass

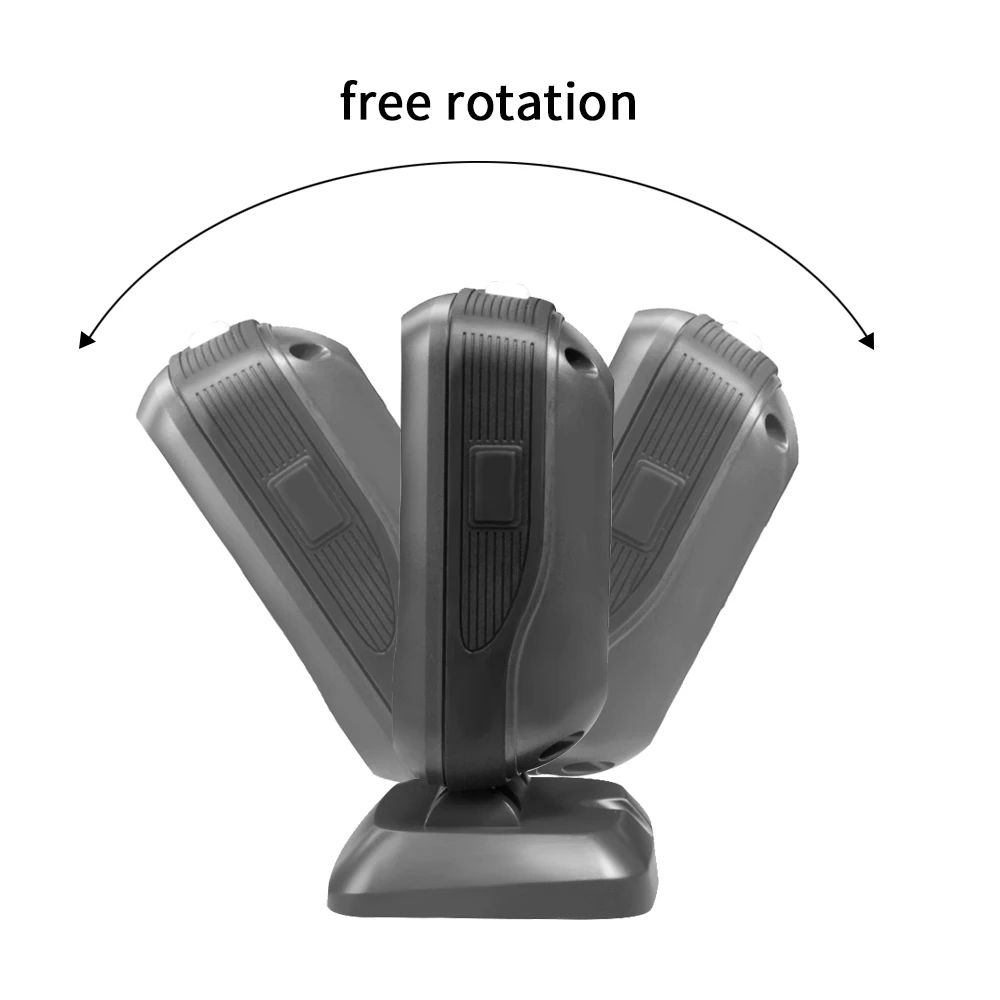

- hand or stationary scannig
- excellent motion tolerance of 2m/s
- IP50 certified housing
Characteristics:
Image Sensor: CMOS
Pixels: 752×480
2D barcodes: PDF417, QR Code(Model 1/2), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Aztec, Maxicode, etc.
1D barccodes: Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc.
Precision: min 5mil
Motion Tolerance: 2m/s
Minimum Symbol Contrast: 25%
Interface: USB or RS232
Dimensions: (L x W x H)83×81×148mm
Weight: 292g
Notification: Beep, LED
Certification: IP50
Operating Temperature: -20°C ~50°C
Storage Temperature: -20°C ~ 70°C
