Прямая продажа с завода 49 дюймовая панель мультисенсорного дисплея комплект для наложения ИК сенсорного экрана Smart TV можно
- Категория: Monitors >>>
- Поставщик: Shenzhen Yongchuangli Electronic Technology Co. Ltd.
Сохранить в закладки 1600296820601:
Описание и отзывы
Характеристики
Factory direct sales, our advantage is that the border is thinner and narrower.
Product Description
Specification of Infrared Touch Screen | |
| Touch Screen Size | 32" |
| Touch Points | 20-point touch |
| Minimum Recognition Point Size | 4mm*4mm |
| Supporting resolution | 32768×32768 |
| Touch Response Time(Multi touch) | 10-15ms |
| Touch Response Time(One touch) | 7ms |
| Input method | Any opaque touches, such as fingers, brushes, etc. |
| Calibration | 4-point calibration |
| Number of clicks | nfinite times |
| Touch pressure | No pressure requirement |
| Interface type | 1.5 m USB cable receptacle, the receptacle 5P |
| Line length | 1.5m |
| Frame Material | Aluminium alloy |
| Glass Material | Toughened glass |
| Characteristic | Easy installation, strong compatibility |
| Scanning frequency | >110Hz |
| communication interface | USB 2.0 |
| Power supply mode | USB 5.0V |
| Working Voltage and Current | 4.75~5.25V , ≤200mA |
| Humidity | Up to 90% RH from 0°C to +40°C, non-condensing |
| Temperature Range | Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃ |
| LED Lifetime | 60000hours |
| Fault-tolerant | Able to work if less than10% non-consecutive sensors are damaged |
| Anti-light Interference | Excellent |
| ESD | EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge |
| Firmware Upgrade | USB Upgrade: Windows 8,Windows 7 |
| Support OS(Multi touch) | Windows10,Windows8,Windows7,Andriod |
| Support OS (One touch) | WindowsXP,MacOS.Linux |
Infrared touch frame Features:
1.Ultra-thin and ultra-narrow frame, aluminium alloy shell.
2.High touch accuracy and smooth writing.
3.Driver-free support for multiple operating systems.
4.Long service life, maintenance-free.
5.Toughened glass material, with high transmittance, strong stability.
6.Strong anti-jamming ability, anti-static performance of industrial ESD.
7.Response speed (less than 15 milliseconds), sensor discontinuous damage 10%, can still work.
8.No special touch tools are needed, just opaque objects.
2.High touch accuracy and smooth writing.
3.Driver-free support for multiple operating systems.
4.Long service life, maintenance-free.
5.Toughened glass material, with high transmittance, strong stability.
6.Strong anti-jamming ability, anti-static performance of industrial ESD.
7.Response speed (less than 15 milliseconds), sensor discontinuous damage 10%, can still work.
8.No special touch tools are needed, just opaque objects.

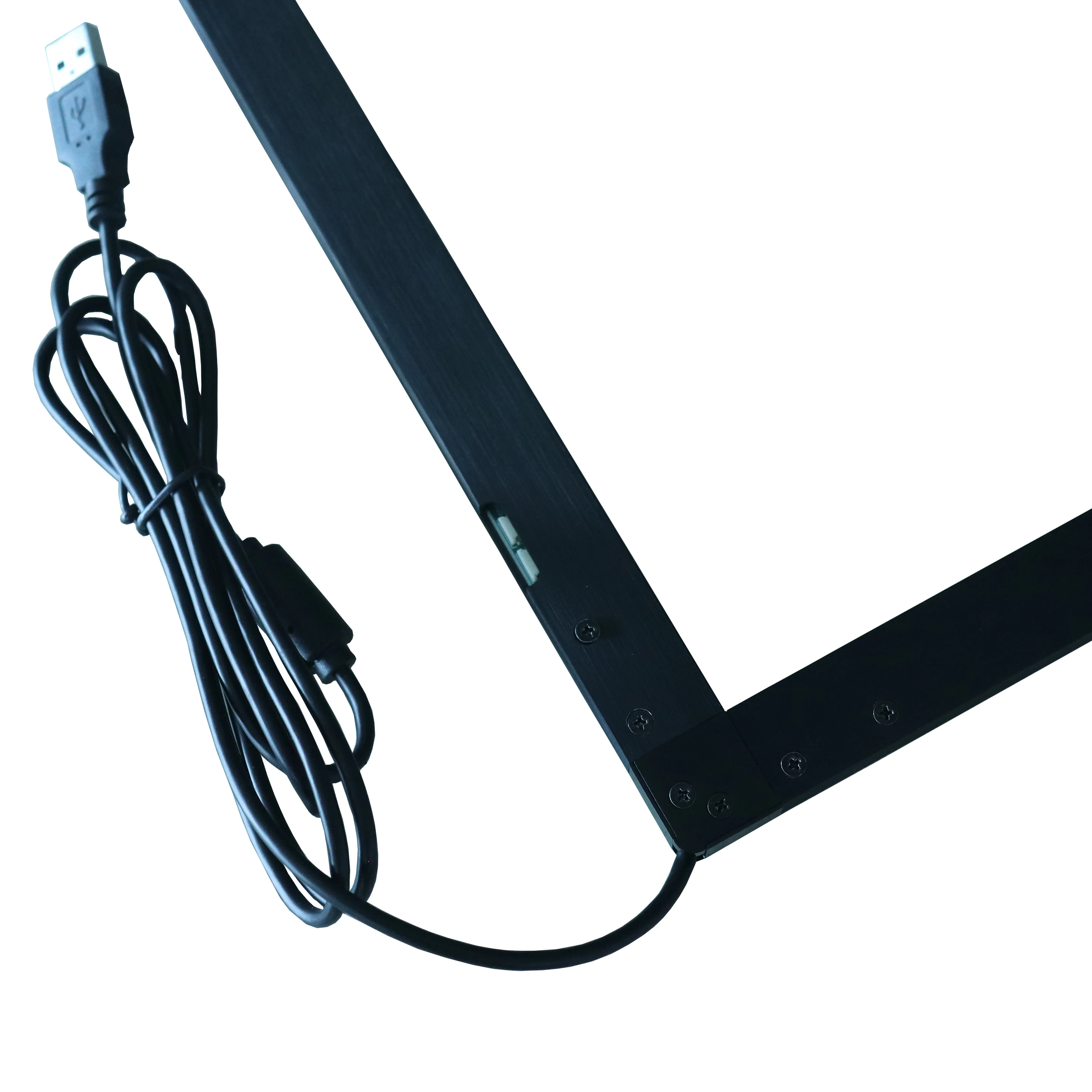

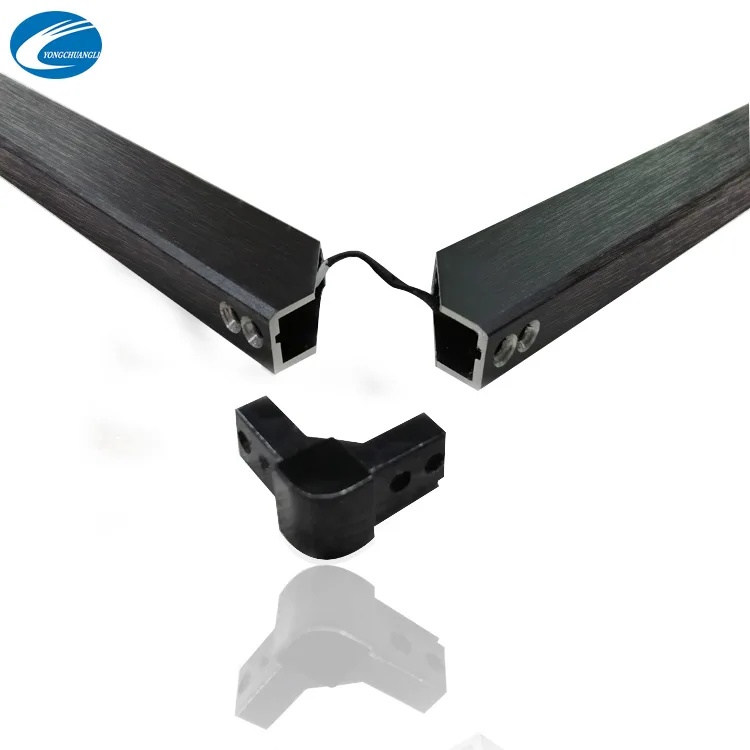

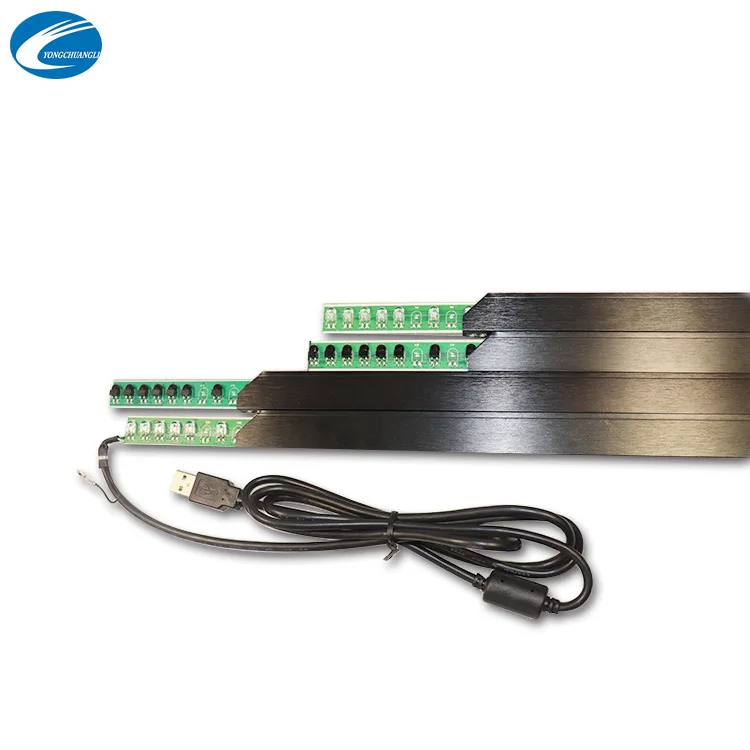

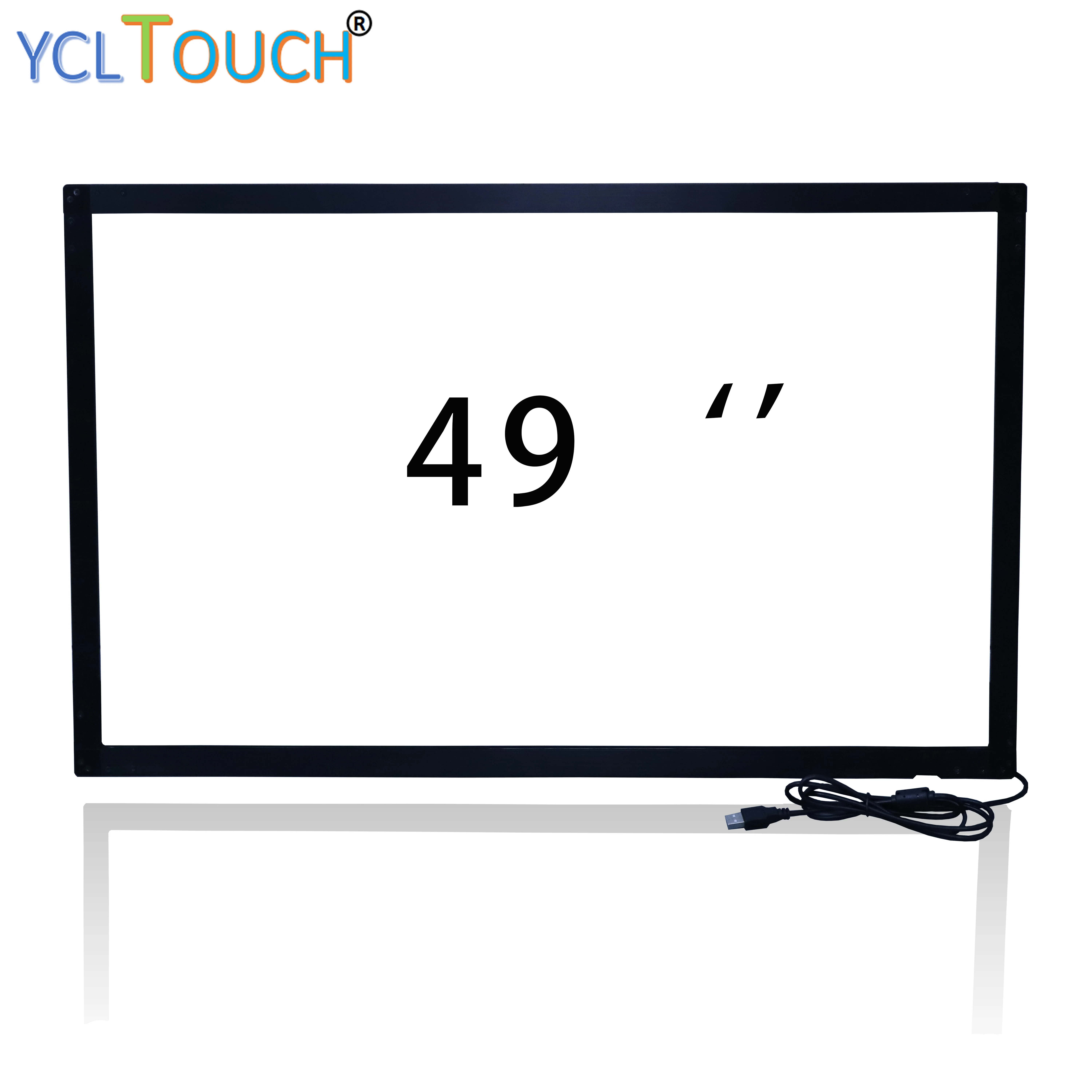

Detailed Images
Company Information
Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.
Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.
Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.
Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!
The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.
Packing

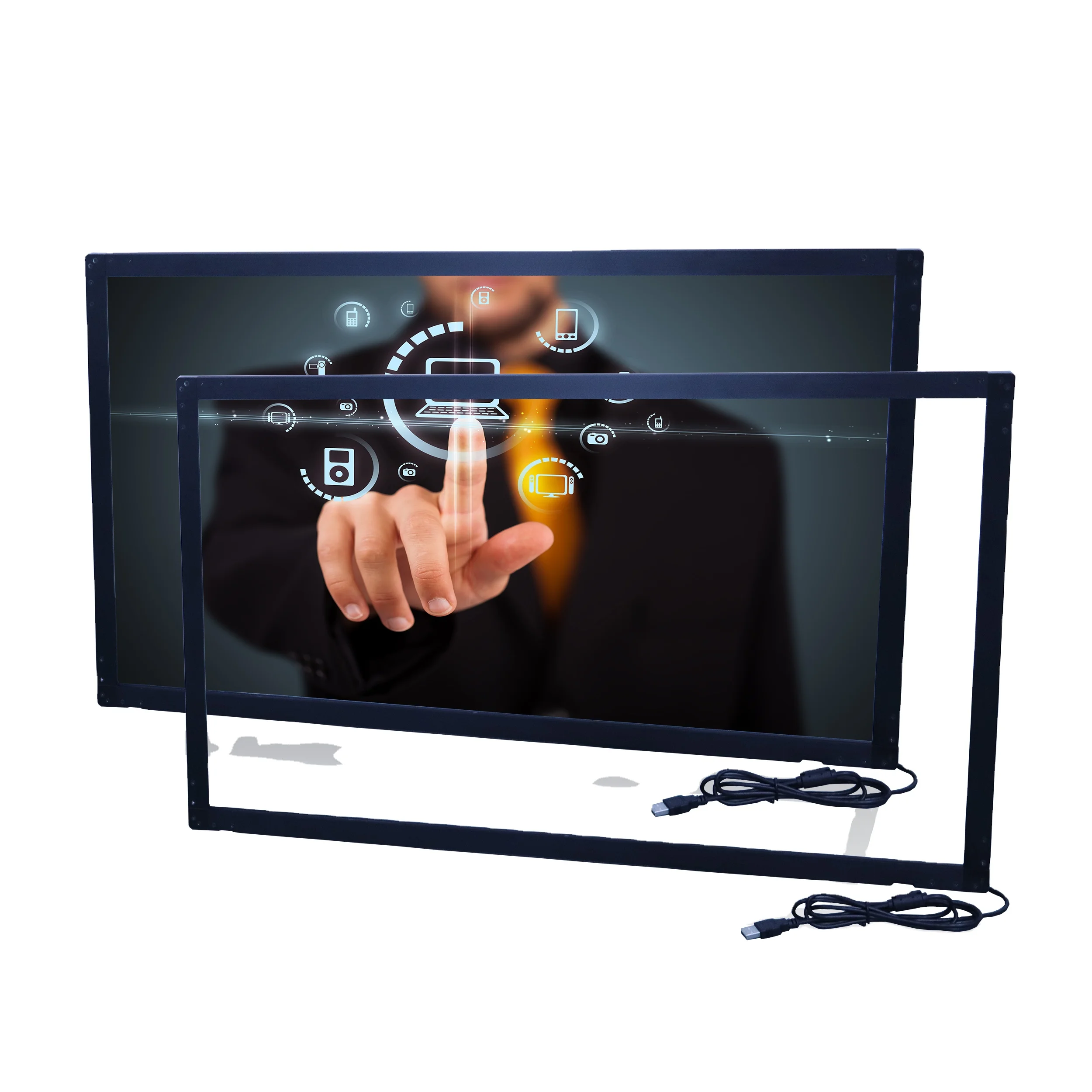

Product application
