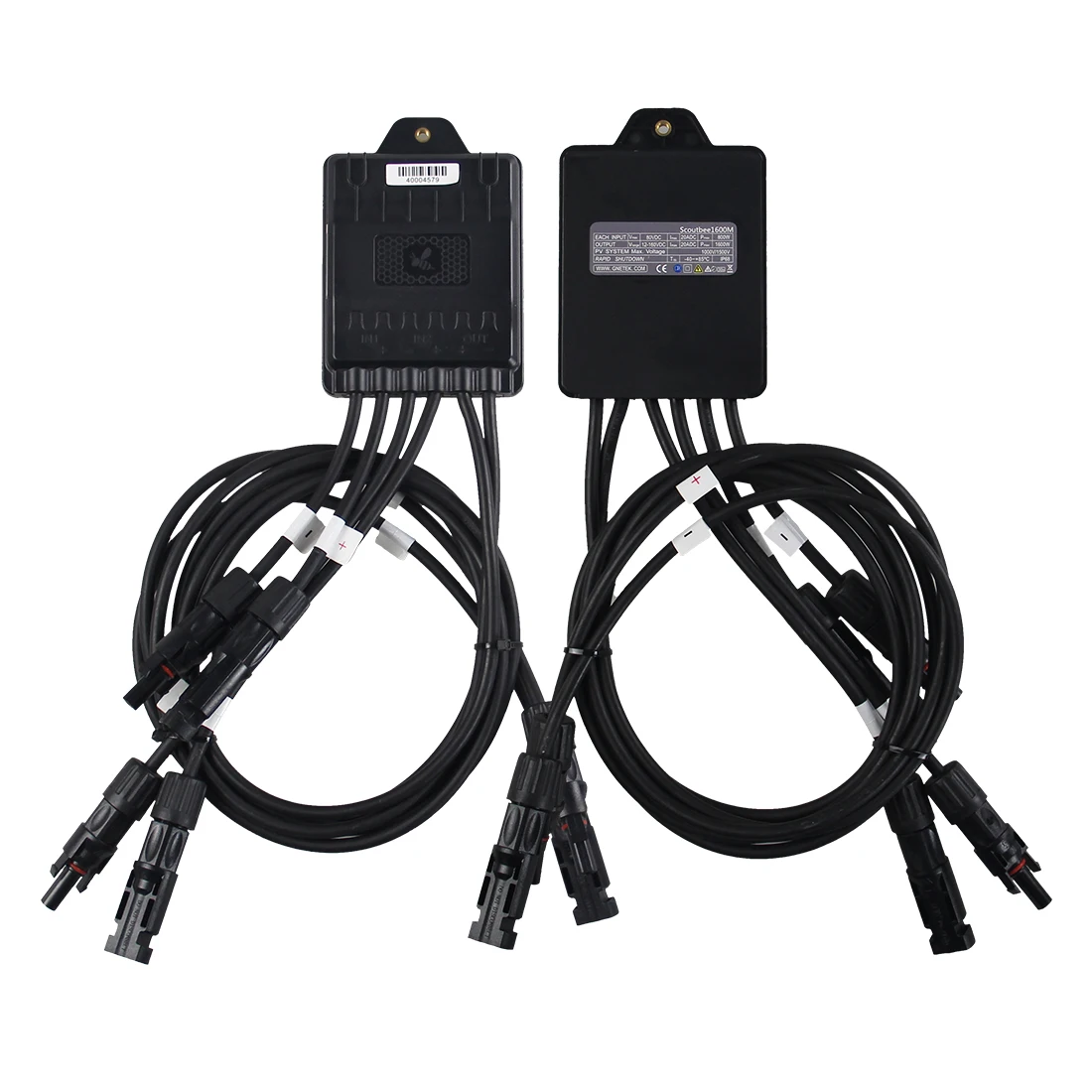

Gne солнечные панели системы mppt оптимизатор устройства быстрого отключения модуль управления переключателем мониторинга scoutbee 800/800 м 1600/1600
1 986,04-2 204,16 ₽
В наличии система солнечных батарей контроль MPPT PV оптимизатор быстрое отключение фотоэлектрическая панель
- Категория: >>>
- Поставщик: Shanghai Sdo Energy Technology Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1600300334896:
Описание и отзывы
Характеристики
Monitoring+Rapid Shutdown Function
Note: The monitoring and rapid shutdown functions need to be implemented by the gateway, only MPPT function does not require a gateway. >>Click To Buy Communication Gateway<<
● 1pcs SP-G can work with 500pcs SP-1 simultaneously
● SP-G also has the function of SP-1
SP-1 | ||
SPECIFICATION | ||
Size | 108.2*88*16.5mm | |
Weight | 360g | |
Input wire length(customizable) | 300mm(+)/300mm(-) | |
Output wire length(customizable) | 1000mm(+)/1000mm(-) | |
Connector | MC4/MC4 compatible | |
IP Grade | IP68 | |
ELECTRIC PERFORMANCE PARAMETER | ||
Rated Power | ＜0.3W | |
Working Temperature Range | -40℃~85℃ | |
Input Voltage Range | 8~60V | |
Maximum Input Current | 20A | |
Maximum Input Power | 700W | |
Communication Method | Wireless | |
Maximum Communication Distance | 100m | |
Maximum System Voltage | 1500V | |
Current Detection Accuracy | ±0.1A | |
Voltage Detection Accuracy | ±0.2V | |
Temperature Detection Accuracy | ±2℃ | |
Real-Time Monitoring
Minute-level data monitoring, millisecond-level data response. Even if you are far away, you can grasp the power generation status of PV modules in real time through multiple channels such as web, APP, and small programs.
Optimization and Improvement
MPPT to ensure the maximum power output of solar modules. Recover the power loss of solar modules caused by factors such as shadow occlusion and different solar cell attenuation.
Safe and Fast Shutdown
After the smart device detects a high- riskpower generation abnormality, it will actively shut down the output of the solarmodule within milliseconds, giving priorityto the safety of personnel and systems.
Low power consumption
The daily working power is less than 0.3W, and the impact on the power generation of solar modules is minimal.
Long working years
Selected and reliable components, double standard test conditions, and strive to guarantee the same working life as solar modules.
Easy Installation Process
The different appearance design of the input and output ends, the one-to-one matching of equipment and solar modules, and the use of MC4compatible connectors greatly simplify the installation process.
MPPT Function
The power optimizer uses a unique software algorithm that can track the maximum power point of a single module in real time. The user can choose different types of products according to the actual operating conditions of the photovoltaic system to solve the problem of occlusion or component electrical specifications. Differences caused by the reduction of photovoltaic system power generation, to achieve the maximum power output of a single module and online monitoring, improve system efficiency.
SP-1-O | ||||
INPUT PARAMETER | ||||
Maximum Input Power | 460W | 600W | ||
Operating Voltage Range | 9~55V | 3~70V | ||
MPPT Operating Range | 13~50V | 8~70V | ||
Maximum Input Current | 13A | 15A | ||
Over-current Protection | 16A | 18A | ||
Over-temperature Protection | 160℃ | 160℃ | ||
OUTPUT PARAMETER | ||||
Maximum Output Current | 13A | 15A | ||
Theoretical Maximum Output Voltage | 65V | 65V | ||
Output Voltage Limiting Threshold | 40V/Adjustable | 40V/Adjustable | ||
Total Maximum String Voltage | 1500V | 1500V | ||
72 Type Module String@1500 V | 37 Modules | 37 Modules | ||
72 Type Module String@1100 V | 27 Modules | 27 Modules | ||
72 Type Module String@1000 V | 25 Modules | 25 Modules | ||
OUTPUT PARAMETER | ||||
Peak Conversion Efficiency | 99.59% | 99.59% | ||
Power Consumption@5 A | 0.9W | 0.9W | ||
Power Consumption@8 A | 1.4W | 1.4W | ||
Power Consumption@12 A | 2.9W | 2.9W | ||
Power Consumption@15 A | 4.5W | 3.8W | ||
SPECIFICATIONS | ||||
Dimensions（L×W×H） | 106*105*22 mm | 106*105*22 mm | ||
Input cable length | 700mm(+)/700mm(-) | 700mm(+)/700mm(-) | ||
Output cable length | 1000mm(+)/1000mm(-) | 1000mm(+)/1000mm(-) | ||
Connector | MC 4/MC 4 compatible | MC 4/MC 4 compatible | ||
Operating Temperature | -40~+85℃ | -40~+85℃ | ||
Range Protection Rating | IP68 | IP68 | ||
FUNCTION | ||||
Standard Features | Optimization/Voltage Limiting/Anti-Hotspot | |||
Certifications

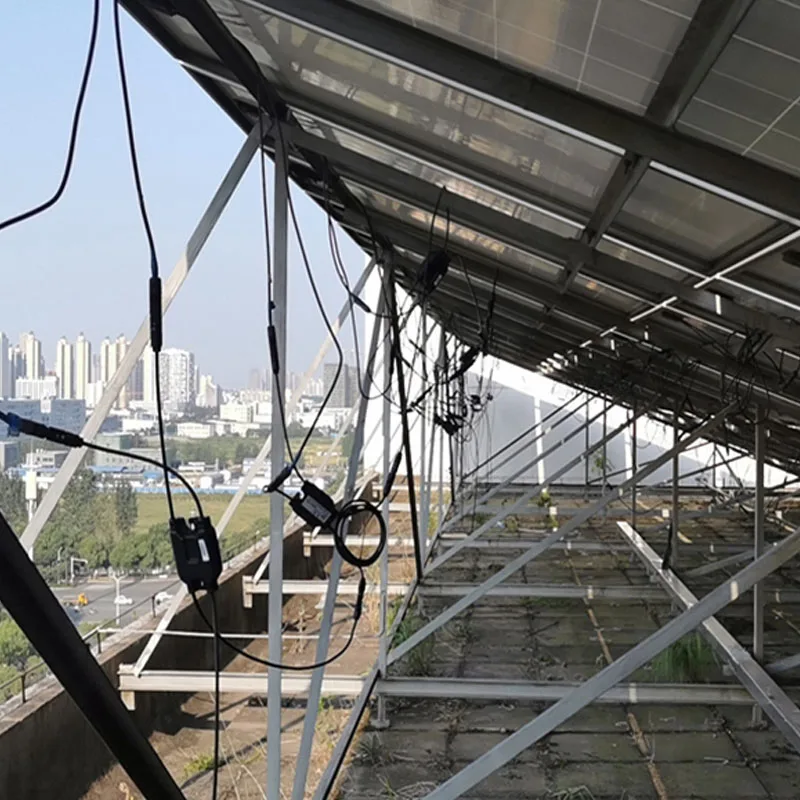

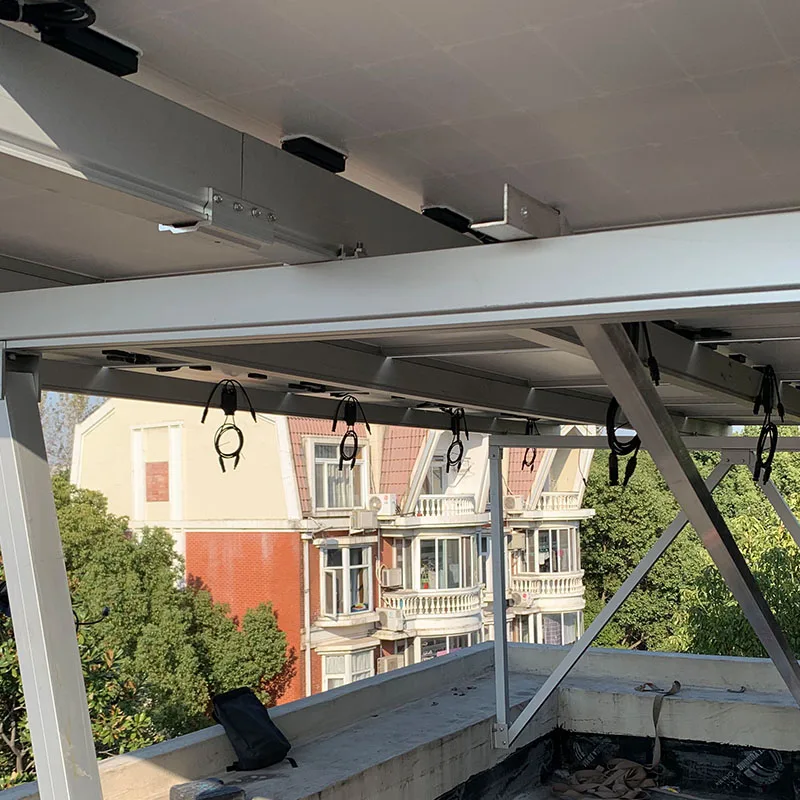

Project Display

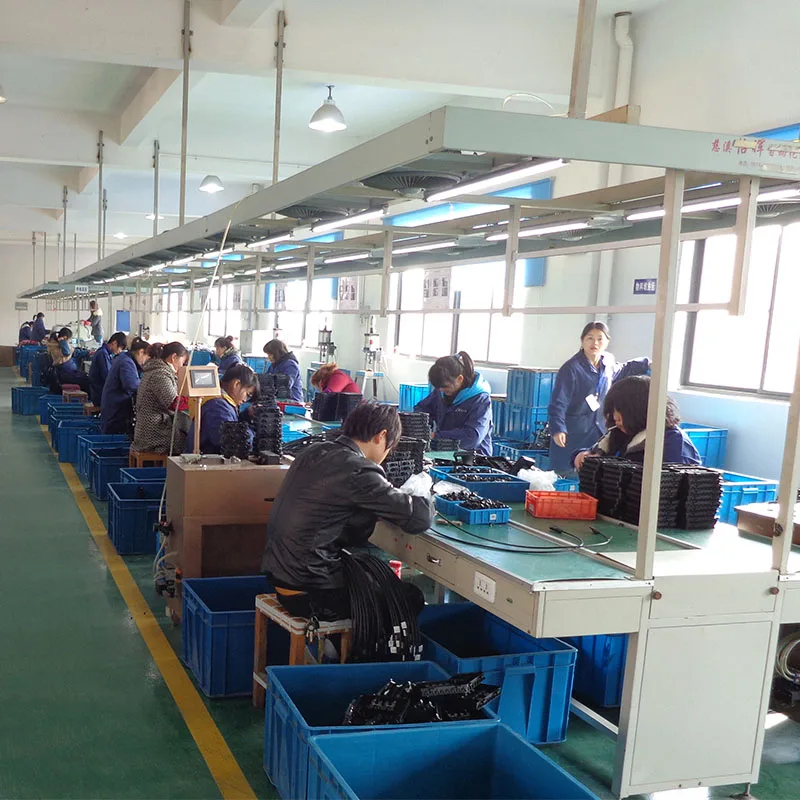

Company Information

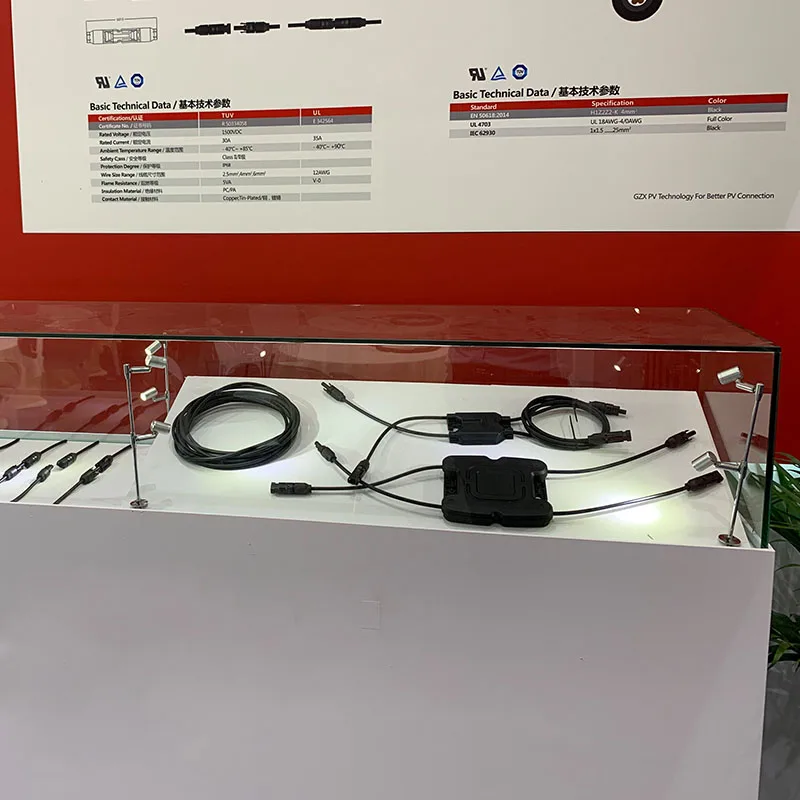

Exhibition
Packaging&Shipping
FAQ
1) Are you a factory or trading company?
We have our own factories located in Cixi, Zhejiang and Chongqing.
2) What is your FOB port?
FOB Shanghai, and we can according to customer requirements.
3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.
4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very easy and effective to reach you. Also our 24 hours online inquiry service is available.
5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.
6) Is your monitoring system software free?
Yes, and we will save your power generation data more than 20 years if you need.
7) Can we get the original power data on our service?
Yes, we can send the original power data to your service.
We have our own factories located in Cixi, Zhejiang and Chongqing.
2) What is your FOB port?
FOB Shanghai, and we can according to customer requirements.
3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.
4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very easy and effective to reach you. Also our 24 hours online inquiry service is available.
5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.
6) Is your monitoring system software free?
Yes, and we will save your power generation data more than 20 years if you need.
7) Can we get the original power data on our service?
Yes, we can send the original power data to your service.
Похожие товары

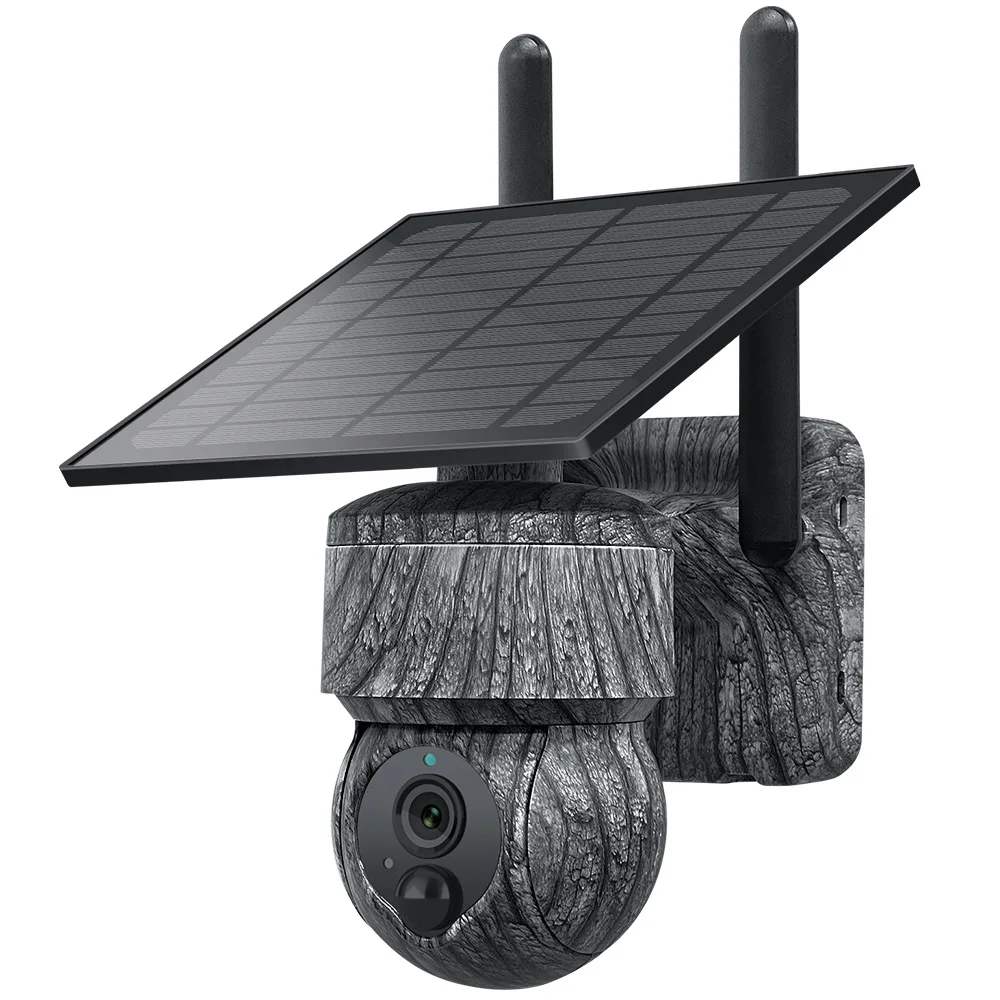

Наружные камеры безопасности на солнечных батареях
Новая модель Заводская поставка высокое качество солнечное зарядное устройство настенное 7kw/11kw/22kw быстрая зарядка автомобилей EV
19 478,05-21 924,43 ₽

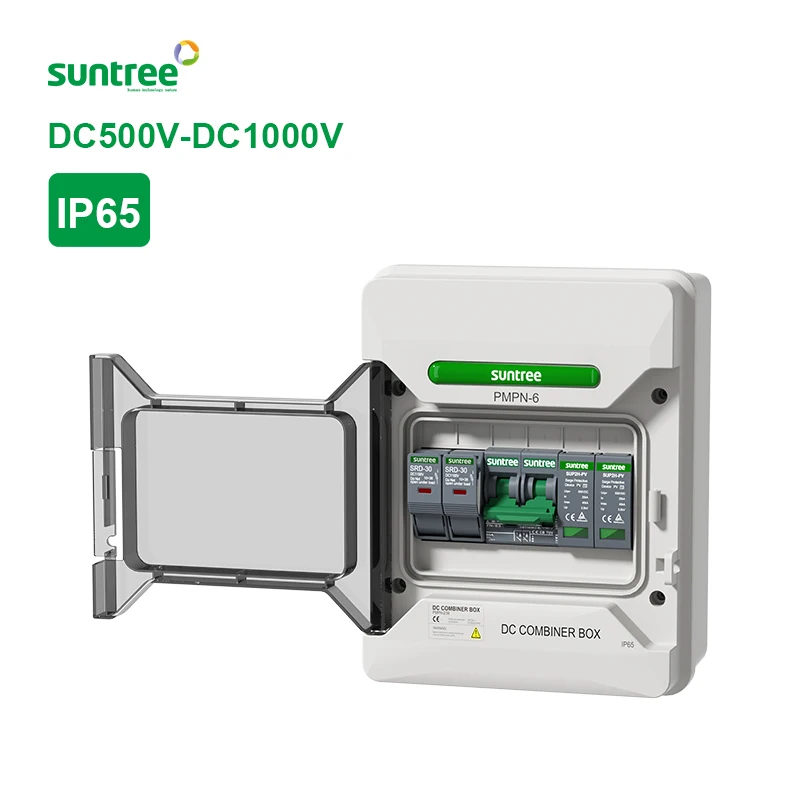

Распределительная коробка для солнечной системы постоянного тока suntree
5 739,98-11 479,96 ₽

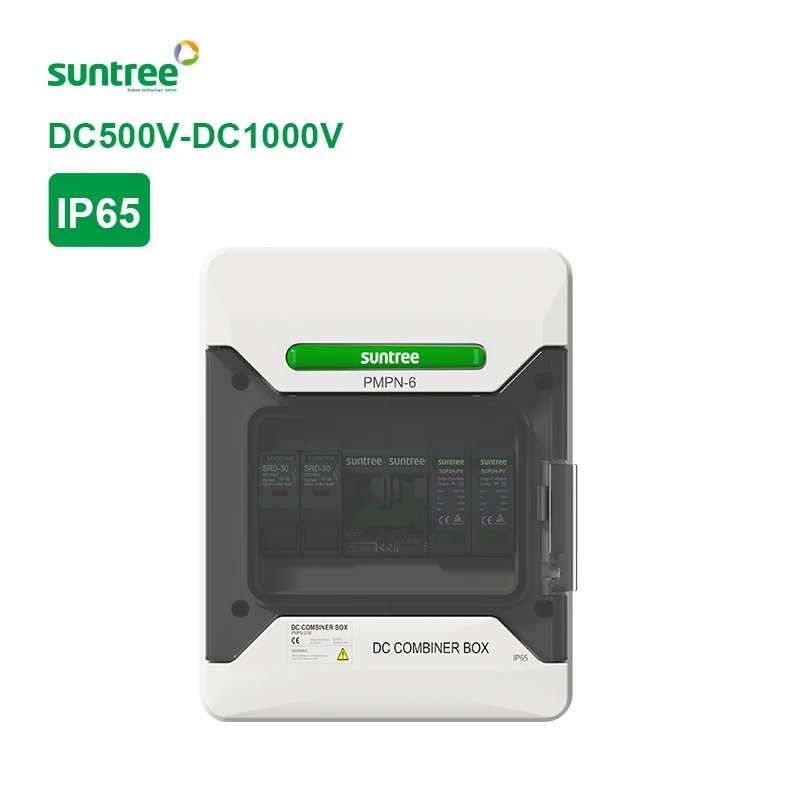

Водонепроницаемая распределительная коробка 1000 В 1-4
5 739,98-11 479,96 ₽

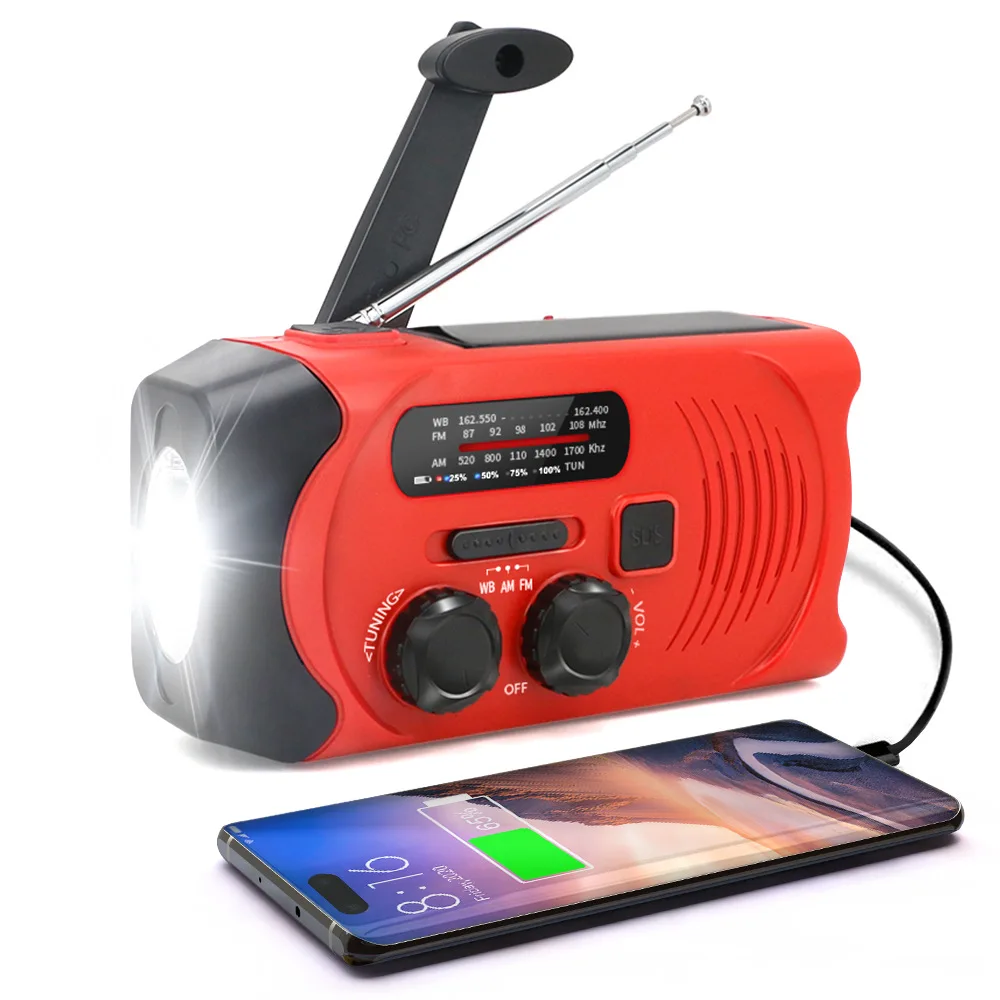

Портативное радиовещательное оборудование для наружного и домашнего использования с солнечной батареей
1 320,20-1 418,93 ₽

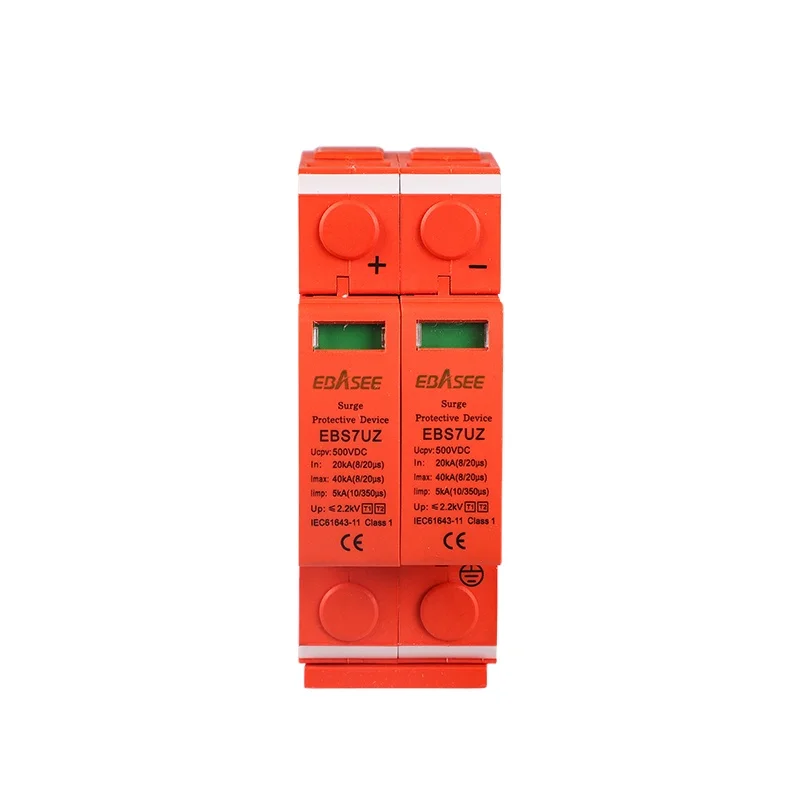

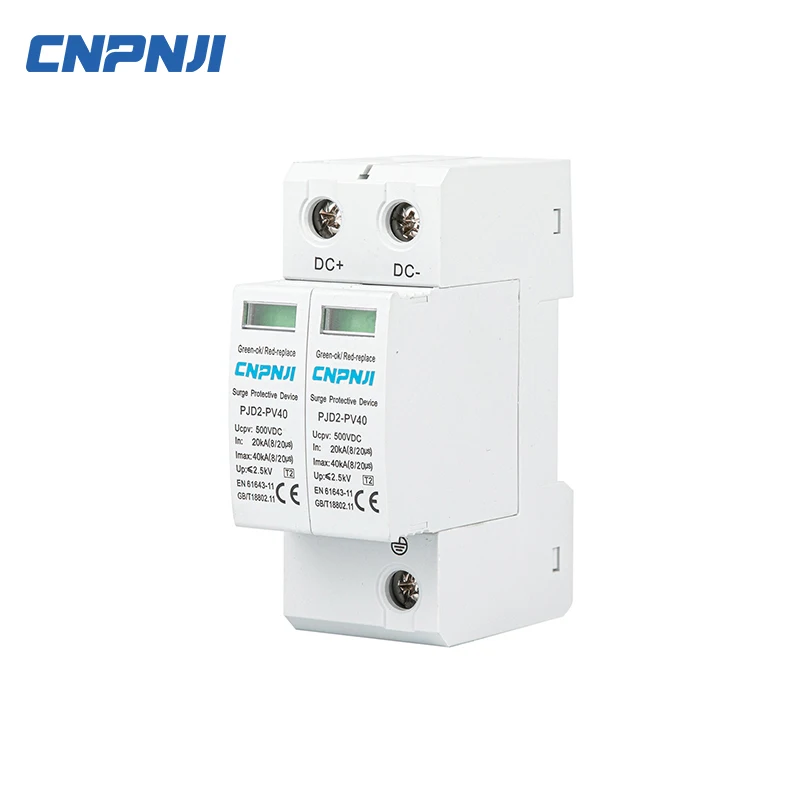

DC SPD устройство защиты от перенапряжения 1 полюс для солнечной энергетической системы
