Полностью автоматическая машина для обжима проволочной сетки от производителя
6 000,00 $ - 8 000,00 $
Лидер продаж строительная сетка brc машина для производства сварной проволочной сетки
- Категория: Wire Mesh Making Machines >>>
- Поставщик: Fine Fasteners Industry Co. Ltd.
Сохранить в закладки 1600300606906:
Описание и отзывы
Характеристики

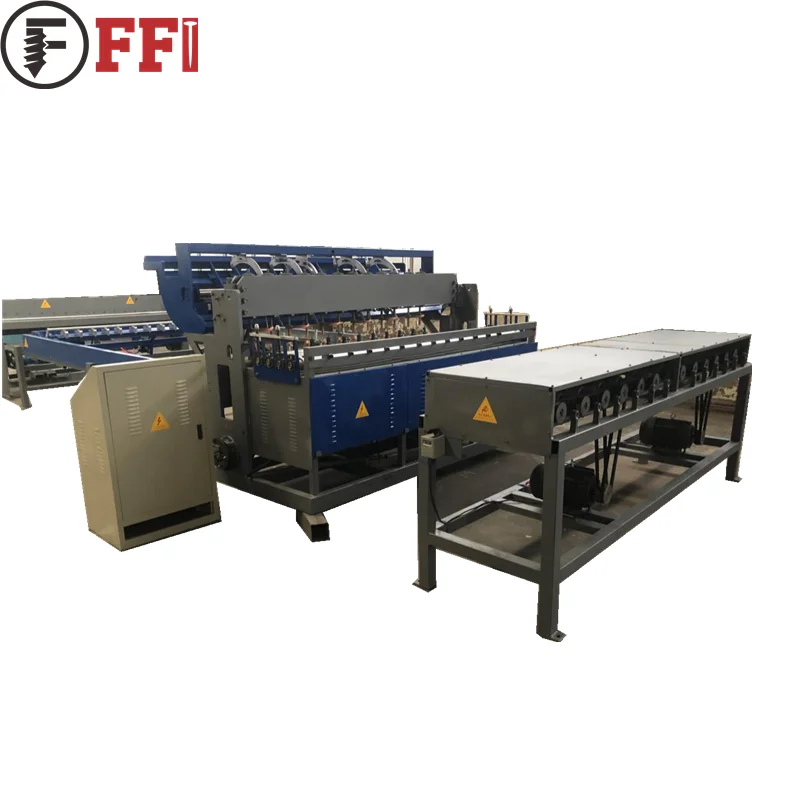

Hot sale brc construction mesh welded wire mesh making machine manufacture
Products Description
Hot sale brc construction mesh welded wire mesh making machine is based on customer requirements and many years of production experience to upgrade and reform the entire production line.Its greatest advantages are high productivity, high automation and simple operation. Normal operation of the machine requires only one person to operate, the wire mesh panel products are smooth and beautiful, and the automatic stacking is neat. Save a lot of labor and space.
Product Paramenters
Item | Parameter |
Number of electrodes | 30 |
Max. mesh width | ≤3000mm |
Mesh length | 3-12mm |
Wire diameter | 5-8mm |
Line wire space | 100-300mm |
Cross wire space | 100-300mm |
Electric capacity | 8*200KVA |
Welding speed | 75times/min |
Control system | PLC |
Features:
1.The vertical line feed is mainly composed of the payoff reel, the delay feeding rack, the cross straightening device, the line straightening device.
2.Main structure of welding machine mainly consists of rack, power system, welding system, line positioning device, cross alignment device.
3.Cross hopper for the double chain feeding hopper, divided into the upper hopper and the next hopper, can achieve different lengths of different wire diameter pre-cut wires automatic dropping
4.Anti-wire welding system consists of two sets of welding system and two sets of pre-cut wire feeding system, used to supplement the welding has been welded into the mesh on both sides of the opposite side of the line.
1.The vertical line feed is mainly composed of the payoff reel, the delay feeding rack, the cross straightening device, the line straightening device.
2.Main structure of welding machine mainly consists of rack, power system, welding system, line positioning device, cross alignment device.
3.Cross hopper for the double chain feeding hopper, divided into the upper hopper and the next hopper, can achieve different lengths of different wire diameter pre-cut wires automatic dropping
4.Anti-wire welding system consists of two sets of welding system and two sets of pre-cut wire feeding system, used to supplement the welding has been welded into the mesh on both sides of the opposite side of the line.
Details Images

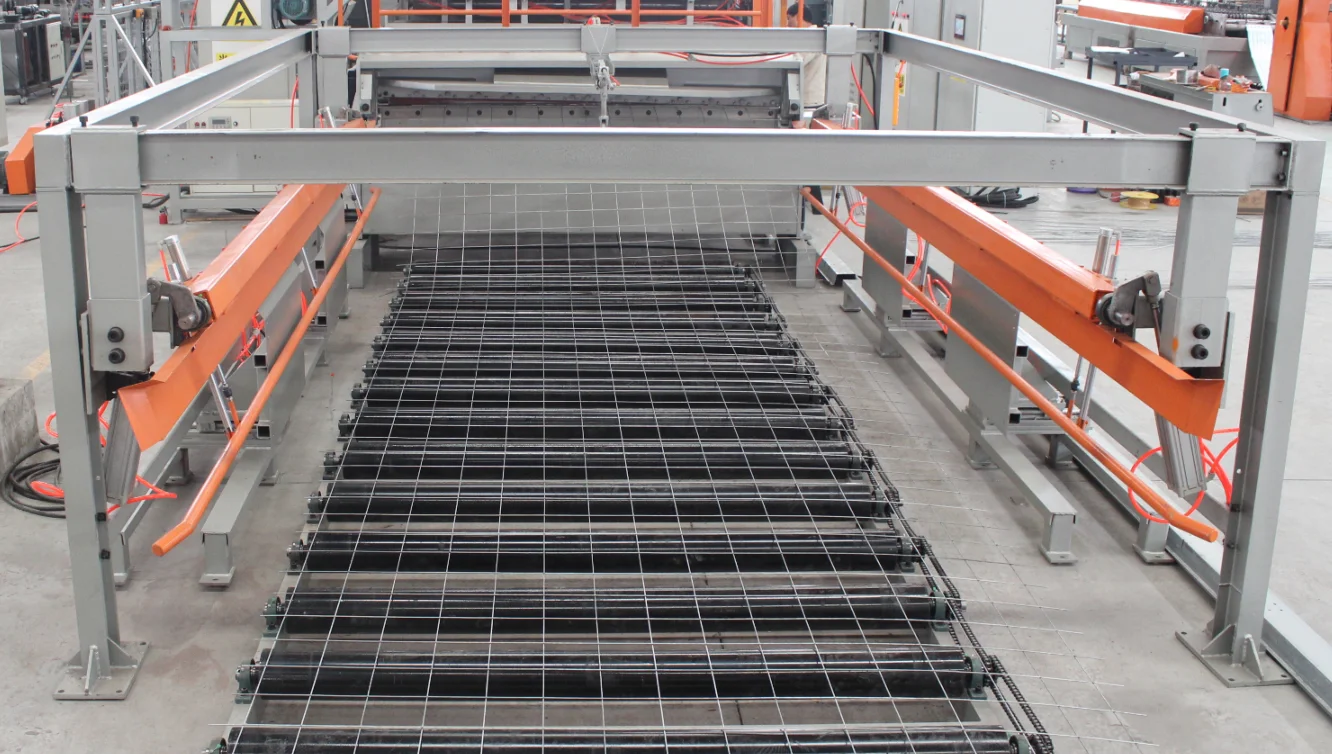

Line wire feeding system
The line wire feeding system consists of straightening wheels and pressure rollers.The straightening wheel can make the wire mesh flat, the mesh hole precise and the diagonal error small.
The function of the pressure roll is to make the whole wire mesh flat without distortion.
The function of the pressure roll is to make the whole wire mesh flat without distortion.
Mesh Welding System
Mesh welding system for fully automatic production, the machine adopts synchronous and PLC control technique. The welding power comes from the spring. At the same time, the below welding electrodes are equipped with water cooling welding system to make sure the welding quality and prolong the life.
Packing And Delivery
Hot sale brc construction mesh welded wire mesh making machine manufacture
Company Profile
Fine Fasteners Industry Co.,Ltd (FFI) has been a super manufacturer and exporter of nails and the related machines such as all types of wire drawing machine, nail making machine, wire collating machine, plastic and paper tape machine, thread rolling
machine. Up to now our customers are spread in Europe, Asia, Africa, South Africa, Middle East and other countries & regions. We
have become a long-term partner for many nail making and wire making factories and helped a number of nail and wire making plants establish their own production lines in past years.With our superior quality, competitive price and professional service, we have gained great approval and satisfaction from customers globally.
We will continuously stick to the core principle of “Fine person, Fine product and Fine service” and offer the best equipment for customers through never-ending research and development.We are sincerely looking forward to working together with you to create a glorious future.
machine. Up to now our customers are spread in Europe, Asia, Africa, South Africa, Middle East and other countries & regions. We
have become a long-term partner for many nail making and wire making factories and helped a number of nail and wire making plants establish their own production lines in past years.With our superior quality, competitive price and professional service, we have gained great approval and satisfaction from customers globally.
We will continuously stick to the core principle of “Fine person, Fine product and Fine service” and offer the best equipment for customers through never-ending research and development.We are sincerely looking forward to working together with you to create a glorious future.

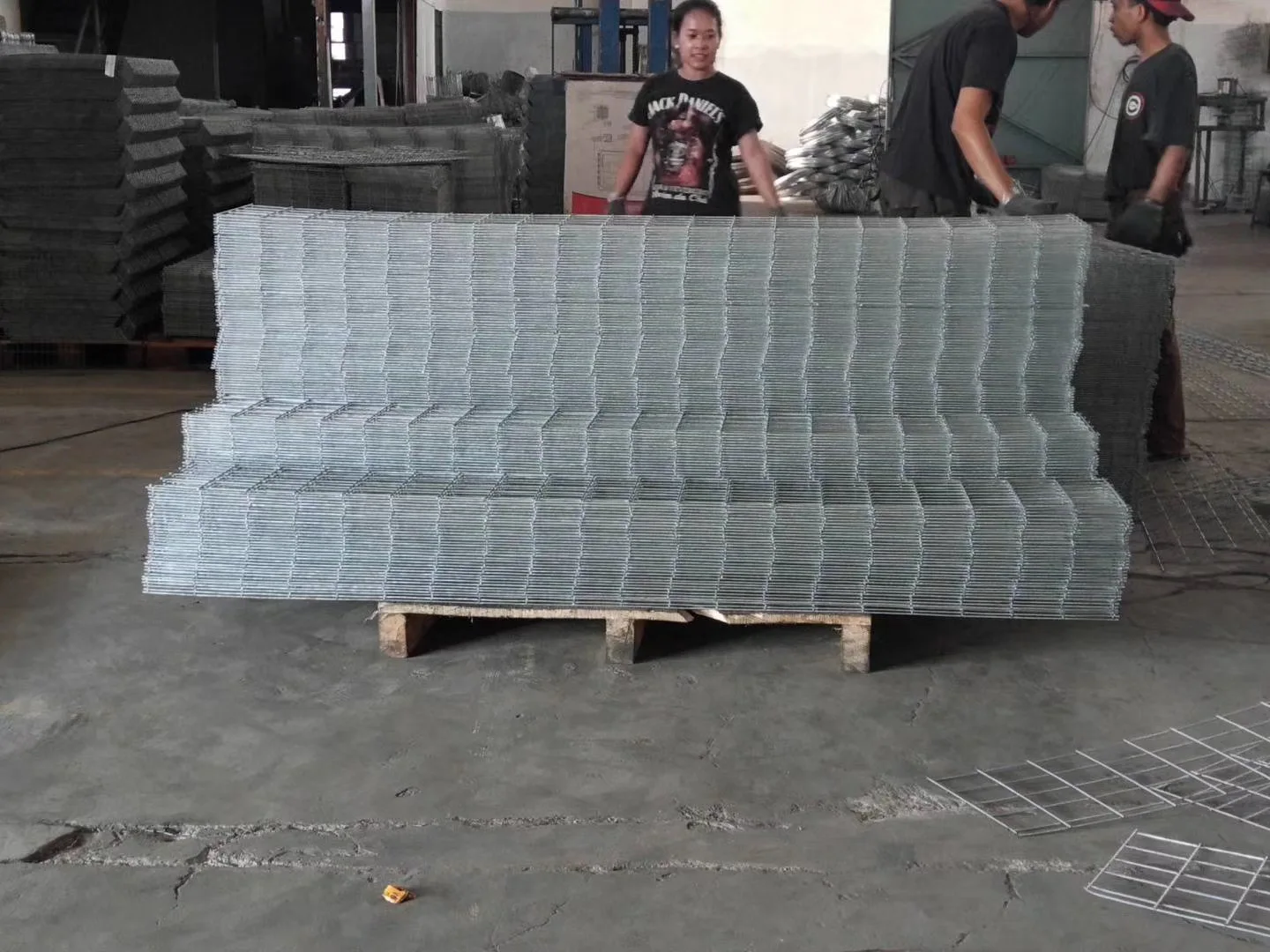

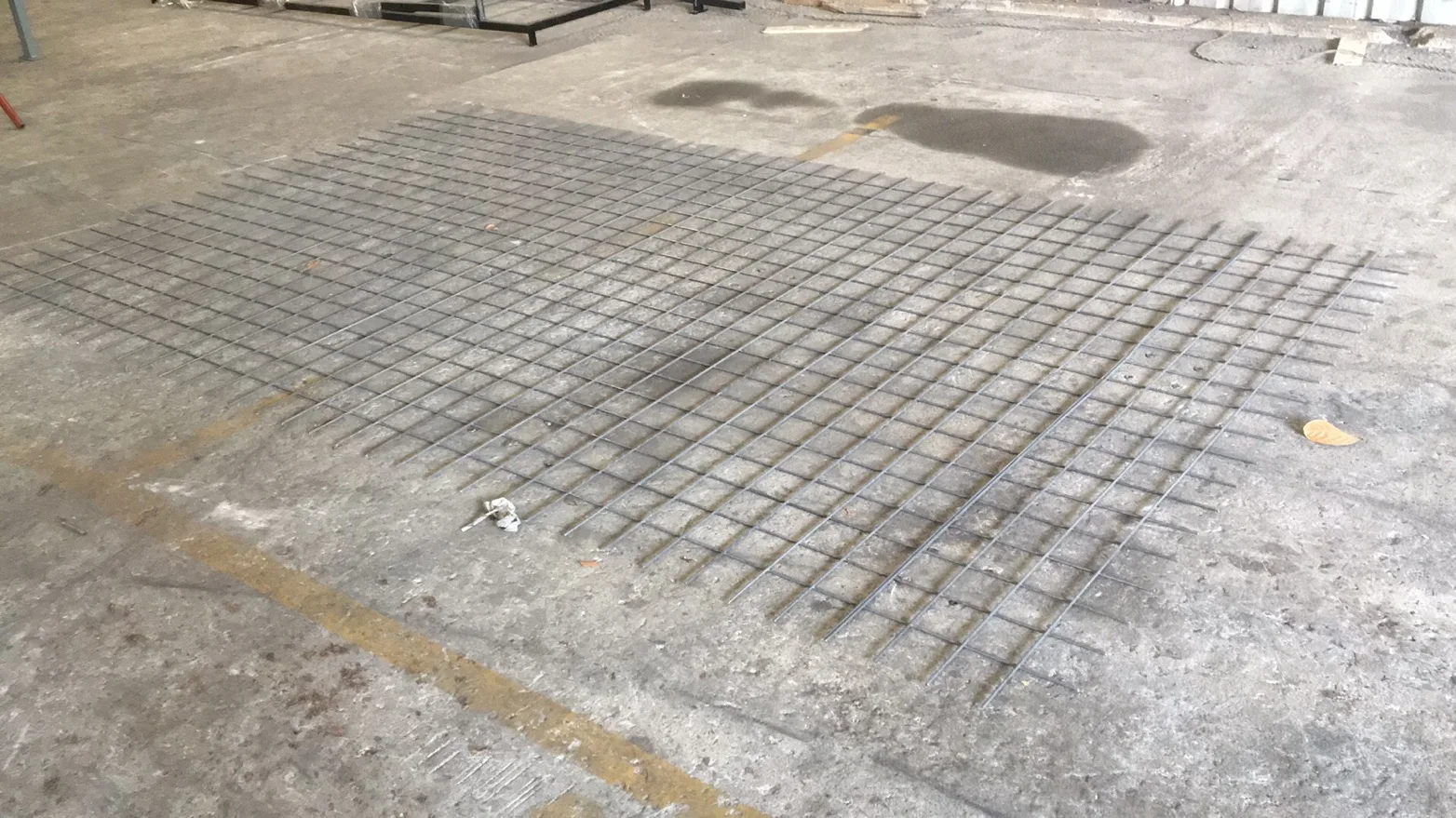

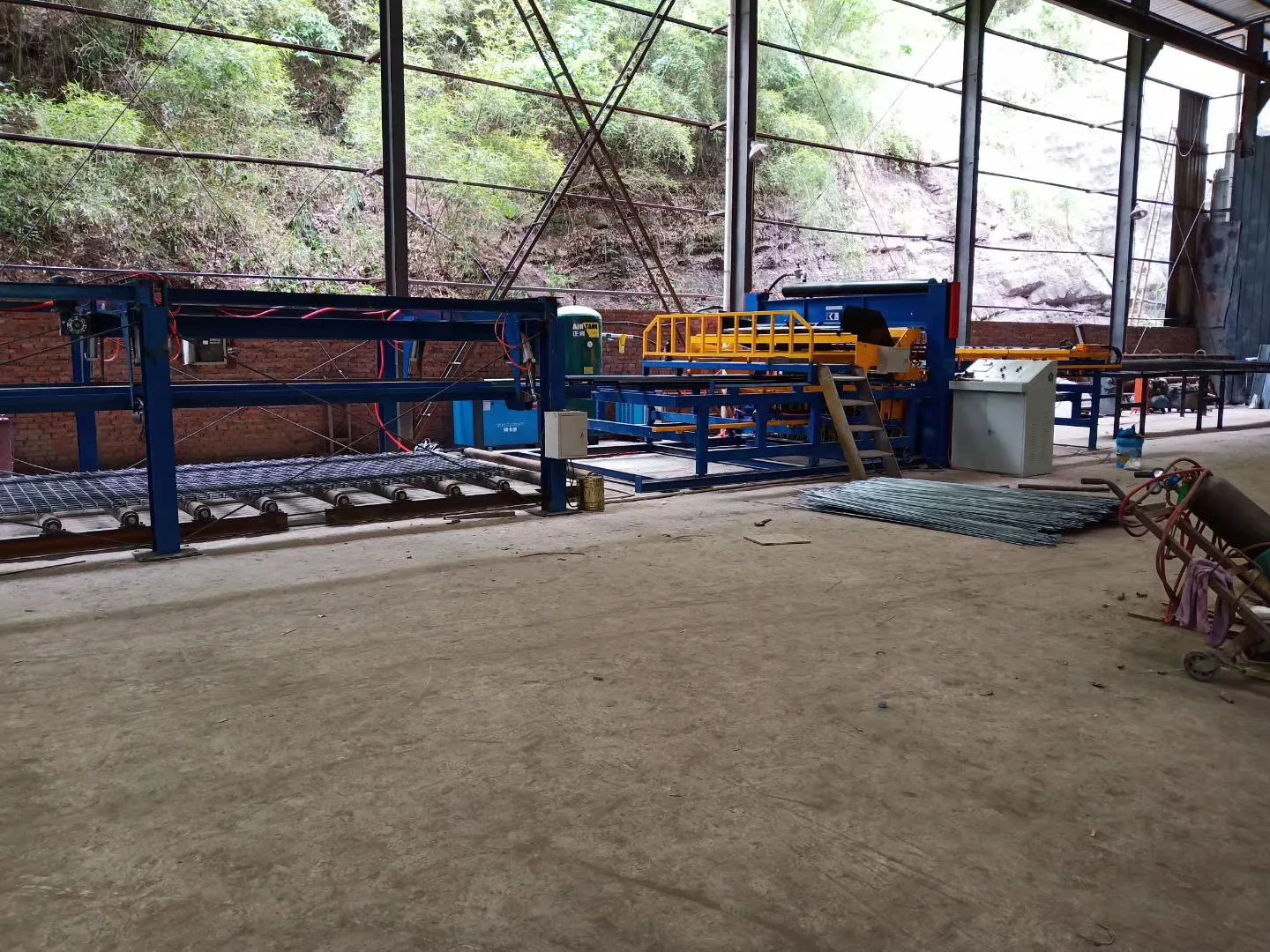

Customer Photos
FAQ
In order to quote the right price, pls provide the following information for the Mesh welding Machine
1. Wire diameter : From__ mm to __ mm.
2. Line wire space : From __ mm to __ mm.
Cross wire space : From __ mm to __ mm.
3. Mesh width: 1200mm,1500mm, 2100mm, 2500mm, 3000mm ( customized)
4. Industrial voltage : 380V 50HZ ( Customized)
5. Do you want to weld wire mesh panel or mesh in coil ?
If you are interested in our products, please feel free to contact us. We are looking forward to forming successful relationship with new clients around the world in the new future.
1. Wire diameter : From__ mm to __ mm.
2. Line wire space : From __ mm to __ mm.
Cross wire space : From __ mm to __ mm.
3. Mesh width: 1200mm,1500mm, 2100mm, 2500mm, 3000mm ( customized)
4. Industrial voltage : 380V 50HZ ( Customized)
5. Do you want to weld wire mesh panel or mesh in coil ?
If you are interested in our products, please feel free to contact us. We are looking forward to forming successful relationship with new clients around the world in the new future.
Contact Us
Hot sale brc construction mesh welded wire mesh making machine manufacture
Mobile/Whatsapp/Skype: +8619105658281
