Parking Barrier Circuit Board Card Controller for Automatic Boom Barrier Gate Motor 110V 220V AC (capacitor optional)

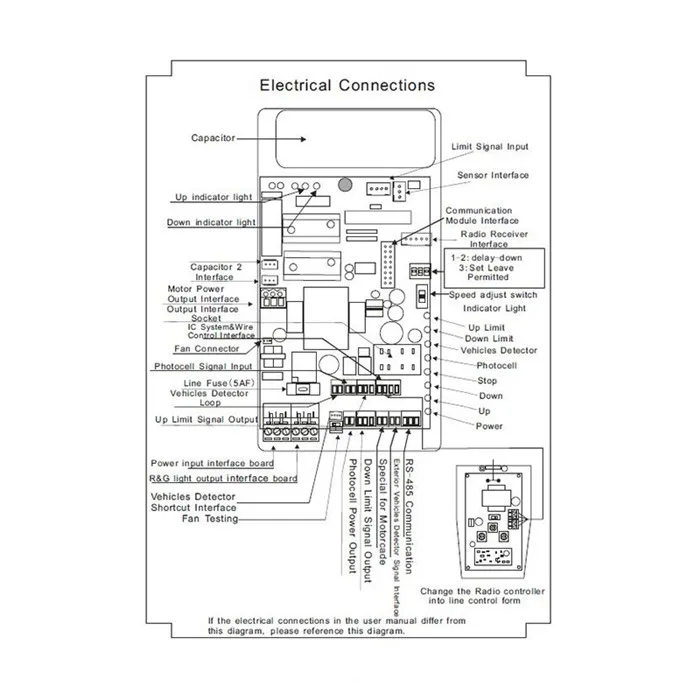

Control board for boom barrier gate motor
Product Description
Functions and Feature:
1. The humanized clutch device: in case of power off, unlock the clutch device and raise the boom manually. By the
time the power is supplied, lock the clutch device to make it working normally again.
2. Special spring device: both the compression spring and tension spring can be used in the machine. Using the
compression spring can avoid accidents caused by the tension spring.
3. Three control buttons: for boom raising, falling and pausing.
4. Safety: the boom will rise if it hits something when falling
5. Infrared photocell design: for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.
6. Both external and internal loop detectors are supported.
7. 'Open', 'Close' and 'Stop' controlling interfaces.
8. RS-485 communication serial interface (optional).
9. Traffic light signal connection device: red light for stop; green light for pass.
10. Remote control and wire control for selection.
11. Adjustable auto delay for close barrier gate.
time the power is supplied, lock the clutch device to make it working normally again.
2. Special spring device: both the compression spring and tension spring can be used in the machine. Using the
compression spring can avoid accidents caused by the tension spring.
3. Three control buttons: for boom raising, falling and pausing.
4. Safety: the boom will rise if it hits something when falling
5. Infrared photocell design: for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.
6. Both external and internal loop detectors are supported.
7. 'Open', 'Close' and 'Stop' controlling interfaces.
8. RS-485 communication serial interface (optional).
9. Traffic light signal connection device: red light for stop; green light for pass.
10. Remote control and wire control for selection.
11. Adjustable auto delay for close barrier gate.
Specification
Item | Value |
Product name | Parking Barrier Circuit Board Card Controller for Automatic Boom Barrier Gate Motor 110V 220V AC (capacitor optional) |
Main control board size | 175 x 135 mm (length * width) |
Card capacity | 9999 |
Storage record | 4200 |
Communication interface | W26, can external 485 communication format |
Input contact interface | Normal 4 no voltage, external 128 |
Output contact interface | Normal 4 relay, external 128 |
Communication rate | 19200 BPS (4800 ~ 115200 BPS) |
Keys | 16 |
Status indicates | 8 leds |
LCD display | 16 x 2 characters |
Packing & Delivery
Company Profile

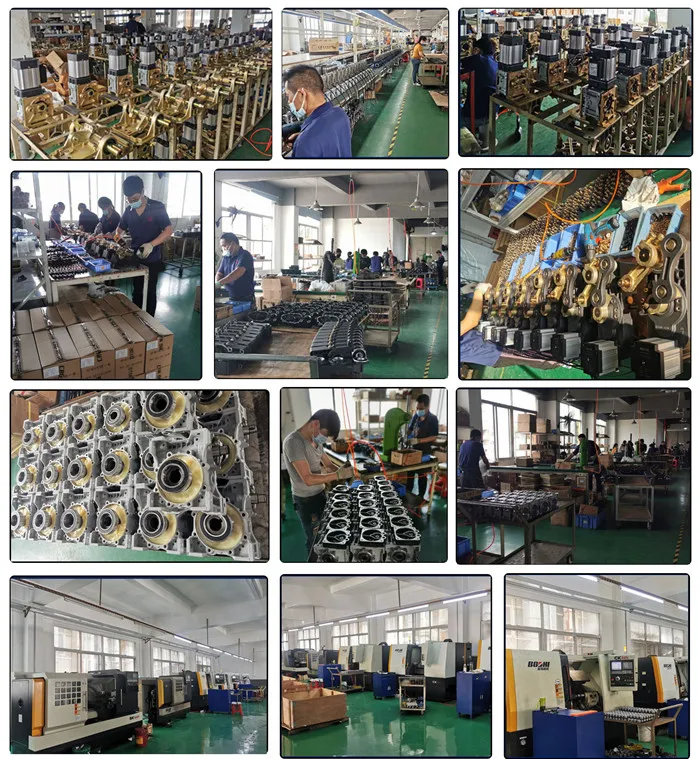

Shenzhen Elefine Technology Co., Ltd. was founded in 2010, our company produces boom barriers, turnstiles, parking systems, face recognition terminals, parking locks, bollards, reflective vests, cameras and solar road lights. Now our factory covers an area of 3,000 square meters and currently employs more than 100 people, including 20 senior and mid-level engineers and technicians. We have 7 production lines and goods are exporting worldwide and has a good reputation. Shenzhen Elefine intelligent Technology Co., Ltd. has developed into a set of production, management, research and service in one group of key enterprises, is always adhere to the "people-oriented, innovative development" business philosophy, the pursuit of scientific and technological progress.
