Product Description

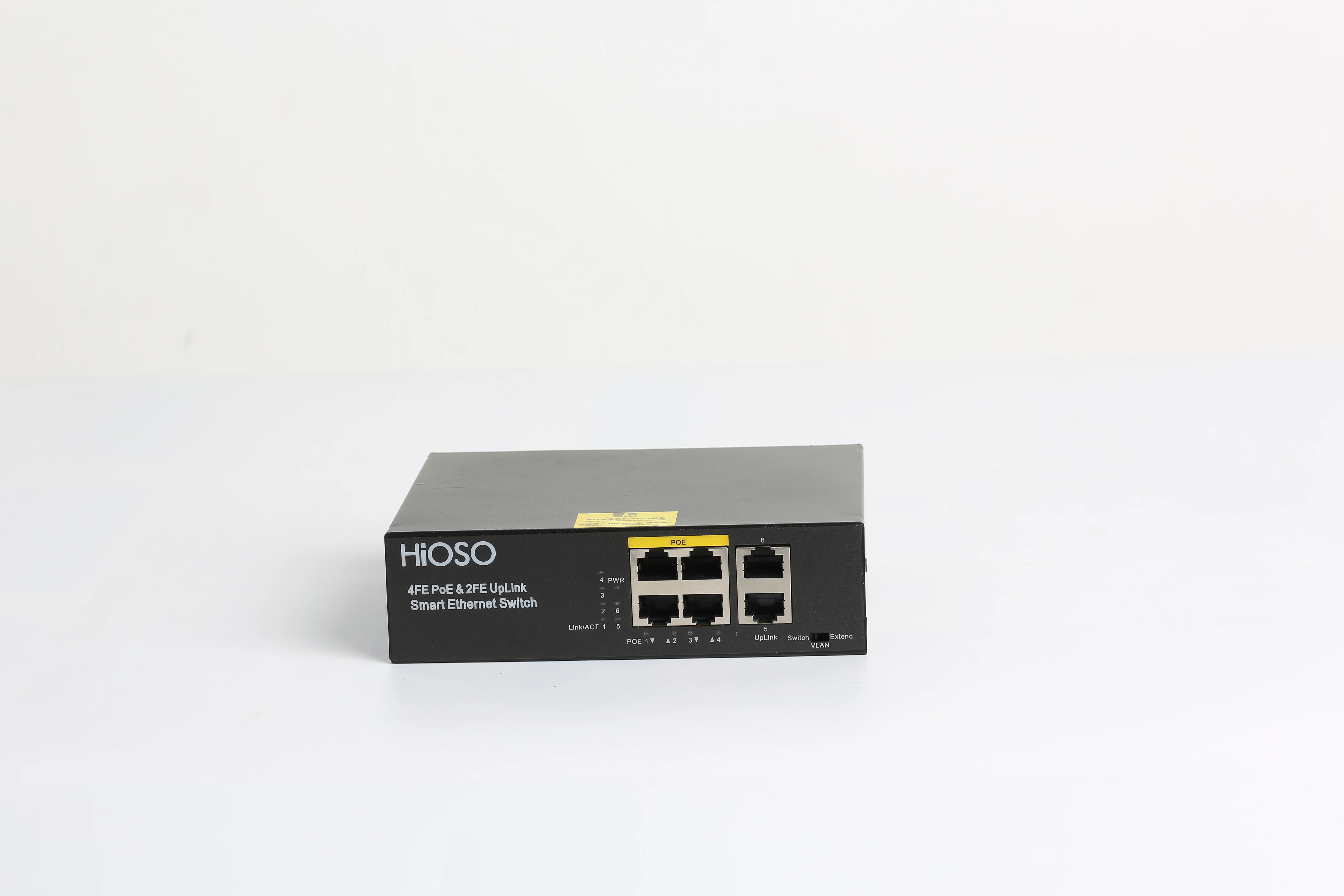

Foway1206PP-L 4+2 100M Non-Standard PoE Switch
HiOSO Foway1206PP-L surveillance access non-standard PoE switch, supplies 4 10/100MRJ Non-standard PoE ports (DC24V power supply),2 10/100M RJ45 uplink ports. Each port support maximum 15W Ethernet power,supports to power non-standard PoE network cameras,non-PoE video intercom syste and wireless AP devices.
It supports to choose switch mode, vlan islolated mode and long distance 250m mode (change rate to 10M). It applies to security system, smart areas and smart buildings network transmission application.
It supports to choose switch mode, vlan islolated mode and long distance 250m mode (change rate to 10M). It applies to security system, smart areas and smart buildings network transmission application.
Features
Support 4 100M Non-standard PoE ports and 2 100M uplink ports
100M RJ45 port 12/36 PIN transmit signal, 45+/78- PIN DC24V power supply, optional to choose 12+/36- to supply power, or lower DC power, each port maximum power supply 15W
Support each port full 100M transmission
Support 1K MAC learning table, 1Mbit Store-and-forward cache space
Switch option:normal switch mode（Switch）,port vlan mode and 250m long distance mode （Extend,rate changes to 10M)
Metal case, inside power, better for heat dissipating
100M RJ45 port 12/36 PIN transmit signal, 45+/78- PIN DC24V power supply, optional to choose 12+/36- to supply power, or lower DC power, each port maximum power supply 15W
Support each port full 100M transmission
Support 1K MAC learning table, 1Mbit Store-and-forward cache space
Switch option:normal switch mode（Switch）,port vlan mode and 250m long distance mode （Extend,rate changes to 10M)
Metal case, inside power, better for heat dissipating
Technical Specification
Parameter | Specification |
Standards | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet |
PoE | Power supply ports: 4 100M RJ45 Power supply voltage: Non-standard DC24V, support to use lower DC power supply; Power consumption each port: maximum 15W; RJ45 signal PIN position:1 2 3 6； RJ45 power supply PIN position: 4 5 positive, 7 8 negative, optical to choose 1 2 positive,3 6 negative. The device power consumption:maximum 65W |
Transmission distance | CAT 5: 100M rate 100m; 10M rate 250m (100M POE port) |
Port | 4 Non standard poe ports:10/100Mbps 2 RJ45 uplink ports:10/100Mbps |
MAC | 1K |
Buffer space | 1Mbit |
Bit error rate | <1/1000000000 |
MTBF | 100000 hours |
Power | AC110V/220V@50HZ/60HZ |
Power consumption | The device 2W, PoE maximum power supply 65W |
Working temperature | -10~60℃ |
Storage temperature | -40~80℃ |
Humidity | 5%~90% non-condensing |
Dimension | 43mm (H)×152mm(W)×117mm (D) /height×width×length |
Applications
Security Video Surveillance access network sytem, Smart Aeras Video Audio intercom system etc .
Order information
No | Type | PoE smart control | Ports | PoE ports |
1 | Foway1206PP-L | No | 4FE + 2 FE | 4 100M POE ports, power supply DC24V, power supply PIN 45+/78-，total power consumption 65W |
2 | Foway1206PP-LB | No | 4FE + 2 FE | 4 100M POE ports, power supply DC24V, power supply PIN 12+/36-，total power consumption 65W |
Certification
Company Profile
HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD.
To make our products better, we have experienced and professional talents. Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems. Since the launch of our products in domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security and Bank industries. To be in line with different needs of different customers, we have people to trace the latest market information so as to keep our products competitive and vital.
With the principle of "high quality, A-class service and continuous innovation", we have set up perfect testing systems which ensure the quality of every out-going product before delivering to the customers. We have made our products meet ISO9001:2000 international requirements, and obtained the certificate of Network Access License from Telecommunication Equipment Ministry.
To be our clients, you can enjoy perfect services: technical support and related trainings can be obtained at any time, and problems occurred can be solved within 24 working hours. Besides, we provide a one-year replacement, a three-year free repair, and a whole life maintenance service for all of our products.
To make our products better, we have experienced and professional talents. Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems. Since the launch of our products in domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security and Bank industries. To be in line with different needs of different customers, we have people to trace the latest market information so as to keep our products competitive and vital.
With the principle of "high quality, A-class service and continuous innovation", we have set up perfect testing systems which ensure the quality of every out-going product before delivering to the customers. We have made our products meet ISO9001:2000 international requirements, and obtained the certificate of Network Access License from Telecommunication Equipment Ministry.
To be our clients, you can enjoy perfect services: technical support and related trainings can be obtained at any time, and problems occurred can be solved within 24 working hours. Besides, we provide a one-year replacement, a three-year free repair, and a whole life maintenance service for all of our products.
3D Reality Showroom
VR
Hot Sales
Packing & Delivery
Standard packing
FAQ
1. who are we?
We are based in Guangdong, China, start from 2002,sell to South America(30.00%),Southeast Asia(30.00%),Western Europe(20.00%),North America(10.00%),Eastern Europe(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Optical Line Terminal,Optical Network Unit,Fiber Media Converter,Switch,SFP
4. why should you buy from us not from other suppliers?
HiOSO founed in 2002, Shenzhen. HiOSO is a manufacturer focusing on GPON,GEPON, PoE switches, fiber switches, industrial ethernet switches,Din Rail switches,Access network Ethernet switches, EOC and fiber media converters, fiber modems, ECC, etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2002,sell to South America(30.00%),Southeast Asia(30.00%),Western Europe(20.00%),North America(10.00%),Eastern Europe(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Optical Line Terminal,Optical Network Unit,Fiber Media Converter,Switch,SFP
4. why should you buy from us not from other suppliers?
HiOSO founed in 2002, Shenzhen. HiOSO is a manufacturer focusing on GPON,GEPON, PoE switches, fiber switches, industrial ethernet switches,Din Rail switches,Access network Ethernet switches, EOC and fiber media converters, fiber modems, ECC, etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
Похожие товары
Кепка грузовика очень красивого камуфляжного цвета с вышитым символом пистолета, сделано во Вьетнаме

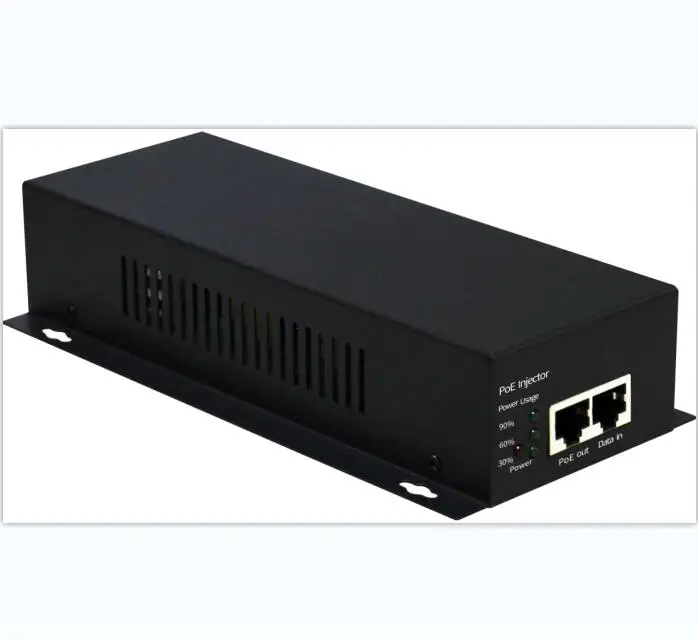

Гигабитный 52 в poe rj45 инжектор пассив 802,3 at/af/bt max 60W
20,00 $ - 22,00 $
Новинка 2021, умные часы W26 + W26 Plus, сенсорный экран 1,75 дюйма, умные часы с ремешком W26 + часы, умный Браслет
13,55 $ - 13,71 $
Профессиональные умные часы с сенсорным экраном из пластика и силикона
2,99 $ - 3,49 $
Сетевой коммутатор poe 24 порта китайского производства по низкой цене
23,00 $ - 25,00 $

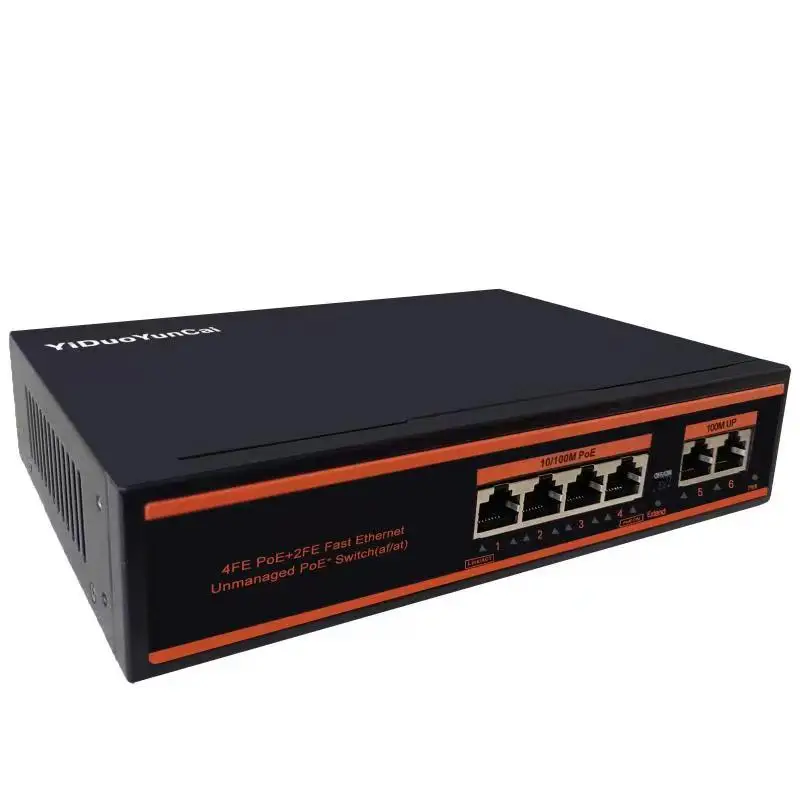

Коммутатор с 6 портами Ethernet и 4 портами PoE для сетевых камер
22,00 $ - 23,50 $

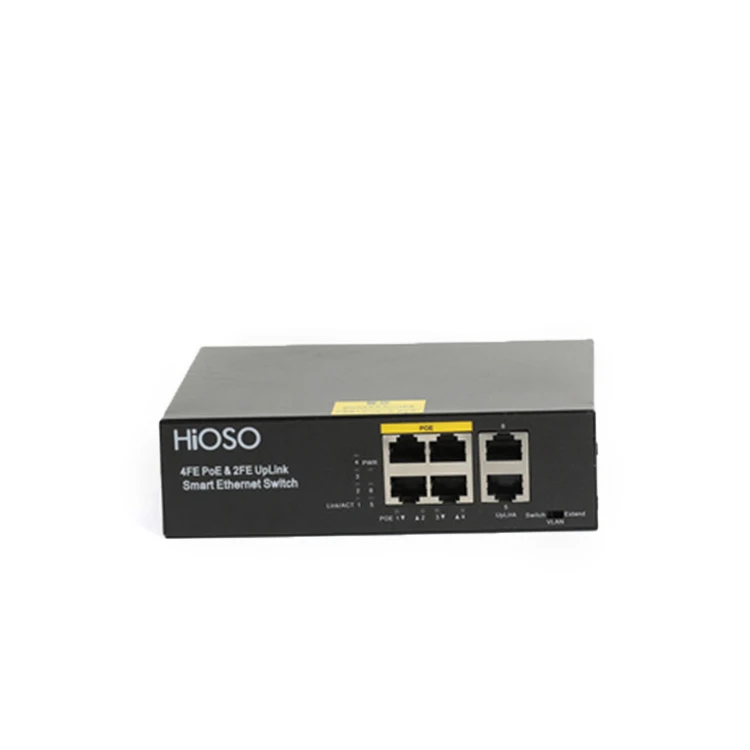

Лучшие продажи Пассивный Poe 24v 4 Poe порта + 2 Uplink 10/100 Мбит/с коммутатор питания через ethernet
