Product Description
Item resource
Note: Remote control batterries are removed.
Note: the customs fee is in addition to the price, we will not cover it.
Note that this version does not support window open/close perfectly after installation.
Kit1: dc24v opener only, suitable for use with 24v normal/smart power controller/receiver. The engine itself does not support wi-fi control or uses it alone.
Kit2: ac opener only, suitable for use with normal/smart power controller. the engine itself does not support wi-fi control or uses it alone.
Kit4: kit1 ⁄ for 24v 433mhz remote control
Kit5: kit2 220v normal controller 433mhz remote control.
Kit6: kit1 ⁄ for 24v smart switch remote control (control by tuya and 433mhz remote control, also support alexa)
Kit7: kit2⁄ for 220v smart switch remote control. (Control by tuya and 433mhz remote control, also support alexa)
Kit8: white kit2 i ac220v smart switch (control by tuya/alexa/google home/smart life)
Kit9: kit2 black i ac220v smart switch (control by tuya/alexa/google home/smart life)
Kit10: kit2 black us ac220v smart switch (control by tuya/alexa/google home/smart life)
-Suitable for use with 2 types of operating power: dc24v, osmo.
-Without stroke limitation, maximum open degree is 90 degrees. Does not support electrically open limitation. To change the window opening limitation, it is necessary to change the screw position on the track.
-Support for automatically and remotely open/close window
-Overload protection: stop after encountering an obstacle to protect the motor
-Easy to install, no need to disassemble the window.
-Any kit holder using with rain and wind sensor or gas leak or smoke sensor
-Long service life. Support work over 30,000 times
-Suit for various types of windows

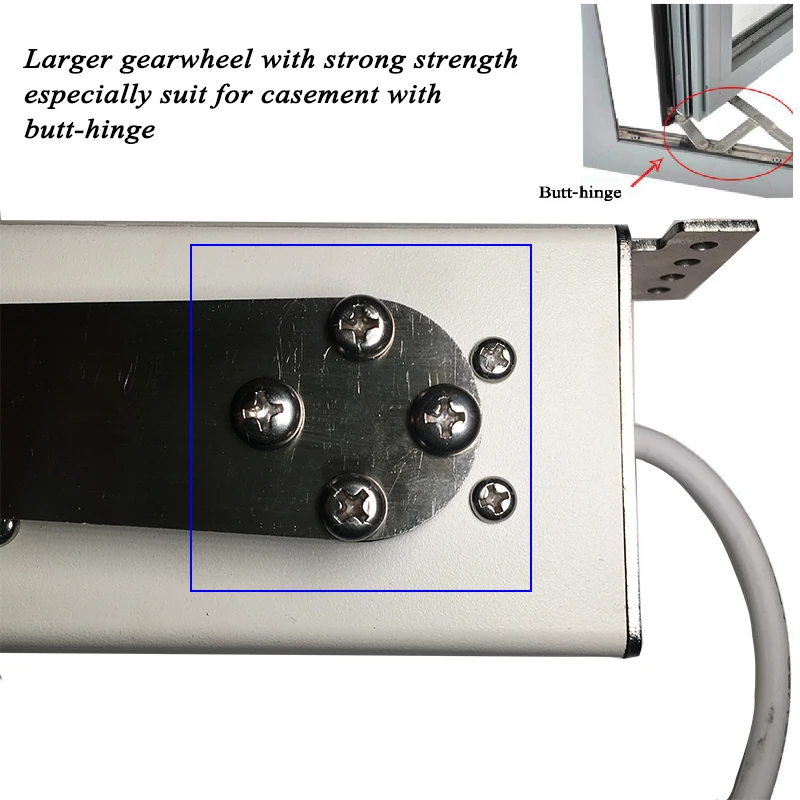

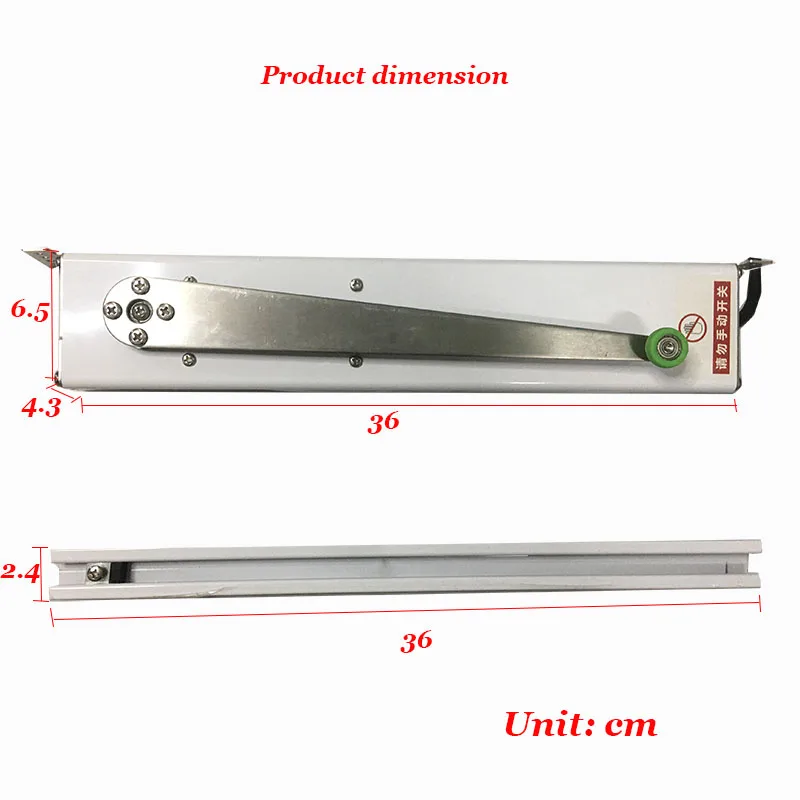

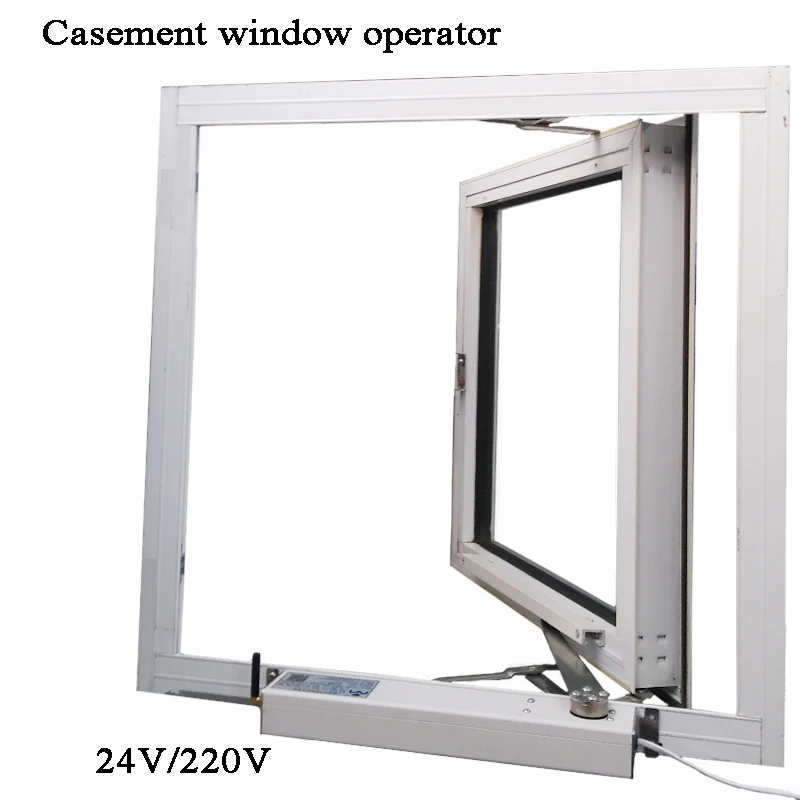

Window hinge with dc24v casement
Maximum opening degree: 90 degrees
Working voltage: dc24v
Rated power: 36w
Maximum working current: 1.2a
Push/pull force: 150n
Working speed: 20 degrees per second
Has working:-25 ℃ ~ 85 ℃
Sliding arm material: stainless steel
Power controller (optional): normal dc24v switch (433mhz remote control support); Smart dc24v switch (supports wifi remote control, tuya, smart life.)
220v window hinge
Maximum opening degree: 90 degrees
Working voltage: 100-240v
Rated power: 36w
Maximum working current: 1.5a
Push/pull force: 150n
Working speed: 20 degrees per second
Has working:-25 ℃ ~ 85 ℃
Sliding arm material: stainless steel
Power controller (optional): normal 220v switch (433mhz remote control support); 220v smart switch (supports wifi remote control, tuya, smart life.)

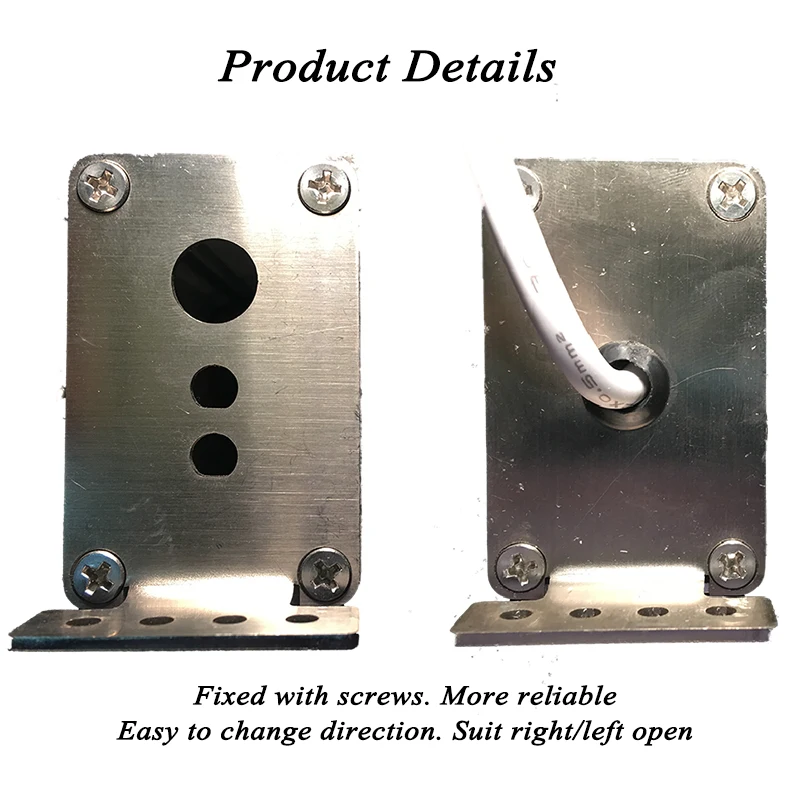

Package:
1. window engine
2. sliding band
3. installation screws
4. power controller and remote control (optional)
Note: Remote control batterries are removed.
Note: the customs fee is in addition to the price, we will not cover it.
Note that this version does not support window open/close perfectly after installation.
Kit1: dc24v opener only, suitable for use with 24v normal/smart power controller/receiver. The engine itself does not support wi-fi control or uses it alone.
Kit2: ac opener only, suitable for use with normal/smart power controller. the engine itself does not support wi-fi control or uses it alone.
Kit4: kit1 ⁄ for 24v 433mhz remote control
Kit5: kit2 220v normal controller 433mhz remote control.
Kit6: kit1 ⁄ for 24v smart switch remote control (control by tuya and 433mhz remote control, also support alexa)
Kit7: kit2⁄ for 220v smart switch remote control. (Control by tuya and 433mhz remote control, also support alexa)
Kit8: white kit2 i ac220v smart switch (control by tuya/alexa/google home/smart life)
Kit9: kit2 black i ac220v smart switch (control by tuya/alexa/google home/smart life)
Kit10: kit2 black us ac220v smart switch (control by tuya/alexa/google home/smart life)
-Suitable for use with 2 types of operating power: dc24v, osmo.
-Without stroke limitation, maximum open degree is 90 degrees. Does not support electrically open limitation. To change the window opening limitation, it is necessary to change the screw position on the track.
-Support for automatically and remotely open/close window
-Overload protection: stop after encountering an obstacle to protect the motor
-Easy to install, no need to disassemble the window.
-Any kit holder using with rain and wind sensor or gas leak or smoke sensor
-Long service life. Support work over 30,000 times
-Suit for various types of windows
Window hinge with dc24v casement
Maximum opening degree: 90 degrees
Working voltage: dc24v
Rated power: 36w
Maximum working current: 1.2a
Push/pull force: 150n
Working speed: 20 degrees per second
Has working:-25 ℃ ~ 85 ℃
Sliding arm material: stainless steel
Power controller (optional): normal dc24v switch (433mhz remote control support); Smart dc24v switch (supports wifi remote control, tuya, smart life.)
220v window hinge
Maximum opening degree: 90 degrees
Working voltage: 100-240v
Rated power: 36w
Maximum working current: 1.5a
Push/pull force: 150n
Working speed: 20 degrees per second
Has working:-25 ℃ ~ 85 ℃
Sliding arm material: stainless steel
Power controller (optional): normal 220v switch (433mhz remote control support); 220v smart switch (supports wifi remote control, tuya, smart life.)
Package:
1. window engine
2. sliding band
3. installation screws
4. power controller and remote control (optional)
Specification
item | value |
Warranty | 1 Year |
After-sale Service | Other |
Project Solution Capability | Others |
Application | Other |
Design Style | Modern |
Place of Origin | China |
Opening Pattern | Horizontal |
Function | Dust-proof |
Model Number | electric motor |
Type | others |
Warranty | 1 years |
Project Solution Capability | graphic design, Others |
Design Style | Modern |
Frame Material | Plastic, uPVC |
Feature | Folding Screen |
Screen Netting Material | FiberGlass |
Profiles Thckness | 1.8mm/2.0mm/2.5mm |
Glass | Single-glanzed ,Double-glanzed Tempered glass or Low-eglass |
Glass Type | Single\\double\\tempered\\tinted\\low-e\\reflective |
hardware | Chinese Top Brand or International Brand |
Packing & Delivery
Packaging Details:Suitable package according qty and size
Delivery Detail:1-3 days
Delivery Detail:1-3 days
Company Profile
FAQ
Похожие товары

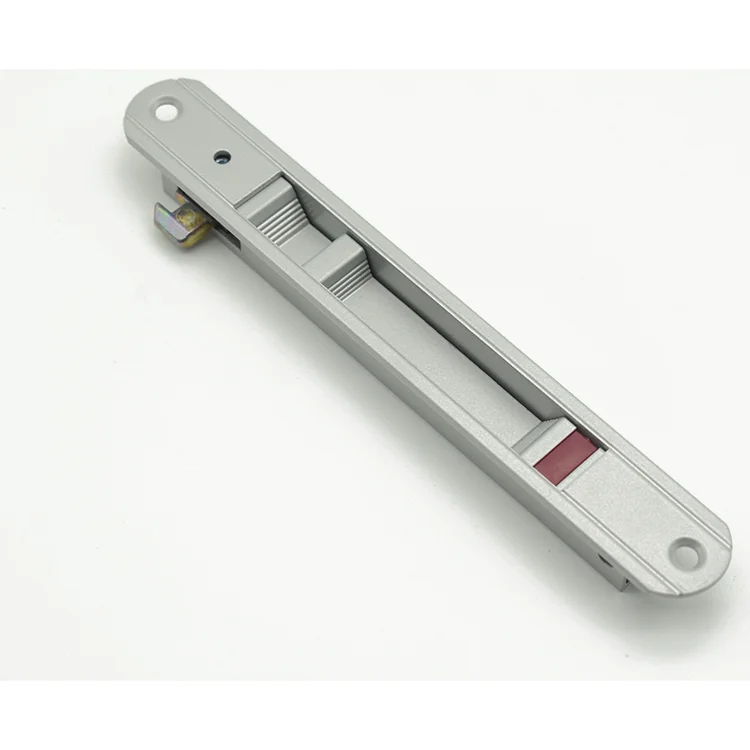

Высококачественная алюминиевая фурнитура аксессуары для окон оконная защелка 9 5 мм скользящая
0,75 $ - 0,79 $

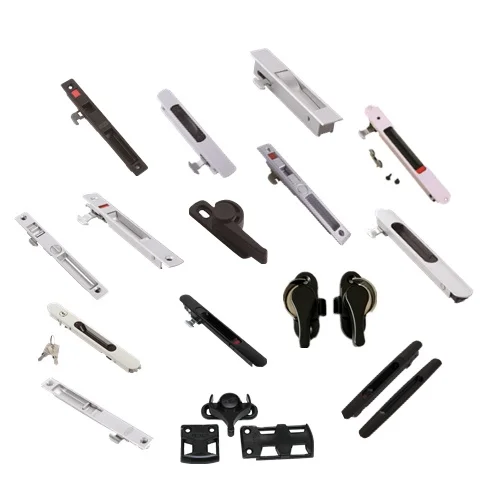

Деревянная фурнитура Гуандун и алюминиевые оконные двери для внутренних замков набор раздвижных стеклянных ручек другие аксессуары дверей
0,65 $ - 0,71 $

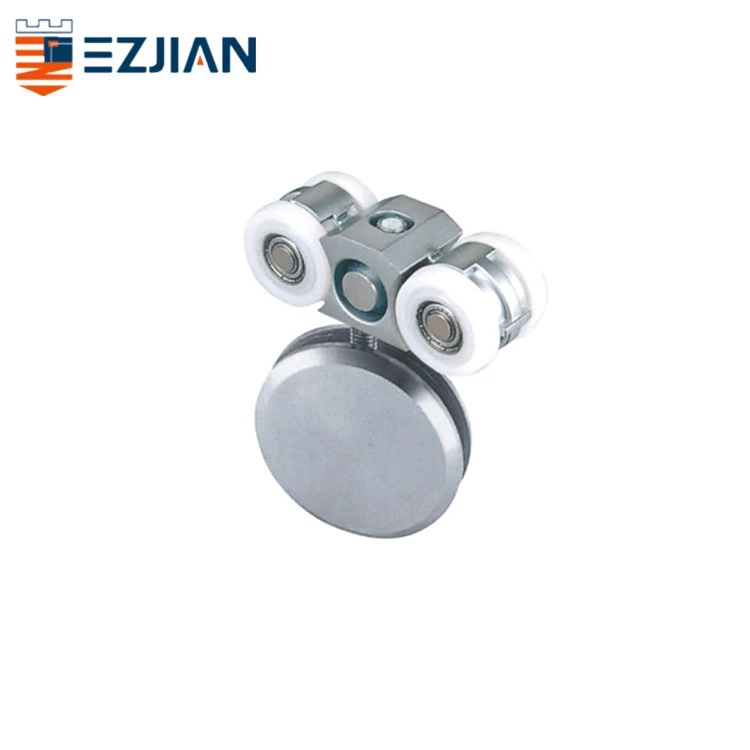

Роликовые колеса со скидкой для раздвижной двери душа оборудование ванной

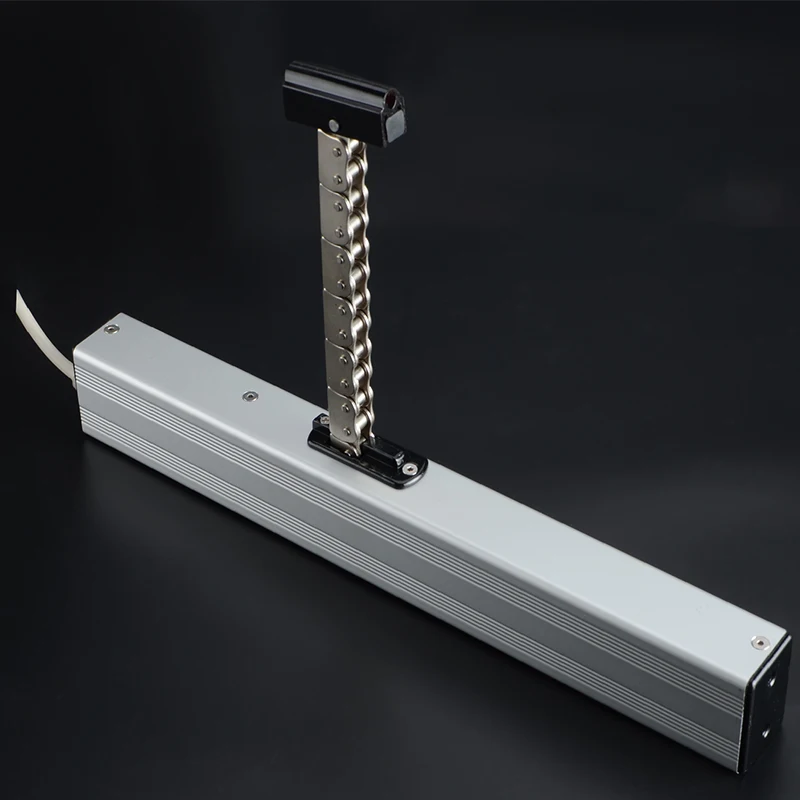

Высококачественный регулируемый привод для

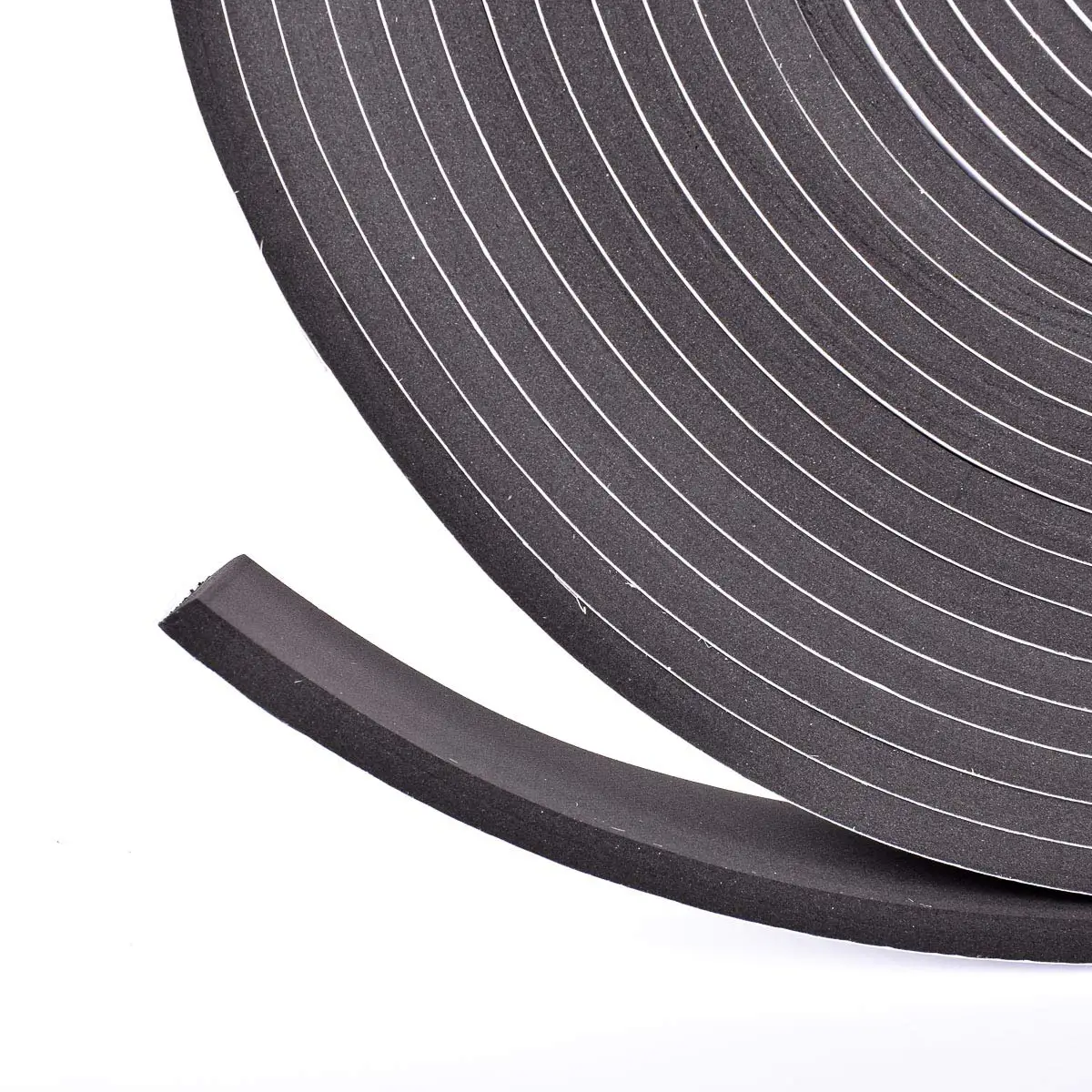

Неопреновая Резиновая лента губка Неопреновая зачистки с клеем шириной 1-1/2 дюйма X 1/4 дюйма толщиной X 37,5 футов
Уплотнительная лента для
0,50 $ - 0,65 $

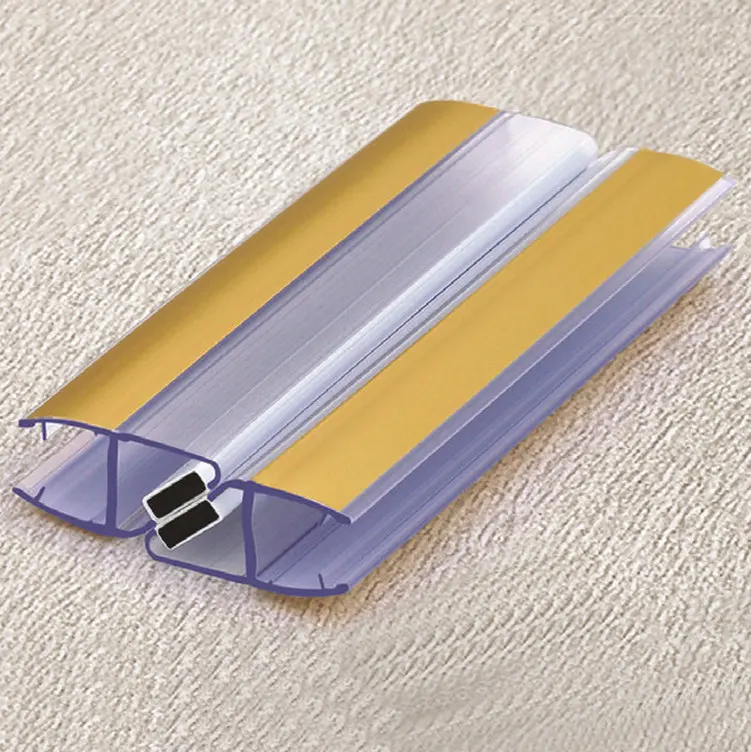

Золотая душевая дверь бескаркасная стеклянная магнитная уплотнительная
