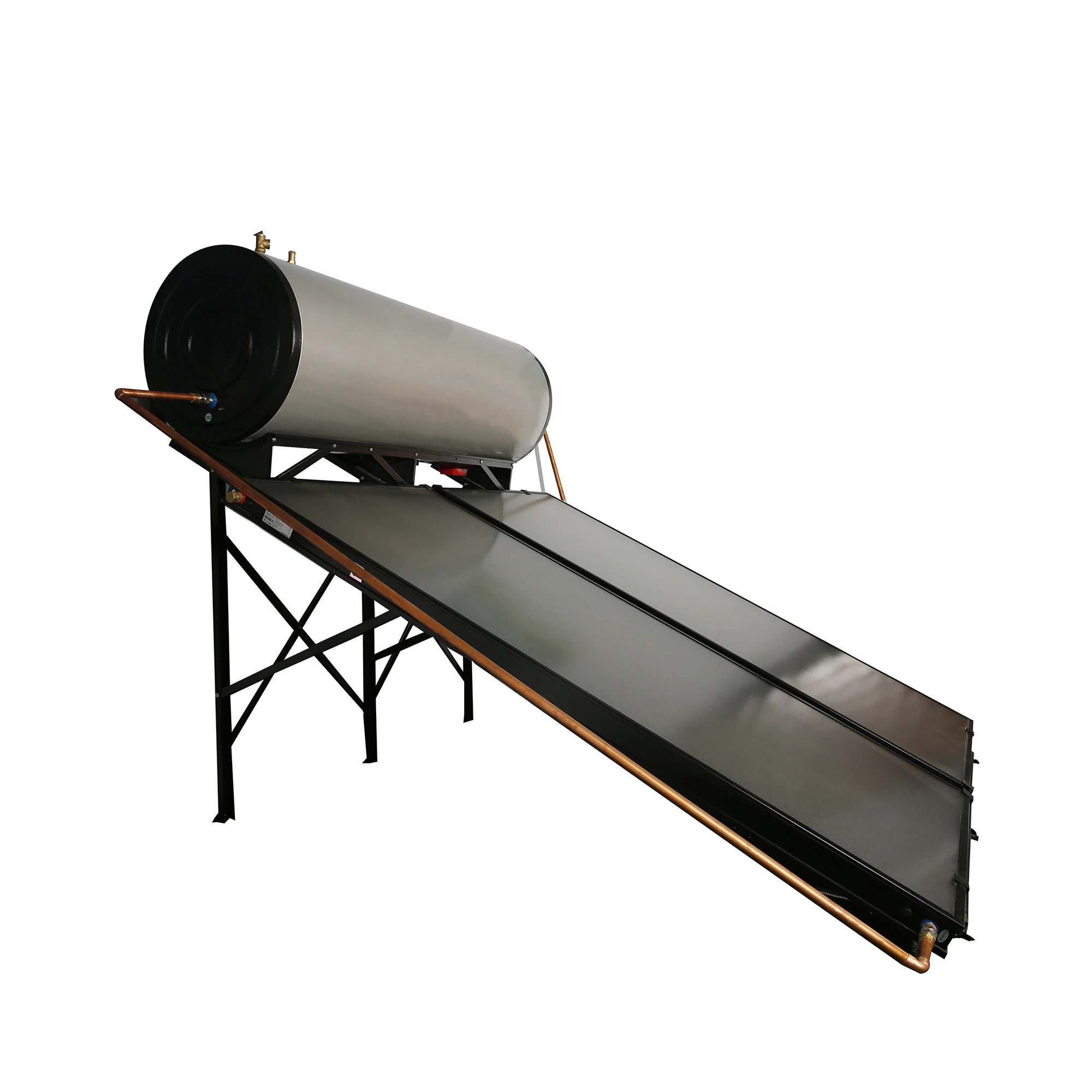

Compact Pressurized Solar Water Heater:
It is a direct system. The heat source mainly relies on the solar energy. Domestic water in the tank forms a direct circulation to the header pipes of the flat plate collector. The absorber coating of the collectors will absorb the sunlight, then convert sunlight into heat energy, and transfer the energy to the medium(water) in the core passageway through the absorber plate. While there will be a temperature difference in the medium(water) in the passageway, the density of hot water is smaller than that of the cold water, which will produce a buoyancy lift. In that way, the cold medium(water) flows to the bottom of the heat collector through the down pipe, while the hot medium(water) comes to the inner water tank through the upper pipe. Repeatedly, it heats all the water in the tank. Furthermore, the system has an electrical heater that can ensure sufficient hot water when in lack of sunlight due to continuous rainy days.


Products Description


Name
Specification
PJF -150L
PJF -200L
PJF -300L
Flat plate collector
Quantity (PC)
1
1
2
Collector dimension(mm)
2000x1000x80mm
2000x1250x80mm
2000x1000x80mm
Header tube(mm)
Φ22 x0.6mm
Riser Tube(mm)
Φ10*0.5mm
Integrated circulation Pipe
Corrugated Pipe
Welding
Laser welding
Absorber coating
Black Coating
Insulation material
Fiber glass + polyester fiber
Material
3.2mm Low iron tempered textured glass
The rated pressure
0.7MPa
Frame color
Silver/Black
Water Tank
Insulation
Polyurethane in 50mm
Inner tank
Food grade stainless steel, SUS304-2B, 1.2mm thickness,,300L Water heater is 1.5mm inner tank
The rated pressure
<0.7Mpa
Electrical Heater
1.5KW/3KW
Outside material
Galvanized steel plate, 0.4mm thickness
Support
Material
Galvanized Plate with Powder Coating
Spare Parts
Material
Negative Pressure Valve, Pressure Release Valve, T/P Valve And Magnesium Bar, Electric Element
Optional
Controller
SR609C
20”container Quantity
48
42
21




FitiSolar Benefits:
1. Copper core and pipes in flat plate as heat exchanger, with a quick startup and super efficiency.
2. Three high-tech methods of coating (Selective coating / Black chrome / Titanium-nitride-oxide) to meet your upper needs.
3. Laser welding technology ensures seamless jointing of copper core and pipes.
4. Modularized collector, arbitrary combination with architectural structure, adaptable to either slope or flat roof, little maintenance needed.
5. Designed a new model storage tank from SUS 304, SUS 316L or enamel suitable for any kind of water type.
6. The water tank has triple protection, there is T/P valve, negative pressure valve and pressure relief valve, then the water heater can work under different operating condition.


Product Advantage












Use Case

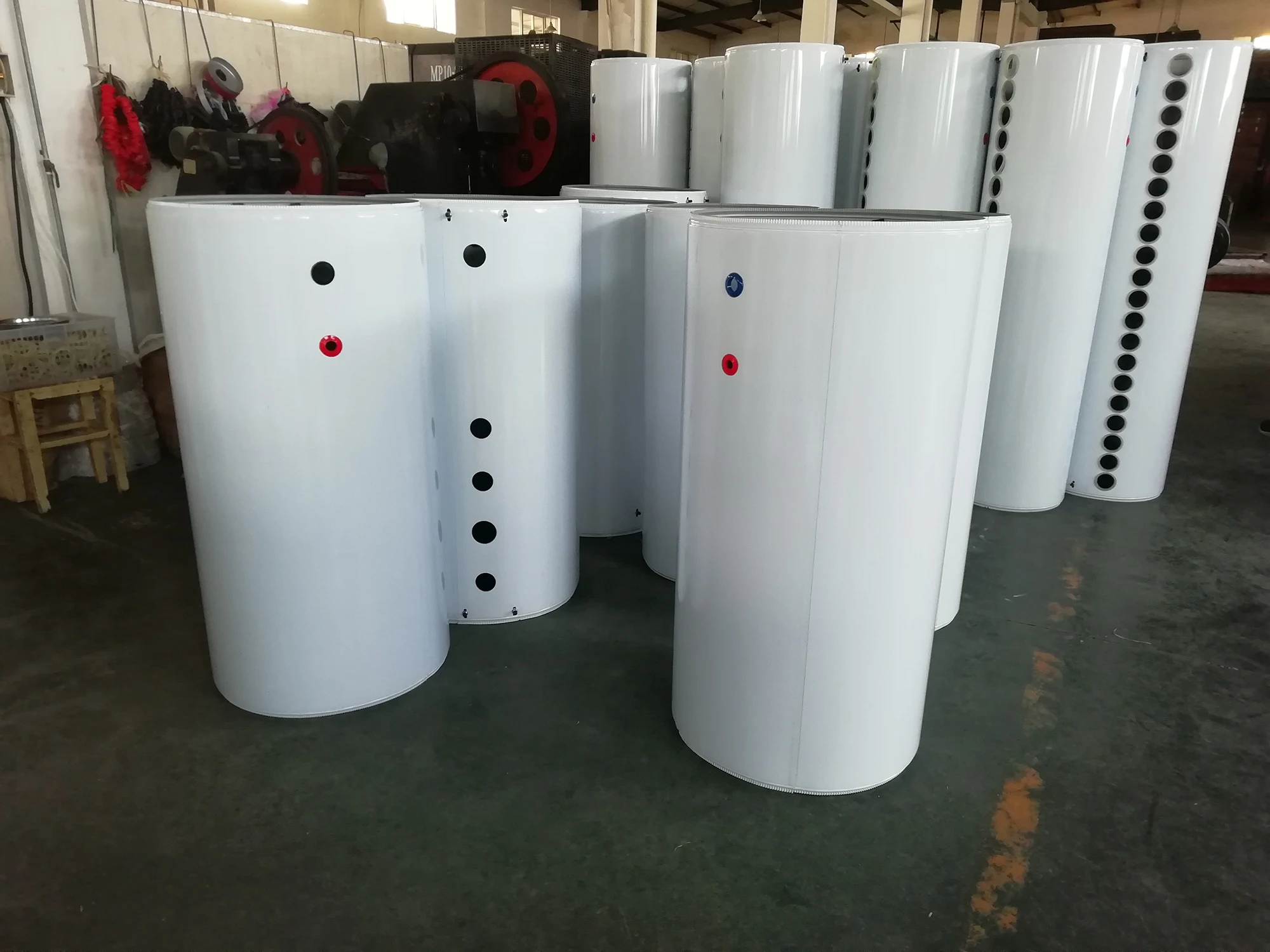

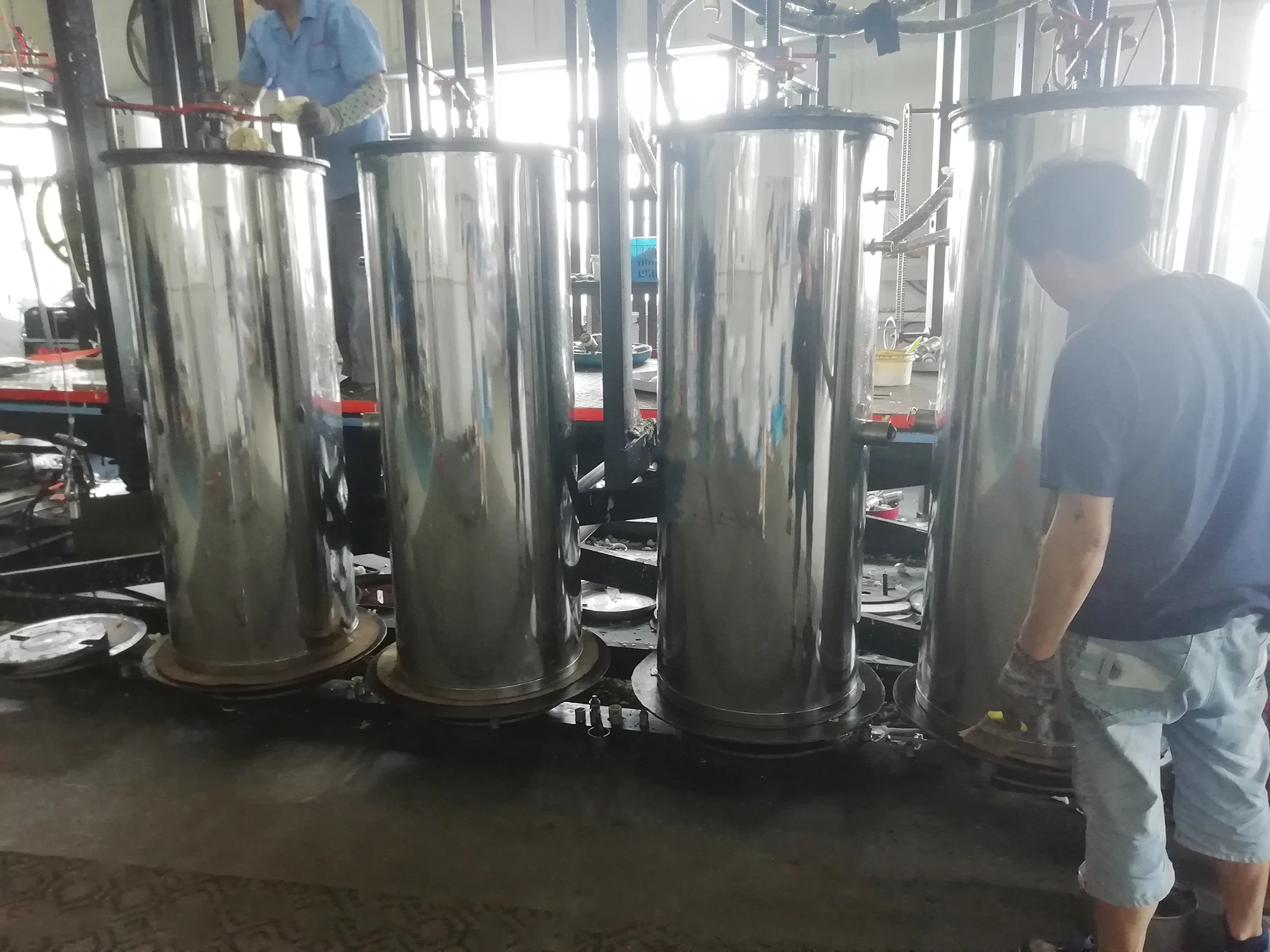

Product Process






Packing & Shipping


Less Than Container Load

40“&20” Full Container Load


Company Profile


Shandong Feitian New Energy Co., Ltd.,
Shandong Feitian New Energy Co., Ltd., located in Dezhou, Shandong, is an innovative enterprise focusing on the field of solar thermal application. With a number of independent intellectual property rights of the core technology, has been committed to the development, manufacturing and sales of solar thermal products and equipment.
In 2002, Feitian was established. Relying on the strong technical background, it entered the solar thermal field. In the same year, it successfully developed the solar engineering integrated tank and produced a special production line for the industry, and the products were highly recognized by the industry leaders.In the field of solar thermal energy, Feitian New Energy was established in April 2018 with positive innovation, tenacious enthusiasm and breakthrough development. Feitian provides customers high quality products and services for its own responsibility, over the years to forge their own management team, establish a scientific and perfect management system. In 2010, the company passed the ISO9000 quality management system certification, and all kinds of products passed the inspection of national quality testing institutions. Good corporate reputation, excellent product quality and excellent service to win customers widely recognized. Feitian never stops exploring the pace, the old and new kinetic energy conversion, new power, new engine, takeoff light heat Chinese dream.








FAQ


1. Is your company a trading company or factory?
We have own factory,Welcome to visit our factory.

2. What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
3. Can you do make with my brand ?
Yes,OEM&ODM order are both welcome and accept.

4. What is your MOQ?
1 set.

5. What is your Packing?
LCL order/Sample order in woden case.
Full container order in high quality export carton.

6. What is your FOB Port?
We accept FOB Qingdao , Shanghai ,Tianjin etc.

7. What is your Monthly Production Capacity?
30000PCS.
