Катушка триггера трансформатора вспышки для монтажа печатной платы
2,00 $

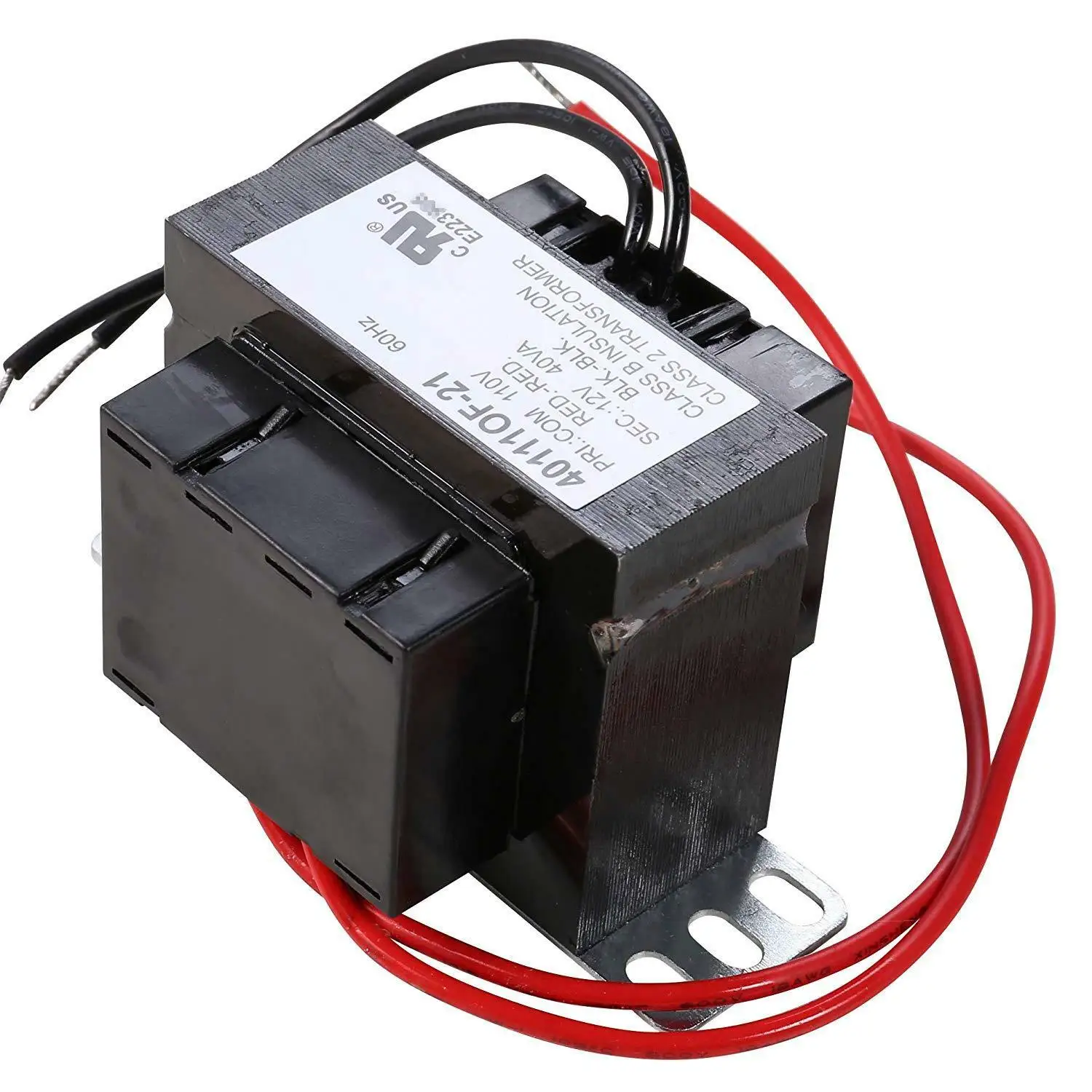

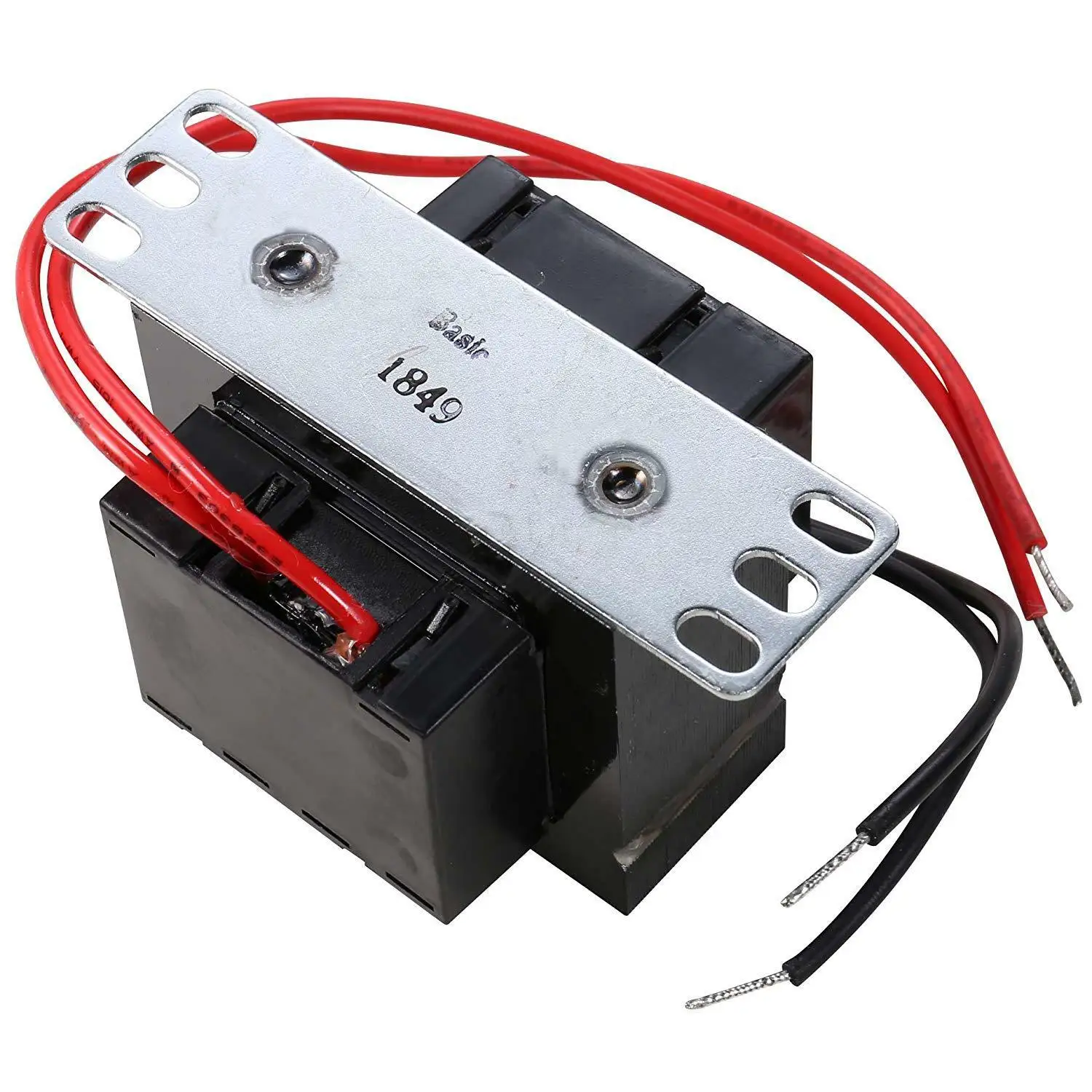

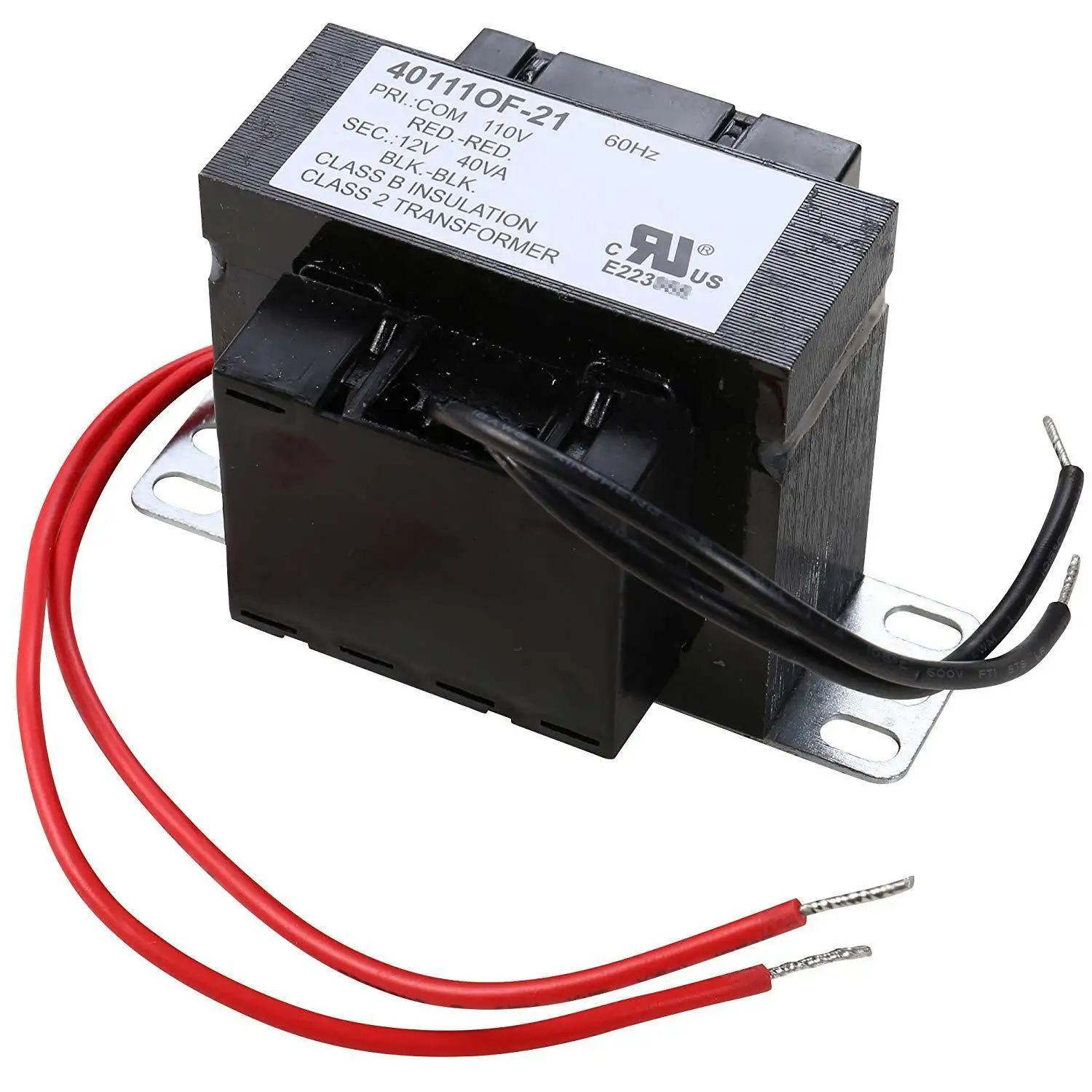

Class 2 Transformer 40VA Rating 110VAC Input to 12VAC Output
- Категория: Transformers >>>
- Поставщик: Shenzhen Hobk Electronic Technology Co. Ltd.
Сохранить в закладки 1600304723603:
Описание и отзывы
Характеристики
Product Description
Features
● Universal Replacement for Most Foot Mounted Furnace Transformers.

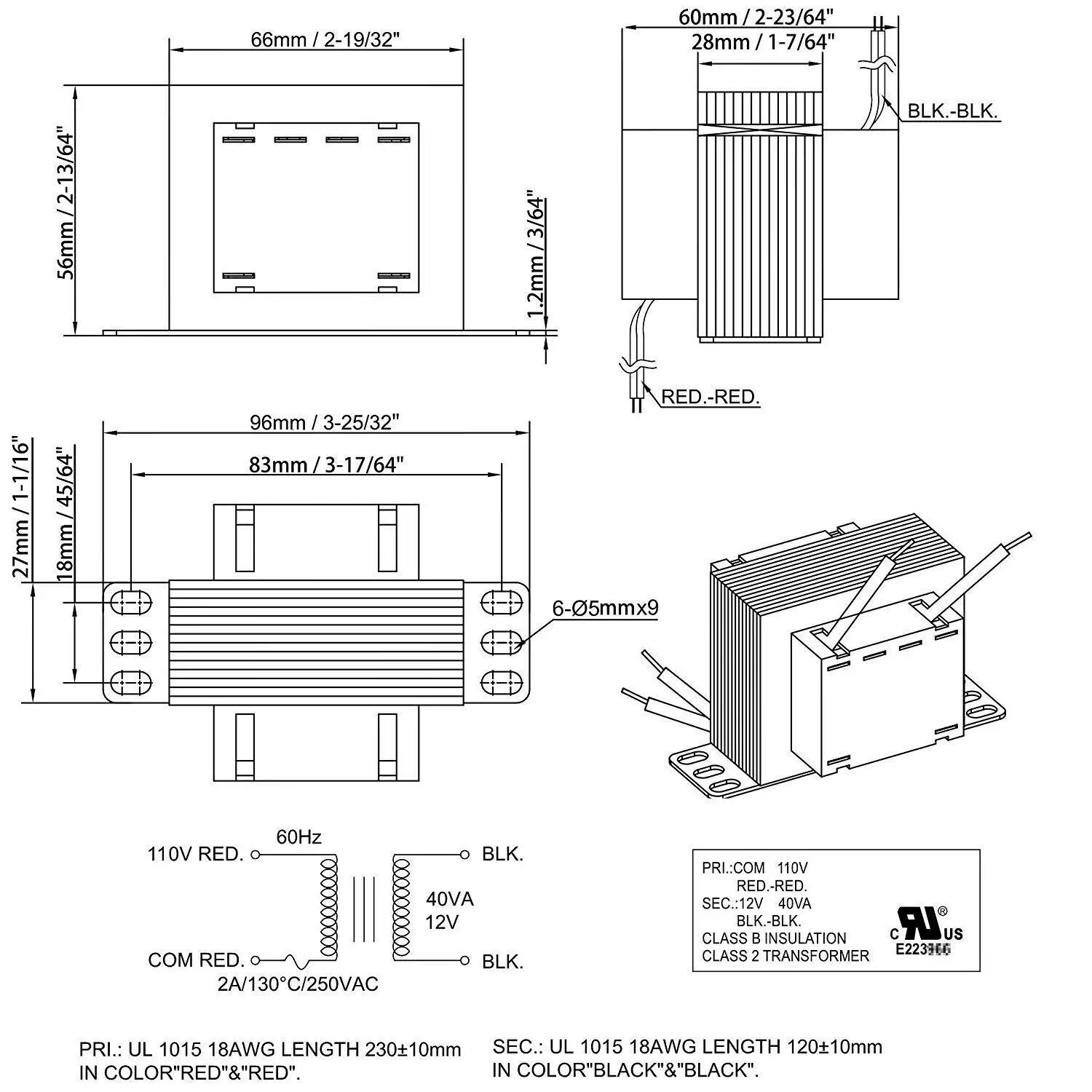

● The two foot mounting holes are spaced 83mm/ 3-17/64” on center.
● UL CERTIFIED AND SAFE USE: This 12 volt transformer is UL-certified, offers reliable performance
● Mounting Configuration: 2 Foot
● 110 Volt Primary - 12 Volt Secondary - 40VA
● PRI.: UL 1015 18AWG Length 230mm/ 9.05" in color “red & red”; SEC: UL 1015 18AWG length 120mm/ 4.72" in color “black & black”.
● Universal Replacement for Most Foot Mounted Furnace Transformers
● The two foot mounting holes are spaced 83mm/ 3-17/64” on center.
● UL CERTIFIED AND SAFE USE: This 12 volt transformer is UL-certified, offers reliable performance
● Mounting Configuration: 2 Foot
● 110 Volt Primary - 12 Volt Secondary - 40VA
● PRI.: UL 1015 18AWG Length 230mm/ 9.05" in color “red & red”; SEC: UL 1015 18AWG length 120mm/ 4.72" in color “black & black”.
● Universal Replacement for Most Foot Mounted Furnace Transformers
Specification
Approvals | Class 2 UL5085-3 Approved | ||||||
Mounting Configuration | 2 Foot | ||||||
Input Voltage | 110VAC / 60Hz | ||||||
Output Voltage | 12VAC | ||||||
VA Rating | 40VA | ||||||
Over Current Protection | Inherently Limited | ||||||
Protective Device | None, Enclosure Style | ||||||
PRI. | UL 1015 18AWG Length 230mm/ 9.05" in color “red & red” | ||||||
SEC | UL 1015 18AWG length 120mm/ 4.72" in color “black & black” | ||||||
Operating Temperature | -40 to 140° F | ||||||
MTBF | 100,000 Hours @ 77°F | ||||||
Construction | Split-Bobbin | ||||||
Net Weight | 870g / 1.9lb | ||||||
