Products Description
Product Paramenters
Model | YX-CZ | ||||||
Hopper size | 2L,4L,10L for choosing | ||||||
Convey Height | 1800~15000mm | ||||||
Vibrator Hopper Size | 650(L)×650(W)mm~1200(L)x1200(W)mm | ||||||
Bucket Material | White PP (Food grade) | ||||||
Gross Weight | 450kg | ||||||
Power supply | 220V/50HZ or 60HZ Single Phase, 0.75KW | ||||||
Technical Feature
(1)Speed is controlled by frequency converter, easy to control and more reliable.
(2)304SS chain which is easy to maintain and long lift.
(3)Strong sprocket with running stably and less noise.
(4) Fully enclosed, keeping clean and stanitary.
Application & Packaging Type

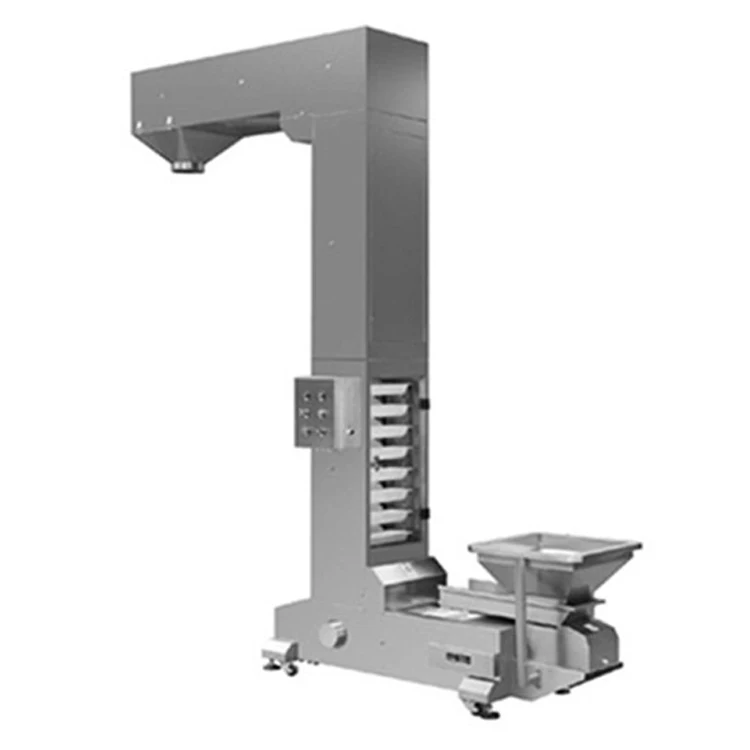

YX-CZ
The Z Shape Bucket Conveyor is applicable for vertical lifting of granule material such as corn,jerry, snack, candy , nuts, plastic and chemicalproduct, small hardware ,vegetable ,fruit and so on. For this machine, the bucket is driven by the chains to lift.
Details Photos of Z Shape Bucket Conveyor
1 Motor and discharge port Powder support
220V/50HZ or 60HZ Single Phase,0.75KW
2 Electric box
VFD control speed.
And easy to control.
Voltage: 380V/ 50HZ.
And easy to control.
Voltage: 380V/ 50HZ.

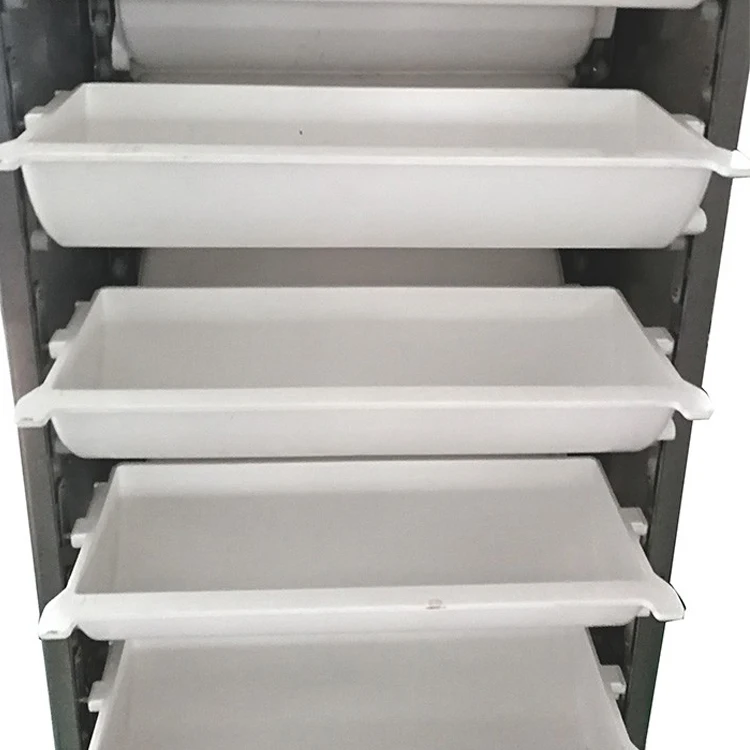

3 Bucket hopper
Bucket hopper volume:0.8L,2L,4L,10L.
Bucket hopper material: 304SS, Food grade plastics.
Bucket can be removed, and it is convenient to clean.
Bucket hopper material: 304SS, Food grade plastics.
Bucket can be removed, and it is convenient to clean.

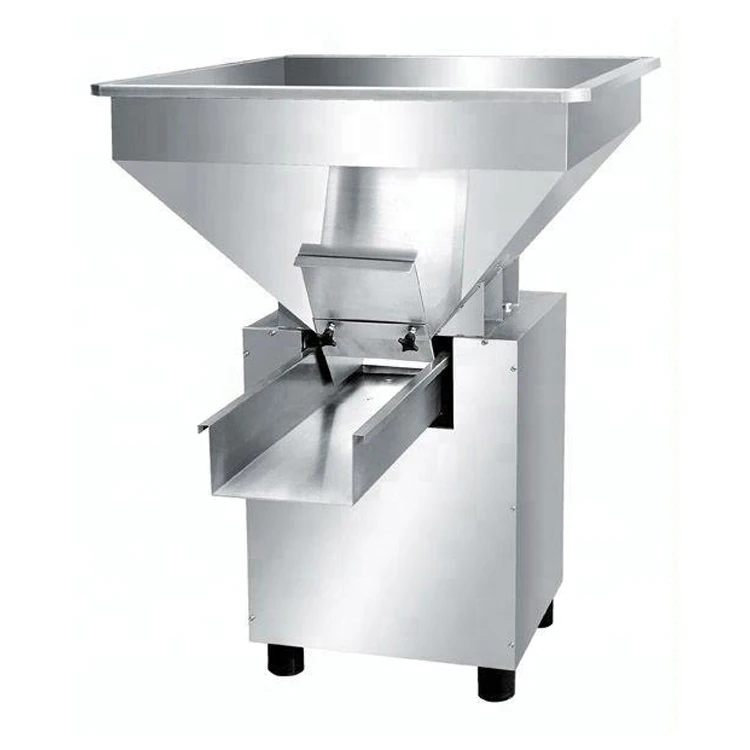

4 Big storage hopper
Our storage hopper and conveyor Height can be customize.
650*650mm storage hopper: 72L
800*800mm storage hopper: 112L
1200*1200mm storage hopper : 342L
650*650mm storage hopper: 72L
800*800mm storage hopper: 112L
1200*1200mm storage hopper : 342L

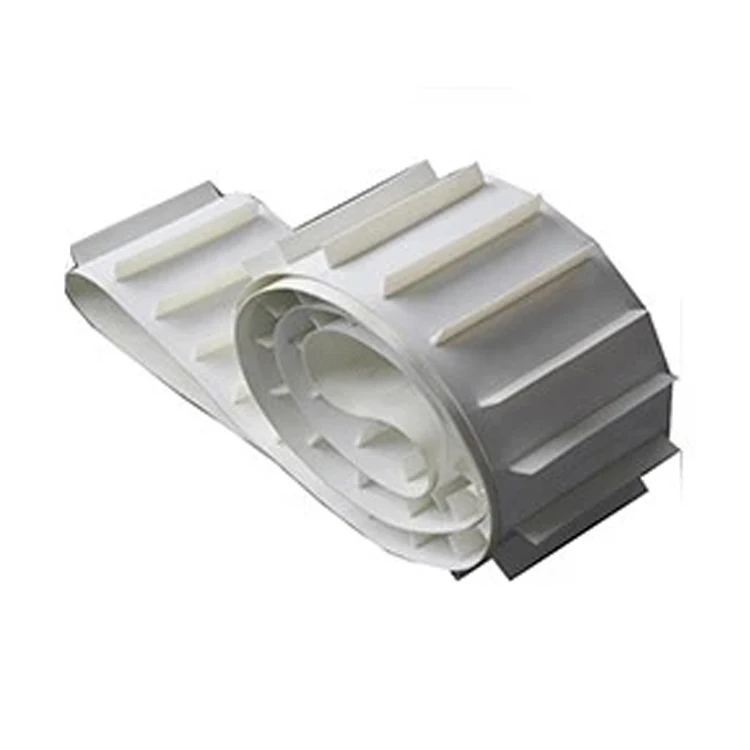

5 Belt material for incline conveyor
We aslo have incline conveyor with belt,chain plate for choosing.It can be uesd PU or Link Joint.
PU is very easy to clean, you can use the water clean it directly.
Link joint can be used for material which have water, it can filter the extra water.
PU is very easy to clean, you can use the water clean it directly.
Link joint can be used for material which have water, it can filter the extra water.
Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.Detailed After-Sales Service.
The warranty is 12 months for whole machines
1. Training services:
We will train your engineer to install our weigher. You can send your engineer to our factory or we dispatch our engineer to your
company. We will introduce your engineer how to install the weigher and how to fix problem.
2. Trouble shooting service:
Some times if you can not fix the problem in your country, we will send our engineer there if you need us to support. By the way,
you need to afford the round trip flight ticket and accommodation fee.
3. Spare Parts replacement:
In guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the
spare parts back. when machine is out of guarantee period, we will provide you the spare parts in cost price.
4. The documents that will be supplied:
1) Invoice;
2) Packing List;
3) Bill of Lading
4) Other files that buyer wanted.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.Detailed After-Sales Service.
The warranty is 12 months for whole machines
1. Training services:
We will train your engineer to install our weigher. You can send your engineer to our factory or we dispatch our engineer to your
company. We will introduce your engineer how to install the weigher and how to fix problem.
2. Trouble shooting service:
Some times if you can not fix the problem in your country, we will send our engineer there if you need us to support. By the way,
you need to afford the round trip flight ticket and accommodation fee.
3. Spare Parts replacement:
In guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the
spare parts back. when machine is out of guarantee period, we will provide you the spare parts in cost price.
4. The documents that will be supplied:
1) Invoice;
2) Packing List;
3) Bill of Lading
4) Other files that buyer wanted.
Payment
40% as deposit,60% before shipment.We accpect T/T ,L/C,Creid card Visa ect
Transportation & Packaging
Shipping way
Our shipping way can be by sea,air,train and express according your needs
Package
Wooden case
FAQ
1. what's product and size to convey?
2.The height of conveyor you need?
4.The capacity per H you need?
