2030 atc cnc маршрутизатор для резьбы по дереву по лучшей цене
15 800,00 $ - 19 800,00 $
HUAHUA дешевый 2030 ЧПУ роутер машина 3000x2000 пылезащитная крышка электрического шпинделя Atc 3 оси
- Категория: >>>
- Поставщик: Guangdong Shunde Changsheng Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1600306156936:
Описание и отзывы
Характеристики
Products Description
products details
Machine structure
1.Cast steel body with aging & tempering treatment, solid and durable.
2.Heavy duty, machine total weight is about 2800KG
GMT High speed spindle
1.Powerful 12KW imported automatic tool change Spindle, 24000rpm, Powerful twisting force and fast processing.
2.it is suitable for heavy cutting, milling etc.,it will keep the surface of work pieces very smooth

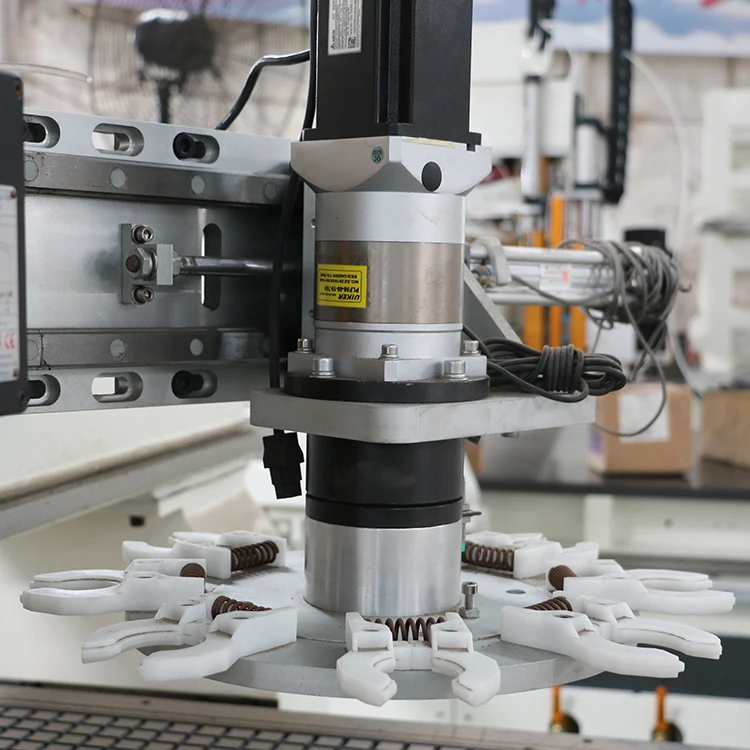

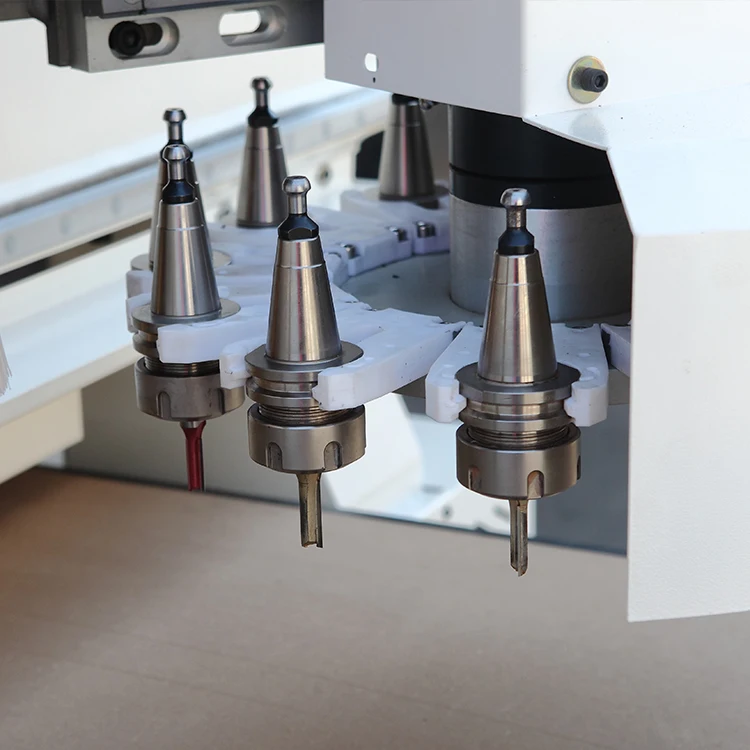

Auto tool changer unit 12pcs
12tools round tool magazine with ISO30 chucks with ER32 collet.

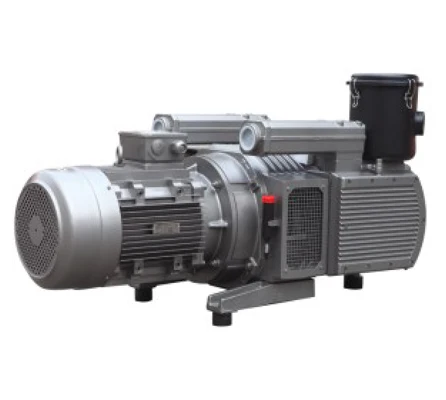

Vacuum pump 7.5kw
1.vacuum pumps ensure the powerful suction.
2.Type: Dry
3.Power: 7.5kw
4.Suction flow rate:250m3/h per set
Taiwan Delta frequency inverter
1.With very good anti interference function & stable output signal,ensure the spindle working smoothly. 2.Taiwan Delta has after sale service shops overall the world, the service response is fast, timely.

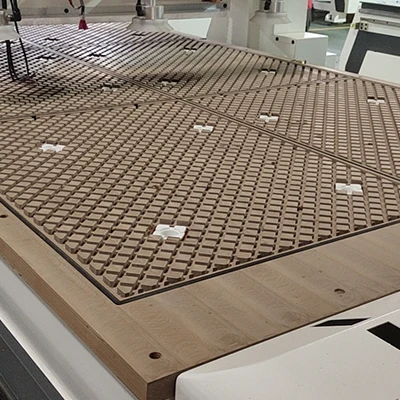

Vacuum worktable
1.Material: 2.8CM thickness PVC board 2.Worktable is divided into 4 parts, 6 big holes in each part to ensure the adsorption is equal.Each area can work independently
Taiwan Syntec servo motor and faston reducer
Professionally made, ensure the machine running accurately in safe with very good resolution and accuracy.

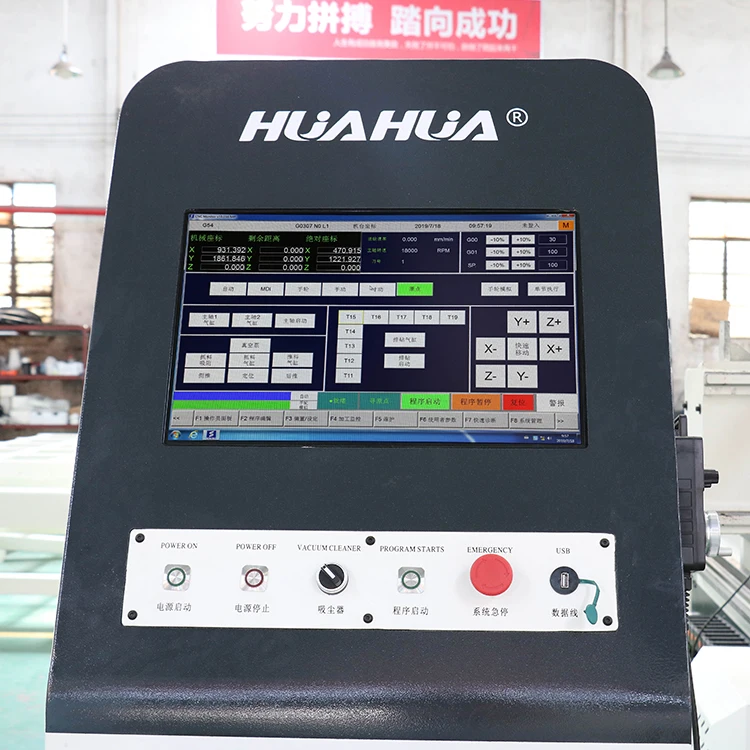

Control system
1.Taiwan Syntec control system
2.User-friendly interface, easy operation and fast response.
X-axis: | 1300mm | ||
Y-axis: | 2500mm | ||
Z-axis: | 200mm | ||
Machine Precision | Processing Precision | ±0.05mm | |
Repeat positioning | ±0.01mm | ||
X-axis max. speed | 80m/min | ||
Y-axis max. speed | 80m/min | ||
Z-axis max. speed | 20m/min | ||
work table | vacuum worktable | ||
X/Y axis：Oblique Rack Gear | |||
Z axis：Ball Screw | |||
Main spindle | Quantity | 1 | |
Power | 12kw | ||
Rotating speed | 24000 rpm | ||
tool magazine | 12 tools auto changer, round type | ||
Drive system | servo motor and driver | ||
Vacuum pump | Working principle | DRY | |
Quantity | 1 | ||
Power | 7.5KW | ||
Suction flow rate | 250 m³/h | ||
control system | TaiWan Syntec control system | ||
Automatic loading table | With | ||
Automatic unloading table | With | ||
Power supply | Voltage: 380V, 3-phase, Frequency: 50 Hz | ||
Software | Jdpaint, powermill, Artcam, Alphacam, Type 3, etc. CAD/CAM software compatible, identify G code, *.NC. | ||
Packing size | 9000x2300x2500mm | ||
Net weight | 3500kg | ||
Packing＆Delivery
Company Profile
Guangdong Shunde Changsheng Machinery Manufacturing Co., Ltd. is founded in 2003, located in Lunjiao Shunde Foshan Guangdong,where is the biggest woodworking machine industry area in south of China. we have 400+ employees including 50+ research staffs, 45000 m2 workshop, can produce 500 sets machines per month.
Our brand name is HUAHUA, has been focusing on the innovation and research of the computer beam saw, cnc drilling machine, edge banding machine and cnc router machine as well as on the machines assembly and software integration, offering a solution to full range of CNC furniture equipment and automatic production line. With good innovation on technology, good management on the production and high quality in service, HUAHUA has been supplying its machines in more than 50 countries. In the future, HUAHUA will keep focusing on research, development, and manufacturing panel furniture machines, welcome more friends to know us and become partners to create a bright future with each other.
Our brand name is HUAHUA, has been focusing on the innovation and research of the computer beam saw, cnc drilling machine, edge banding machine and cnc router machine as well as on the machines assembly and software integration, offering a solution to full range of CNC furniture equipment and automatic production line. With good innovation on technology, good management on the production and high quality in service, HUAHUA has been supplying its machines in more than 50 countries. In the future, HUAHUA will keep focusing on research, development, and manufacturing panel furniture machines, welcome more friends to know us and become partners to create a bright future with each other.
CNC router machine workshop
Edge banding machine workshop
Computer beam saw machine workshop
CNC boring machine workshop
Exhibition
Our Customer
Customer Feedback
Certifications
FAQ
Q1. Are your trading company or factory?
A1. We are factory with more than 45000m2 workshop located in Longwei Road, Xichong Industrial Park, Lunjiao Town, Shunde Dist., Foshan, Guangdong, China.
Q2. What machine can you supply?
A2. Our main machines are computer beam saw, edge banding machine, cnc drilling machine, cnc router machine etc.widely used for panel furniture production.
Q3. What is the payment term?
Q3. T/T 30% in advance and balance before shipment, LC or by negotiation.
Q4. What is the delivery time?
A4. Normal 380V voltage is 15-30 days, other voltage is 30-45days.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes ,you will get experienced pre-sales engineer to support, not only including machine and auxiliary selection but also electrical ,air, machine layout in factory ,etc.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by online tools.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost
A1. We are factory with more than 45000m2 workshop located in Longwei Road, Xichong Industrial Park, Lunjiao Town, Shunde Dist., Foshan, Guangdong, China.
Q2. What machine can you supply?
A2. Our main machines are computer beam saw, edge banding machine, cnc drilling machine, cnc router machine etc.widely used for panel furniture production.
Q3. What is the payment term?
Q3. T/T 30% in advance and balance before shipment, LC or by negotiation.
Q4. What is the delivery time?
A4. Normal 380V voltage is 15-30 days, other voltage is 30-45days.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes ,you will get experienced pre-sales engineer to support, not only including machine and auxiliary selection but also electrical ,air, machine layout in factory ,etc.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by online tools.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost
