Ruiwan Окружающая среда содружественная вакуумные газовые Co2 извлечения газовый экстрактор для лазерными сварочными аппаратами пайки Металл режущее оборудование
- Категория: Gas Disposal Machinery >>>
- Поставщик: Ruiwan (guangdong) Technology Co. ltd.
Сохранить в закладки 1600306951469:
Описание и отзывы
Характеристики
Catalog
Product Description

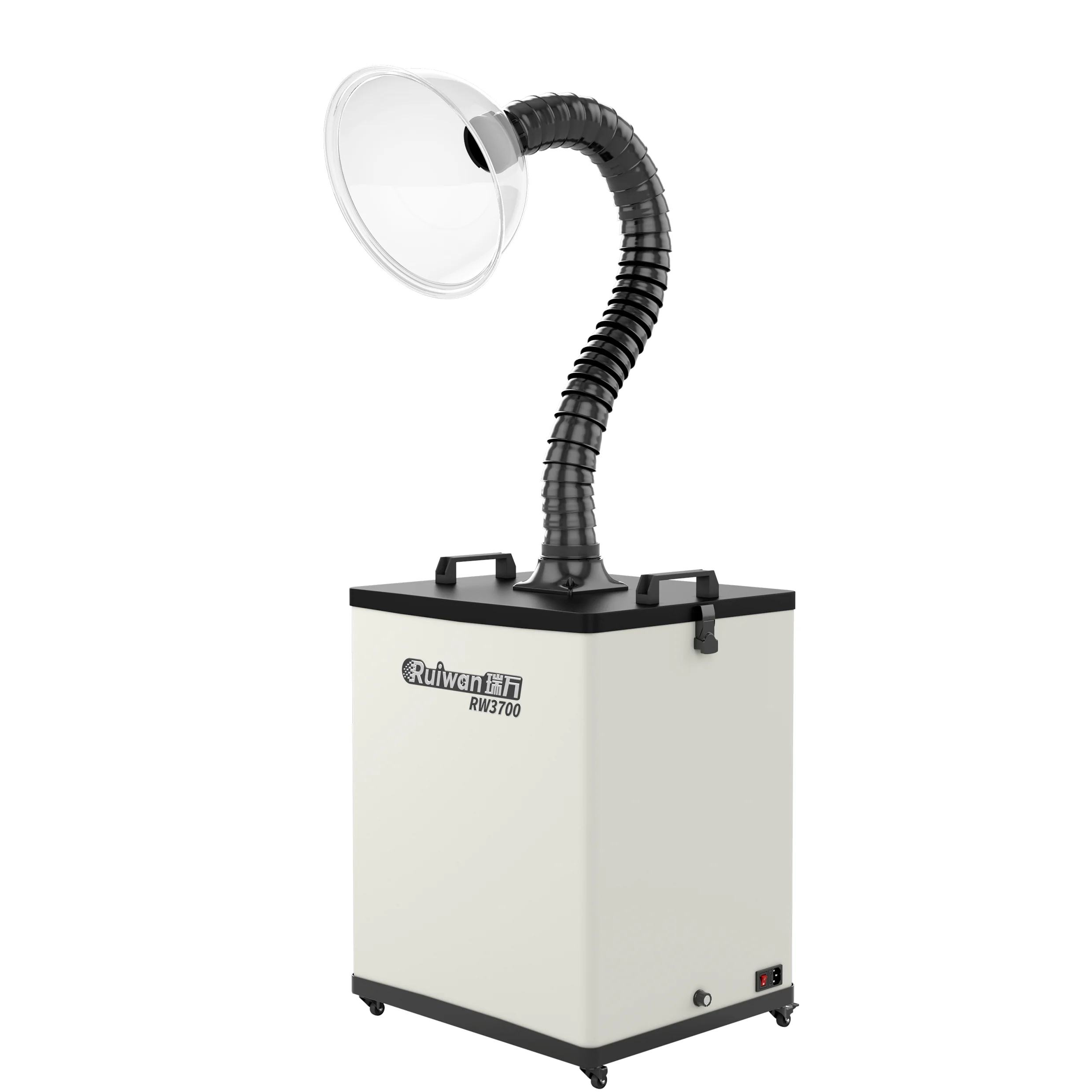

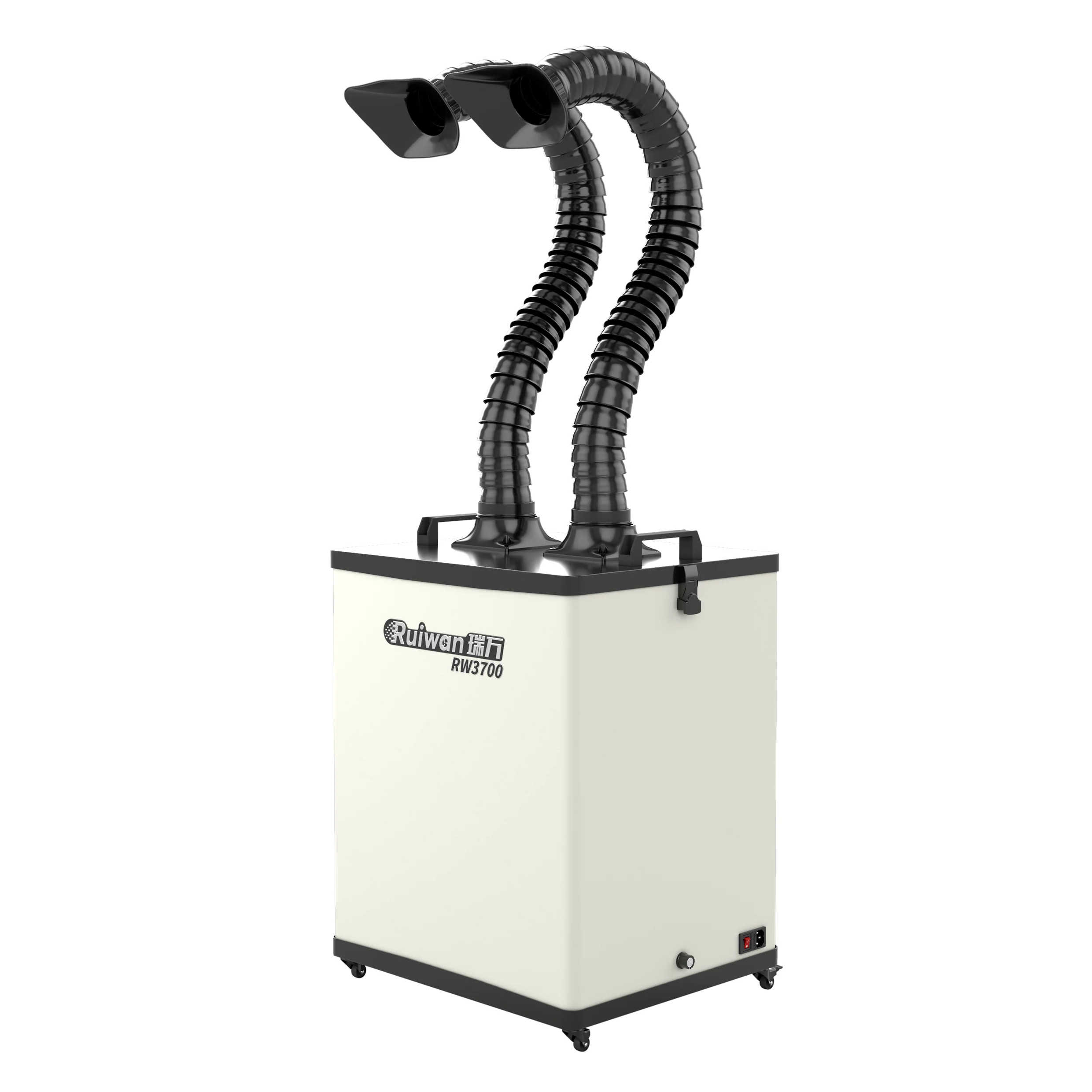

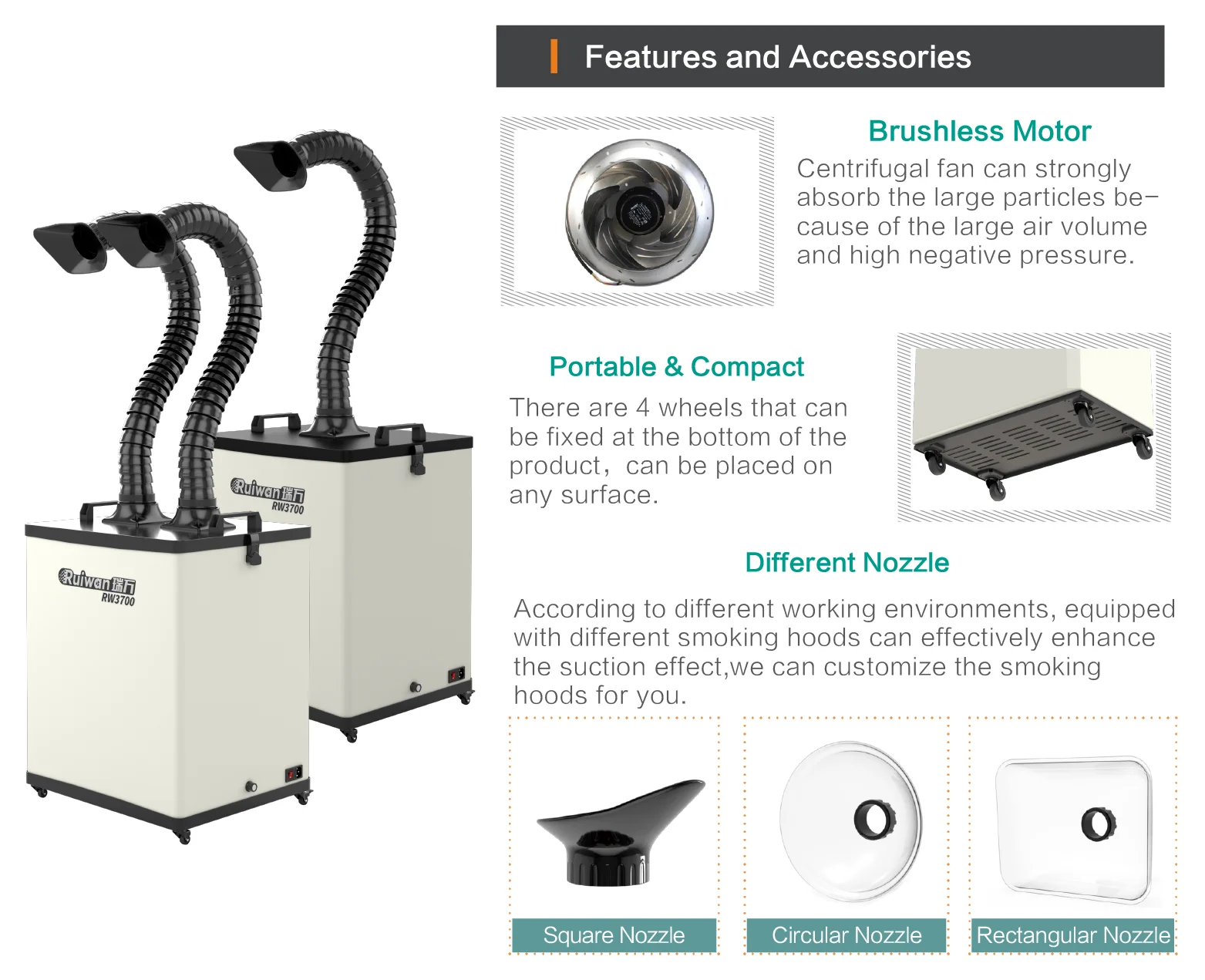

Brushless Motor Fume Extractor Fan Smoke Purifier

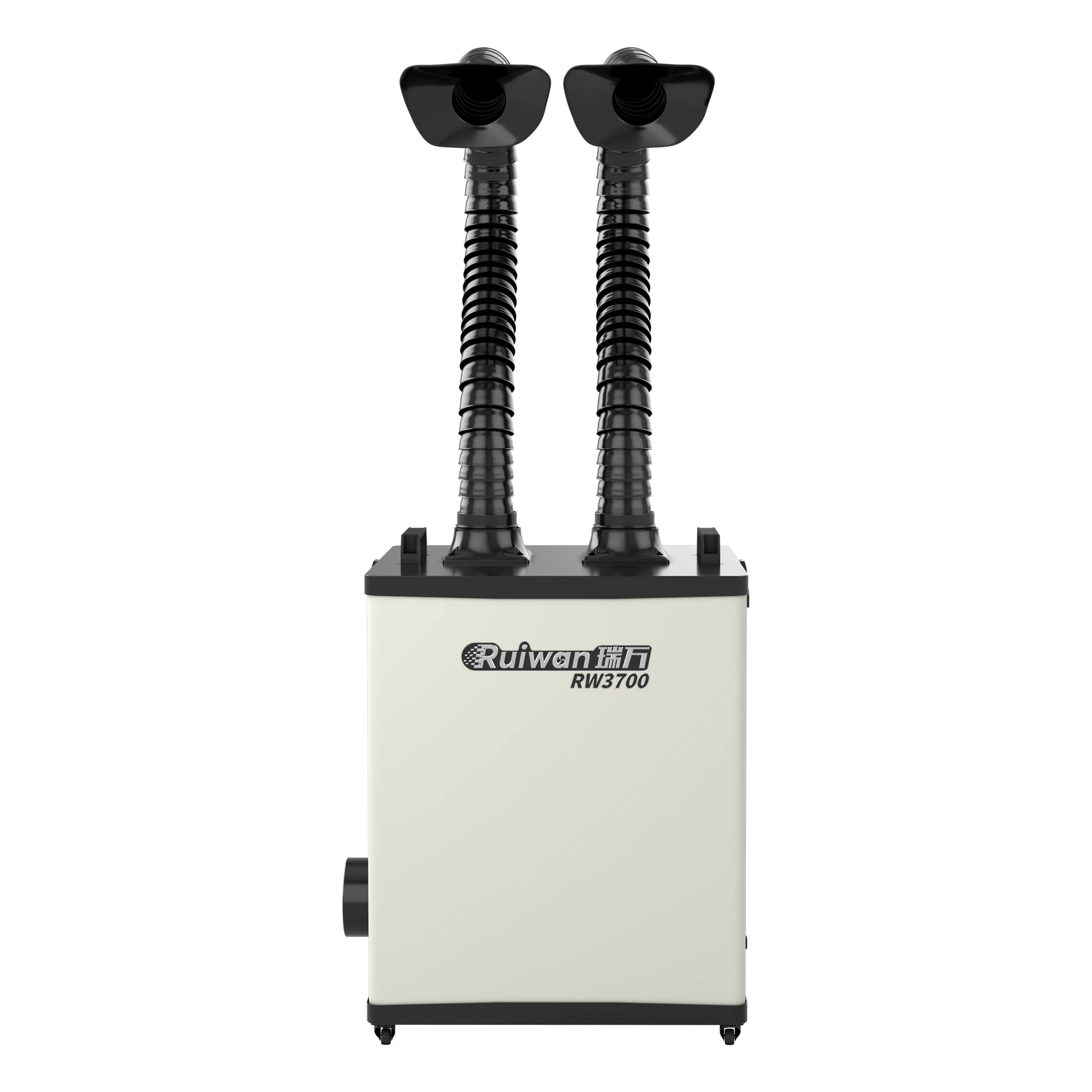

RD3700
Fume extractor is a movebale fume extraction system machine.Usually, the self-supporting arm is arranged at the place where the smoke and dust is generated, and the fume and harmful smoke can be effectively absorbed and purified. Through different filters,odor and harmful particles are adsorbed and blocked. So that the odor of the exhaust gas is greatly reduced or even disappeared.
RD3700 is mainly used to handle strong smell and smoke from some strong fume work equipment such as acrylic laser cutting,laser engraving and re-flow soldering machine. After the external cyclone is linked, it can handle sticky dust such as rubber, acrylic, paint .Absorb dust particles of 0.5μm or more，and according to the actual working scene,the filtering effect can reach up to 99.7%
Details Images
Model | RD3700 |
Voltage | 110v 60hz / 220v 60hz |
Noise | ＜36db |
Filtration Effect | 0.3μm 99.97% — 0.1μm 99.9999% （H13 - U16） |
Size | 495x425x590 mm |
Weight | 43kg |
Diameter of Flange | 75mm |
Filters | Standard 6 layers （can be increased to 8 layers） |
Air Volume | 1000 m³/h |
Self-supporting Arm | Stays put exactly where you position it |
Hose | Convenient connection; not only durable and strong hardness but also resistant to 130℃ high temperature |
About filter
Ruiwan fume extractors offer the utmost in user-friendly design and multi-stage filtration in a compact and portable fume
extractor design. All of our Mobile Fume extractors can accommodate a variety of filter media including, HEPA, ULPA, Medical Grade Filter Media, and a variety of adsorbent Chemical filter media such as Activated Carbon.
extractor design. All of our Mobile Fume extractors can accommodate a variety of filter media including, HEPA, ULPA, Medical Grade Filter Media, and a variety of adsorbent Chemical filter media such as Activated Carbon.

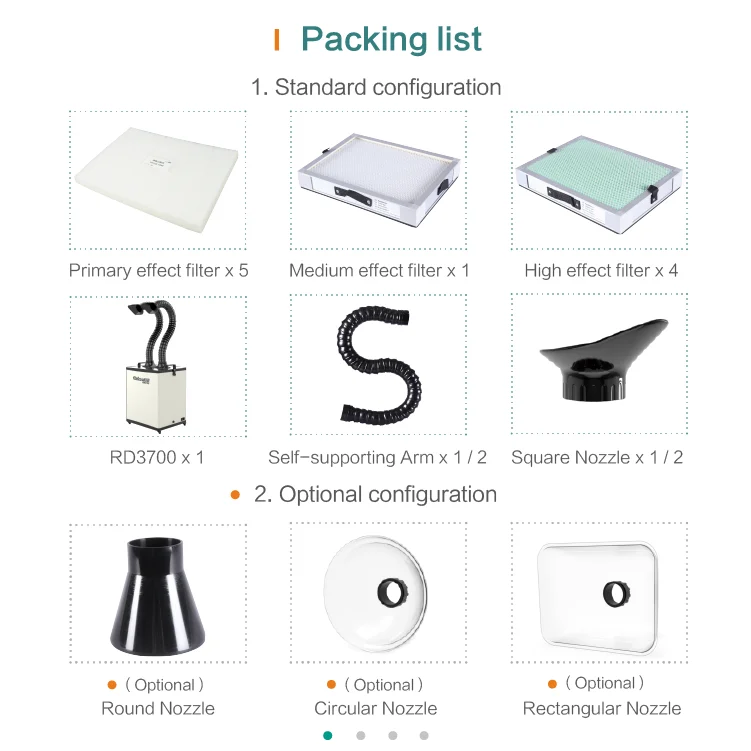

Filters | Function | Material |
Primary effect filter | Block > 3 μm particulates | Synthetic fiber with gardual density |
Medium effect filter | Block > 0.3 μm particulates | PP / Glass fiber / Water wash PET |
High effective filter | Remove all smell and Odor | Custom made activated carbon |
Packing&Shipping
Express packing method :
1. Machine and accessories can be placed in the same carton.
2. Foam inside the carton, reinforced with Paper angle bead outside the carton.
3. Use a cable tie for final reinforcement.
Sea shipping packing method :
1. The machine and accessories can be placed in the same carton
(or placed separately according to the number of products) 2. Use wooden boxes or wooden racks for packaging reinforcement
1. Machine and accessories can be placed in the same carton.
2. Foam inside the carton, reinforced with Paper angle bead outside the carton.
3. Use a cable tie for final reinforcement.
Sea shipping packing method :
1. The machine and accessories can be placed in the same carton
(or placed separately according to the number of products) 2. Use wooden boxes or wooden racks for packaging reinforcement
Related Products
Company Introduction
Ruiwan （Guangdong）Technology Co., Ltd.
Ruiwan Tech Co., Ltd. is specialized in the area of the industry mechanical technology equipments such as fume extractor,dust collector and filter elements. It is one of the largest manufacturers of industrial fume extractor in China. Zhuhai Qizhou Industrial Co.,Ltd. is the overseas department and wholly owned subsidiary company of Ruiwan which is seamlessly connected with Ruiwan.Compare to the ordinary foregin trad company, it has the special advatages and the most convinient services for the customer , such as outsourcing services, OEM & ODM services; customized services.
Ruiwan Tech Co., Ltd. is specialized in the area of the industry mechanical technology equipments such as fume extractor,dust collector and filter elements. It is one of the largest manufacturers of industrial fume extractor in China. Zhuhai Qizhou Industrial Co.,Ltd. is the overseas department and wholly owned subsidiary company of Ruiwan which is seamlessly connected with Ruiwan.Compare to the ordinary foregin trad company, it has the special advatages and the most convinient services for the customer , such as outsourcing services, OEM & ODM services; customized services.
Our Services & Strength
1：OEM & ODM production ;
2：Capability of the Intelligent product development design ;
3：Prompt shipment services ;
4：Outsourcing assistance .
Contact Us
+86 13610499806（EN）
Whatsapp : +86 13610499806
Wechat ： c1029820185
Web ： www.ruiwanchina.com
Email ： Qizhoutrade@protonmail.com
Whatsapp : +86 13610499806
Wechat ： c1029820185
Web ： www.ruiwanchina.com
Email ： Qizhoutrade@protonmail.com
FAQ
Q: Are you original manufacture ?
A: Yes,we Ruiwan are an official leading manufature in air-cleaning machinery in China and we have the whole series products you need.
Q: What kind fo terms of payment can be accepted ?
A: Normally we can work on T/T trem ,VISA ,Mastercard ,West Union .
Q: What about the delivery time ?
A : Normally 7-15 days after receving the deposit.
Customized products 30-45days after receving the deposit.
Customized products 30-45days after receving the deposit.
Q: What about the Minimum Order Quantity ?
A: The MOQ is 1 pcs, sample order in small quantity is acceptable
Q: Can I visit your factory before order?
A: Yes, welcome to visit our factory. One hour near Shenzhen Airport.
Похожие товары

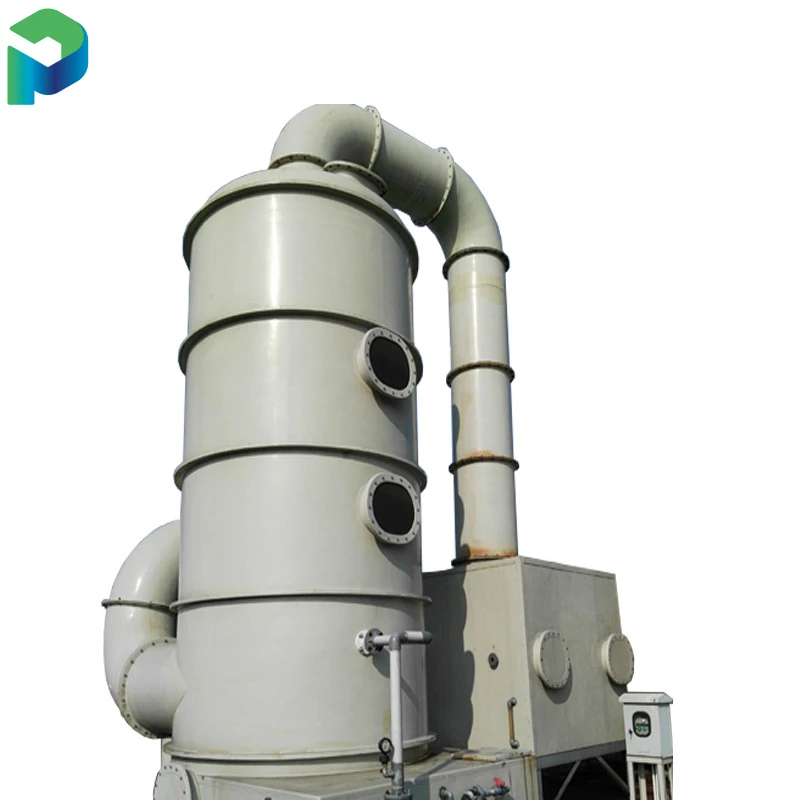

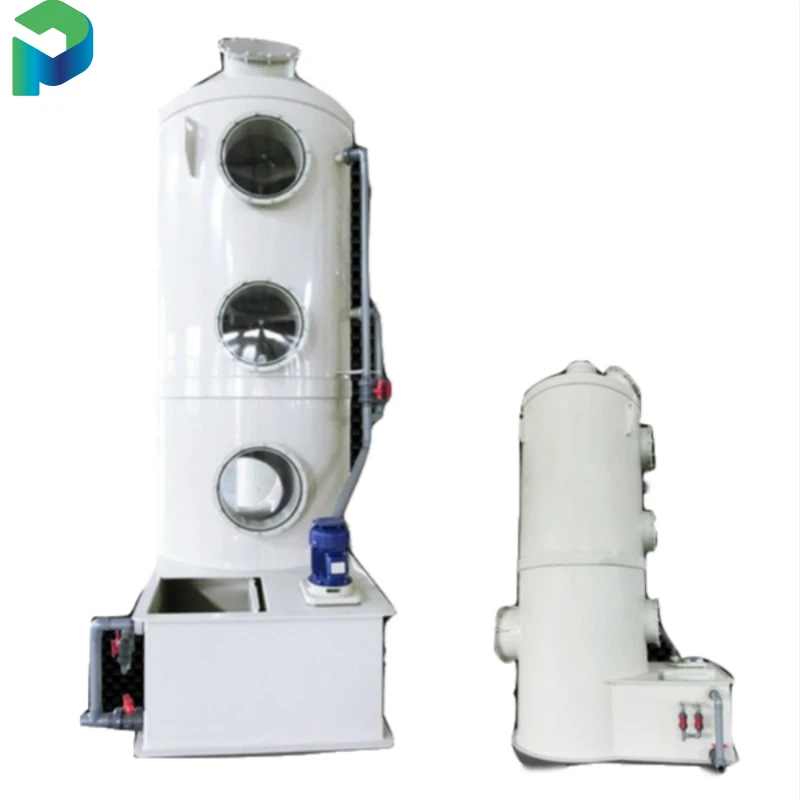

Система скруббера Промышленная

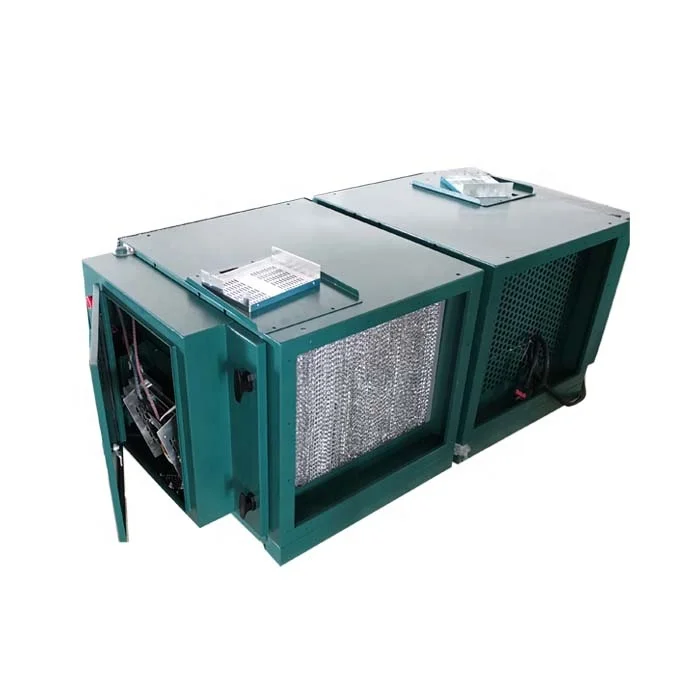

Промышленный Очиститель дыма Esp, машина для всасывания пыли
