Вакуумная дегазация бак

Сохранить в закладки 1600309082245:


Цена:3 150,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

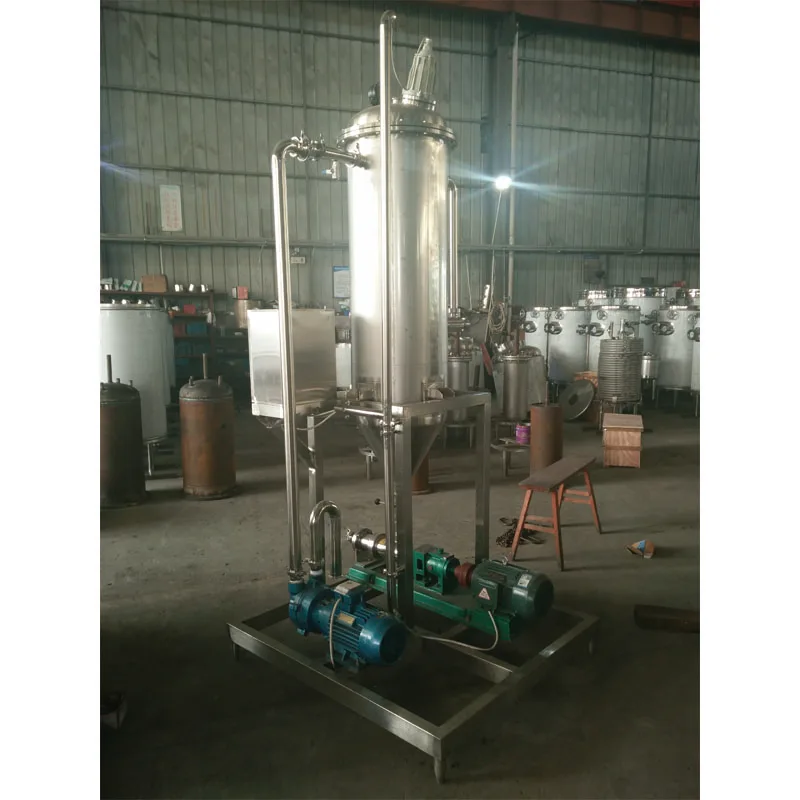

Vacuum degassing tank





The vacuum degasser is a device that uses vacuum suction to remove the non-condensable gas contained in the liquid.





When in use, just turn on the matching vacuum pump (the pump is used according to the pump's instruction manual) to extract the air from the device, and the material will self-prime into the device from the feed port. When the material rises to a certain position, the control valve automatically controls the material. At this time, you can observe and control the feeding speed from the sight hole. When the vacuum degree in the device reaches the technological requirement, the material can be drawn out from the material outlet. As long as the vacuum degree and the balance of the inlet and outlet are maintained, the production can be continued.

















































Model



TQ-1



TQ-2



TQ-3



TQ-10



TQ-15



Capacity



1000L/H



2000L/H



3000L/H



10000L/H



15000L/H



Power



5.2kw



6.2kw



6.2kw



8kw



8kw



Dimension



1035×750×2840



1135×780×3040



1185×800×3140



1600×1700×3250



1750×1500×3500



Weight



270kg



350kg



450kg



600kg



800kg






.jpg
