OEM & ODM солнечные панели горячей воды тепловая труба воздушный поглотитель солнечный коллектор
- Категория: >>>
- Поставщик: Shandong Feitian New Energy Co. Ltd.
Сохранить в закладки 1600309221479:
Описание и отзывы
Характеристики
OEM SOLAR COLLECTORS FOR HOT WATER
As innovative pioneers, the machines that we need for the production of our high-quality and market-conform solar products are not easily available “off the shelf”.
Therefore, we constantly further develop our highly advanced machines with an “everything is possible” attitude, in order to enforce the diverse technical requirements. Aesthetic design and numerous environmental and innovation awards distinguish our collector families. Each individual collector range has numerous customer-specific designs. Hence, we are able to offer several hundred different types of collector variants and countless mounting solutions.
Product Description

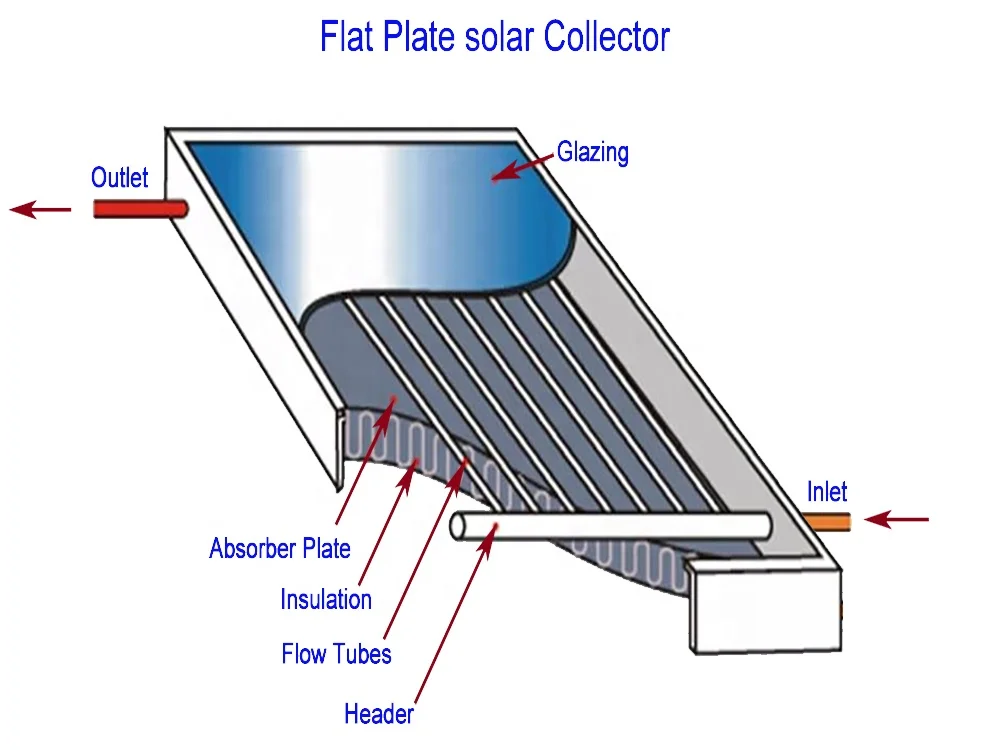

Schematic diagram
The above diagram is the schematic diagram of an project flat plate collector.
It contains glazing, absorber plate, insulation, flow tubes frame and back sheet.
1. The high quality and intelligent product design ensures unbeatable value for money
2. The robot-controlled production line ensures the highest levels of precision during the production process.
3. Automatic production data acquisition and thereby traceability of each products’ raw material, producing date, producing worker, and delivery time easily and quickly;
4. Three times quality check by 100% full-automatic pressure test in a closed cabin;
5. The resistance and longevity of the welding seam with around 10048 welding spots per absorber is proven through accelerated ageing tests!
2. The robot-controlled production line ensures the highest levels of precision during the production process.
3. Automatic production data acquisition and thereby traceability of each products’ raw material, producing date, producing worker, and delivery time easily and quickly;
4. Three times quality check by 100% full-automatic pressure test in a closed cabin;
5. The resistance and longevity of the welding seam with around 10048 welding spots per absorber is proven through accelerated ageing tests!

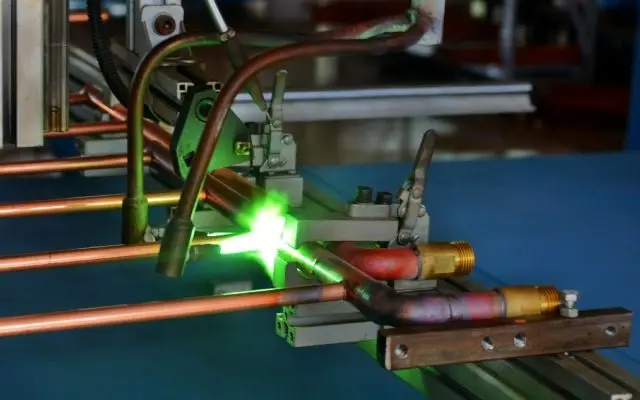

Our absorber is welded by laser.
The welding spots are uniform and the combination is firm

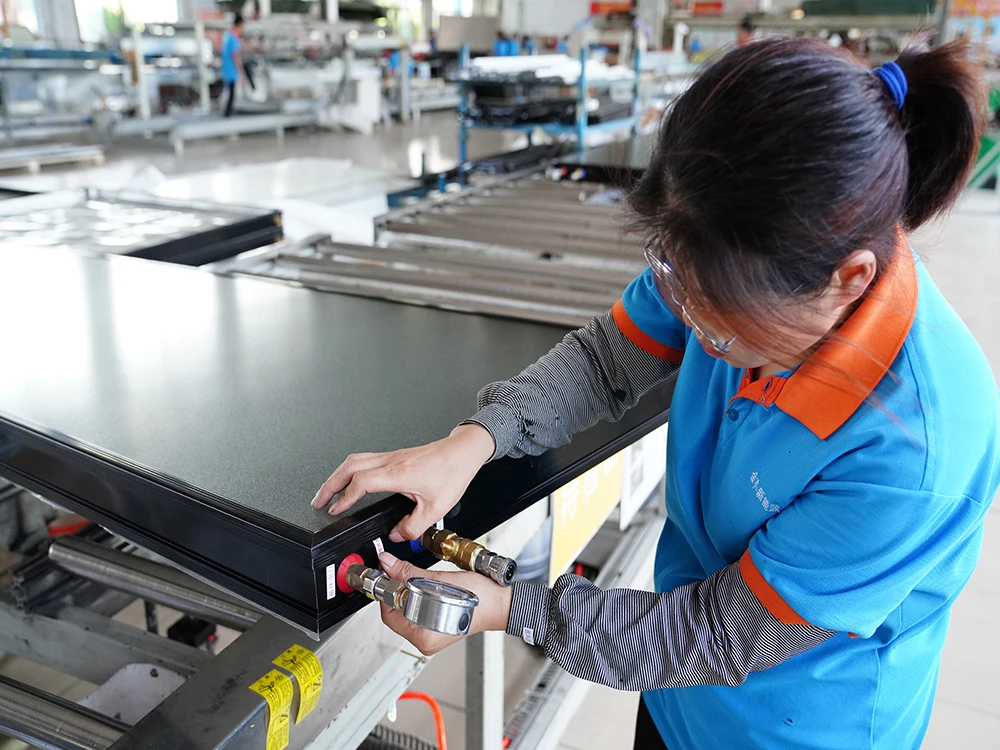

All our collectors are tested three times to ensure excellent quality
Specification
Model No. & Specs | FITI2.0-2 | ||
Overall Data | Collector dimension(mm) | 2000x1000x80/95 | |
Overall area( ㎡ ) | 2 | ||
Absorber | Header pipes size (mm) Length | Φ22*0.6mm (Length) | |
Riser pipes & qty | Φ10*0.5mm & 7pcs | ||
Welding way | Laser welding | ||
Max. working pressure | 1.2Mpa | ||
Absorber material | Aluminium plate+copper pipes | ||
Absorber coating& thickness( mm) | Black coating & 0.4mm | ||
Absorber specification(mm) | 0.4*950*1950mm | ||
Absorption & Emittance | 96%（@AM1.5）& 10-12%(@80℃) | ||
Insulation | Insulation material | Glass wool+polyester fiber | |
Insulation density(Kg/m³) thickness(mm) | Bottom:35 Kg/ m³/T=30mm Side:25 Kg/ m³/T=20mm | ||
Glazing | Transmittance | 92% | |
Material | 3.2mm Low iron tempered textured glass | ||
Casing | Frame | Aluminum alloy | |
Back plate | 0.4mm Color-Coated Plate | ||
Frame color | Black/Silver/Customer’s requirement | ||
Sealing gasket | Integral Silicone glue | ||
Overall weight | Net weight(kg) | 35 | |
Logo | Client’s requirements | ||
Container loading | 25‘’GP container | 150PCS | |
40‘’HQ container | 350PCS | ||
Product Details
Use Case
Solar water heater
The flat plate collector is matched with a water tank and bracket to form a solar water heater for use
Hot water project
Multiple flat plate collectors form a heat collection array.
Provide plenty of hot water for hotels, hospitals and schools.
Large district heating
It consists of thousands of flat plate collectors.
To provide winter heating for the whole city
Packing&Shipping

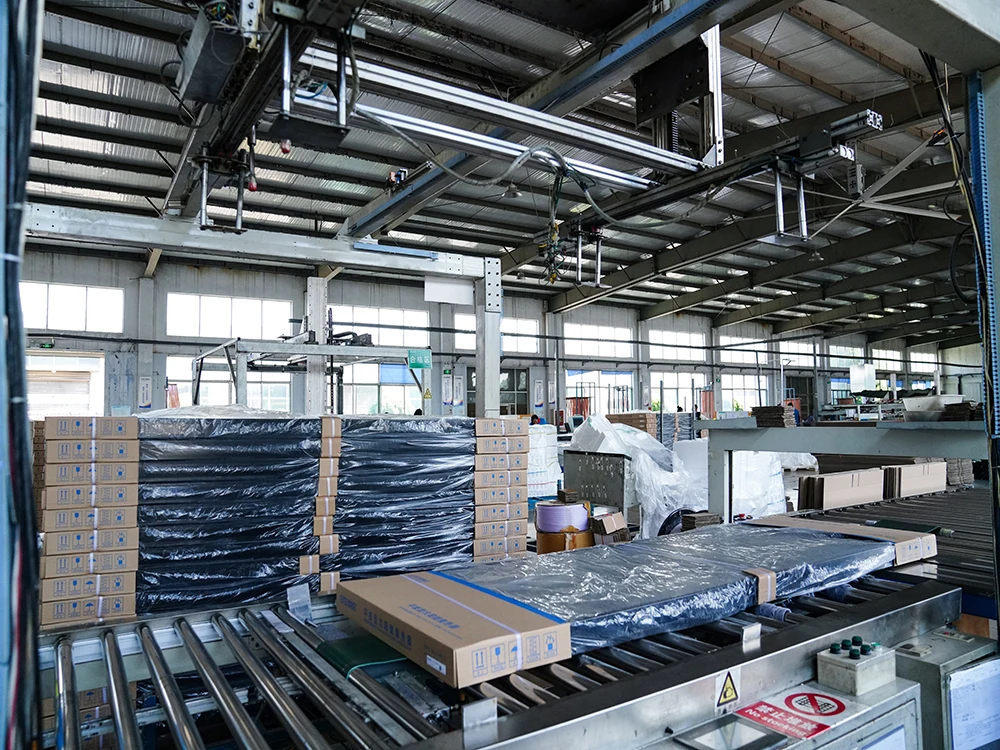

Professional Production Line
Company Profile
Shandong Feitian New Energy Co., Ltd
Shandong Feitian New Energy Co., Ltd., located in Dezhou, Shandong, is an innovative enterprise focusing on the field of solar thermal application. With a number of independent intellectual property rights of the core technology, has been committed to the development, manufacturing and sales of solar thermal products and equipment.
In 2002, Feitian was established. Relying on the strong technical background, it entered the solar thermal field. In the same year, it successfully developed the solar engineering integrated tank and produced a special production line for the industry, and the products were highly recognized by the industry leaders.In the field of solar thermal energy, Feitian New Energy was established in April 2018 with positive innovation, tenacious enthusiasm and breakthrough development. Feitian provides customers high quality products and services for its own responsibility, over the years to forge their own management team, establish a scientific and perfect management system. In 2010, the company passed the ISO9000 quality management system certification, and all kinds of products passed the inspection of national quality testing institutions. Good corporate reputation, excellent product quality and excellent service to win customers widely recognized. Feitian never stops exploring the pace, the old and new kinetic energy conversion, new power, new engine, takeoff light heat Chinese dream!
FAQ
1. Is your company a trading company or factory?
We have own factory. Welcome to visit our factory.
2. What is your Delivery Time?
LCL order/Sample order:10days. Full container order:14days.
LCL order/Sample order:10days. Full container order:14days.
3. Can you do make with my brand ?
Yes,OEM&ODM order are both welcome and accept.
4. What is your MOQ?
1 set.
5. What is your Packing?
LCL order/Sample order in woden case. Full container order in high quality export carton.
6. What is your FOB Port?
We accept FOB Qingdao , Shanghai ,Tianjin etc.
7. What is your Monthly Production Capacity?
24000PCS.
Похожие товары

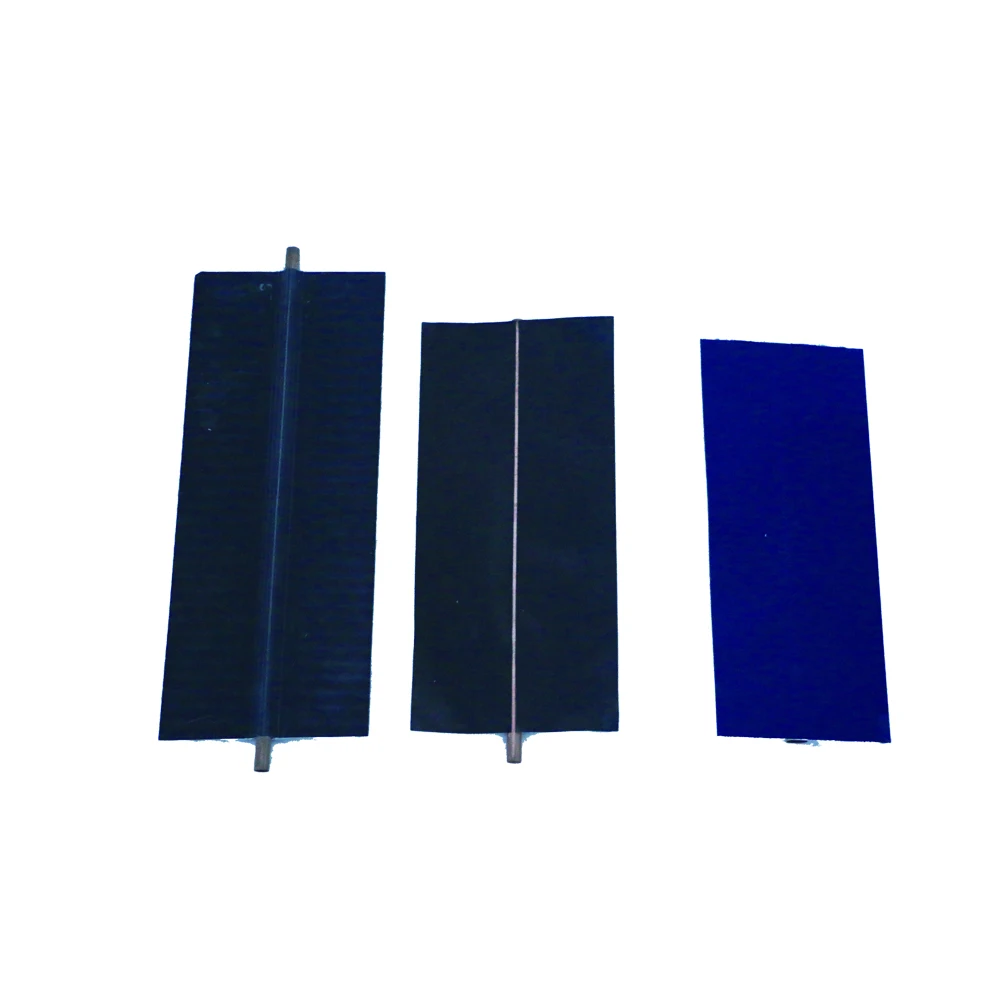

Плоская пластина, Медный трубчатый поглотитель солнечных батарей
10,00 $ - 30,00 $
Most popular solar collector absorber for water heater Pressure Heat Pipe Solar Heating Collector
200,00 $
2021 солнечный коллектор нагреватель плоский коллектор
89,00 $ - 95,00 $
2017 hot sale copper-aluminium solar collector flat panel

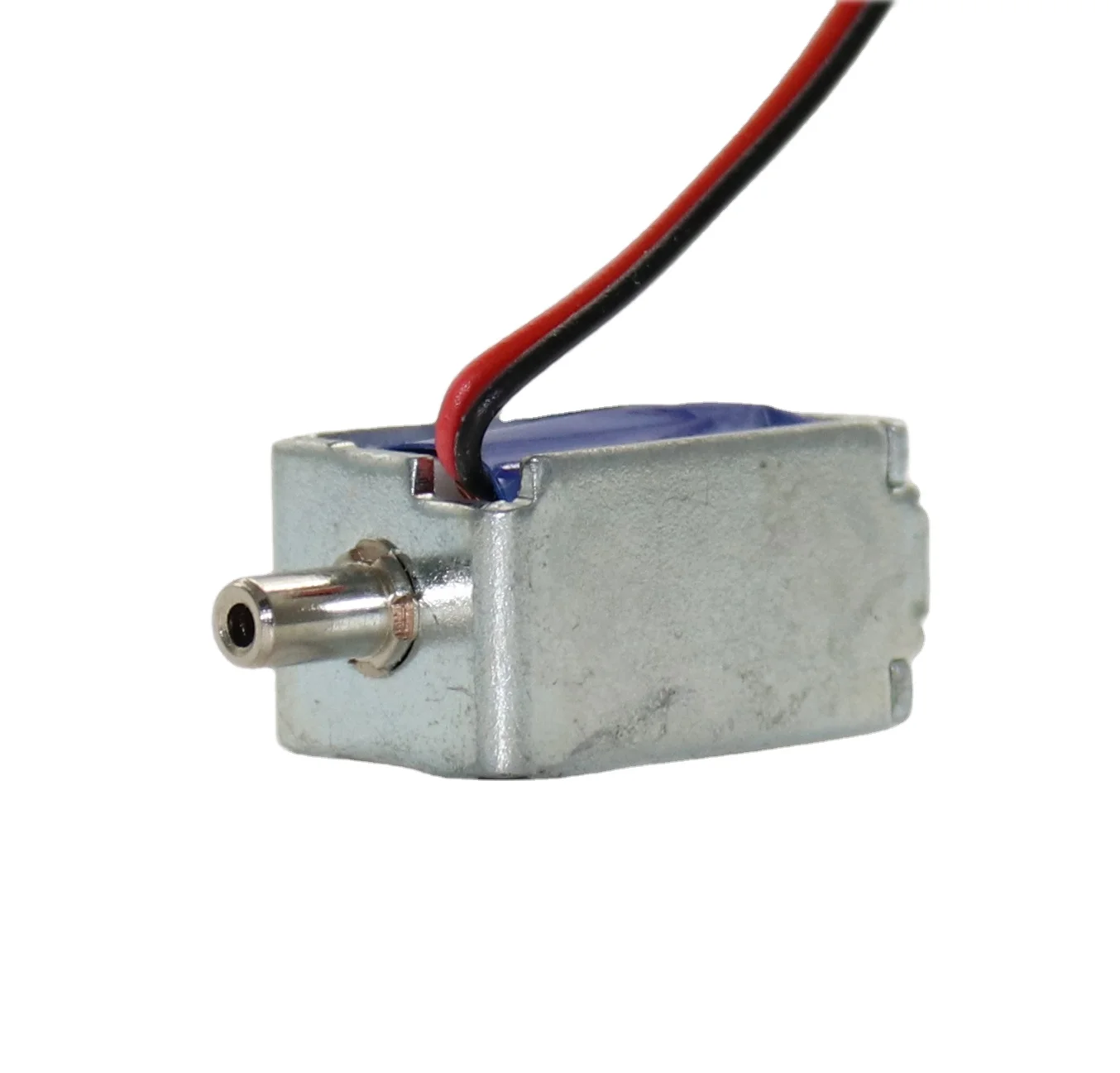

Электромагнитный Мини-клапан с открытой рамой электромагнитный клапан постоянного тока 3 В/6 в/12 В маленький нормальным закрытием контрольный газ и жидкость 0 45
1,65 $ - 3,15 $
Поглотитель под давлением плавники воздушный водонагреватель geyser Тепловая панель солнечный коллектор для водонагревателя
92,00 $ - 110,00 $

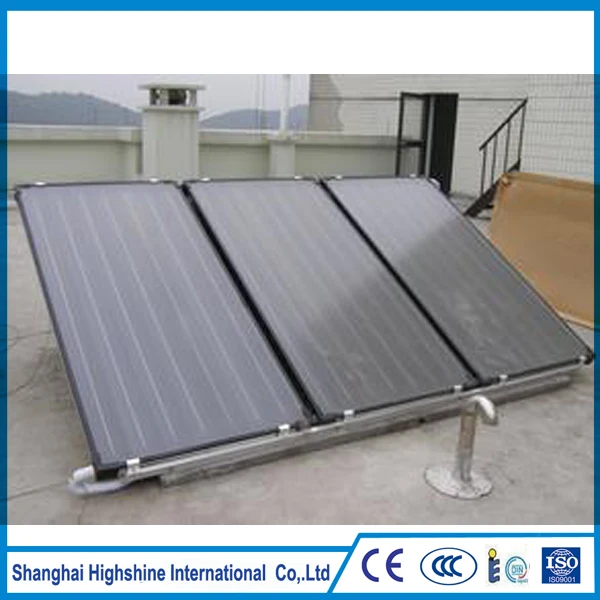

Плоские коллекторы солнечных панелей для системы солнечного отопления в горячей воде
