Полная линия по лучшей цене машина для розлива жидких Бутылок
- Категория: >>>
- Поставщик: Shanghai Ok Machinery Co. Ltd.
Сохранить в закладки 1600310090546:
Описание и отзывы
Характеристики
Product Description

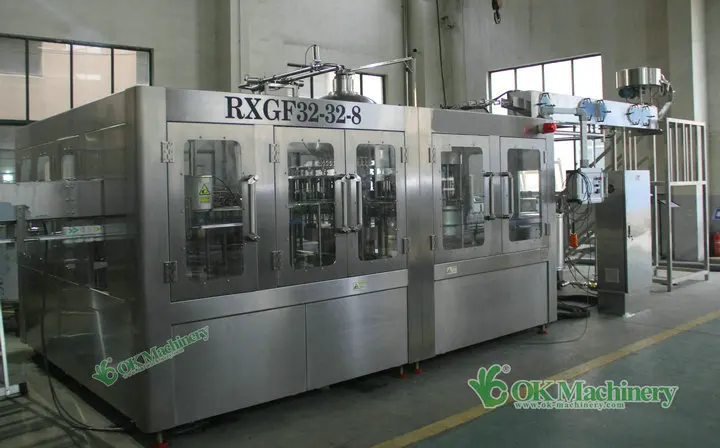

Automatic Piston Water Filling Machine.
Bottle drinking water production line . XGF 3 IN 1 unit combines rinsing , filling , capping complete automatic line .Machine is suitable for non-carbonated drinks pure water and mineral water .
The whole process is set up with alarm device in case the bottle jammed , lacking missing and over loading . With complete system highly automatic .It meets the food hygiene standards withoptionalcapacityfrom 2000 to 45000BPH.
Model | OK-XGF14/12/4 | OK-XGF18/18/6 | OK-XGF24/24/8 | OK-XGF32/32/10 | OK-XGF40/40/12 | OK-XGF50/50/15 |
Washing Heads | 14 | 18 | 24 | 32 | 40 | 50 |
Filling Heads | 12 | 18 | 24 | 32 | 40 | 50 |
Capping Heads | 4 | 6 | 8 | 10 | 12 | 15 |
Capacity | 3000 | 6000 | 8000 | 12000 | 20000 | 25000 |
Motor Power | 2.2KW | 3.7KW | 5.5KW | 7.5KW | 11KW | 15KW |

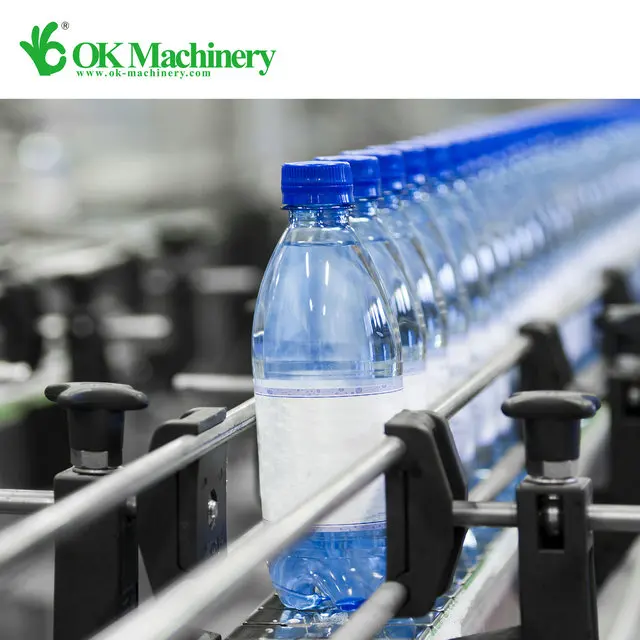

PET Water Filling Line
First to decide it is for mineral water or pure water. Professional manufacturer water bottling machine filling machine plantA complete PET bottle filling line will cover following main machines:
1. Water Treatment System- UF/RO
2. Bottle Blow Molding System with Air Compressor Unit
3. Filling-Labeling-Packing System.
First to decide it is for mineral water or pure water. Professional manufacturer water bottling machine filling machine plantA complete PET bottle filling line will cover following main machines:
1. Water Treatment System- UF/RO
2. Bottle Blow Molding System with Air Compressor Unit
3. Filling-Labeling-Packing System.

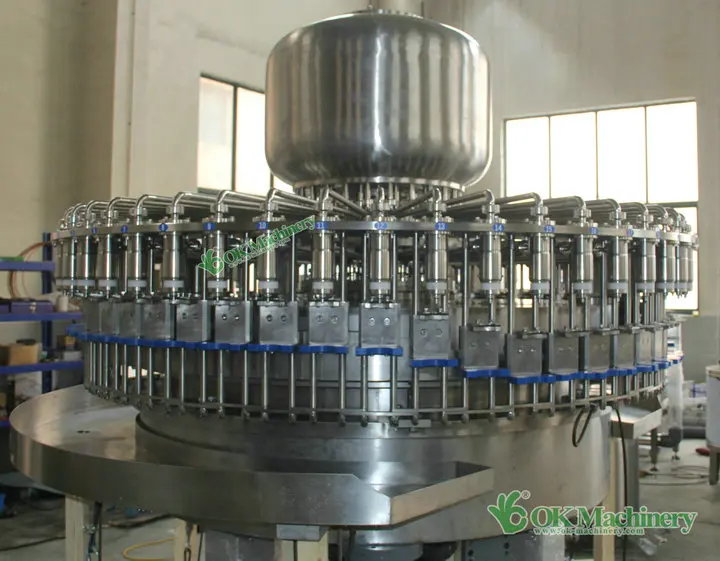

Filling Heads
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping Heads
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
1. Festo (Germany)
1.OK machine control 2.SystemTouch screen SIEMENS
3.PLC SIEMENS
4.Inverter SIEMENS
5.Air action control Festo Germany
6.AC contactor SIEMENS
2.. All Stainless Steel
1. Filling machine air conveyor SUS304
2. Washing part SUS304
3. Filling tank and nozzle SUS316
4. Capping heads SUS304
5. Machine frame SUS304
6. Filling machine flat conveyor SUS304
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Do you have reference project? We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory. And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machineIn our nearby city has a Coca cola factory, they are buy our machine, we can take you to visit.
2. Do you have agent and after-service stations?
So far we have agent in Indonsia, Malaysia, Vietnam, South Africa, Thailand etc.. welcome to join us!
3. Do you provide customized service?
We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
4. What's your guarantee or the warranty of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee and supply life-long technical support.
5. How long time for installation?
According your machines order, we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Why Choose Us
Remote services.
solve basic questions by telephone,email,whatsapp,wechat and video call.
Engineers available to service machinery overseas.
Engineer will go to buyer's factory to install, test machines, and teach buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email.
Operating manuals will be sent with machine or by email.
overseas service center and third party support available.
Похожие товары
Детали системы двигателя автомобиля OE 30777695 натяжитель ремня вентилятора для Volvo XC90
Регулирующий шампунь для жирных волос с розмарином | Натуральный продукт | Частная торговая марка | Оптовая продажа | Сделано в ЕС
Оптовая продажа, коробка для шоколадных конфет с крышкой в виде клубники, прозрачная коробка с прозрачным окошком, тарелка для конфет, упаковка с прозрачной крышкой
0,50 $ - 0,70 $

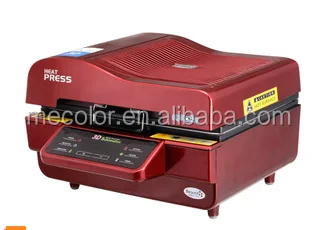

3D сублимационный пресс, термопресс, вакуумная машина для продажи

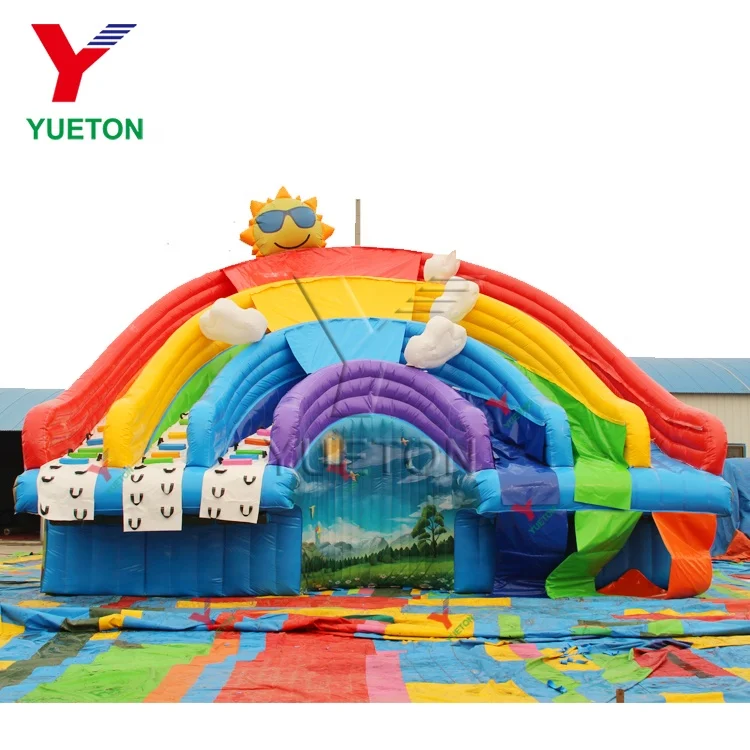

Надувной батут для прыжков в аквапарке на заказ

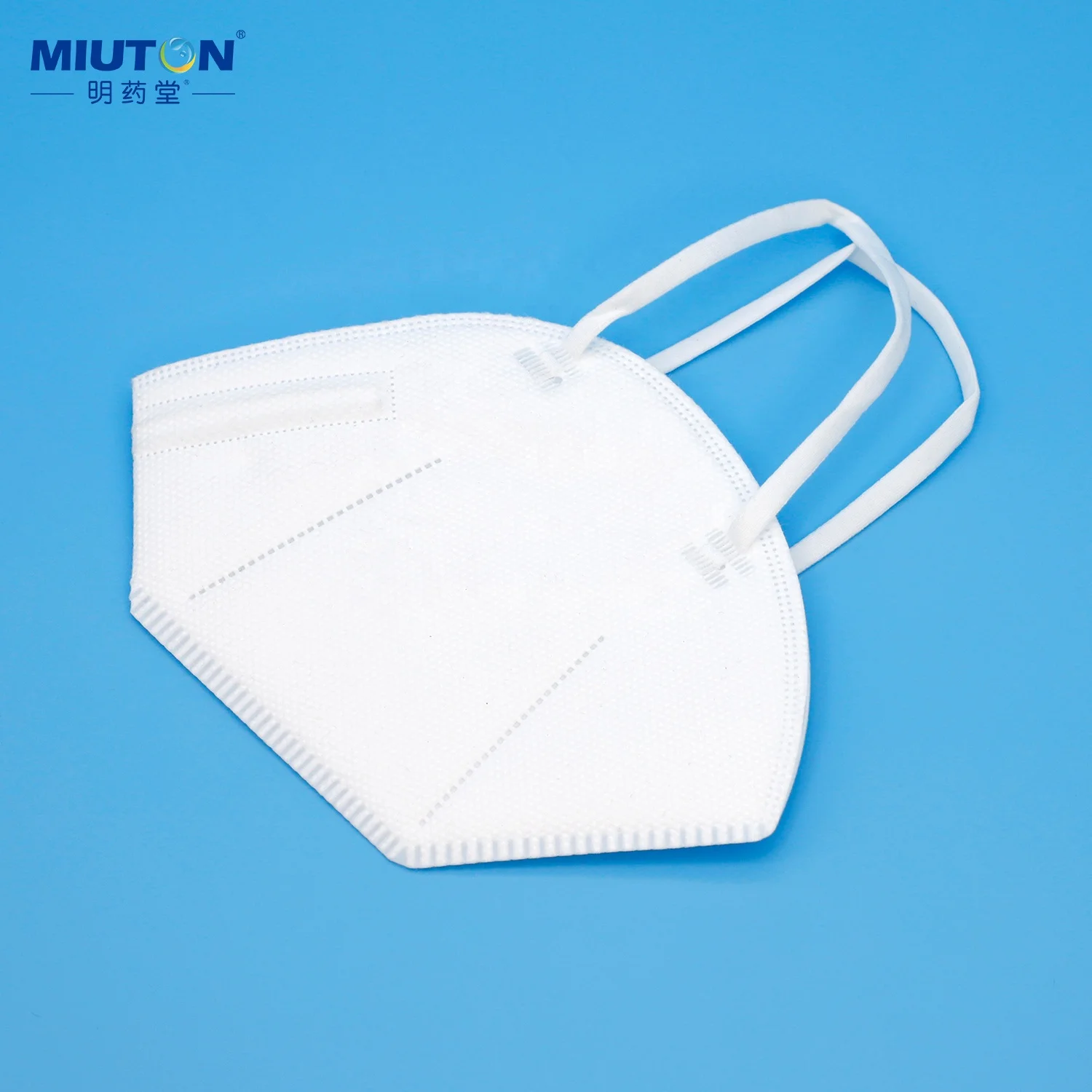

Китайское производство, прямые поставки медицинских продуктов, 4-слойная медицинская защитная маска с ушными петлями
0,23 $ - 0,36 $

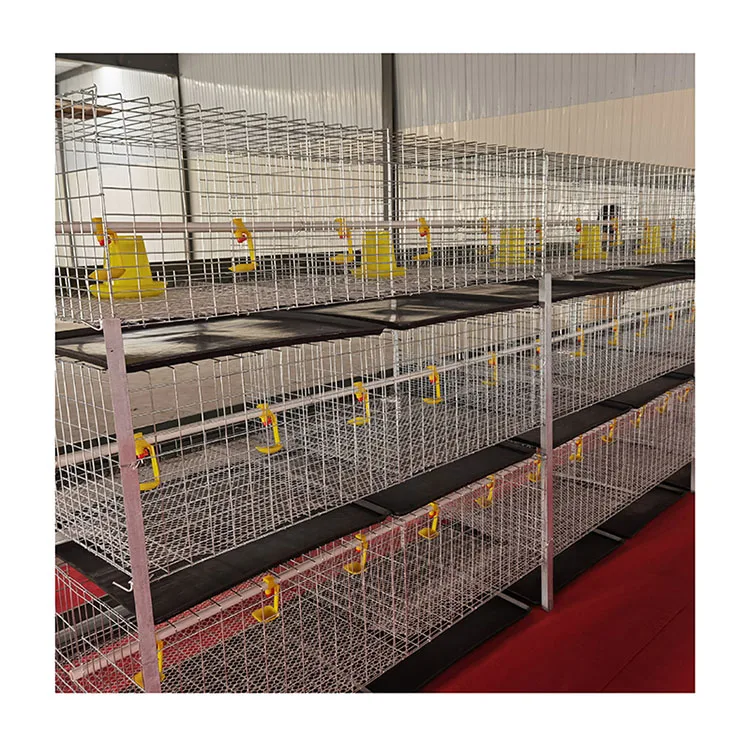

H-образная система клетки для куриных бройлеров в Танзании
