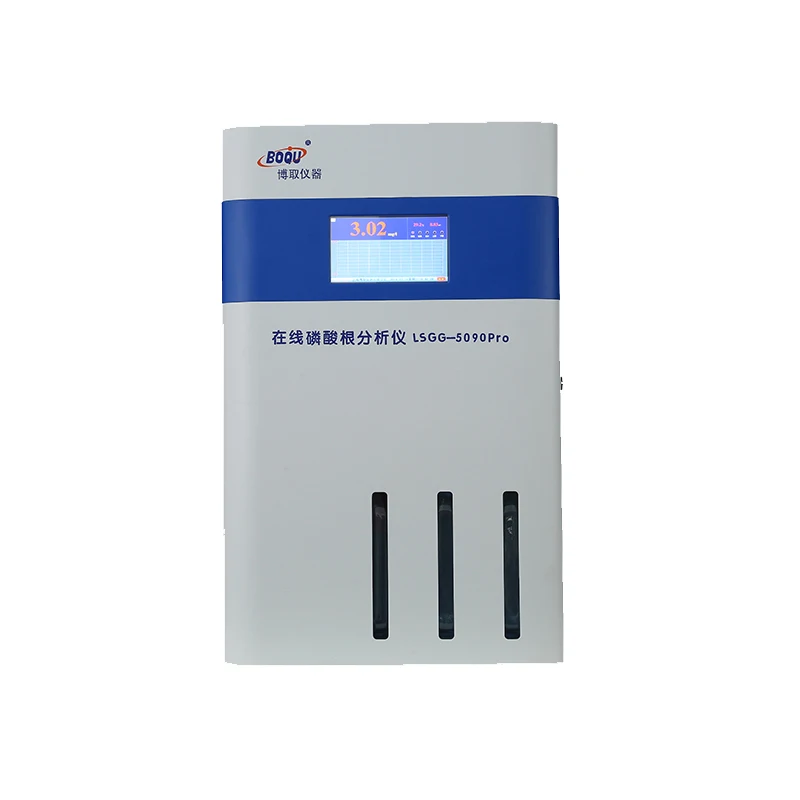

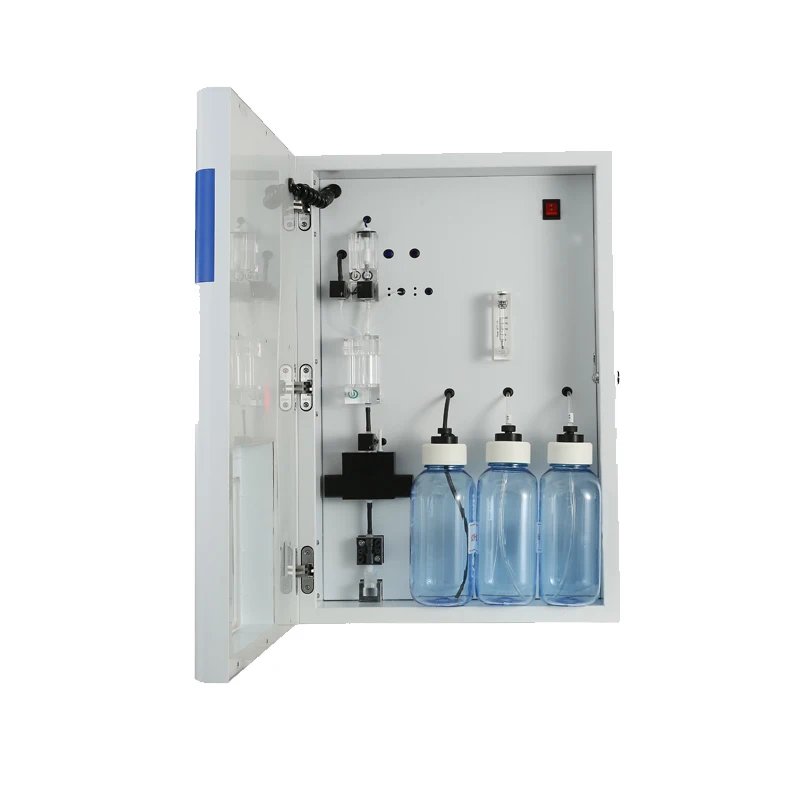

Boqu Lsgg 5090 PRO интегрированный шкаф модель с шестью каналы для чистой воды и электростанции онлайн фосфат метр/анализ
- Категория: >>>
- Поставщик: Shanghai Boqu Instrument Co. Ltd.
Сохранить в закладки 1600310187982:
Описание и отзывы
Характеристики
Power generation boilers use fuels such as coal, oil or natural gas to hear water and therefore produce steam, which is in turn used to drive turbine generators. The economics of power generation rely to a great extent on the efficiency of the fuel to heat conversion process and therefore the power generation industry are amongst the most advanced users of efficiency techniques based on on-line process analysis.

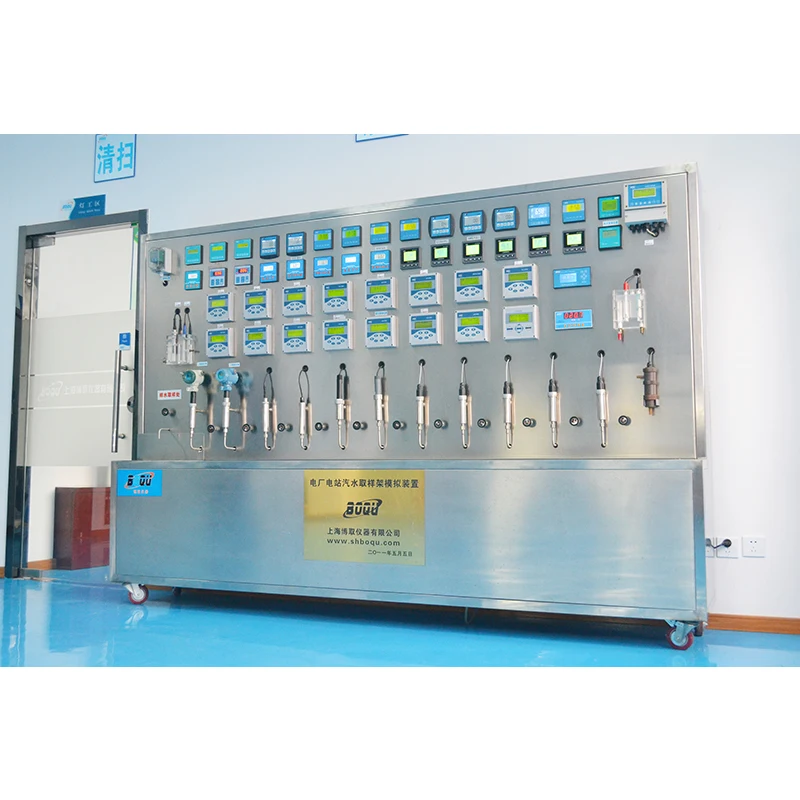

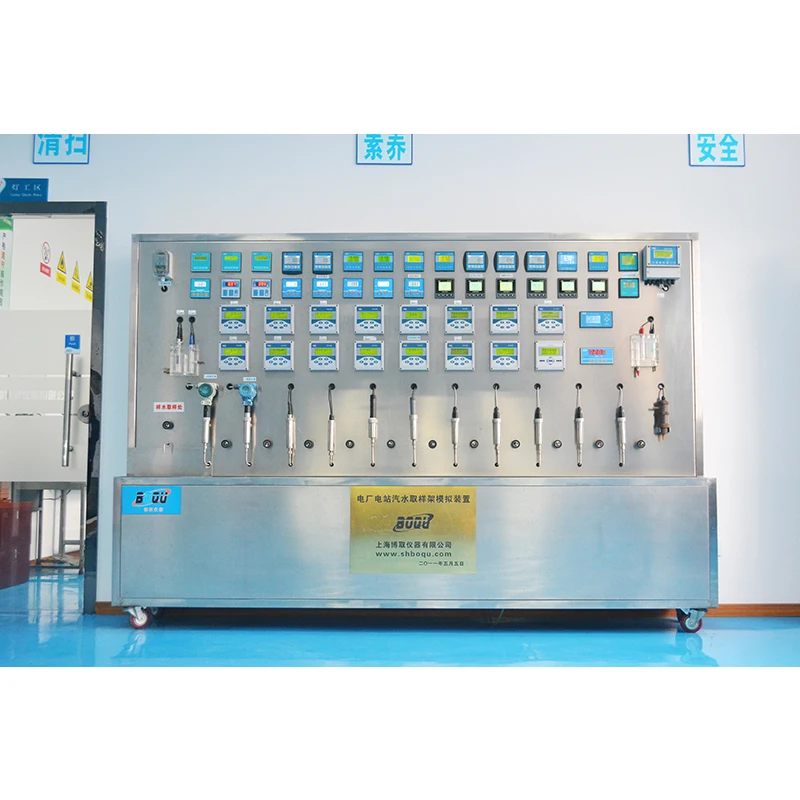

STEAM & WATER ANALYSIS SYSTEM are used in power plants and in those industrial processes where it is needed to CONTROL AND MONITOR WATER QUALITY. In power plants it is needed to control the water/steam cycle characteristics in order to avoid damage to the components of the circuit as the steam turbine and the boilers.
Within the power station the aim of water and steam control is to minimize contamination of circuit, thereby reducing corrosion as well as cutting down the risk of the formation of harmful impurities. Therefore it is very important to control the quality of water to prevent the deposits on turbine blades by Silica (SiO2), reduce corrosion by dissolved oxygen (DO) or to prevent acid corrosion by Hydrazine (N2H4). Measurement of water conductivity gives an excellent initial indication of falling water quality, analysis of Chlorine (Cl2), Ozone (O3) and Chloride (Cl) used for control of cooling water disinfecting, indication of corrosion and detection of cooling water leaks in the condense stage.
Product Description
What's the technical specification of Best Water Treatment Online pH Meter?
| PHG-2081X pH Meter |
| Measuring range: 0-14pH Temperature range:0-60ºC Compressive strength:0.3MPa Slope: ≥96% Zero point potential: E0=7PH±0.3 Internal impedance: 150-250 MΩ (25ºC) Profile: 3-in-1Electrode (Integrating the temperature compensation and the solution grounding) Installation size: Upper and Lower 3/4NPT Pipe Thread Connection: Low-noise cable goes out directly. Application: Applicable to various industrial sewages, environmental protection and water treatment. |
What's the technical specification of Online Conductivity Meter?
| DDG-2080X Conductivity Meter |
| Measuring range:0.00uS-2000 ms/cm Resolution:0.01 Accuracy:±1%F.S. Temp. compensation:Pt 1000/NTC30K Temp. compensation range:-10.0 to +130.0ºC Temp. Resolution and accracy:0.1ºC,±0.2ºC Storage temp.:-20 to +70ºC Display:Back light, dot matrix EC current output1:Isolated, 4 to 20mA output , max. load 500Ω Temp. current output 2:Isolated, 4 to 20mA output , max. load 500Ω RS485:Mod bus RTU protocol Baud rate:9600/19200/38400 Maximum relay contacts capacity:5A/250VAC,5A/30VDC Cleaning setting ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours One multi function relay:clean/period alarm/error alarm |
What's the technical specification of Online Dissolved Oxygen Meter?
| DOG-2082X Dissolved Oxygen Meter |
| Measuring range:0-100ug/L,0~200ug/L, 0-20mg/L Electrode material:316L stainless steel Temperature resistor:2.252K 22K Ptl00 Ptl000 etc Sensor life:>3 years Cable length:5m (double shielded) Detection lower Limit:0.1ug/L(ppb)(20ºC) Measurement upper limit:20mg/l(ppm) Response time:≤3min(90%, 20ºC) Polarization time:>8h Minimum flow rate 5cm/s; 515 L/h Drift:<3%/month Measurement error <±1 ppb Air current:50-80nA Note: Maximum current 20-25 uA Polarization voltage:0.7V Zero Oxygen<5ppb(60min) Calibration intervals>60 days Measured water temperature :0~60ºC |

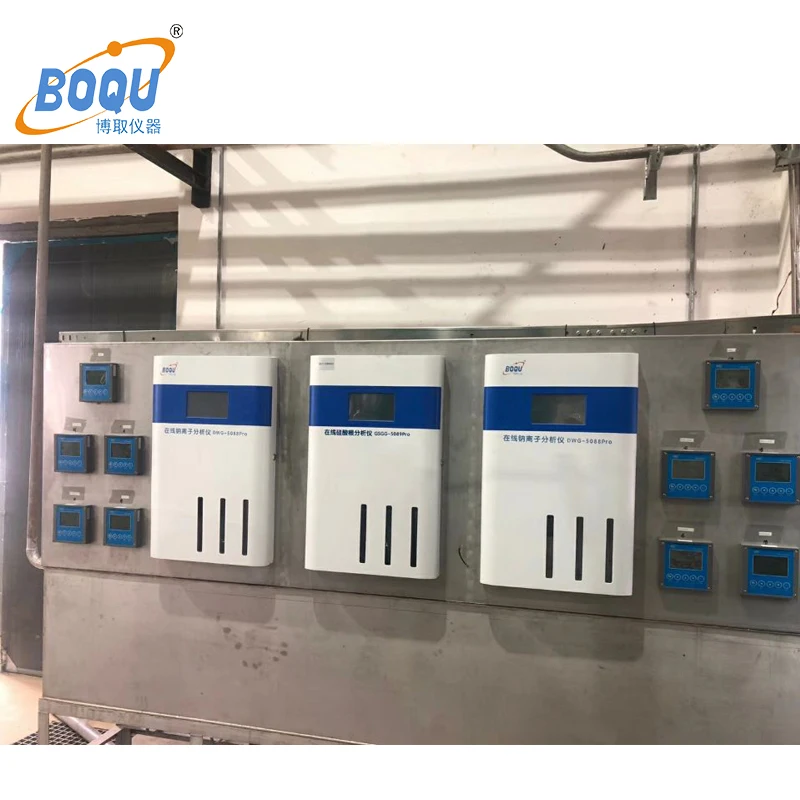

What's the technical specification of Online Silicate Analyzer/Phosphate Analyzer/Sodium Meter?
| GCSG-5089 PRO | LSGG-5090 PRO | DWG-5088 PRO |
| 1. Measuring range: 0~20ug/L, 0~100ug/L, 0-2000ug/L;0~100mg/L 2.Accuracy: ± 1% F.S 3. Repeatability: ± 1% F.S 4. Stability: Drift ≤ ± 1% F.S / 24hours 5. Response time: the initial response is 12 minutes 6. Sampling period: about 10 minutes / Channel 7. Watery conditions: Flow:> 100 ml / min Temperature: 10 ~ 45 ºC Pressure: 10 kPa ~ 100 kPa 8.Environmental conditions: Temperature: 5 ~ 45 ºC, Humidity: <85% RH 9. Reagent consumption: Three kinds reagents, about 3 liters / month for each kind. 10.Current output: 4 ~ 20mA arbitrarily set within this range, multi-channel meter, channel independent output 11. Alarm output: normally open relay contacts 220V/1A 12. Power supply: AC220V ± 10% 50HZ 13. Power consumption: ≈ 50W 14. Dimensions: 720mm (height) × 460mm (width) × 300mm (depth) 15. Hole size: 665mm × 405mm | 1.Measuring principle: phosphorus molybdenum alum yellow photoelectric colorimetry 2. Measuring range: 0 ~ 2000μg / L, 0 ~ 10mg / L,0~50mg /L optional 3. Accuracy: ± 1% F.S 4. Repeatability: ± 1% F.S 5. Stability: drift ≤ ± 1% F.S/24 hour 6. Response time: initial response, four minutes, six minutes to reach at least 98% 7. Sampling period: 3 minutes / Channel 8. Watery conditions: Flow> 2 ml / sec. Temperature: 10 ~ 45 ºC Pressure: 10kPa ~ 100kPa 9. Ambient temperature: 5 ~ 45 ºC (higher than 40 ºC, reduced accuracy) 10. Environment humidity: <85% RH 11. Reagent types: one kind 12. Reagent consumption: about 3 liters / month 13. Output signal: 0 ~ 22mA within range of any set, each channel isolation 14. Alarm: buzzer, relay normally open contacts 15. Power: 220V ± 10%, 50Hz ± 1% 50W Main features 16. Dimensions: 720mm (hight) × 460mm (width) × 300mm (depth) 17. Hole size: 665mm × 405mm | 1.Measuring range : 0 ~ 100ug / L, 0 ~ 23000mg /L Resolution : 0.1 μg / L, 0.01mg/L0.00pNa-8.00pNa Resolution : 0.01pNa0 ~ 60 ºC Resolution : 0.1 ºC 2.The basic error : ± 2.5%, ± 0.3 ºC temperature 3.Automatic temperature compensation range : 0 ~ 60 ºC, 25 ºC basis 4.The electronic unit temperature compensation error : ± 2.5% 5.The electronic unit repeatability error : ± 2.5% of reading 6. Stability: reading ± 2.5% / 24h 7.The input current : ≤ 2 x 10-12A Tested water samples : 0 ~ 60 ºC, 0.3MPa 8.The clock accuracy: ± 1 minute / month 9.The output current error : ≤ ± 1% FS 10.Data storage Quantity: 1 month ( 1:00 / 5 minutes ) 11.Alarm normally open contacts : AC 250V, 7A 12.Power supply : AC220V ± 10%, 50 ± 1Hz 13.Isolated output : 0 ~ 10mA ( load <1.5kΩ), 4 ~ 20mA ( load <750Ω) 14.Dimensions: 440 ( W) * 770 (H ) * 234 (D ) mm, hole size: 390 ( W ) * 650 ( H) mm Positioning holes : 280 ( W ) * 730 (H ) mm, pore size : ¢ 12, four-hole distribution Alarming relay: AC220V, 3A, isolated output of alarming signals 15.Working conditions: ambient temperature: 0-60ºC; relative humidity <85% |
Application
We are committed to providing best water quality monitoring solutions for users in all areas of pure water,ultra-pure water, drinking water, municipal waste water, industrial waste water, industrial circulating water, environmental monitoring, and university research etc.
Certifications
BOQU Instruments is very popular in foreign market, As a responsible and high-tech enterprise in China,BOQU Instrument thinks there is still long way to go,so our production is strictly according to ISO9001 from source of raw material to finished instrument. And their is professional staff and test instrument to check each process.now our many instruments have reached or exceeded the world-class level. BOQU also got many certificates such as CE, SGS, and so on.
Factory Show
BOQU Instrument only focus on development and production Water Quality Sensors and Analyzers since found, now staff is over 100 people and with an annual growth rate of 35%. we have own R & D center,many senior engineers has over 10 years R&D experience in water quality anlyzers and water quality sensors.Now our company has got more than 50 technical certificates for controller software and 23 technical patents,therefore we won the National High-tech Enterprise Certificate in 2010. At present, the annual quantity of water quality sensors and meters is over 100,000pcs, it’s the biggest factory in Shanghai.
Exhibitions
The BOQU Instrument is a young, energetic and professional team. We will continue to focus on R&D and manufacturing of high-end water quality monitoring instruments and sensors.we keep to create benefits for our customers,We work hard for the material and spiritual aspects of all employees,and contribute to the progress and development of humanity. forever to guard the earth's water quality.
Why to choose BOQU?
Why to choose BOQU Instrument?
1.National High-tech Enterprises Certificates
2.Instruments has been exported to over 100 countries.
3.Production over 100 000pcs for water quality analyzer and water quality sensor
4.BOQU Instrument has more 50+ Softwares property
5.100% QC inspection and clibration Before Shippment.
6. ISO,CE,SGS,CEP Certificate.
7.BOQU Instrument OEM and ODM for many international brand.
Related Products
BOQU Instrument focuses on technological innovation in water quality analyzers and sensors since founded. Providing high precision instruments and expert-level service is our only pursuit. Now BOQU Instrument has obtained dozens of technology patents for water quality analyzers and water quality sensors. Our water quality analyzers and sensors meet or exceed world-class quality level. They have received good praise from customers in more than 80 countries. In today's world, our earth faces many environmental problems, especially in water quality. As a leading manufacturer in water quality analyzers, BOQU Instrument will use all technologies to solve problems related to human and earth survival and always to be the guardians of the earth's water quality. BOQU Instrument’s online water quality analyzer is mainly used to test pH, conductivity, TDS, dissolved oxygen, turbidity, residual chlorine, suspended solids, ammonia, hardness,water color, silica, phosphate, sodium, BOD, COD, heavy metals, etc. We are committed to providing the best water quality monitoring solutions for users in all areas of pure water, ultra-pure water, drinking water, municipal wastewater, industrial wastewater, industrial circulating water, environmental monitoring, and university research, etc.
Contact
Shanghai BOQU INSTRUMENT CO.,lTD
Conact:Leon Lei
Email:Leon@shboqu.com
www.boquinstrument.com
Whatsapp/Mob:86-18955928790
Factory address:No.118 xiuyan road,pudong district ,shanghai china, zip code:201315
Похожие товары

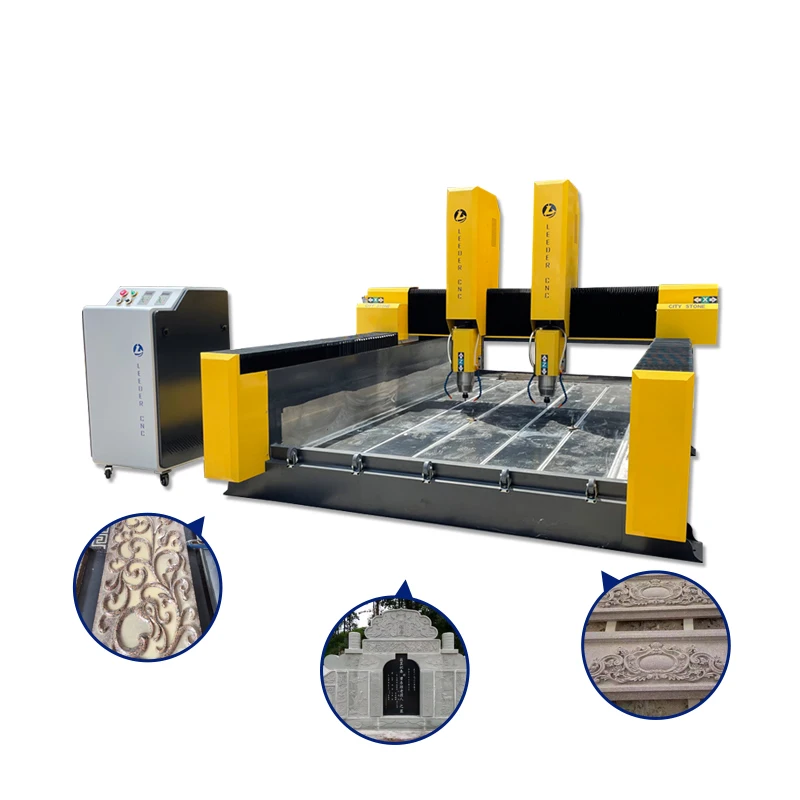

Китайский гравировальный станок с двумя головками
413 528,80 ₽ - 496 234,56 ₽
Колеса bmw e60 yx527 20 peugeot 206 toyota hiace 21 zoll 5 отверстий 6 отверстий 6061-t6 алюминий Для Переоборудования Автомобиля
207,67 $ - 219,18 $

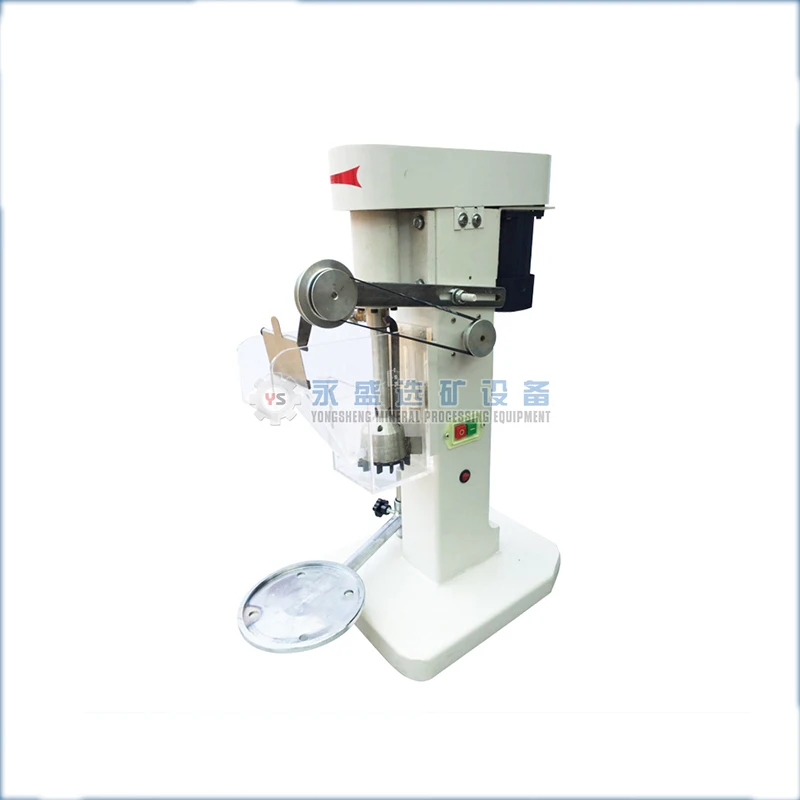

Лабораторная Флотационная ячейка серии
800,00 $ - 1 200,00 $

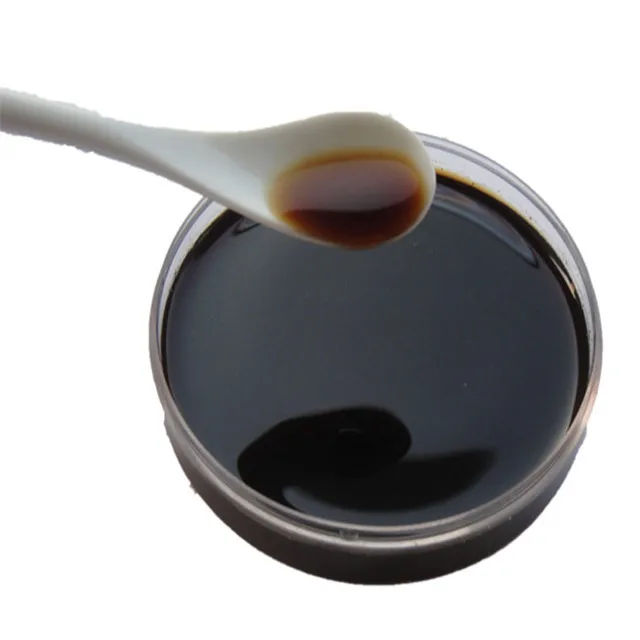

Жидкая аминокислота 30%, 40%, 50% NPK водоросли гуминовая кислота фульвовая кислота органическое растение Биостимулятор удобрения поставщик
1,90 $ - 2,00 $
GMP/ISO Sustar производитель высококачественных минералов, кормовая добавка для животных, поставщик белого порошка KCI, хлорид Калия

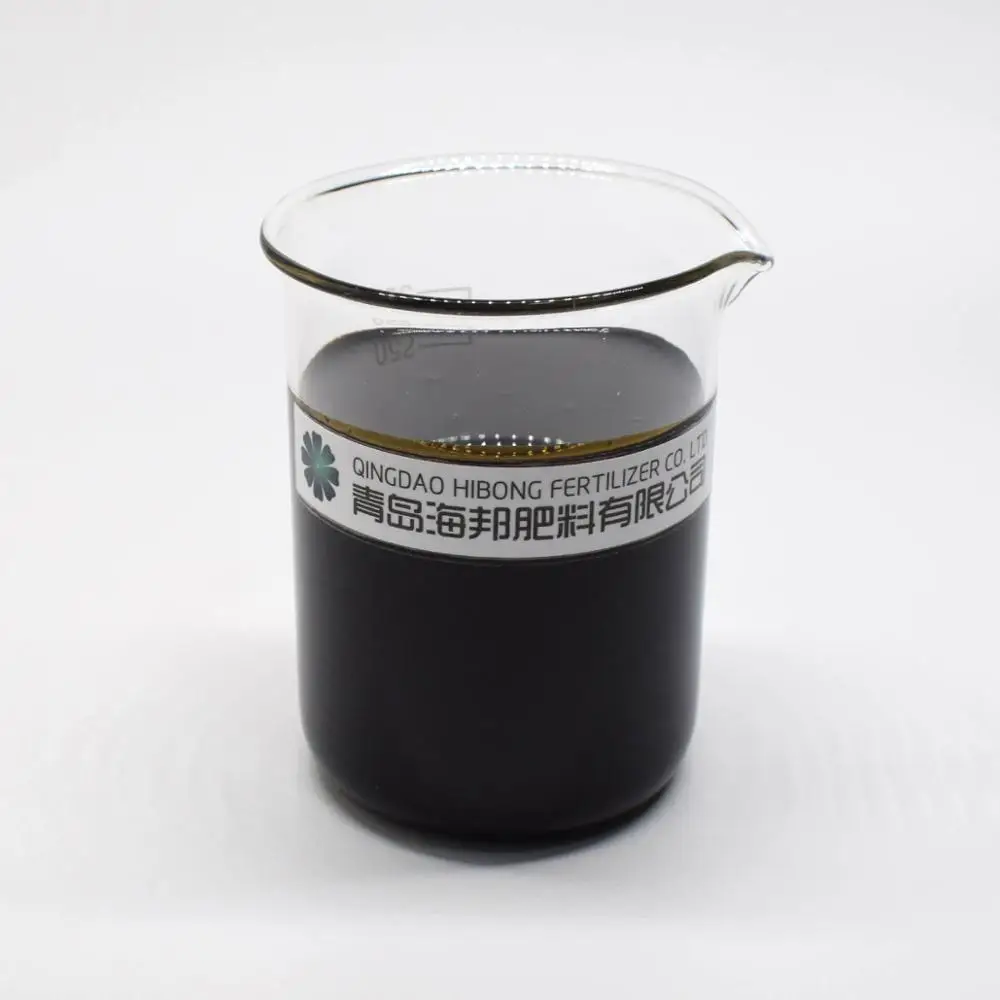

Органическое темно-красное жидкое орошение и фолиевый спрей, нематоидное функциональное хитозановое жидкое удобрение
2,50 $

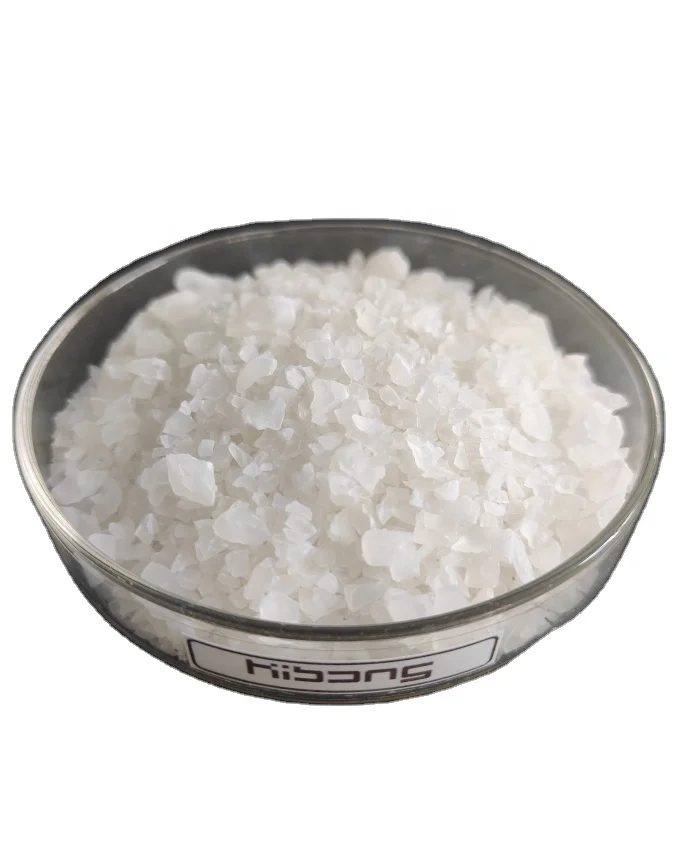

Пищевой Алюминиевый сульфат калия Hibong/калийный алюминий/порошок калия
