Английская прошивка английский интерфейс маршрутизатора FTTH модем 4GE 2 4G WIFI ZTE ZXHN F660 V5.2 GPON ONT ONU

Overview

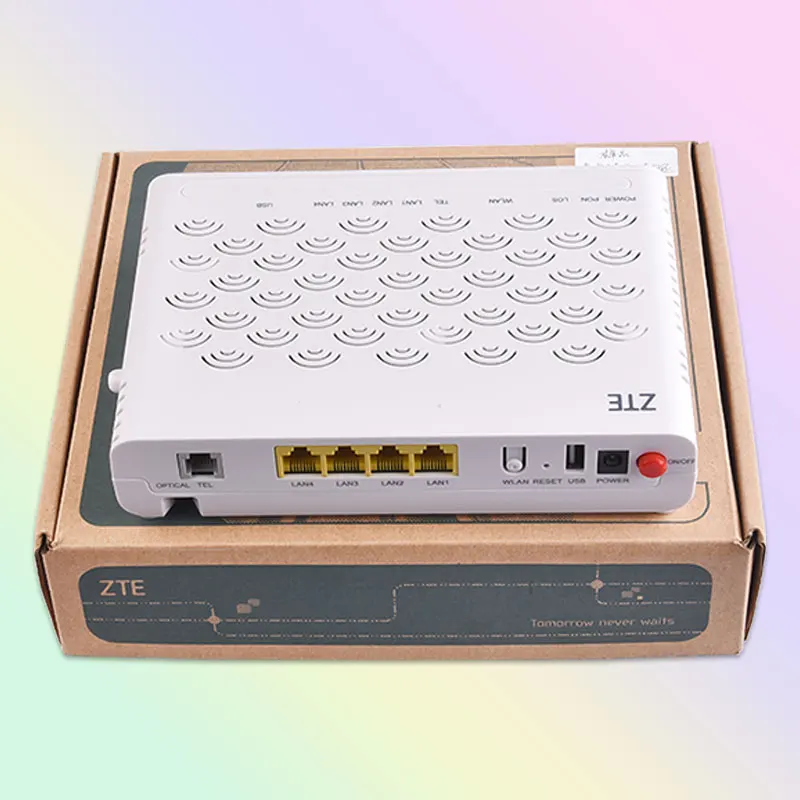

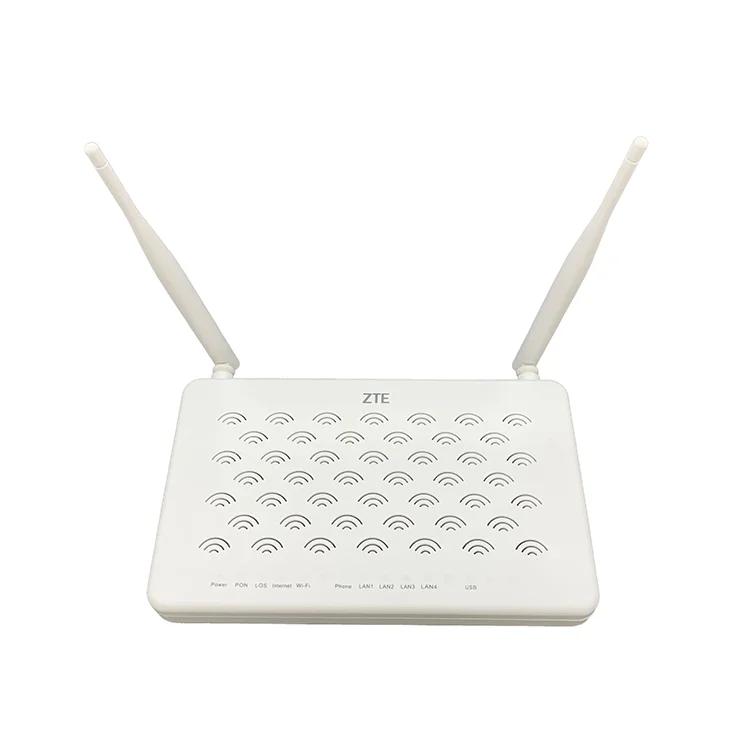

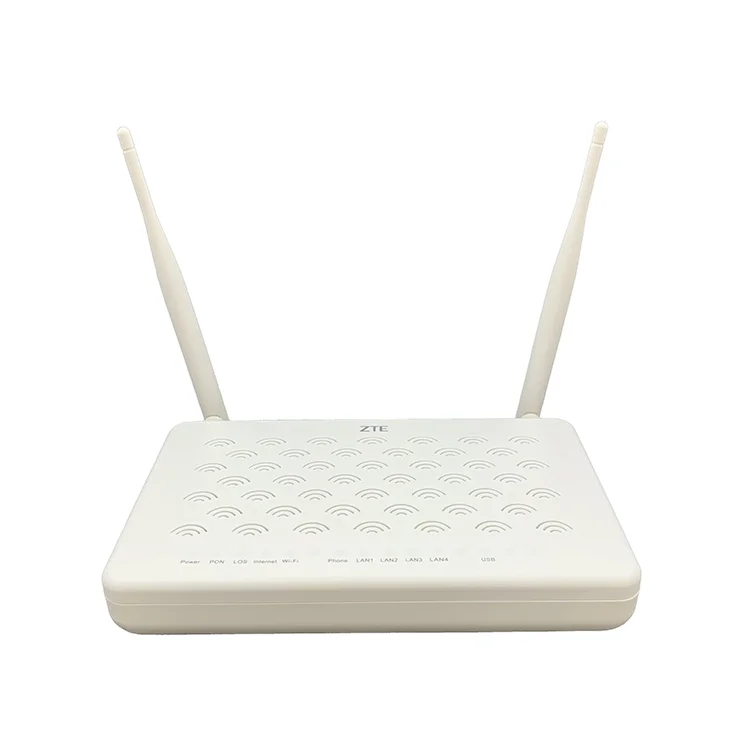

ZTE ZXHN F660 V5.2 FTTH is a GPON Optical Network Terminal designed for FTTH scenario. It provides subscribers rich, colourful, individualized, convenient and comfortable triple-play services including voice, video (IPTV/CATV) and high-speed internet access. it supports desktop mounting, wall mounting and network cabinet mounting. This model is designed for FTTH scenarios. With its home gateway technology, ZTEF660 V5.2 represents a new-generation home network center that meets the full-service needs of high-end users by delivering high-speed Internet, high-quality voice and video (IPTV), reliable wireless access and convenient network storage services.

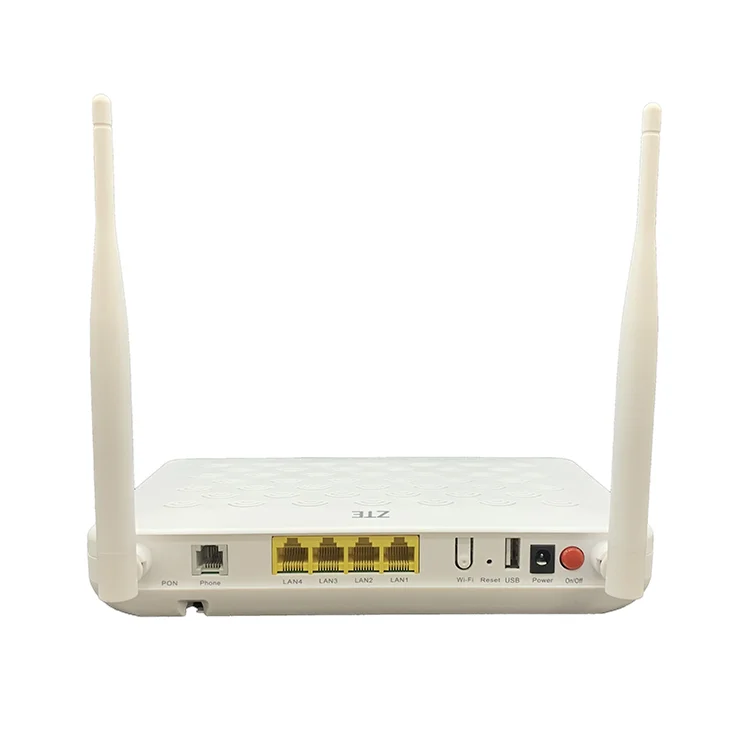

ZTE ZXHN F660 V5.2 FTTH complies with the ITU-T G.984 standard, provides 2.488 Gbps downlink and 1.244 Gbps uplink at the network side, and provides four GE ports, 1 POTS port, one 802.11b/g/n(2*2 @2.4G Hz) Wi-Fi interface, one USB interface.Home users can easily access voice services, video services and many other kinds of high-speed broadband services by the rich interfaces.

Specifications

Feature

• Supported service: VoIP, Internet, IPTV, GPON: 8 T-CONTs, 32 GEM Ports


• VLAN: 802.1Q, 802.1P, 802.1ad


• MAC address table: 1k


• L3 function: DHCP server/Client, DNS Client, NATlPv6: Dual Stack, DS-Lite


• VolP: SIP/H.248, G.71 1/G.722/G.729, T.30/T .38Wi-Fi: 4 SSIDs, 2×2 MIMO, WPS


• Wi-Fi authentication: Shared key, 128-bit WEP,WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSKMulticast: IGMP v1/v2 Snooping/Proxy, MLD v1Snooping


• Multicast group per user port: 256


• QoS: service flow classification based on physicalport, MAC address, VL .AN ID, VLAN priority level,IP address; SP/W RR/SP+WRR


• Management: local web management, OMCI,TR069


• Power consumption: <10W


• Dimensions: 220mm(W) x 34mm(H) x 187mm(D)


• Working temperature: 0oC ~ 40oC


• Working humidity: 5% ~ 95%


• Weight: about 580g


• Power supply: 12 V DC


• Mounting mode: Desktop/Wall mounting
