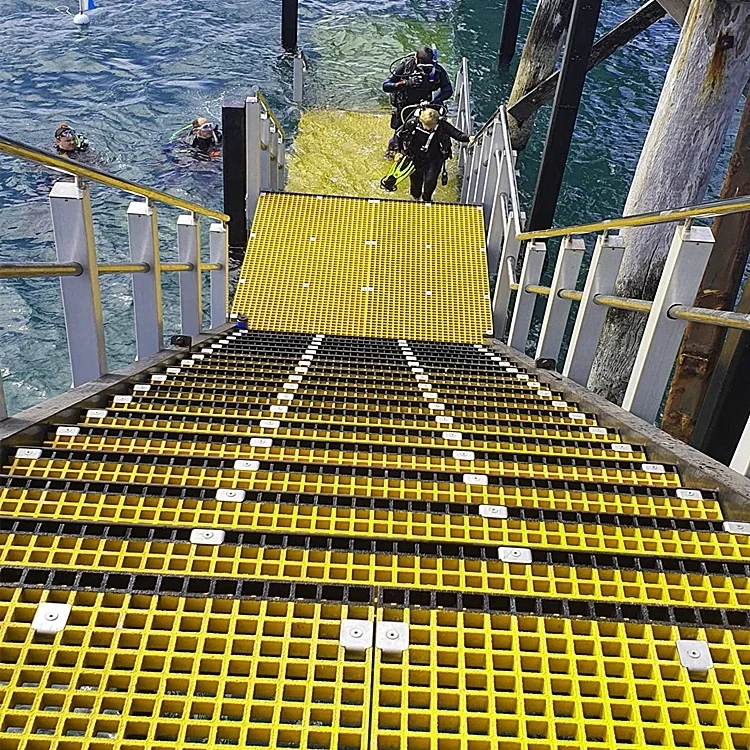

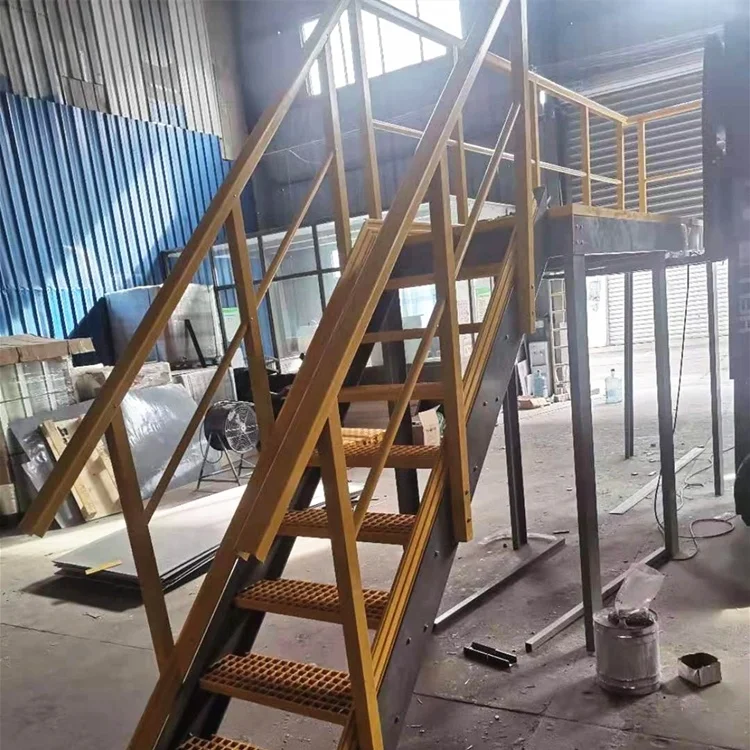

FRP решетчатая платформа для

Категория: >>>
Поставщик: Qinhuangdao Shengze New Material Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Micro mesh frp grating

Color: Yellow, gray, green, red, or custom color
Hole : Square, rectangular, or other customize shape

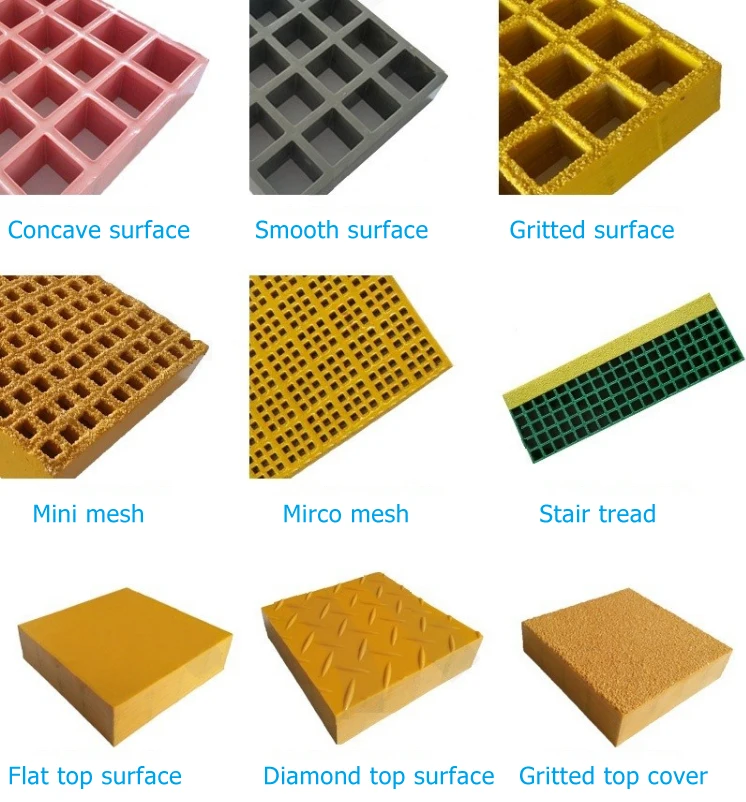

Surface: groove surface, grit surface, lozenge cover surface, Surface Cover Closure
Resin Choice: Orthophthalic resin, ISO resion, Vinyl Resion, Phenolic resin

ECONOM STANDART Orthophthalic Polyester resin. It is applied in corrosion medium.
ECONOM NON FIRE Orthophthalic Polyester resin with a non-flammable component. Provides deboosting combustion and stability to influencing chemical agents.
ISO NON FIRE Isophthalic Polyester resin with a non-flammable component, for applications in a hostile environment.
FOOD-NON FIRE Isophthalic Polyester resin with a non-flammable component for a food-processing industry and animal industries.
VINYL NON FIRE Vilyn Ester resin with a non-flammable component for application in a hostile environment.
PHENOL NON FIRE Phenolic resin with a non-flammable component, which one provides a heat of exploitation, slows down combustion and has a low index of a smoke formation

Resin Type:

Resin Systems	Resin Base	Description	Corrosion Resistance	Flame Spread Rating ASTM E84	Max.Oper.Temp
Type VEFR-25	Vinyl Ester	Superior Corrosion Resistance and Fire Retardant	Excellent	Class 1, 25 or less	230°F(110°C)
Type VEFR-10	Vinyl Ester	Superior Corrosion Resistance and Enhanced Fire Retardant	Excellent	Class 1, 10 or less	230°F(110°C)
Type IFR-25	Isophthalic Polyester	Industrial Grade Corrosion Resistance and Fire Retardant	Very Good	Class 1, 25 or less	221°F(105°C)
Type FG-30	Isophthalic Polyester	Food Grade Corrosion Resistance and Fire Retardant	Very Good	Class 1, 30 or less	221°F(105°C)
Type CFR-25	Ortho	Moderate Corrosion Resistance and Fire Retardant	Moderate	Class 1, 25 or less	212°F(100°C)
Type MP-5	Phenolic resin	Low Smoke and Superior Fire Resistance	Very Good	Class 1, 5 or less	356°F(180°C)
Type IFR-10	Isophthalic Polyester	Industrial Grade Corrosion Resistance and Extra Fire Retardant	Very Good	Class 1, 10 or less	221°F(105°C)
Type O-AN	Ortho	Moderate Corrosion Resistance	Moderate	No	212°F(100°C)

Fiberglass Type:

Code Name	Type	Occasion applicable
E	E-glass	High strength and high corrosion required

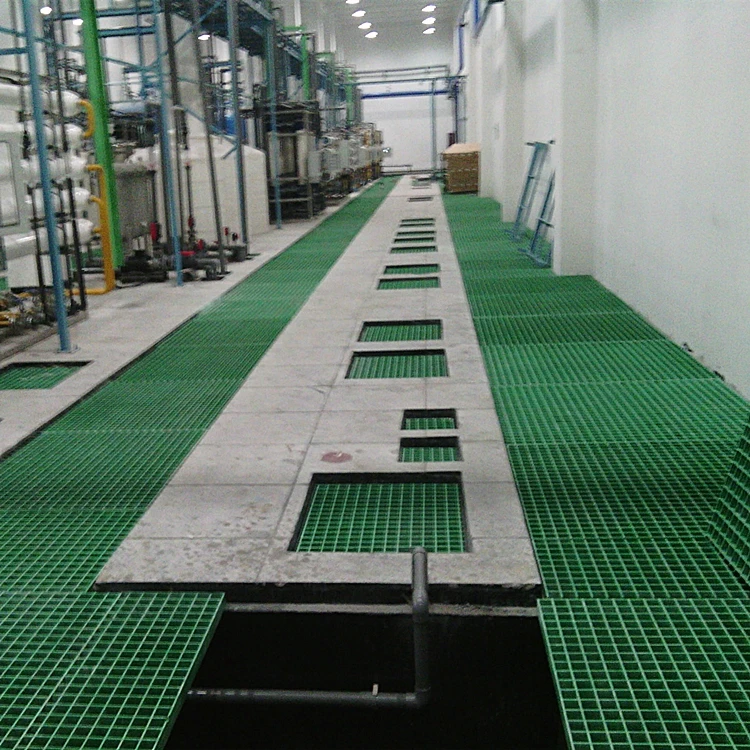

Grating Application

Sewage treatment\t
Oil industry
Water supply and drainage\t
Power engineering

Chemical industry\t
Pulp and paper
Construction Decoration\t

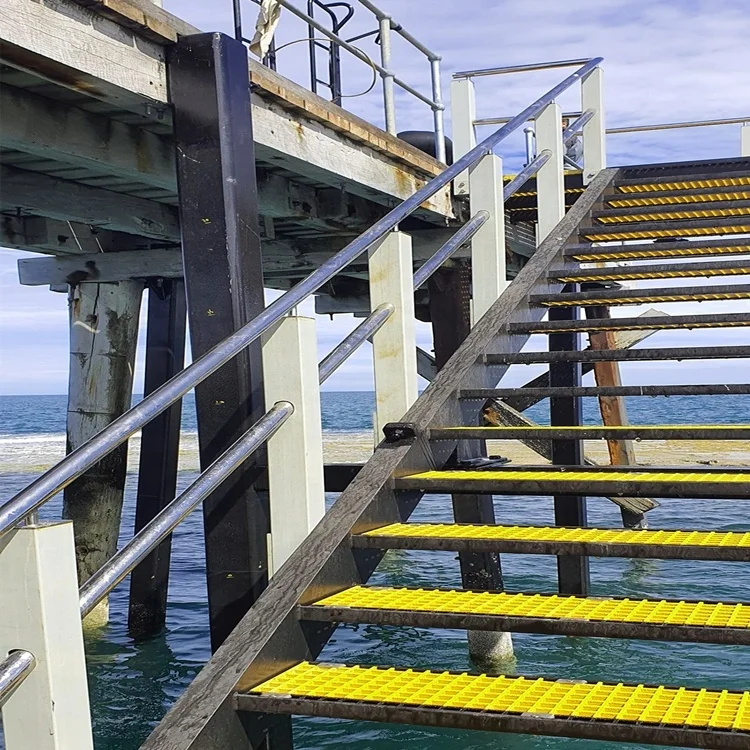

Marine engineering

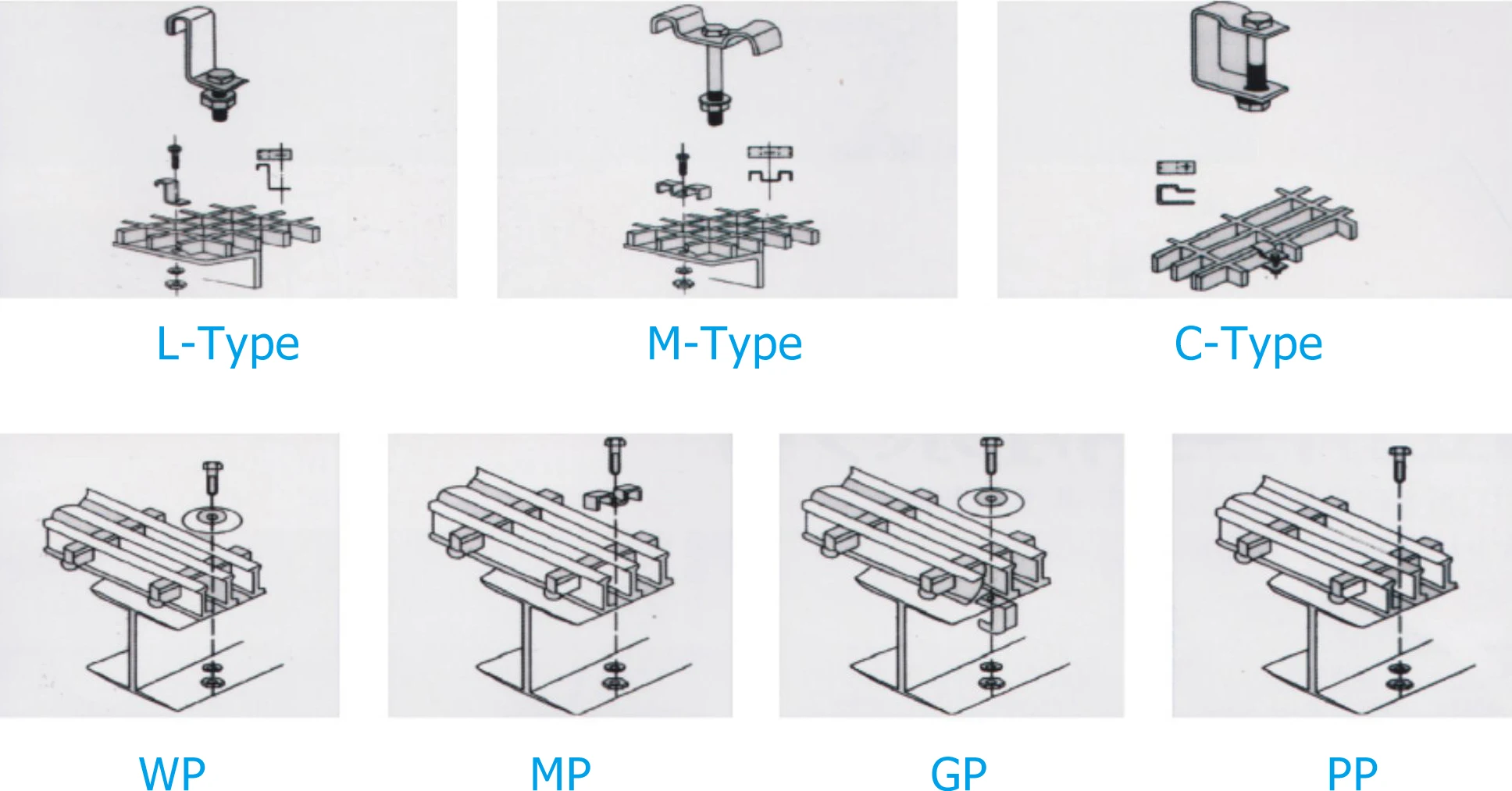

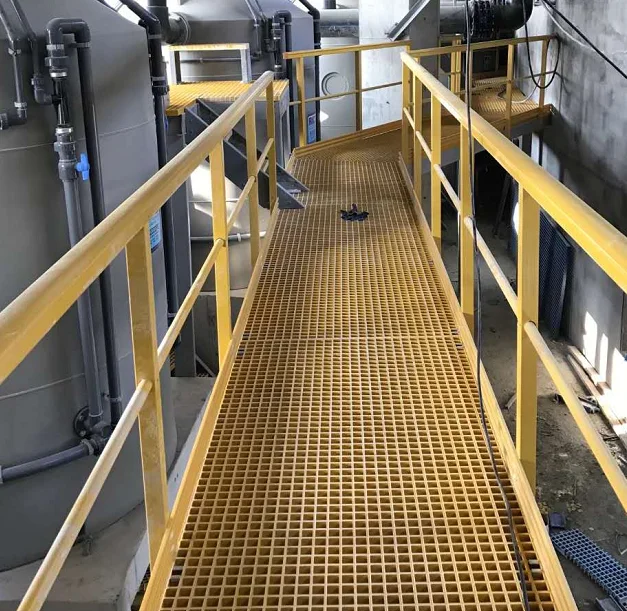

Installations of FRP Molded Gratings:

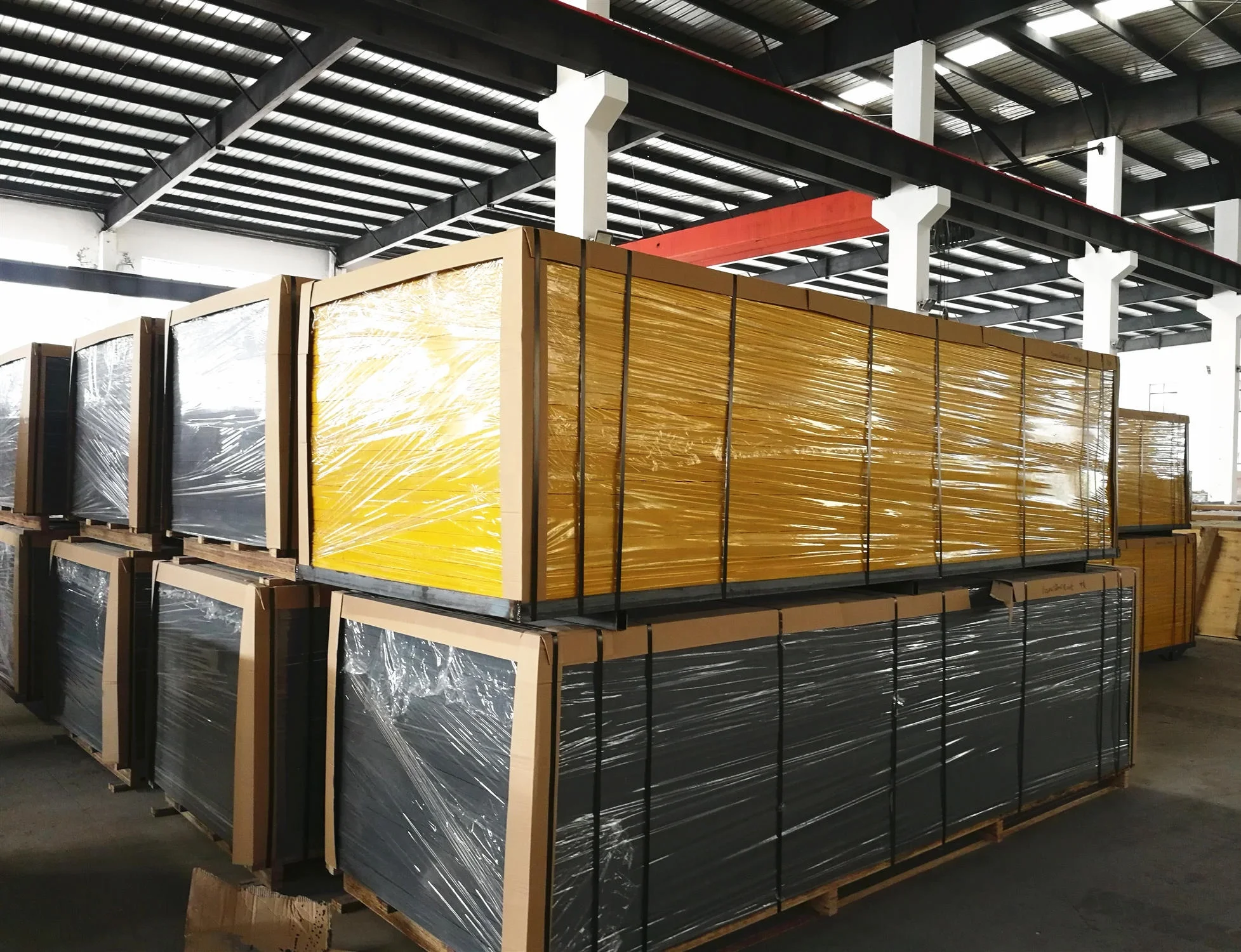

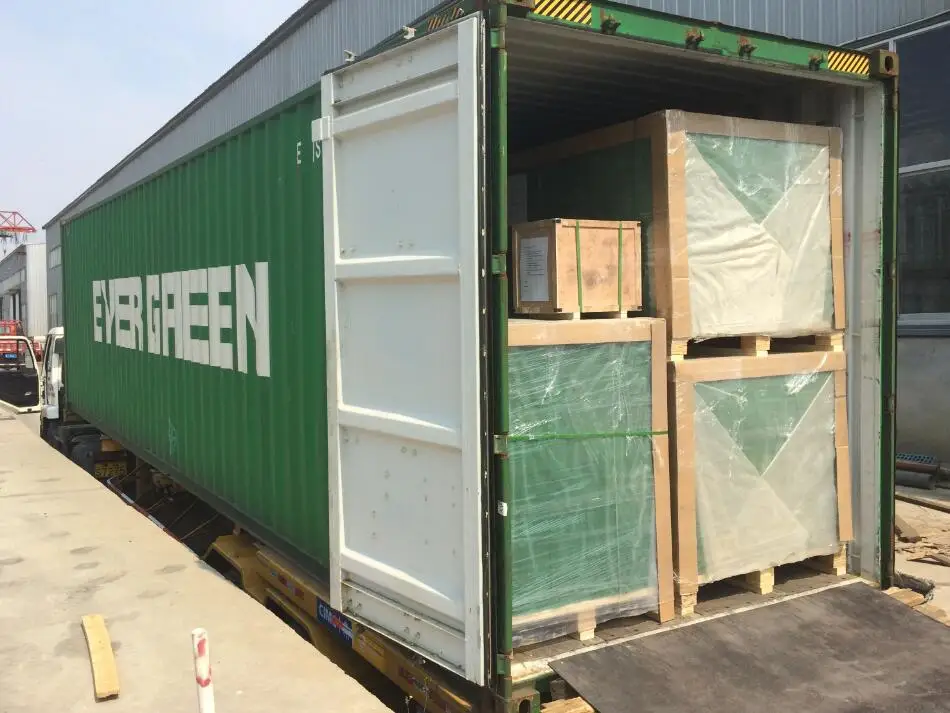

Packing & Delivery

Frp molded fiberglass grating fiber glass plastic floor grating

Package:Wooden pallet,Steel pallet + Packing belt

Transport: Sea FCL/LCL Container:20GP,40GP,40'HQ
Such as:Mesh H30*38*38mm,panel size 1220*2440mm,120pice in one 20GP.
Mesh H38*38*38mm,panel size 1220*3660mm,245piece in one 40HQ.

Main Products

Protruded Profile

1. All shape of Profile

2. Customized performance:UV /Fire proof / Anti-Corrosive etc.

3. Max size: 800mm*300 (W*H)

SMC Moulding Box

1. 3000T Hydraulic Press

2. Professional Design Support

3. Big size box is acceptable for customizing

Auto Parts

1. Truck / Trailer Surface Parts

2. SMC Moulding Process or Hand layup

3.Wind deflector/ Bumper / Fender etc.

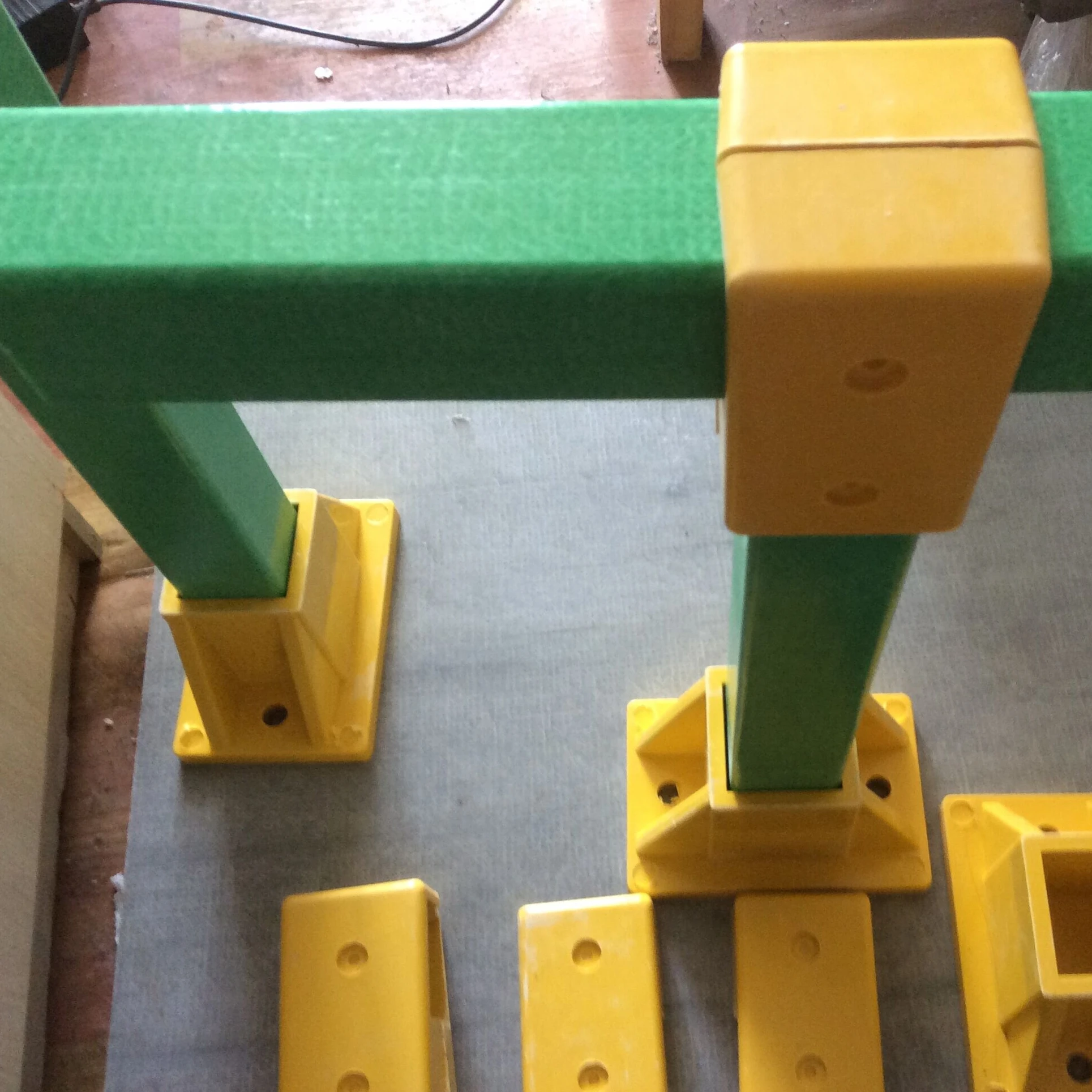

Customized (Made of Profile)

1. Insulation Fence for Electricity

2. Decoration Fence for Civil

3. Platform/ Support /Guardrail

High Voltage Products

1. Under 1800KVA

2. Protruded profile or Hand layup shell

3. Cross Arm

Hand Layup Shell cover

1. OEM and ODM service

2. Large size customization Available

3. Small Quantity Order acceptable

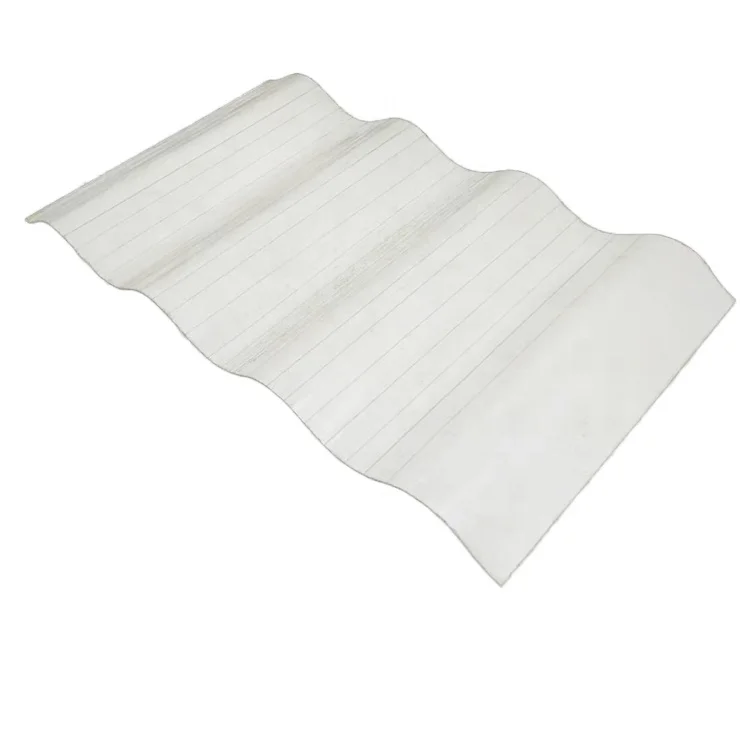

FRP Roofing Sheet

1.Shape could be customized

2.Various kinds of FRP roofing

3. High Quality and long service life

FRP Sectional Water tank

1. Junction pieces /Support:Hot Dipped Galvanized Steel or Stainless steel

2. Leak-proof, long service life

Carbon Fiber Hand Lay Up

1. Custom

2. Vacuum infusion

Molded Gratings

1. Platform, Drainage, Fence

2. Advantage: Anticorrosive, Anti fire

Sandwich Panel

Main Used for thermal insulation, sound insulation , Strong structure

Application: carriage Board/ Building wall panel

Customized FRP Hand Lay Up

1. Custom

2. Vacuum Infusion

3. RTM

Certifications

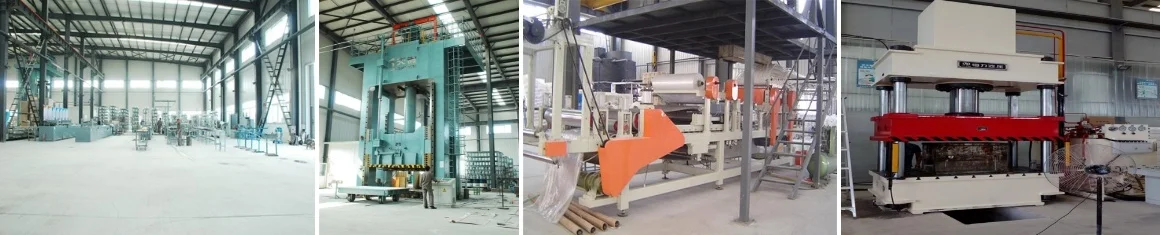

Our Company

Advantages:
1. More than 100 pcs molded grating molds & 25 pcs pultrusion lines.
2. 40,000 square meters factory and 150 employees.
3. Annual sales revenue:12,000,000 USD
Any pending order,pls kindly send us your specifications for quotation.

We will try our best to give you great service.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes,we could offer Certain sample for free charge but do not pay the cost of freight.
Please contact me to confirm.

Q: What is your terms of payment ?

A: Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,balance before shippment.
