Кварцевая Капиллярная Трубка высокой чистоты малого диаметра
- Категория: >>>
- Поставщик: Beijing Zhong Cheng Quartz Glass Co. Ltd.
Сохранить в закладки 1600311704342:
Описание и отзывы
Характеристики
Product Description

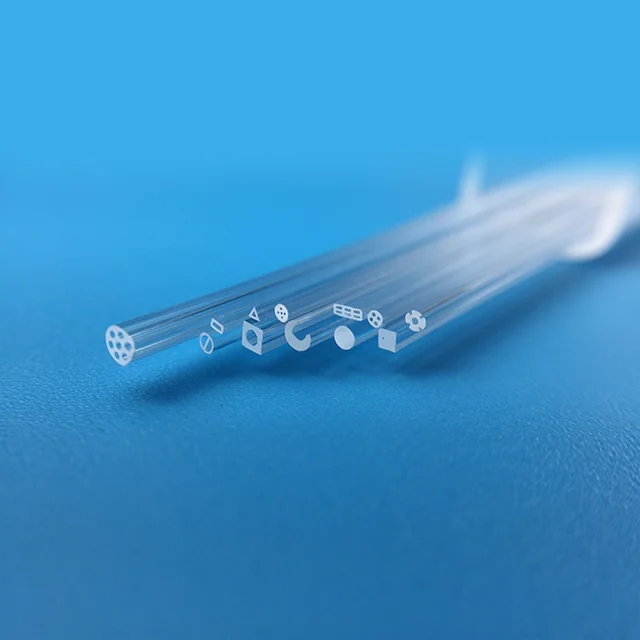

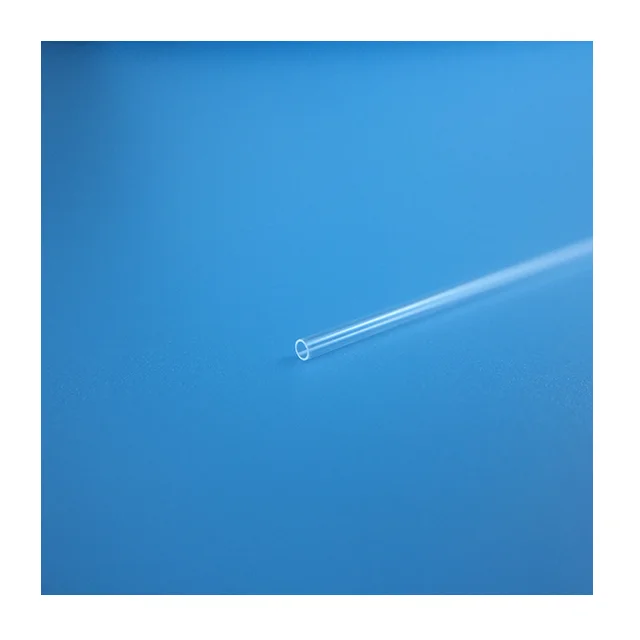

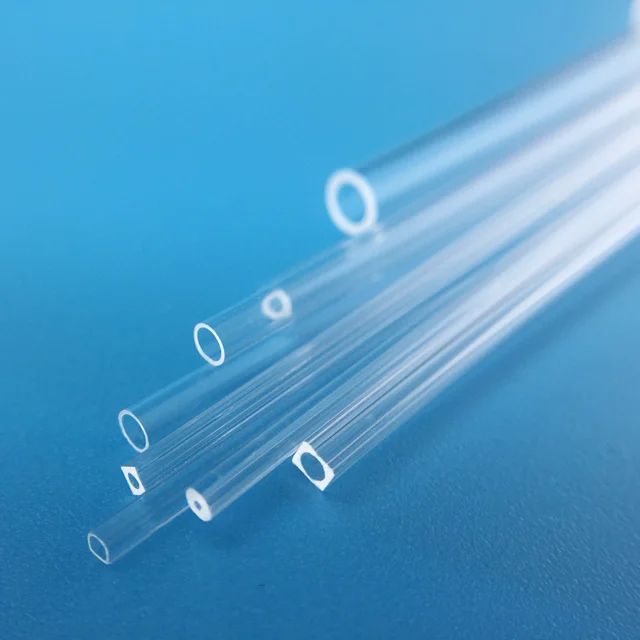

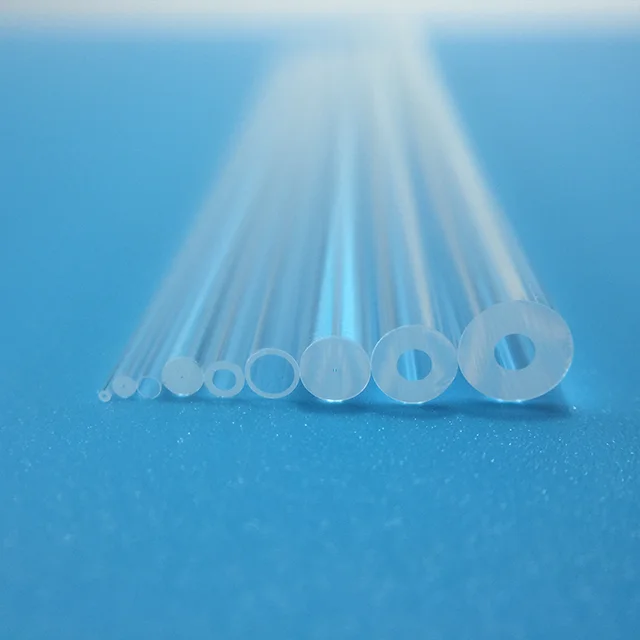

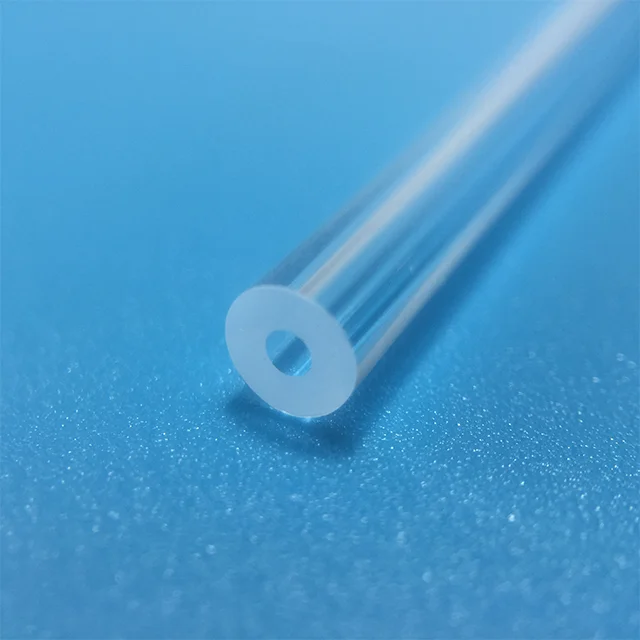

High purity small diameter low oh quartz capillary tube
The low-OH UV quartz silica glass tube is used for UV Germicidal field.
After ordinary quartz tube undergoes dehydroxylation treatment, its hydroxyl content will be greatly reduced. The reason for dehydroxylation is that the high temperature of the UV lamp will penetrate the -OH in the quartz glass into the lamp tube when it is working, and it will decompose under the action of the arc, thereby oxidizing and contaminating the electrode and mercury in the lamp tube, reducing the lamp tube Service life. So low hydroxyl content in quartz tube is very important in UV Germicidal application. After the quartz tube undergoes dehydroxylation treatment, the hydroxyl content is below 10 ppm, and can even reach 5 ppm or 2 ppm.
After ordinary quartz tube undergoes dehydroxylation treatment, its hydroxyl content will be greatly reduced. The reason for dehydroxylation is that the high temperature of the UV lamp will penetrate the -OH in the quartz glass into the lamp tube when it is working, and it will decompose under the action of the arc, thereby oxidizing and contaminating the electrode and mercury in the lamp tube, reducing the lamp tube Service life. So low hydroxyl content in quartz tube is very important in UV Germicidal application. After the quartz tube undergoes dehydroxylation treatment, the hydroxyl content is below 10 ppm, and can even reach 5 ppm or 2 ppm.
Specification
Parameter | Diameter | Tolerance | Unit | ||
Length | 1~2000 | ±0.2 | mm | ||
OD | 0.2~11 | ±0.03 | |||
ID | 0.06~10 | ±0.03 | |||
Material | Quartz glass, borosilicate glass, and other materials | ||||
Specification | Other dimensions and tolerances can be manufactured according to customer requirements | ||||
Packing & Delivery
Company Profile
We mainly supply:
1. Quartz Products
2. Optical Glass
3. Crystal Glass
4. Some plastic and metal molding tools
In Type 1 Quartz Glass, we are supplying:
a. Quartz discs, windows, flats, plates, rings, substrates, wafers, fringes, and panels: both in fine polishing, fine grinding or commercial polishing and grinding; in transparent, nontransparent or opaque statuses
b. CNC Quartz components and parts:
Through CNC design and software control, the Quartz parts can be precisely fabricated especially in doing arcs, slopes, slots, spheres, holes and cones, and taking 3D and angle processing in accordance with clients' own designs.
c. Quartz labware made by thermal treatment:
Tubing, apparatuses and various customer-designed labware can be made.
d. Sio2 Targets (Silicon Dioxide Sputtering Targets): as a thin film and composite coating material for vacuum coating:
Purity: Containing SIO2 of 99.95%-99.9999%
Characteristics: High Purity; Low Air Bubble Density; Low Impurity Content
Category: Grains, Wafers, Discs, Panels, Plates, Rings, and Blocks
In Type 2 and 3 Optical Glass, we are supplying:
a. BK7 glass
b. B270 glass
c. F-series glass
d. Float glass
e. CaF2 glass
f. Quartz Crystal
g. Optical Coating (AR, UV Filters)
h. Other various optical materials
Some typical products:
1. High Precision Windows
Dimension Tolerance: plus/minor 0.1mm ~ plus/minor0.01mm
Flatness: fringe ~ fringe /10
Surface Quality: 60/40 ~ 10/5
2. Ultra Thin Windows
Custom-Made Length / Width / OD by Thickness 1mm ~ 0.05mm
3. High Reflective Coating (HR), Anti-Reflection Coating, Protected Aluminum, and Protected Gold
In Type 4 molding tools, we are supplying:
Through CNC design and control, the metal and plastic molding tools and tooling fixtures for customers' mass production of their products, such as aluminum, copper, metal and others.
We welcome clients both in domestic and overseas markets to contact us for an inquiry and friendly cooperation!
1. Quartz Products
2. Optical Glass
3. Crystal Glass
4. Some plastic and metal molding tools
In Type 1 Quartz Glass, we are supplying:
a. Quartz discs, windows, flats, plates, rings, substrates, wafers, fringes, and panels: both in fine polishing, fine grinding or commercial polishing and grinding; in transparent, nontransparent or opaque statuses
b. CNC Quartz components and parts:
Through CNC design and software control, the Quartz parts can be precisely fabricated especially in doing arcs, slopes, slots, spheres, holes and cones, and taking 3D and angle processing in accordance with clients' own designs.
c. Quartz labware made by thermal treatment:
Tubing, apparatuses and various customer-designed labware can be made.
d. Sio2 Targets (Silicon Dioxide Sputtering Targets): as a thin film and composite coating material for vacuum coating:
Purity: Containing SIO2 of 99.95%-99.9999%
Characteristics: High Purity; Low Air Bubble Density; Low Impurity Content
Category: Grains, Wafers, Discs, Panels, Plates, Rings, and Blocks
In Type 2 and 3 Optical Glass, we are supplying:
a. BK7 glass
b. B270 glass
c. F-series glass
d. Float glass
e. CaF2 glass
f. Quartz Crystal
g. Optical Coating (AR, UV Filters)
h. Other various optical materials
Some typical products:
1. High Precision Windows
Dimension Tolerance: plus/minor 0.1mm ~ plus/minor0.01mm
Flatness: fringe ~ fringe /10
Surface Quality: 60/40 ~ 10/5
2. Ultra Thin Windows
Custom-Made Length / Width / OD by Thickness 1mm ~ 0.05mm
3. High Reflective Coating (HR), Anti-Reflection Coating, Protected Aluminum, and Protected Gold
In Type 4 molding tools, we are supplying:
Through CNC design and control, the metal and plastic molding tools and tooling fixtures for customers' mass production of their products, such as aluminum, copper, metal and others.
We welcome clients both in domestic and overseas markets to contact us for an inquiry and friendly cooperation!
FAQ
1. who are we?
We are based in Beijing, China, start from 1998,sell to Domestic Market(50.00%),Eastern Asia(7.00%),Eastern Europe(6.00%),Southeast Asia(6.00%),South Asia(6.00%),North America(4.00%),Mid East(4.00%),Western Europe(4.00%),Oceania(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),South America(2.00%),Central America(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Glass Capillary Tubes and Rods/Special Shaped Glass Capillary Tubes and Rods/ Quartz Plates/ Quartz Machined Parts/ Quartz Instruments/ Quartz Laser Cavity Filter,Glass Capillary Tube and Rod,Special Shaped Glass Capillary Tube and Rod,Quartz Laser Cavity Filter,Multi hole Laser Flow Tube,Fiber Optic Quartz End Cap,Plane Window,Quartz Parts,Quartz Apparatus
4. why should you buy from us not from other suppliers?
Over 20 years experience, we specialize in the custom processing of various optical glass, including glass capillary tube / rod, shaped glass tube / rod, quartz plate, laser cavity filter, fiber end cap, quartz instrument and quartz parts.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Beijing, China, start from 1998,sell to Domestic Market(50.00%),Eastern Asia(7.00%),Eastern Europe(6.00%),Southeast Asia(6.00%),South Asia(6.00%),North America(4.00%),Mid East(4.00%),Western Europe(4.00%),Oceania(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),South America(2.00%),Central America(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Glass Capillary Tubes and Rods/Special Shaped Glass Capillary Tubes and Rods/ Quartz Plates/ Quartz Machined Parts/ Quartz Instruments/ Quartz Laser Cavity Filter,Glass Capillary Tube and Rod,Special Shaped Glass Capillary Tube and Rod,Quartz Laser Cavity Filter,Multi hole Laser Flow Tube,Fiber Optic Quartz End Cap,Plane Window,Quartz Parts,Quartz Apparatus
4. why should you buy from us not from other suppliers?
Over 20 years experience, we specialize in the custom processing of various optical glass, including glass capillary tube / rod, shaped glass tube / rod, quartz plate, laser cavity filter, fiber end cap, quartz instrument and quartz parts.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары

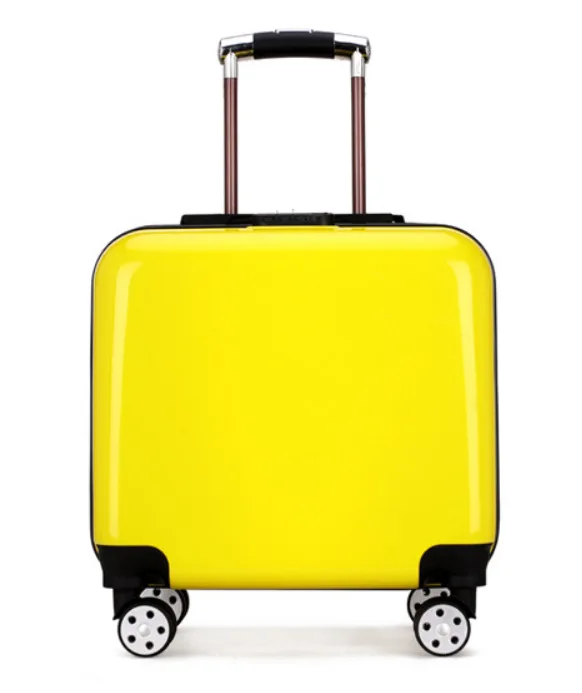

2021 Китай, специальная распродажа, 18 дюймов, чемодан для ноутбука, чемодан
7,60 $ - 9,00 $
Подвеска в стиле хип-хоп с изображением сердца ювелирные изделия персональная багета индивидуальные медальоны фотографией памяти открытые подвески форме
5,00 $ - 8,80 $

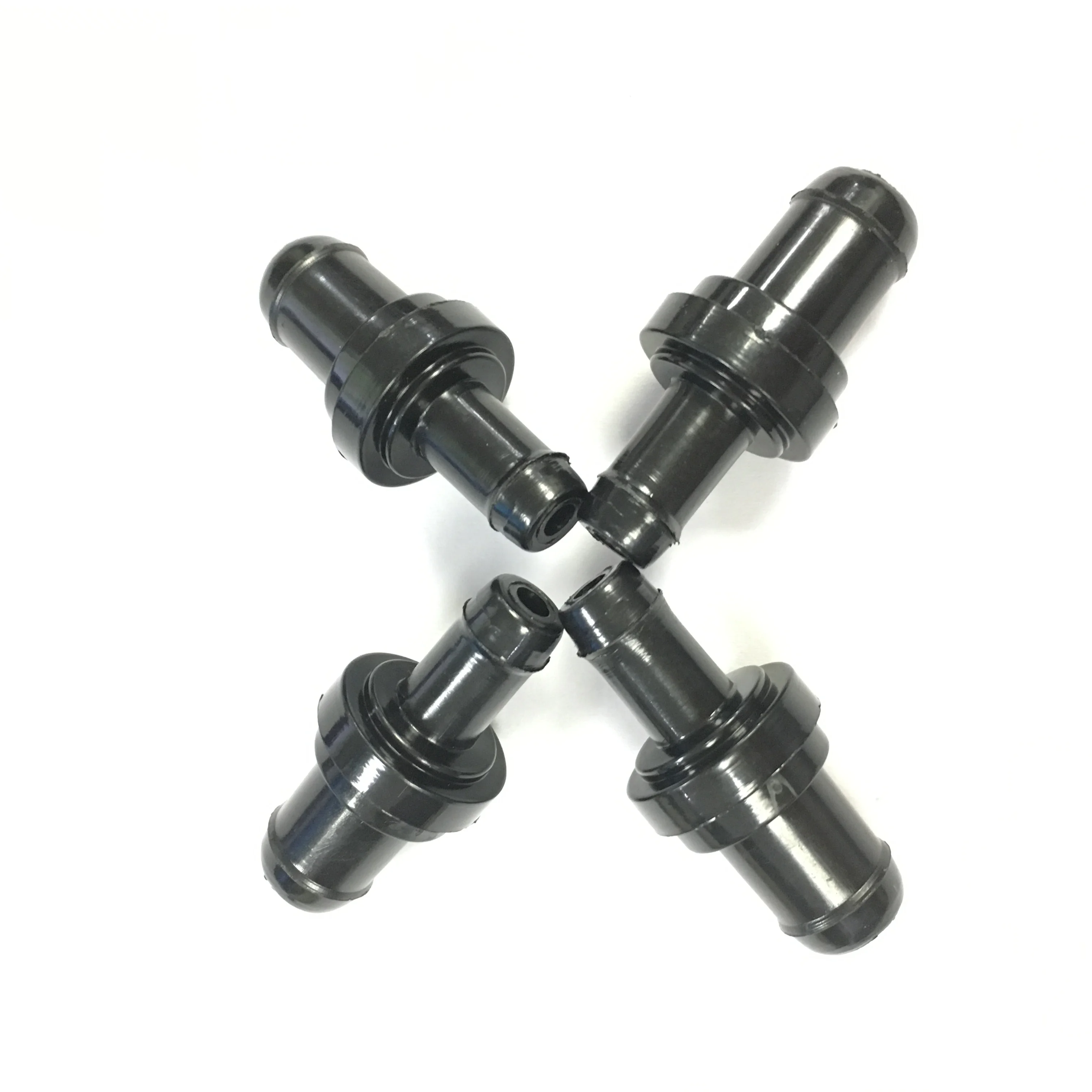

Применимо к Toyota OEM 12204-15030 крышка выхлопного клапана двигателя PCV
1,00 $
Точные европейские самые популярные гильотинные ножницы с ЧПУ, ножницы для резки печатных плат
20 000,00 $ - 41 000,00 $
Расширяемый чемодан для ручной клади, дорожные сумки, чемодан и Сумка-тоут для путешественника от китайского поставщика
Женщины едут багажа от баодин багажа завод новинка багажа китай alibaba

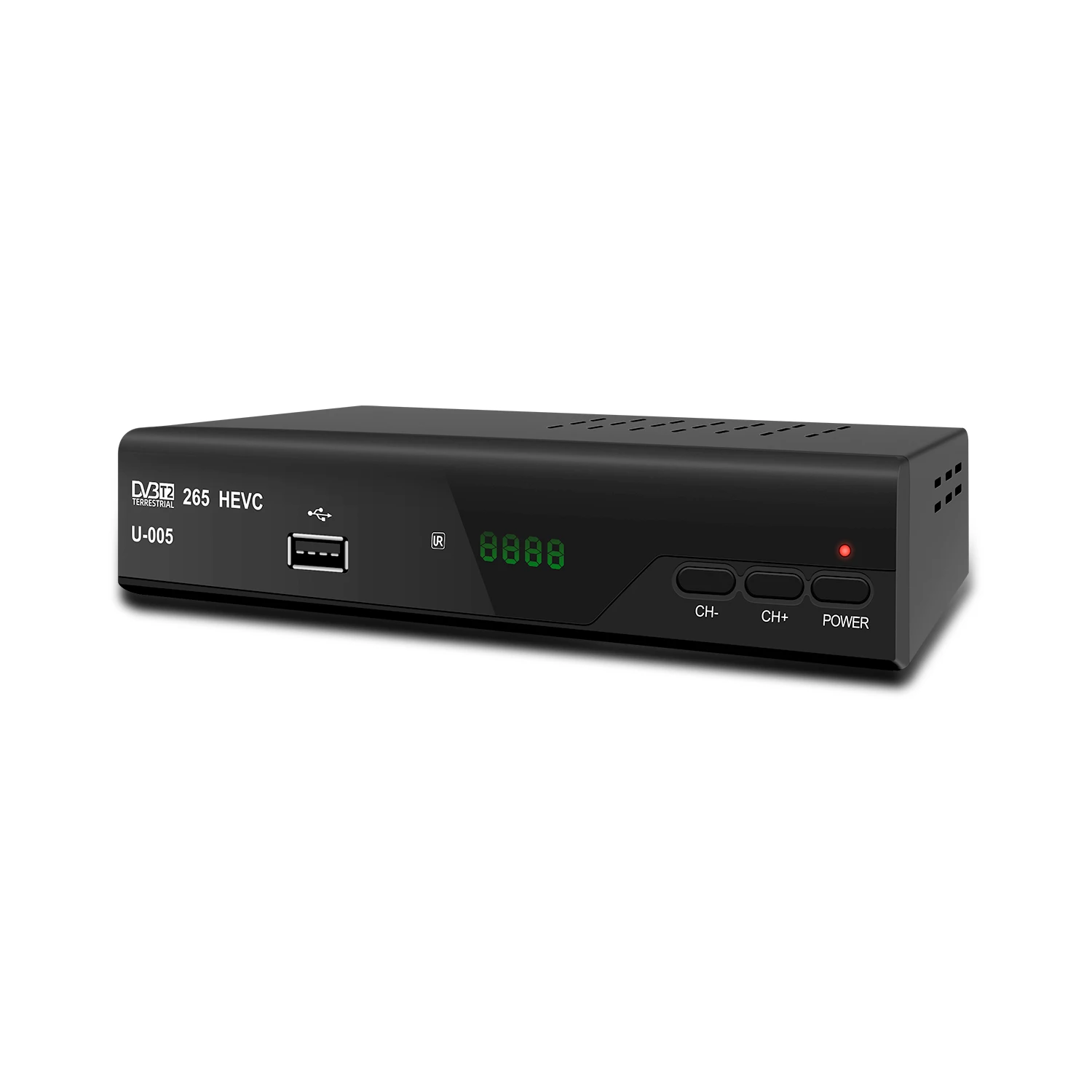

Full Hd Dvb-T2/C приемник Высокое разрешение Декодер каналов кабельного телевидения Hevc H.265 Dvb T2 Tv Box Iptv декодер Dvbt2
