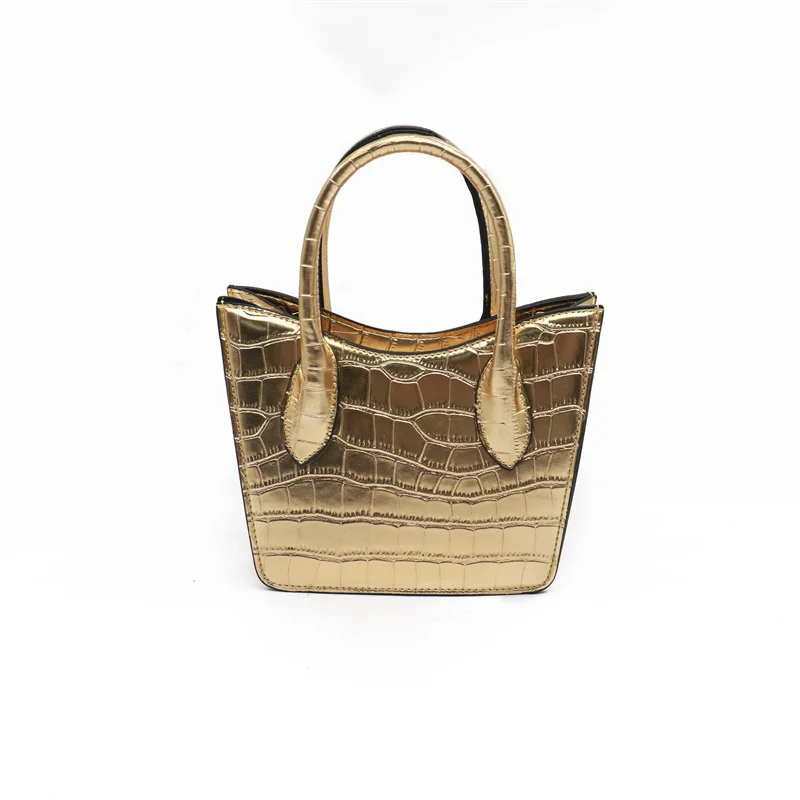

Популярные Модные Сумки из искусственной кожи аллигатора, новейший модный комплект сумок из искусственной кожи, женская элегантная сумка, оптовая продажа
3,99 $ - 4,59 $
Совершенно новый дизайн Прямая поставка с завода полностью автоматическая машина для производства пива спирта
- Категория: >>>
- Поставщик: Zhangjiagang Datong Machinery Co. Ltd.
Сохранить в закладки 1600311864821:
Описание и отзывы
Характеристики
Product Description
can filling machine is suitable for filling and sealing effervescent pop can beverages in the industries of pop can beverages(beer) . The filling and seaming are of integral design . The principle of equal pressure filling is adopted . During the filling after the empty can reaches into the can lifting cylinder after passing through the pneumatic triplex parts , and the empty can is raised and the conical seal gasket under the filling valve is sealed . The position turning block of the filling valve turns the position and opens the valve under the action of another cylinder . The air is filled into the empty can to form equal pressure . From a large material barrel , the beer passes through 14 small conduits and flows into the empty can . When the liquid level in the empty can blocks the gas return pipe mouth , the filling stops . Under the action of ram , the defoaming valve will slowly discharge the air and pressure .
ECHNOLOGICALPRECESS:
Technological process（6T water treatment system）：
Raw water pump → Quartz Sand Filter → active carbon filter → Sodium filter→Micron filter → RO→ UV → water tank
Technological process ( 4T/H beverage mixing system ):
Water chiller →Beverage mixing machine →Carbon filter→Sugar melting tank→Beverage pump→ →Mixing tank →double filter →Syrup cooler→CIP washingmachine
Technological process（330ml carbonated drink can filling and packing system）：
Depalletizer machine→ Can Washing machine → Can filling and sealing machine →conveyor → Spray cooling machine → Blowing drying machine → can reverse rack→ Date printer → semi-auto film shrinkable packing machine
Technological process（6T water treatment system）：
Raw water pump → Quartz Sand Filter → active carbon filter → Sodium filter→Micron filter → RO→ UV → water tank
Technological process ( 4T/H beverage mixing system ):
Water chiller →Beverage mixing machine →Carbon filter→Sugar melting tank→Beverage pump→ →Mixing tank →double filter →Syrup cooler→CIP washingmachine
Technological process（330ml carbonated drink can filling and packing system）：
Depalletizer machine→ Can Washing machine → Can filling and sealing machine →conveyor → Spray cooling machine → Blowing drying machine → can reverse rack→ Date printer → semi-auto film shrinkable packing machine
Product features
*Various capacity from 100BPH to 20000BPH
*Food grade SU304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
*Advanced human-machine interface control
*High quality international name brand key electrical components such as Japan's *Mitsubishi, France Schneider, OMRON
*High-speed large gravity filter
*Low overall machine noise
*High efficient air clean filter system apply to the production of non-carbonated drinks as pure water, mineral water, distilled water, spring water and other bottled water.
*Built-in safeguard mechanism ensures the safety of operator and machine.

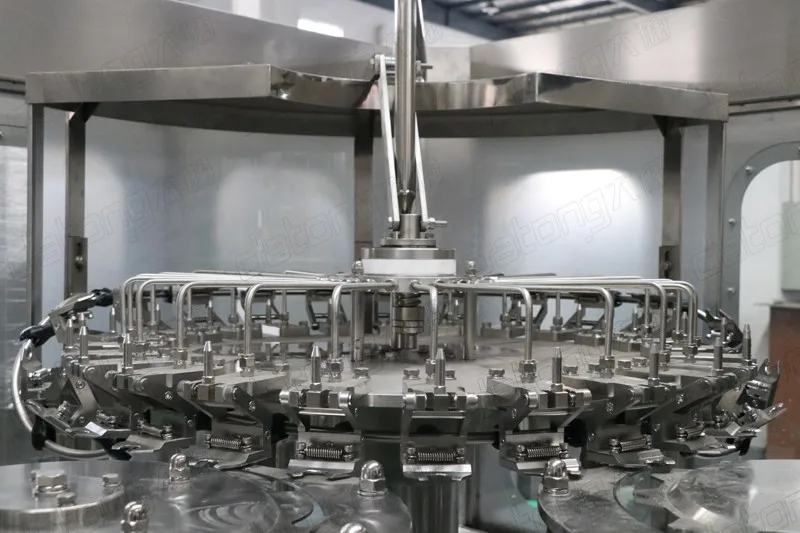

*Spring type rinsing catcher can wash both inside and outside of the bottle.
*3-in-1 monoblock including washing,filling and capping.
*Food grade SU304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
*Advanced human-machine interface control
*High quality international name brand key electrical components such as Japan's *Mitsubishi, France Schneider, OMRON
*High-speed large gravity filter
*Low overall machine noise
*High efficient air clean filter system apply to the production of non-carbonated drinks as pure water, mineral water, distilled water, spring water and other bottled water.
*Built-in safeguard mechanism ensures the safety of operator and machine.
*Spring type rinsing catcher can wash both inside and outside of the bottle.
*3-in-1 monoblock including washing,filling and capping.
Details Images
PART A:6T WATER TREATMENT SYSTEM
water treatment
1.the quartz sand filter, quartz sand filter, the main effect of sodium ion exchanger is effective to remove the impurity in theraw water and sediments.2.Activated carbon can effectively remove the peculiar smell in the water.
3. * The RO pipe removes impurities from the water by reverse osmosis
4.304 stainless steel, and the electrical appliances, pumps and motors are all provided by domestic and foreign quality supplierswith high cost performance.
3. * The RO pipe removes impurities from the water by reverse osmosis
4.304 stainless steel, and the electrical appliances, pumps and motors are all provided by domestic and foreign quality supplierswith high cost performance.
filter RO UV
01 - RO Reverse OsmosisWater Treatment System. 1 Raw water tank + Raw water pump 2 Silica sand filter + Active carbon filter +Sodium ion exchanger + Precision filter + Security filter 3 Reverse Osmosis (one level) 4 UV sterilizer 5 Finished water tank +Pure water pump
PART B:4T/H CARBONATED DRINK PROCESSING SYSTEM
HIGH RATIO CARBONATED MIXER
QHS-4000 beverage mixer
Usage：
This series of machine is developed by introduced special technology from Japan Mitsubishi heavy industry, which adopts international advanced technology of the late 90s, in the position of top among like products at home. This mixer is suitable for all kinds of carbonated drinks’ mixing,and also, it is suitable for mixing processing of pulpiness beverage, fermented beverage and other beverage.
Usage：
This series of machine is developed by introduced special technology from Japan Mitsubishi heavy industry, which adopts international advanced technology of the late 90s, in the position of top among like products at home. This mixer is suitable for all kinds of carbonated drinks’ mixing,and also, it is suitable for mixing processing of pulpiness beverage, fermented beverage and other beverage.
SUGAR MELTING TANK
MIXING TANK
DOUBLE FILTER
Main Specifications and Technical Parameters
1. Operational pressure:
a. in-tank: normal pressure
b. steam tube: 0.2 ~ 0.4MPa
2. Operational temperature:
a. in-tank of sour and alkali 60 ~ 80℃
b. in-tank of water normal
c. steam tube: ≦138.8℃
3. Name of material
a. tank of sour and alkali 1%nitric acid,
1%caustic alkali
b. steam tube: water vapour
a. in-tank: normal pressure
b. steam tube: 0.2 ~ 0.4MPa
2. Operational temperature:
a. in-tank of sour and alkali 60 ~ 80℃
b. in-tank of water normal
c. steam tube: ≦138.8℃
3. Name of material
a. tank of sour and alkali 1%nitric acid,
1%caustic alkali
b. steam tube: water vapour
PART C:CARBONATED DRINK CAN FILLING AND PACKING
Depalletizer machine
Automatic destacking machine is mainly used for round tank automatic destacking, empty cans will be stacked on the pallet, ascension by unloading tank body after push the cans layers of tan device push to mesh conveyor platform, temporary buffer.On one side of the net conveyor chain, there is a conveyor belt, which is carried by the conveyor belt into the slide wash tank.The machine can replace artificial can, improve the production efficiency and the degree of automation.It has the characteristics of high precision, stable can, and continuous adjustable
production speed.The machine USES variable frequency control, the action adopts PLC centralized control, the electrical and pneumatic elements are foreign imported components.
production speed.The machine USES variable frequency control, the action adopts PLC centralized control, the electrical and pneumatic elements are foreign imported components.
can washing part
It automatically jets and sterilizes the inner and surface of the can. All the materials are made of stainless steel.When the tank turned into the first tank after tank-cleaning ,and appearance under the temperature by a porous pipes with red spray,0.5meters can then rotate in order to achieve the purpose of cleaning ,and then turned the extension device can slide into the next chain road.Pay attention to the cans in the slipway are not stopped,to prevent irrigation water controlling line speed is not the net.
can filling and sealing machine
pop can filling and seaming machine for fruit juice(non carbonated) has such prominent features as high filling speed , consistent height from the liquid level in the can to the can mouth after filling , stable machine operation , good sealing quality ,beautiful and decent appearance , convenient use and maintenance , etc .

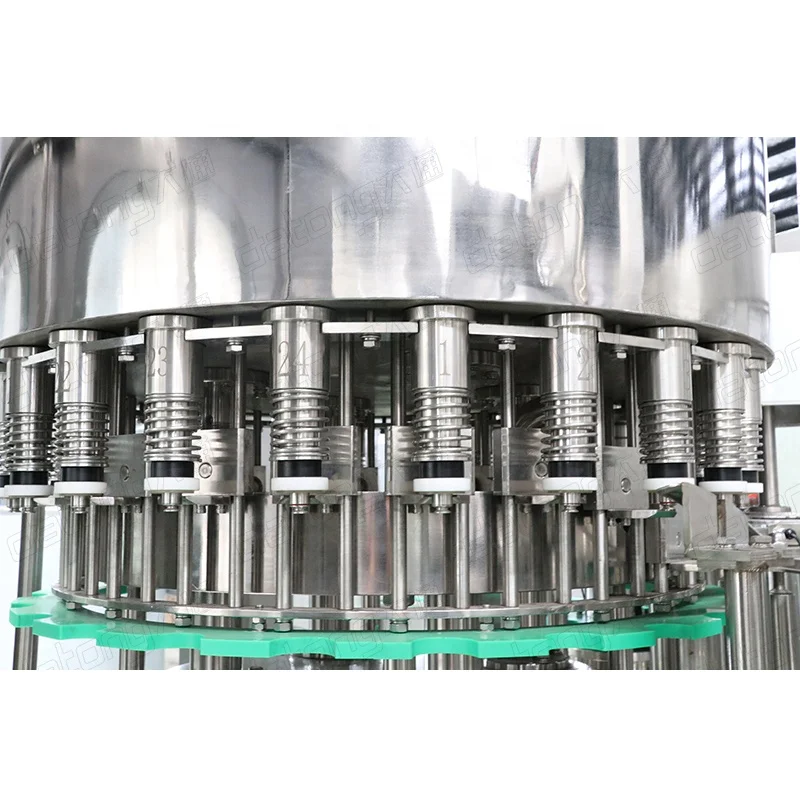

Filling part
1) The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss.
2) Rotary wheel are fully made of stainless steel SS304.
3) Filling valves are designed and manufactured with German technology, made of SS304, featuring high filling accuracy and high filling speed.
5) Hydraulic pump is float-ball controlled.
6) The filler is driven by driving system positioned inside machine frame via gear transmission.
2) Rotary wheel are fully made of stainless steel SS304.
3) Filling valves are designed and manufactured with German technology, made of SS304, featuring high filling accuracy and high filling speed.
5) Hydraulic pump is float-ball controlled.
6) The filler is driven by driving system positioned inside machine frame via gear transmission.

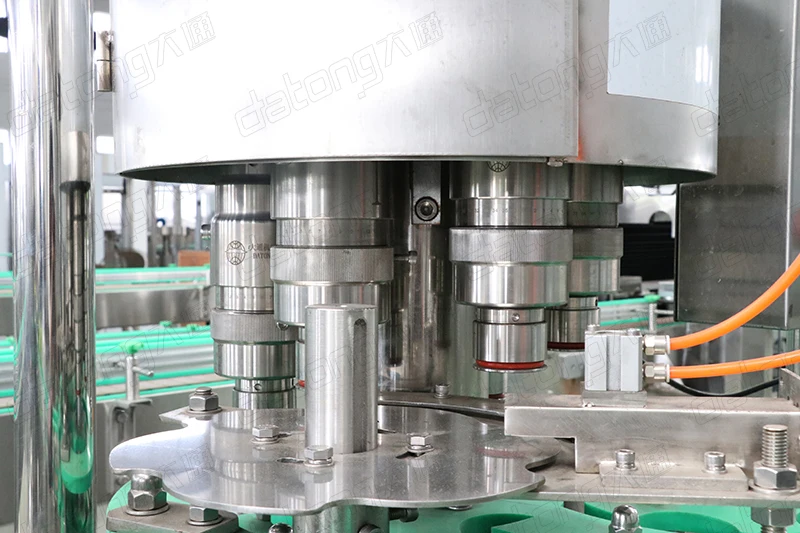

Sealing part
1) This part is most precise part in 3 in 1 filling machine, because the quality of machine is
important to running credibility and product quality. The sealing machine in our company has strongpoint as follows:
2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.
3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.
4) Highly effective acentric way for cap sorting to reduce the abrasion.
5) It has the check-up device to control the cover lift.
important to running credibility and product quality. The sealing machine in our company has strongpoint as follows:
2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.
3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.
4) Highly effective acentric way for cap sorting to reduce the abrasion.
5) It has the check-up device to control the cover lift.
Conveyor
Item Description
Width 85mm
Chains Engineering plastic no noise
Material of frame stainless steel 304
Width 85mm
Chains Engineering plastic no noise
Material of frame stainless steel 304
Liquid Level checker
Filling liquid level detector is a kind of liquid level detector developed and produced by our company, which has reached the advanced level at home and abroad. The principle that the ray intensity changes with the position of the material surface after the interaction between the
low-energy photon source and the tested material is used to control the capacity of the filled liquid material. Because of its non-contact measurement method, it fundamentally solves the problem that the conventional weighing method can not measure the capacity of liquid materials
filled in the production line. Therefore, it is widely used in the on-line automatic control of liquid material assembly line for food, medicine, chemical industry, weapons and ammunition, etc.
low-energy photon source and the tested material is used to control the capacity of the filled liquid material. Because of its non-contact measurement method, it fundamentally solves the problem that the conventional weighing method can not measure the capacity of liquid materials
filled in the production line. Therefore, it is widely used in the on-line automatic control of liquid material assembly line for food, medicine, chemical industry, weapons and ammunition, etc.

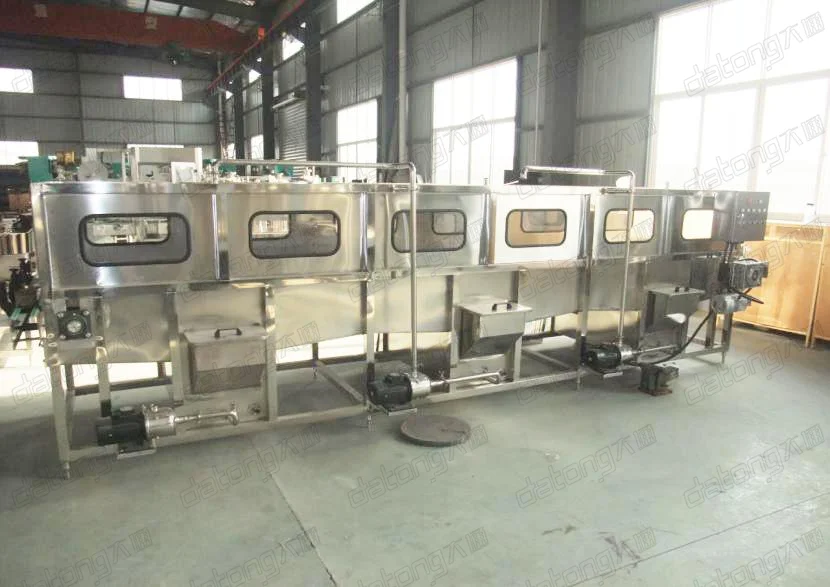

Warm keeping machine
Air blowing drying machine
Vacuum pump:5.5kw
Weight:200kg
Dimensions:1200X850X1600mm
Weight:200kg
Dimensions:1200X850X1600mm
Can reverse rack
Spin the cans, easy to print at the bottom of the can.
Semi- auto shrink film packing machine
The machine adopts infrared ray to heat the PE shrink film directly to achieve perfect shrink effect,this will not damage the product to be packed. Step-less speed changing, solid pressure controller tocontrol the temperature, which is stable,widely used for foodstuff, beverage,stationery, candies,hardware tools, daily commodities, chemical products and so on. Special size product can be made according to customer's requirement.
Final Products
Product Paramenters
Our company &Service
Ethos of DATONG: absolute dedication to understanding our customers' needs.
This has been at the heart of the company since it was founded in 2002, by utilizing many years of knowledge and experience, all our product of Water treatment system, water filling machines, carbonated drink filling machine, juice filling machine, beer filling machine, can filling machine, glass bottle filling machine, 3-5 gallon barreled water filling machine, Bottle labeling machine, bottle packing machines, PET bottle Blow Molding Machine, juice mixing machine, sterilization machines, CIP washing machine etc. as well as turnkey managed projects, offer unparalleled quality, service and reliability.
2. Training
Our company offers technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The
quality,specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
This has been at the heart of the company since it was founded in 2002, by utilizing many years of knowledge and experience, all our product of Water treatment system, water filling machines, carbonated drink filling machine, juice filling machine, beer filling machine, can filling machine, glass bottle filling machine, 3-5 gallon barreled water filling machine, Bottle labeling machine, bottle packing machines, PET bottle Blow Molding Machine, juice mixing machine, sterilization machines, CIP washing machine etc. as well as turnkey managed projects, offer unparalleled quality, service and reliability.
Our service:
1. Installation & debugging
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debugging and testing production at the same time to make the equipments reach the rated producing capacity of the line.
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debugging and testing production at the same time to make the equipments reach the rated producing capacity of the line.
2. Training
Our company offers technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The
quality,specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
Our customers
Certifications
FAQ
HOW TO FIND Datong-Machine factory?
** Search Alibaba,Google,Youtube,Facebook and find suppliers and manufacturer,not traders
**Visit exhibition in different countries
**Send Datong-machine Machinery an request and tell your basic inquiry
**Datong-machine Machinery sales manager will reply you in short time and add instant chatting tool
**Visit exhibition in different countries
**Send Datong-machine Machinery an request and tell your basic inquiry
**Datong-machine Machinery sales manager will reply you in short time and add instant chatting tool
Phone:
+86-512-58662088
Fax:
+86- 512-58661388
Add:
Zhaxi Village, Leyu Town, Zhangjiagang, Suzhou, Jiangsu, China (Mainland)
+86-512-58662088
Fax:
+86- 512-58661388
Add:
Zhaxi Village, Leyu Town, Zhangjiagang, Suzhou, Jiangsu, China (Mainland)
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE?
** Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
** By letter of credit, you can lock the delivery time easily.
** After the factory visit, You can ensure the facticity of our bank account.
Do you provide customized service?
** We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
How long time for installation?
** Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
SEE DATONG-MACHINE MACHINE HOW TO ENSURE THE QUALITY!
** In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
** Each component before assembly needs strictly control by inspecting personnel.
** Each assembly is in charged by a master who has working experience for more than 5 years.
** After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
** In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
** Each component before assembly needs strictly control by inspecting personnel.
** Each assembly is in charged by a master who has working experience for more than 5 years.
** After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
Похожие товары

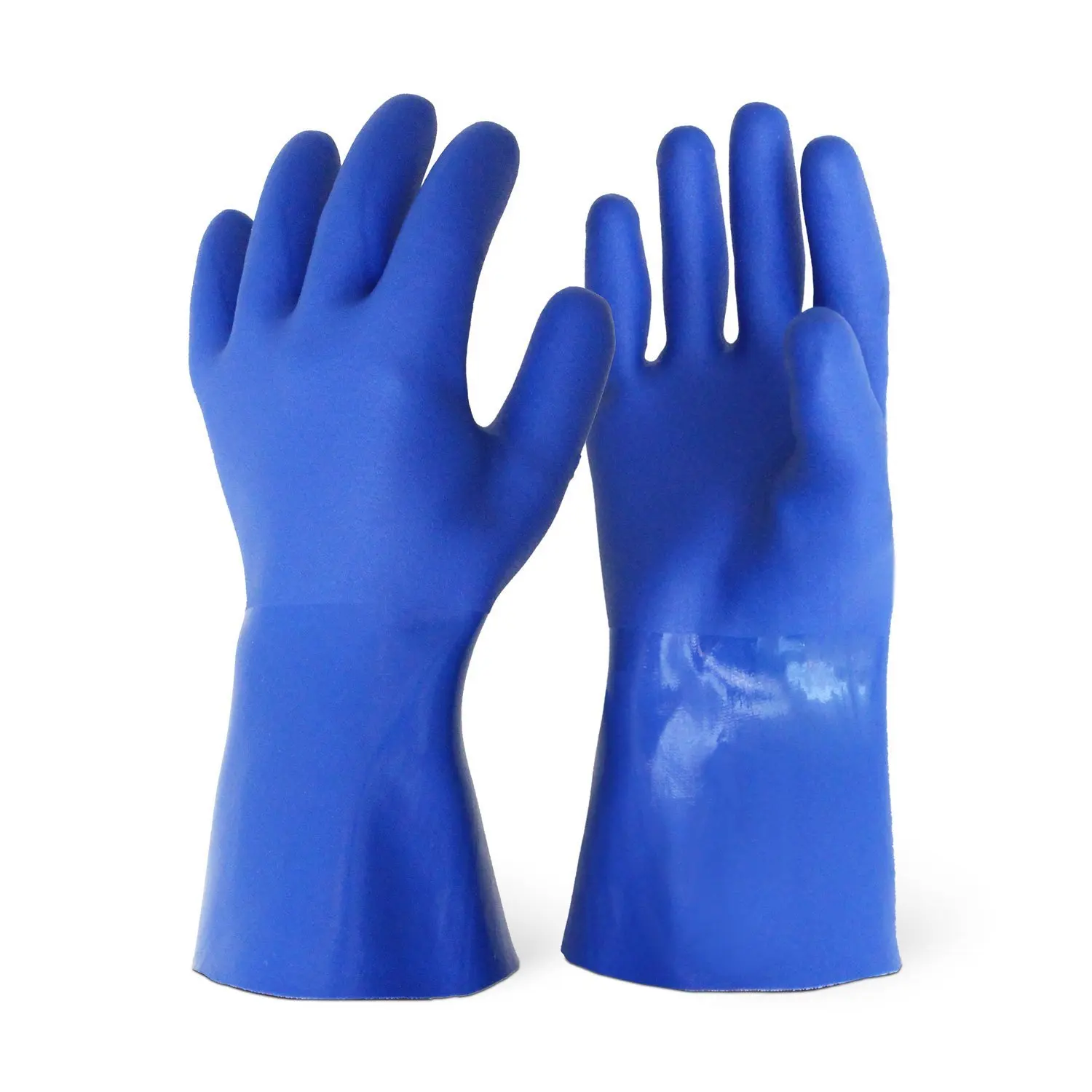

Синие перчатки из ПВХ, устойчивые к сильной кислоте
0,55 $ - 0,65 $

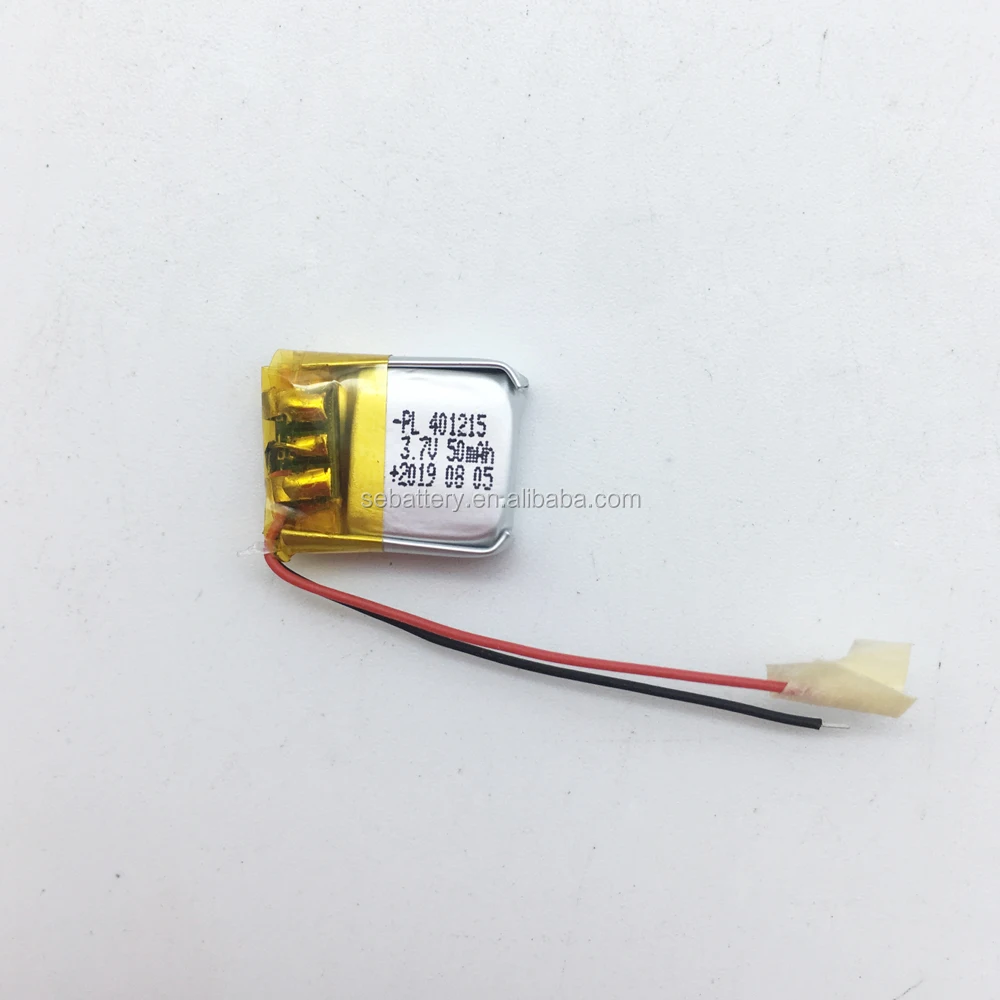

Солнечная аккумуляторная батарея 401215 lipo 3 7 v 50
Вертикальная упаковочная система конвейерная лента линейная машина для взвешивания конфет автоматическая вакуумная упаковочная машина
Бамбуковая подставка для растений, стойка, держатель для цветочных горшков, полка для комнатных и уличных растений
3,99 $ - 5,14 $
Рабочие Легкие нейлоновые промышленные резиновые перчатки для защиты ладони с
0,26 $ - 0,29 $

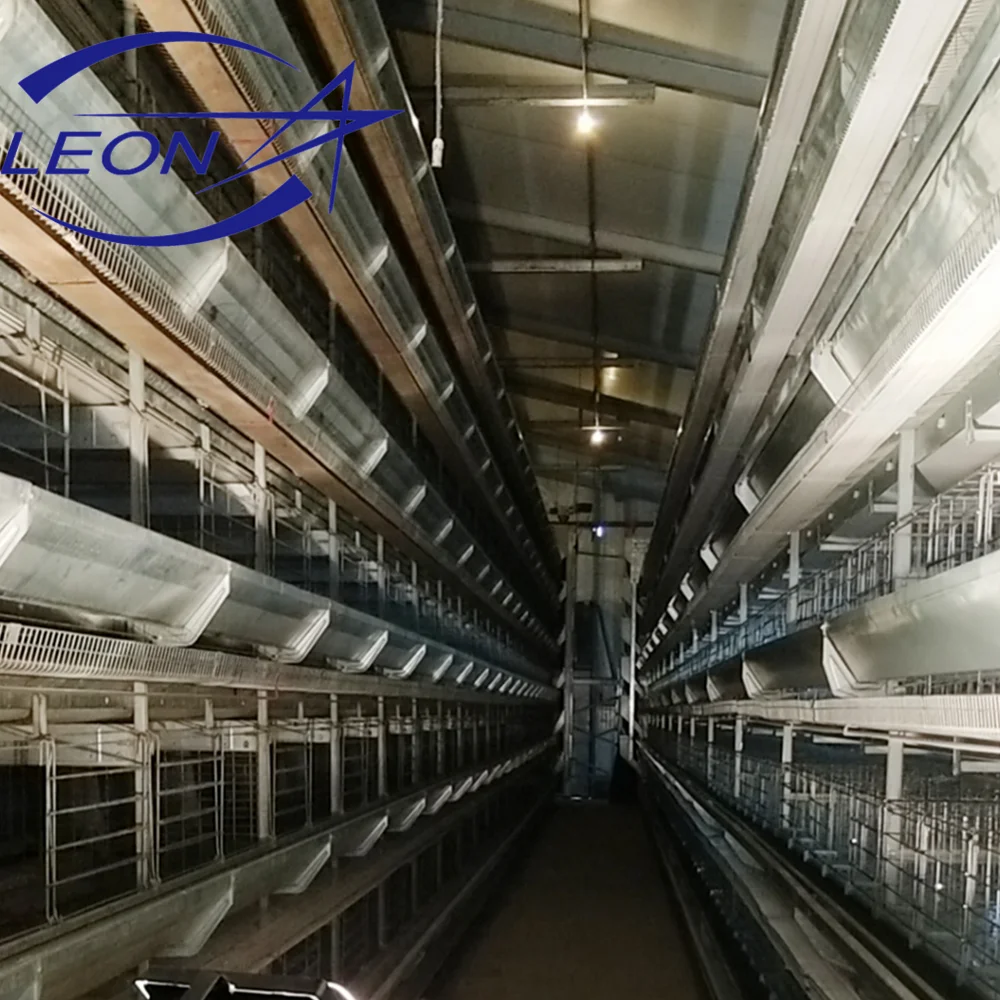

Леон слойная клетка яйцо курица птица ферма
