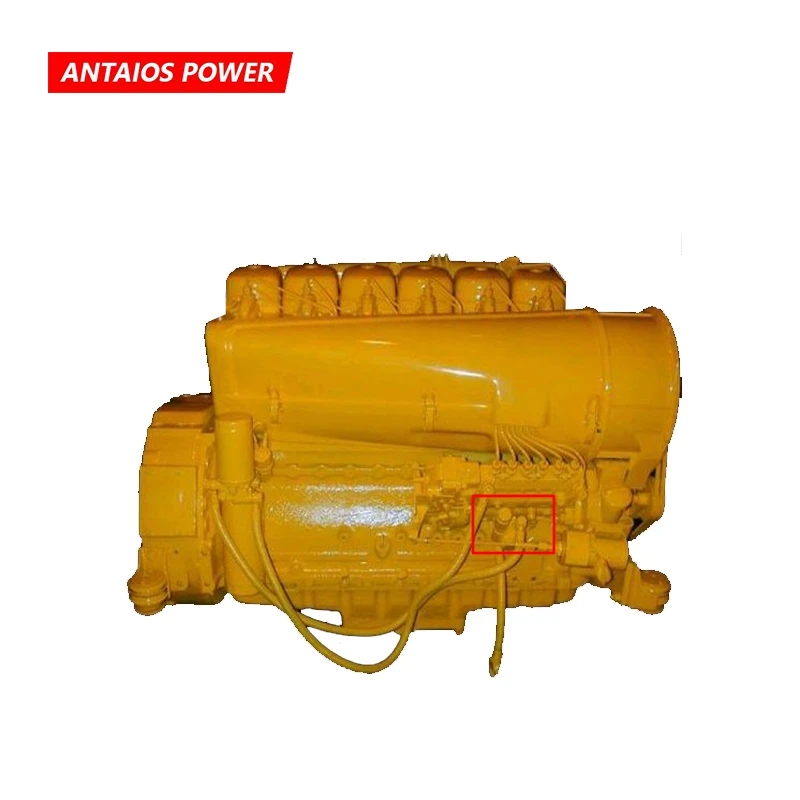

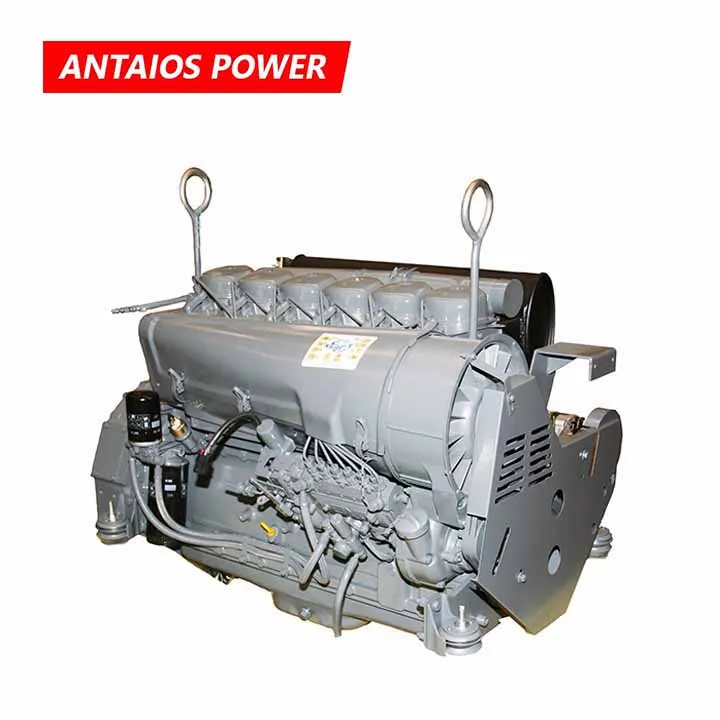

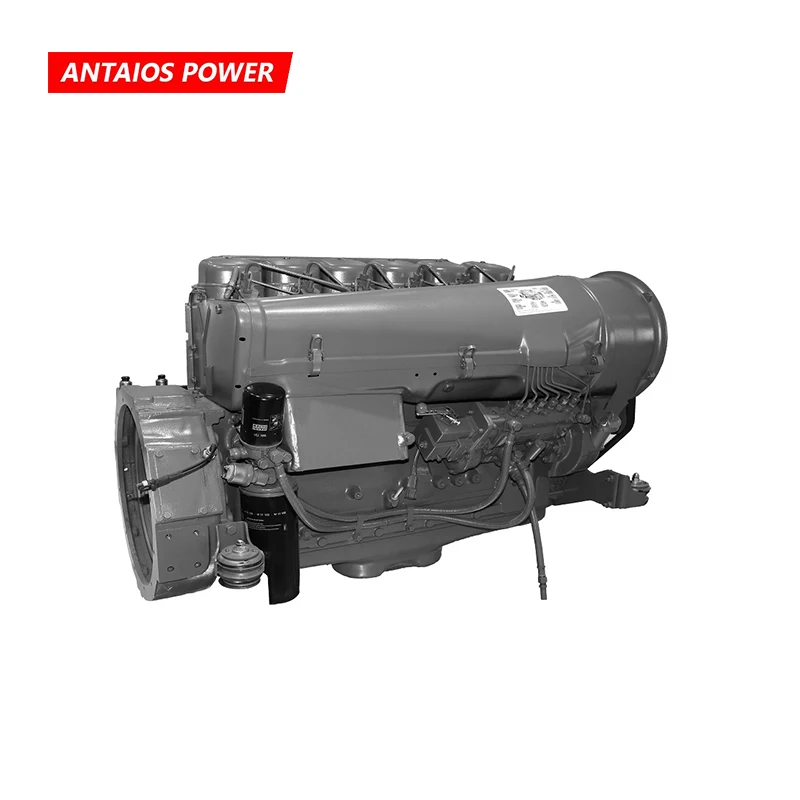

6 цилиндровый рядный DEUTZ 100HP 2300 об/мин с воздушным охлаждением дизельный двигатель F6L912
- Категория: >>>
- Поставщик: Beijing Antaios Technology Co. Ltd.
Сохранить в закладки 1600312096977:
Описание и отзывы
Характеристики
Products Description
Air-cooled 4-cylinder naturally aspirated in-line-engine. Direct injection.
Advanced injection and combustion system.
PTOs via gear, V-belt and crankshaft.
Extremely compact design.
High torque at low speeds.
Modular system with single cylinder arrangement and high degree of parts commonality.
Customized component system with many different peripheral parts.
Cold-starting ability even under extreme climatic conditions.
Model | F2L912 | F3L912 | F4L912 | F4L912T | F6L912 | F6L912T |
No. of Cly | 2 | 3 | 4 | 4 | 6 | 6 |
Bore/stroke(mm) | 100/120 | 100/120 | 100/120 | 100/120 | 100/120 | 100/120 |
Displacement(L) | 1.88 | 2.828 | 3.77 | 3.77 | 5.622 | 5.655 |
Air-intake system | Naturally aspirated | Naturally aspirated | Naturally aspirated | Turbo charging | Naturally aspirated | Turbocharged |
Rated Power(kw) | 14-20 | 24-38 | 32-51 | 41-52 | 48-78 | 61-85 |
Rated Speed(r/min) | 1500-2300 | 1500-2500 | 1500-2500 | 1500-2000 | 1500-2500 | 1500-2500 |
Cornpression ratio | 17 | 17 | 17 | 17 | 18 | 17 |
Direction of rotation(facing cooling blower) | Clockwise | Clockwise | Clockwise | Clockwise | Clockwise | Clockwise |
Dimension(mm) | 678*704*872 | 730*673*815 | 860*673*815 | 865x673x815 | 1120x673x815 | 1125x673x815 |
Weight(kg) | 245 | 275 | 300 | 315 | 410 | 410 |
Details Images
STANDARD CONFIGURATION
1. Oil filter
2. Diesel filter
3. Oil bath air cleaner with pre-cleaner and dust collector
4. 12V/24V starting motor
5. 12V/24V charged generator
6. Diesel engine electrical shutdown device(only generator set)
7. Automatic belt tension unit
8. V-belt break alarm device
9. Belt guard(only for generator set)
10. 4 Engine elastic supports
11. SAE Flywheel and housing
12. Oil temperature sensor and alarm switch (VDO analog signal)
13.Oil pressure sensor and alarm switch (VDO analog signal)
14. Diesel engine accelerator adjust device (only generator set)
15.Mechanical adjusting speed device
2. Diesel filter
3. Oil bath air cleaner with pre-cleaner and dust collector
4. 12V/24V starting motor
5. 12V/24V charged generator
6. Diesel engine electrical shutdown device(only generator set)
7. Automatic belt tension unit
8. V-belt break alarm device
9. Belt guard(only for generator set)
10. 4 Engine elastic supports
11. SAE Flywheel and housing
12. Oil temperature sensor and alarm switch (VDO analog signal)
13.Oil pressure sensor and alarm switch (VDO analog signal)
14. Diesel engine accelerator adjust device (only generator set)
15.Mechanical adjusting speed device
16. Diesel engine paint(gray)
OPTIONAL CONFIGURATION
1.Absorption type exhaust silencer suitable for remote mounting
2.Spark arrestor type exhaust silencer
3.Exhaust manifold-cum-silencer (only for non-turbo charge)
4.Diesel engine supports suitable for rigidly mountings
5.Gear driven hydraulic pump
6.Belt driven air compressor
7.Hydraulic oil radiator
8.Starting aid for engine starting below minus 5'C down to minus 40C12V/24V Diesel engine electrical adjusting speed control deviceMechanical shutdown lever
9.Diesel engine over speed guard device
10.All kinds of meter of diesel engine
11.Industrial power take -offs
2.Spark arrestor type exhaust silencer
3.Exhaust manifold-cum-silencer (only for non-turbo charge)
4.Diesel engine supports suitable for rigidly mountings
5.Gear driven hydraulic pump
6.Belt driven air compressor
7.Hydraulic oil radiator
8.Starting aid for engine starting below minus 5'C down to minus 40C12V/24V Diesel engine electrical adjusting speed control deviceMechanical shutdown lever
9.Diesel engine over speed guard device
10.All kinds of meter of diesel engine
11.Industrial power take -offs
Main Products
Product packaging
Company Profile
Beijing Antaios Technology Co, Ltd, located in Beiing, capital of China, specializes in import and export Deutz series diesel engines and spare parts, acting on behalf of Deutz China Licensed engines and spare parts, including 1013/ 2012 /1015 /2015 /226 /234 /604 /620 series water-cooled engines (power range 25KW-700KW), 511/ 912 /913 /914 /413 /513 series air-cooled engines (power range 6KW-410KW),all engines are produced in China with Germany technology, short delivery time and good quality, used in Vehicles, Construction machines and all kinds of Power sets.
Certificate
FAQ
Question 1：How to buy an engine?
First of all, please tell us what machine do you use the engine for, the rated power and speed of the engine you need, then we will select the model suitable for you based on these three information.
Secondly, if you want to buy an engine for the replacement of the old Deutz engine, please also provide a clear nameplate photo of the engine so that we can find out the engine’s configuration and provide you with a similar configuration engine.
First of all, please tell us what machine do you use the engine for, the rated power and speed of the engine you need, then we will select the model suitable for you based on these three information.
Secondly, if you want to buy an engine for the replacement of the old Deutz engine, please also provide a clear nameplate photo of the engine so that we can find out the engine’s configuration and provide you with a similar configuration engine.
Question 2：How long is the delivery time?
For complete engine and Power units , we need to arrange production according to the order, our general delivery time is 15-30 days.
For spare parts , our general delivery time is 5-15 days.
For complete engine and Power units , we need to arrange production according to the order, our general delivery time is 15-30 days.
For spare parts , our general delivery time is 5-15 days.
Question 3:How about warranty?
We provide warranty on all products sold.
Complete engine and power units: the warranty period is one year or 1200 hours, whichever comes first.
Spare parts: warranty period is 3-6 months
During the warranty period, if the problem is caused by product quality, our company can provide free parts to compensate.
We provide warranty on all products sold.
Complete engine and power units: the warranty period is one year or 1200 hours, whichever comes first.
Spare parts: warranty period is 3-6 months
During the warranty period, if the problem is caused by product quality, our company can provide free parts to compensate.
Question 4: Does your Engine or Sparts Parts same to DEUTZ?
All of our Engines and Spare Parts comes from DEUTZ China license factories, which share the same technology with DEUTZ, all of them are same to DEUTZ.
All of our Engines and Spare Parts comes from DEUTZ China license factories, which share the same technology with DEUTZ, all of them are same to DEUTZ.
