Высокоточные машины для волоконной лазерной резки HC3015G 2000 Вт Скорость 80 м/мин
- Категория: >>>
- Поставщик: Jinan HC Machinery Co. Ltd.
Сохранить в закладки 1600312684375:
Описание и отзывы
Характеристики

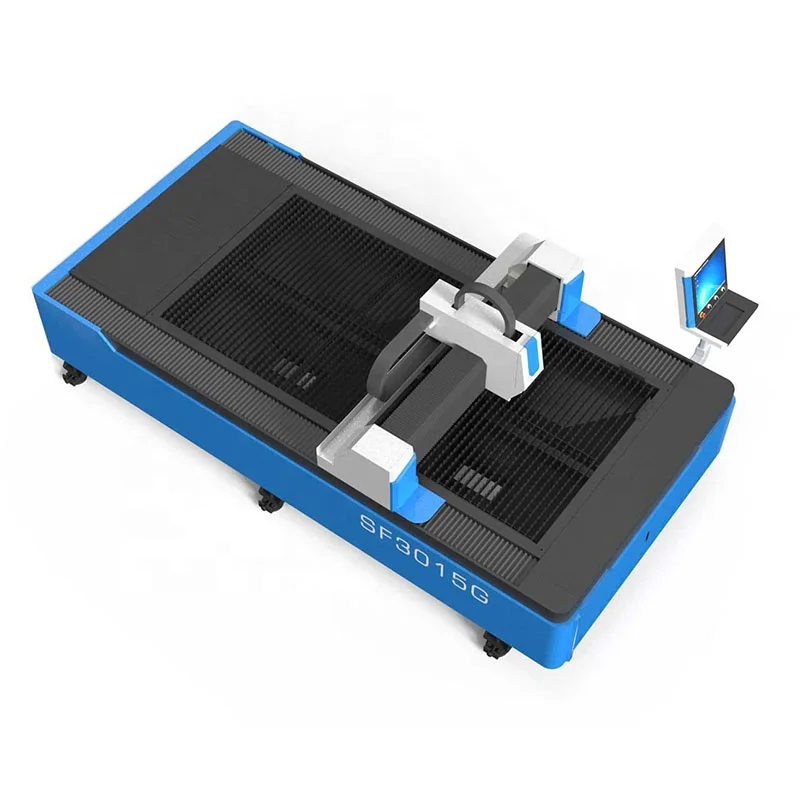

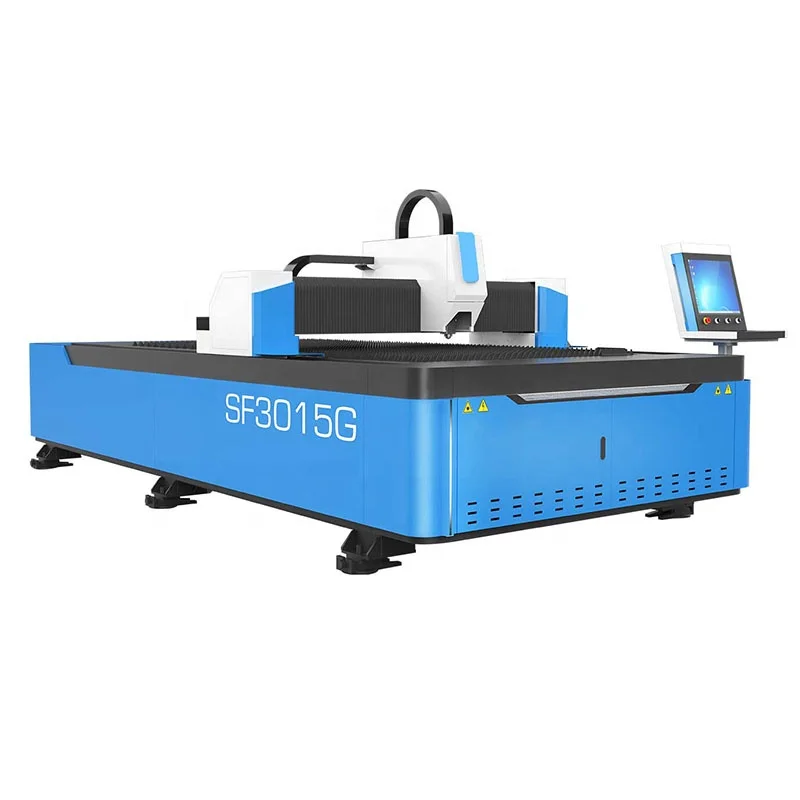

HC3015G Fiber Laser Cutting Machine
HC3015G fiber laser cutter reaches the top level in China, which is customers’ best choice in metal industry. The bed is welded by precise welding process after annealing and aging treatment, and the beam is airborne aluminium castings. For the more, the running speed of the machine can reach 80 m/min.
Products Description
Product Parameter
Item | 1KW | 1.5KW | 2KW | 3KW | |||
Working area | 3000*1500mm/9.84*4.92ft | ||||||
X-axis Travel | 1500mm/4.92ft | ||||||
Y-axis Travel | 3000mm/9.84ft | ||||||
Z-axis Travel | 220mm/0.72ft | ||||||
Positioning accuracy | ±0.05mm | ||||||
Repeated positioning | ±0.02mm | ||||||
Maximum acceleration | 80m/min | ||||||
Machine Total weight(KG) | 2300 | 2330 | 2400 | 2800 | |||
Table maximum load(KG) | 700 | 700 | 700 | 700 | |||
Outline size（mm） | 4626*2950*1900mm | ||||||
Power parameters | Three-phase AC 380V 50Hz | ||||||
Protection Level of Total Power Supply | IP54 | ||||||
Product Details
Cutting thickness & Samples
1.Cutting Materials
Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized sheet, silicon steel sheet,
electrolytic sheet, titanium alloy, manganese alloy, etc.2.Cutting Thickness | ||||||||
Material | 1000w | 1500w | 2000w | 3000w | ||||
Carbon steel(mm) | 0.4-12 | 0.4-16 | 0.4-18 | 0.4-20 | ||||
Stainless steel(mm) | 0.4-5 | 0.4-16 | 0.4-8 | 0.4-12 | ||||
Brass(mm) | 0.4-3 | 0.4-5 | 0.4-6 | 0.4-8 | ||||
Aluminum | 0.4-3 | 0.4-6 | 0.4-8 | 0.4-10 | ||||
3.Application Industry
Sheet metal processing, machinery manufacturing, auto parts manufacturing, electrical manufacturing, elevator manufacturing,petroleum machinery, food machinery, shipbuilding etc.
Sheet metal processing, machinery manufacturing, auto parts manufacturing, electrical manufacturing, elevator manufacturing,petroleum machinery, food machinery, shipbuilding etc.
Packing & Delivery
Our Service
Pre-sales:
24-hour online customer service can help you select the machine suitable for you, customize the machine production line for your needs and budget, and provide pictures, videos, cases and other reference for you
After-sale service
We will dispatch technician to The Buyer's factory to installation and preparation of machines.Our technician will teach and train the learners hand byhand till he can operate machine by himself.
Warranty
The warranty of laser source and machine is 2 years（main spare parts）,except for the consumable parts such as ceramic ring, focus lens, nozzle etc. Warranty counts from the date marked on the label of the laser source and machine.
About Us
FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, just tell us below information
1.What is your material
2.The size of material
3.The thickness of material
Q: How can I get the information and quotation of this product quickly?
A: Please leave your email ，WhatsApp or wechat , and we will arrange the sales manager to contact you asap.
Q: What's material can fiber laser cut?
A: All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
Q: This is the first time I use this kind of machine, is it easy to operate?
A: The machine is mainly controlled by software.Simple, not
complicated.Before delivery, we will make a simple operation manual and videos.Generally speaking, an operator who is not familiar with the fiber laser machine can still operate it well.According to customer requirements, we can send technicians to the customer's factory for machine training, or the customer to come to our factory for machine training.
A: In order to recommend you the most suitable machine model, just tell us below information
1.What is your material
2.The size of material
3.The thickness of material
Q: How can I get the information and quotation of this product quickly?
A: Please leave your email ，WhatsApp or wechat , and we will arrange the sales manager to contact you asap.
Q: What's material can fiber laser cut?
A: All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
Q: This is the first time I use this kind of machine, is it easy to operate?
A: The machine is mainly controlled by software.Simple, not
complicated.Before delivery, we will make a simple operation manual and videos.Generally speaking, an operator who is not familiar with the fiber laser machine can still operate it well.According to customer requirements, we can send technicians to the customer's factory for machine training, or the customer to come to our factory for machine training.
Q: If there is a problem with the machine, what about the after-sales service?
A: 1)The warranty of laser source is 2 years.
2)The warranty of the machine is 2 years（main spare parts）,except for the consumable parts such as ceramic ring, focus lens,nozzle etc. Warranty counts from the date marked on the label of the laser source and machine.
3)Except the damage artificially, seller is responsible for offering the fittings free of charge during the warranty period.
4)Exceeding the warranty period, parts need to be repaired or changed, shall be paid.
A: 1)The warranty of laser source is 2 years.
2)The warranty of the machine is 2 years（main spare parts）,except for the consumable parts such as ceramic ring, focus lens,nozzle etc. Warranty counts from the date marked on the label of the laser source and machine.
3)Except the damage artificially, seller is responsible for offering the fittings free of charge during the warranty period.
4)Exceeding the warranty period, parts need to be repaired or changed, shall be paid.
Похожие товары

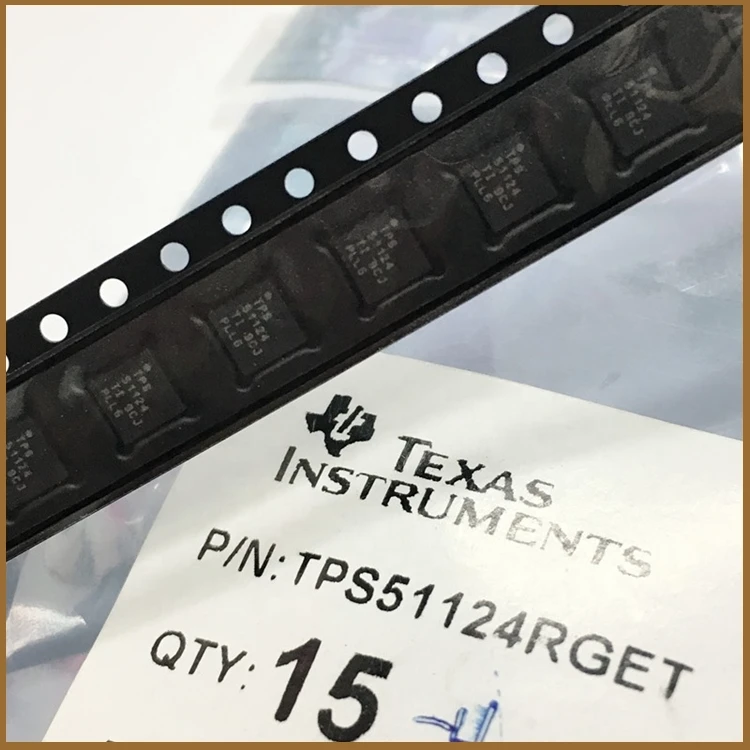

TPS51124 TPS51124RGER REG CTRLR BUCK 24QFN ic чипы для материнской платы ноутбука
Совершенно новый чип ic для планшетного ПК power IC 343S0561-A1

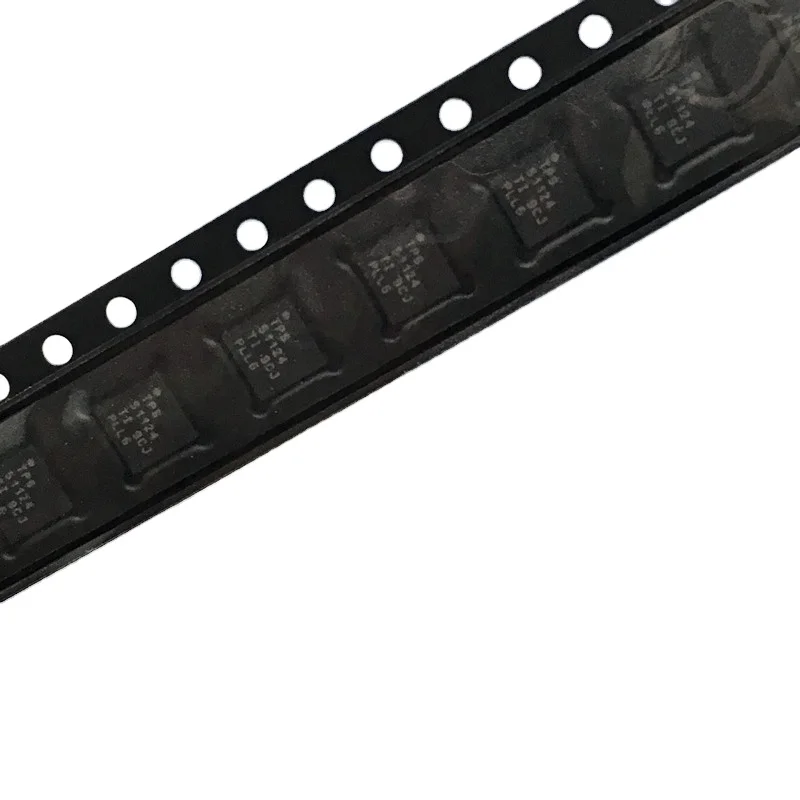

TPS51124 TPS51124RGER REG CTRLR BUCK 24QFN ic чипы для материнской платы ноутбука
0,50 $ - 0,60 $
Высококачественное ведро для кормления для турнира с ручкой для Кормления лошадей

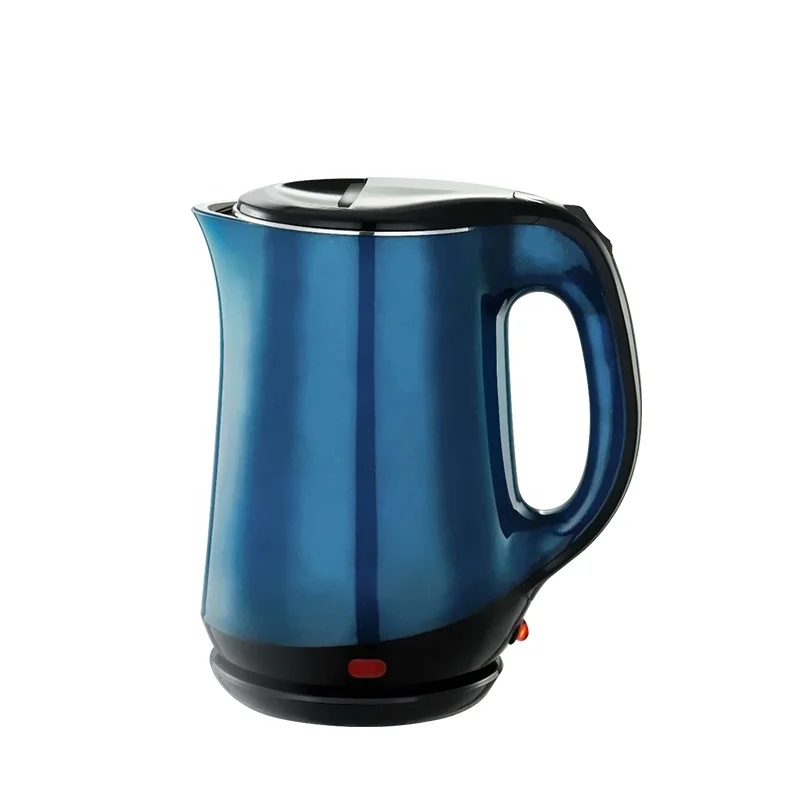

2021 маленький Электрический чайник с индикатором яркости, двухслойный чайник с функцией сохранения тепла
