Полуавтоматическая фабричная форма для производства яблочного сока 300 мл
- Категория: >>>
- Поставщик: Zhangjiagang Datong Machinery Co. Ltd.
Сохранить в закладки 1600312825731:
Описание и отзывы
Характеристики
Product Description
Our Juice liquid filling machines are designed to meet the changing needs of the industry. We manufacture the ideal machinery for your juice bottle packaging line with high production capacity.
Technological process（5T water treatment system）：
Raw water pump → Quartz Sand Filter → active carbon filter → Sodium filter→Micron filter → RO→ ozonator →UV →pure water tank
Technological process（3T mixing system）：
Sugar melting tank→ Sugar filter→ Mixing tank→ Double filter → homogenizer→degasser→ temporary storage tank→ Plate type UHT→ Warm keeping tank →CIP washing→ Beverage pump
Technological process（6000 JUICE filling and packing system）：
Juice filling 3-in-1 machine → Conveyor system → Lamp checker → Pour the bottle sterilizer→ Spray cooling machine→ Blow drying machine→ automatic sleeve shrink labeling machine →Auto film pack shrink machine.
Raw water pump → Quartz Sand Filter → active carbon filter → Sodium filter→Micron filter → RO→ ozonator →UV →pure water tank
Technological process（3T mixing system）：
Sugar melting tank→ Sugar filter→ Mixing tank→ Double filter → homogenizer→degasser→ temporary storage tank→ Plate type UHT→ Warm keeping tank →CIP washing→ Beverage pump
Technological process（6000 JUICE filling and packing system）：
Juice filling 3-in-1 machine → Conveyor system → Lamp checker → Pour the bottle sterilizer→ Spray cooling machine→ Blow drying machine→ automatic sleeve shrink labeling machine →Auto film pack shrink machine.
Product features
*Various capacity from 2500BPH to 26000BPH
*Different shapes of PET bottle like circular or square
*Various size of bottle 200-2000ml
*Food grade SU304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
*Advanced human-machine interface control
*High quality international name brand key electrical components such as Japan's *Mitsubishi, France Schneider, OMRON
*High-speed large gravity filter
*Low overall machine noise
*High efficient air clean filter system
apply to the production of non-carbonated drinks as pure water, mineral water, distilled water, spring water and other bottled
water
*Built-in safeguard mechanism ensures the safety of operator and machine.
*Spring type rinsing catcher can wash both inside and outside of the bottle
*3-in-1 monoblock including washing,filling and capping
*Different shapes of PET bottle like circular or square
*Various size of bottle 200-2000ml
*Food grade SU304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
*Advanced human-machine interface control
*High quality international name brand key electrical components such as Japan's *Mitsubishi, France Schneider, OMRON
*High-speed large gravity filter
*Low overall machine noise
*High efficient air clean filter system
apply to the production of non-carbonated drinks as pure water, mineral water, distilled water, spring water and other bottled
water
*Built-in safeguard mechanism ensures the safety of operator and machine.
*Spring type rinsing catcher can wash both inside and outside of the bottle
*3-in-1 monoblock including washing,filling and capping
Details Images
5T WATER TREATMENT SYSTEM
1.the quartz sand filter, quartz sand filter, the main effect of sodium ion exchanger is effective to remove the impurity in the raw water and sediments.
2.Activated carbon can effectively remove the peculiar smell in the water.
3. * The RO pipe removes impurities from the water by reverse osmosis
4.304 stainless steel, and the electrical appliances, pumps and motors are all provided by domestic and foreign quality suppliers with high cost performance.
01 - RO Reverse OsmosisWater Treatment System.
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
SAND FILTER
Model: JDL-8
Height: 2200mm
Diameter: 750mm
Material: SUS304 stainless steel (Food grade)—Made in china.
Components: Water distributor, water gather,
pressure gauge, filter material, valves and so on.
Filter medium: Sand
Specification: ф2mm、ф1mm、ф0.5mm、ф0.2mm
Height: 2200mm
Diameter: 750mm
Material: SUS304 stainless steel (Food grade)—Made in china.
Components: Water distributor, water gather,
pressure gauge, filter material, valves and so on.
Filter medium: Sand
Specification: ф2mm、ф1mm、ф0.5mm、ф0.2mm
RO
**AmericanHYDRANAUTCS company’s film Glass fiber film shell
**Reverse osmosishigh pressure pump one set- NAN FANG pump
**kinds of capacity indicator, pressureindicator, electricity magnetic valve,balance device and pipe valve system
**Online typepressure auto self-protection device
**Online typeelectricityindicator (with stablecompensation)
**Systemsafe protecting and alarm system
**kinds of capacity indicator, pressureindicator, electricity magnetic valve,balance device and pipe valve system
**Online typepressure auto self-protection device
**Online typeelectricityindicator (with stablecompensation)
**Systemsafe protecting and alarm system
3T MIXING SYSTEM
SUGAR MELTING TANK
model：YTH-500
Capacity：500KG/H
Motor power：0.55KW
Material：SUS304
Heating method：steam heating
Rotating speed：35r/min
Dimensions：ø1000*2400mm
Capacity：500KG/H
Motor power：0.55KW
Material：SUS304
Heating method：steam heating
Rotating speed：35r/min
Dimensions：ø1000*2400mm
HOMOGENIZER
Driving traits: An eccentric shaft, symmetrical gears driving, splash-type lubrication, special
alloy bush, main rolling bear and low noise
First-stage rated high pressure :≤20Mpa
Second-stage rated low pressure: ≤10Mpa
Driving assembly: House is made of grey cast iron HT200, and crank shaft, connecting rod,
and gears are made of ductile cast iron.
Plunger: the 4th generation special alloy steel（PH-type）.
Check valve: the 4th generation special alloy steel (GrMoFr) ， abrade-resisting and
impact-resisting
alloy bush, main rolling bear and low noise
First-stage rated high pressure :≤20Mpa
Second-stage rated low pressure: ≤10Mpa
Driving assembly: House is made of grey cast iron HT200, and crank shaft, connecting rod,
and gears are made of ductile cast iron.
Plunger: the 4th generation special alloy steel（PH-type）.
Check valve: the 4th generation special alloy steel (GrMoFr) ， abrade-resisting and
impact-resisting
DEGASSER
Mainly used for mixing juice under vacuum condition after degassing (oxygen), from the
surface to prevent the oxidation of the fruit method, to prolong the storing period time of 21 the juice. Model：TQ-1 Capacity：1T/h
Working vacuum degree：0.01-0.08Mpa
Dimensions：φ600×2360mm
Power：2.2+2.3kw
surface to prevent the oxidation of the fruit method, to prolong the storing period time of 21 the juice. Model：TQ-1 Capacity：1T/h
Working vacuum degree：0.01-0.08Mpa
Dimensions：φ600×2360mm
Power：2.2+2.3kw
TEMPORARYSTORAGE TANK
This kind of machine is used for the balance between the various devices and equipment when normal operation.

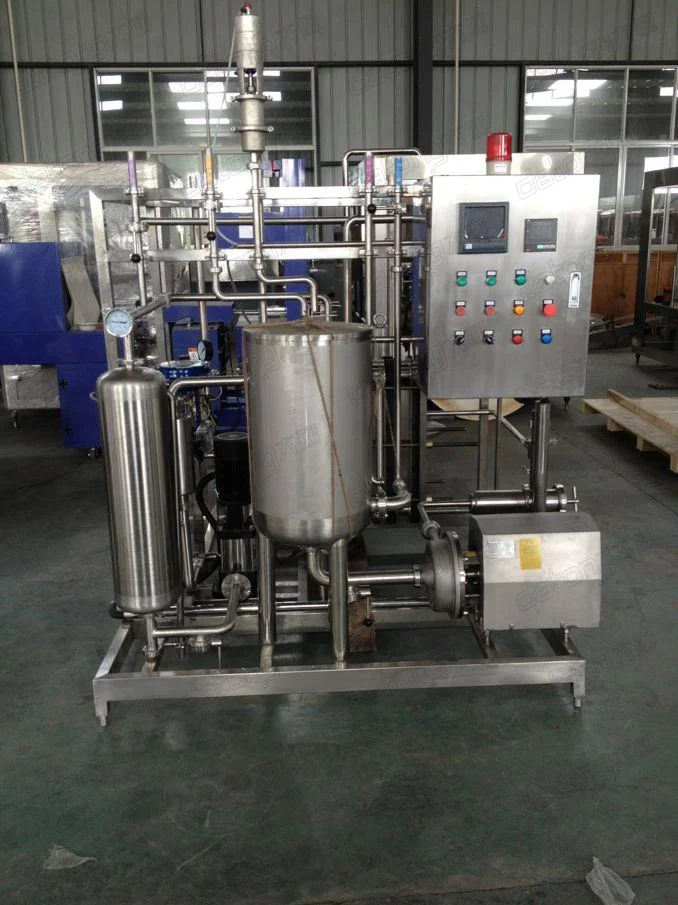

PLATE TYPE UHT

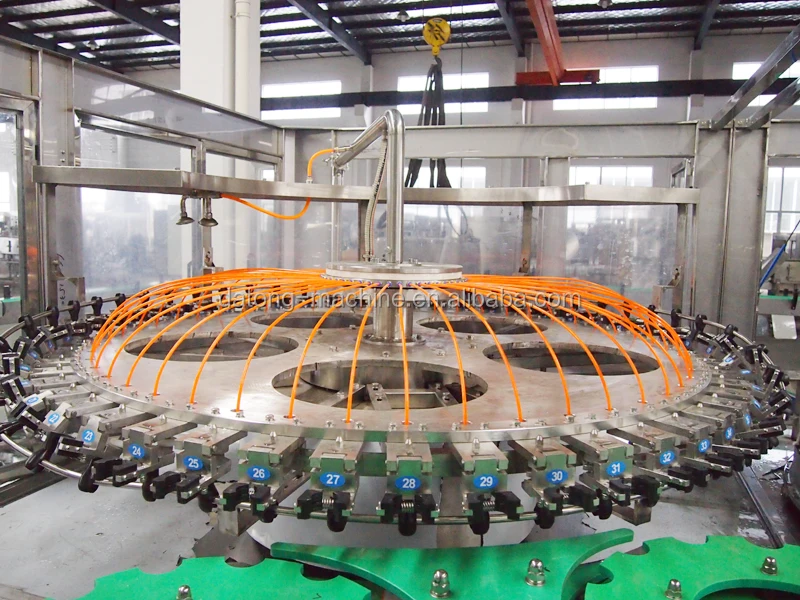

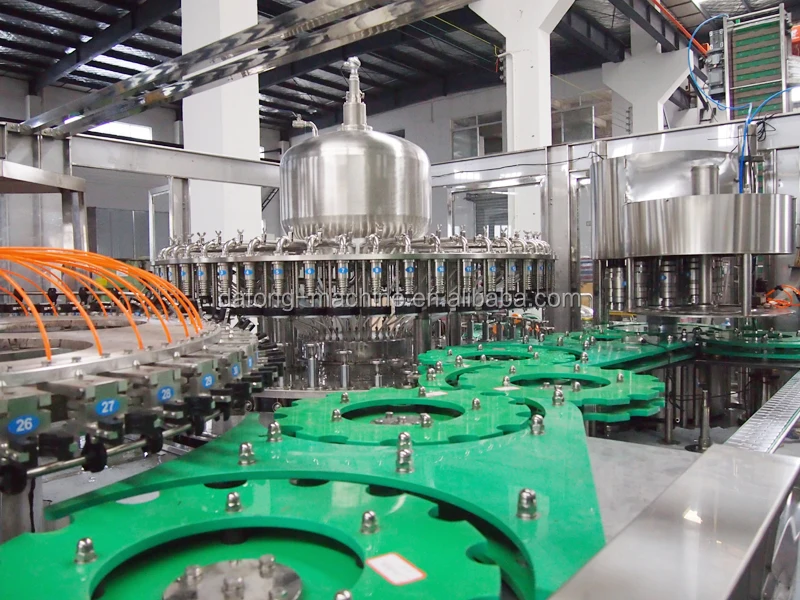

JUICE FILLING AND PACKING SYSTEM
1. Model: CGF18-18-6
2. Number of heads: 18 washing heads, 18 filling heads and 6 capping heads
3. Capacity:6000B/H (500ml PET standard bottle)
4. Material: The material which contact directly with the liquid is the SUS304 (Food
grade) made in china. The transmission mechanism and the gear are equipped with
firingA4 carbon steel.
5. The 3-in-1 is mainly used to fill water.
6. Disposition :
6.1、PLC: siemens
6.2、Touch screen: siemens
2. Number of heads: 18 washing heads, 18 filling heads and 6 capping heads
3. Capacity:6000B/H (500ml PET standard bottle)
4. Material: The material which contact directly with the liquid is the SUS304 (Food
grade) made in china. The transmission mechanism and the gear are equipped with
firingA4 carbon steel.
5. The 3-in-1 is mainly used to fill water.
6. Disposition :
6.1、PLC: siemens
6.2、Touch screen: siemens
7. Volume of PET bottle : 0.25L-2L
7. Diameter of bottle: 50-91mm
8. Height of bottle: 170-330mm
9. Cap diameter: plastic screw type cap
10.Filling temperature: Normal
11.Filling pressure: Normal
12.Filling precision: ±2-3%
13.Pressure of washing: 0.2Mpa
14.Washing consuming water: 600kg/h
15.Air consumption: 0.4m³ /min
16.Power of main motor: 3.13KW
17.Dimension: 2150×1650×2200mm
7. Diameter of bottle: 50-91mm
8. Height of bottle: 170-330mm
9. Cap diameter: plastic screw type cap
10.Filling temperature: Normal
11.Filling pressure: Normal
12.Filling precision: ±2-3%
13.Pressure of washing: 0.2Mpa
14.Washing consuming water: 600kg/h
15.Air consumption: 0.4m³ /min
16.Power of main motor: 3.13KW
17.Dimension: 2150×1650×2200mm
Washing part
1)Into bottle way is air conveyor direct connection with Bottle dial .
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
4)304/316 stainless steel washing pump make the machine more durable .
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
4)304/316 stainless steel washing pump make the machine more durable .
Filling part
1)304/316 Stainless steel high precision filling nozzle.
2) Filling volume adjustable in fine rank, same liquid level after filling.
3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
4) 304/316 stainless steel filling pump.
5)Efficient spray nozzle rinse thoroughly and save water for flushing.
2) Filling volume adjustable in fine rank, same liquid level after filling.
3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
4) 304/316 stainless steel filling pump.
5)Efficient spray nozzle rinse thoroughly and save water for flushing.
Capping part
1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2)All 304/316 stainless steel construction
3)No bottle no capping
4)Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2%
2)All 304/316 stainless steel construction
3)No bottle no capping
4)Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2%
Auxiliary
AUTO 6 CAVITIES BOTTLE BLOWING MACHINE
The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics,wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various
cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics,wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.
cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics,wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.
Flat Conveyor
1)Energy saving. High efficient. Adapt to customer factory layout
2)Special lubrication system, keep products clean, health, safety
3)Extended service life
4)Electric eyes design keep whole line running safety and quickly
5)Overload protection mechanism to effectively ensure the safety of the machine
2)Special lubrication system, keep products clean, health, safety
3)Extended service life
4)Electric eyes design keep whole line running safety and quickly
5)Overload protection mechanism to effectively ensure the safety of the machine
cooling dryer
Using high pressure air ventilation, so that high-speed air flow ejected from a slit, the remaining drops of water bottles as much as possible the body blow it away. Inclination of the slit so that the entire side of the bottle can be high-speed air-blown. The
bottle dryer consists of the high pressure air fan, pressure tank, inflatable tube, rack, control devices, and other components.
bottle dryer consists of the high pressure air fan, pressure tank, inflatable tube, rack, control devices, and other components.
Automatic label sleeve machine
This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different direction and different height.
Automatic PE film packing machine
The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a
group out from the hot shrinking packing machine.
group out from the hot shrinking packing machine.
Final Products
Product Paramenters
Our company &Service
Ethos of DATONG: absolute dedication to understanding our customers' needs.
This has been at the heart of the company since it was founded in 2002, by utilizing many years of knowledge and experience, all our product of Water treatment system, water filling machines, carbonated drink filling machine, juice filling machine, beer filling machine, can filling machine, glass bottle filling machine, 3-5 gallon barreled water filling machine, Bottle labeling machine, bottle packing machines, PET bottle Blow Molding Machine, juice mixing machine, sterilization machines, CIP washing machine etc. as well as turnkey managed projects, offer unparalleled quality, service and reliability.
2. Training
Our company offers technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The
quality,specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
This has been at the heart of the company since it was founded in 2002, by utilizing many years of knowledge and experience, all our product of Water treatment system, water filling machines, carbonated drink filling machine, juice filling machine, beer filling machine, can filling machine, glass bottle filling machine, 3-5 gallon barreled water filling machine, Bottle labeling machine, bottle packing machines, PET bottle Blow Molding Machine, juice mixing machine, sterilization machines, CIP washing machine etc. as well as turnkey managed projects, offer unparalleled quality, service and reliability.
Our service:
1. Installation & debugging
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debugging and testing production at the same time to make the equipments reach the rated producing capacity of the line.
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debugging and testing production at the same time to make the equipments reach the rated producing capacity of the line.
2. Training
Our company offers technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The
quality,specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
Our customers
Certifications
FAQ
HOW TO FIND Datong-Machine factory?
** Search Alibaba,Google,Youtube,Facebook and find suppliers and manufacturer,not traders
**Visit exhibition in different countries
**Send Datong-machine Machinery an request and tell your basic inquiry
**Datong-machine Machinery sales manager will reply you in short time and add instant chatting tool
**Visit exhibition in different countries
**Send Datong-machine Machinery an request and tell your basic inquiry
**Datong-machine Machinery sales manager will reply you in short time and add instant chatting tool
Phone:
+86-512-58662088
Fax:
+86- 512-58661388
Add:
Zhaxi Village, Leyu Town, Zhangjiagang, Suzhou, Jiangsu, China (Mainland)
+86-512-58662088
Fax:
+86- 512-58661388
Add:
Zhaxi Village, Leyu Town, Zhangjiagang, Suzhou, Jiangsu, China (Mainland)
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE?
** Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
** By letter of credit, you can lock the delivery time easily.
** After the factory visit, You can ensure the facticity of our bank account.
Do you provide customized service?
** We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
How long time for installation?
** Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
SEE DATONG-MACHINE MACHINE HOW TO ENSURE THE QUALITY!
** In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
** Each component before assembly needs strictly control by inspecting personnel.
** Each assembly is in charged by a master who has working experience for more than 5 years.
** After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
** In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
** Each component before assembly needs strictly control by inspecting personnel.
** Each assembly is in charged by a master who has working experience for more than 5 years.
** After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
Похожие товары
Дробилка для бетонного кирпича, известняковый молоток, дробильное оборудование, Строительная техника, каменный молоток, дробилка
Бытовая палочка для еды, УФ-коробка, интеллектуальное кухонное использование, посуда, стерилизатор для столовых приборов
5,00 $ - 7,00 $
Ортопедические стельки insol ортопедические плоскостопия ПУ для
2,29 $ - 2,89 $
160 км Электрический мотоцикл 16 дюймов шины мотор для центрального движения с дешевой
Дорожные безопасные пластиковые дорожные заборы, гибкие дорожные барьеры
14,00 $ - 18,90 $
Лидер продаж, салфетка для протирки линз с логотипом на заказ
0,49 $ - 0,72 $
CE сертифицированный сборный конструкционной стали современный 4S Автомобильная выставочная Шоурум дизайн
Новые поступления
Новинки товаров от производителей по оптовым ценам
Светлая Золотая морская солнечная энергия ландшафтное украшение постмодерн минималистский стиль чистая ручная роспись маслом 24x3 1 дюйм/60x80
35-53 $
Европейские антикварные простой Последние двойной металлической кровати
Автоматизированная складская система автоматического хранения в Гуанчжоу Eyda с эффективными стеллажами и
10 000-35 000 $
Декоративный чехол для PS5 Сменный Чехол консоли пластины Playstation5 пылезащитный с защитой от царапин
7,50-7,70 $
Лучшее качество детские подгузники для сухих подгузников новорожденных размер 2 4 и большие доставка или
3 $
Выключатель для формованного корпуса Schneider NSX100N 50KA AC 3P3D 25A TMD новая модель C10N3TM025
Буф2-.. М .. Краны
Оптовая продажа высококачественный сублимированный клубничный порошок Заводская поставка
5,50-6,40 $
