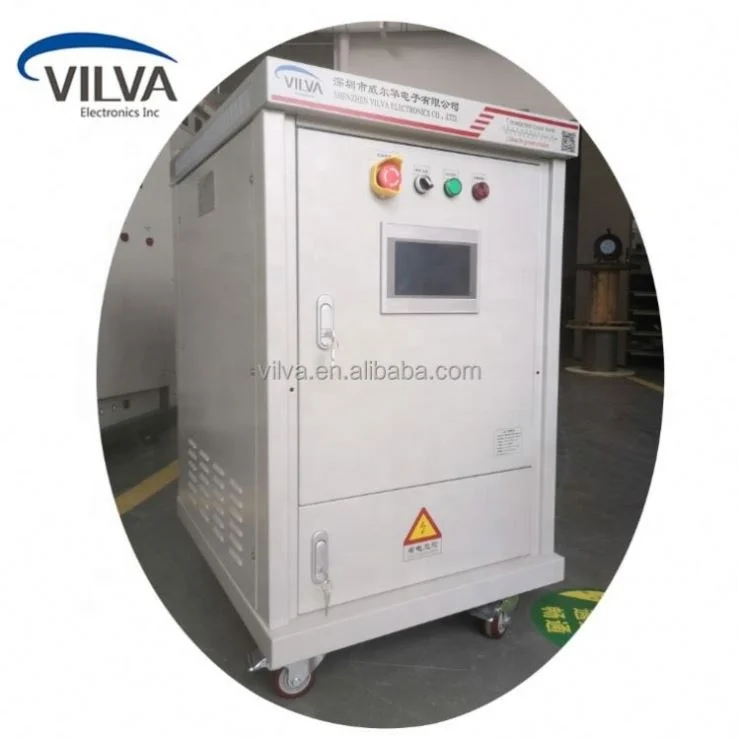

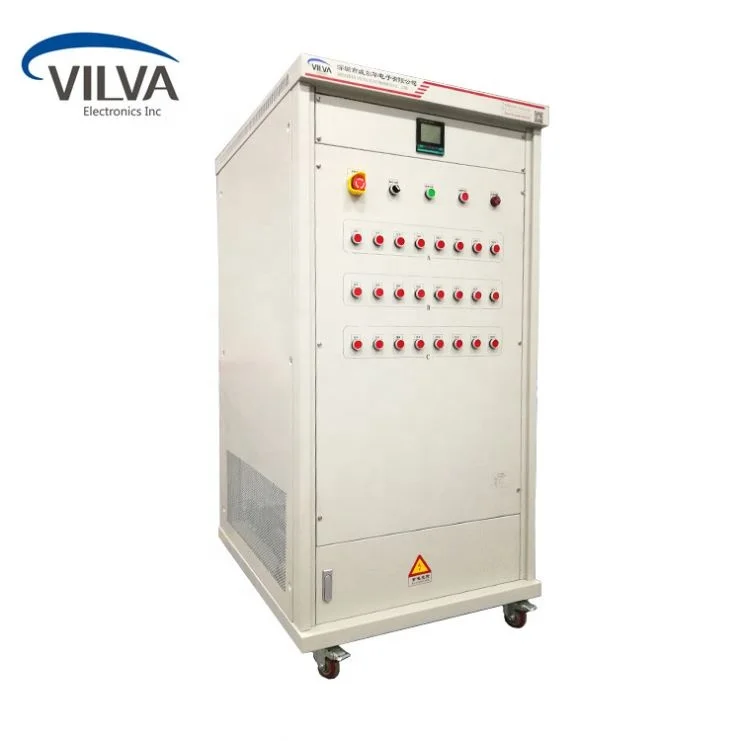

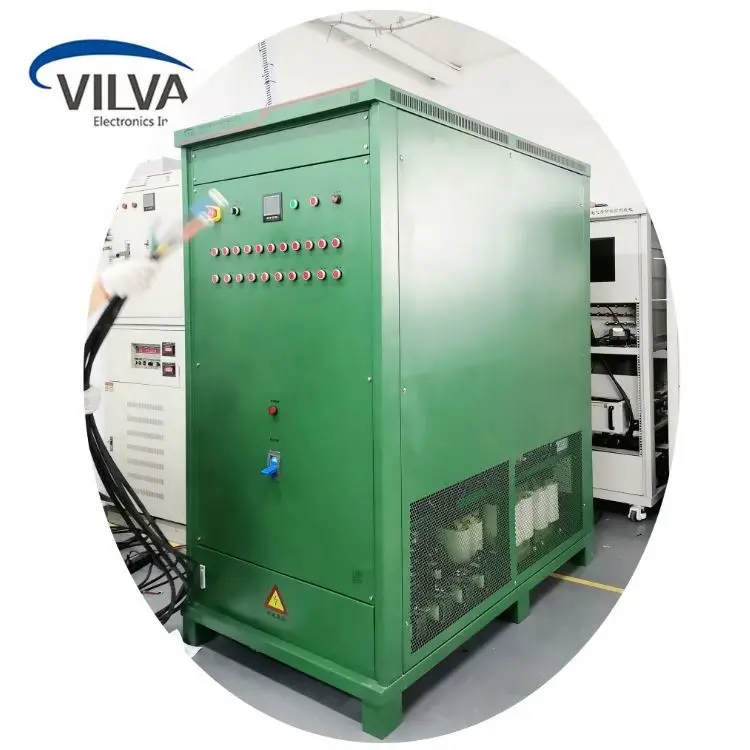

VIVLA Customized 1~6000KW Ressitive Load Bank for generator testing/UPS testing with PLC software
Product Description
1.Main application:
Resistive Load Bank is mainly used for Generator testing at power station, AC power supply, data center and other testing,May detect the performance of different loads of the AC power supply of the power station.The power input is uniformly optimized to
meet the needs of different loads.
2.Main advantages:
a, Resistive load adopt new type of consumption components,Resistance thermal shrinkage and sealing installed in stainless steel
tube, steel tube with insulation radiator, good moisture and corrosion resistance, good heat dissipation, high insulation, safe and reliable.High power density of resistance elements, 3-phase current balance,no red heat phenomenon,The independent cooling fan
ensures the heat dissipation and service life of the whole system.
b. The load overcomes the fact that the water resistance test system cannot accurately control the resistance value, the water is
easy to boil, easy to scale, can not be subjected to sudden loading/depression load reduction test, and is difficult to control.
Resistive Load Bank is mainly used for Generator testing at power station, AC power supply, data center and other testing,May detect the performance of different loads of the AC power supply of the power station.The power input is uniformly optimized to
meet the needs of different loads.
2.Main advantages:
a, Resistive load adopt new type of consumption components,Resistance thermal shrinkage and sealing installed in stainless steel
tube, steel tube with insulation radiator, good moisture and corrosion resistance, good heat dissipation, high insulation, safe and reliable.High power density of resistance elements, 3-phase current balance,no red heat phenomenon,The independent cooling fan
ensures the heat dissipation and service life of the whole system.
b. The load overcomes the fact that the water resistance test system cannot accurately control the resistance value, the water is
easy to boil, easy to scale, can not be subjected to sudden loading/depression load reduction test, and is difficult to control.
It is an upgraded product of water resistance. This product has high safety, low maintenance cost, low noise and strong overload
capability.
c. The fan adopts a small axial fan, with large wind volume, good heat dissipation, low noise and other characteristics.
capability.
c. The fan adopts a small axial fan, with large wind volume, good heat dissipation, low noise and other characteristics.
Product Paramenters
Model | Rated power | Rated voltage | Power factor | Adjustment accuracy | Display mode | Dimension W*D*H(mm) | ||||||
VILVA-5KW-R | 5KW | 1 Phase 50HZ/60HZ AC110V AC220V AC230V AC240V 3 phase 50HZ/60HZ AC220V AC380V AC400V AC415V AC440V AC480V | 1KW Adjutable: Pf=0.7~1 Fixed Pf Pf=0.7 Pf=0.8 Pf=0.9 | 100W | CU voltage (V) current (A) frequency (HZ) power(KW) | 4U | ||||||
VILVA-10KW-R | 10KW | 100W | 6U | |||||||||
VILVA-20KW-R | 20KW | 100W | 600*750*980 | |||||||||
VILVA-30KW-R | 30KW | 100W | 600*750*1110 | |||||||||
VILVA-50KW-R | 50KW | 100W | 600*750*1332 | |||||||||
VILVA-60KW-R | 60KW | 100W | 600*750*1332 | |||||||||
VILVA-80W-R | 80KW | 100W | 600*1000*1332 | |||||||||
VILVA-100KW-R | 100KW | 100W | 600*750*1332 | |||||||||
VILVA-120KW-R | 120KW | 1KW | 800*900*1554 | |||||||||
VILVA-150KW-R | 150KW | 1KW | 600*1000*1554 | |||||||||
VILVA-200KW-R | 200KW | 1KW | 800*900*1750 | |||||||||
VILVA-250KW-R | 250KW | 1KW | 600*1000*1750 | |||||||||
VILVA-300KW-R | 300KW | 1KW | 600*1000*2000 | |||||||||
VILVA-400KW-R | 400KW | 1KW | 1000*1100*2200 | |||||||||
VILVA-500KW-R | 500KW | 1KW | 1000*1200*2200 | |||||||||
VILVA-600KW-R | 600KW | 1KW | 1200*1200*2200 | |||||||||
VILVA-800KW-R | 800KW | 1KW | customized | |||||||||
VILVA-1000KW-R | 1000KW | 5KW | 10GP | |||||||||
VILVA-1500KW-R | 1500KW | 5KW | customized | |||||||||
VILVA-2000KW-R | 2000KW | 5KW | 20GP | |||||||||
VILVA-5000KW-R | 5000KW | 5KW | 40GP | |||||||||
Note:above mode may customerlized,please contact us! | ||||||||||||
General parameter | ||
Load type | Resistive Load:Resistor | |
Protect Function | Short circuit/over voltage/over current/over temperature protection, over temperature alarm | |
Control mode | Local Manual control:Contactor or MCB | |
Cooling mode | Forced air cooling | |
Moving mode | 4 wheels for easy moving&Forklift | |
Optional function | Manual control with Remote control box / Remote control with software (RS485) | |
Related Products& Cases
1500KW Load bank shipping to Brune
Yuchai 2*500KW Load Bank for Generator test
Huawei AC10.5KV 2600KW Load bank
Our Company
Shenzhen Vilva Electronic Co.,Ltd
Established on 2010,specializing in R&D, manufacturing and service of Load bank over 10 years,and is high-tech enterprise.
Passed IS09001:2008 quality management system and CE certification, etc.
Working closely with worldwide brands,like Huawei,ZTE,BYD,Yuchai,ABB,OMRON,KSTAR,EMERSON,INVT etc.
Our Factory
Certifications&Exhibition
FAQ
1.May the load bank be customized ?
Yes,all product may be customized.
2.Are you a factory or a trading company?
We are factory,specializing in R&D, manufacturing and service of Load bank over 10 years
3.Do you have this load bank in stock?
Usually all load bank are customized ,but some standard load bank in stock.
4.How about the lead time ?
About 35-58 days
5.Which port is closely with your factory ?
Shenzhen Port & Guangzhou port
6. What kind of load in this load bank?
Usually,combine the laod of Resistive/ Inductive/capacitive.
7. Can the Load Bank test at single phase?
Yes, but the rating available is 1/3 of the rated testing capacity.
8. Indoor type or outdoor type?
Standard indoor type isn't weatherproof, but optional outdoor type with air duct to enable weatherproof.
Yes,all product may be customized.
2.Are you a factory or a trading company?
We are factory,specializing in R&D, manufacturing and service of Load bank over 10 years
3.Do you have this load bank in stock?
Usually all load bank are customized ,but some standard load bank in stock.
4.How about the lead time ?
About 35-58 days
5.Which port is closely with your factory ?
Shenzhen Port & Guangzhou port
6. What kind of load in this load bank?
Usually,combine the laod of Resistive/ Inductive/capacitive.
7. Can the Load Bank test at single phase?
Yes, but the rating available is 1/3 of the rated testing capacity.
8. Indoor type or outdoor type?
Standard indoor type isn't weatherproof, but optional outdoor type with air duct to enable weatherproof.
