Пластиковая трубка для интубации трахеи производственная линия ПВХ медицинская Экструзионная

Пластиковая трубка для интубации трахеи производственная линия ПВХ медицинская Экструзионная

Категория: >>>
Поставщик: Dongguan Songhu Plastic Machinery Corp.

Цена:36 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Plastic Tracheal Intubation Hose Tube Production Line PVC Medical Extension Tube Extrusion Line

Final Products what we can produce in this machine

Detailed Images

Product Description

Equipment features of pvc tube machine:

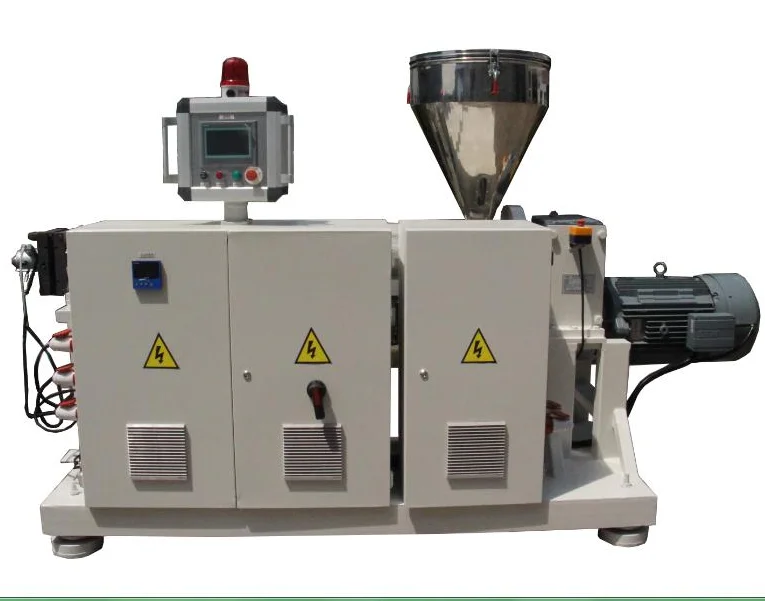

1. PVC screw designed by American technology, with bigger L/D and compression ratio, ensures high speed and stable extrusion, meanwhile provides excellent plasticity. Extruder with “Simens ” A/C frequency motor and high class “Delta” inverter, which provide accuracy and stable output control, Japan “OMRON” PID intelligent temperature controller, accuracy of temperature control: ±1°C;

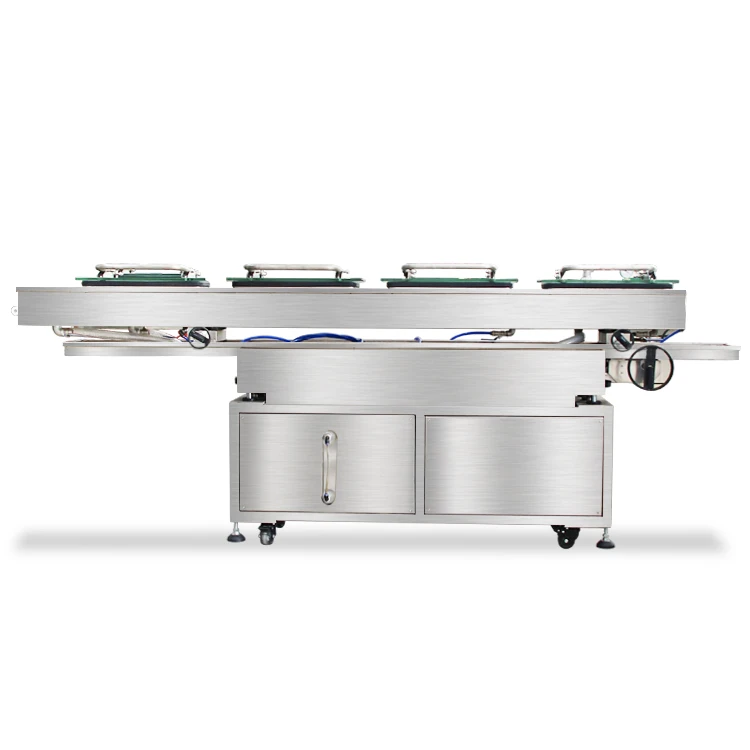

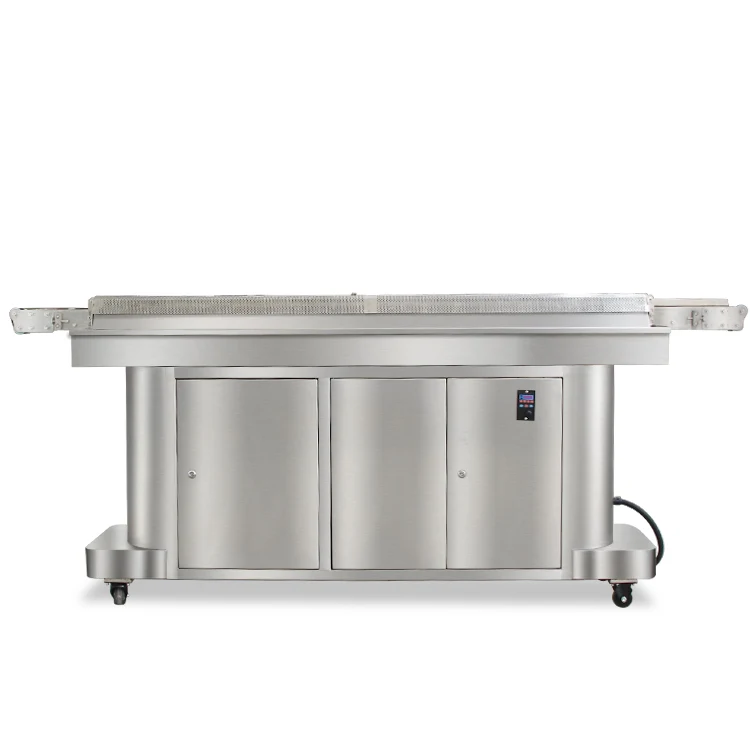

2. Main body of cooling tank is made from medical standard stainless steel SUS316 material, which can tolerate long-term oxide etch with 10ppm sodium hypochlorite water. Tank frame with spiral elevating device, can be 3-D moved, trouble free operation; Equipped with stainless steel reservoir and medical standard stainless steel centrifugal pump which can form water circulation loop with outside cooling water supply;

3. Adopt England Proton Laser Gauge bi-direction high speed diameter measurement system, which can realize measuring the diameter, ovality and positional value of product on line. Diameter measuring precision can get to ±0.001M

4. Puller adopts imported multilayer composite wearable strap (accord with medical sanitary requirements), with high level precision roller driving, stepless speed control;

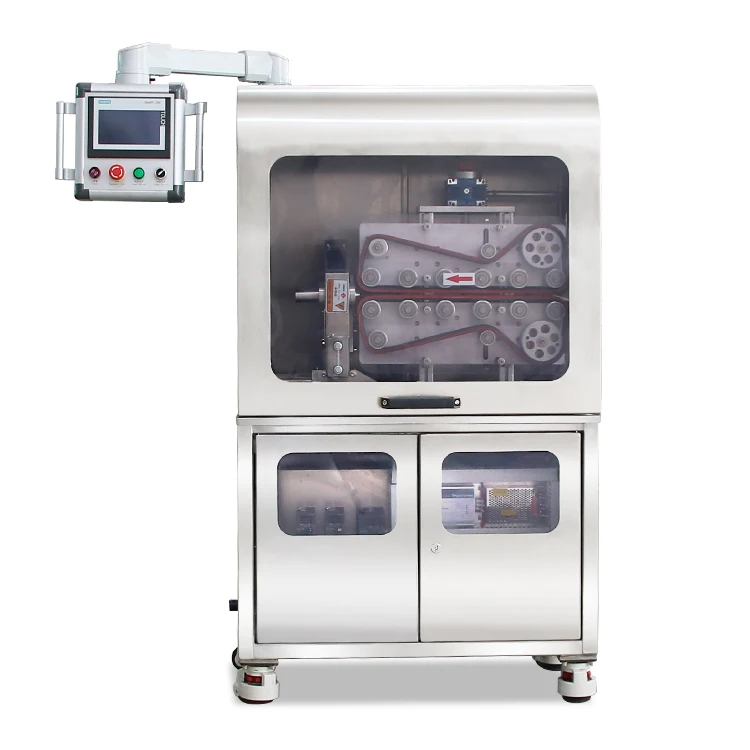

5. Cutter equips with low inertia aluminum alloy rotating knife arm structure, together with locking device and alcohol cooling system for cutting knife. Driven and controlled by TECO Servo system, which offers high speed and high accuracy cutting action. With Japan Mitsubishi PLC programmable control and SIEMENS human-computer interface, cutter can realize continuous cutting, timing cutting, length counting cutting etc. Cutting length can be set freely, automatic counting.

CONFIGURATION OF Professional medical management production line:

Item.	Machine Name	Model	QTY/set
1	Automatic loader	SHSJ-45	1
2	Single screw extruder	SHSJ-45/28T	1
3	Volumetric type mould	SHSJ-1	1
4	Vacuum cooling tank	SHSJ-600-3R	1
5	Cooling tank	LSX-600-1	1
6	Chiller	LS-207F	1
7	LST series laser diameter gauge	SHSJ-150	1
8	High speed synchronous belt puller	TKB-600H	1
9	Automatic rotary cutting and collecting system	FQ-2T	1

Finished Products

Packing and Delivery

Company Information

DONGGUAN SONGHU has been engineering and manufacturing a series of PRECISION EXTRUSION MACHINERY for more than 10 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
Comparing with the low price low quality machine, please note our strong advantages:
1. 12 Years Experiences;
2. European Latest Technology;
3. Easy to Operate, Stable Performance, Good Quality Products, Low Production Cost;
4. Quicker Production Speed, Big Output;
5. Good Material and Well-Known Brand Electrical Parts;
6. Beautiful Appearance;
7. Free Training for Technical Process, Formula and Know-How;
8. Full Time and High Level After-Sale Services.
