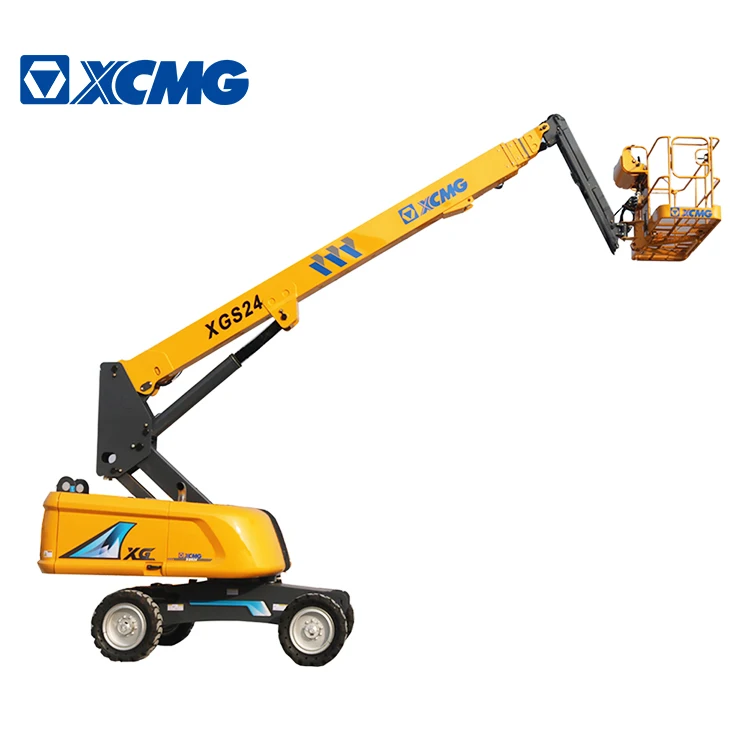

XCMG официальный 24 м самоходный телескопический подъемник
10 000,00 $ - 200 000,00 $
Цена по прейскуранту завода изготовителя 8 устройство работающее от прикуривателя с 2 портами 10/100/1000 Мбит/с сети Ethernet коммутатор питания через Ethernet
- Категория: >>>
- Поставщик: Shenzhen Dapo Communication Co. Ltd.
Сохранить в закладки 1600313767121:
Описание и отзывы
Характеристики
Products Description
Product Overview
Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today’s converged network often need to be supported not just in terms of data – equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.

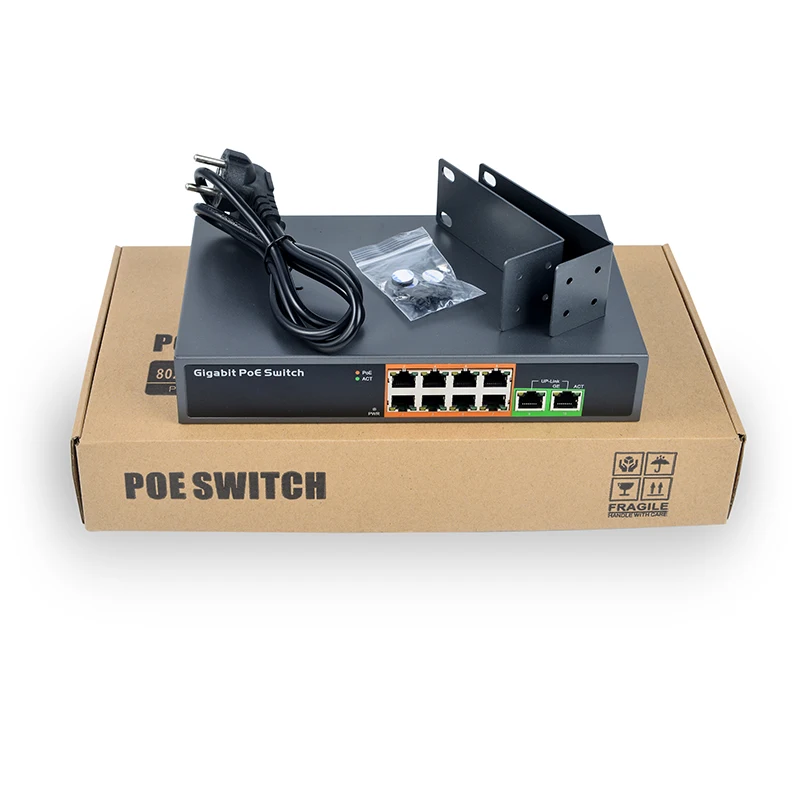

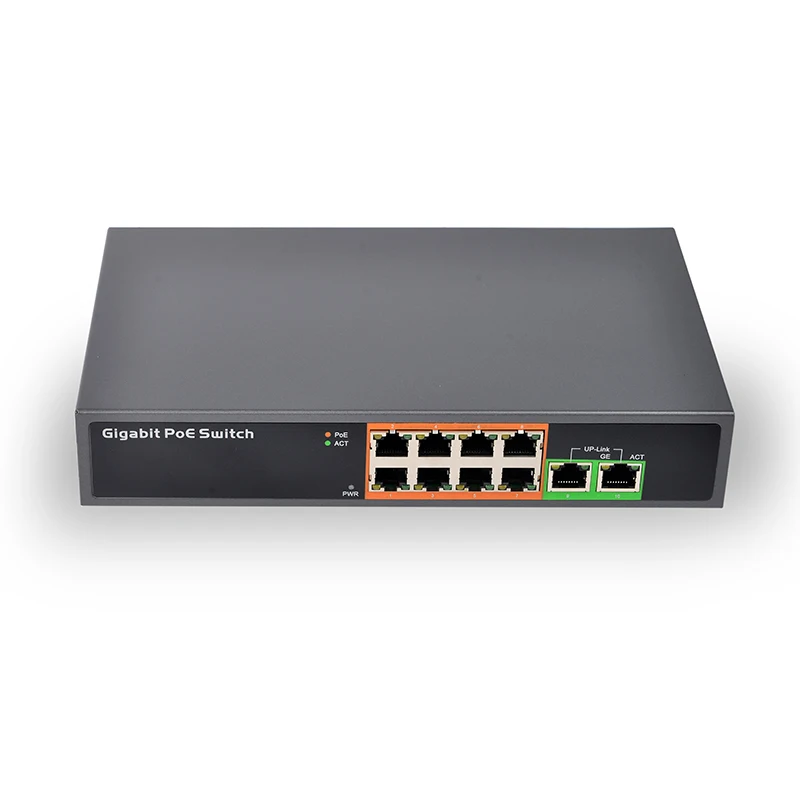

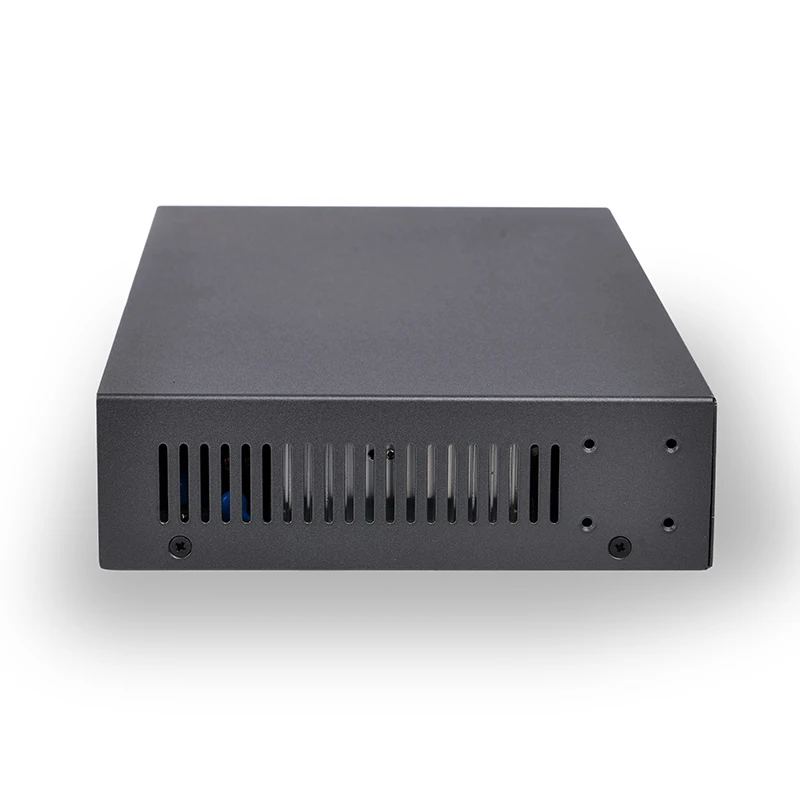

The 10 Port 10/100/1000Mbps/ 8 Port PoE+ Switch offers advance switching controls and provides power to network devices using Ethernet cables.
compatible to IEEE802.3af/at. It can power both existing 10/100Base-T network devices Wi-MAX and wireless IEEE 802.11n access points.
Ordering Information
Part Number Description
PSE1008G: 10 Port 10/100/1000Mbps Switch/8 Port PoE (150W)
Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today’s converged network often need to be supported not just in terms of data – equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.
The 10 Port 10/100/1000Mbps/ 8 Port PoE+ Switch offers advance switching controls and provides power to network devices using Ethernet cables.
compatible to IEEE802.3af/at. It can power both existing 10/100Base-T network devices Wi-MAX and wireless IEEE 802.11n access points.
Ordering Information
Part Number Description
PSE1008G: 10 Port 10/100/1000Mbps Switch/8 Port PoE (150W)

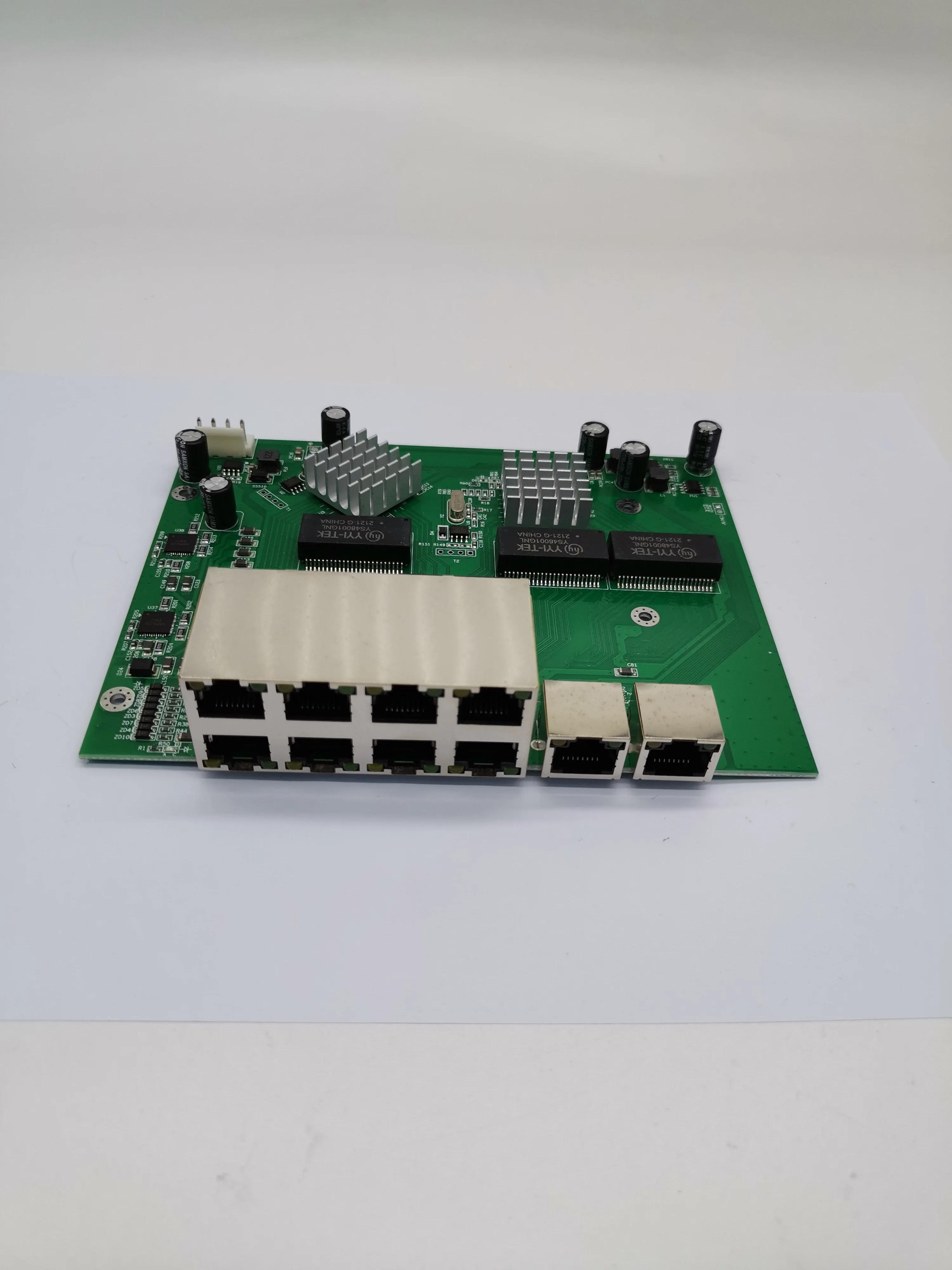

High Performance Wire-Speed Switching
The PSE1008G offers 10 10/100/1000Mbps Fast Ethernet ports . The Ten Gigabit TP ports can be either 1000Base-T for 10/100/1000Mbpso interface. PSE1008G boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps. Its built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.
Features
*Up to 30W of Power o
The PSE1008G offers 10 10/100/1000Mbps Fast Ethernet ports . The Ten Gigabit TP ports can be either 1000Base-T for 10/100/1000Mbpso interface. PSE1008G boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps. Its built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.
Features
*Up to 30W of Power o
*IEEE 802.3af/at
*Compatible With All IEEE 802.3af/at or Legacy
*Safe: Low Power Devices Receive Only the Power They Need
*Safe and Reliable Power to WLAN Access Points
*Automatic Detection and Protection of Non–standard Ethernet Terminals
*Supports 10/100/1000 Base-T applications
*Compact Design Fits Easily in WLAN Access
*Plug-and-Play no configuration required
*Internal power supply
*Easy installation and maintenance
*Save up to 83% power with Green Technology
*complies to IEEE 802.3af PoE standard and is backward
*Compatible With All IEEE 802.3af/at or Legacy
*Safe: Low Power Devices Receive Only the Power They Need
*Safe and Reliable Power to WLAN Access Points
*Automatic Detection and Protection of Non–standard Ethernet Terminals
*Supports 10/100/1000 Base-T applications
*Compact Design Fits Easily in WLAN Access
*Plug-and-Play no configuration required
*Internal power supply
*Easy installation and maintenance
*Save up to 83% power with Green Technology
*complies to IEEE 802.3af PoE standard and is backward
Hardware Specification | ||
1000Mbps Copper Ports | 10* 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports | |
Switch Architecture | Store-and-Forward | |
Switch Fabric | 20 Gbps / non-blocking | |
Switch Throughput | 14.88Mpps @64Bytes | |
Address Table | 8K entries | |
Flow Control | Back pressure for Half-Duplex IEEE 802.3x Pause Frame for Full-Duplex | |
LED | Power （Green ）;POE(yellow) 1000Mbos (yellow) ;LINK / ACT (Green) | |
Reset Button | < 5 sec: System reboot > 5 sec: Factory Default | |

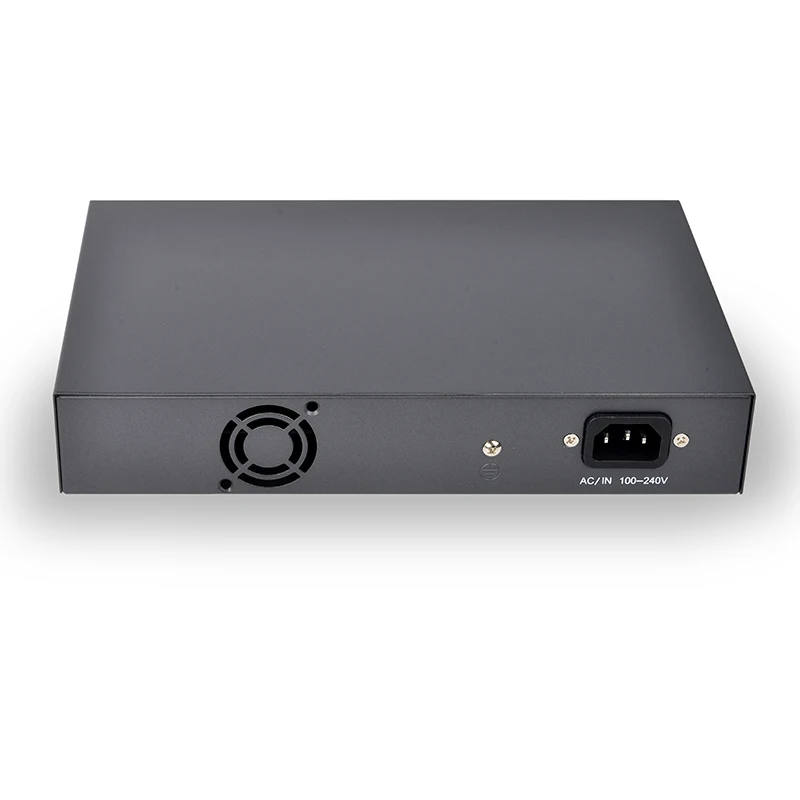

Power Requirement | 100~240V AC, 50-60 Hz | |
Power Consumption / Dissipation | 150 Watts maximum /510 BTU/hr maximum | |
Power over Ethernet | ||
PoE Standard | IEEE 802.3af/at Power over Ethernet / PSE | |
PoE Power Supply Type | End-Span | |
PoE Power Output | Per Port 52V DC, 350mA~600ma . Max. 30 Watts | |
Power Pin Assignment | 1/2(+), 3/6(-) | |
PoE Power Budget | 130 Watts | |
Max. number of Class 3 PD | 8 | |
Standards Conformance | ||
Standards Compliance | IEEE802.3:10Base-T IEEE802.3u: 100BaseTX IEEE802.3z:1000Base-SX/LX IEEE802.3ab:1000Base-T IEEE802.3af/at: Power over Ethernet | |
Environemmental | ||
Operating | Temperature: 0 ~ 50 Degree C Relative Humidity: 20 ~ 95% | |
Storage | Temperature: -10 ~ 70 Degree C Relative Humidity: 20 ~ 95% (non-condensing) | |
Hot Products
Company Profile
Our Certificate
Our Exhibition
Our Advantages
Payment & Shipping
FAQ
Похожие товары

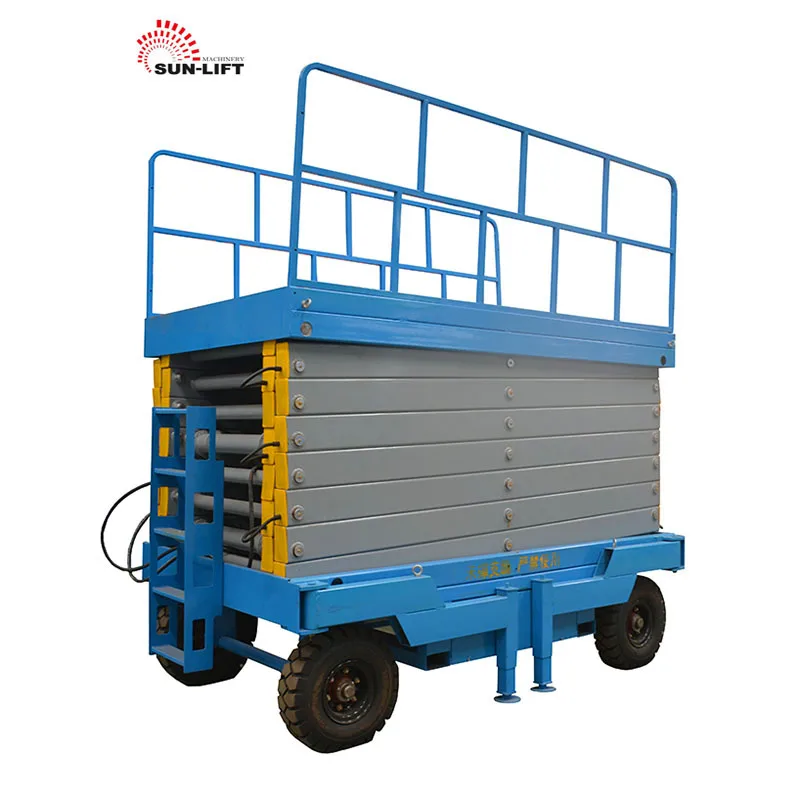

10 месяцев 12 14 м для дома и улицы Прицепной дизельный ножничный подъемник вертикальный гидравлический лифт с
12 футов residnetial лифт/гидравлический подъемная платформа/домашний лифт для двух
3 800,00 $ - 4 800,00 $
A4 чистая водная печать, гидрографическая пленка для струйного принтера, водная пленка для печати
0,30 $ - 0,45 $

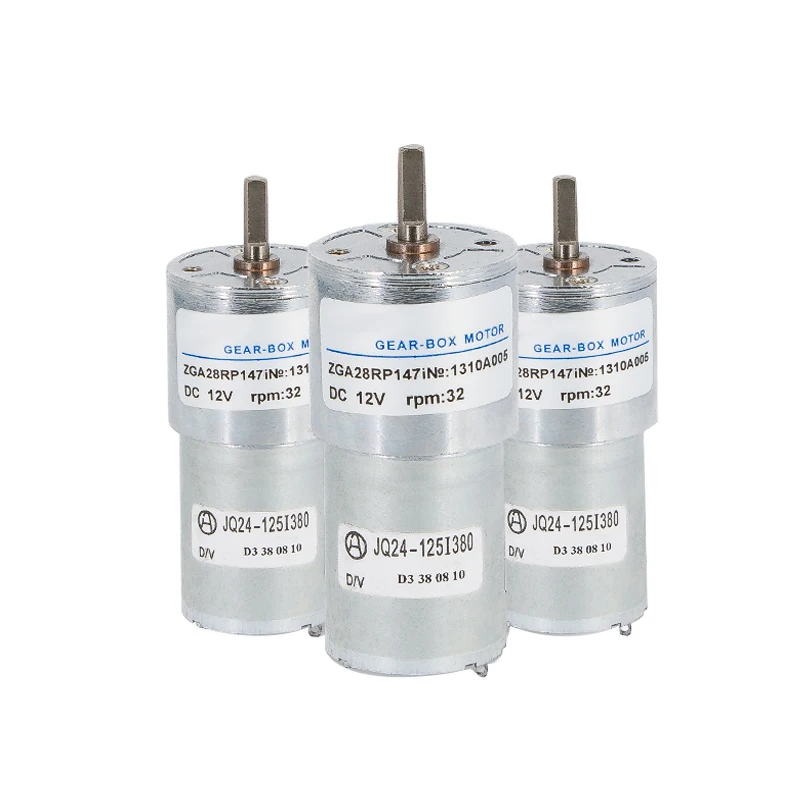

Превосходное качество, микро двигатель постоянного тока 12 Вольт 24 вольт
5,20 $ - 5,70 $

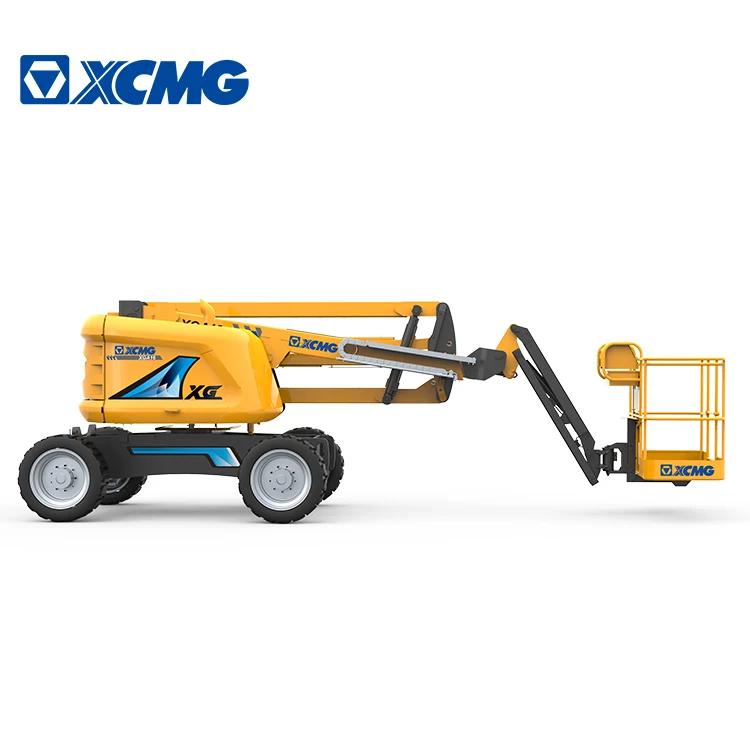

Официальное подъемное оборудование XCMG 16 м гидравлический автомобильный подъемник XGA16 самоходные шарнирные подъемники на
10 000,00 $ - 1 000 000,00 $

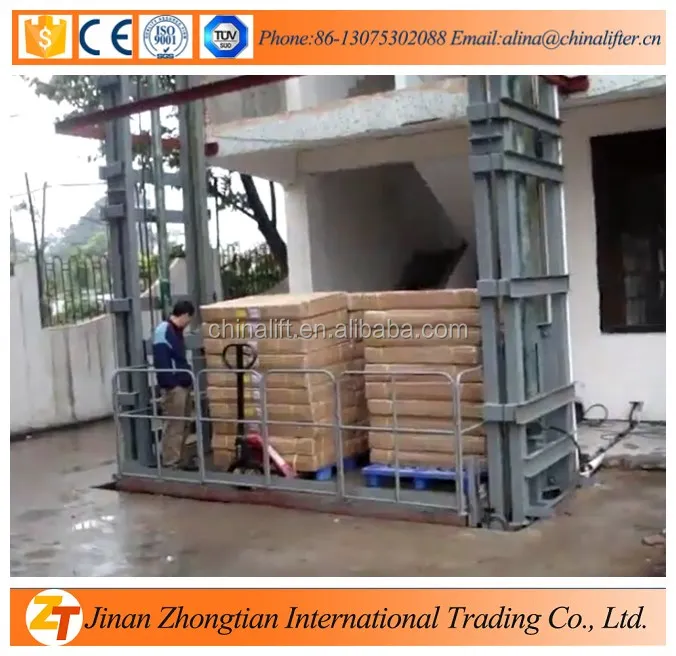

2021 CE ISO TUV гидравлический грузовой подъемник грузоподъемник направляющая рельсовый Лифт настенный комнатный уличный для

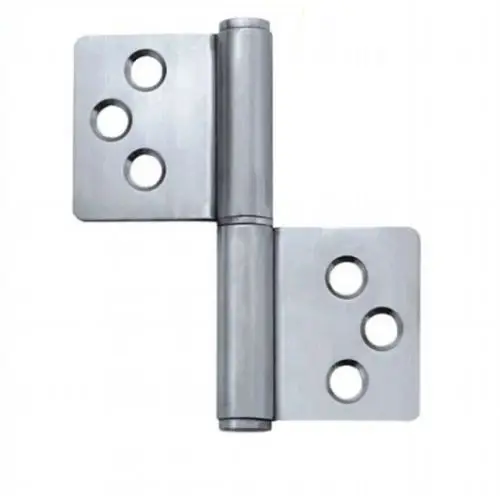

Дверные петли из нержавеющей стали для шкафа, мебельные сверхпрочные петли с флагом
