Product Description
Summary
1. Fast mold closing, adjustable low-pressure safety mold lock, equipped with infrared protection function, touching infrared automatically pauses to protect the personal safety of workers.
2. Double button start mode: both hands must press and hold the start button at the same time to close the mold (both hands press the start button, so that both hands are in the start button position not under the mold), ensuring the personal safety of workers.
3. More suitable for precision plastic parts molding: multi-stage temperature control, multi-stage injection pressure, injection speed, back pressure multi-stage adjustable.
4. Easy to take out the finished product: with enough opening stroke, the lower mold is fixed/upper mold is up and down movable type, which has good positioning for the molded insert in the mold. The finished products have hydraulic ejector device, so it is very convenient and easy to take out the finished products.
2. Double button start mode: both hands must press and hold the start button at the same time to close the mold (both hands press the start button, so that both hands are in the start button position not under the mold), ensuring the personal safety of workers.
3. More suitable for precision plastic parts molding: multi-stage temperature control, multi-stage injection pressure, injection speed, back pressure multi-stage adjustable.
4. Easy to take out the finished product: with enough opening stroke, the lower mold is fixed/upper mold is up and down movable type, which has good positioning for the molded insert in the mold. The finished products have hydraulic ejector device, so it is very convenient and easy to take out the finished products.
Specification
Screw Diameter | mm | 22 | 26 | 28 | ||
Injection Pressure | kg/cm2 | 1853 | 1328 | 1145 | ||
Max.Shot Weight(PS) | g | 41 | 57 | 66 | ||
Injection Rate | mm | 120 | ||||
Screw Speed Max. | Turn | 0-255 | ||||
Nozzle Retraction | mm | 135 | ||||
Clamping Force | Tons | 20/25 | ||||
Platen Size | mm | 490*320 | ||||
Distance Between Tie Bere | mm | 320*160 | ||||
Min.Mold Height | mm | 60/100 | ||||
Openging Stroke | mm | 193 | ||||
Max. Open daylight | mm | 253/293 | ||||
Ejetor Force | Tons | 2 | ||||
Max. Hydaulic Pressure | kg/cm2 | 140 | ||||
Pump Outpet | 1/min | 28 | ||||
Berrel Heating Power | kw | 2 | ||||
Total Weight | kw | 5.3 | ||||
Machine Weight | kg | 1050 | ||||
Machine Dimensions(L*W*H) | m | 1.4*0.9*2.4 | ||||
Product packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Company Profile
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
Похожие товары
Производитель сделал бутылка ПЭТ-преформ делая машину для пластиковых бутылок
7 500,00 $ - 8 500,00 $
Высокоскоростная дизайнерская Инъекционная Машина последнего поколения для зубной пасты пластиковая Мягкая
3,00 $
Силиконовые машина 3D мультяшный сотовый телефон мягкий резиновый силиконовый чехол-бампер для мобильного по изготовлению чехлов телефона чехол делая
Машина для литья под давлением образцов пластиковых испытаний небольшая
6 500,00 $

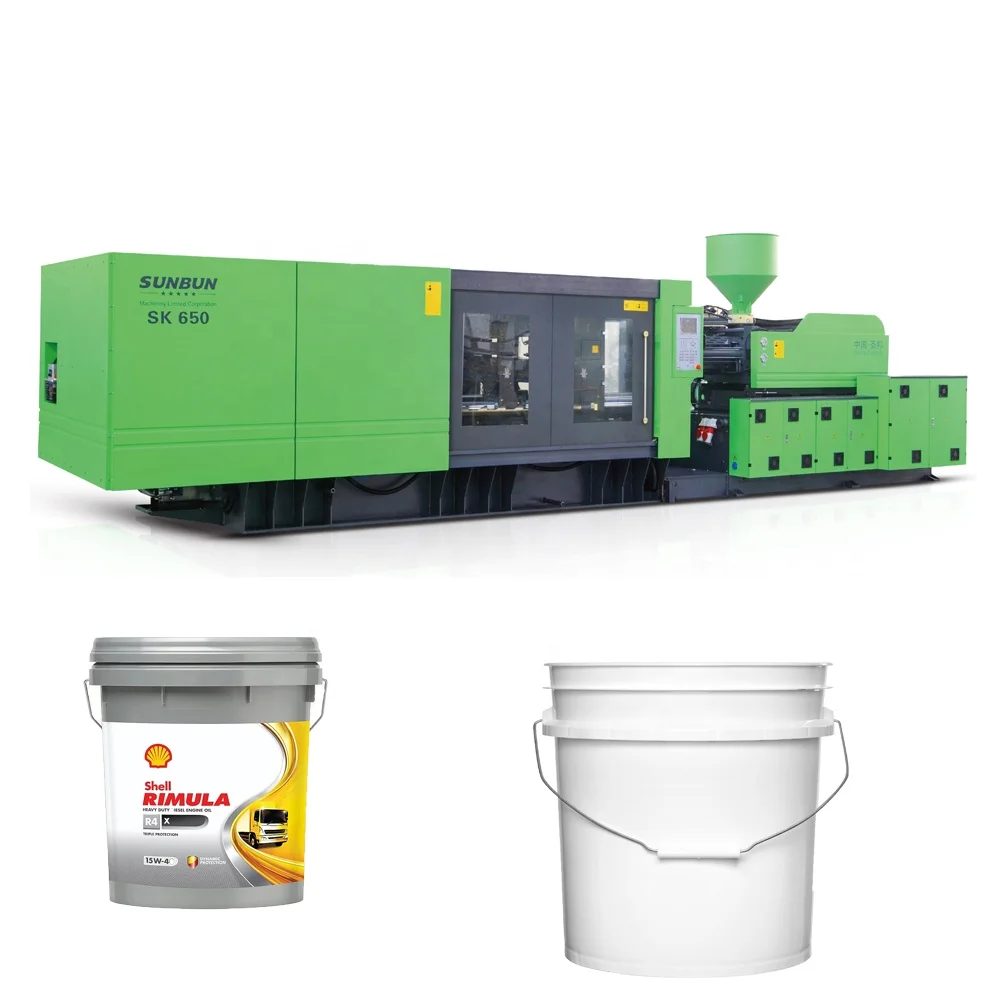

Высокоскоростной 20 л пластиковый ковш для краски машина литья под давлением продажи гидравлический
6 500,00 $

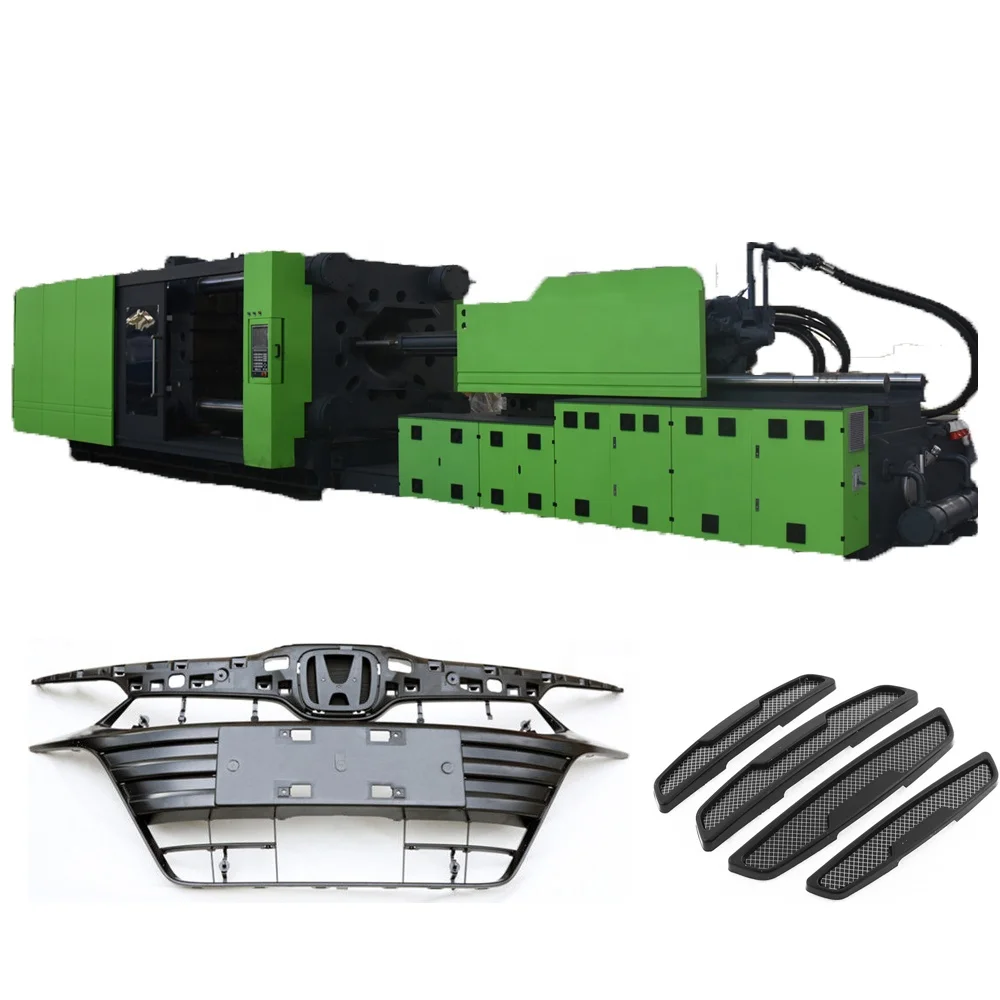

Энергосберегающая китайская гибридная пластиковая автозапчасть sunпучок на 1500 тонн для изготовления бампера пластиковая литьевая машина от производителя
