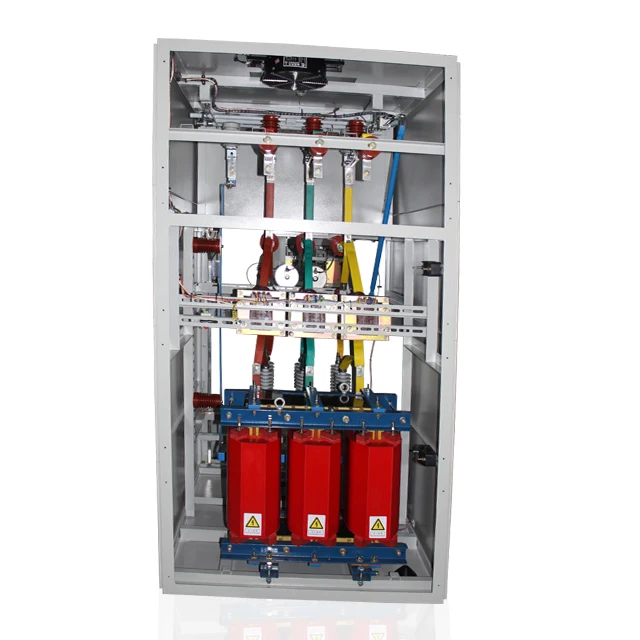

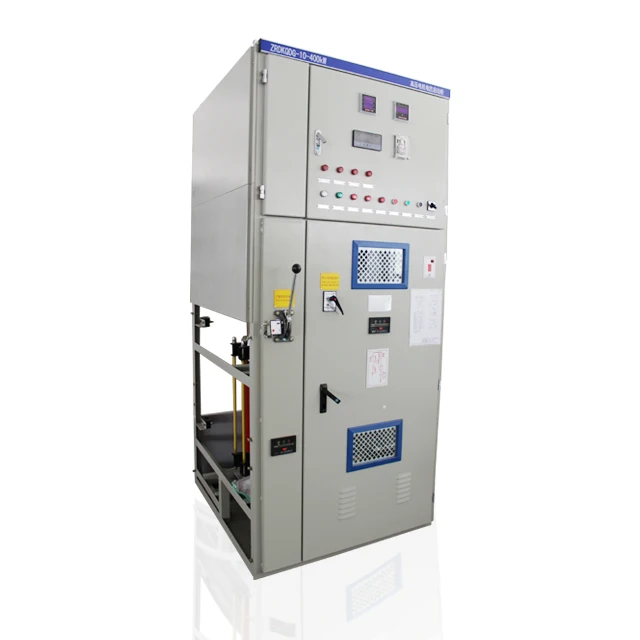

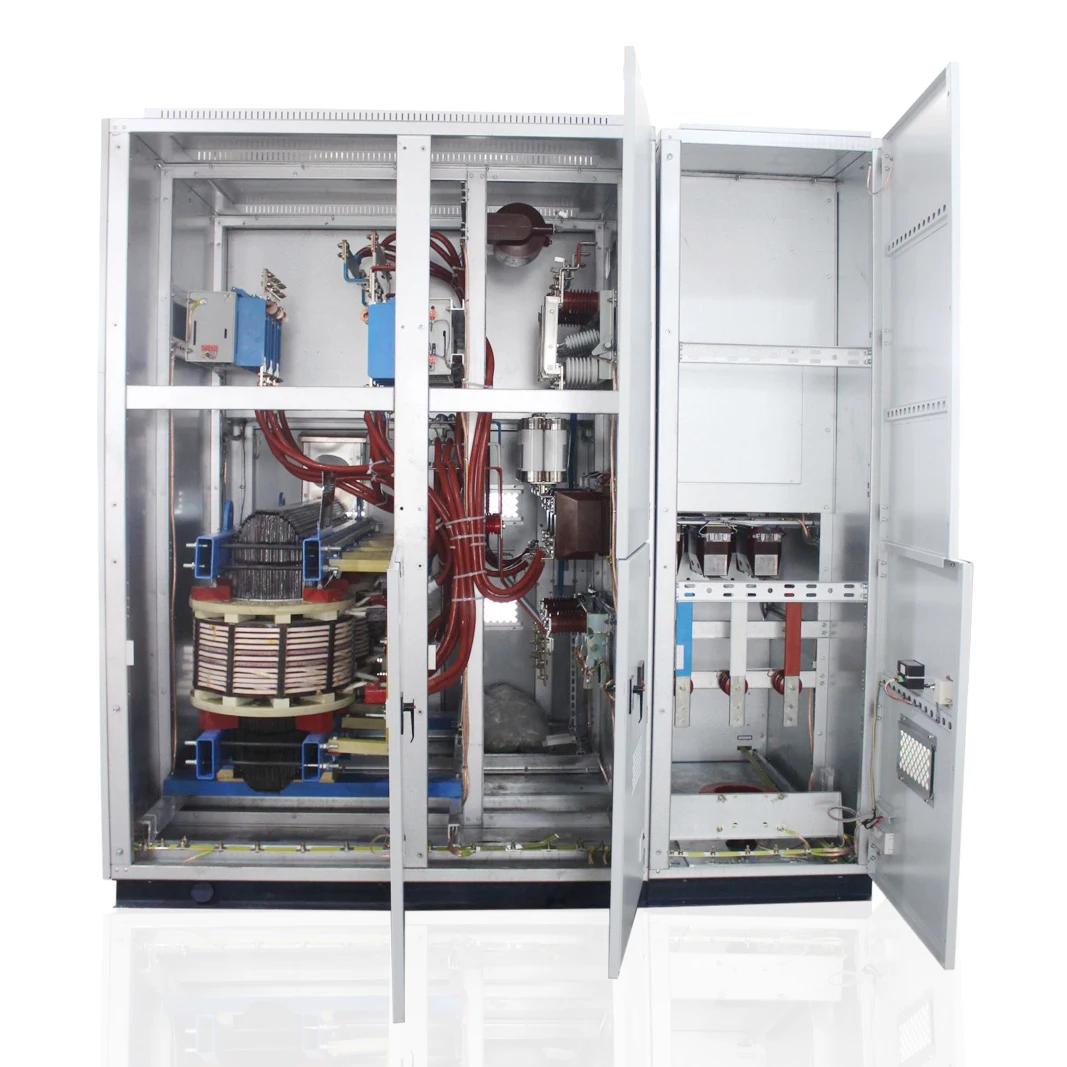

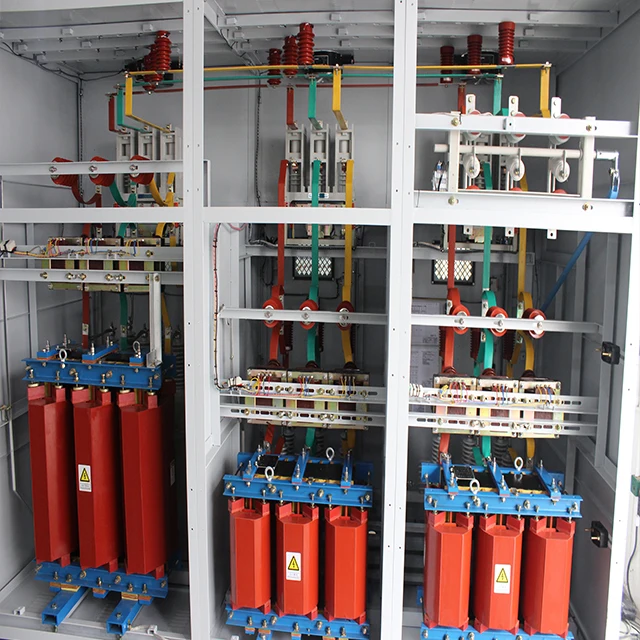

QDG Reactance starting cabinet type

Starting of motors with rated capacity of 5000kW and below and voltage class of 15kV and below.

Motor starting reactor: it is connected in series with AC motor to limit the starting current of motor

The reactor will be cut off after the machine is started; I purpose

The products are used in power systems below 15kV and are suitable for power systems, electrified railways, metallurgy, chemical industry,

In urban power grid substations with high fire protection requirements such as petroleum, electromagnetic interference requirements and limited installation site, when the AC asynchronous motor is started under the rated voltage, the initial starting current is too large, which often exceeds many times (generally 5-8 times) of the rated current. In order to reduce the starting current and do not affect the power grid, the AC asynchronous motor is usually started by reducing the voltage, Reactor or autotransformer is commonly used. The starting process of AC motor is very short (usually several seconds to two minutes). After starting, the reactor or autotransformer for step-down starting shall be cut off. This product is designed according to the starting characteristics of high-voltage asynchronous motor. The general motor power is 220-4800kw.

II Technical features

1. The coil is cast by epoxy resin, which has the advantages of flame retardant, self extinguishing, maintenance free, high mechanical strength, strong short-circuit impact resistance, good insulation strength, small partial discharge and long service life;

2. The core manufacturing adopts the manufacturing technology of dry-type reactor, which has low vibration, low noise, low magnetic leakage and low electromagnetic interference to the environment;

3. The overall structure of the product is compact, the installation size is small and the occupied space is small;

4. The technical conditions of the product meet the requirements of international standard iec288-88 and ministerial standard jb5346-98, and its technical performance reaches the level of contemporary international similar products;

III Executive standard for dry core reactor

Iec289-88 reactor gb10229-88 reactor jb5346-98 series reactor

Dl-462-92 technical conditions for ordering series reactors for high voltage shunt capacitors

IV Product service conditions

If the contract product exceeds the normal use conditions, it shall be carried out in accordance with the relevant provisions of GB1094, gb6450 and gb10229

Design adjustment

1. The following technical agreements shall be signed for reactance starting cabinet:

Main technical parameters of dry core reactor Product name Starting reactor

System rated voltage (kV) 3-10KV

Frequency (Hz) fifty

Ambient temperature - 25℃~+45℃

Altitude Not more than 2000 meters

Startup multiple 6 times

Start time 2MIN

Wiring mode Upper and lower copper screws (see dimension drawing for details)

Placement site indoor

Cooling mode AN

Structural style Core epoxy casting

Insulation class F

Noise level < 50 dB

Temperature rise Under rated load and 1.35 times of rated current, the temperature rise is less than 90K

Inductance error + Within 3%

Executive standard: gb10229-1988, iec289-88

Note appended Product Conductor: copper wire

Drawing requirements The electronic CAD version shall be provided within 7 days after the contract takes effect, indicating the size

one

Starting reactor model QKSC-***KW/*KV ( Three phase dry core reactor)

Startup multiple 6 times

Tap percentage (equivalent to stator current)

Pressure) 50% 60% 85%

Corresponding tap impedance (ohms)

Starting capacity KVA

Corresponding starting pressure drop (V)

Corresponding starting current (a)

two

Starting reactor model QKSC-***KW/**KV ( Three phase dry core reactor)

Startup multiple 6 times

Tap percentage (equivalent to stator current)

Pressure) 50% 60% 85%

Corresponding tap impedance (ohms)

Starting capacity kvar

Corresponding starting pressure drop (V)

Corresponding starting current (a)

three

Starting reactor model QKSC-***KW/**KV ( Three phase dry core reactor)

Startup multiple 6 times

Tap percentage (equivalent to stator current)

Pressure) 50% 60% 85%

Corresponding tap impedance (ohms)

Starting capacity kvar

Corresponding starting pressure drop (V)

Corresponding starting current (a)
