Насадки CYCO высокого давления 3/16 1/8 для защиты от запотевания из нержавеющей
- Категория: >>>
- Поставщик: Dongguan Changyuan Spraying Technology Co. Ltd.
Сохранить в закладки 1600315541686:
Описание и отзывы
Характеристики
Products Description

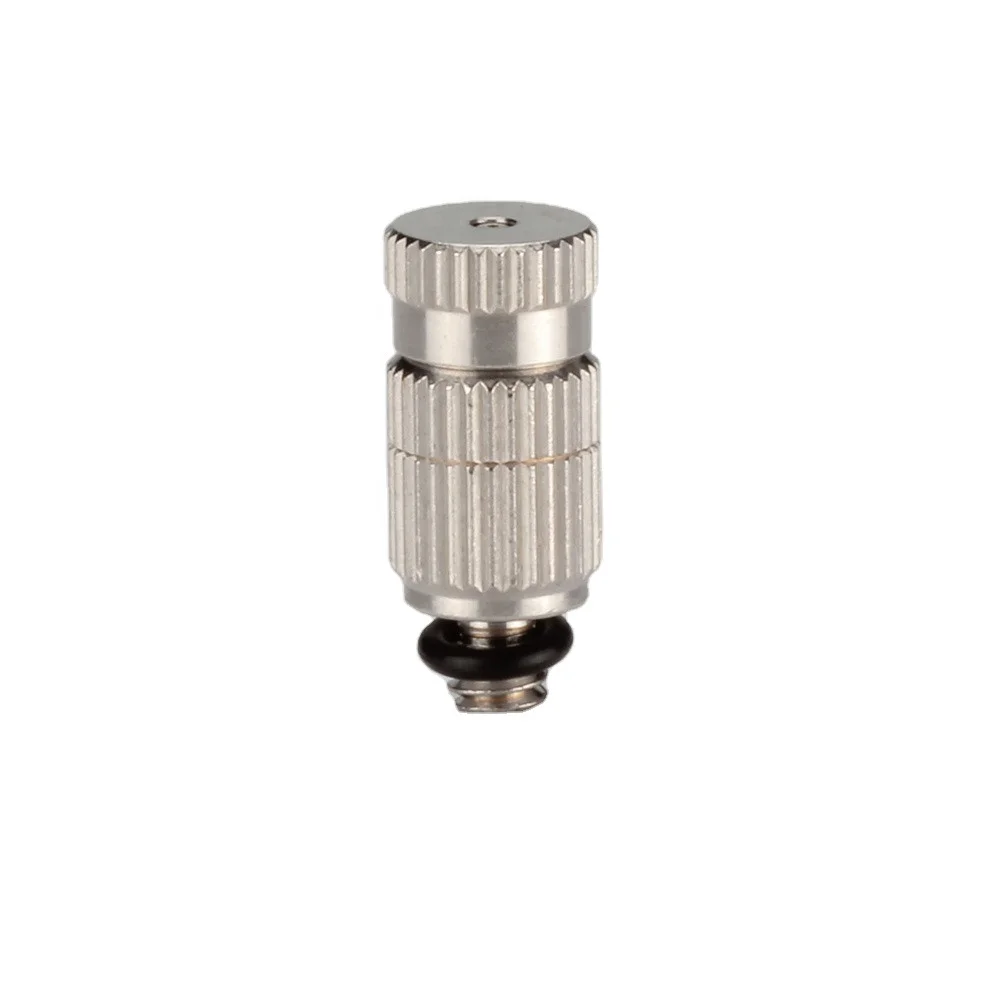

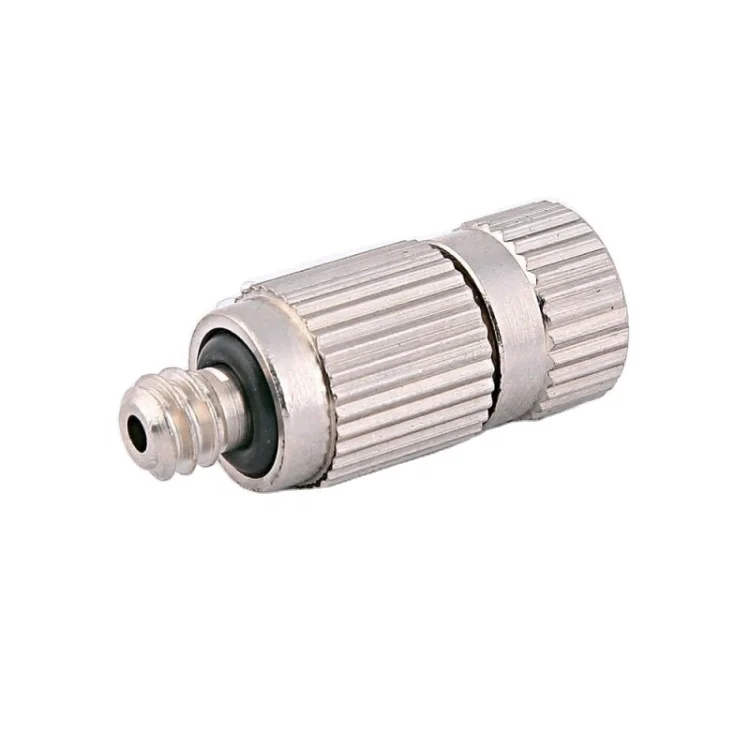

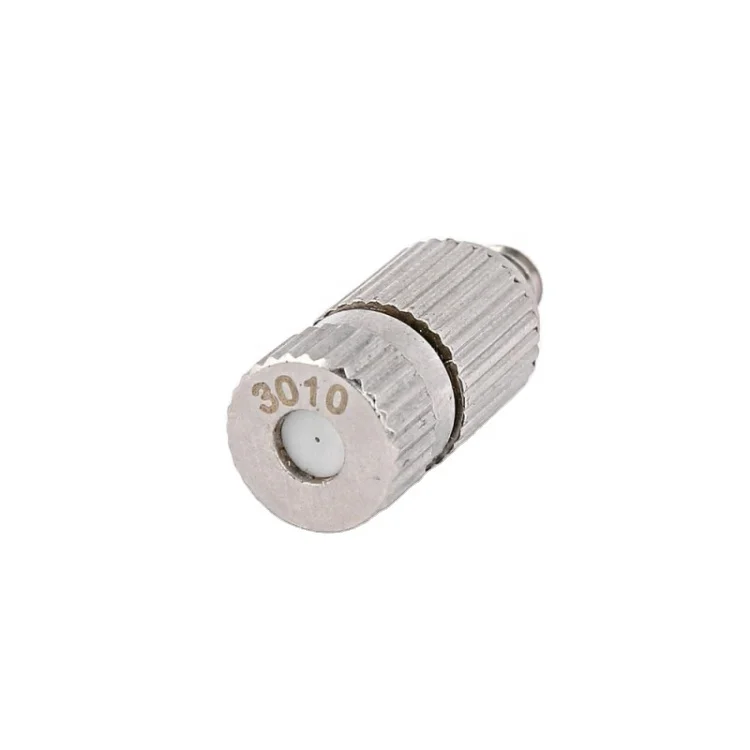

CYCO High Pressure 3/16 1/8 Male Thread Misting Nozzles Stainless Steel Anti Drip Fogging Sprayers Cooling Humidify Sprinklers

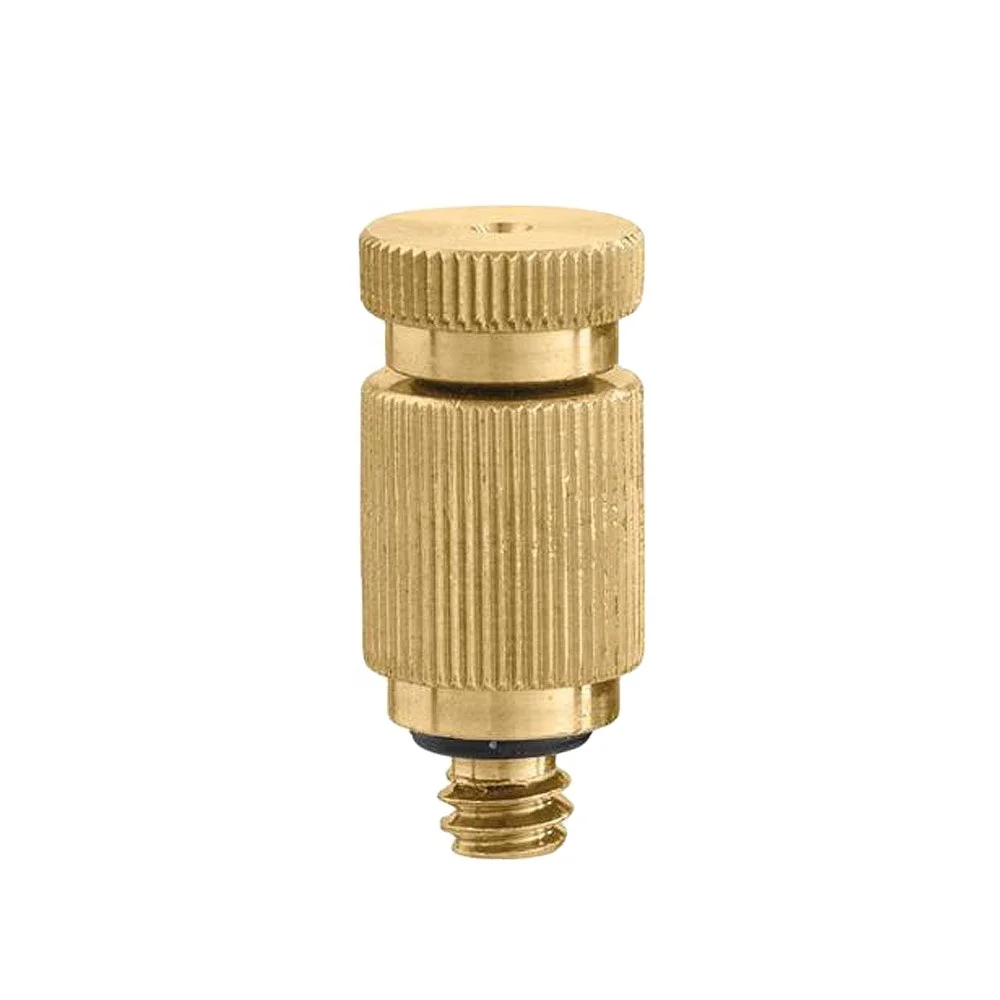

Features： This FD anti-drop misting nozzle is usually made of brass body and SS or ceramic nozzle core inside together with SS vane, it contains a anti-drop device, the liquid is flowing at a high speed under pressure of 70-120 bar and forming a centrifugal vortex while passing the vane, then come out from the nozzle in a fine mist hollow spraying. The filter usually made of PTFE, with spray particle size of around 50 microns, this nozzle can be widely used in factory humidification, salt fog test Inspection, artificial fog and other places of required for humidifying, The orifice of this nozzle is punched by precision American punching machine which ensures the diameter is around 0.1mm-0.5mm. This nozzle is well made and the cost is saved by 10 times compared with air humidification. Outdoor cooling fine-fog misting nozzle design for a fine misting and durable using life for outdoor cooling, indoor cooling. This FD anti-drip misting nozzles represent the highest quality fog nozzles available. It has been laboratorily tested to ensure their performance. It is composed of brass body, SS paneling, O-shaped sealing ring and leakproof globe. The material of main body can be high-quality brass alloy and 303, 316 Stainless Steel.
Features： This FD anti-drop misting nozzle is usually made of brass body and SS or ceramic nozzle core inside together with SS vane, it contains a anti-drop device, the liquid is flowing at a high speed under pressure of 70-120 bar and forming a centrifugal vortex while passing the vane, then come out from the nozzle in a fine mist hollow spraying. The filter usually made of PTFE, with spray particle size of around 50 microns, this nozzle can be widely used in factory humidification, salt fog test Inspection, artificial fog and other places of required for humidifying, The orifice of this nozzle is punched by precision American punching machine which ensures the diameter is around 0.1mm-0.5mm. This nozzle is well made and the cost is saved by 10 times compared with air humidification. Outdoor cooling fine-fog misting nozzle design for a fine misting and durable using life for outdoor cooling, indoor cooling. This FD anti-drip misting nozzles represent the highest quality fog nozzles available. It has been laboratorily tested to ensure their performance. It is composed of brass body, SS paneling, O-shaped sealing ring and leakproof globe. The material of main body can be high-quality brass alloy and 303, 316 Stainless Steel.
Application:
1. Wetting & Rust Removal
2. Chemical Treatment
3. Chemical Agent Spraying
4. Liquid Coating
5.Humidify for Tabacco Leaf
6. Pill Coating
7. Evaporative Cooling for Flue Gas
8. Disinfection & Sterilization
9. Parts Cooling
10. Fruit Wax Injection
11. Ceramic tile glazing
11. Ceramic tile glazing
12. Humidify for Factory
13. Salt Fog Test
14. Artificial Fog
15. Dust Suppression
Advantages:
Advantages:
1. With ceramic insert and anti-drip
2. Durable and wear resistance misting nozzles
3. Customized OEM Services
Specification
Product name | FD Fine Misting Nozzle |
Material | 303SS,Brass |
Thread size | 1/8", 3/16" |
Thread type | NPT |
Pressure | 20-70 Bar |
Capacity | 20~70L/min |
Spray angle | 60-80 degree |
Drop size | 40-100μm |
Application | Washing, Cleaning, Cooling, Dust Control |
Company Profile
Dongguan Changyuan Spraying Technology Co.,Ltd
Dongguan Changyuan Spraying Technology Co., Ltd. which was found in the year 1997 is a professional Hi-tech Spraying
&Purification company with branches in Beijing, Shanghai and Shenzhen. We specialize in manufacturing and selling of spray nozzle products and accessories. Our company has ISO9001, ISO14001, IATF 16949, and SGS Certificates. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Rich experience in massive production of spray nozzle products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its highest quality, short lead-time, fast delivery, and timely after-services.
&Purification company with branches in Beijing, Shanghai and Shenzhen. We specialize in manufacturing and selling of spray nozzle products and accessories. Our company has ISO9001, ISO14001, IATF 16949, and SGS Certificates. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Rich experience in massive production of spray nozzle products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its highest quality, short lead-time, fast delivery, and timely after-services.
CYCO offers a wide range of highly competitive spray nozzle products. Our main products include spray nozzle,water
mist nozzle, tank wash nozzle, dry fog humidifier, air atomizing nozzle, fire fighting nozzle, dry fog nozzle, flat fanspray
nozzle, hollow cone nozzle, full cone nozzle, spiral nozzle, oil burner & snow making nozzle, spiral nozzle, plastic nozzle,pulp and paper nozzle. Our products are widely used in washing, cooling, dust control, fire protection, spraying, coating, surface treatment and so on.And our products have been exported to many foreign countries, such as USA, German, England, Japan,Korean,Russia,India,UAE,Brazil and many other countries. We have established long-term cooperation with our partners in these countries.
mist nozzle, tank wash nozzle, dry fog humidifier, air atomizing nozzle, fire fighting nozzle, dry fog nozzle, flat fanspray
nozzle, hollow cone nozzle, full cone nozzle, spiral nozzle, oil burner & snow making nozzle, spiral nozzle, plastic nozzle,pulp and paper nozzle. Our products are widely used in washing, cooling, dust control, fire protection, spraying, coating, surface treatment and so on.And our products have been exported to many foreign countries, such as USA, German, England, Japan,Korean,Russia,India,UAE,Brazil and many other countries. We have established long-term cooperation with our partners in these countries.
Advanced Production Equipments:
8 Citizen Auto-feed Lathes, imported from Japan, the precision can reach 2 micro or below, 100 Domestic CNC lathes, good forpreliminary machining (less orifice).
9 Drilling Machines.2 Five-axis CNC Machine Center, the orifice can reach 0.1 mm.
4 Wire Cutting Machines.
3 Pneumatic Marking Machines.
2 Laser marking machines.
8 Citizen Auto-feed Lathes, imported from Japan, the precision can reach 2 micro or below, 100 Domestic CNC lathes, good forpreliminary machining (less orifice).
9 Drilling Machines.2 Five-axis CNC Machine Center, the orifice can reach 0.1 mm.
4 Wire Cutting Machines.
3 Pneumatic Marking Machines.
2 Laser marking machines.
Our factory
Production Process
Product packaging
Transportation
FAQ
Q1. Can you help me with my project?
-Yes, of course. Let us help you to design the right misting system for you. Send to us an email with description, drawings, pictures of the area you want to cool/mist and we'll send you a quote for free.
Q2. Can I have a sample order for this nozzle?
-Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
-Usually, sample needs 1-2 days, mass production time needs 1-3 weeks.
-Usually, sample needs 1-2 days, mass production time needs 1-3 weeks.
Q4. How do you ship the nozzles and how long does it take to arrive?
-We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
-Yes, we offer 3 months warranty to our formal products.
Q6. How to order?
-Step 1 : send an inquiry
-Step 2 : confirm the operating conditions
-Step 3 : product recommendation and quotation
-Step 4 : sampling
-Step 5 : confirm order details and make a payment
-Step 6 : proceed with product preparation upon receipt of payment
-Step 7 : shipping
Q7. Nozzle Questions?
-We have answers. With over 21 years experience and 5,000,000+ nozzles shipped, you can trust us with your spray application. Call or contact us today to learn how partnering with CYCO can make your project a success.
