Мембранный кнопочный переключатель от производителя, мембранный переключатель, клавиатура под заказ, клавиатура под заказ
100,00 $

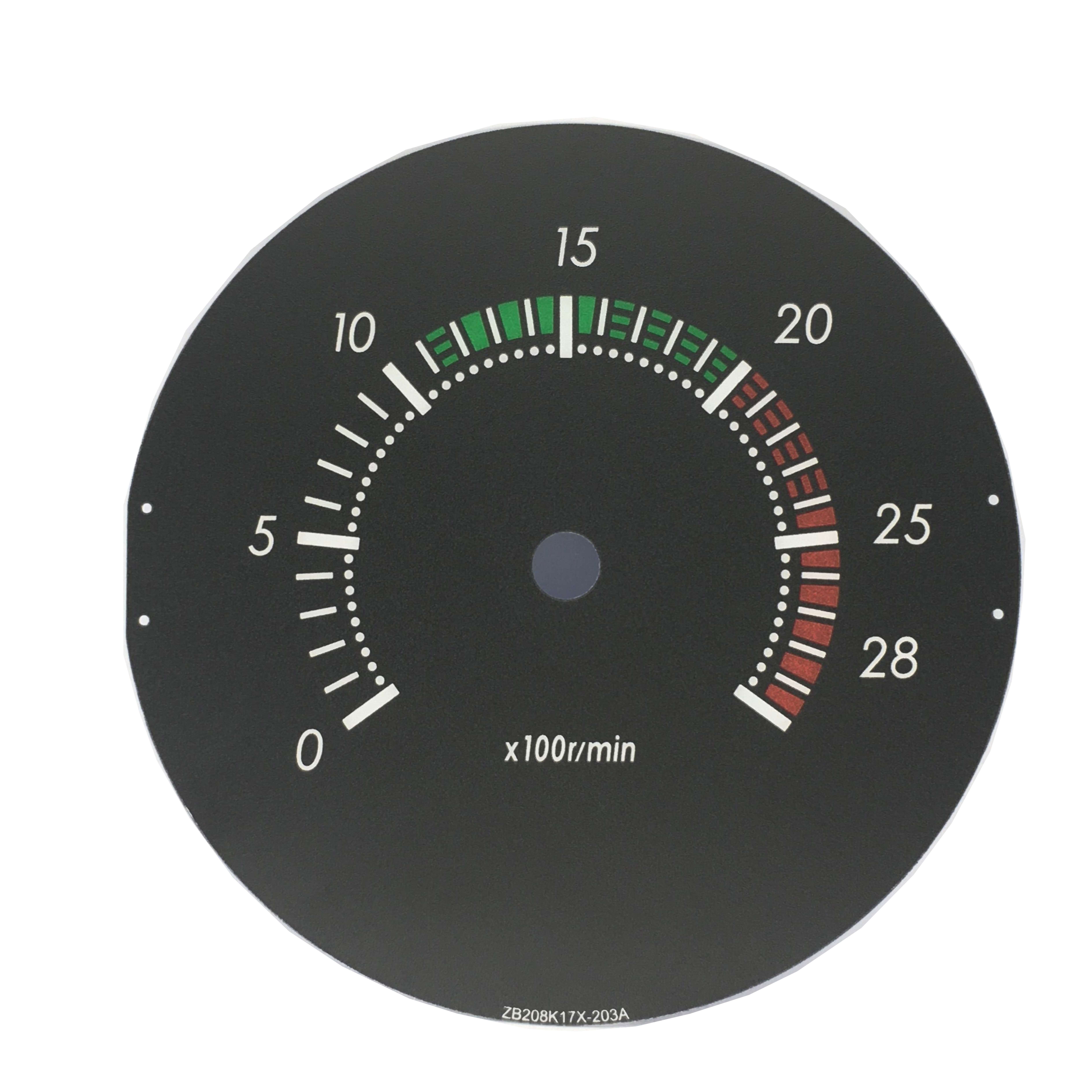

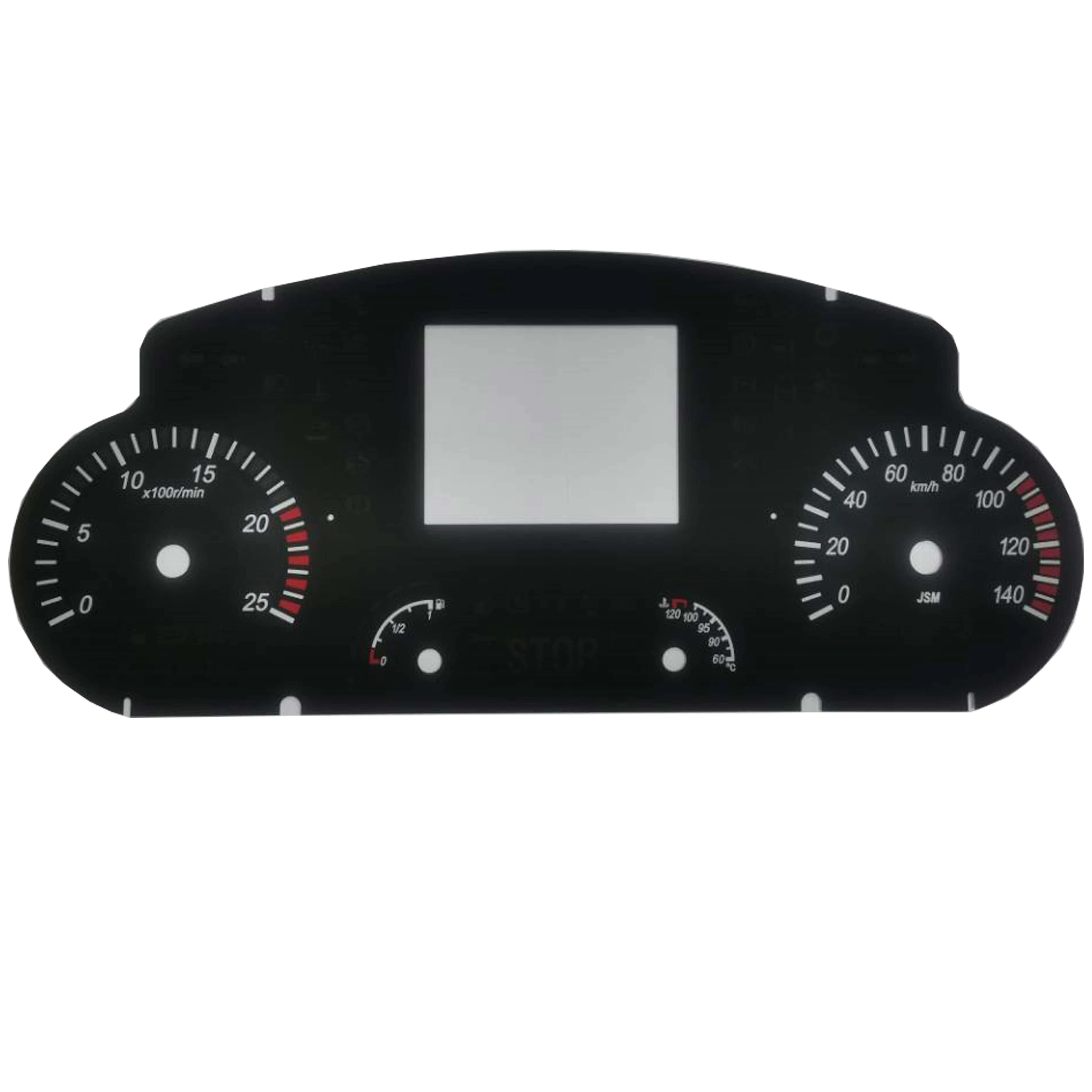

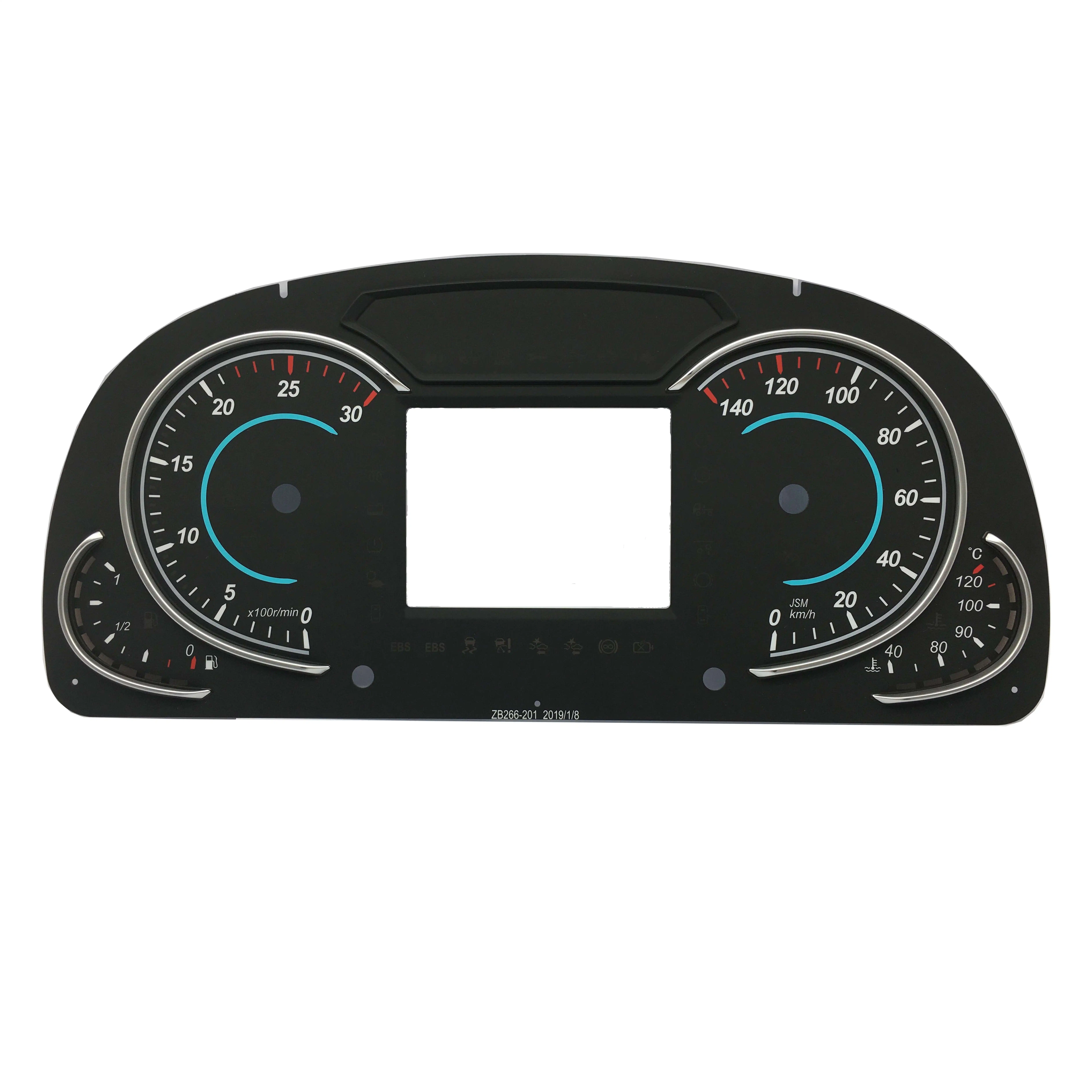

Экранная печать ПК спидометр для приборной панели автомобиля переключатель управления мембранная клавиатура/переключатель ПЭТ ПВХ ПММА стекло
- Категория: >>>
- Поставщик: Shenzhen Zhongyuanfeng Technology Co. Ltd.
Сохранить в закладки 1600316042306:
Описание и отзывы
Характеристики
Products Description
What is membrane switch？
Membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a circuit printed on PET or ITO. The ink used for screen printing is usually copper / silver / graphite filled and therefore conductive.
Membrane switches are part of a range of devices considered to be user interfaces (also called operator interfaces, or man-machine interfaces) along with display-based touch screens, and mechanical switches such as push-button, toggle, rocker, and slide switches. The ultimate purpose of a membrane switch is to serve as the interface between man and machine, enabling an operator to communicate with a piece of equipment, instrument, or machinery.
Membrane switches are part of a range of devices considered to be user interfaces (also called operator interfaces, or man-machine interfaces) along with display-based touch screens, and mechanical switches such as push-button, toggle, rocker, and slide switches. The ultimate purpose of a membrane switch is to serve as the interface between man and machine, enabling an operator to communicate with a piece of equipment, instrument, or machinery.
Specifications:
Environmental | Operating Tem | -40℃ ~ +70℃ |
Storage Tem | -40℃ ~ +75℃ | |
Seal | 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions. | |
Humidity | +40℃ 90% ~ 95%240 hours | |
Mechanical | Travel | .007 inches to .015 inches |
Operating Force | 4oz to 8oz | |
Switch Stroke | flat type 0.1-0.5 mm;tactile type 0.6-1.5mm | |
Life Expectancy | Flat type≥500 million times;tactile type≥100 million times | |
Operation Force | Flat type 57-284g(2-10Oz);tactile type 170-397g(6-14Oz) | |
Electrical | Operating Voltage | 50VDC |
Operating Current | 10 microamps to 100 milliamps, resistive | |
Contact Resistance | 0.5~10.2 | |
Insulating Impedance | >100MΩ | |
Resistance of the Wire | <1Ω/cm |

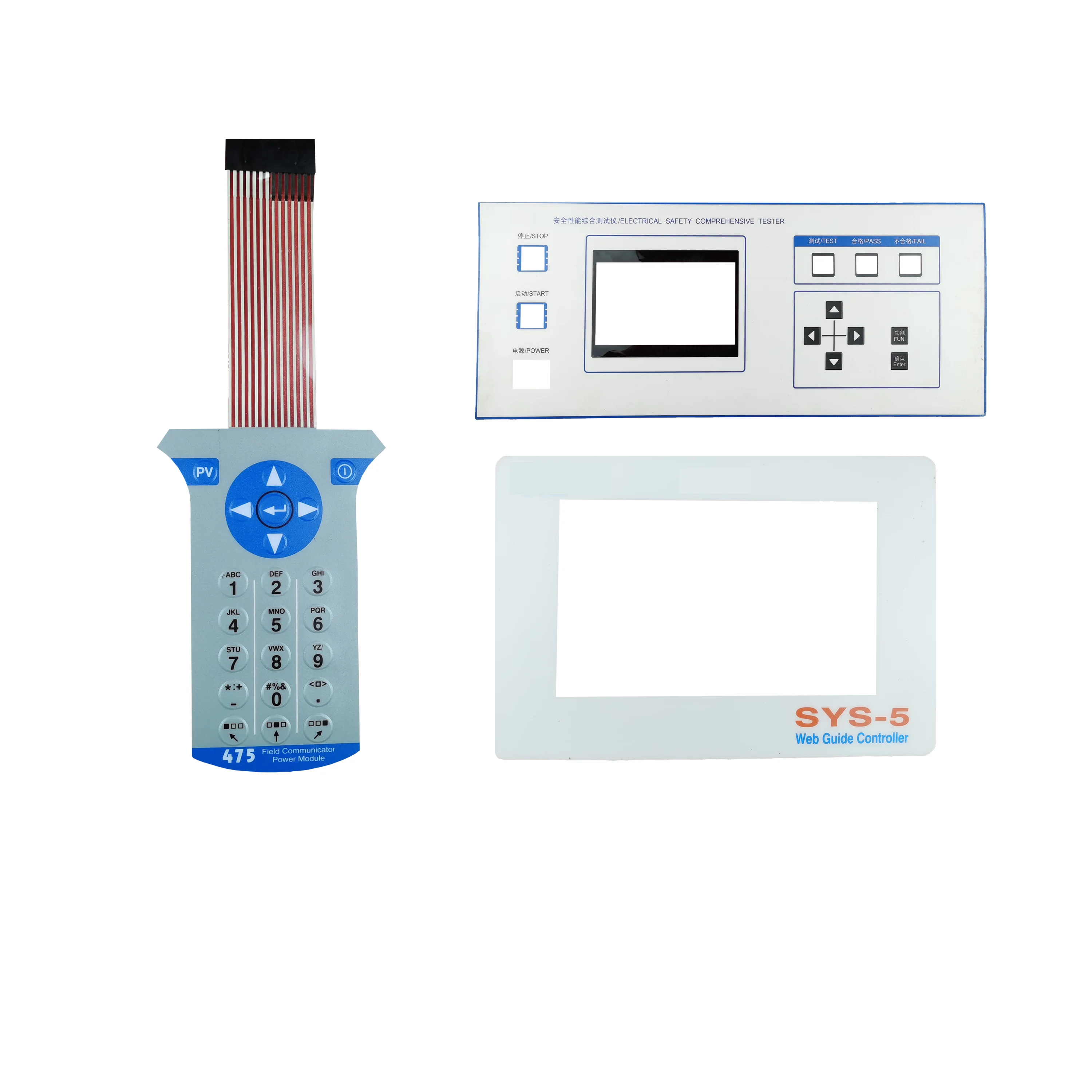

This panel is our sample picture. If you need to custom the panel you designed, please provide the following information
1. Required files: CAD, CDR, AI, Corel Draw, etc. (preferably CDR and AI, with color)
1. Required files: CAD, CDR, AI, Corel Draw, etc. (preferably CDR and AI, with color)
2. Buttons: number, emboss or not, metal dome or not
3. LED: number, color, type.
4. Size: Size of panel and cable
5. Color: Pantone color card
5. Color: Pantone color card
6. Window: clear window or transparent window
7. Surface treatment: glassy or matte
8. Connector type: flat cable (Please specify the type you need）
Applications
Factory
1. We have specialized in membrane switch manufacturing for 10 years, have accumulated rich experience in membrane switch manufacturing, with advanced equipment and technology, and established an excellent design technology team.
2. We attach great importance to foreign users and can adjust the design scheme and production process parameters according to the technical requirements of different electronic industries to meet the technical requirements of the customer-specific industry.Short sample production time!Short transport cycle!
3. We use high standard molds to ensure high quality, exquisite appearance and accurate size.
4.All products have been rigorously internally tested to ensure that 100% passes the functional test.
2. We attach great importance to foreign users and can adjust the design scheme and production process parameters according to the technical requirements of different electronic industries to meet the technical requirements of the customer-specific industry.Short sample production time!Short transport cycle!
3. We use high standard molds to ensure high quality, exquisite appearance and accurate size.
4.All products have been rigorously internally tested to ensure that 100% passes the functional test.
5.While ensuring high quality, the products also have a very economic price and cost performance.We look forward to achieving a win-win situation with you!
Custom process
FAQ
1. Are you manufacturer or trading company?
A:We are manufacturer and you are welcome to visit our factory, also video and pictures will let you check.
2. How to make an ORDER and QUOTATION?
Infomation will need as below:
(1)Drawings, photos, requirement, quantity
(2)Overlay Dimension:
Material: PET/PC
Finish:Matte/Glossy
Adhesive:3M467/3M468
Button :Embossed/Flat/Metal/Silicone/Rubber/Gum
LED :YES/NO
Pin: need to check the circuit diagram
Pitch:2.54mm
Cable Length:As requirement
Connector: Female /Male/DoPont Connector
Hole: None
And better send us the design drawing or samples together with other detailed datas, then we'll customize the membrane switch upon your requests.
3. What about the sample policy, For FREE?
(1)Free Samples: If you paid the shipment fee, we can provide free samples for you.
(2)Custom Samples: You can give me the drawings, requirement and quantity, we will give you a quotation.
4. What is the production time?
The sample time is about 1-7days.The quantity order would take 1-3 weeks.For complicated product should take 1 more week.
5. Can you do the design for us?
Yes, no problem
There ate many professional engineer having rich experience in graphic overlays& circuit designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.
6.How to control quality?
(1)We process the products strictly based on the raw material list.
(2)Our many engineer own many years experience and are very responsible.
(3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.
7. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
8. Shipping ways & Delivery Time?
Shipping by: UPS/ Fedex /DHL /TNT or other ways specified.
Delivery time: 3~20 days after payment received, which depends on your choice.
9. Payment terms:As your needs, mainly include trade assurance, TT, West Union, Paypal etc.100% balance before shipment.
A:We are manufacturer and you are welcome to visit our factory, also video and pictures will let you check.
2. How to make an ORDER and QUOTATION?
Infomation will need as below:
(1)Drawings, photos, requirement, quantity
(2)Overlay Dimension:
Material: PET/PC
Finish:Matte/Glossy
Adhesive:3M467/3M468
Button :Embossed/Flat/Metal/Silicone/Rubber/Gum
LED :YES/NO
Pin: need to check the circuit diagram
Pitch:2.54mm
Cable Length:As requirement
Connector: Female /Male/DoPont Connector
Hole: None
And better send us the design drawing or samples together with other detailed datas, then we'll customize the membrane switch upon your requests.
3. What about the sample policy, For FREE?
(1)Free Samples: If you paid the shipment fee, we can provide free samples for you.
(2)Custom Samples: You can give me the drawings, requirement and quantity, we will give you a quotation.
4. What is the production time?
The sample time is about 1-7days.The quantity order would take 1-3 weeks.For complicated product should take 1 more week.
5. Can you do the design for us?
Yes, no problem
There ate many professional engineer having rich experience in graphic overlays& circuit designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.
6.How to control quality?
(1)We process the products strictly based on the raw material list.
(2)Our many engineer own many years experience and are very responsible.
(3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.
7. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
8. Shipping ways & Delivery Time?
Shipping by: UPS/ Fedex /DHL /TNT or other ways specified.
Delivery time: 3~20 days after payment received, which depends on your choice.
9. Payment terms:As your needs, mainly include trade assurance, TT, West Union, Paypal etc.100% balance before shipment.
