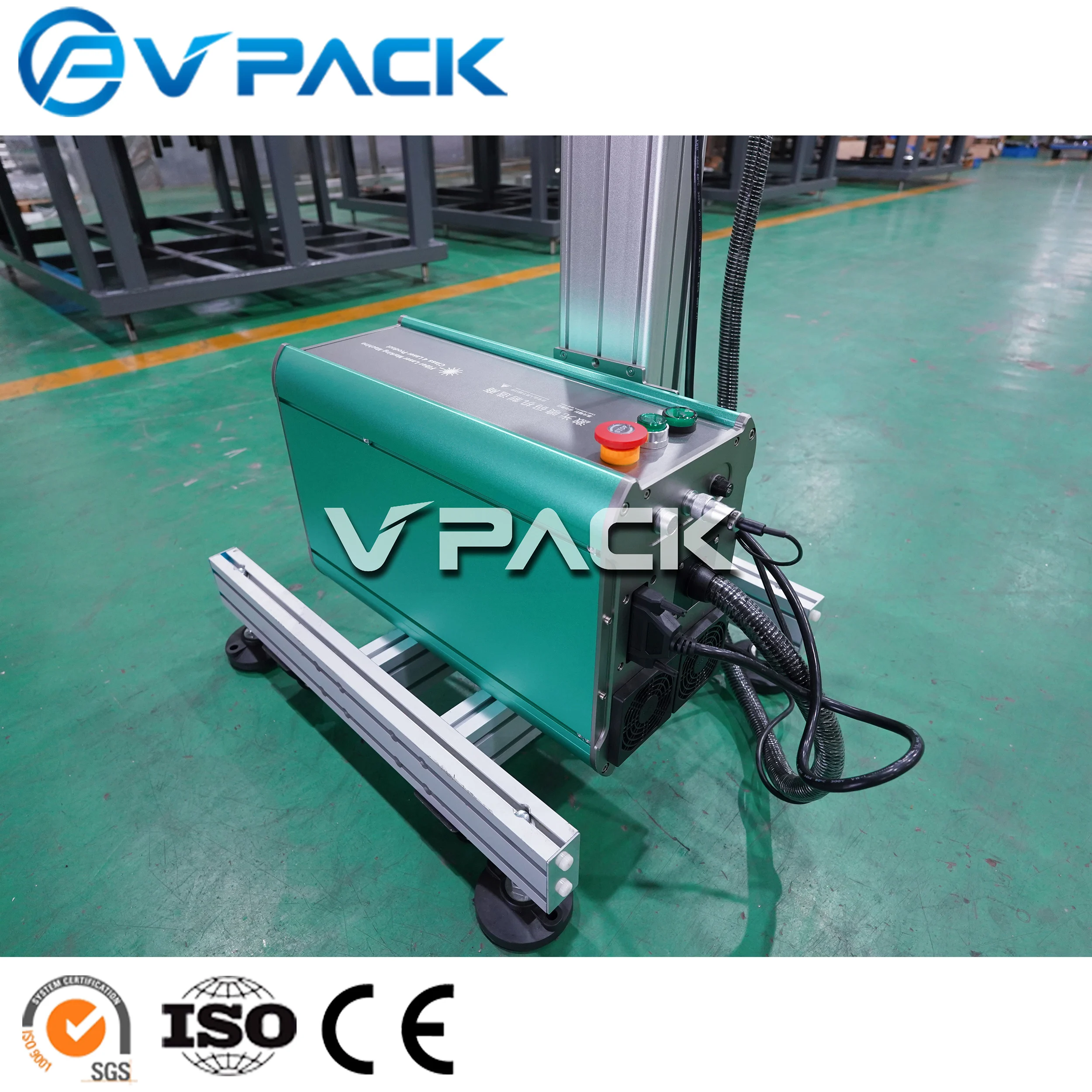

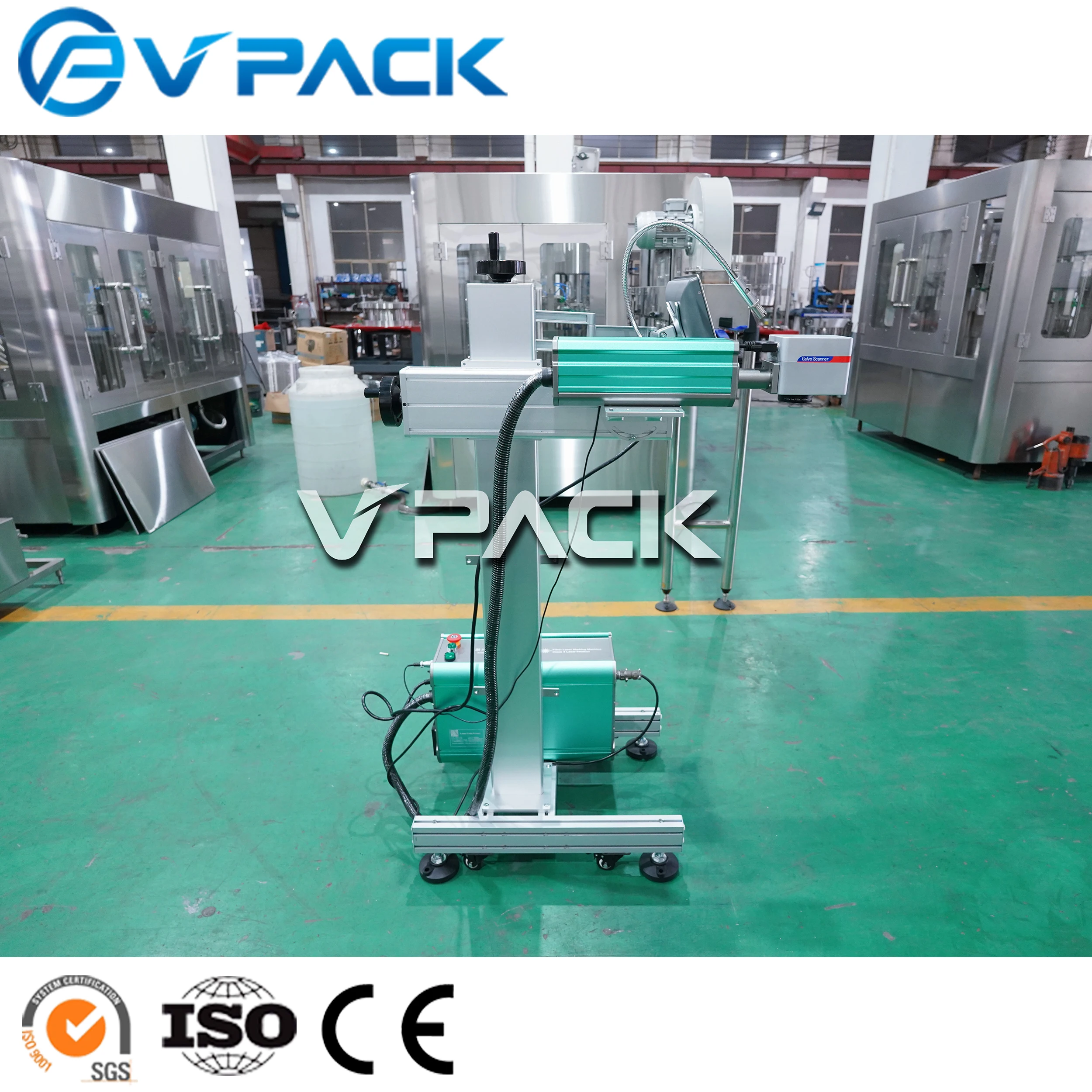

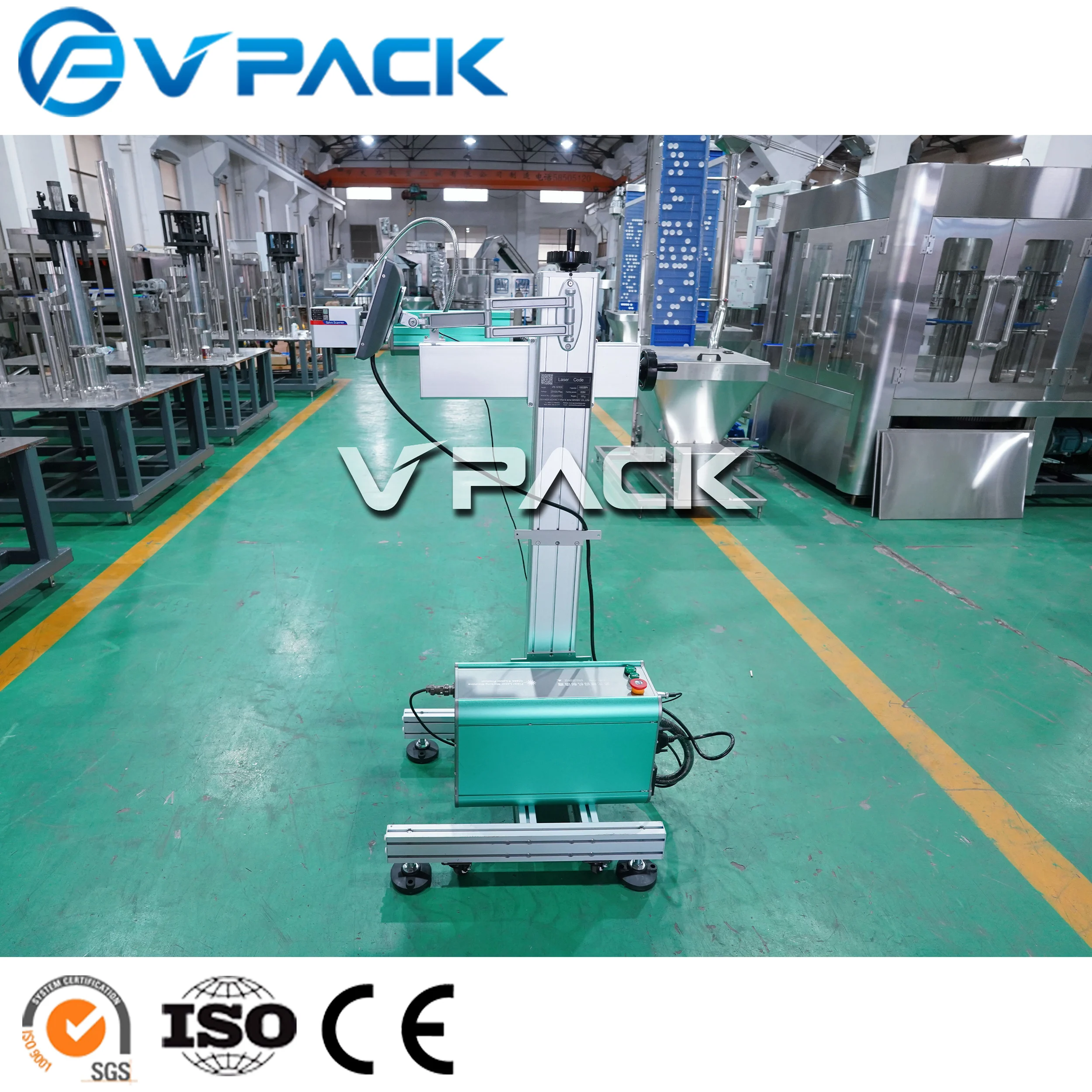

Applied Range of CO2 Laser Printer
CO2 laser coding machine is mainly used for markingnon-metal materials,such as: personal care products, tobacco, food and beverage packaging, wine, dairy products, clothing label, leather,building materials, chemical products,and other signs in the field of production and expiry date,batch number, text, business name, trademark and logographics etc.
Product Description
What's the advantage of CO2 Laser printer?
1.Applies high-contrast marks at ultra-fast speeds on nonmetallic products, wood, PET, plastic glass and other industrial
products；
2.The marking performances are clearly and accurately positioned and code precision that does not adversely impact product aesthetics；
3.Virtually no maintenance and a source life expectancy of up to 3-5 years,delivers high performance and long-lasting reliability；
4.Meet the demands of high-speed packaging operations；
5.Increasing product throughput and maximizing productivity.
products；
2.The marking performances are clearly and accurately positioned and code precision that does not adversely impact product aesthetics；
3.Virtually no maintenance and a source life expectancy of up to 3-5 years,delivers high performance and long-lasting reliability；
4.Meet the demands of high-speed packaging operations；
5.Increasing product throughput and maximizing productivity.
Machine configuration instructions | ||||||||
Laser | touch screen version(10w,Wave length 9.3,increase by 1000) | |||||||
Vibrating mirror | Digital,analog mirror. | |||||||
Field mirror | Singapore brand | |||||||
Power | Taiwan brand | |||||||
Encoder | Japanese OMRON | |||||||
Detailed Images
Quick start and easy operation
1.Touch screen control is easier to operate for a best ease of use.
2.Application setting and tas creation takes only 2 minutes.
3.Simple pipelining can be made from the select box menu and preview window.
4.Automatic detection of ready-to-use encoders and product detector.
Printed code clear.
The efficiency of the model is very high,even in the face of a fast production line,the output can be matched.Laser heads need not
be cleaned,not will they age or be replaced over time.Ink spray codes may be scratched or erased,but laser jet codes are
permanent.It can identify large complex graphics,even on difficult materials or in a limited time,can provide high-quality laser
printing effect.
The efficiency of the model is very high,even in the face of a fast production line,the output can be matched.Laser heads need not
be cleaned,not will they age or be replaced over time.Ink spray codes may be scratched or erased,but laser jet codes are
permanent.It can identify large complex graphics,even on difficult materials or in a limited time,can provide high-quality laser
printing effect.

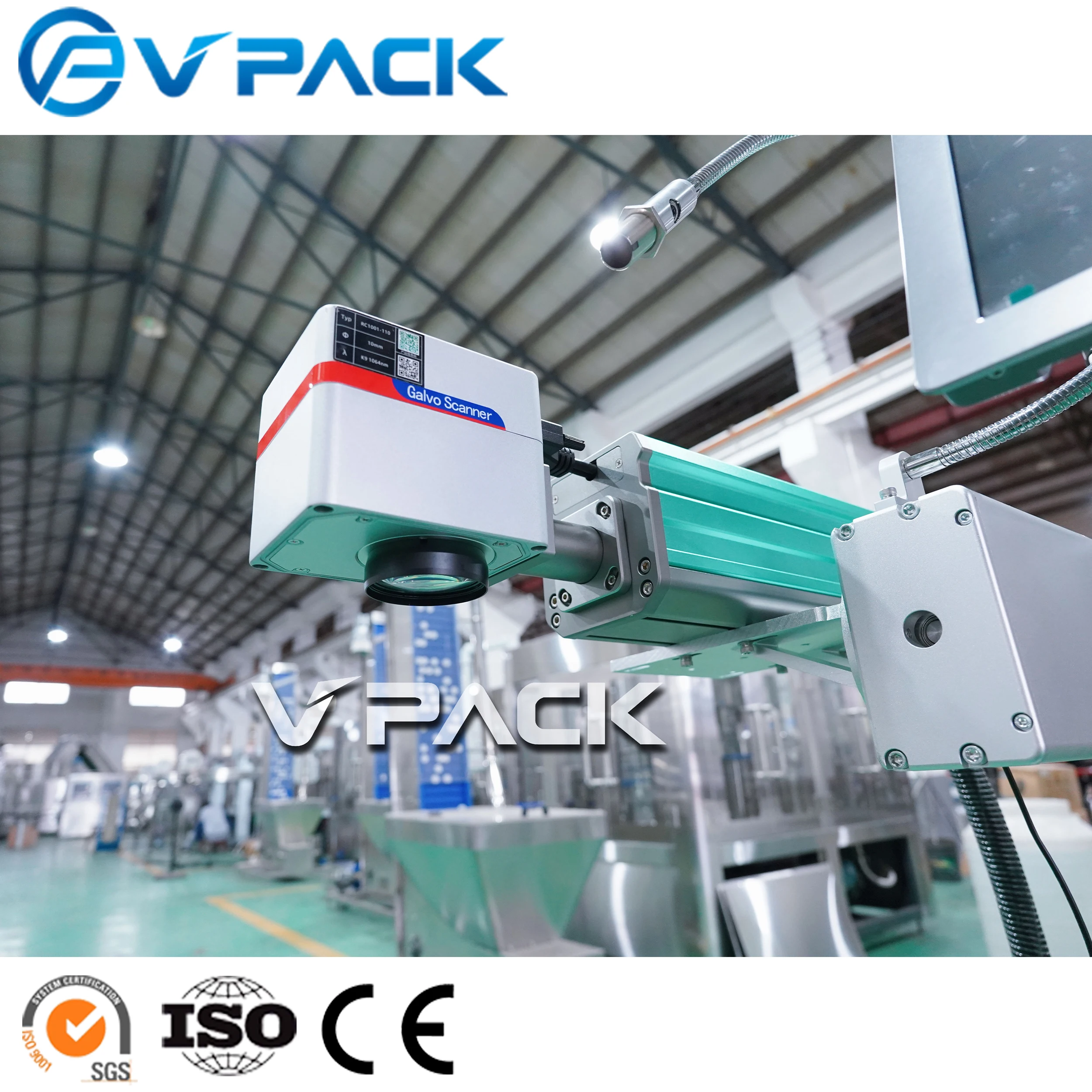

Laser and Red Light
Power supply and Control card
Product Paramenters
CO2 C6011 | CO2 C6030-F | |||||
Laser Machine Characteristics | Material | All aluminum structure | ||||
Laser | Sealed metal radio frequency carbon dioxide laser generator | |||||
Continuous output power | ≥10W | ≥30W | ||||
Laser wavelength | 9.3um | 10.6um | ||||
Galvanometer deflection | High precision Double d scanning system | |||||
Engraving speed | ≤7000mm/s | |||||
Master control | Highly integrated motherboard with 10 inch screen | |||||
Operating system | WIN CE | |||||
Cooling System | Air cooling system | |||||
Laser Parameters | Focus lens | Focal length 138 mm | ||||
Marking type | Dot matrix and vector machine (can play both dot matrix and vector) | |||||
Minimum line width | 0.03mm | |||||
Repositioning Accuracy | 0.01mm | |||||
Marking area | 110mm×110mm（Choosable） | |||||
Locate mode | Red light focusing | |||||
Lines to type | Any lines in the marking range | |||||
Production Line Speed | 0~100m/min (depends on the material) , 0~200m/min (depends on the material) | |||||
Support Types | Font | Standard Chinese and English, Numbers, etc | ||||
File Format | BMP/DXF/HPGL/JPEG/PLT | |||||
Bar codes | CODE39、CODE128、CODE126、QR | |||||
Parameters | Power | 220V | ||||
Power Consumption | 300W | 650W | ||||
Machine net weight | 14kg | 25kg | ||||
3 d bracket net weight | 30kg | |||||
Operational Reliability | External temperature 0℃-45℃;Humidity≤95% or less; Non - Condensing; No vibration | |||||
Laser Code Printer used in water production line | ||||||
4000BPH Water Production Line
9000BPH Water Production Line
12000BPH Water Production Line
Laser Code Printer for different product
Laser Code Printer work on water bottle video
Laser Code Printer work on zip-top can video
Laser Code Printer work on
PVC tube video
Related Products
Laser Code Printer work on
packing bag video
Laser Code Printer work on
engraving metal plate video

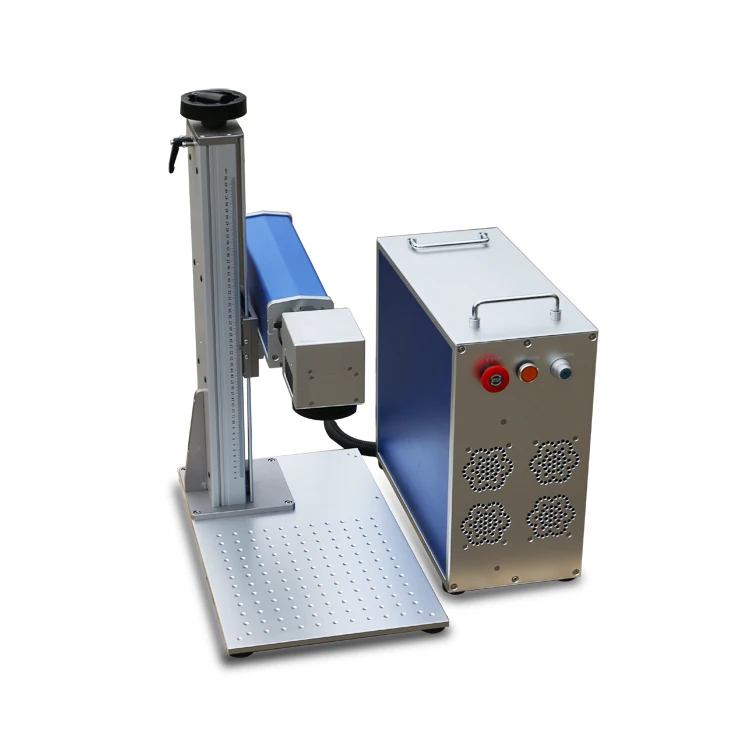

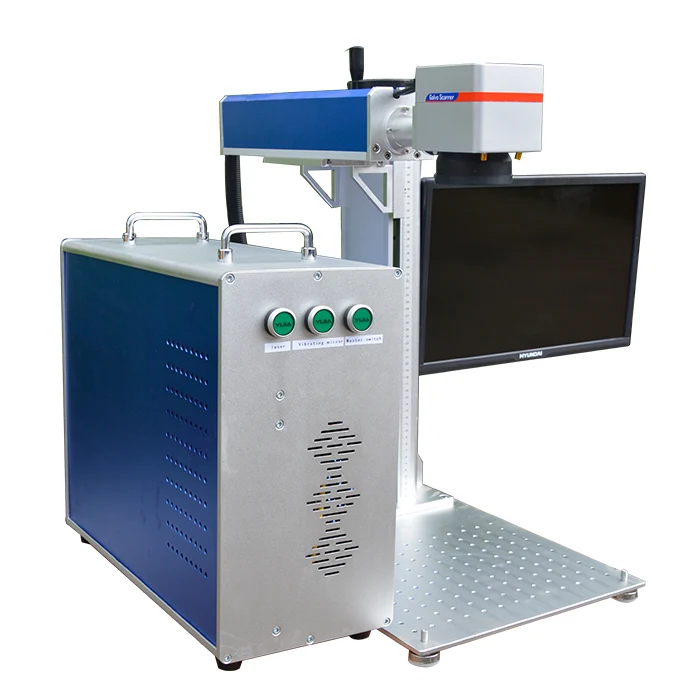

Fiber Laser printer
(1)High speed running
The efficiency of the model is very high,even in the face of a fast production line,the output can be matched.
(2)High quality accessories
Laser heads need not be cleaned,not will they age or be replaced over time.
(3)Powerful functions
It can identify large complex graphics,even on difficult materials or in a limited time,can provide high-quality
laser printing effect.
(4) Permanent marking
Ink spray codes may be scratched or erased,but laser jet codes are permanent.
(5) laser print words very clear
The efficiency of the model is very high,even in the face of a fast production line,the output can be matched.
(2)High quality accessories
Laser heads need not be cleaned,not will they age or be replaced over time.
(3)Powerful functions
It can identify large complex graphics,even on difficult materials or in a limited time,can provide high-quality
laser printing effect.
(4) Permanent marking
Ink spray codes may be scratched or erased,but laser jet codes are permanent.
(5) laser print words very clear
Model | Model | Fiber W7030 | Fiber W7030 | Fiber W7030 | ||
Laser parameters | Average output power | 20W 30W 50W Optional | ||||
Output beam quality | ＜1.5㎡ | |||||
Marking performance | Marking line depth | ≤1mm | ||||
Minimum focus spot | 0.0005mm | |||||
Minimum character height | 0.15mm | |||||
Repeat accuracy | ±0.001mm | |||||
Maximum linear marking speed | 12000mm/s | |||||
Marking format | Graphics, text, barcode, QR code, date, shift, batch number, serial number, File link | |||||
Standard engraving range | 100mm×100mm | |||||
Optional engraving range | 110mm×110mm 150mm×150mm 200mm×200mm 300mm×300mm | |||||
Physical characteristics | Power consumption of the whole machine | ≤160W | ||||
Electricity demand | 220V±10%/50Hz/4A | |||||
Cooling method | Air-cooled | |||||
Control interface | USB | |||||
Laser module life | Up to 100,000 hours | |||||
Advantage
- Great stability with high precision Intelligent circuit control
- Clear and unerasable marking Used for high speed production line- Low cost for maintenance
- Easy to operate with an advantages of long life time
UV Laser Printer
Apply to HDPE material.UV laser coding machine can help pharmaceutical, medical and cosmetics industry manufacturers in the whole life cycle of the product is a good brand protection and traceability, to prevent channeling goods and counterfeiting. No matter how the manufacturer's products are positioned to meet the requirements of consistent high quality coding, such as better visual system readability, a key element of the pharmaceutical packaging line, VPACK is a supplier of UV laser coding machines that provide permanent, high quality coding.
Our Company
Our products including : Liquid filling machines (water,fruit juice/tea,carbonated drink,oil,alcohol,plant protein drink,etc.); Barrel filling line(1-5 gallon); Water treatment machines, Labeling & packing machines, Semi-automatic/Full automatic PET Bottle blowing machines, and Injection molding machines. Labeling machine, Bottle shrink packing machine , Carton packing machines , Conveyor system , Juice processing system , Sterilizer and so on.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Machine testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Sales Manager | Ruby Xu | ||||||
Responsible for the project | CO2 & Fiber Laser Printer, Water purificaiton system, water filling machine,Juice hot filling machine ,5 gallon plant etc, Bottle blower...all kind of machine after-service. | ||||||
Responsible for the market | United Kingdom, Peru, Brazil, Morocco, Nigeria, Yemen etc... | ||||||
