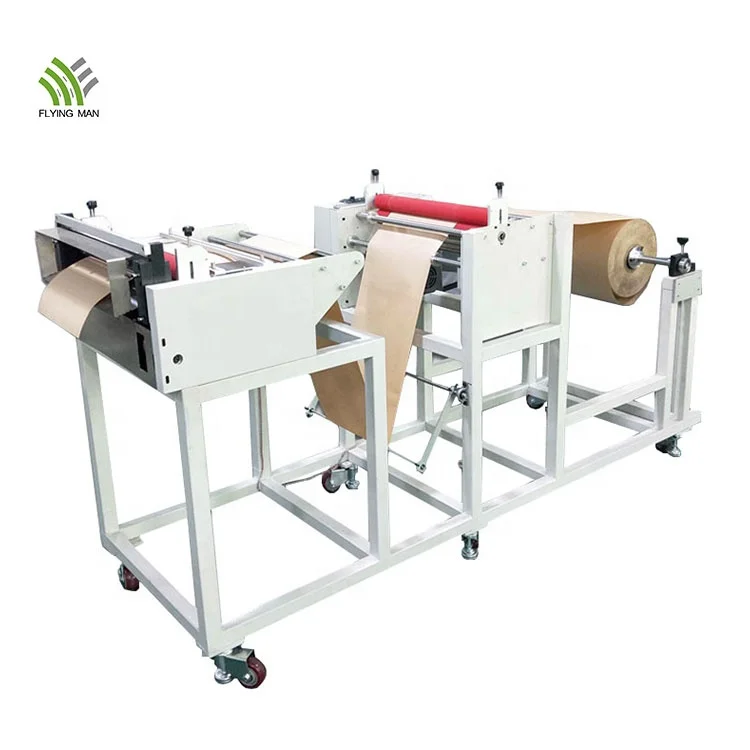

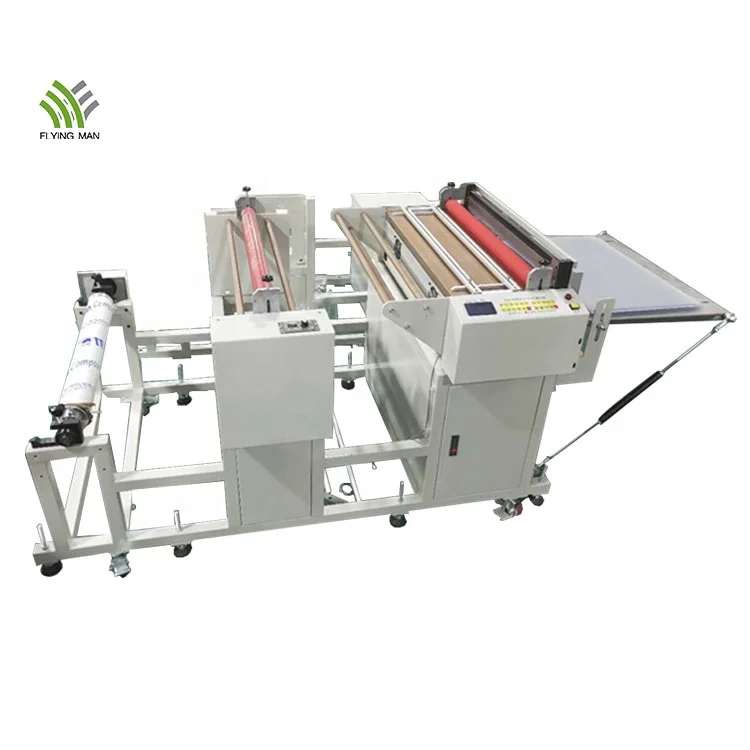

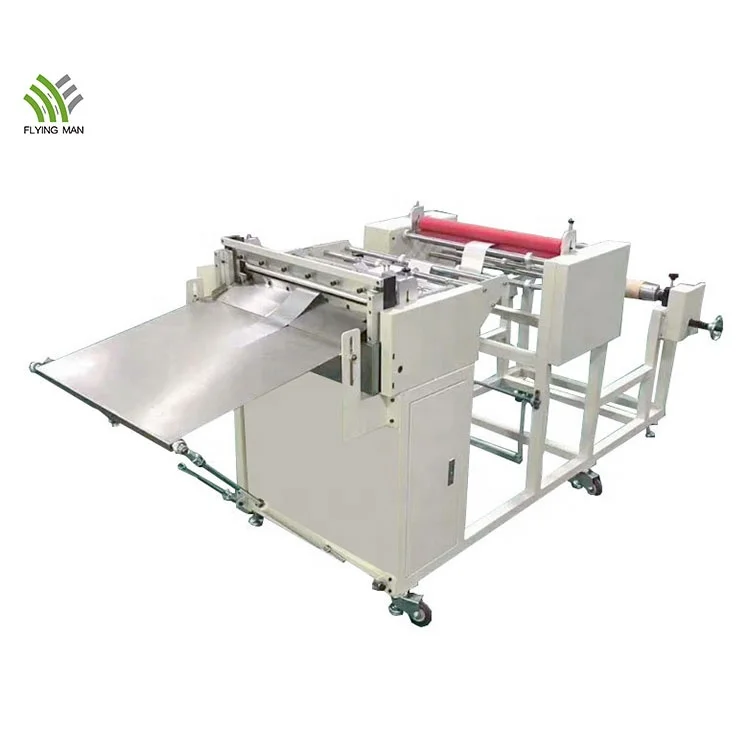

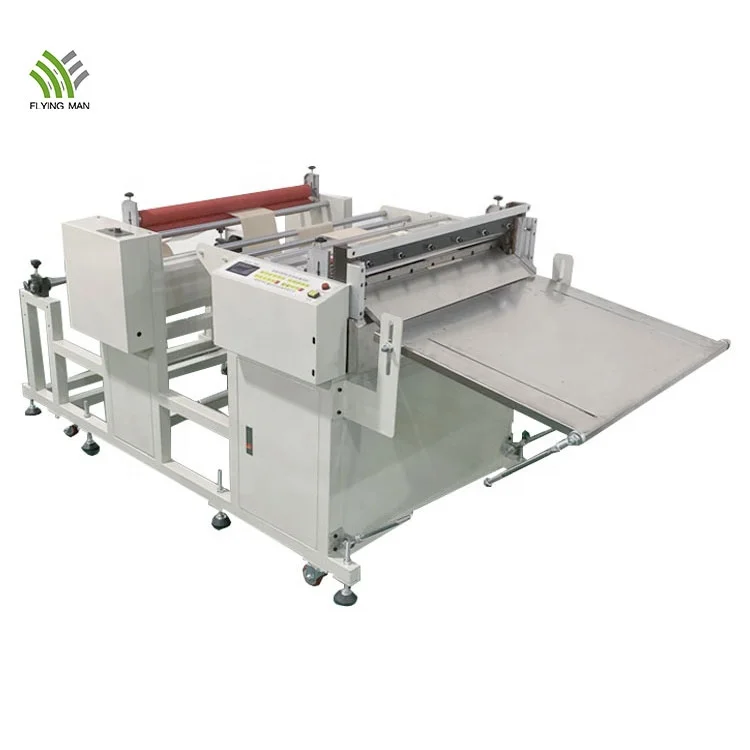

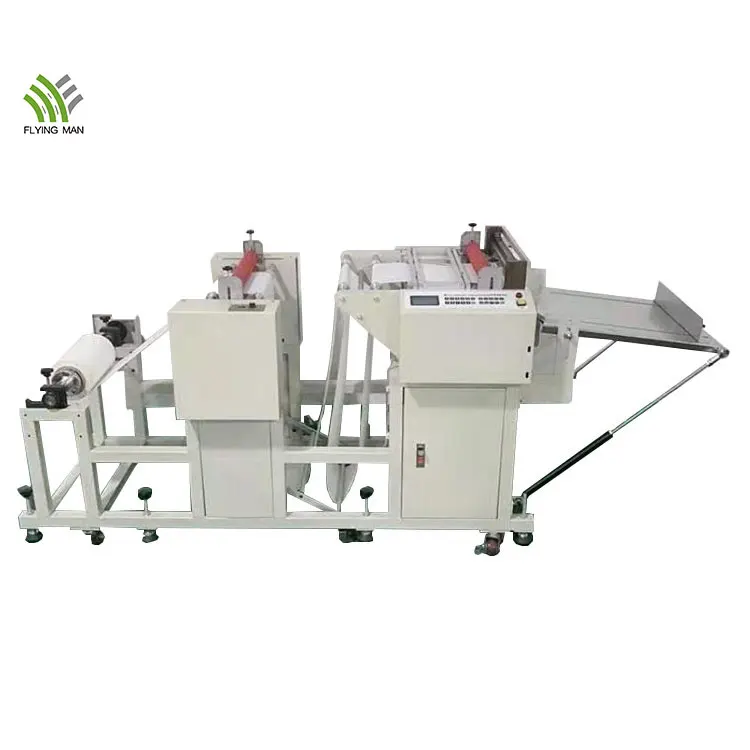

FMHZ машина для резки фиксированной длины EPE перламутрового хлопка автоматическая рулонов на лист
- Категория: Cloth Cutting Machines >>>
- Поставщик: Suzhou Flying Man Assembly Automation Co. Ltd.
Сохранить в закладки 1600317372630:
Описание и отзывы
Характеристики
Video Description
Products Description
This machine adopts microcomputer numerical control display device, cutting length/quantity, feeding speed is set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise, can quickly release material, and prevent material damage effectively with thimble type feeding mechanism.This machine mainly suitable for high speed cold/hot full/half cut strip.
High precision, low loss, model design in line with the principle of ergonomics, simple operation and high automation, saving a lot of manpower and material resources.
Product Paramenters
Fully automatic micro-computer cutting machine | ||||||||
Model | FMHZ-400A | FMHZ-500A | FMHZ-600A | FMHZ-700A | ||||
Cutting length | 0.1 mm-9999.9 mm | |||||||
Cutting Width | 0 - 400 mm | 0 - 500 mm | 0 - 600 mm | 0 - 700 mm | ||||
Cutting precision | 0.1 mm | |||||||
Feeding speed | Adjustable, max. running 36 m/minute | |||||||
Power | 1.2 kw | 1.5 kw | 1.8 kw | 2.0 kw | ||||
Voltage | 220 v/50 HZ | 220 v/50 HZ | 220 v/50 HZ | 220 v/50 HZ | ||||
Machine Weight | 145 kgs | 160 kgs | 200 kgs | 220 kgs | ||||
Machine size | 1700 x 665 x 984 mm | 1700 x 765 x 984 mm | 1700 x 865 x 984 mm | 1700 x 965 x 984 mm | ||||
Feeding motor | Stepper motor | |||||||
Cutting motor | 250 W reducer motor | |||||||
Feed roller | PUR: roller diameter 48mm, hardness 35 degree, the hardness of the lower roller is 75 degree | |||||||
Cutter material | SKD11 | |||||||
Performance Feature
Advantages & Features
- Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.
- Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.
- Large screen LCD display, easy to operate, simple and convenient.
- High speed feeding, under microcomputer program control, material's accuracy can be up to 0.1mm.
- The length and speed can be adjusted continuously to achieve high efficiency.
- Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.
- Set up automatic group accumulator and total accumulator count.
- Batch pause and delay time can be set.
- Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.
- Large screen LCD display, easy to operate, simple and convenient.
- High speed feeding, under microcomputer program control, material's accuracy can be up to 0.1mm.
- The length and speed can be adjusted continuously to achieve high efficiency.
- Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.
- Set up automatic group accumulator and total accumulator count.
- Batch pause and delay time can be set.
Function description
- Power: 2.0kw
- Adjustable speed: 0-99mm
- Adjustable length: 0.1mm—9999.9mm
- Total amount set: 1—999999
- “Function” key + "0" key: cutting knife delay
- "Function" key + "1" key: cutting tool interval
- "Function" key + "2" key: Batch suspension
- "Function" key + "3" key: Length Compensation
- "Function" key + "4" key: Cutting speed
- "Function" key + "5" key: Setting step length
- "Function" key + "6" key: Restore the factory default Settings
- Adjustable speed: 0-99mm
- Adjustable length: 0.1mm—9999.9mm
- Total amount set: 1—999999
- “Function” key + "0" key: cutting knife delay
- "Function" key + "1" key: cutting tool interval
- "Function" key + "2" key: Batch suspension
- "Function" key + "3" key: Length Compensation
- "Function" key + "4" key: Cutting speed
- "Function" key + "5" key: Setting step length
- "Function" key + "6" key: Restore the factory default Settings
Machine configuration.
- 1 pc power code
- Spanner No. 3, No. 4, No. 5 (one for each)
- 1 pc back-up insurance control
- 1 pc instruction manual
- Spanner No. 3, No. 4, No. 5 (one for each)
- 1 pc back-up insurance control
- 1 pc instruction manual
Control panel
Control panel is very simple, simple operation, full Chinese/English LCD screen, easy to set the feeding length, speed, batch amount, pause time with compensation function, function key +6 can also restore production Settings and so on.
Feeding device
Stable, convenient, all-in-one, high precision, large load bearing material can be placed variety of roll materials to cut.
Feeding roller
It is made of the latest glue formula with excellent high strength compression resistance, wear resistance and high temperature resistance, so that the product is not easy to be scratched or crushed when conveying. It can also reduce the error of cutting.
Imported white steel knife
High performance adjusting steel knife, it's not easy to wear after special treatment, multiple screws fixed, no need to adjust
the knife.
the knife.
Cooling fan
With the function of heat exhaust, these two cooling fans can reduce the heat of the machine for long time production and prolong the service life of the equipment.
Pressure regulating screw
The pressure regulating screw is used to control the pressure of feeding roller, and can directly control the precision of cutting.
Product Application
FMHZ series fully automatic micro-computerized cutting machine can be used for cutting non-woven cloth, wall paper, PVC film, reflective film, copper foil, aluminum foil, glass cloth, fiber cloth, mobile phone film, plastic slice, bubble film, flannelette and etc. Cutting width from 0.1-1100mm, different model of cutting width is different, cutting thickness is also different. The maximum cutting thickness is 0.8mm.
It is widely used in electronics industry, automobile and motorcycle parts industry, clothing and leather industry, electrical appliances, motors, toys, transformers and other industries (different materials have different requirements).
It is widely used in electronics industry, automobile and motorcycle parts industry, clothing and leather industry, electrical appliances, motors, toys, transformers and other industries (different materials have different requirements).
Whole Service
Technical Service
- Free sample testing and video for your reference.
- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.
Training service
Free training in our factory available before delivering machines.
Engineers available to service machinery overseas. Overseas service center in Vietnam available.
Engineers available to service machinery overseas. Overseas service center in Vietnam available.
After Sales Service
- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation.
- One-year warranty, whole life technical support.
- One-year warranty, whole life technical support.
- 24 hours technical support, we will do our best to help our customers solve problems.
- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
company profile
FAQ
Q: Are you a factory or trading company?
A: We are a factory and manufacturer.
Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Kunshan city, Jiangsu province, and our detailed address is: No.1008, Xiangshi Road, Bacheng Town, Kunshan City, JiangSu Province, China.
It’s only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.
Q: what are your main products?
A: Our main products are high speed precision die cutting machines, cutting machines, slitting machines, laminating machines and printing machines.
Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, die cut raw materials can use our machines. Mainly used for material before and after cutting and/or printing.
Q: How to control the quality in your factory?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE Certification.
Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirement. 30% of our current customer need customization on their machines.
Q: Is there a branch or after-sales service point abroad?
A: We have a branch in Vietnam and we can provide after-sales service in Vietnam.
Q: How about package?
A: High quality PE film will be covered on machine body before putting the plywood wooden carton. It's easy for forklift to upload and download. Safety transportation.
Q: What's the trade term?
A: EXW, FOB, CFR, CIF or DDU are all workable based on customer’s requirement.
Q: What is the terms of payment you accept?
A: We can accept the T/T payment, we need 30% of total amount as deposit and 70% balance should be paid before delivery, we can also accept the L/C, PayPal, Private account, Cash and others.
Q: What about the warranty?
A: All of our machines have 1-year warranty, if need, we can send engineer to install and test to your factory, buyer should pay for the round air-tickets, food, hotel and transport, and also pay our engineer 100 USD / day / person as salary.
In warranty period, if spare parts broken, we exchange them free. after the warranty period, we supply the machine’s full life service, buyer should pay for the material cost of exchanging spare parts and repairing.
Your question will be highly appreciated.
A: We are a factory and manufacturer.
Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Kunshan city, Jiangsu province, and our detailed address is: No.1008, Xiangshi Road, Bacheng Town, Kunshan City, JiangSu Province, China.
It’s only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.
Q: what are your main products?
A: Our main products are high speed precision die cutting machines, cutting machines, slitting machines, laminating machines and printing machines.
Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, die cut raw materials can use our machines. Mainly used for material before and after cutting and/or printing.
Q: How to control the quality in your factory?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE Certification.
Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirement. 30% of our current customer need customization on their machines.
Q: Is there a branch or after-sales service point abroad?
A: We have a branch in Vietnam and we can provide after-sales service in Vietnam.
Q: How about package?
A: High quality PE film will be covered on machine body before putting the plywood wooden carton. It's easy for forklift to upload and download. Safety transportation.
Q: What's the trade term?
A: EXW, FOB, CFR, CIF or DDU are all workable based on customer’s requirement.
Q: What is the terms of payment you accept?
A: We can accept the T/T payment, we need 30% of total amount as deposit and 70% balance should be paid before delivery, we can also accept the L/C, PayPal, Private account, Cash and others.
Q: What about the warranty?
A: All of our machines have 1-year warranty, if need, we can send engineer to install and test to your factory, buyer should pay for the round air-tickets, food, hotel and transport, and also pay our engineer 100 USD / day / person as salary.
In warranty period, if spare parts broken, we exchange them free. after the warranty period, we supply the machine’s full life service, buyer should pay for the material cost of exchanging spare parts and repairing.
Your question will be highly appreciated.
