Product Overview

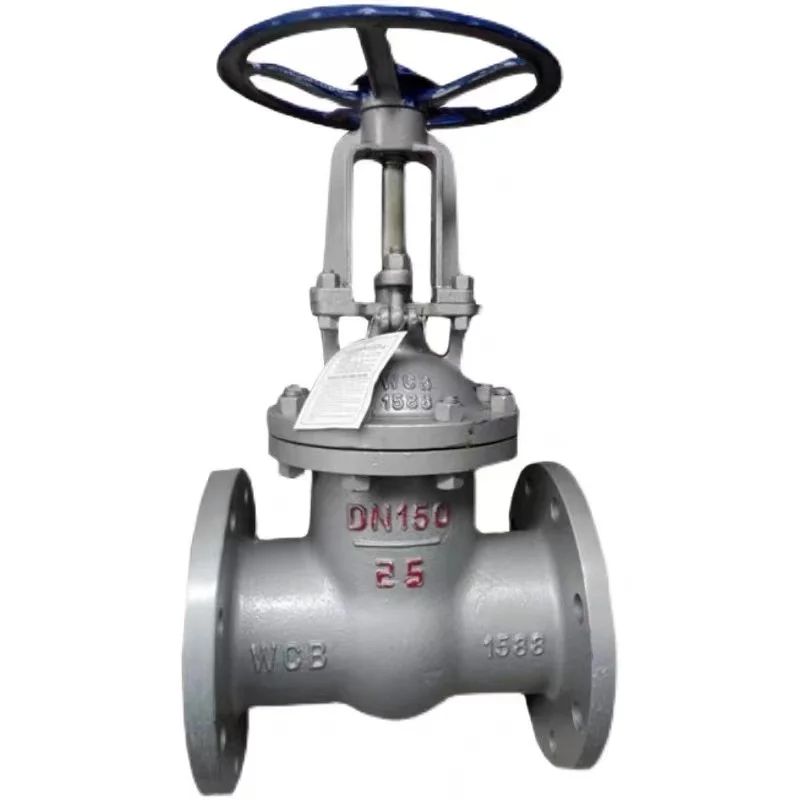

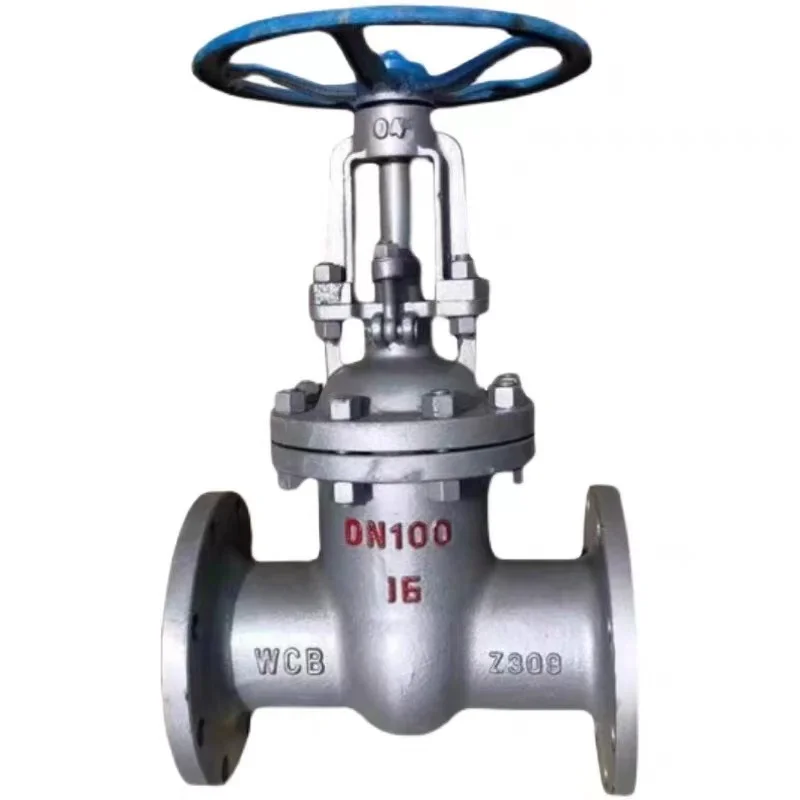

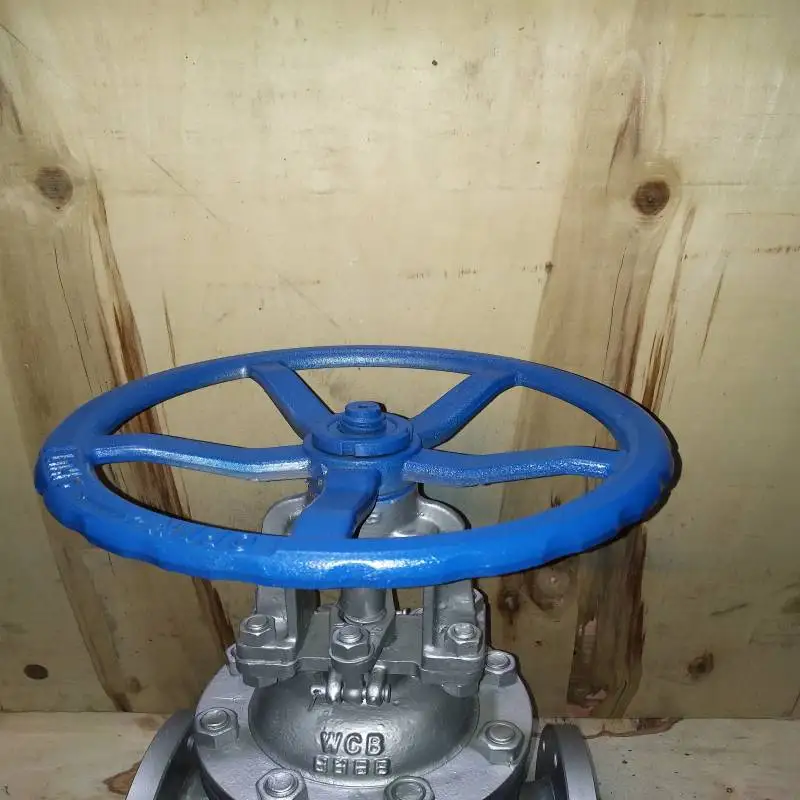

Flange gate valve
The gate valve refers to the valve whose closing part (gate) moves along the vertical direction of the center line of the passage. The gate valve is mainly used for cutting off in the pipeline. Flexible and reliable action, excellent sealing performance.
The concealed rod stainless steel gate valve has compact structure, reasonable design, good valve rigidity, smooth passage, large flow coefficient, small flow resistance coefficient, simple structure and easy maintenance. The sealing surface adopts non-carrying steel and hard alloy, which has a long service life. Using flexible graphite packing, reliable sealing, light and flexible operation.
The concealed rod stainless steel gate valve has compact structure, reasonable design, good valve rigidity, smooth passage, large flow coefficient, small flow resistance coefficient, simple structure and easy maintenance. The sealing surface adopts non-carrying steel and hard alloy, which has a long service life. Using flexible graphite packing, reliable sealing, light and flexible operation.

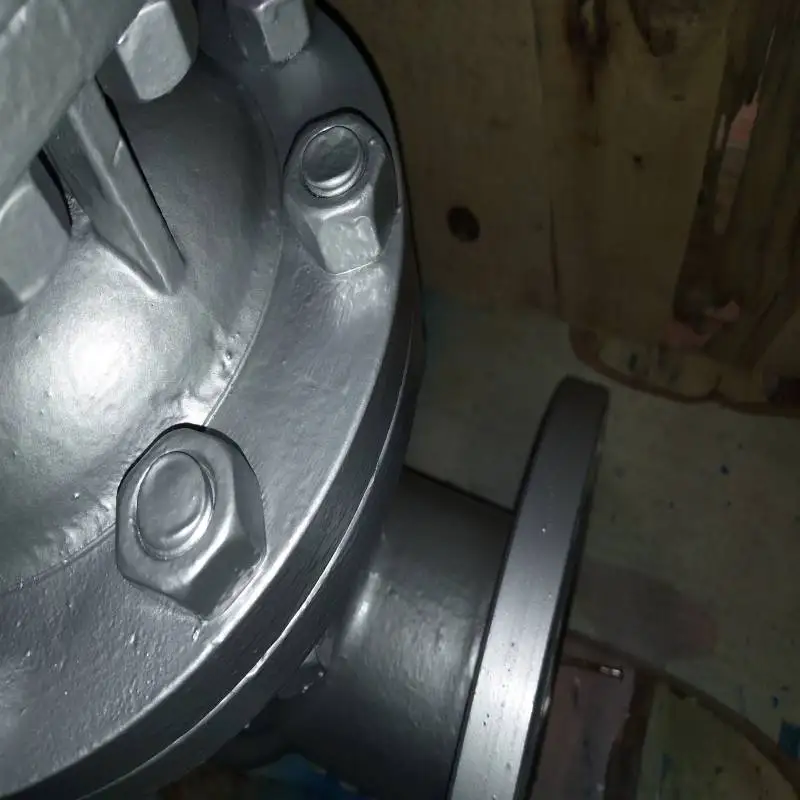

Details Images
Manufacturing Technique
Performance parameter
Nominal pressure | PN1.6,2.5,4.0,6.4Mpa | ||||
Strength test pressure | PT2.4, 3.8 ,6.0, 9.6Mpa | ||||
High pressure sealing test pressure | 1.8, 2.8, 4.4, 7.1 Mpa | ||||
Applicable medium:Water, oil, gas | |||||
Main Parts and Materials
No. | Part Name | Material |
1 | Valve body | WCB |
2 | Valve cover | WCB |
3 | Valve disc | WCB |
4 | Seal packing | PTFE flexible graphite |
Dimension
Size | L | D | D1 | D2 | b-f | z-φd | H | D0 |
15 | 130 | 95 | 65 | 45 | 14-2 | 4-φ14 | 150 | 120 |
20 | 150 | 105 | 75 | 55 | 14-2 | 4-φ14 | 165 | 120 |
25 | 160 | 115 | 85 | 65 | 14-2 | 4-φ14 | 180 | 140 |
32 | 180 | 135 | 100 | 78 | 16-2 | 4-φ18 | 230 | 160 |
40 | 200 | 145 | 10 | 85 | 16-3 | 4-φ18 | 260 | 180 |
50 | 250 | 160 | 125 | 100 | 16-3 | 4-φ18 | 315 | 240 |
65 | 265/270 | 180 | 145 | 120 | 18-3 | 4-φ18 | 335 | 240 |
80 | 280 | 195 | 160 | 135 | 20-3 | 8-φ18 | 370 | 280 |
100 | 300 | 215 | 180 | 155 | 20-3 | 8-φ18 | 410 | 300 |
125 | 325 | 245 | 210 | 185 | 22-3 | 8-φ18 | 465 | 320 |
150 | 350 | 280 | 240 | 210 | 24-3 | 8-φ23 | 505 | 350 |
200 | 400 | 335 | 295 | 265 | 26-3 | 12-φ23 | 606 | 400 |
250 | 450 | 405 | 355 | 320 | 30-3 | 12-φ26 | 705 | 450 |
300 | 500 | 460 | 410 | 375 | 30-4 | 12-φ26 | 820 | 500 |
350 | 550 | 520 | 470 | 435 | 34-4 | 16-φ26 | 930 | 55。 |
400 | 600 | 580 | 525 | 485 | 36-4 | 16-φ30 | 1030 | 550 |
450 | 650 | 640 | 585 | 545 | 40-4 | 20-φ30 | 1150 | 600 |
500 | 700 | 705 | 650 | 608 | 44-4 | 20-φ34 | 1260 | 700 |
600 | 800 | 840 | 770 | 718 | 48-5 | 20-φ41 | 1380 | 800 |
Recommend Products
Company Profile
Guangdong OGV Valve Co., ltd is a cooperative enterprise which owns R &D division, production line and sales channel, and with 16 years of industry experience, dedicated to provide customers one-stop procurement services and solutions; specifically committed to the R&D of valve, electric actuators and pneumatic automatic control equipment system. Manufactured products have passed ISO9001 international quality management system, TS national pressure pipe components manufacturing license, CE certificate, FM, UL and American 3A health certification standards. Mentioned products have been widely used in various fields, such as paper making, pharmaceuticals, food, chemical, petroleum, air-condition, water supply and industrial automation and so on.
Our factory ,professional manufacturer with modern production machinery,also can do custom made.
Our warehouse has a large amount of inventory and short delivery time,we can send goods within 3-5 days.
Professional container loading, wonderful packaging,customer satisfaction is very high!
Engineering installation cases reported by customers
Certifications
Product packaging
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-Usually we can ship within 3-5 days for small quantity, and about 15 days for large quantity.
4.What is your MOQ?
-Our product MOQ is 1 pcs.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-Usually we can ship within 3-5 days for small quantity, and about 15 days for large quantity.
4.What is your MOQ?
-Our product MOQ is 1 pcs.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
Похожие товары
Сборная рамка для творчества, подвесная деревянная Магнитная постерная вешалка, деревянная фоторамка для фотографий из массива дерева

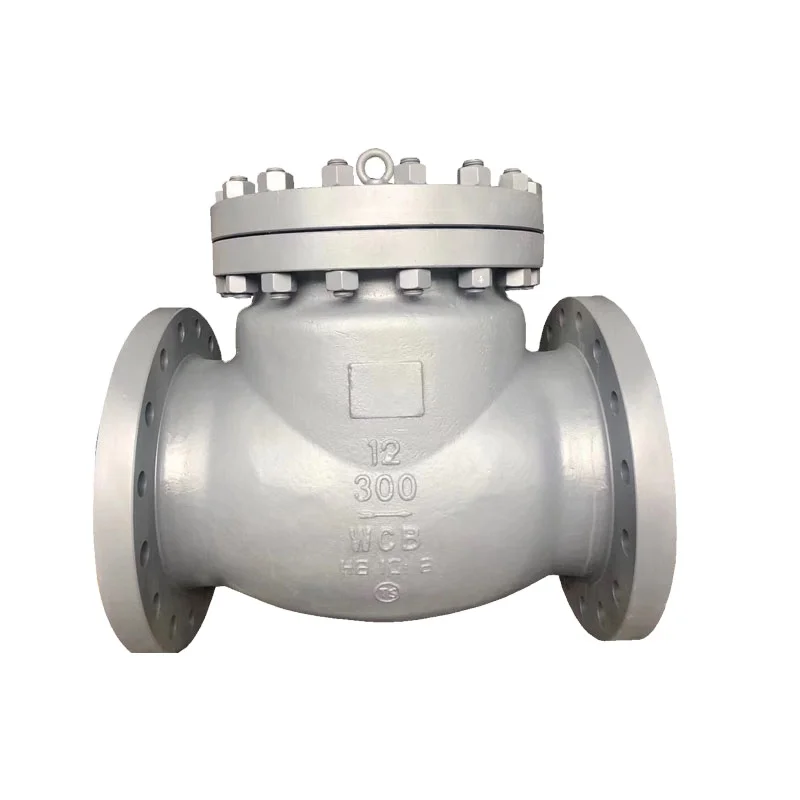

API ANSI нержавеющая сталь/A216 Wcb 150lb фланцевый обратный клапан
