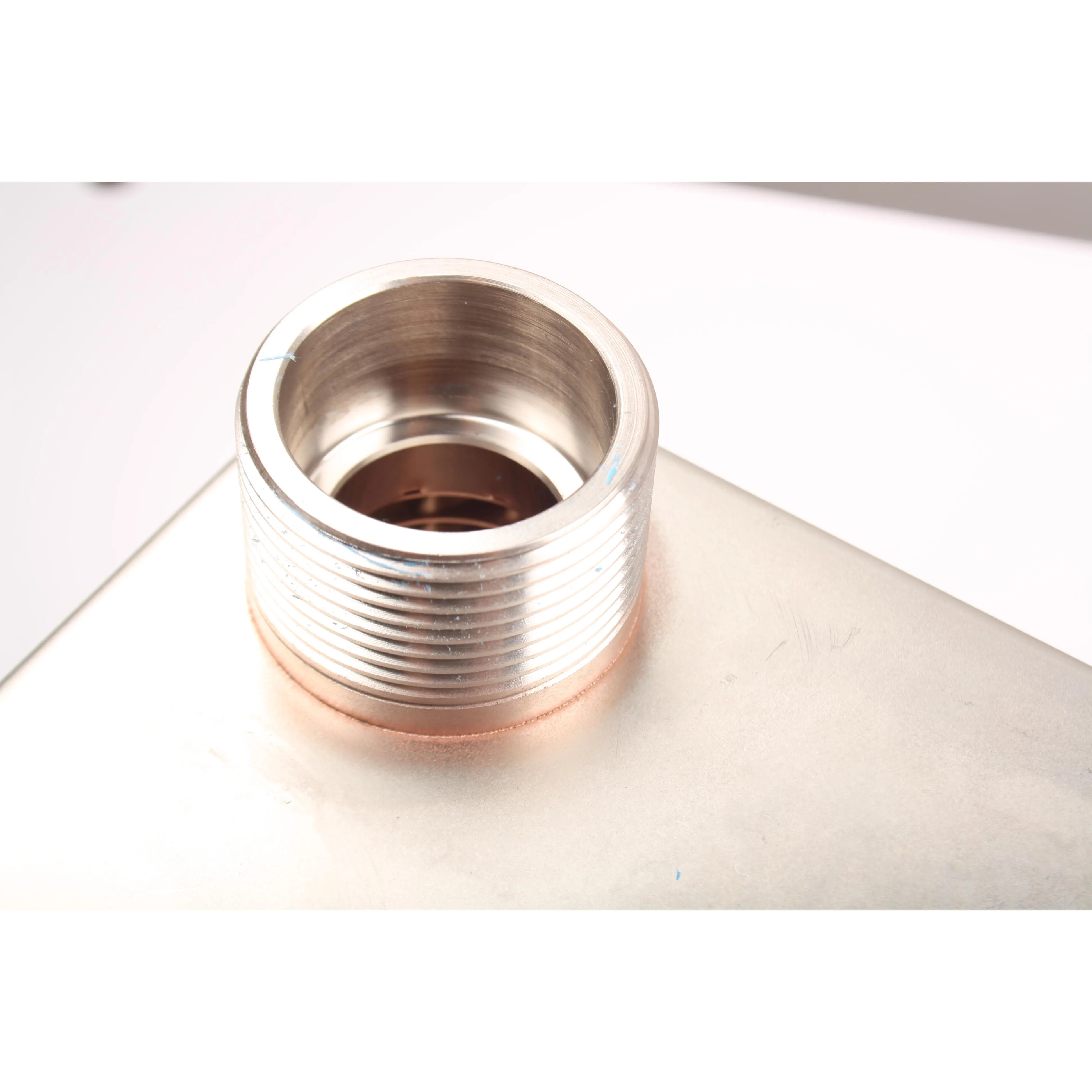

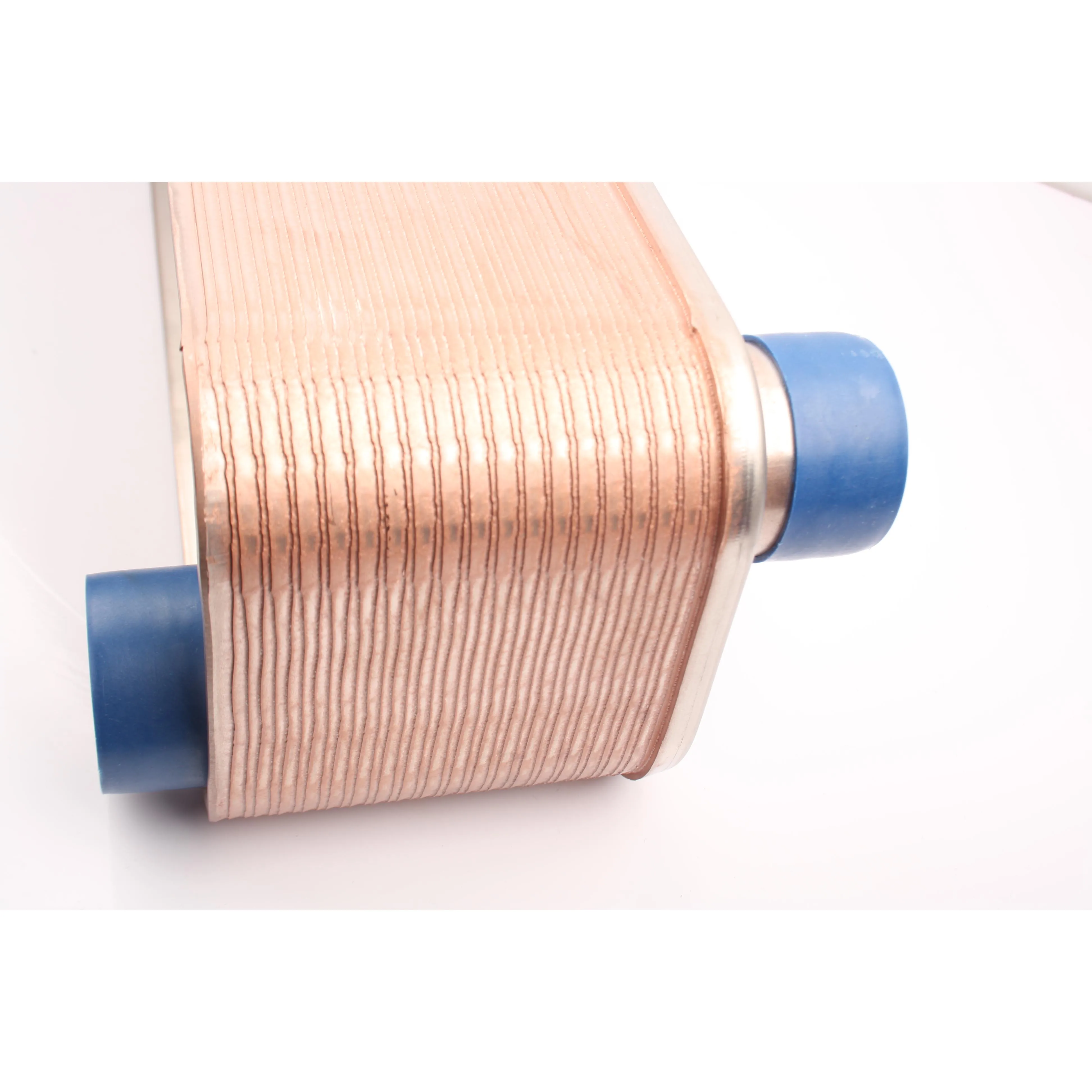

Шестеренчатый масляный охладитель стальной ленты мельница теплообменник сварочный паяный пластинного типа
- Категория: Refrigeration & Heat Exchange Parts >>>
- Поставщик: Changzhou Aidear Refrigeration Technology Co. Ltd.
Сохранить в закладки 1600318513869:
Описание и отзывы
Характеристики
Product Overview

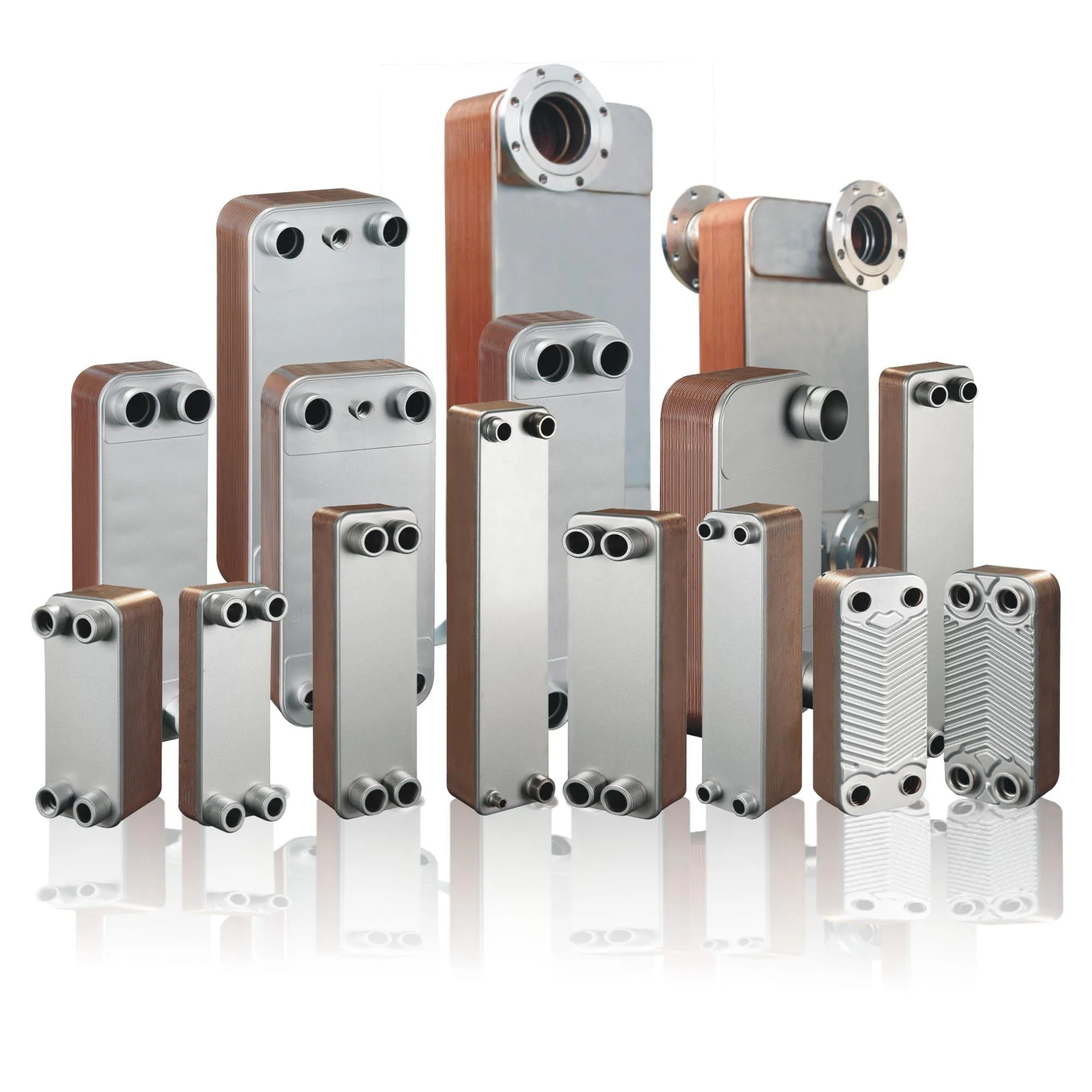

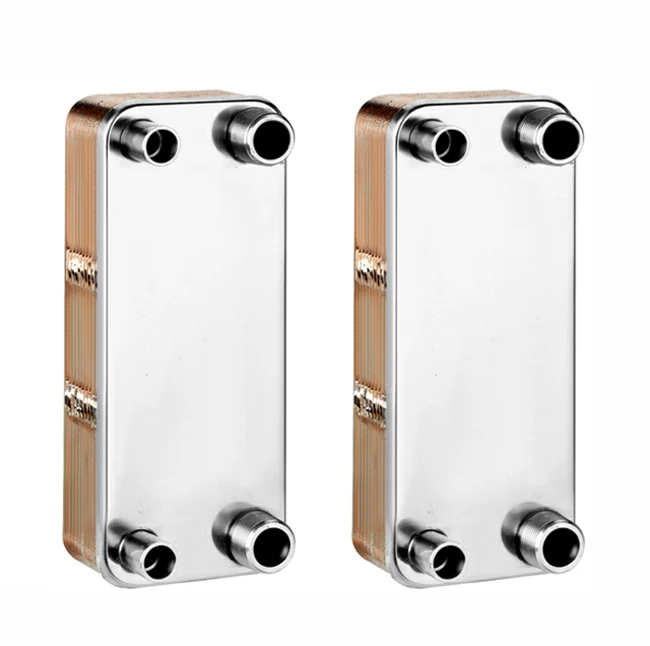

Brazed Plate Heat Exchanger
Typical Applications are follow:
• District heating/heating and ventilation
• Solar heating and air-conditioning units
• Heating pumps and heat recovering units
• Hydraulic oil units
• Refrigeration
• Compress air units
• District heating/heating and ventilation
• Solar heating and air-conditioning units
• Heating pumps and heat recovering units
• Hydraulic oil units
• Refrigeration
• Compress air units
The brazed plate heat exchanger is a compact, efficient and durable liquid-liquid heat exchanger. This heat exchanger consists of stacked plates brazed together, usually in a corrugated design to increase surface area and thermal conductivity. Due to the efficient counter-flow design, 90% of the material of the brazed plate heat exchanger can be used for heat conduction. This heat exchanger profile is 80-90% smaller than the traditional shell and tube design. The brazed plate construction creates a robust, efficient and durable heat exchanger that can stand up to harsh environments.
Materials of products
Ø Top and end plate: SS 304
Ø Heat transfer plates: SS304 or SS316L
Ø connectors: SS304 or SS316L
Ø Heat transfer plates: SS304 or SS316L
Ø connectors: SS304 or SS316L
Ø solder: copper/Nickel
Specifics of the products
Ø temperature acceptance as designed: -160℃～+225℃
Ø pressure acceptance:3.0/4.5 MPa
Ø test pressure:4.5/6.5MPa
Ø certification: PDE
Specifics of the products
Ø temperature acceptance as designed: -160℃～+225℃
Ø pressure acceptance:3.0/4.5 MPa
Ø test pressure:4.5/6.5MPa
Ø certification: PDE
PRODUCT SPECIFICATIONS
1 | Product name | Stainless Steel Brazed Plate Heat Exchanger |
2 | Plate material | Aluminium, copper, stainless steel, cuni, titanium |
3 | Voltage | AC220v/380v/customized ,50Hz/60Hz |
4 | Max working pressure | 4.5 Mpa |
5 | Features | High heat transfer efficiency,Wide range of applications,low heat loss,Favorable utilization of low temperature heat sources |
6 | Warranty | 1 Year |
7 | Application | Pasteurization Normal cooling and heating in such industries as dairy, brewage, beverage, food, etc. Heating and cooling in pharmaceutical industry. |
FEATURES AT A GLANCE
The brazing material and plate corrugation pattern can be configured to suit different working fluids and system requirements. Our
copper brazing units are compatible with water, ethylene glycol based aqueous solutions (EGW) and other common coolants.
copper brazing units are compatible with water, ethylene glycol based aqueous solutions (EGW) and other common coolants.
Copper brazed units are available for operation at temperatures up to 195°C (383°F) and pressures up to 31 bar (450 psig). Nickel brazed plate heat exchangers can be used to deionize water, high-purity fluids, and corrosive liquids and operate at temperatures up to 350°C (662°F) and pressures up to 16 bar (232 psig).
About Aidear
Aidear
An excellent, specialized refrigeration system solutions provider.
Main products are tube and fin heat exchangers, Microchannel heat exchanger, air cooler, condenser and units, raw materials and the components for heat exchangers, automatic machines for heat exchangers, and the complete solutions for customer.
Main products are tube and fin heat exchangers, Microchannel heat exchanger, air cooler, condenser and units, raw materials and the components for heat exchangers, automatic machines for heat exchangers, and the complete solutions for customer.
Aidear
Based on Honesty, Responsible, Technology and continuous Innovation.
Work on refrigeration resource integration & solutions, one station service for customer Persist in customer first, always think for customer Focus on create Maximum value for customer
Work on refrigeration resource integration & solutions, one station service for customer Persist in customer first, always think for customer Focus on create Maximum value for customer
Aidear, your idea!

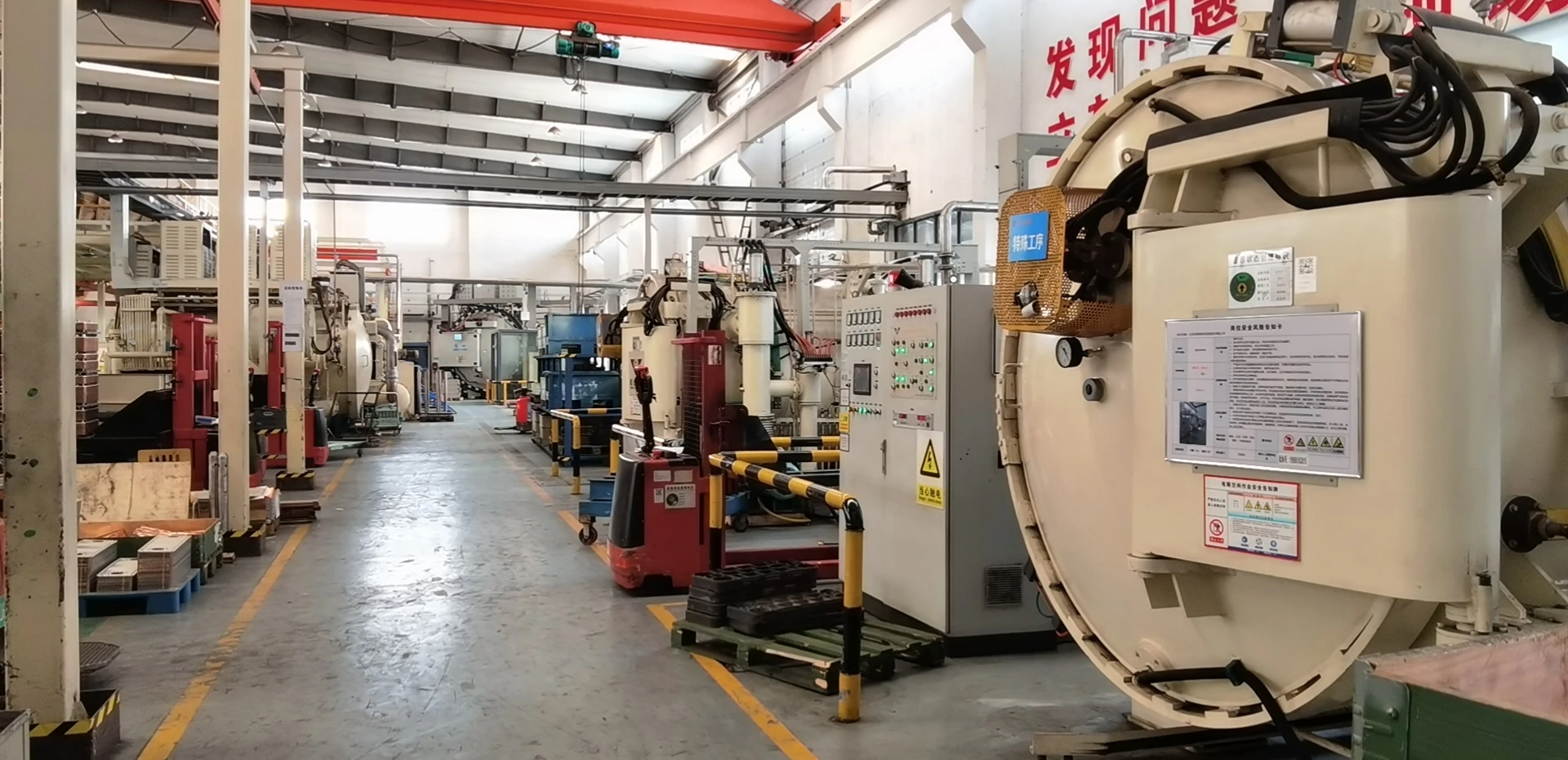

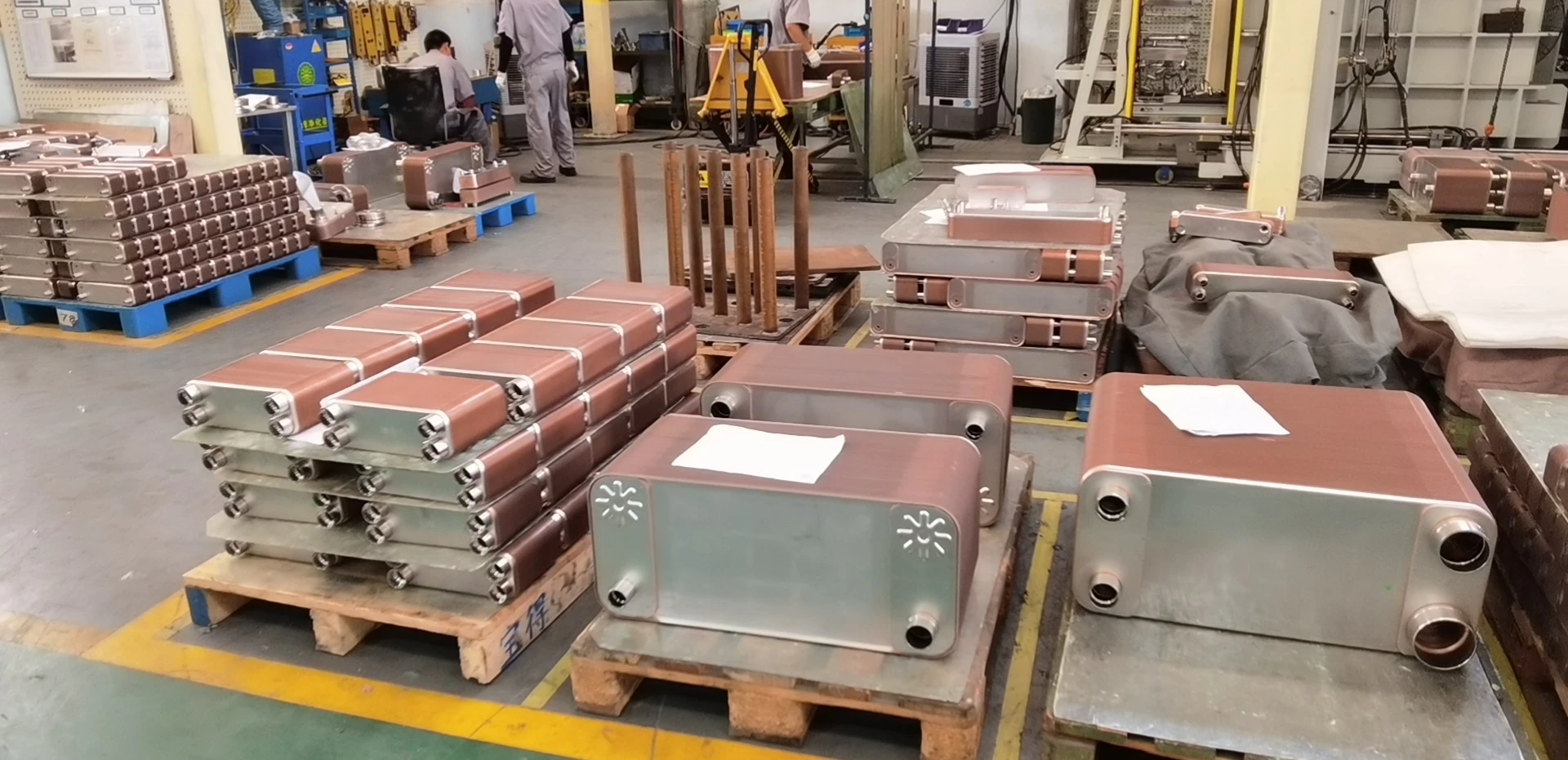

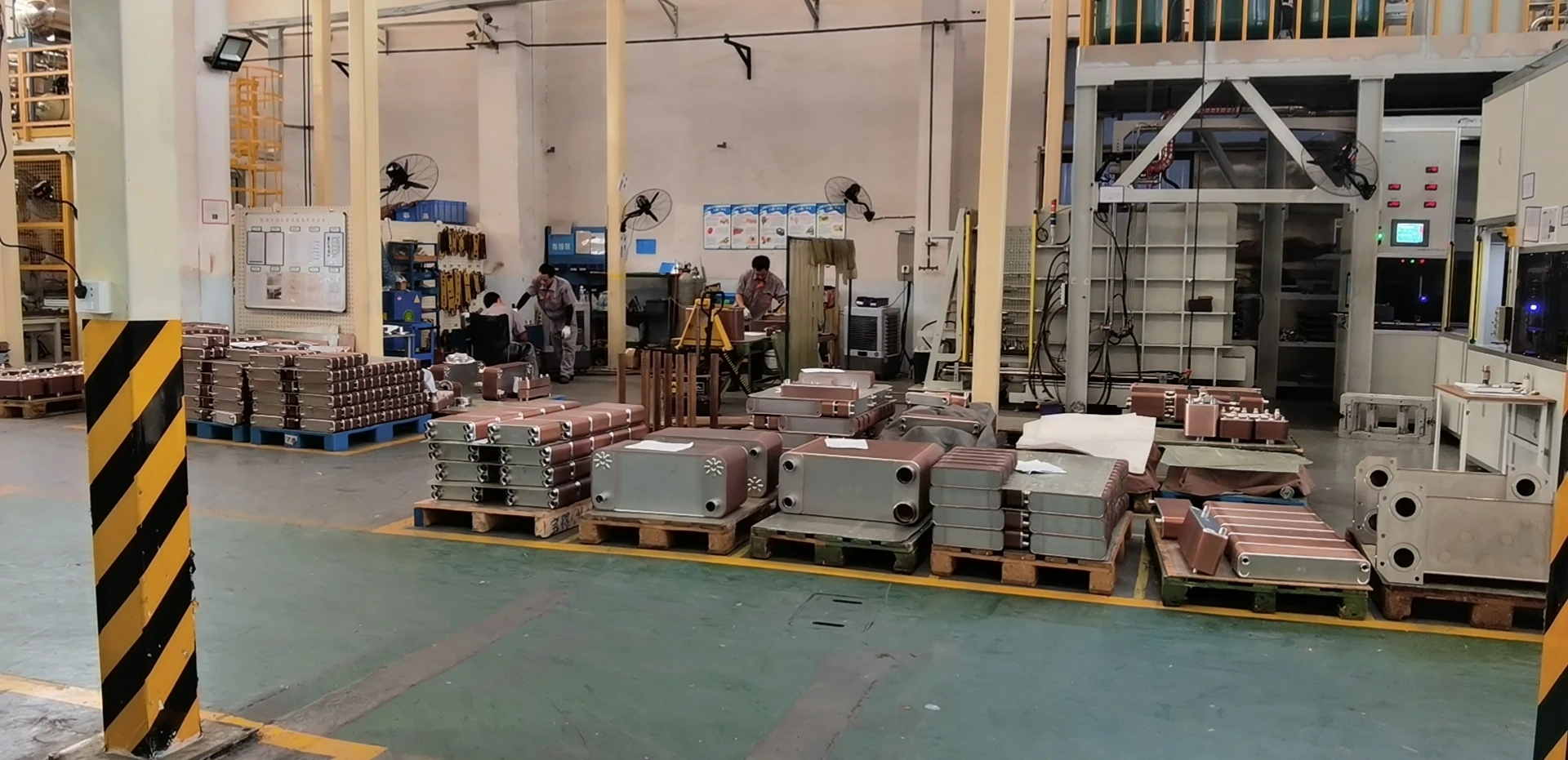

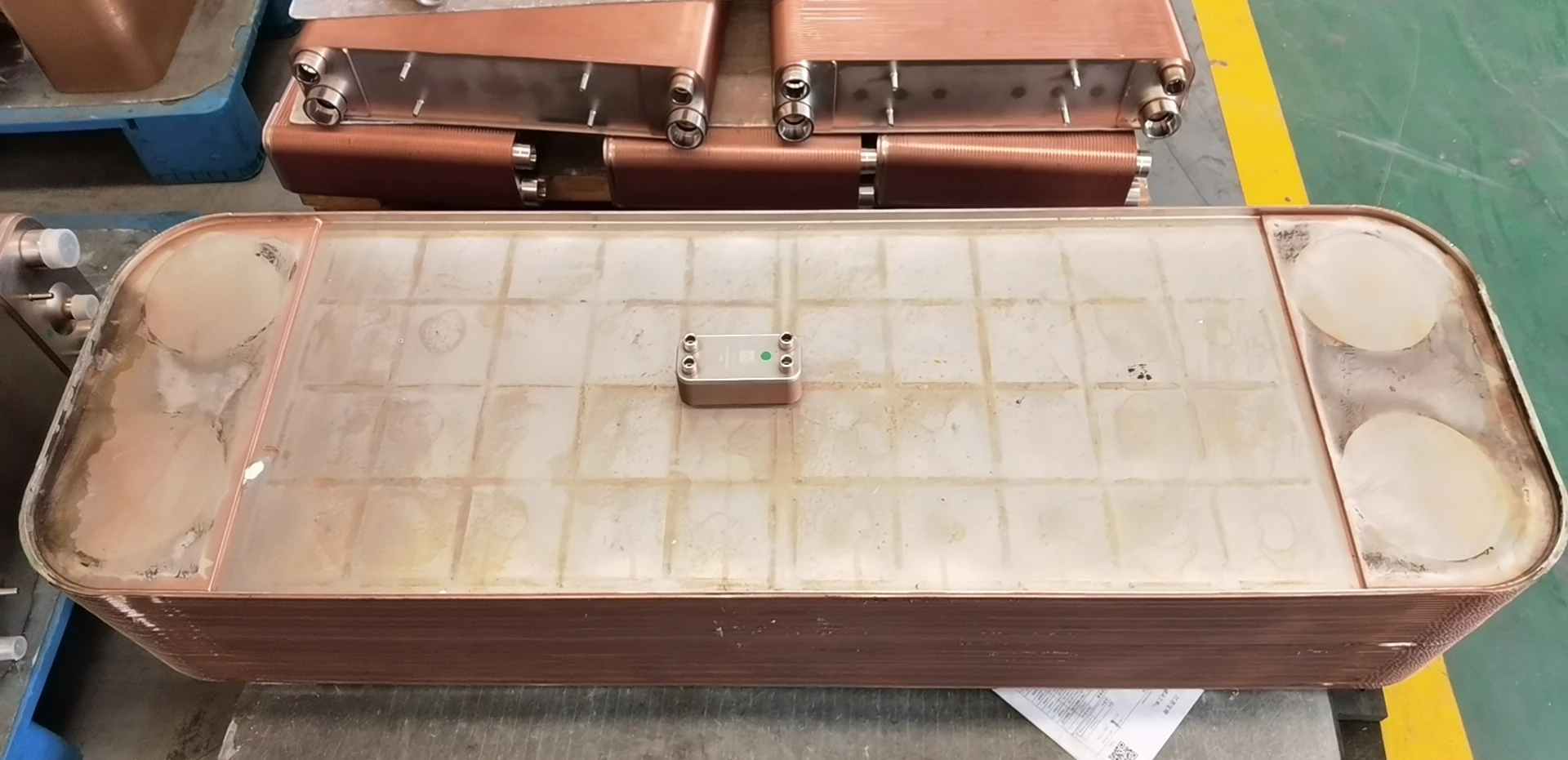

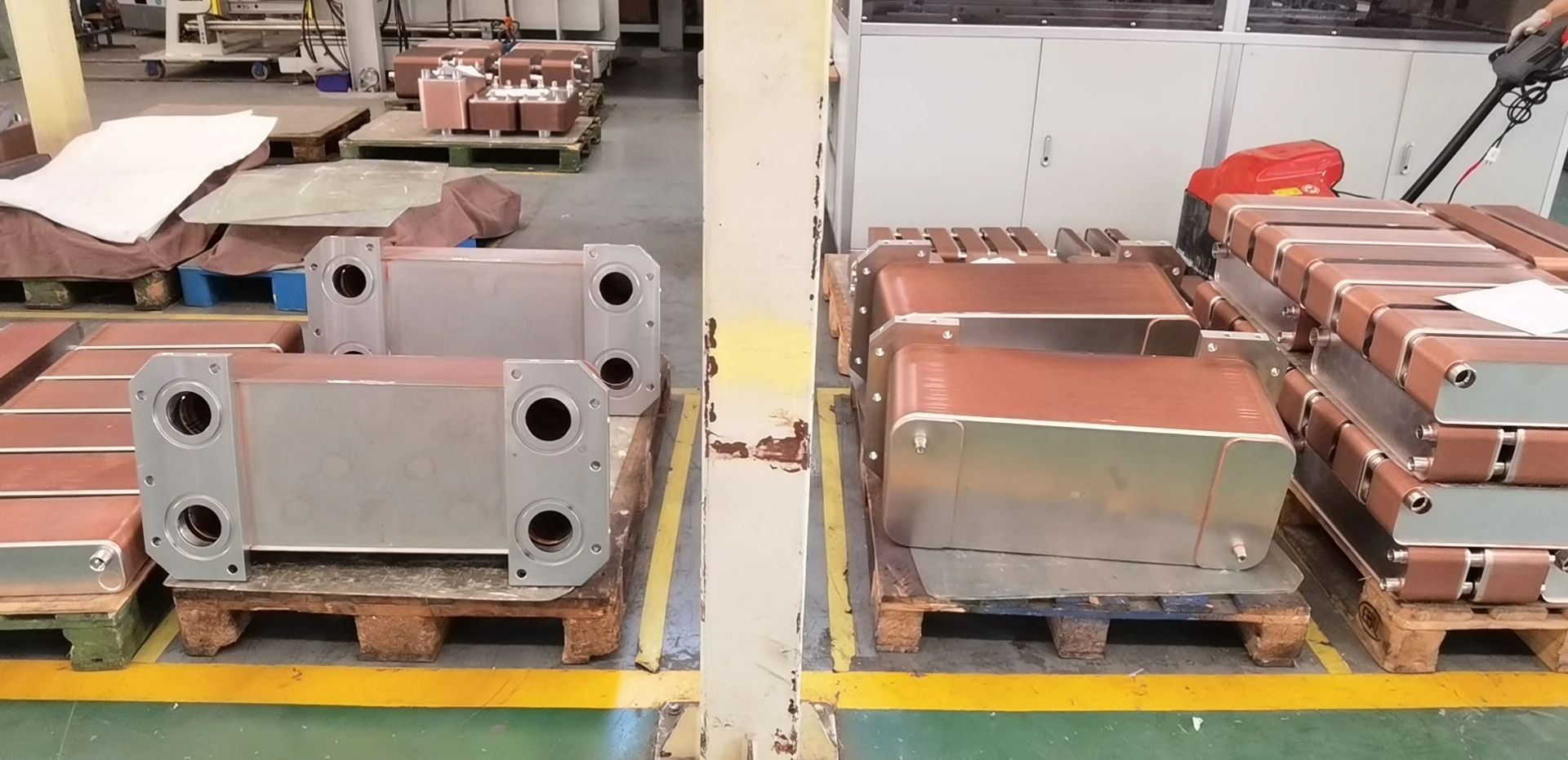

Factory Tour
FAQ
1. Q: I haven't done business with you guys before,how can I trust your company?
A: Our company has been in Alibaba.com for 5 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough.
2. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.
3. Q: How can I get a sample to check your quality? How long can I get the sample?
A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
4. Q: What payment methods your company accept?
A: We accept T/T, L/C, Western Union, Paypal.
5. Q: What's the shipment terms and delivery time of your company?
A: FOB,CFR,CIF,15-50days
6. Q: Do you give any discount ?
A: We'll surely try our best to help you get those by the best price and good service at the same time.
A: Our company has been in Alibaba.com for 5 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough.
2. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.
3. Q: How can I get a sample to check your quality? How long can I get the sample?
A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
4. Q: What payment methods your company accept?
A: We accept T/T, L/C, Western Union, Paypal.
5. Q: What's the shipment terms and delivery time of your company?
A: FOB,CFR,CIF,15-50days
6. Q: Do you give any discount ?
A: We'll surely try our best to help you get those by the best price and good service at the same time.
Product packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
