Product Description
Small oil refinery machine is more suitable for household and small workshop, with the wide application for soybean oil refinery, peanut oil refinery, sunflower seeds oil refinery, cotton seeds oil refinery, canola oil refinery, linseeds oil refinery, rice bran oil refinery, coconut oil refinery, palm oil refinery, cator oil refinery, etc...
Clients'feedback

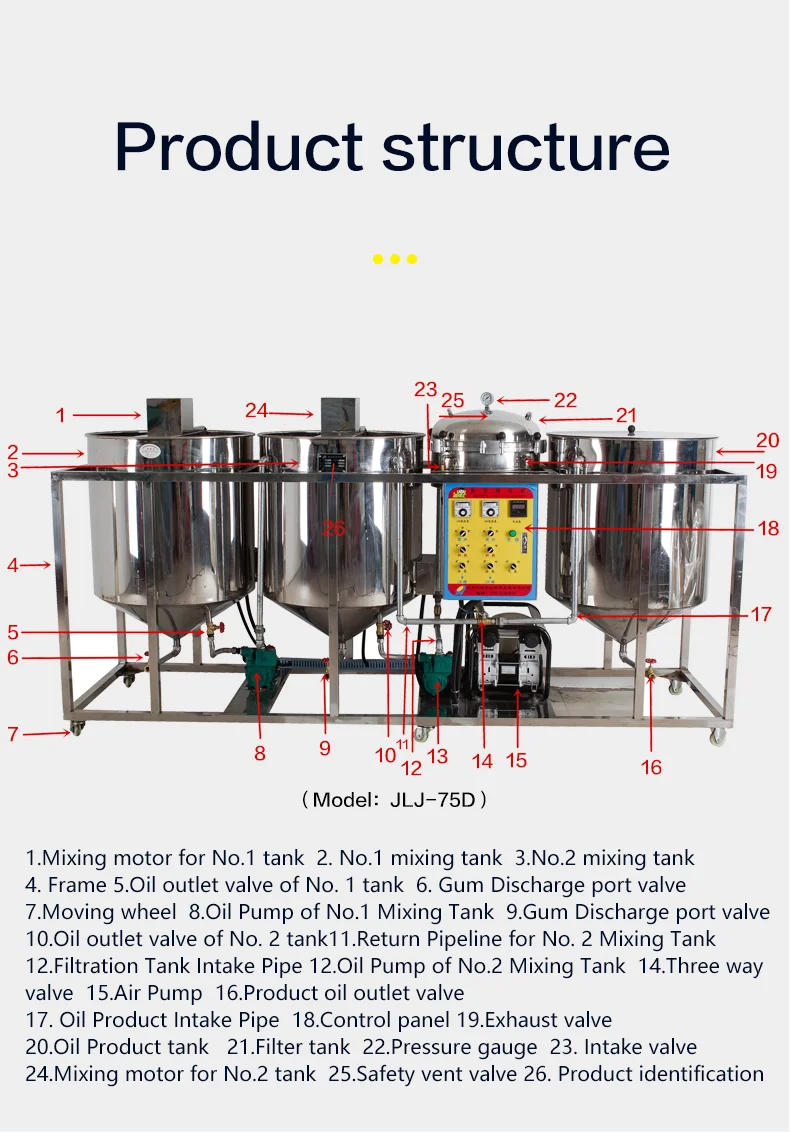

Product structure
Structure of oil refining machine:
1.small edible oil refinery machine structure:
The machine is consist of hydration deguming&deacidification system, filter de-coloring, transmission system, oil liquid conveying system, transmission and lubrication system, electrical control system and machine frame.

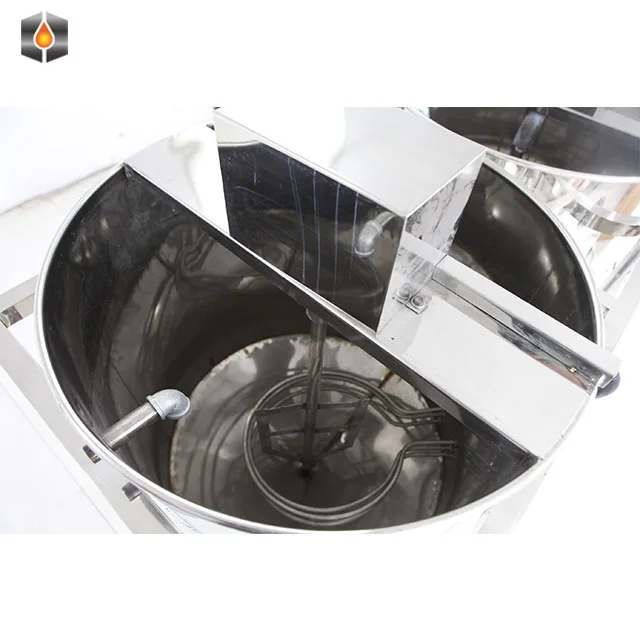

2.hydration deguming&deacidification system of our small edible oil refinery machine:
This part is consist of mixer, deguming tank, gum outlet and transfer pipe

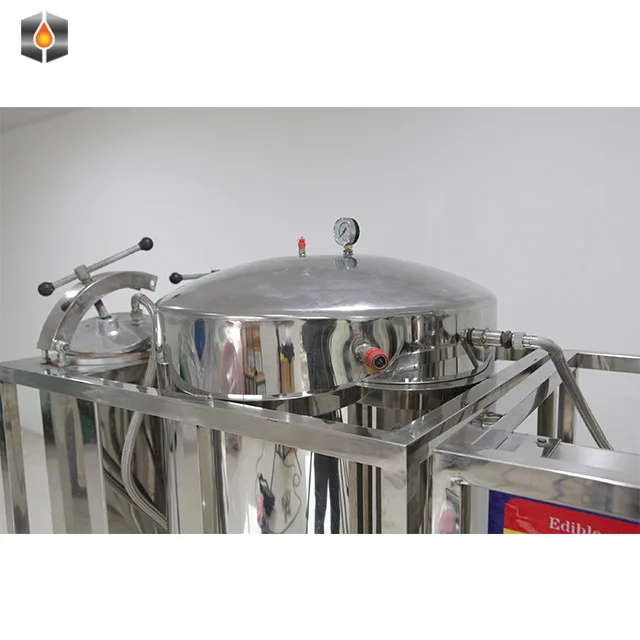

3.filter de-coloring system of our small edible oil refinery machine:
This part is consist of oil inlet, a sealing cover, cover handle, fine filter bucket, oil collecting tank, filter cloth, and oil outlet.
4.transmission system of our small edible oil refinery machine:
This part is consist of speed control motor, motor controller, governor and power module

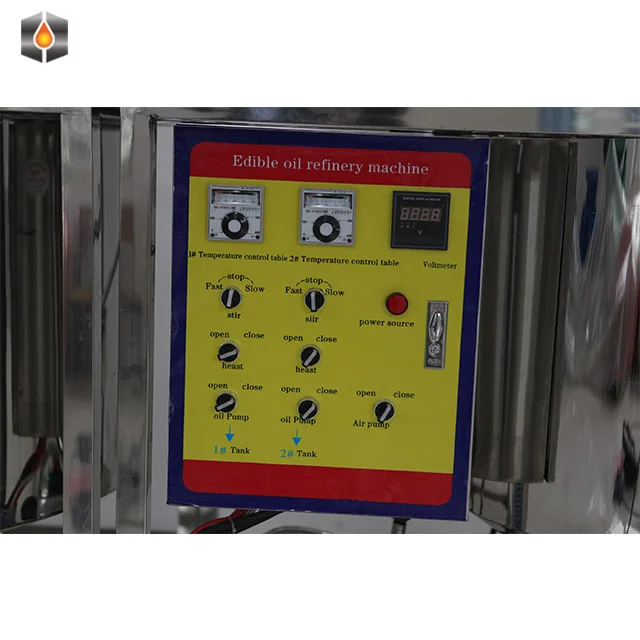

5.electrical control system of our small edible oil refinery machine:
This part is consist of miniature circuit breaker, motor controller, power supply module, contactor, relay, potentiometer and knob.
1.small edible oil refinery machine structure:
The machine is consist of hydration deguming&deacidification system, filter de-coloring, transmission system, oil liquid conveying system, transmission and lubrication system, electrical control system and machine frame.
2.hydration deguming&deacidification system of our small edible oil refinery machine:
This part is consist of mixer, deguming tank, gum outlet and transfer pipe
3.filter de-coloring system of our small edible oil refinery machine:
This part is consist of oil inlet, a sealing cover, cover handle, fine filter bucket, oil collecting tank, filter cloth, and oil outlet.
4.transmission system of our small edible oil refinery machine:
This part is consist of speed control motor, motor controller, governor and power module
5.electrical control system of our small edible oil refinery machine:
This part is consist of miniature circuit breaker, motor controller, power supply module, contactor, relay, potentiometer and knob.

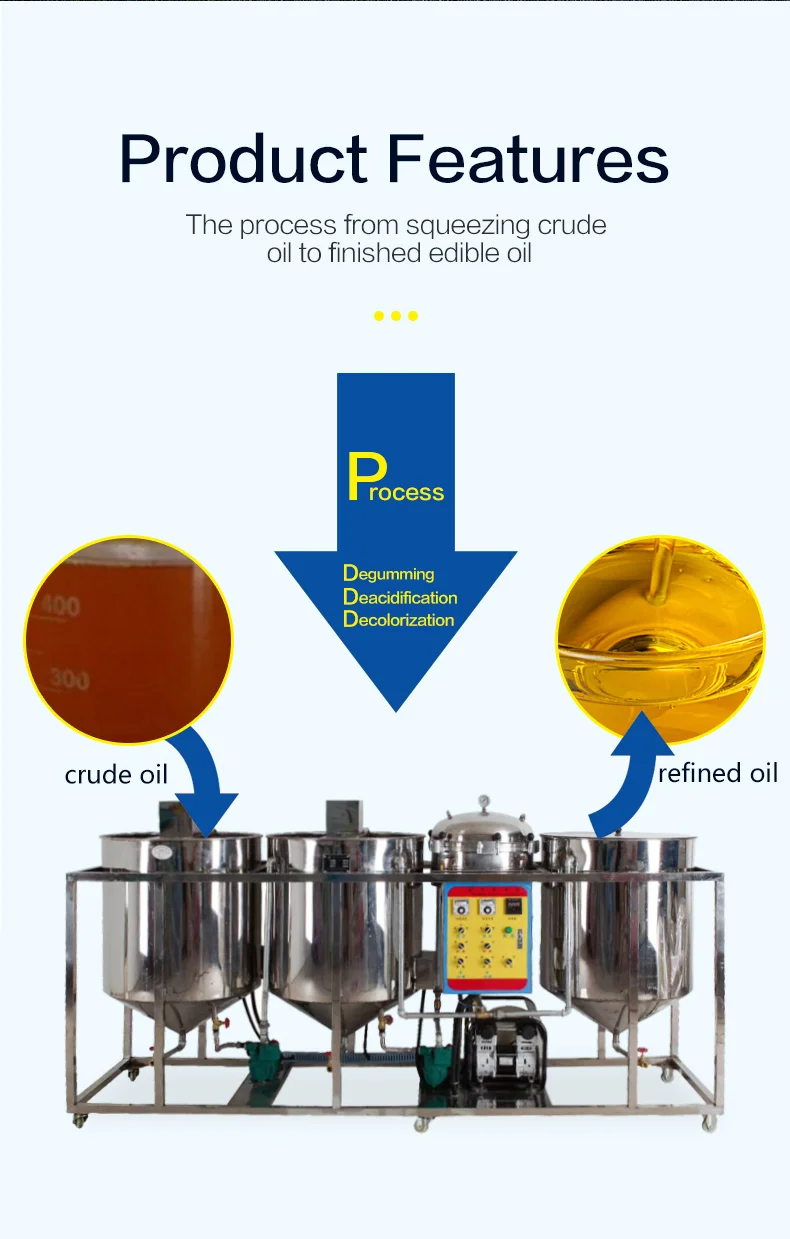

Features

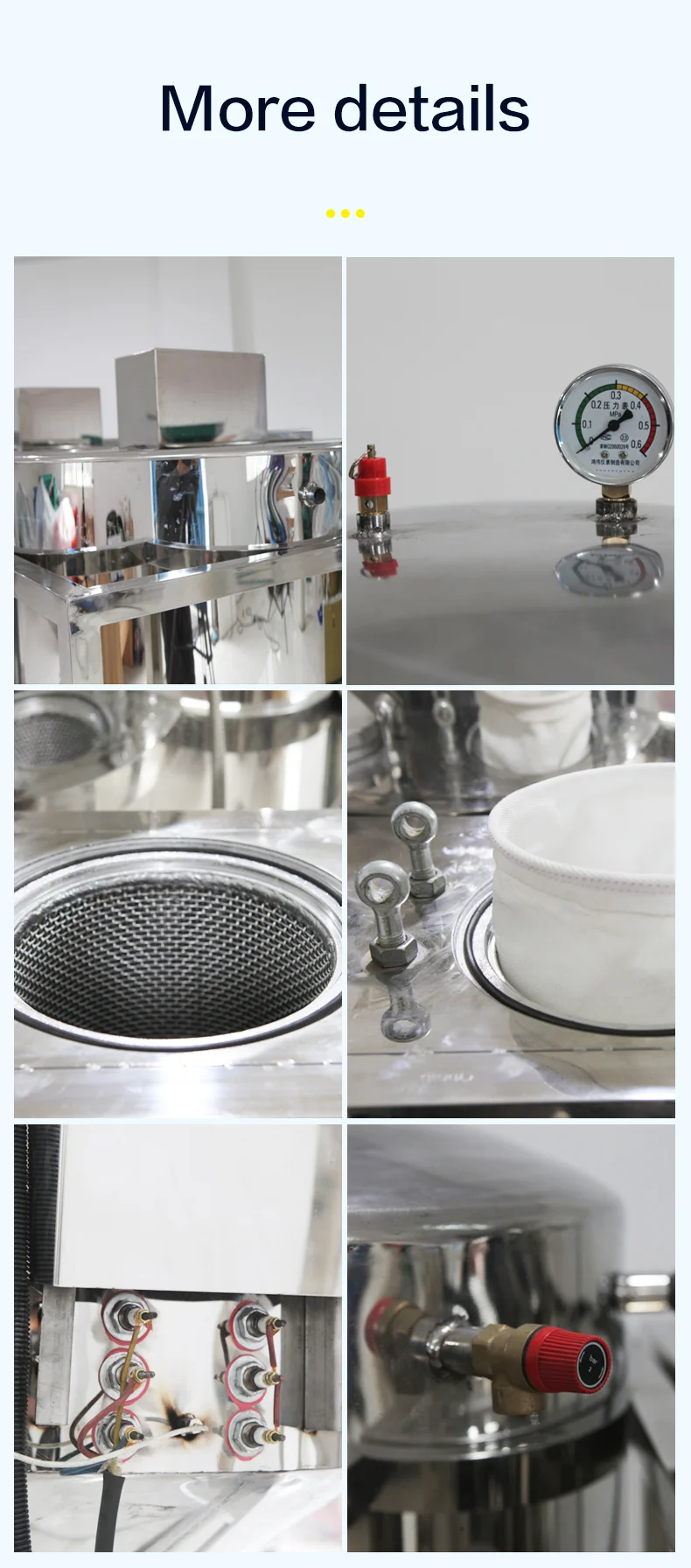

Details Images
Applactions

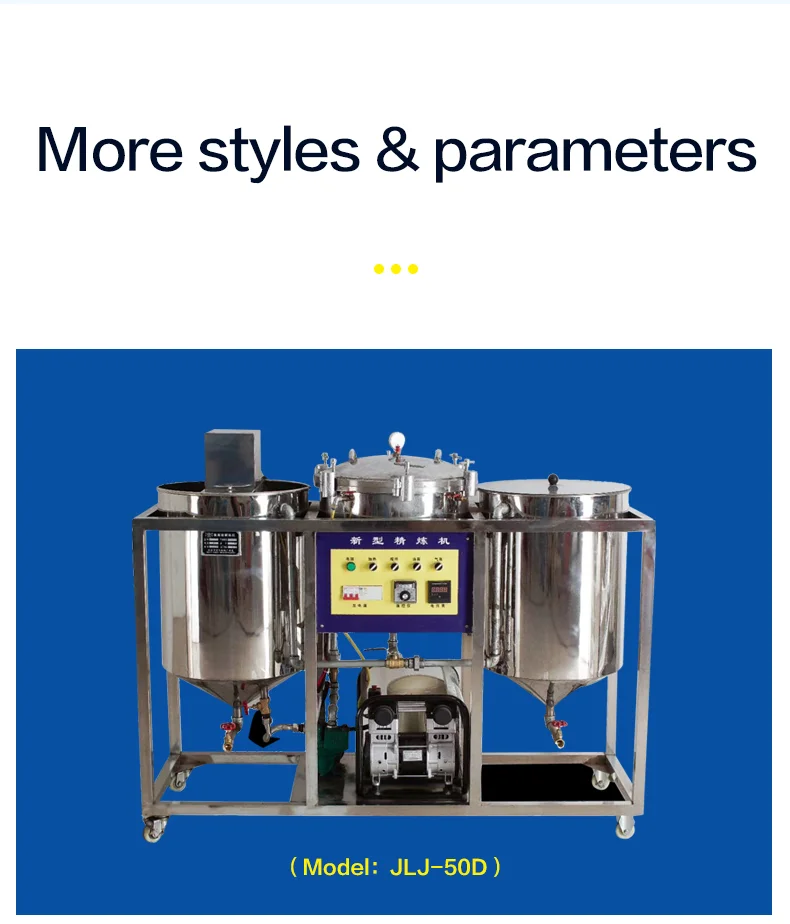

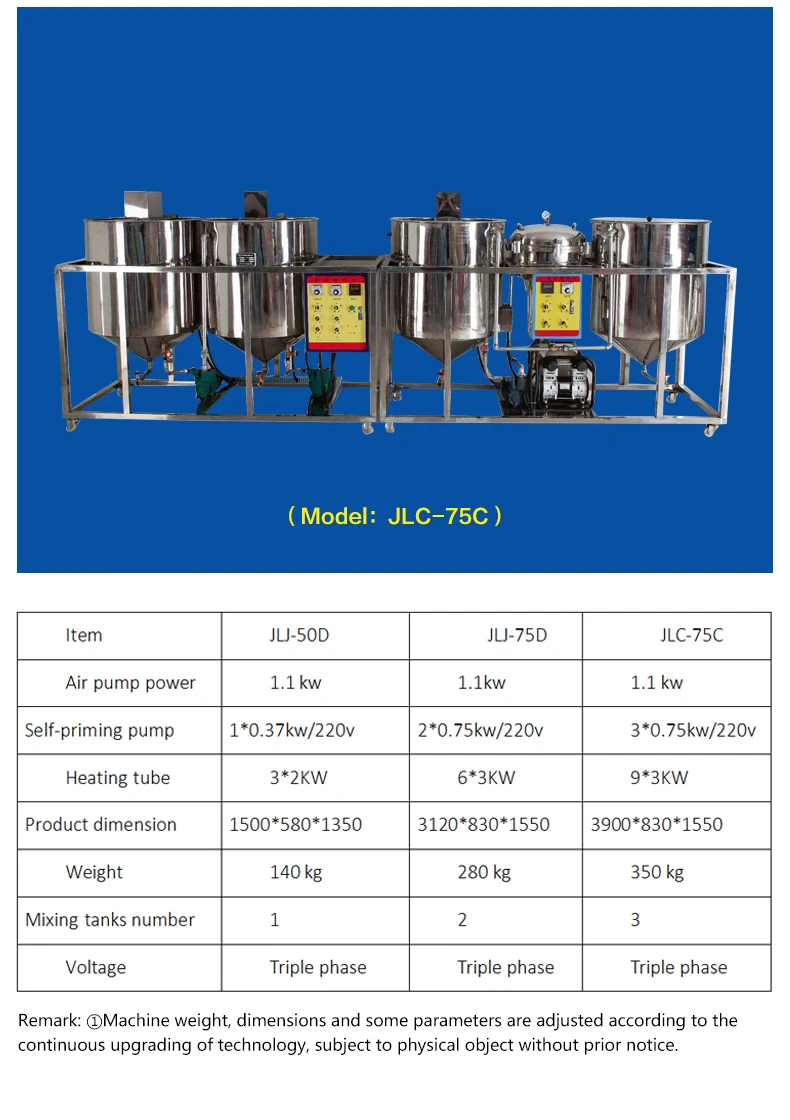

Specification
Model | capacity(KG/D) | weight(KG) | packing size(MM) | Power(kw) |
JLJ50D | 500 | 140 | 1500*680*1400 | 5 |
JLJ75D | 2000 | 280 | 3000*830*1700 | 15 |
JLJ75C | 2500 | 350 | 3900*830*1700 | 20 |

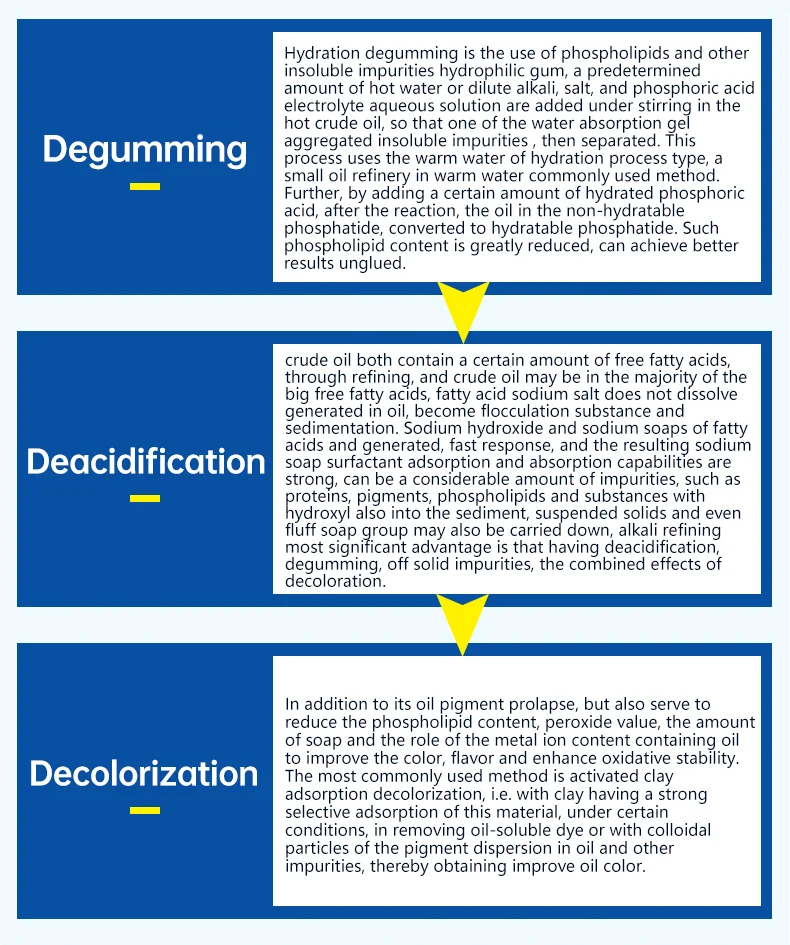

Working principle of il refining machine:
Detailed process of our small edible oil refinery machine:
Crude oil-→deguming and deacidification-→decoloring-→fine filtering-→final product oil-→process finished
Detailed process of our small edible oil refinery machine:
Crude oil-→deguming and deacidification-→decoloring-→fine filtering-→final product oil-→process finished
Terms and Conditions:
1. Payment: T/T 30% advance-payment, 70% balance before shipment
2. Delivery Time: Within 7 days after receiving payment
3. Shipping Term: FOB, CFR, CIF or according to your request
4.Packing Details: wooden case
5.Delivery details: within 15 days after the payment
Warranty Period:
* Free replacement of wearing parts in 6 months from the date of purchasing;
* Free replacement of main body in 12 months from the date of purchasing.
After-sale service:
1. Free replacement of wearing parts in 6 months from date of purchasing
2. We provide spare parts all year around at factory cost.
3. We provide technical solutions for clients at any time.
1. Payment: T/T 30% advance-payment, 70% balance before shipment
2. Delivery Time: Within 7 days after receiving payment
3. Shipping Term: FOB, CFR, CIF or according to your request
4.Packing Details: wooden case
5.Delivery details: within 15 days after the payment
Warranty Period:
* Free replacement of wearing parts in 6 months from the date of purchasing;
* Free replacement of main body in 12 months from the date of purchasing.
After-sale service:
1. Free replacement of wearing parts in 6 months from date of purchasing
2. We provide spare parts all year around at factory cost.
3. We provide technical solutions for clients at any time.
Company Profile
Wuhan HDC is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more
than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English.
than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English.
