2021 новые технологии профессионального производства башенных кранов QTZ63(TC5013)
- Категория: >>>
- Поставщик: Shandong Gaoan Construction Machinery Co. Ltd.
Сохранить в закладки 1600320119027:
Описание и отзывы
Характеристики
Product Overview

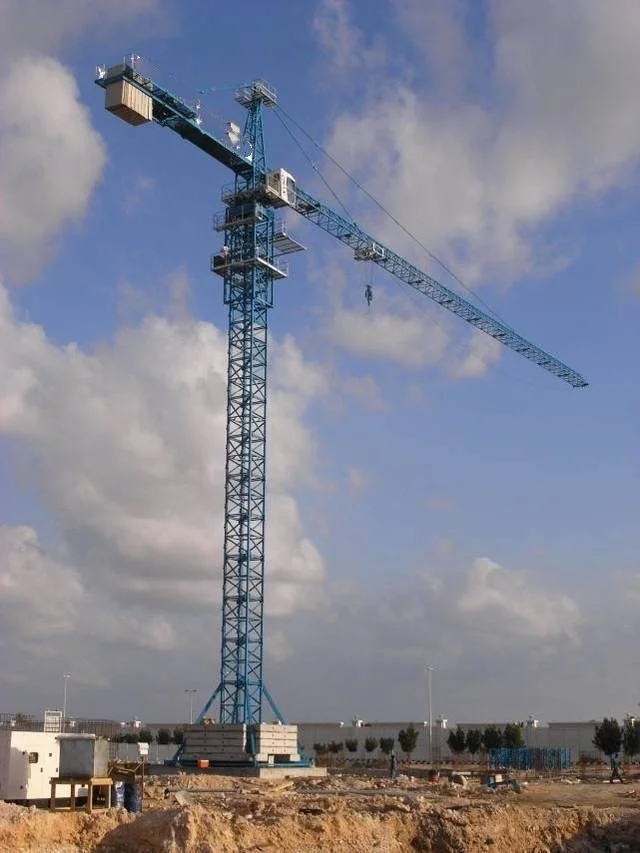

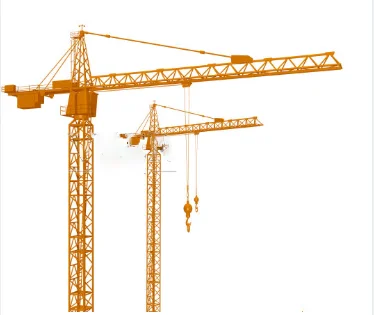

QTZ63(TC5013) SPointed tower crane
QTZ63(TC5013)Tower crane is the latest type of hoisting and transportation machinery designed by our company, which makes full use of group technology, combination design technology and finite element analysis technology, and takes "microcomputer design platform of tower crane" as the tool. This machine is horizontal boom, trolley amplitude, up rotary hydraulic jacking crane. The maximum lifting weight is 6T; Rated lifting moment: up to 630kN·m .
Features and Configuration
The characteristics of
1. The performance parameters and technical indicators reach the domestic leading and international advanced level, the maximum working range is 50 meters, and the working space of the tower crane is increased.
2. The appearance of the machine is the international popular form, beautiful and generous.
3.Many ways of working, wide range of use. There are two working modes of foundation fixation and external wall attachment, which are suitable for various construction objects.
4. High working speed, good speed regulation performance, stable work, high efficiency.
5. the boom adopts rigid double pull rod suspension, good rigidity, light weight, small section, small wind resistance, uniform force, beautiful appearance.
6. All kinds of safety devices are complete to ensure safe and reliable work.
7. Independent side of the driver's cab, good vision, to create a good working environment for the operator.
8.Easy to use and easy to maintain.
2. The appearance of the machine is the international popular form, beautiful and generous.
3.Many ways of working, wide range of use. There are two working modes of foundation fixation and external wall attachment, which are suitable for various construction objects.
4. High working speed, good speed regulation performance, stable work, high efficiency.
5. the boom adopts rigid double pull rod suspension, good rigidity, light weight, small section, small wind resistance, uniform force, beautiful appearance.
6. All kinds of safety devices are complete to ensure safe and reliable work.
7. Independent side of the driver's cab, good vision, to create a good working environment for the operator.
8.Easy to use and easy to maintain.
Configuration is introduced
Electrical box: schneider, Siemens and other imported electrical components, the lowest failure rate.
Motor: The original machinery of Jiangte motor is adopted.
Electrical system: the use of domestic quality or imported components, stable and,reliable,performance. Configuration is introduced
Standard section: square steel pipe overall structure (2000×2000×2800) or single Angle steel plate structure (2000×2000× 3000) main limb material selection Q345B.
Tower body segment: composed of 14 standard segments, in use, the lower part of the bottom segment is connected,with,the foundation, and the upper part is connected with the standard segment.
Cab: thin plate structure, side placed at the front end of the platform on the right side of the upper support, surrounded by large area of glass Windows, the front upper window can be opened, the vision is broad, beautiful and comfortable, equipped with linkage control console.
PRODUCT SPECIFICATIONS
Max Load | 5/6t |
Rated maximum lifting weight | 1.1t |
Maximum operating range | 50 m |
Minimum operating range | 3m |
Freestanding mounting height | min 30 m max 42.2 m |
Attached mounting height | max 127.5 m |
Radius changing speed | 38/26 m/min |
Rotating speed | 0-0.62 r/min |
Operating voltage | 380±5% |
Total power | 28.12 KW |
Introduction to working mechanism
Lifting mechanism
Lifting mechanism is mainly composed of motor, brake, reducer, drum, lifting height limiter and so on. Mounted on the rear of the balance arm, it is driven by a three-speed motor, through a transfer switch on the console, to achieve the desired lifting speed and slow emplacement accuracy. The end of the drum is equipped with a lifting height limiter. When the lifting item reaches the highest position, the lifting mechanism can stop automatically.
Slewing mechanism
Rotary mechanism is mainly composed of winding motor, hydraulic coupler, electromagnetic brake, rotary limiter, planetary reducer, pinion. The mechanism is compact, the transmission is good, and the braking is stable. Work is not affected by the larger wind.
The brake can make the lifting arm stay in the designated position. The brake is only used for positioning, not for decelerating. In the non - working state, the lifting arm can rotate with the wind.
Top institutions

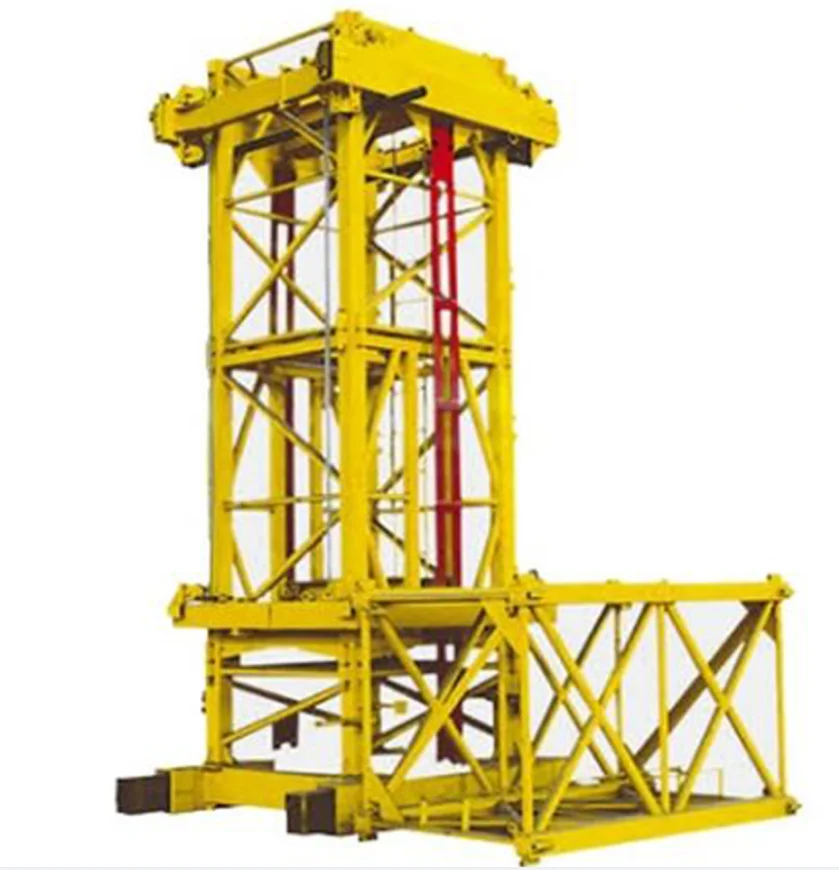

The jacking mechanism is composed of hydraulic system pump station, jacking cylinder, high pressure hose and so on. And filling special hydraulic oil, it can be jacked up and down the above part of the tower crane frame, and can make it stay in any position, so that the standard section of the tower body disassembly. The hydraulic device has the advantages of compact structure, high efficiency, convenient operation and maintenance, safety and reliability.
Trolley luffing mechanism
The trolley's luffing mechanism drives the deceleration device in the drum through the motor to make the trolley do the luffing movement.The mechanism is used to drive the variable amplitude trolley to reciprocate along the vertical axis of the lifting arm, so as to realize the variable amplitude movement of the hook and the lifting item. It is installed in the first arm of the crane arm and is mainly composed of a two-speed motor, a reducer, a reel and an amplitude limiter. The overall structure is compact, two variable rope is fixed on the drum after a section of winding, the other end is fixed on the trolley, when the amplitude of a retraction to ensure the normal work of the trolley.
The process flow
Structural parts forming
Apply laser detection, multi-point deflection compensation and other technologies to achieve high-precision molding such as standard joints and booms.
The coating part
Using automatic spraying, quaternary hot air circulation baking paint, electrostatic spraying and other technologies, the paint adhesion and corrosion resistance have reached the highest level in the industry.
About us
Company profile
Shandong Gao an Construction Machinery Co., Ltd. was established in 2009 with a registered capital of 15 million yuan. The factory covers an area of more than 6000 square meters and has more than 80 employees. Gao an company mainly operates all kinds of tower cranes and construction cranes, the product performance is stable, reliable performance, low maintenance rate, convenient installation and disassembly. GaoAn (GaoAn) construction machine adhering to the "god rewards those who work hard, humane value" enterprise nest culture, after nearly ten years of sustainable development. Gao an brand has covered more than 80 countries and regions. Gao an group's products, especially the "large tower crane" products with leading advantages, for the world is committed to participate in the construction of kirchu, high-rise building users, to provide quality products and after-sales service.
The main products

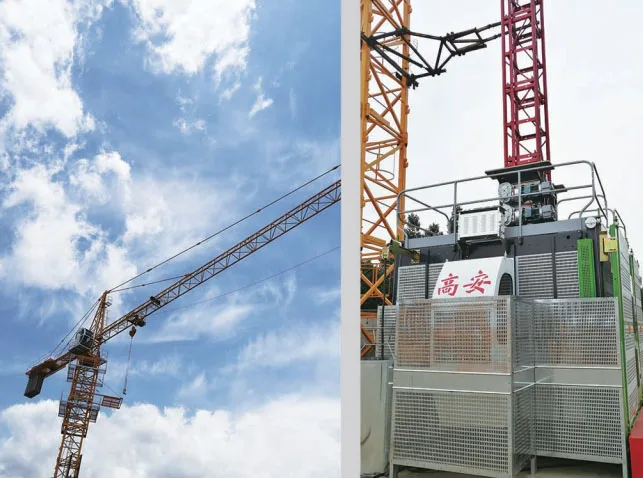

The main products of the company tower crane are :QTZ63 series, QTZ80 series, QTZ100 series, QTZ125 series, QTZ160 series, QTZ200 series, QTZ250 series, QTZ315 series, QTZ400 series, QTZ900 series TC and PT type tower crane and SC200 Construction elevator series. Related accessories are provided by schneider and other well-known suppliers, our products use jinan Iron and Steel Group Q355B manganese steel and other special high grade steel, standard derrick section size specifications are complete, can be customized according to customer requirements of various fixed and plate derrick section sizes.
Gaoan spirit
Our strengths
The related certificate
Packaging or logistics
Our services
FAQ
Q1: Are you a trading company or a factory?
A1: We are a trading company and have our own factory. We have both the price advantage of the
factory and the thoughtful service of the trading company; and the advantage of taking responsibility.
Q2: Can you OEM production?
A2: Yes, we can customize the production according to the drawings.
Q3: How long is your delivery time?
A3: If the goods are in stock, usually 5-10 days. Or if the goods are not in stock, then 15-20 days,
depending on the quantity.Always welcome you to visit China for ordering!
Q4: Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.
Q5: Is it convenient to see visit your factory ?
A5: Yes,we welcome every customer to visit our company.
Q6: What is your steel material?
A6: Q355B,Q235B
A1: We are a trading company and have our own factory. We have both the price advantage of the
factory and the thoughtful service of the trading company; and the advantage of taking responsibility.
Q2: Can you OEM production?
A2: Yes, we can customize the production according to the drawings.
Q3: How long is your delivery time?
A3: If the goods are in stock, usually 5-10 days. Or if the goods are not in stock, then 15-20 days,
depending on the quantity.Always welcome you to visit China for ordering!
Q4: Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.
Q5: Is it convenient to see visit your factory ?
A5: Yes,we welcome every customer to visit our company.
Q6: What is your steel material?
A6: Q355B,Q235B
Похожие товары
Масло для массажа для увеличения роста из Индии
Детские Моющиеся Прокладки для груди Fuan, контурные многоразовые прокладки для кормления грудью, супер впитывающие прокладки для грудного вскармливания, герметичные органические бамбуковые
0,50 $ - 0,63 $

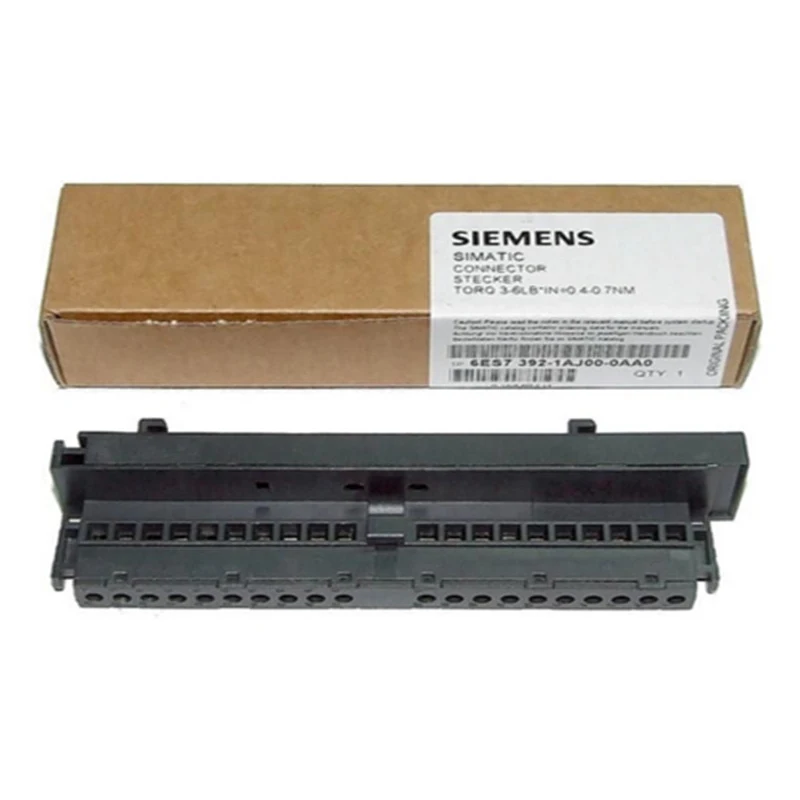

Совершенно новый разъем Siemens, разъем siemens smi 20 (6ES7392-1AM00-0AA0) 6ES73921AM000AA0
Прямая продажа с фабрики, оптовая продажа, свадебная комбинация, ваза в римском стиле
0,73 $
Нановесы SiO2 диоксид кремния белый порошок микрокремния
Обычная фабрика по производству металлических гвоздей для ногтей/производитель в Китае
509,00 $ - 599,00 $

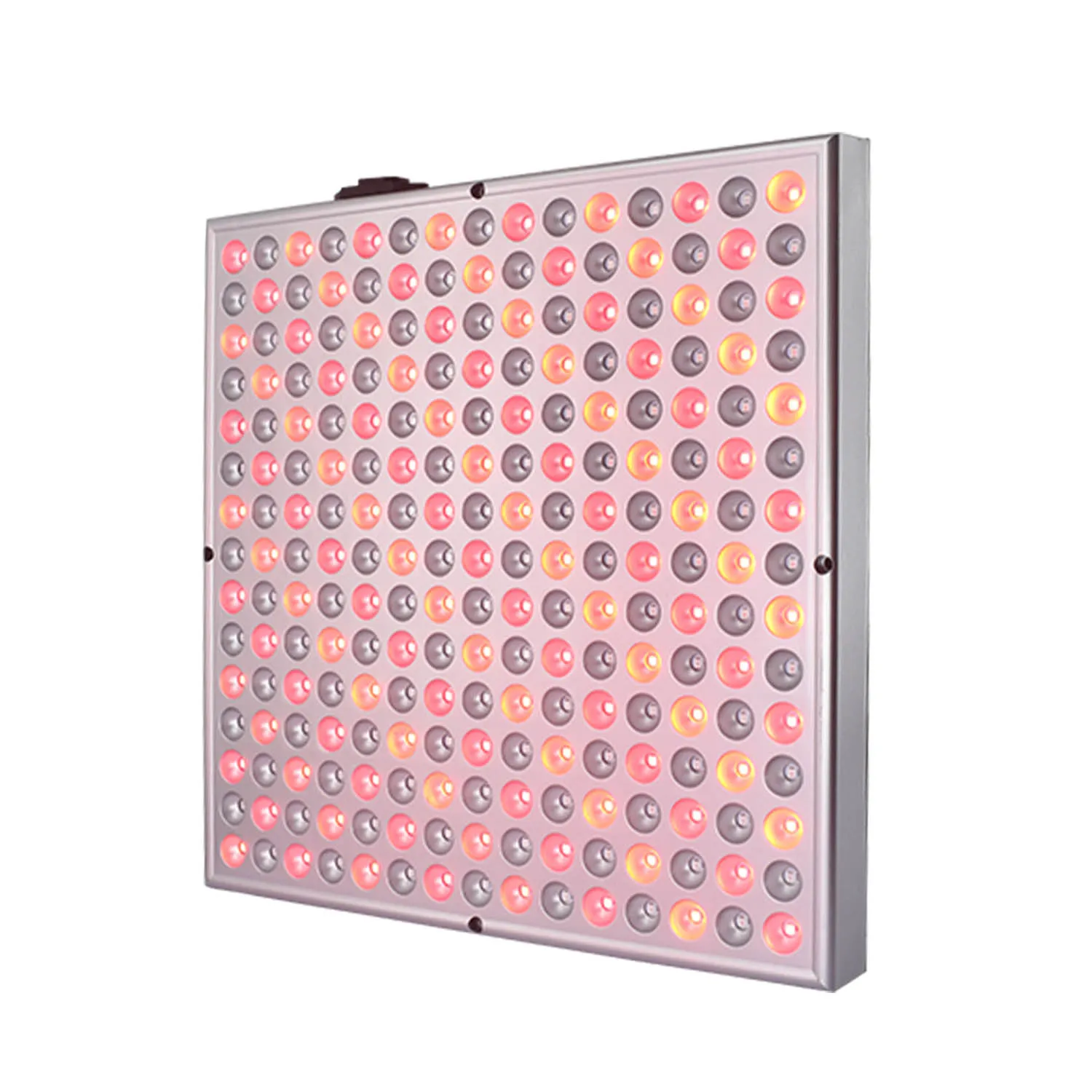

Тонкая Светодиодная панель SGROW M045 45 45 Вт для терапии красным светом, обновленное устройство для инфракрасной терапии 660 нм 850 нм
