JQLASER 10% скидка FLT 6020F Высокая точность тяжелых металлических труб cnc Волоконно Лазерная резка машина Автоматическая Лазерная
- Категория: >>>
- Поставщик: Jinan Jinqiang Laser Cnc Equipment Co. Ltd.
Сохранить в закладки 1600320132176:
Описание и отзывы
Характеристики
Product Description

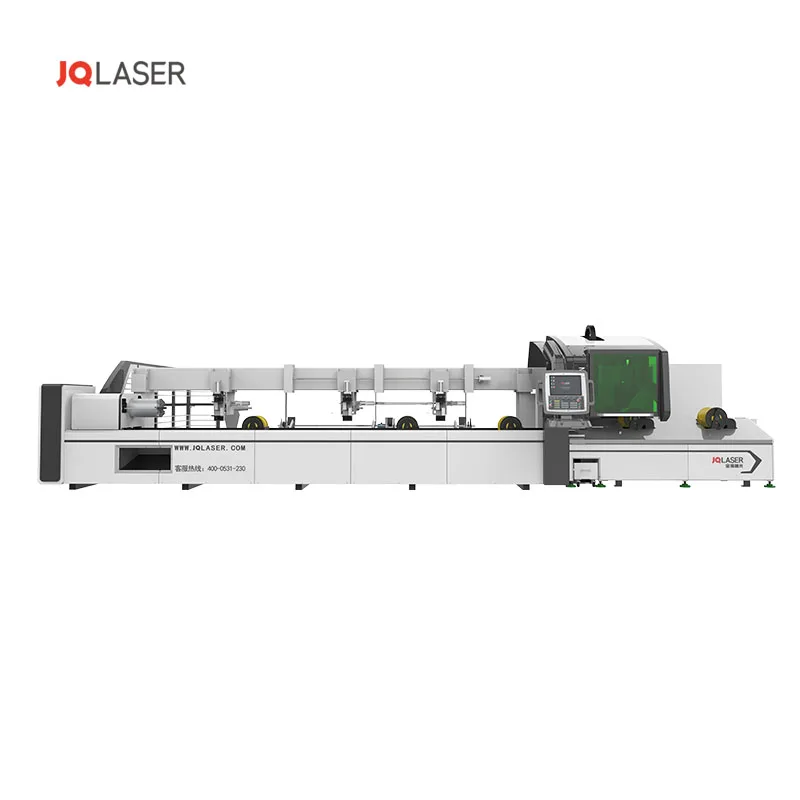

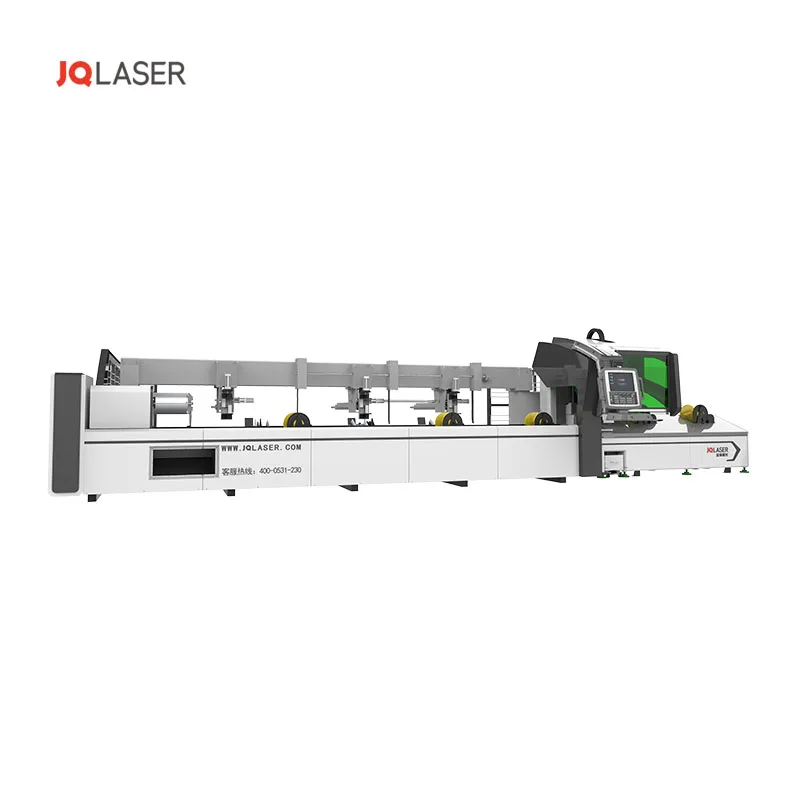

FLT-6022FN is a high-end model independently developed and designed by JQ Laser, Length could be 11.2 meters and weight 18 tons. It is equipped with a fully automatic loading system to reduce manual intervention and shorten the production period. All accessories are in cooperation with famous suppliers. And you can choose the laser source brand accordingly.
E Series Product Show

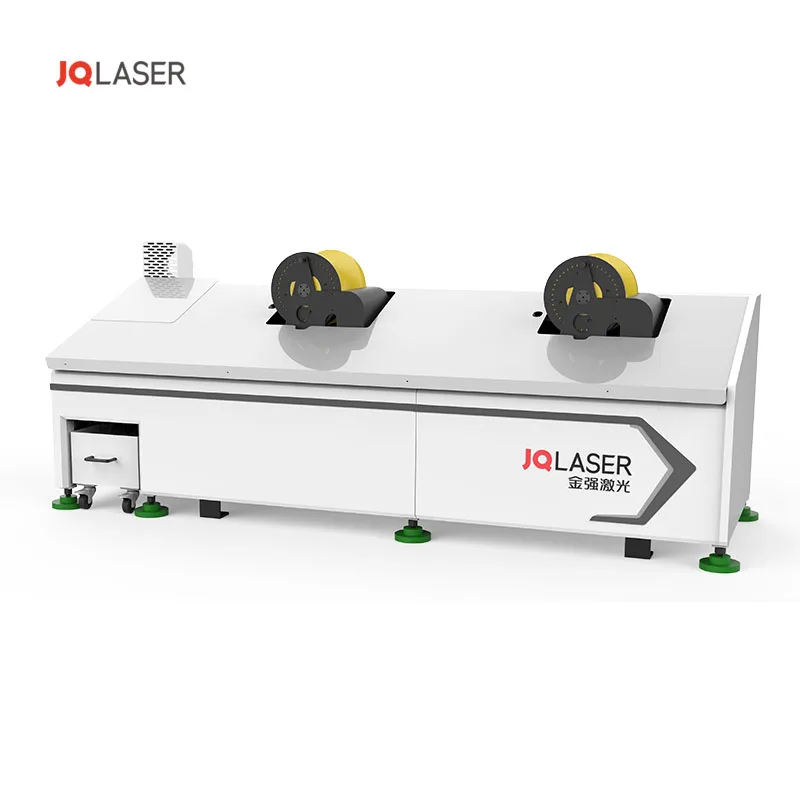

Nylon Support
Fixing the pipe effectively solves the deformation problem in the cutting operation of the long pipe.
Laser head
Lightweight design, fast acceleration, the monitoring data can be read on the mobile terminal or CNC system, autofocus is simple, fast and more precise, distance sensor 0 drift measurement is more accurate, CoolTec cooling technology quickly cools the sheet metal surface temperature, the airtight light path protects against dust falling and protects the lens for continuous monitoring.

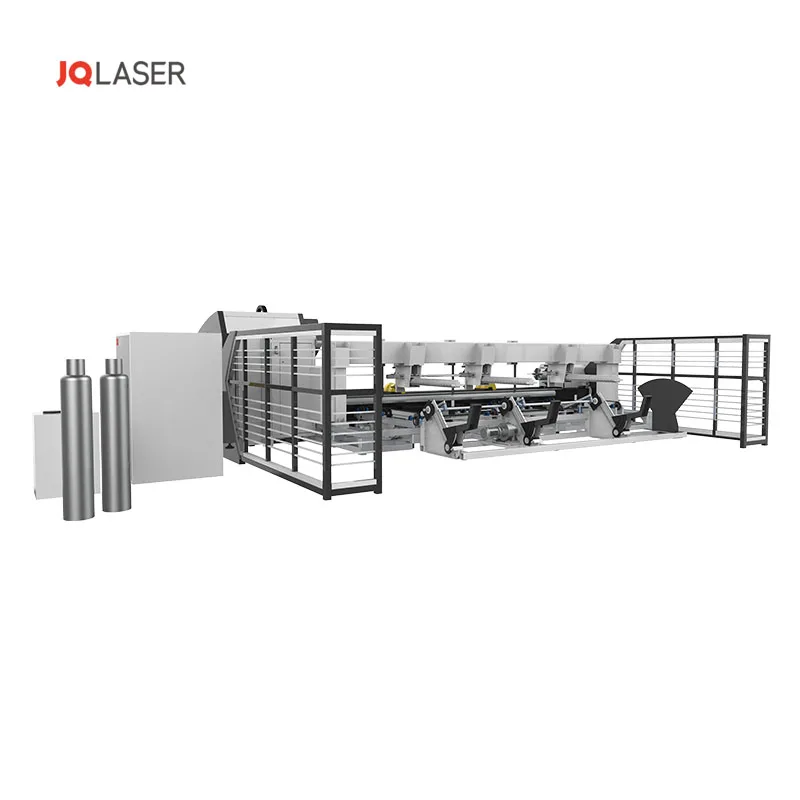

Automatic loading rack
Heavy-duty gantry-type feeding structure meets the feeding requirements of pipes with maximum diameter of 220mm. The secondary feeding mechanism makes the feeding faster and smoother.
Full plate welded bed
The high-strength whole sheet welded bed is processed by high temperature tempering to reduce the internal stress of the bed and avoid deformation, ensure the stability of the machine base for long term use.
Product Paramenters
NO. | Item | Parameter | Unit |
1 | Maximum cut pipe length | 0~6000 (more than 3 meters need to extend the front joint material) | mm |
2 | Diameter of cut pipe | 20~220 (external circle of workpiece) | mm |
3 | Automatic loading range Length | 3500~6000 | mm |
4 | Pipe Diameter | 20~220mm | mm |
5 | Load capacity | ≤2500 | Kg |
6 | Max. single pipe weight | 200Kg | Kg |
7 | Minimum tailstock | 100mm | mm |
8 | X、Y-axis positioning accuracy | ±0.05/1000mm | mm |
9 | X、Y axis repeat positioning accuracy | ±0.03/1000mm | mm |
10 | Acceleration speed | 1g | m/s² |
11 | Max. running speed | 80 | m/min |
12 | Chuck load weight | 150Kg for each front and rear chuck | Kg |
13 | Loading weight | Approx. 18000 | Kg |
14 | Main machine shape (length, width and height) | Approx. 11,200×6800×2400 | mm |
15 | Laser power | * | w |
16 | Control system | cypcut3000S | |
17 | Power of the whole machine | * | kw |
18 | Power supply requirements | 380v/50Hz |
Sample
Company Profile
LASER CHANGE THE WORLD
Jinan Jinqiang Laser CNC Equipment Co., Ltd. was established in 2006. It is a high-tech industry focusing on laser application and sheet metal automation complete equipment research and development, production and sales. The company's products are divided into five series: tube laser cutting machine, sheet laser cutting machine, laser engraving, laser marking, and laser welding. JQ Laser currently has more than 200 employees, technology research and development and after-sales service account for more than 50%; we have a professional quick response customer service team, providing 24-hour online and offline technical services in 12 languages. Now JQ Laser exports to more than 100 countries and regions around the world relies on reliable product quality, reasonable price and perfect after-sales service system.
Exhibition
Exhibition
Listening carefully to customers' needs and making laser tube cutting machines that meet the needs of most customers is the product direction that Jinqiang Laser has been pursuing.
JQ adopts the twin-engine power model of coming from the customer site and going to the customer site, driving R&D with the market and driving the market with R&D.
Jinqiang laser R & D technical team accounts for more than 20% of the total number of people in the whole division.
Details&Parts
Certifications
New Outlook New Experience
Suitable for all kinds of industrial sheet metal processing.
FAQ
10% DISCOUNT IPG Sheet Metal 1000W 2000W Laser Cutter Machine Steel pipe Tube Fiber Laser Cutting Machine For 10mm Carbon Steel
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you
CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
Different customers, different requirements, and many different laser power can be optional, that's why we list the price not
include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts
will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you
CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
Different customers, different requirements, and many different laser power can be optional, that's why we list the price not
include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts
will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running
24H Online Service
Extensive coverage of 30+ domestic offices and institutions to create a 2-hour service arrival.
Combination of online cloud classroom and offline door-to-door service to meet customer needs in multiple irections and at multiple levels.
Multi-batch customer return visits, timely discovery of problems to solve and improve.
Combination of online cloud classroom and offline door-to-door service to meet customer needs in multiple irections and at multiple levels.
Multi-batch customer return visits, timely discovery of problems to solve and improve.
