SMT Монтажная линия T980 настольная SMD инфракрасная конвейерная лента горячего воздуха духовая печь для пайки 8 нагревательных зон

Сохранить в закладки 1600320184916:


Цена:176 338,08 ₽ - 185 154,99 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Introduction

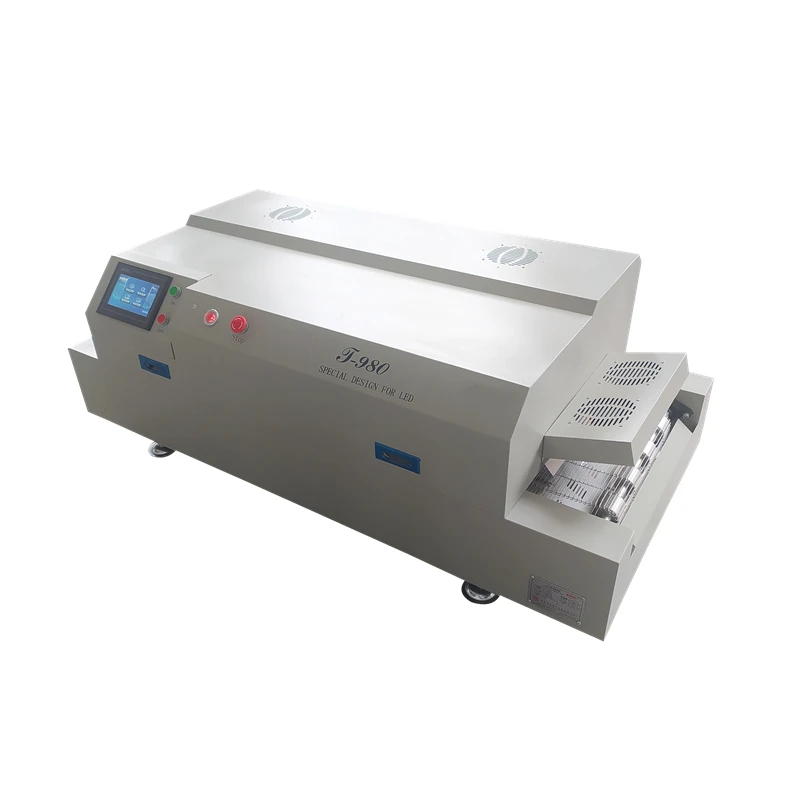

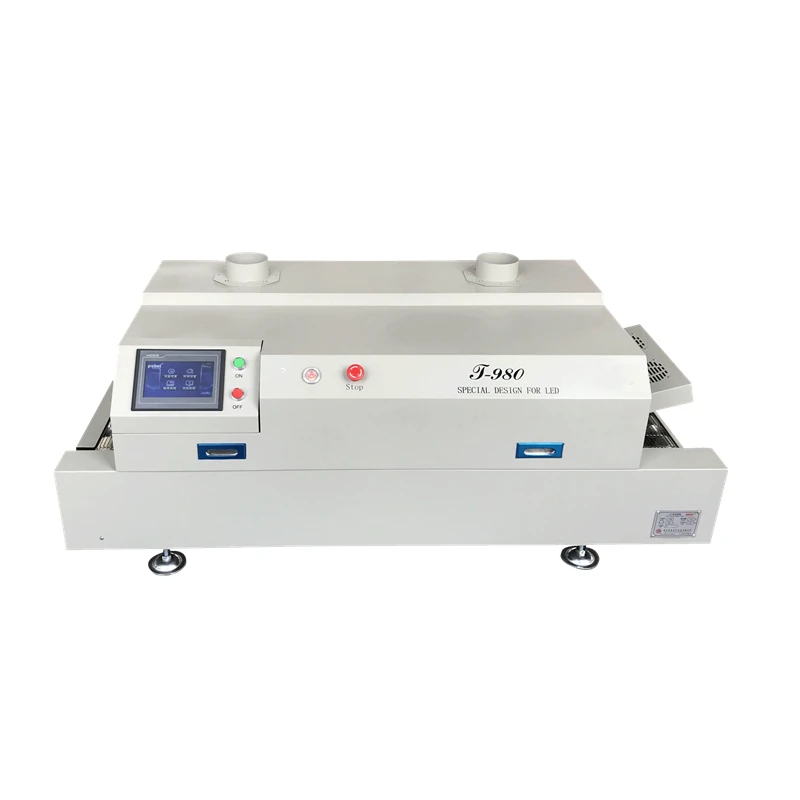

The Infrared IC Heater T980 is a microprocessor-controlled reflow-oven. This machine uses the intelligent level sirocco and rapid infrared heating technology controlling, so the temperature is being kept very accurate and evenly distributed. It is suitable for high welding temperature lead-free solder paste and can be used for effectively soldering various SMT and BGA components.


Features
1. This machine selects the IR and hot air heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the LED and BGA components.
2. This machine is equipped with the crawler-type and 8 temperature zone heating systems, and each temperature zone uses independent PID controlling and up-down heating type, can make the inside temperature more accurate and well-proportioned, just take about 20 minutes can let it heat up to the working temperature from the room temperature.
3. Intelligent temperature wave heating type, oversized capacity wave selection, have eight temperature waves can satisfy various welding technological requirements.
4. Use programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically according to your presetting wave.
5. Adopt the thermocouple temperature measurement and add the compensation circuit, make the temperature measurement more accurate, the wave more perfect.
6. Use PID intelligent temperature control technology; make the temperature control more accurately. Adopt the imported large current solid-state relay non-contact output can effectively avoid the IC or circuit board damage due to the rapid or uninterrupted warming up, make the whole welding process more scientific safety.
7. The transmission system adopts stepping motor and stepping motor driver, which runs stably with adjustable speed range of 0-600mm / min,2mm/s-12mm/s.
8. Adopt independent wheel structure and special stainless steel strut, durable wear-resisting runs smoothly, speed precision can reach ±10mm/min.
9. Independent cooling zone, to ensure the PCB of low temperature when the required.
10. The machine adopts advanced touch screen control technology, which integrates machine operation,function display and monitoring, making the working state display more intuitive, heating process more clear, and operation more convenient.Facilitate product upgrading.
11. Ergonomic design, practical and easily operated. Good build quality.Technology - based concept is constant.
12. preheating modes: (1) sequential preheating: switch on heating zones in turn (advantages: small instantaneous power, low machine load, available for 220V .Disadvantages: long preheating time);  (2) Synchronous preheating: switch on heating zones at the same time (advantages: short preheating time.  Disadvantages: power is too large, recommended to use 380V industrial electricity).



Part List
· 1 x T-980 Reflow Oven
· 1 x User manual
1x Power line(4m)



Paramenters


Specification
Model
T-980
The heating zone quantity
Upper5/ down3
The length of the heating zone
1160mm
The heating type
IR and hot air heating
The cooling zone quantity
1
Maximum width of PCB board
400mm
The operation direction
left→right
Delivery options
Net transmission+chain transmission
The speed of conveyer belt
0-290 mm/min
The power supply
220/380V 50/60Hz
Heating up time
Around 20mins
Temperature control range
Room temperature~350℃
Temperature control mode
PID closed-loop control
Temperature control accuracy
±1℃
PCB temperature distribution deviation
±2℃
Overall dimensions
1600×734×567 mm
Machine weight
130KG


                                Wenzhou Yingxing Technology Co.,Ltd                           Specialises in SMT Production Line (PNP Machine)more than 9 years




Our Services
1.Video technical support
2.24-hour online support
3.Goods tracking support
4.Free broken parts(With 1 YEAR warranty)



FQA
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.

Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.

Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.

Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.

Q:English version for these machines?
A:Yes
