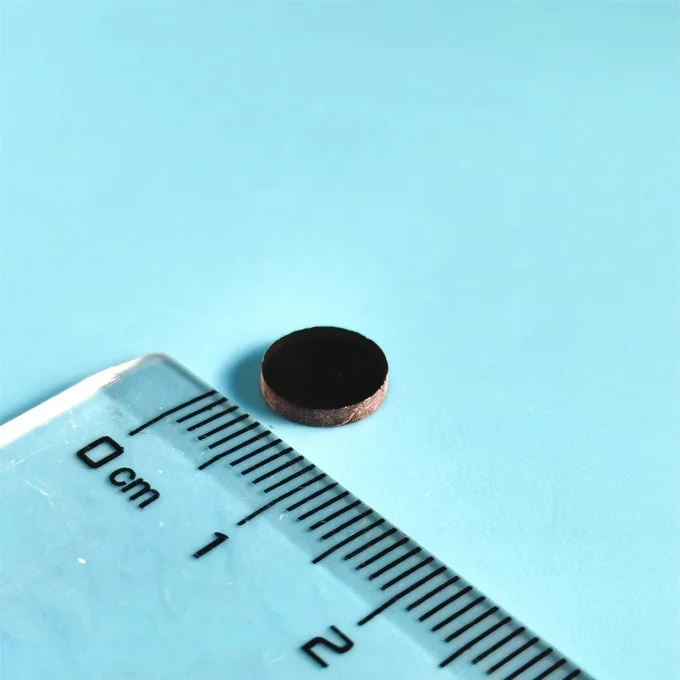

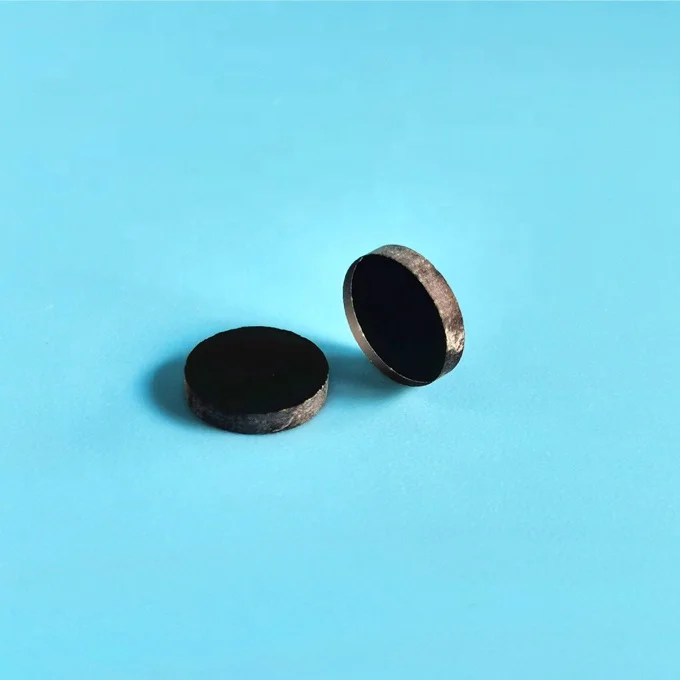

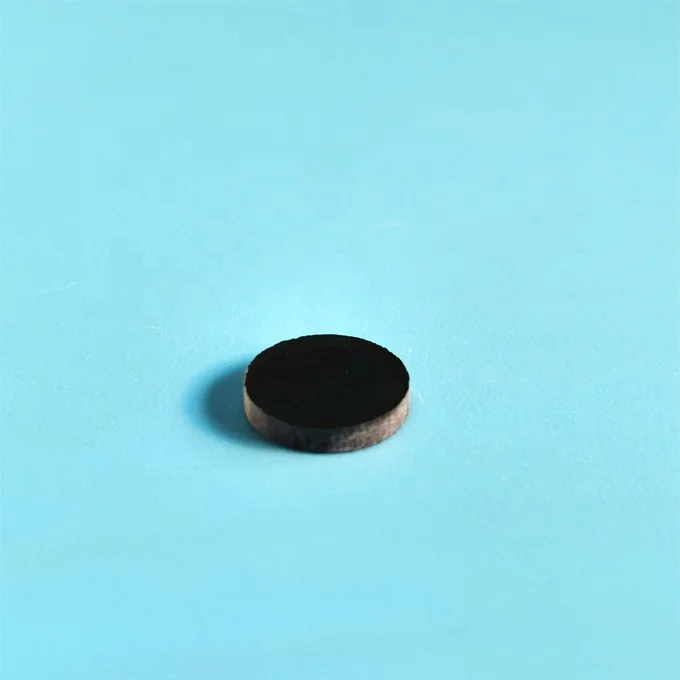

Китайское производство оптических фильтров УФ оптический фильтр 254nm УФ фильтр
- Категория: >>>
- Поставщик: Tian Cheng Optics Co. Ltd.
Сохранить в закладки 1600320196310:
Описание и отзывы
Характеристики
Our advantage
1. TianCheng optics co.,ltd. with over ten years experience, qualified ISO9001.
2. We produce high quality product with competitive price, and always have a good reputation.
3. We offer custom made production, we produce the lens according our clients' required.
4. Service Department: We have a complete after-sales service system, to help you from your worried.
2. We produce high quality product with competitive price, and always have a good reputation.
3. We offer custom made production, we produce the lens according our clients' required.
4. Service Department: We have a complete after-sales service system, to help you from your worried.
Product Description
Other More Optical Filter
TianCheng optics co.,ltd. offer custom made production, we produce the optical filter according our customers' required.
Type:
Colored Glass Filter
Interference Filter
Neutral Density Filter
Bandpass Filter
Dichroic Splitter
Capacity:
Material: Optical glass and Fused silica
Dimension Tolerance: +0/-0.1 mm
Thickness Tolerance: +/-0.05mm
Surface Accuracy: λ/4
Surface Quality: 60/40
Parallelism: <3 minute
Coating: According to the requirement
Standard Bandpass Filter
Part NO. | Center Wavelength(nm) | Bandwith(nm) | Tpeak(%) | Blocking Range(nm) | Blocking Depth | Dimension |
TBP650/10K | 650±2 | 10±2 | >75 | 200-1100 | OD4 | ø12.7/ø25.4 |
TBP650/15K | 650±3 | 15±3 | >60 | 400-1100 | OD4 | ø12.7/ø25.4 |
TBP650/20K | 650±3 | 20±3 | >70 | 400-1100 | OD3 | ø12.7/ø25.4 |
TBP650/30K | 650±5 | 30±5 | >70 | 200-1100 | OD3 | ø12.7/ø25.4 |
TBP650/35K | 650±5 | 35±5 | >80 | 400-800 | OD3 | ø12.7/ø25.4 |
TBP650/40K | 650±5 | 40±5 | >75 | 400-1100 | OD3 | ø12.7/ø25.4 |
TBP650/160K | 650±10 | 160±10 | >18 | 400-1100 | OD3 | ø12.7/ø25.4 |
TBP652/12K | 652±2 | 12±2 | >66 | 200-1100 | OD4 | ø12.7/ø25.4 |
TBP653/20K | 653±3 | 20±3 | >80 | 200-1200 | OD4 | ø12.7/ø25.4 |
TBP653/40K | 653±5 | 40±5 | >75 | 200-1100 | OD4 | ø12.7/ø25.4 |
TBP655/10K | 655±2 | 10±2 | >70 | 200-1100 | OD4 | ø12.7/ø25.4 |
TBP655/20K | 655±3 | 20±3 | >70 | 400-1100 | OD5 | ø12.7/ø25.4 |
TBP655/40K | 655±5 | 40±5 | >90 | 300-950 | OD3 | ø12.7/ø25.4 |
TBP656/15K | 656±3 | 15±3 | >88 | 400-1100 | OD3 | ø12.7/ø25.4 |
TBP656/40K | 656±5 | 40±5 | >85 | 400-1100 | OD3 | ø12.7/ø25.4 |
TBP656/100K | 656±10 | 100±10 | >85 | 200-1400 | OD3 | ø12.7/ø25.4 |
TBP658/40K | 658±5 | 40±5 | >80 | 300-1200 | OD4 | ø12.7/ø25.4 |
TBP658/60K | 658±8 | 40±8 | >90 | 400-1100 | OD3 | ø12.7/ø25.4 |
TBP660/10K | 660±2 | 10±2 | >70 | 400-1100 | OD3 | ø12.7/ø25.4 |
TBP660/10K | 660±2 | 10±2 | >70 | 200-1100 | OD4 | ø12.7/ø25.4 |
TBP660/15K | 660±2 | 12±2 | >75 | 200-1200 | OD4 | ø12.7/ø25.4 |
TBP660/20K | 660±3 | 20±3 | >88 | 200-1200 | OD5 | ø12.7/ø25.4 |
TBP660/30K | 660±5 | 30±5 | >90 | 300-950 | OD3 | ø12.7/ø25.4 |
TBP660/35K | 660±5 | 35±5 | >85 | 400-800 | OD2 | ø12.7/ø25.4 |
TBP660/40K | 660±5 | 40±5 | >70 | 200-1100 | OD4 | ø12.7/ø25.4 |
TBP663/10K | 663±2 | 10±2 | >70 | 200-1100 | OD4 | ø12.7/ø25.4 |
TBP665/10K | 665±2 | 10±2 | >65 | 200-1200 | OD5 | ø12.7/ø25.4 |
TBP665/10K | 665±2 | 10±2 | >65 | 200-1200 | OD5 | ø12.7/ø25.4 |
TBP665/20K | 665±3 | 20±3 | >80 | 400-1100 | OD3 | ø12.7/ø25.4 |
TBP666/140K | 666±10 | 140±10 | >90 | 350-700 | OD1 | ø12.7/ø25.4 |
TBP668/20K | 668±3 | 20±3 | >80 | 200-1100 | OD4 | ø12.7/ø25.4 |
TBP670/10K | 670±2 | 10±2 | >70 | 200-1200 | OD4 | ø12.7/ø25.4 |
TBP670/15K | 670±3 | 15±3 | >65 | 200-1200 | OD5 | ø12.7/ø25.4 |
TBP670/20K | 670±3 | 20±3 | >75 | 200-1100 | OD3 | ø12.7/ø25.4 |
TBP670/38K | 670±5 | 38±5 | >85 | 400-800 | OD3 | ø12.7/ø25.4 |
TBP670/40K | 670±5 | 40±5 | >70 | 200-1100 | OD4 | ø12.7/ø25.4 |
About us
Tian Cheng optics co.,ltd.
was founded in 2007 and located in Changchun city where is very famous base of opitcs research and development in China, we have 2800 square meter factory and 115 employees including 4 optical engineers and 3 mechanical engineers, we have capability to make the full design, produce the optical components and assembe the complete of lens in our own factory.
We mainly manufacture high precision optical components such as spherical lens, cylindrical lnes, prism, filter, window, mirror, beamsplitter, waveplate, polarizer, rod lens and micro optics. Our products were approved by many special companies from United Kingdom, Germany, Austria, Switzerland, Italy, Ireland, Sweden, Australia, Israel, USA etc.
We mainly manufacture high precision optical components such as spherical lens, cylindrical lnes, prism, filter, window, mirror, beamsplitter, waveplate, polarizer, rod lens and micro optics. Our products were approved by many special companies from United Kingdom, Germany, Austria, Switzerland, Italy, Ireland, Sweden, Australia, Israel, USA etc.
We have completed production lines of raw material cuting, rinding, polishing, ultrasonic cleaning and opitcal coating, our test instruments include Trioptics Lens Measurement system, Lambda900 spectrophotometer, Spherical Interferometer, Plano Interferometer, Collimator, Goniometer etc. These advanced facilities ensure the bigh production capacity and high quality for OEM and customized products.
Exhibition
Laser World of Photonics
26th of 29th of June,2017
The SPIE Photonics West
At 29th of Jan to 1st of Feb, 2018
Optatec 2018 at 15th to 17th of May 2018
The SPIE Photonics West 2019 at 5th of Feb to 7th of Feb,2019
Packing and Delivery
1. Package Detail:
A. Standard carbon and envelop with plastic foam.
B. Safety green carton.
C. Customized.
2. Delivery Detail: Within 25 days.(Also depand on the quantity)
Contact
Tian cheng Optics Co.,Ltd.
Contact: Lina
Skype: live:lina_tcoptics
Email: lina@tc-optics.com
Tel: 0086 0431 89851801
Fax: 0086 0431 89110171
Mobile: 0086 15164368126
Skype: live:lina_tcoptics
Email: lina@tc-optics.com
Tel: 0086 0431 89851801
Fax: 0086 0431 89110171
Mobile: 0086 15164368126
