AC220V 350W автоматические блокираторы Электрический гидравлический насос

AC220V 350W автоматические блокираторы Электрический гидравлический насос

Категория: >>>
Поставщик: Shenzhen Elefine Technology Co. Ltd.Shenzhen Ltd.

Цена:28 918,85-32 533,71 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

AC220V 350W Automatic bollards Electric hydraulic pump

Actuator of rising bollards

Product Description

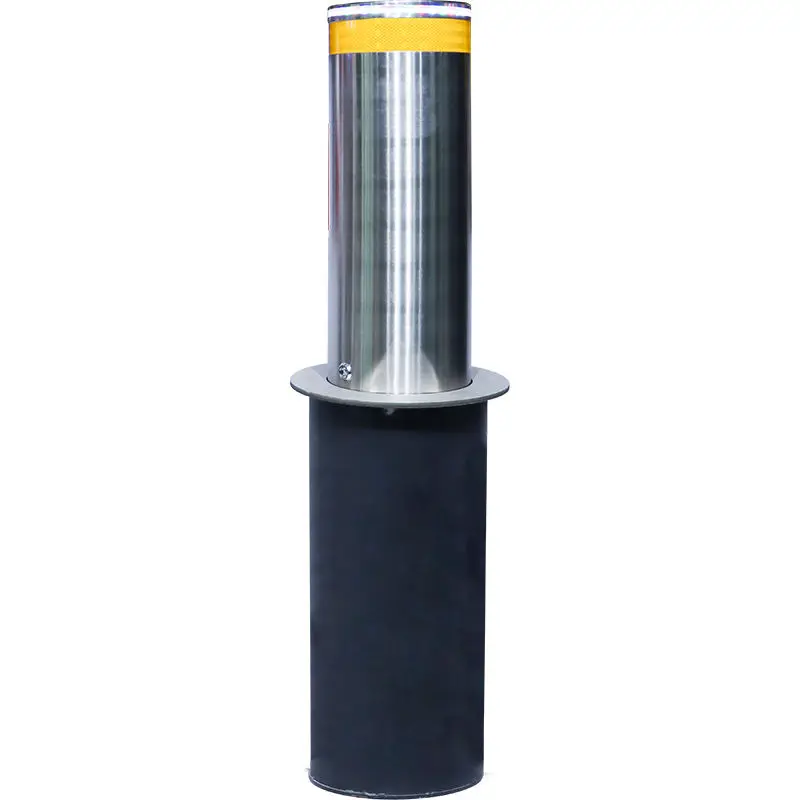

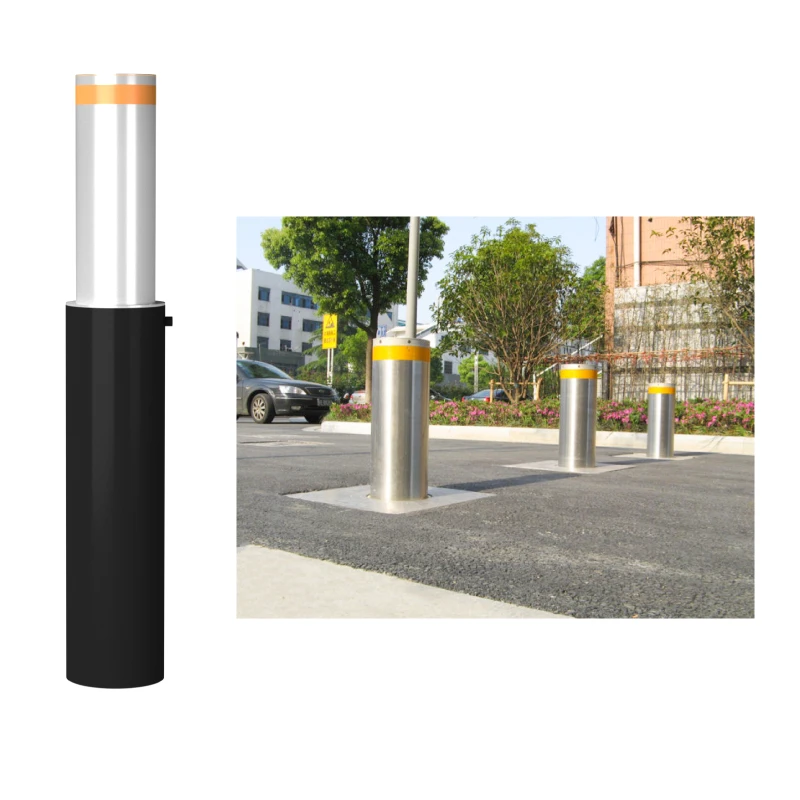

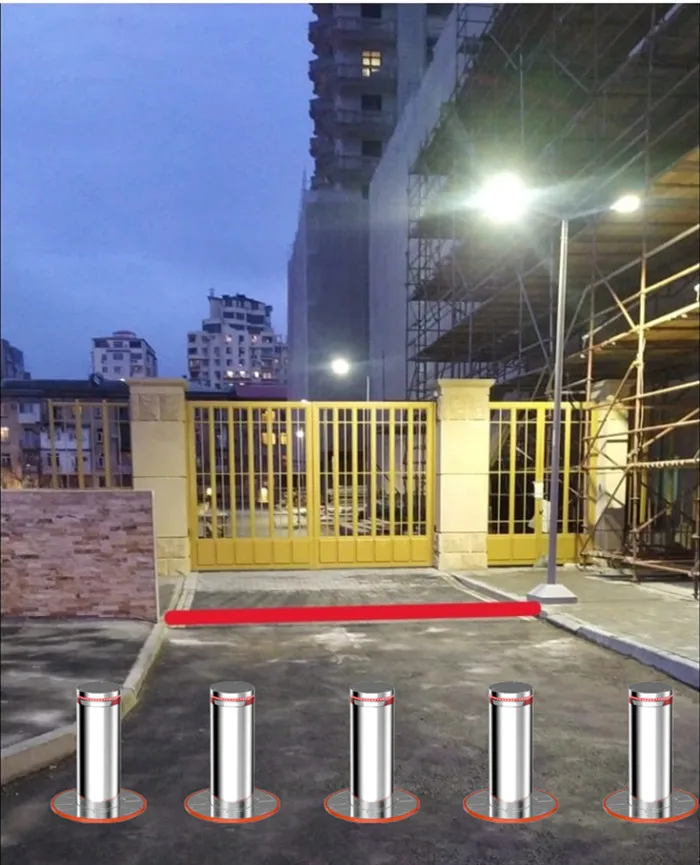

Retractable Bollard has been designed to control access to a site with security, guaranteeing pedestrian access whilst blocking the area to road traffic.

Specification

Item	Value
Product name	Stainless Steel Pipe Mechanism Actuator Hydraulic Bollard
Feature	Bollard's automatic rising hydraulic actuator
Lifting time	3-6s
Voltage	AC 220V/110V±10%
Cabinet size	360360772MM
Waterproof level	Diving level
Protection level	Movement IP68
Installation size	Cylinder center distance 1.2-1.5M, pre-buried depth: 800MM
Ambient temperature	-30~70 degrees
Power failure emergency	Reserve battery, power failure can be remotely dropped

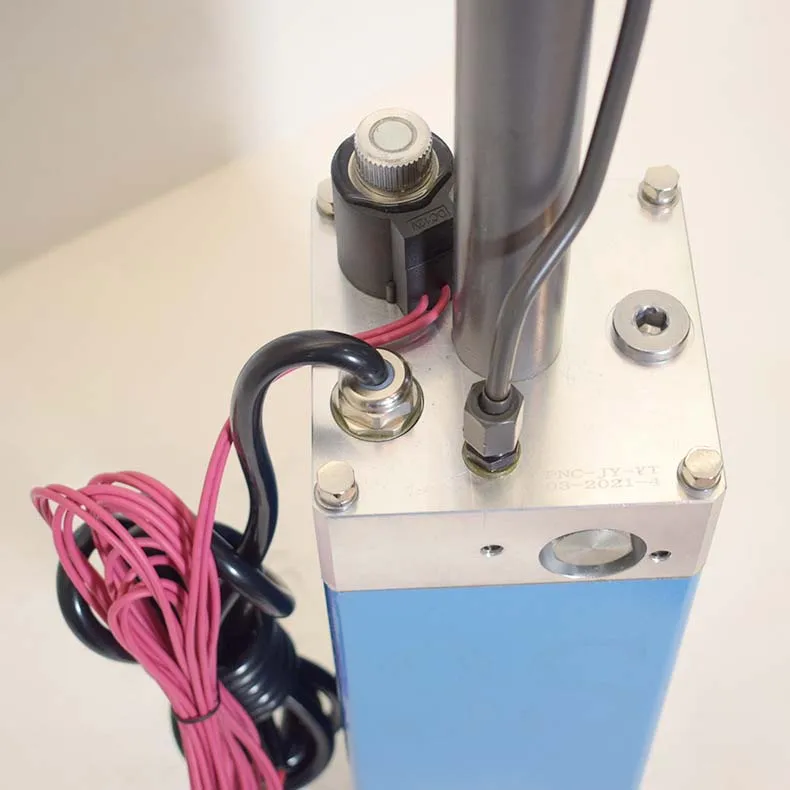

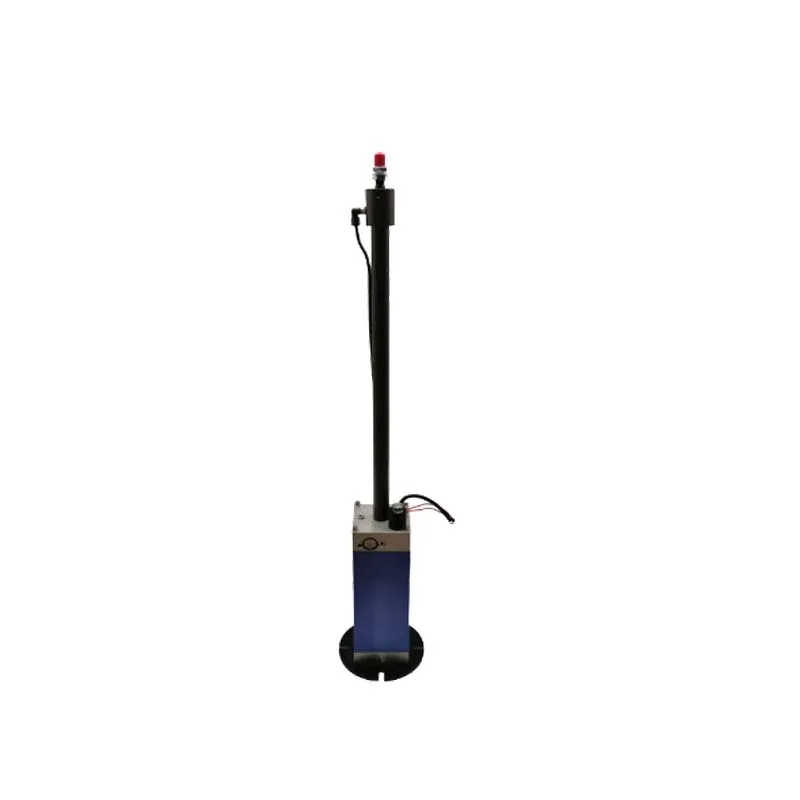

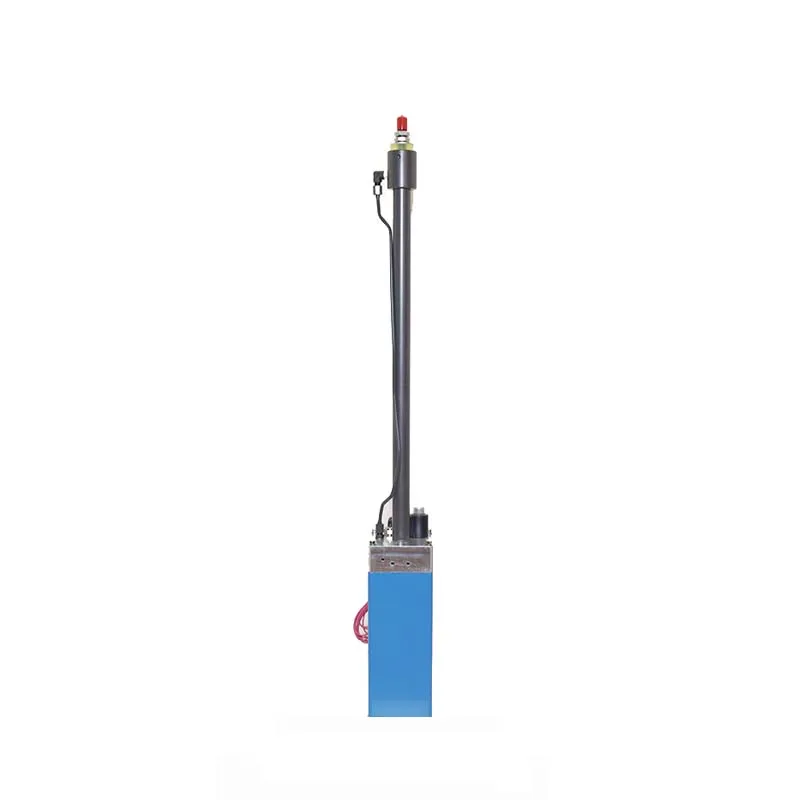

Bollard actuator details:

1.Product specs
Minimum height 1075mm
Stroke 600mm
Linear thrust 1500N(150KG)
Up Time 3.5 s (no loading)
Down time 1.5s (no loading)
Waterproof level IP67
Weight 18.5kg
Reverse
2.Motor specs.
Voltage AC220V
Electric current 3A
Motor Power 350W
Motor speed 2800 rev /min
Motor reversal Yes
3. Cylinder spec:
Inner diameter 20mm
Rod diameter 16mm
Stroke 600mm
4.Pump
Displacement 1.5cc/ rev
Pressure 50 bar

Control System

1.The control system is a multi-functional integrated digital programming system independently developed by our company. One controller can control 1-8 lifting columns at the same time. It can also be controlled separately. 1.3.5 Lift 2.4.6 does not move. Or 1.2. 3 lifting. 4.5.6 does not move. There are 3 working mode controllers (this function is the first in the industry). Specifications: 400x300x140 (depending on the quantity) 7.5KG
2.Reserved with card reader open and ground sense detection signal interface, can be compatible with any opening signal. Working voltage 220v. Control voltage 24V. Separate installation with ground column.
3.Power failure emergency: built-in reserve battery, remote control cylinder can be lowered once after power failure.
4.One system can control 8sets bollards

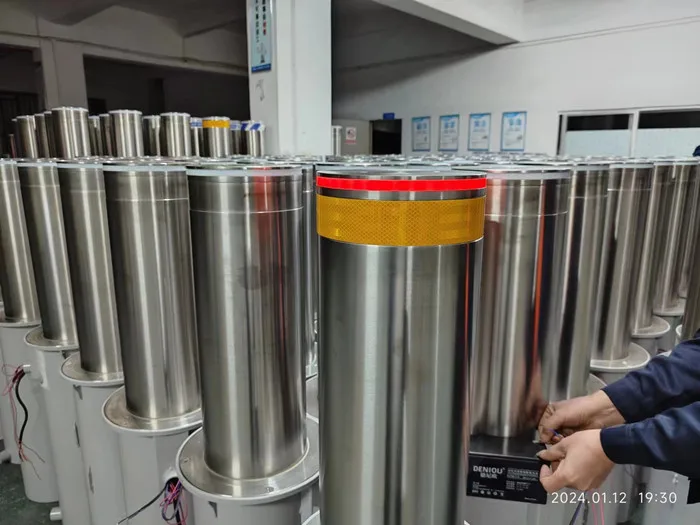

Bollard Actuator Production and Installation Details

Packing & Delivery

Standard package, neutral package, or customized package for your choice.
1. Wrapping bollard body with film to protect its surface.
2. Winding bubble bag in the round of bollard to prevent being striked during shipment.
3. Laying a layer of PE sheet on the surface of bollard.
4. Putting bollards and all accessories into paper carton.
