Высокотемпературный электрический нагревательный элемент картриджный нагреватель для древесной биомассы гранулы воспламенитель печей
- Категория: Industrial Heater >>>
- Поставщик: Yancheng Honleader Electric Co. Ltd.
Сохранить в закладки 1600320698728:
Описание и отзывы
Характеристики
Product Description

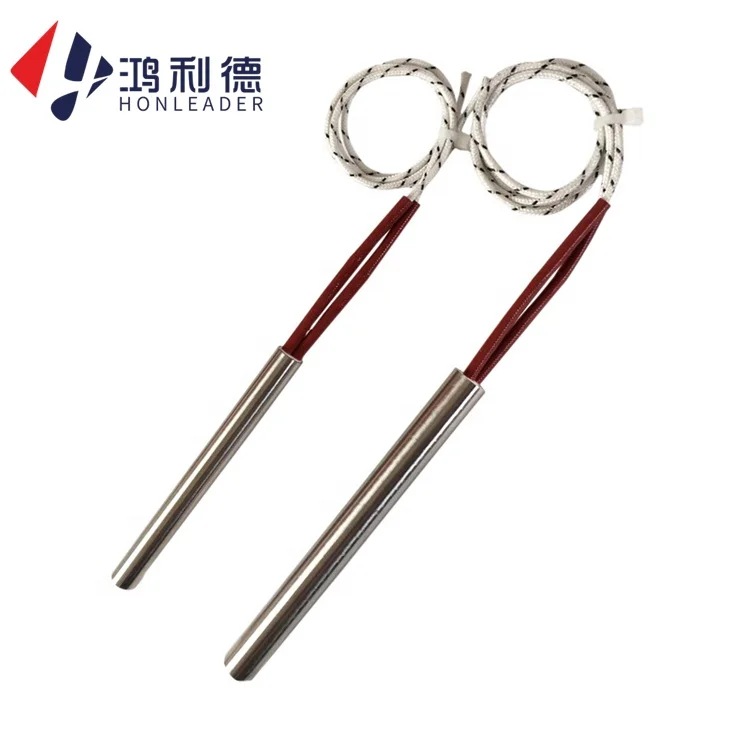

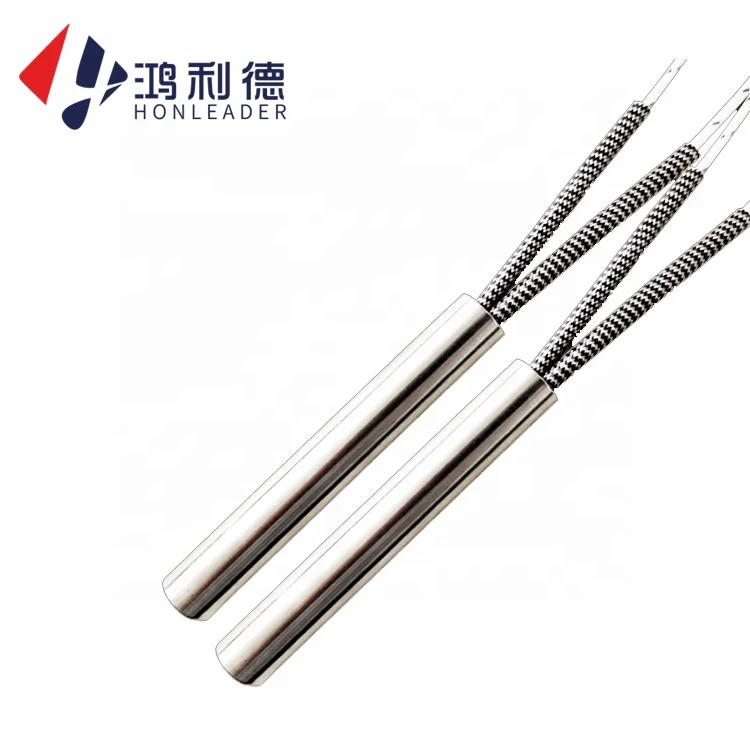

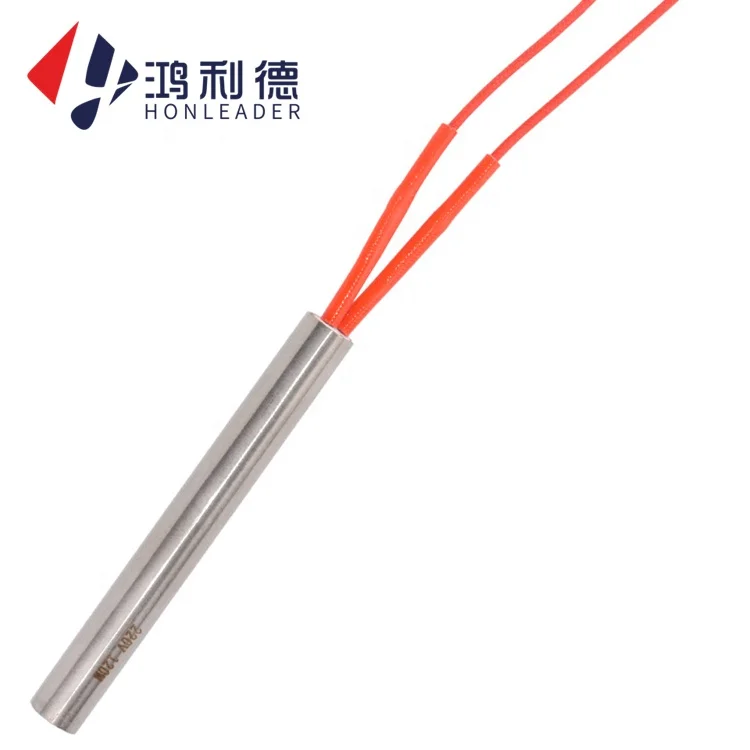

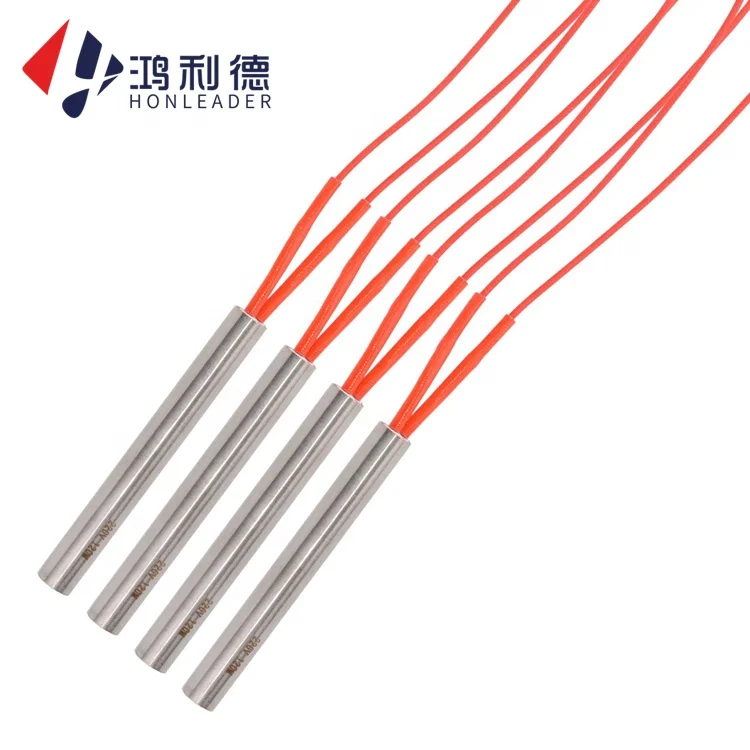

◆ Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840)
◆ Usually in tube form,that is used in heating applications by way of insertion into metal blocks via a series of drilled holes.
◆ Cartridge heaters are manufactured in two basic forms - High powerdensity and Low and medium power density.
◆ High power density (heating surface power 10~25w/cm²), are widely used to heat Plastic injection moulds, Moulds, Platens and so on
◆ Low and medium power density (heating surface power5~11w/cm²), are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
◆ The high-quality stainless steel sheath provides long-lasting protection, even in the harshest industrial environments. Its max power density can reach up to 40w/cm², and its maximum operating temperature can reach 800℃
333
Application
● Injection moulding - Internal heating of nozzles
● Hot runner systems - Heating of manifolds
● Packaging industry - Heating of cutting bars,Heating of hot stamps,etc.
● Laboratories - Heating of analytical equipment,etc.
● Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer,etc.
● Telecommunications: Deicing, Enclosure Heater,etc.
● Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,etc.
● Food Service: Steamers, Dish Washers,etc.
● Industrial: Packaging Equipment, Hole Punches, Hot Stamp,etc.
● Extrusion molds
● Rubber molds
● Melt blown molds
● Hot press molding machiner
● Paper Industry
● Semi conductor industry
● Seal Bars
......
● Hot runner systems - Heating of manifolds
● Packaging industry - Heating of cutting bars,Heating of hot stamps,etc.
● Laboratories - Heating of analytical equipment,etc.
● Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer,etc.
● Telecommunications: Deicing, Enclosure Heater,etc.
● Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,etc.
● Food Service: Steamers, Dish Washers,etc.
● Industrial: Packaging Equipment, Hole Punches, Hot Stamp,etc.
● Extrusion molds
● Rubber molds
● Melt blown molds
● Hot press molding machiner
● Paper Industry
● Semi conductor industry
● Seal Bars
......
Our Advantages
1. Low MOQ: 1-10 pcs MOQ available
2. OEM Accepted: Strong capacity in develop and production under customer drawings
3. Good Service: Instant response, great patience and full consideration
4. Good Quality: With 6S quality control system
5. Uniform temperature, Accurate dimensions, High heating transfer efficiency
6. CE & RoHS approved
7. Fast & Cheap Delivery: We enjoy great discount from shipping forwarders (Shipping costs reduced)
2. OEM Accepted: Strong capacity in develop and production under customer drawings
3. Good Service: Instant response, great patience and full consideration
4. Good Quality: With 6S quality control system
5. Uniform temperature, Accurate dimensions, High heating transfer efficiency
6. CE & RoHS approved
7. Fast & Cheap Delivery: We enjoy great discount from shipping forwarders (Shipping costs reduced)
Product Paramenters
Resistance heating wire | NiCr 80/20 wire |
Voltages available | 12V/24V/36V/110V/220V/240V/380V/418V |
Wattage Tolerance | ±3% |
Resistance tolerance | ±3% |
Length tolerance | ± 2% or 3.2mm (1/8”) |
Diameter | From 2.0mm to 30mm |
Diameter tolerance | +0.05mm -0.1mm (+.002" -.004") |
Thermocouple Location | Disc End, Sheath, Center of Heater |
Max operating temp | 870ºC(1600F) |
Standard Cold Zone | 5-10mm |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Thermocouple Location | Disc End, Sheath, Center of Heater |
Thermocouple | Type J / K |
Details Images
How to Order ?
A. Tube diameter
B. Overall sheath length of Cartridge Heaters.
C. Lead length(Default 500mm).
D. Fixing way and position, if asked.
E. Working voltage
F. Power(watt)
G. Shape of Cartridge Heater and Thread size and diameter
H. Heating temperature and medium
I. Any other requirements (e.g.)
- Sheath - standard SS304
- Lead material - standard silicone fiberglass lead
- Sleeve material - Standard fiberglass sleeving
- lead connection method- internal or external
B. Overall sheath length of Cartridge Heaters.
C. Lead length(Default 500mm).
D. Fixing way and position, if asked.
E. Working voltage
F. Power(watt)
G. Shape of Cartridge Heater and Thread size and diameter
H. Heating temperature and medium
I. Any other requirements (e.g.)
- Sheath - standard SS304
- Lead material - standard silicone fiberglass lead
- Sleeve material - Standard fiberglass sleeving
- lead connection method- internal or external

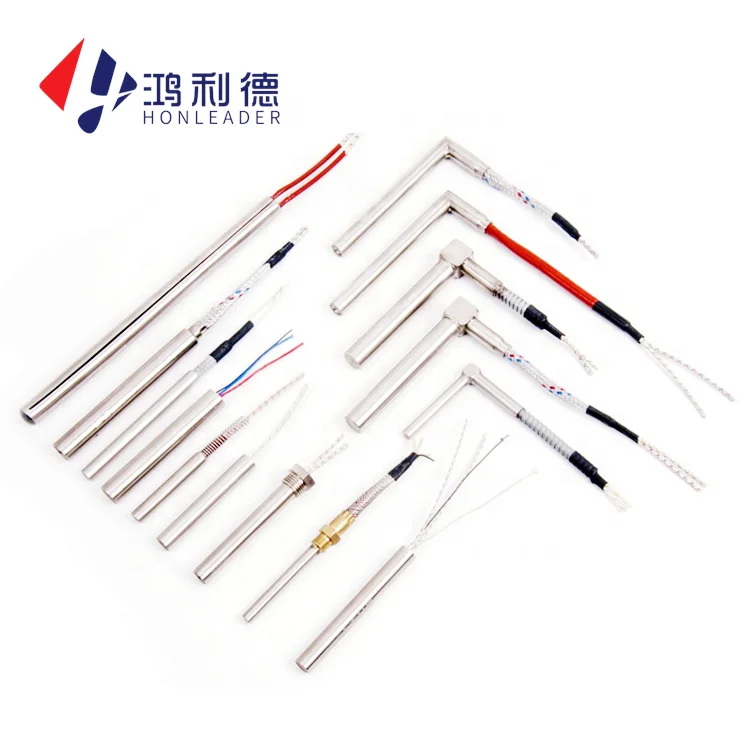

Electric Cartridge Heater Customization Options
Honleader provide customization cartridge heater services to meet different applications.
Options including below details:
1. Built-in thermocouple - J or K type thermocouple sensor
2. Voltage (phase ) & power & watt density
3. Non-heating part length
4. Tube diameter & length
5. Sheath material
6. Lead/ lead protection
7. Seal material
8. Installation - flange/ locating ring/ screw
9. Finned
10. Inner structure - e.g. custom distributed wattage
Honleader provide customization cartridge heater services to meet different applications.
Options including below details:
1. Built-in thermocouple - J or K type thermocouple sensor
2. Voltage (phase ) & power & watt density
3. Non-heating part length
4. Tube diameter & length
5. Sheath material
6. Lead/ lead protection
7. Seal material
8. Installation - flange/ locating ring/ screw
9. Finned
10. Inner structure - e.g. custom distributed wattage
Recommend Products
Company Profile
YANCHENG HONLEADER ELECTRIC CO.,LTD. has been focusing on the solutions to heater application and development for many years. We not only provide you with high-quality products and services,Well-trained engineers will also provide you with technical supports.It takes 3-4 days for general samples, and 1 week for customzied sample or requests, with ISO, CE, ROHS certification. Our products are exported to the Europe, America, Oceania, Asia, Africa and Latin America.
We are famous for innovative products.With years of production experience as well as the strong support of our partners, Honleader continues to introduce new and customer-satisfied heaters,and have at the same time been working with many branded companies, online store companies, medical institutions, university laboratories and other institutions,whic from the USA and Europe customers to customize their products.We have our own factories and freight forwarders, we can provide more competitive prices and more professional services at low cost.
With rich expertise, our professional team members can respond to customer inquiries more effectively than most competitors, enabling our customers to enjoy from us the following benefits: A)professional service; B)high quality products; C)short sample and production lead time; D) placing OEM or ODM orders We believe in partnership, and are fully committed to control the supply chain in order to provide our customers high quality products, at competitive price, and in a timely manner. We look forward to building up long-term business relationship with you to our mutual benefit.
We are famous for innovative products.With years of production experience as well as the strong support of our partners, Honleader continues to introduce new and customer-satisfied heaters,and have at the same time been working with many branded companies, online store companies, medical institutions, university laboratories and other institutions,whic from the USA and Europe customers to customize their products.We have our own factories and freight forwarders, we can provide more competitive prices and more professional services at low cost.
With rich expertise, our professional team members can respond to customer inquiries more effectively than most competitors, enabling our customers to enjoy from us the following benefits: A)professional service; B)high quality products; C)short sample and production lead time; D) placing OEM or ODM orders We believe in partnership, and are fully committed to control the supply chain in order to provide our customers high quality products, at competitive price, and in a timely manner. We look forward to building up long-term business relationship with you to our mutual benefit.
FAQ
Q: Are your products original?
A: Yes! All products are original and produced by the original manufacturer. Our parts can accept any type of testing, and we will be responsible if there is a quality problem.
Q: What is your warranty?
A: within 365 days after receiving the package.
Q: What is your delivery time?
A: Normally samples need 3 days.
Mass production need 7-10 days.
Q: What is the minimum order quantity for your products?
A: MOQ 1~10Pc available. Please feel free to contact us.
Q: Can I provide samples for testing?
A: Yes! You only need to pay the freight and you can send free samples for testing.
Q: How do I pay for the order?
A: You support to pay online via TT, Paypal, Western Union and Alibaba Trade Assurance Order.
Q: How will my package be shipped?
A: Usually we use DHL, FedEx, TNT, EMS, etc. Otherwise, please contact us.
A: Yes! All products are original and produced by the original manufacturer. Our parts can accept any type of testing, and we will be responsible if there is a quality problem.
Q: What is your warranty?
A: within 365 days after receiving the package.
Q: What is your delivery time?
A: Normally samples need 3 days.
Mass production need 7-10 days.
Q: What is the minimum order quantity for your products?
A: MOQ 1~10Pc available. Please feel free to contact us.
Q: Can I provide samples for testing?
A: Yes! You only need to pay the freight and you can send free samples for testing.
Q: How do I pay for the order?
A: You support to pay online via TT, Paypal, Western Union and Alibaba Trade Assurance Order.
Q: How will my package be shipped?
A: Usually we use DHL, FedEx, TNT, EMS, etc. Otherwise, please contact us.
Похожие товары

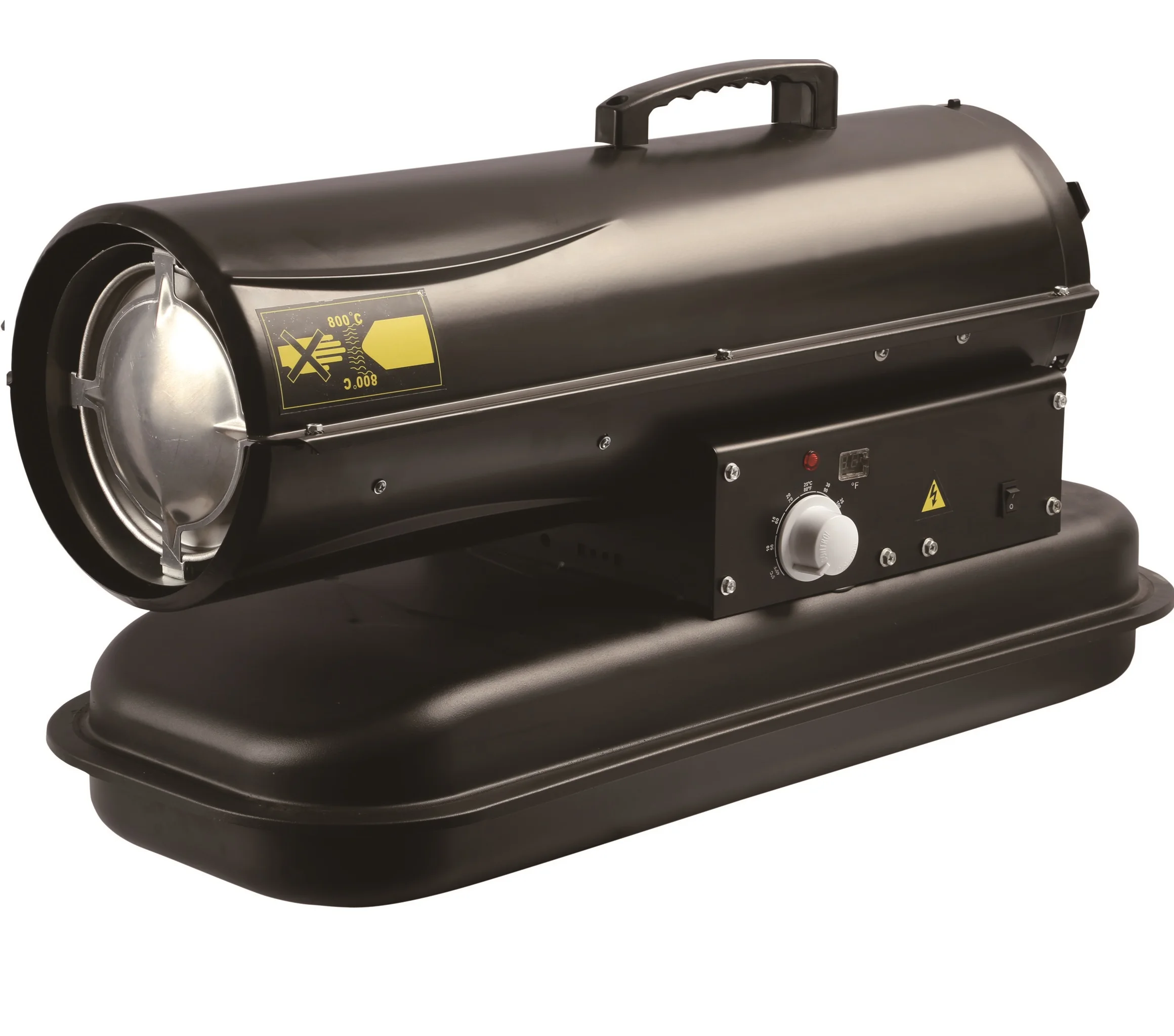

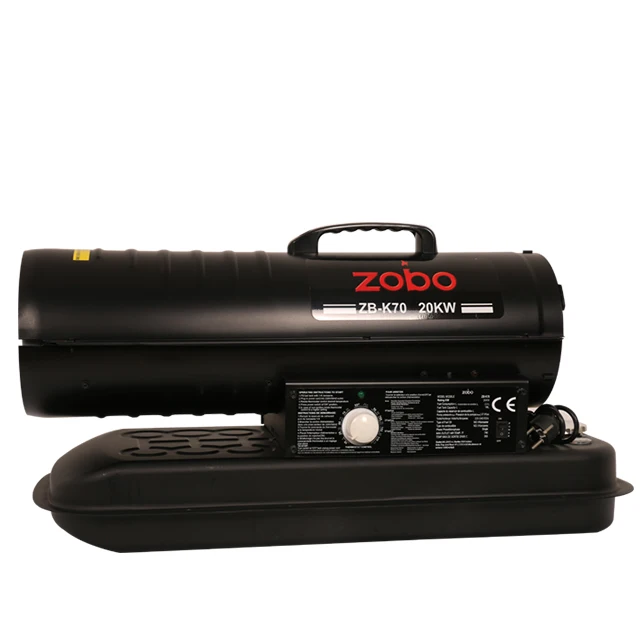

ZOBO 20 кВт дешевый OEM индивидуальный тепловой портативный парниковый пистолет дизельный керосиновый нагреватель с защитой от перегрева
116,45 $ - 127,15 $

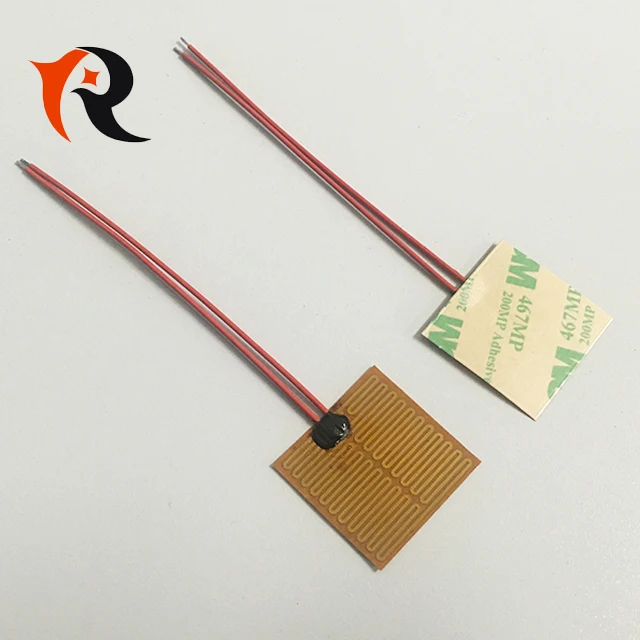

Нагреватель из полиимидной фольги 12 В с постоянной температурой
3,00 $ - 5,00 $

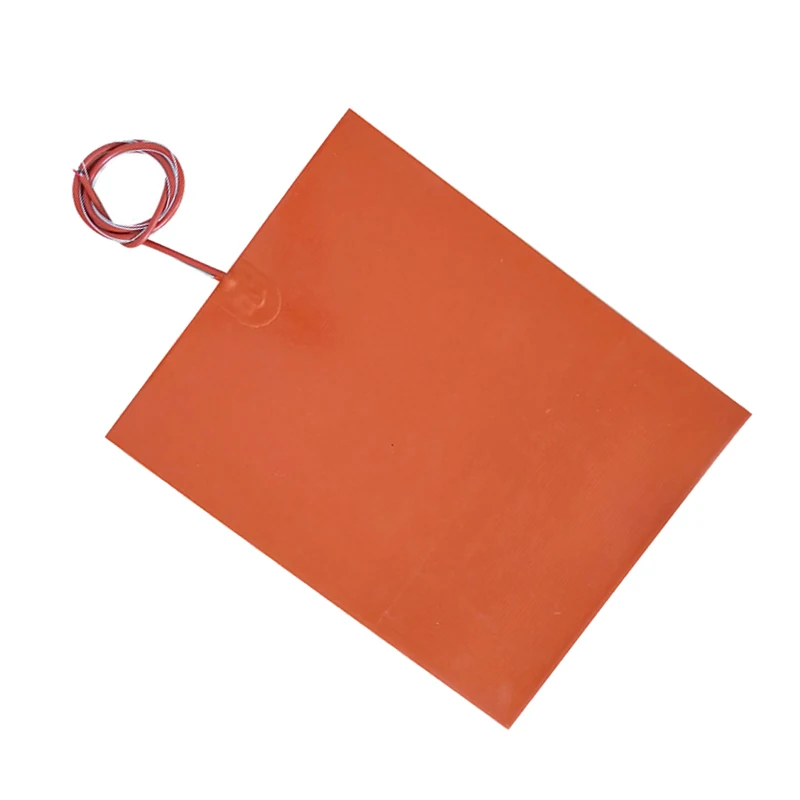

Гибкий силиконовый резиновый нагревательный коврик 600*400 мм заказной размер силиконовый нагревательный элемент с клеем и термистором

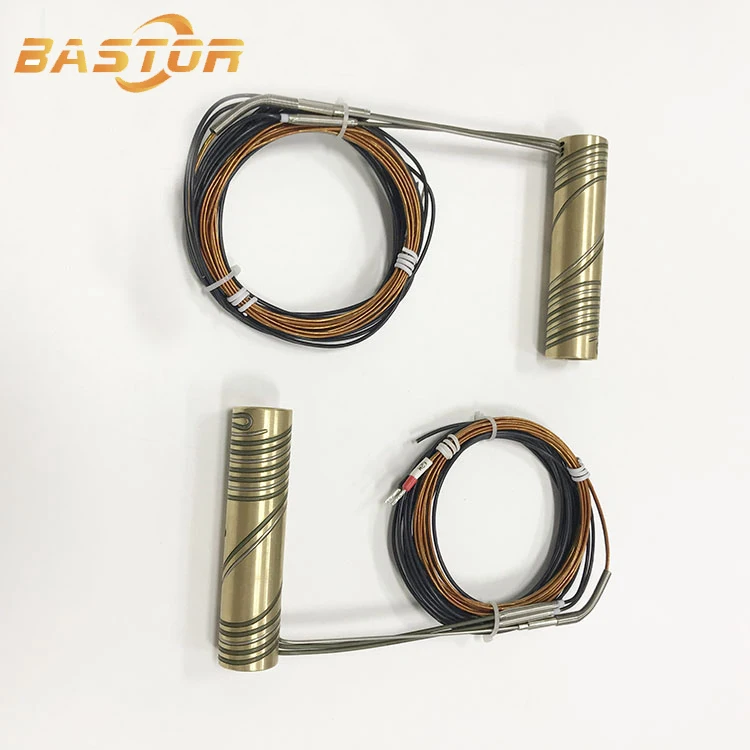

Горячий раннер пружина латунная катушка сопло нагревательный элемент для противотуманной машины
50,00 $

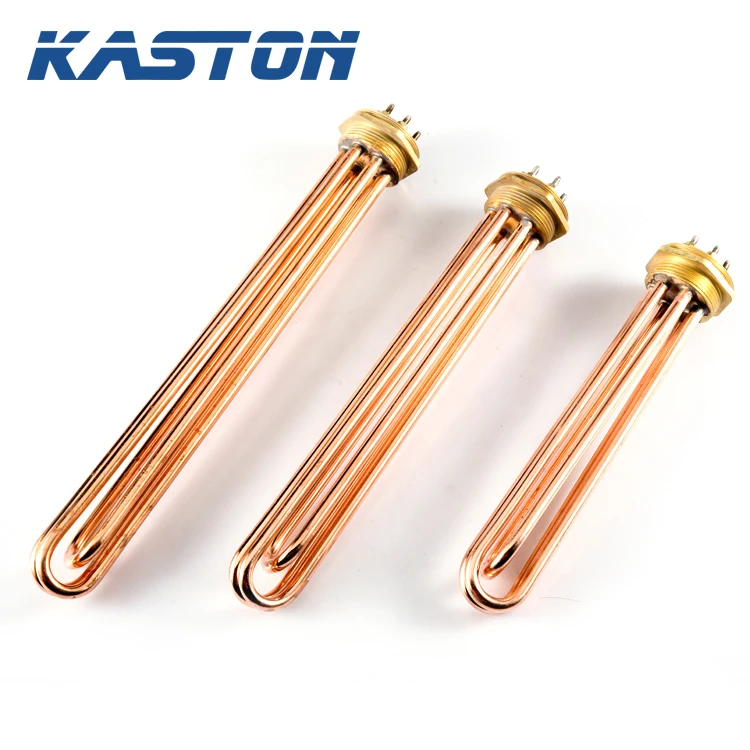

Заводская Цена 380 В 15 кВт электрический водостойкий медный латунный погружной нагреватель
