Products Description
Application:
It is widely used in dairy industry, food industry, pharmacy, chemical industry, beverage and other industrial sectors, as heating, cooling, heat preservation, anti-corrosive, anti-corrosive, strong production capacity, Cooling,insulation, sterilization treatment or storage of slurry must be stainless steel mixing tanks, especially for pasteurization of milk and
insulation, ice cream production line is the necessary equipment.
insulation, ice cream production line is the necessary equipment.
Material: SS304 / 316L;
Capacity: 50-5000L (customized is accepted);
Configuration with agitator and/or homogenizer;
Jacket: single layer, double jacket, three-layer
Thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure);
Head: open cover, seal with manhole/handhole etc.;
Shape: cylinder or cone, conical /flat/elliptical bottom with discharge.
Heat Method: gas, steam, electricity;
Capacity: 50-5000L (customized is accepted);
Configuration with agitator and/or homogenizer;
Jacket: single layer, double jacket, three-layer
Thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure);
Head: open cover, seal with manhole/handhole etc.;
Shape: cylinder or cone, conical /flat/elliptical bottom with discharge.
Heat Method: gas, steam, electricity;
Parameters：
Capacity | Heating power (KW) | Inner diameter(mm) | Jacket diameter (mm) | Speed(rpm) | power(KW) |
HD-50L | 4*2 | 400 | 600 | 23-600/2800 | 0.75kw/2.2kw |
HD-100L | 6*2 | 500 | 700 | 23-600/2800 | 1.1kw/3.0kw |
HD-300L | 6*4 | 800 | 1000 | 23-600/2800 | 2.2kw/4.0kw |
HD-500L | 9*4 | 900 | 1100 | 23-600/2800 | 3.0kw/7.5kw |
HD-1000L | 12*4 | 1200 | 1400 | 23-600/2800 | 4.0kw/11kw |
HD-2000L | 15*5 | 1400 | 1600 | 23-600/2800 | 4.0kw/22kw |
HD-3000L | 15*6 | 1600 | 1800 | 23-600/2800 | 5.5kw/30kw |
The equipment is a liquid storage containers, composed of reducer, stirring paddle and the material valve, disc thermometer and other components.
Single layer
the inner layer: adapts stainless steel plate SS304 or 316L material, and the surface mirror polishing.
Double jacket
the jacket: made of SS304 steel, spiral jacket device, cold water from the bottom up without pressure, to achieve the purpose of the best heating and cooling.
Three layers
the external insulation layer: the environmental polyurethane foam casting/ perlite particles, maintaining the temperature difference with the outside, to the effect of insulation.
Reducer
Reducer output shaft connected with the stirring paddle, the use of looper connection, easy disassemble and cleaning.
Additional devices
Sterile respirator, sterile sampling port, manhole/cover, inlet and outlet, thermometer, CIP cleaning spray balls, Liquid level gauge, ladder, (Other special customized requirements from customers are acceptable.)

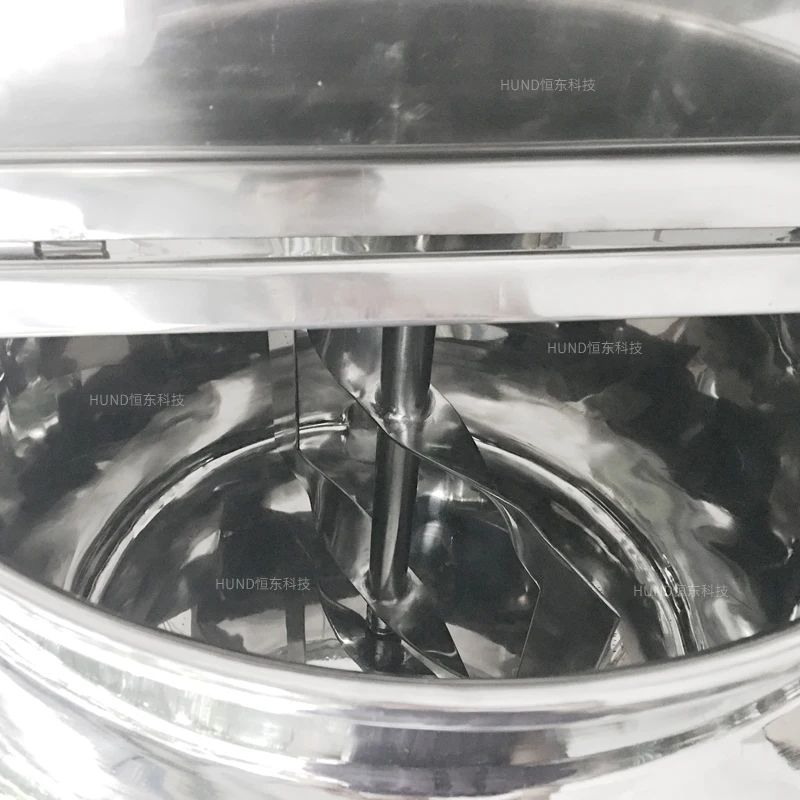

Agitator and emulsifier
Mixing speed rpm and impeller type can be customized according to customers’ request.Such as：
Anchor with scrapers
Frame with scrapers
Dispenser（single/double/three layers）
Triple impeller（double/three layers）
Turbine disk
Pitched paddles
Ribbon mixer
Top entry high shear emulsifier
Bottom entry high shear emulsifier
Anchor+ Dispenser
Anchor+ Top emulsifier
Anchor+ Bottom emulsifier
Anchor+ Emulsifier+Dispenser
Anchor+ Emulsifier+Pitched paddles
(one-direction/ Coaxial double-direction)
......
Product showing:
Recommend Products
Packing and shipping
Company Profile
HUNDOM is a high-tech enterprise integrating R&D, production and sales. We have more than 18 years of mechanical manufacturing experience. Main production: stainless steel mixing tank,homogeneous emulsion tank, in-line high shear pump,transfer pump,colloid mill, filters etc. HUNDOM has mature technology and high quality products to meet various requirements in the field of food, pharmaceutical and chemical industry.
With a high level of R&D system, HUNDOM constantly strives to improve product quality and technical standards, constantly develops product functions to enhance product life and adherence to precision manufacturing. The ex-factory products need to undergo strict quality inspection procedures to ensure that they meet the quality requirements and inspection standards of all walks of life. The mature technology and rigorous attitude are the guarantee of HUNDOM Technology’s product quality, to think what the customer thinks, and pleased what the customer likes. Provide a reasonable and effective equipment solution.
With a high level of R&D system, HUNDOM constantly strives to improve product quality and technical standards, constantly develops product functions to enhance product life and adherence to precision manufacturing. The ex-factory products need to undergo strict quality inspection procedures to ensure that they meet the quality requirements and inspection standards of all walks of life. The mature technology and rigorous attitude are the guarantee of HUNDOM Technology’s product quality, to think what the customer thinks, and pleased what the customer likes. Provide a reasonable and effective equipment solution.
Why Choose Us
FAQ
1. About Delivery term
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
