Products Description
MDI2 For GM MDI 2 Multiple Diagnostic Interface with Wifi Card Automotive Diagnostic Tools
The GM MDI 2 is the next generation Global Diagnostic Interface tool for both current and future GM vehicles. It replaces the MDI
introduced in 2007 and offers a compact communication module with increased processing power and security to offer faster transfer
of data between a vehicle’s onboard ECU network with an auxiliary CAN bus.
GM MDI 2 Description:
The Multiple Diagnostic Interface 2 (MDI 2) is used by professional technicians as an aid in diagnosing and repairing automotive
electrical and electronic systems. The MDI 2 is designed to connect the vehicle to a host PC computer application, which then
functions through the MDI 2 for data transfer and Electronic Control Unit (ECU) reprogramming.
The newest pc-based GM Multiple Diagnostic Interface (MDI 2) offers increased processing power, security, and faster programming
speeds on Global A and future Global B vehicles.

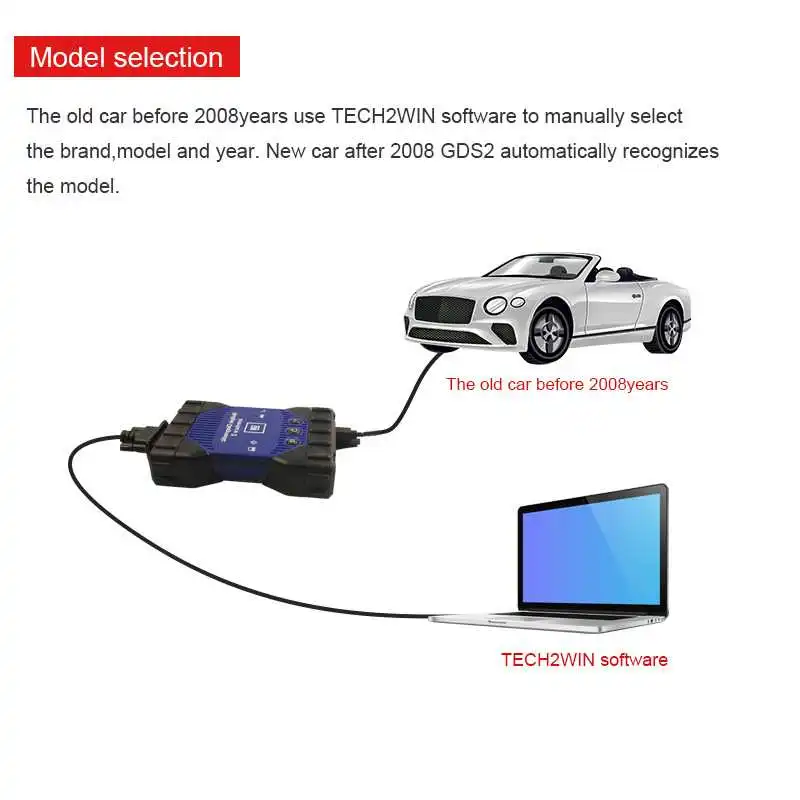

The MDI 2 supports diagnostic applications: GDS 2, Data Bus Diagnostic Tool, and Tech2Win. It also supports Pass-Thru programming
applications: TIS2Web–SPS. It replaces the first generation MDI, introduced in 2007, for Pass-Thru programming on current GM
models. The MDI 2 is backward compatible, so it can be used to perform Pass-Thru programming on all vehicles built since 1996 by
means of the J1962 connector using a DLC cable. Connection between the MDI 2 and the PC can be accomplished via standalone (USB)
and the dealership network (CAT5).
GM MDI 2 Features:

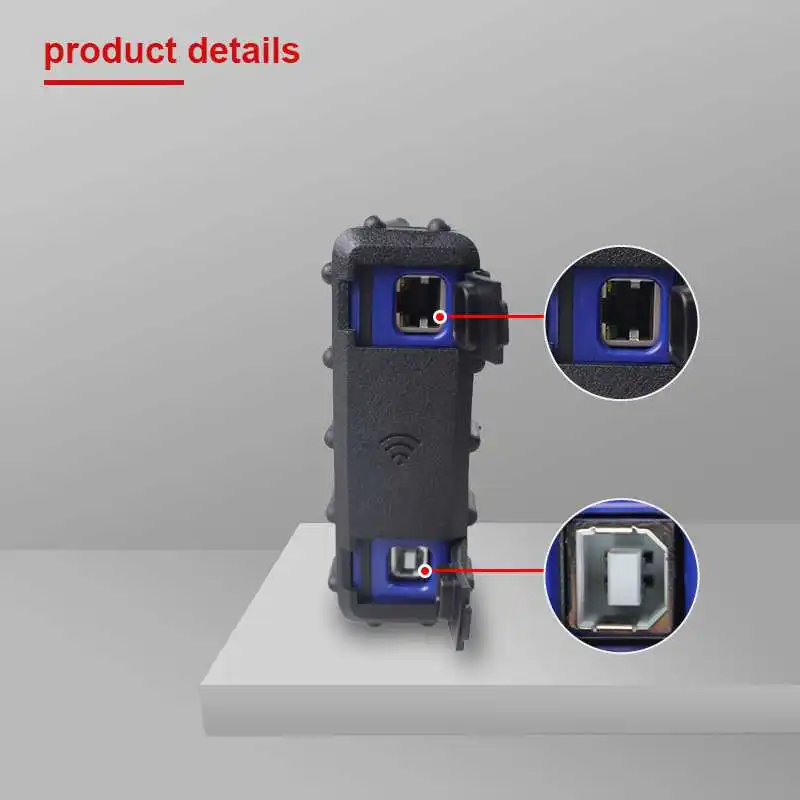

● Uses a new, more secure Type B connector and Ground Offset Failure protection. A wired connection is recommended for longer
programming events.
● The MDI 2 is powered from the vehicle battery via the DLC Cable. It may also be powered over USB to perform firmware updates
only using a PC.
● Uses USB 2.0 for faster firmware downloads instead of a separate AC power supply.
● The DLC cable is twice as long as the previous cable and connects at the top, making it easier to use. The cable only connects
to the MDI 2.
GM MDI 2 Functions List
* Automatic vehicle recognition
* DTC reading and removal
* Complete list of live data streaming for all main ECU
* Recordable / playback of live data
* New software flash for existing ECU to fix drivability issues
* Programming and installation of new ECU (PCM, ABS, Instrument cluster, air bag, fuel pumps etc.,)
* Programming new keys
* Setting / removing speed limiters
* J2534 pass thru offering ECU re-flash and diagnostics for other vehicle manufacturers, when subscribed to their specified
software
* More dealer specific functions
The GM MDI 2 is the next generation Global Diagnostic Interface tool for both current and future GM vehicles. It replaces the MDI
introduced in 2007 and offers a compact communication module with increased processing power and security to offer faster transfer
of data between a vehicle’s onboard ECU network with an auxiliary CAN bus.
GM MDI 2 Description:
The Multiple Diagnostic Interface 2 (MDI 2) is used by professional technicians as an aid in diagnosing and repairing automotive
electrical and electronic systems. The MDI 2 is designed to connect the vehicle to a host PC computer application, which then
functions through the MDI 2 for data transfer and Electronic Control Unit (ECU) reprogramming.
The newest pc-based GM Multiple Diagnostic Interface (MDI 2) offers increased processing power, security, and faster programming
speeds on Global A and future Global B vehicles.
The MDI 2 supports diagnostic applications: GDS 2, Data Bus Diagnostic Tool, and Tech2Win. It also supports Pass-Thru programming
applications: TIS2Web–SPS. It replaces the first generation MDI, introduced in 2007, for Pass-Thru programming on current GM
models. The MDI 2 is backward compatible, so it can be used to perform Pass-Thru programming on all vehicles built since 1996 by
means of the J1962 connector using a DLC cable. Connection between the MDI 2 and the PC can be accomplished via standalone (USB)
and the dealership network (CAT5).
GM MDI 2 Features:
● Uses a new, more secure Type B connector and Ground Offset Failure protection. A wired connection is recommended for longer
programming events.
● The MDI 2 is powered from the vehicle battery via the DLC Cable. It may also be powered over USB to perform firmware updates
only using a PC.
● Uses USB 2.0 for faster firmware downloads instead of a separate AC power supply.
● The DLC cable is twice as long as the previous cable and connects at the top, making it easier to use. The cable only connects
to the MDI 2.
GM MDI 2 Functions List
* Automatic vehicle recognition
* DTC reading and removal
* Complete list of live data streaming for all main ECU
* Recordable / playback of live data
* New software flash for existing ECU to fix drivability issues
* Programming and installation of new ECU (PCM, ABS, Instrument cluster, air bag, fuel pumps etc.,)
* Programming new keys
* Setting / removing speed limiters
* J2534 pass thru offering ECU re-flash and diagnostics for other vehicle manufacturers, when subscribed to their specified
software
* More dealer specific functions
HOT SELLING
Packing and Delivery
FAQ
Q1:How to get a sample?
A1:Sample order is acceptable. Please contact with us and make sure what sample do you need.
Q2:How about the packing and shipping?
A2: Normally , we have carton for packaging. If you have any other special requirements,
please feel free to contact with us.
Q3: How about the OEM/ODM service?
A3 : We provide all kinds of OEM/ODM service ,
For example :Logo printing on housing ,Customized packing, Software Customization. Please contact with us to make sure the detail things before placing order.
Q4:Can we get a lower price? Any Discount?
A4:Yes, price is not a problem, We will provide you with the best price and excellent service.
Q5: How about warranty and procedure ?
A5: Warranty time : 12 months
Warranty procedure :
If cargo has any problem, please contact us in time, we will help you to result problem.
A1:Sample order is acceptable. Please contact with us and make sure what sample do you need.
Q2:How about the packing and shipping?
A2: Normally , we have carton for packaging. If you have any other special requirements,
please feel free to contact with us.
Q3: How about the OEM/ODM service?
A3 : We provide all kinds of OEM/ODM service ,
For example :Logo printing on housing ,Customized packing, Software Customization. Please contact with us to make sure the detail things before placing order.
Q4:Can we get a lower price? Any Discount?
A4:Yes, price is not a problem, We will provide you with the best price and excellent service.
Q5: How about warranty and procedure ?
A5: Warranty time : 12 months
Warranty procedure :
If cargo has any problem, please contact us in time, we will help you to result problem.
