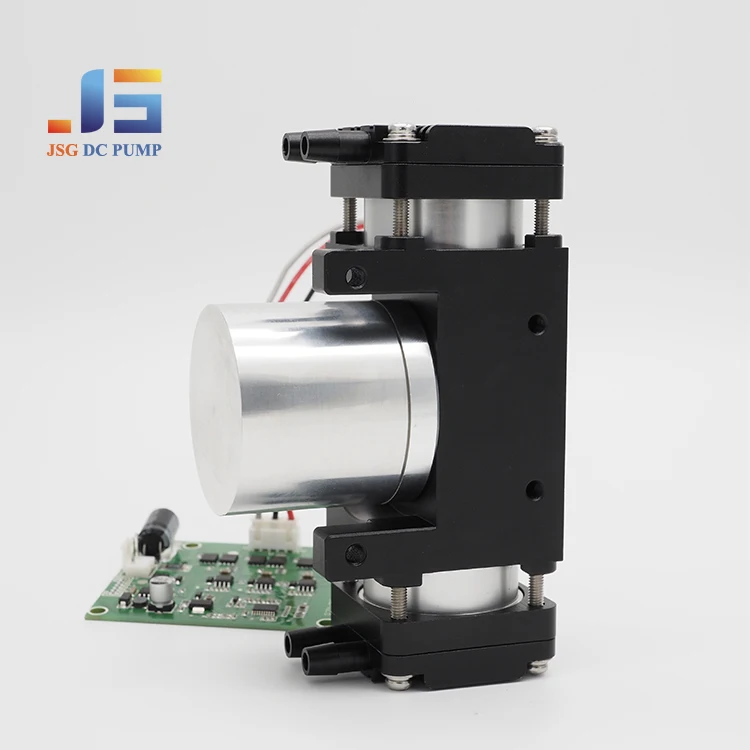

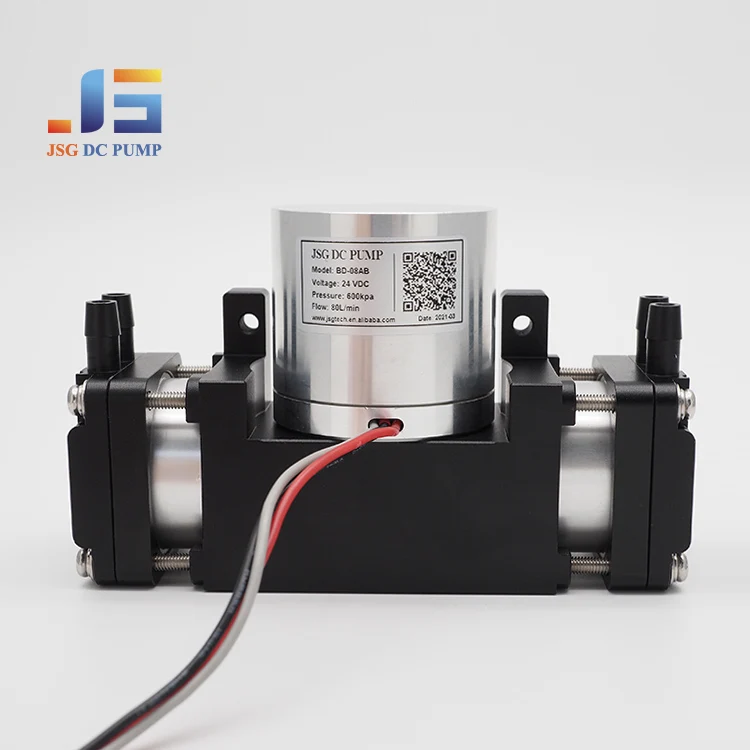

Вакуумный насос 80 л/мин 24 В для вакуумных подъемных систем инструментов тестирования и медицинского использования

Сохранить в закладки 1600322005540:


Цена:12 049,52-18 074,28 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


-3



Product Description


-4




2


Use for Air/Vacuum Pump Parameter











































NameModelVoltage

Connection


Type


No-load
Current

Positive


Pressure



Negative


Pressure


Max Flow
Air pumpBD-08AB-PWM24Vin parallel≤4.5A≥0.7Mpa /≥80L/min
 Vacuum pump  BD-08VB-PWM

 in series


≤4.5A/≥0.085Mpa≥80L/min
≤4.5A/≥0.095Mpa≥30L/min







Remark:


1. "AB"means air pump with brushless motor, "VB"means vacuum pump with brushless motor


2. Dear customer, for custom parameters, please refer to the third table


3. Pressure unit conversion:


10kpa=0.01Mpa=0.1bar=100mbar=1.45psi=75mmHg=1019.7kgf/m2


100kpa=0.1Mpa=1bar=1000mbar=14.5psi=750mmHg=10197kgf/m2


4.Because of the increase in raw materials, the sample price increased to $200.

General Specification









































Dimention134x81x50mm
Inlet/OutletID:8.0mm/OD:5.0mm
Weight700g
MaterialsPump head Aluminum alloy, membrane FKM, valve FKM
Working ModeContinuous
MotorBrushless DC Motor
Life time5000H-10000H
Environment Temperature range5-50℃
Ambient humidity range<85% RH




Dimention
CAD

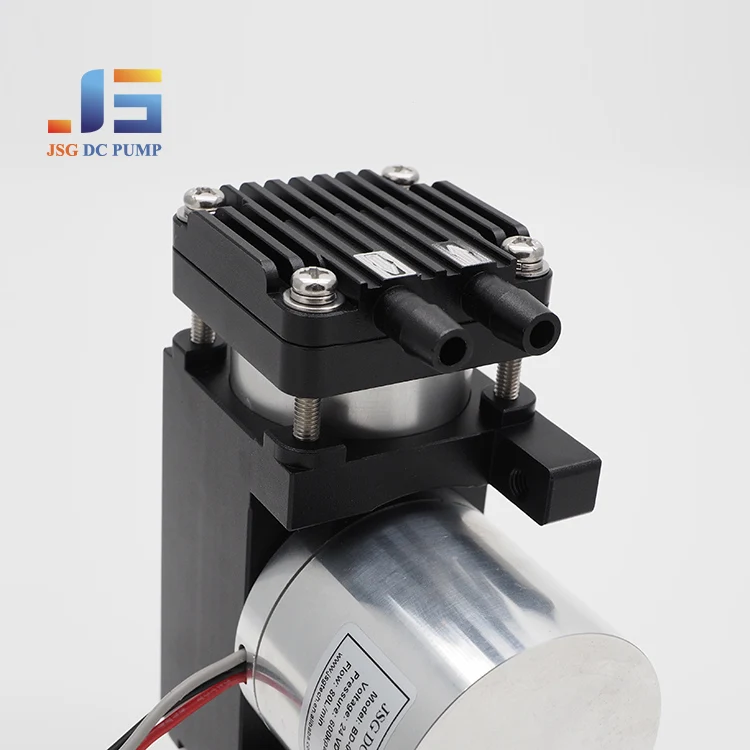

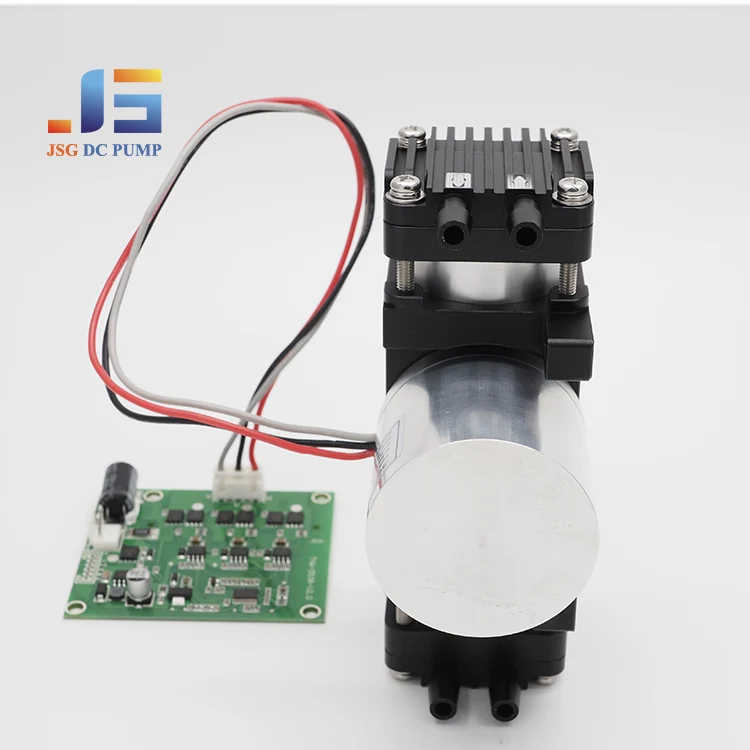

Product Details


 Product Details




3





4





5





Typical Appliaction
6

More Appliaction


1.Mounter
2.Laboratory
3.Ventilator
4.Gas analysis
5.Leak detector
6.Food equipment
7.Robotics field
8.New energy field
9.Medical equipment
10.Pressurized spray
11.Rehabilitation machine
12.Environmental monitoring
13.Portable oxygen generator
14.Cosmetic slimming equipment
15.Large suction packaging machine
16.Environmental protection equipment


......






customization





Custom Parameters





































MotorBrushless DC Motor-single headBrushless DC Motor-double head
Lifetime5000-10000H5000-10000H
Voltage24V
Positive Pressure range100-700kpa
Negative Pressure range80-97kpa
Air flow range40-80L/min
Working ModeContinuous


1.Pressure unit conversion:


10kpa=0.01Mpa=0.1bar=100mbar=1.45psi=75mmHg=1019.7kgf/m2


100kpa=0.1Mpa=1bar=1000mbar=14.5psi=750mmHg=10197kgf/m2


2.If you are interested in our products, please contact us

Brush motor









Lead angleTwo(+,-)


Brushless motor

















2 WireRed(+),Black(-)
3 WireRed(+),Black(-),Green(PWM)
4 WireRed(+),Black(-),Green(PWM),Yellow(tachometere)


Product Detail


10



7





8






Company Information



.jpg


.jpg








FAQ


FAQ




1.What's your main products of your company?


We specialized in all kinds of micro pump high performance diaphragm pump,micro air pump, micro vacuum pump, micro liquid pump, micro pison pump )for over 7 years with excellent quality and competitive price.


2.How can I choose the most suitable pump?


Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you.


3.What's your product MOQ of it?


Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more discount.





4.What's your payment way?


Support all Ali platform payment methods such as T/T, Paypal, Western Union, etc.





5.What's your delivery time?


The stock samples can be sent to you within 2-3days.


The batch order can be shipped to you in about 10-15days after order confirmation (by air or by  sea).
