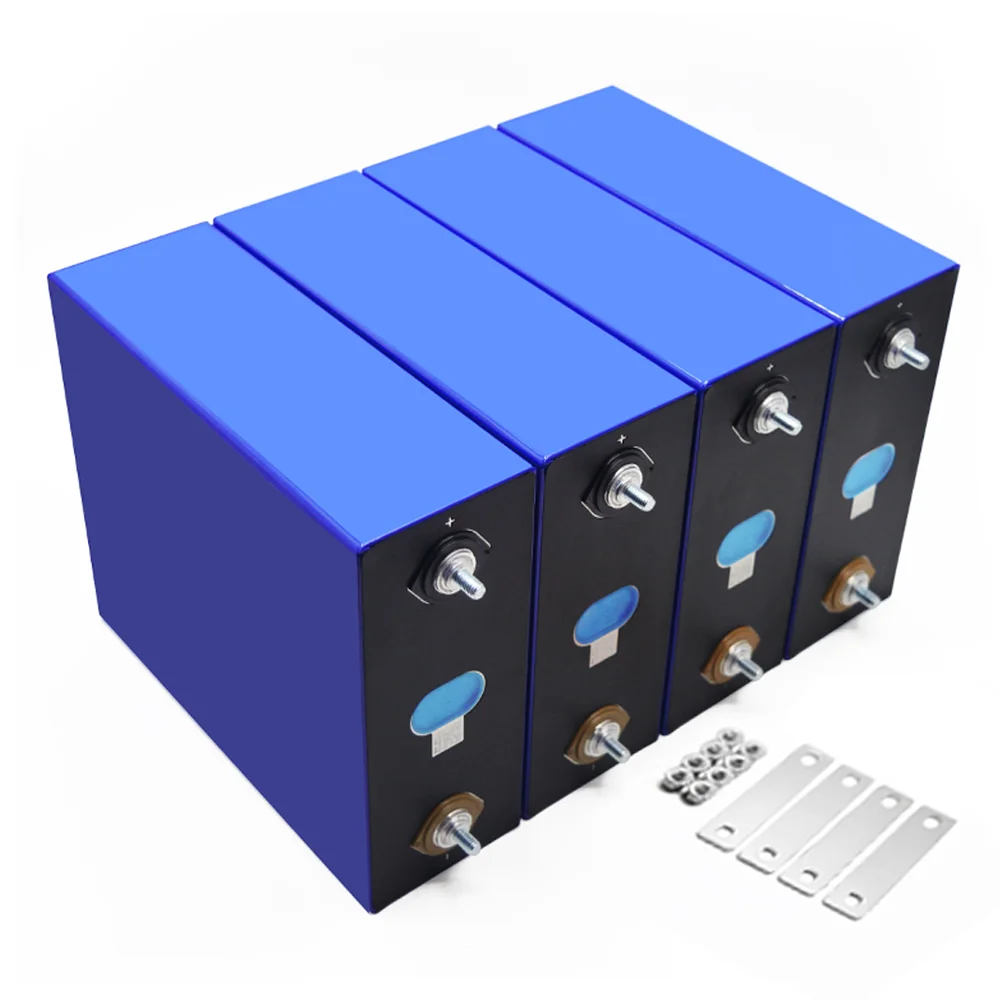

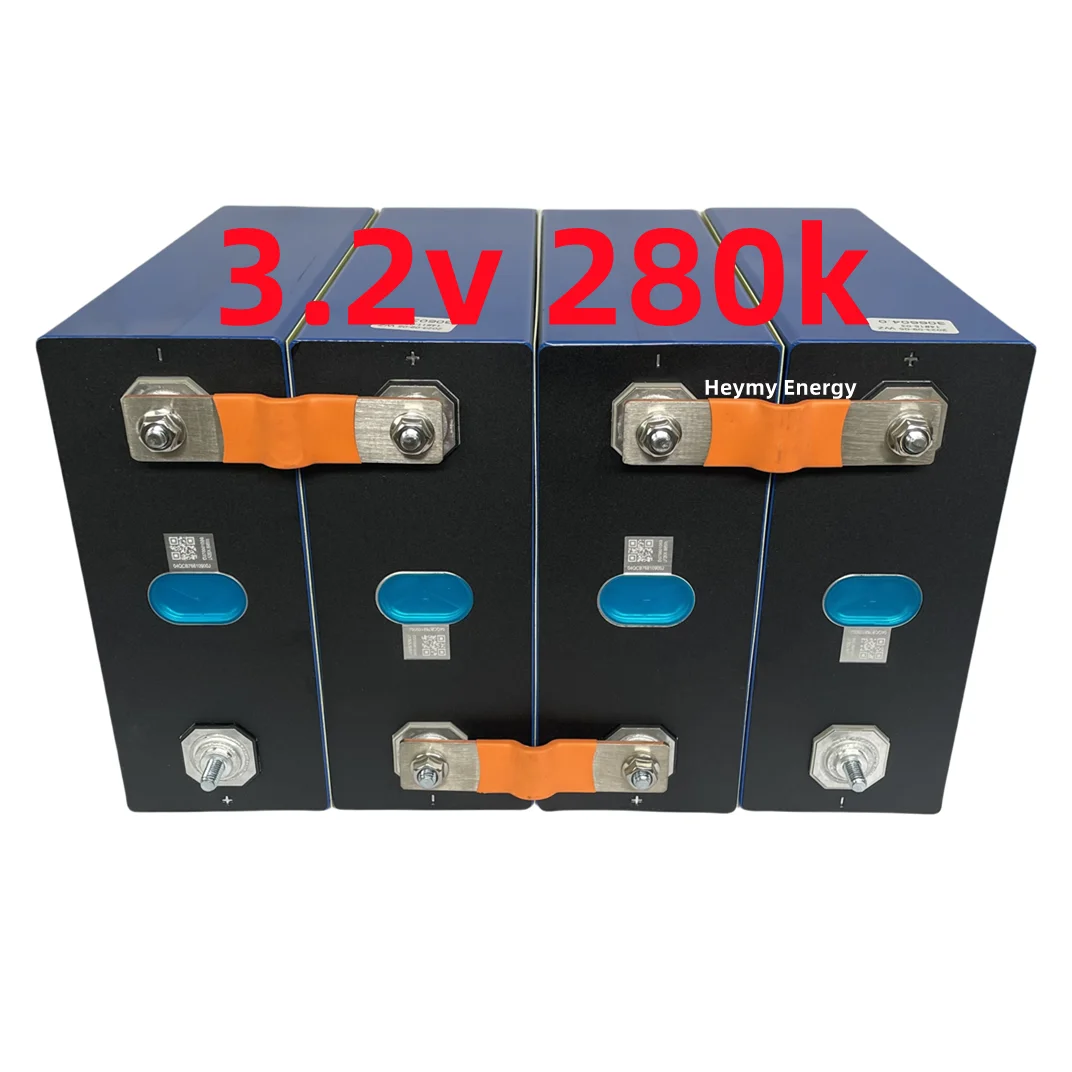

3 2 v 280Ah ячейка литиевой батареи LFP4 Lifepo4 литий железо фосфатных аккумуляторов и никель батарея для сотового телефона

Сохранить в закладки 1600322267924:


Цена:4 487,03-5 637,55 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

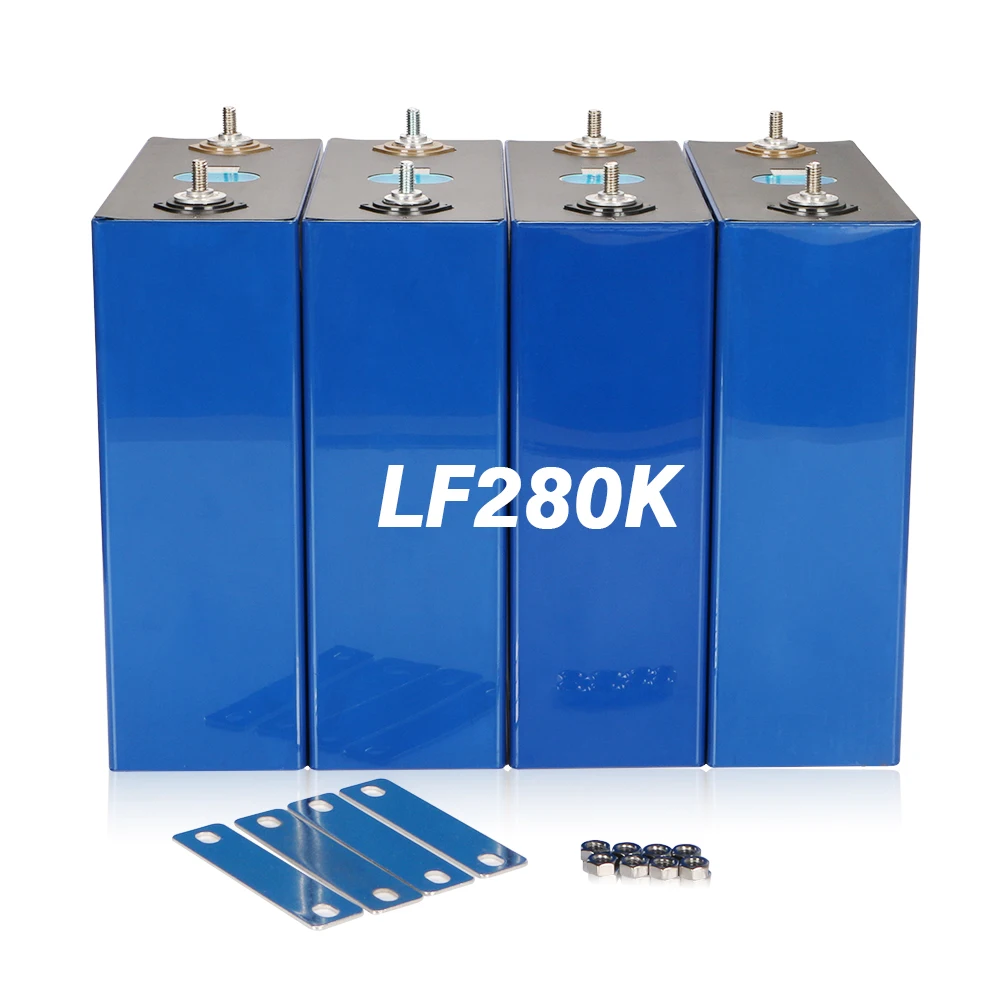

 Lifepo4  Lithium Iron Phosphate Battery Cell 3.2v 280Ah





Brand new Grade A 3.2V lifepo4 battery:






































Features:
1.High Energy density
2.long cycle life over 3000 cycles
3.Ultra safe Lithium ion chemistry(no thermal run-away, no fire or explosion risks)
4.No lead, no heavy metal, no toxic element
5.Excellent temperature robustness(-20℃ up to +55℃ )
6.Support parallel and series
7.Constant power during discharge(very low internal resistance)
8.Energy efficiency>96%
9. Minimum capacity loss, low self discharge(<5% per month)
10.No memory effect








Specification
















































































Model



VC3.2V280Ah



Nominal Voltage



3.2V



Nominal Capacity



280Ah



Typical Energy



896Wh



Standard Charge/Discharge Cut-off Voltage



3.65V/2.5V



Max Charge Voltage



3.65V



Standard Charge/Discharge Currentt



140A(0.5C)



Max Continuous Charge/Discharge Current



280A(1C)



Internal Resistance



≤0.5mΩ



Charging Method



CC / CV



Cycle Life (80% DOD)



≥3000 times



Charge Temperature



0~55°C



Discharge Temperature



-20~55°C



Storage Temperature



-20~55



Housing Material



Aluminum

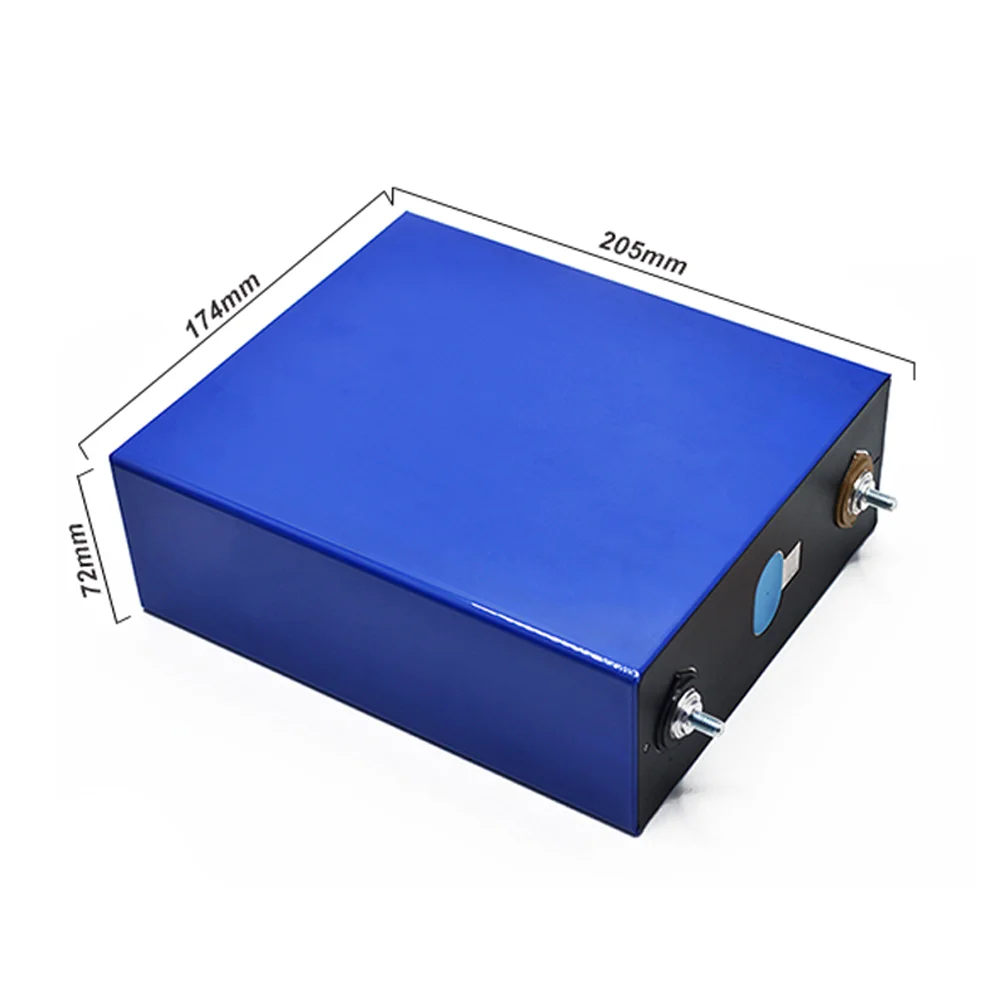

Dimension(L*H*T)



174*207*72mm



Weight



≤5.72Kg

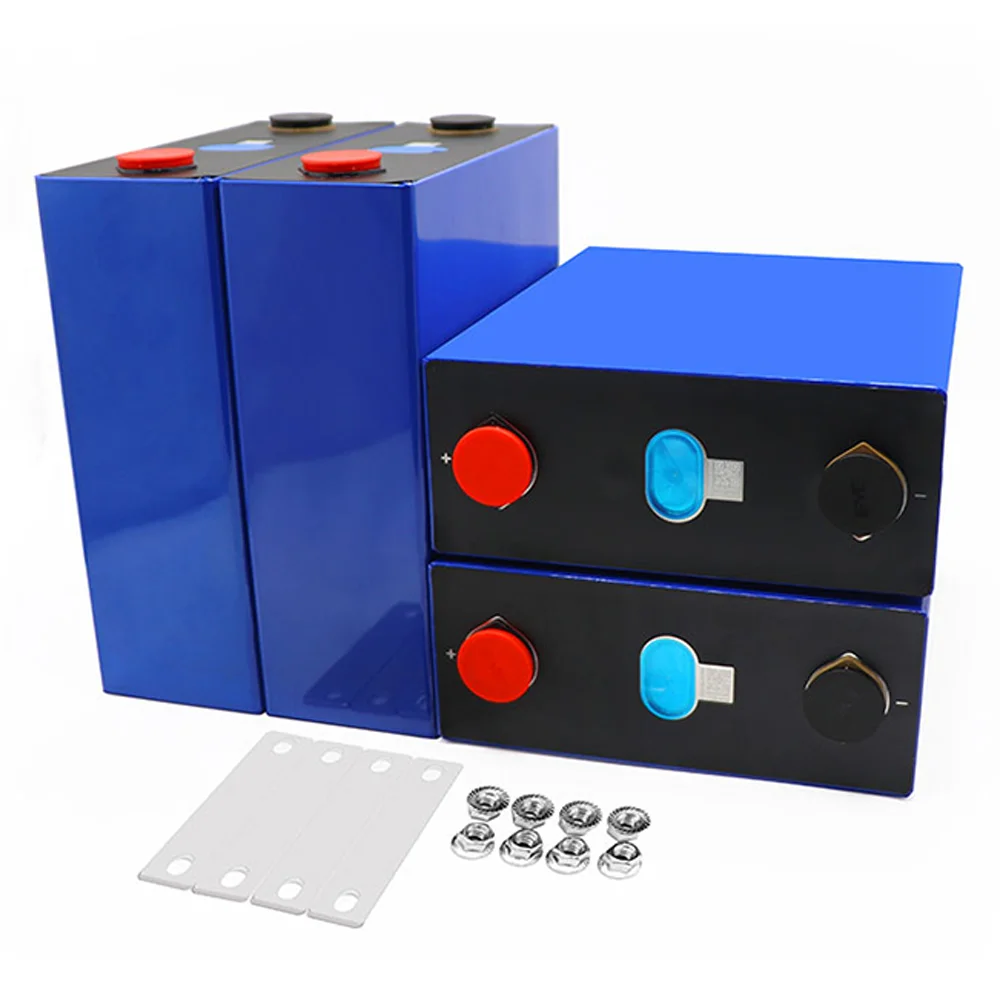

Product Images


 1000x1000F1000x1000B1000x1000E1000x1000D1000x1000A1000x1000C





About LiFePO4


12v300ah_0312v300ah_0412v300ah_0512v300ah_0712v300ah_0812v300ah_09


































Quality Contral:
1.100% pre-tested for each product before shipping
2. Specialized manufacturer with over 10-years experience
3.Excellent customer service and technical support
4. Strict quality control system and professional R&D team
5. The QR code is intact, Grade A, Brand new.




Company Profile


12v300ah_1112v300ah_1312v300ah_1412v300ah_1512v300ah_16

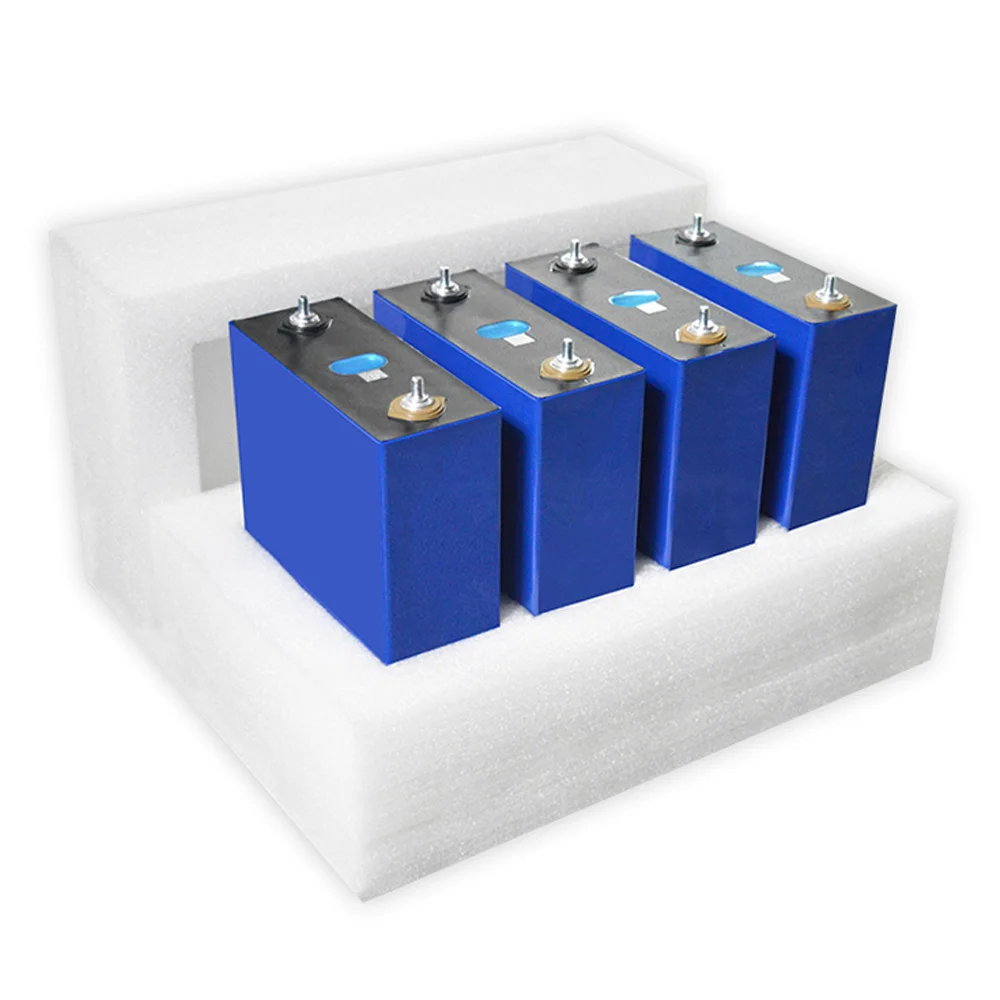

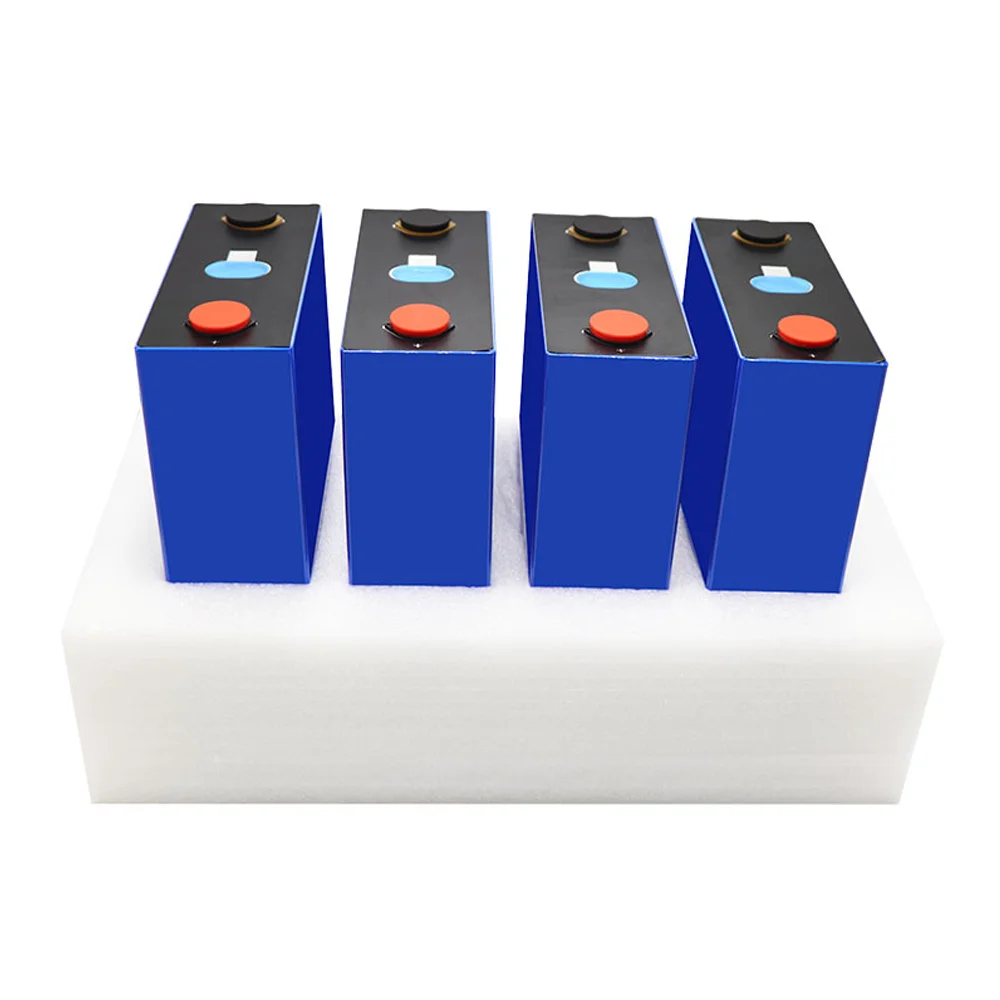

Packaging & Shipping


12v300ah_17





FAQ


Q1: What are there included for a battery or pack, may I buy charger from you?
A1: Battery case, BMS, battery pack, can buy customzied connector, charger.





Q2: How long frequency does recharge the battery?
A2: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger


current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.





Q3: What's the sample lead time, and bulk order delivery. How long I can get it?
A3: Fast delivery: If small quantity, can be finished in 3-5 days days after payement, bulk in 10-25 days depends on the quantity.
Shipping: sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 50KG, can ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for sales person to check the best option for you.





Q4. What is your warranty?
A4: We offer 1-5 years warranty for all our battery pack for different situation. We ensure at least 3000 cycle life for the LiFePO4 battery pack, which means, after 3000@80% DOD, there will still around 60% capacityt left. You can use it for at least 10 years for normal 1 time charge and discharge everyday.





Q5: Can I customize the size of battery?
A5: Of course yes if yourquantity MOQ workable.





Q6: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us about the details.





Q7: How’s the package?
A7: Normally are cartons, but also we can pack it according to your requirements.








Q8. Can we put different LiFePO4 battery pack in parallel or series by ourself?
A8: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.





Q9. Can we use it for car engine?
A9: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.
