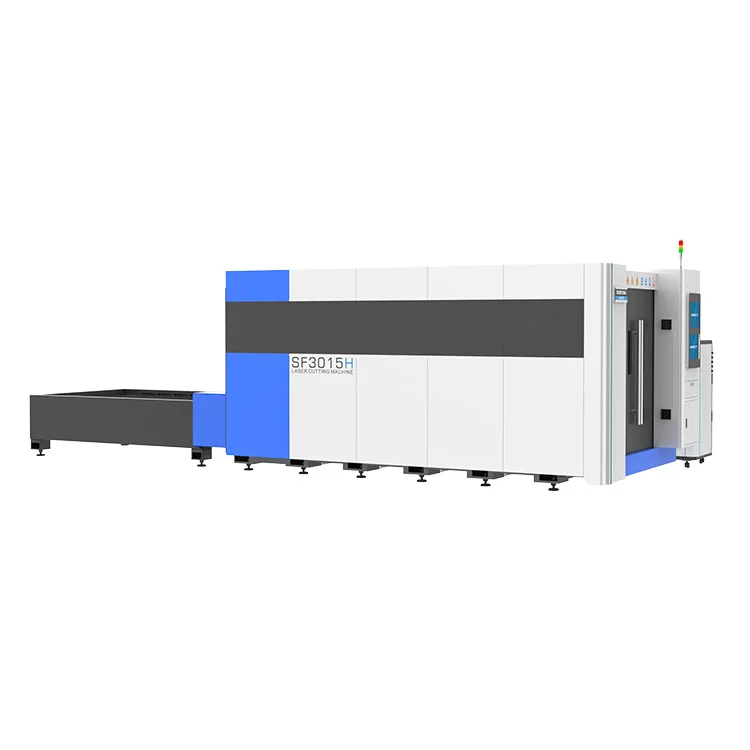

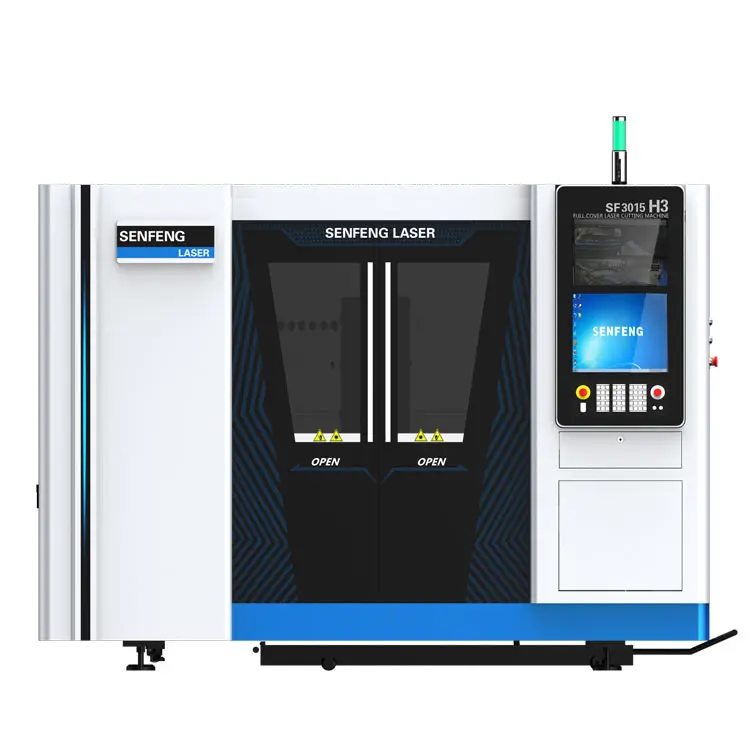

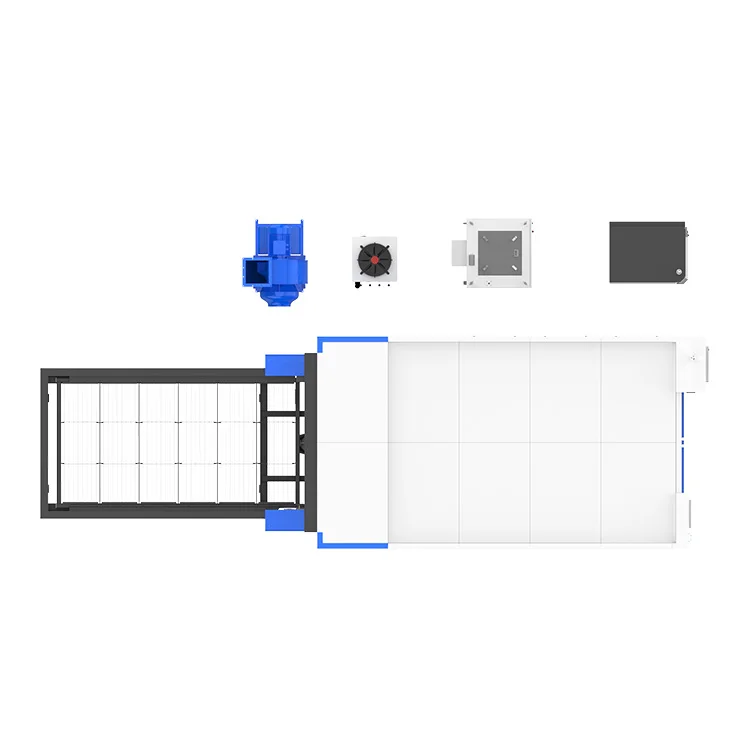

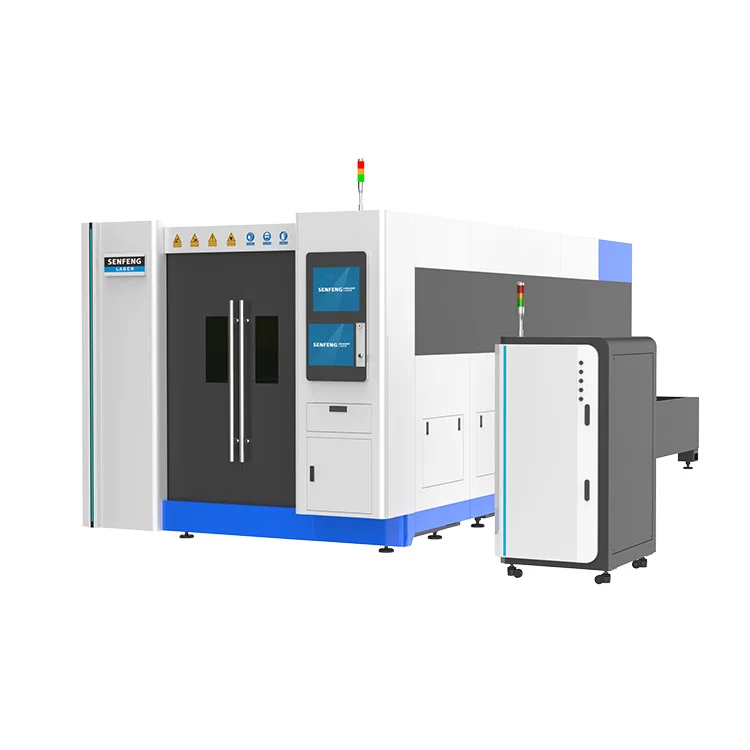

Senfeng высокомощный волоконный лазер для резки 8 кВт/12 кВт/15 кВт/20 кВт SS и CS до 40 мм
- Категория: >>>
- Поставщик: Jinan Senfeng Laser Technology Co. Ltd.
Сохранить в закладки 1600322332969:
Описание и отзывы
Характеристики
Senfeng High Power Fiber Laser Cutting Machine 8KW/12KW/15KW/20KW for Cutting SS and CS up to 40MM
Product Description
Item | Parameter | ||||||
Laser Power | 8KW | 12KW | 15KW | 20KW | |||
Work Area | 3000*1500 mm | ||||||
X-axis Travel | 1530mm | ||||||
Y-axis Travel | 3050mm | ||||||
Z-axis Travel | 390mm | ||||||
Positioning Accuracy | ±0.05mm | ||||||
Repeated Positioning Accuracy | ±0.02mm | ||||||
Maximum Speed | 180m/min | ||||||
Maximum Acceleration | 2.0G | ||||||
Machine Total Weight(KG) | 7294 | 7467 | 7857 | 8004 | |||
Table Maximum Load(KG) | 1400 | ||||||
Outline size（mm） | 8910*2815*2515 | ||||||
Power Parameters | Three-Phase AC 380V 50Hz | ||||||
Product Details
Heavy-duty Thermally Isolated Hollow Bed
The heavy-duty thermally isolated hollow bed is welded with high-quality steel plates and pipes. After welding, stress relief annealing, secondary aging treatment, and ultra-large gantry milling machine precision processing ensure that the bed has sufficient structural stability and shock resistance. Withstand higher acceleration. There is no connection inside the bed to block heat transfer, avoiding the heat generated by cutting from being transferred to the bed and affecting the processing accuracy. The bed will not be deformed after long-term use, which improves the service life of the equipment.
Intelligent Surrounding Spiral Negative Pressure Dust Removal
Intelligent surrounding spiral negative pressure partition dust removal system, according to the current cutting position, intelligently switch the air outlet, time-sharing, partition, and sectional air exhaust, and cooperate with the back-shaped sealing structure design at the bottom of the base to realize smokeless cutting.
Gaphite, Copper Protection(≥8000w)
The thermal conductivity of graphite is poor, which effectively prevents the machine bed from being deformed by heat and guarantees the service life.
Strong Aviation Aluminum Beam
The use of aviation-grade high-strength aluminum alloy beams, light weight, low inertia; built-in triangular reinforced structure, strong rigidity, good shock absorption; rough machining after annealing to eliminate internal stress, and fine machining after secondary vibration aging treatment to ensure Improve the overall strength and stability of the beam.
Samples
Certifications
Our Service
Packing & Delivery
Company Profile
SENFENG LEIMING LASER is a professional Chinese manufacturer engaged in the research,development, production, sale and service of fiber laser cutting machine, fiber laser cleaning machine,laser marking machine,laser welding machine and 3D robot. And our laser cutting machine has successfully passed CE fromTUV,ISO9001-2015 certification.
SENFENG LEIMING LASER has 4 standardized laser equipment manufacturing bases with a total area of over 120,000 square meters. We have established many branches in Germany, the United States, India, we are going to establish Serbia branch, Vietnam branch, Jordan branch and Pakistan branch in the future,
providing local service for customers.
providing local service for customers.
We attend many exhibitions every year. Our customers from more than 160 countries.Thank you very much for all customers trusting us . If you have any questions, please feel free to contact us!
FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, just tell us below information
1.What is your material
2.The size of material
3.The thickness of material
Q: How can I get the information and quotation of this product quickly?
A: Please leave your email ，WhatsApp or wechat , and we will arrange the sales manager to contact you asap.
Q: What's material can fiber laser cut?
A: All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
Q: This is the first time I use this kind of machine, is it easy to operate?
A: The machine is mainly controlled by software.Simple, not complicated.Before delivery, we will make a simple operation manual and videos.Generally speaking, an operator who is not familiar with the fiber laser machine can still operate it well.According to customer requirements, we can send technicians to the customer's factory for machine training, or the customer to come to our factory for machine training.
Q: If there is a problem with the machine, what about the after-sales service?
A: 1)The warranty of laser source is 2 years.
2)The warranty of the machine is 2 years（main spare parts）,except for the consumable parts such as ceramic ring, focus lens, nozzle etc. Warranty counts from the date marked on the label of the laser source and machine.
3)Except the damage artificially, seller is responsible for offering the fittings free of charge during the warranty period.
4)Exceeding the warranty period, parts need to be repaired or changed, shall be paid.
A: In order to recommend you the most suitable machine model, just tell us below information
1.What is your material
2.The size of material
3.The thickness of material
Q: How can I get the information and quotation of this product quickly?
A: Please leave your email ，WhatsApp or wechat , and we will arrange the sales manager to contact you asap.
Q: What's material can fiber laser cut?
A: All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
Q: This is the first time I use this kind of machine, is it easy to operate?
A: The machine is mainly controlled by software.Simple, not complicated.Before delivery, we will make a simple operation manual and videos.Generally speaking, an operator who is not familiar with the fiber laser machine can still operate it well.According to customer requirements, we can send technicians to the customer's factory for machine training, or the customer to come to our factory for machine training.
Q: If there is a problem with the machine, what about the after-sales service?
A: 1)The warranty of laser source is 2 years.
2)The warranty of the machine is 2 years（main spare parts）,except for the consumable parts such as ceramic ring, focus lens, nozzle etc. Warranty counts from the date marked on the label of the laser source and machine.
3)Except the damage artificially, seller is responsible for offering the fittings free of charge during the warranty period.
4)Exceeding the warranty period, parts need to be repaired or changed, shall be paid.
Похожие товары
Оптовая продажа, Потребительская Электроника, упаковка для футболок, бумажная упаковка, картонные коробки, коричневая одежда, гофрированные коробки, упаковка
Холодильные компрессоры ZP182KCE-TFD-550 ZP182KCE-TFD-405 3 фазы copeland компрессора 15hp для холодильных установок

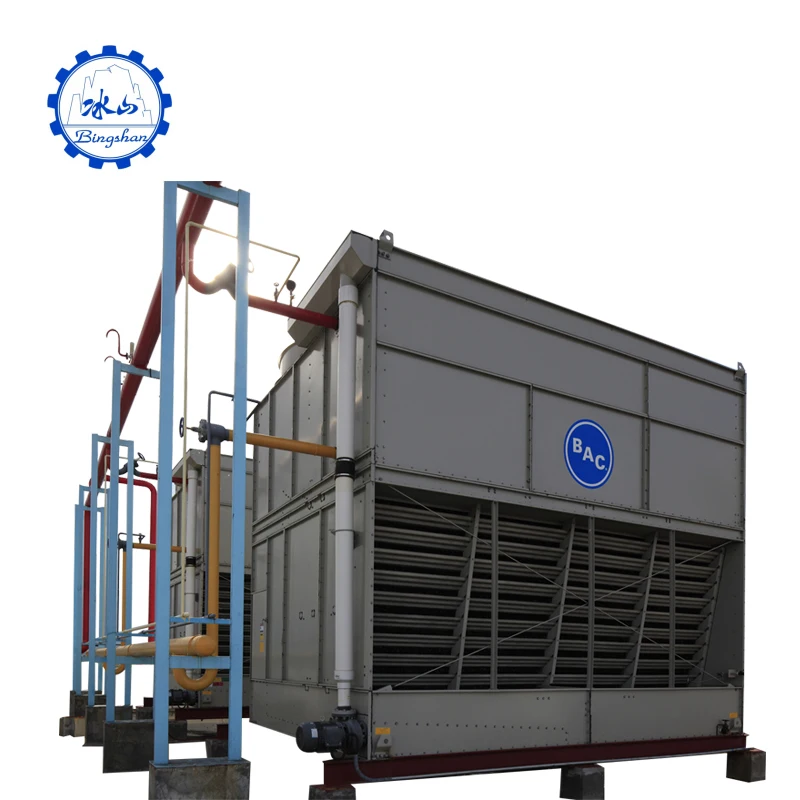

Evaproative конденсатор серии BAC CXV
2 000,00 $
BP016 оптовая продажа, розовая бумага для хранения в форме сердца, декоративная картонная упаковка на заказ, подарочные коробки
3,79 $ - 4,26 $

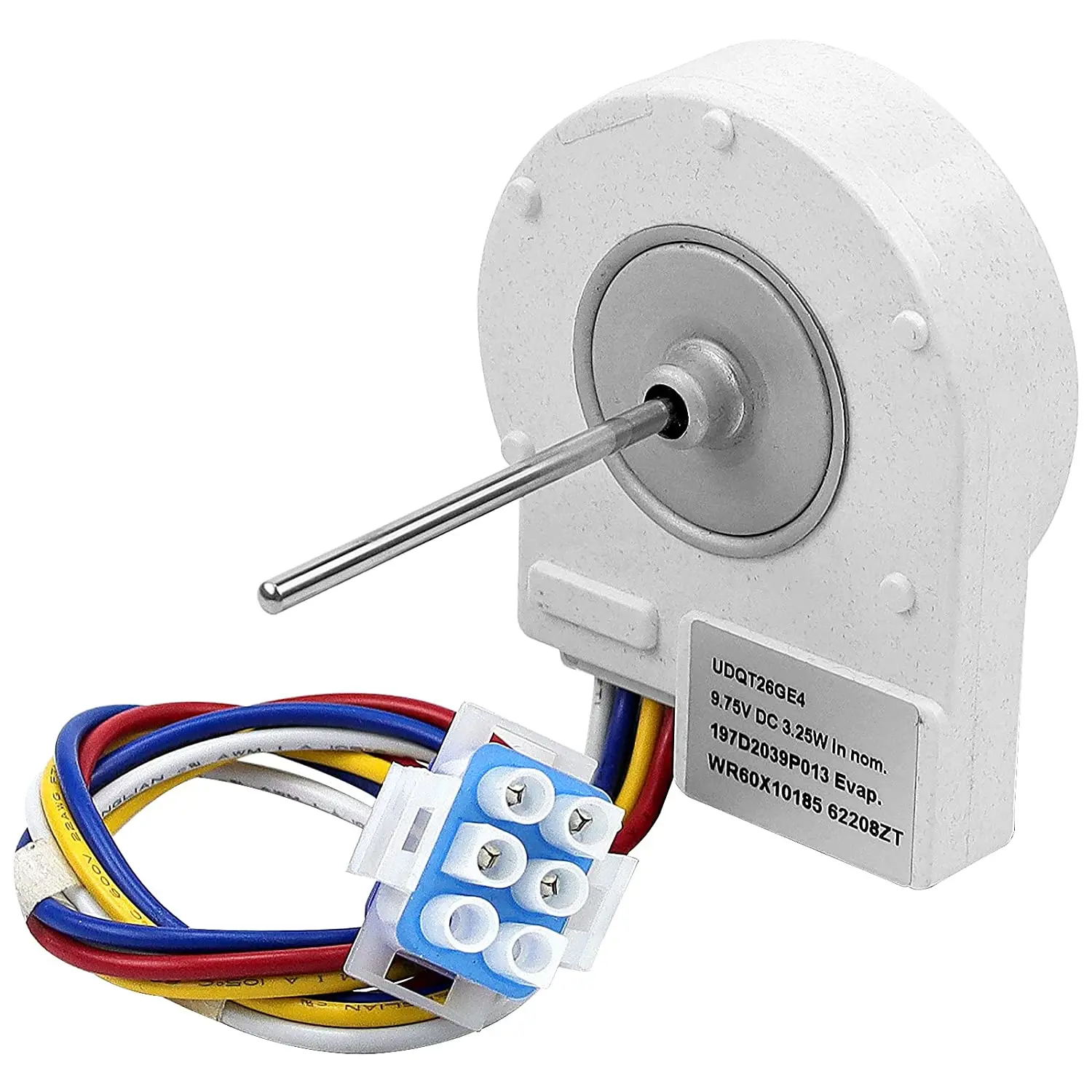

WR60X10185 EVAP.SELLADO SIN SENSOR WR197D2039P013 9,75 V 3,25 W, бренд: Mabe
Пользовательские Печатные роскошные бумажные картонные складные коробки дизайн ваш логотип упаковка Черная Магнитная подарочная коробка
1,59 $ - 1,99 $

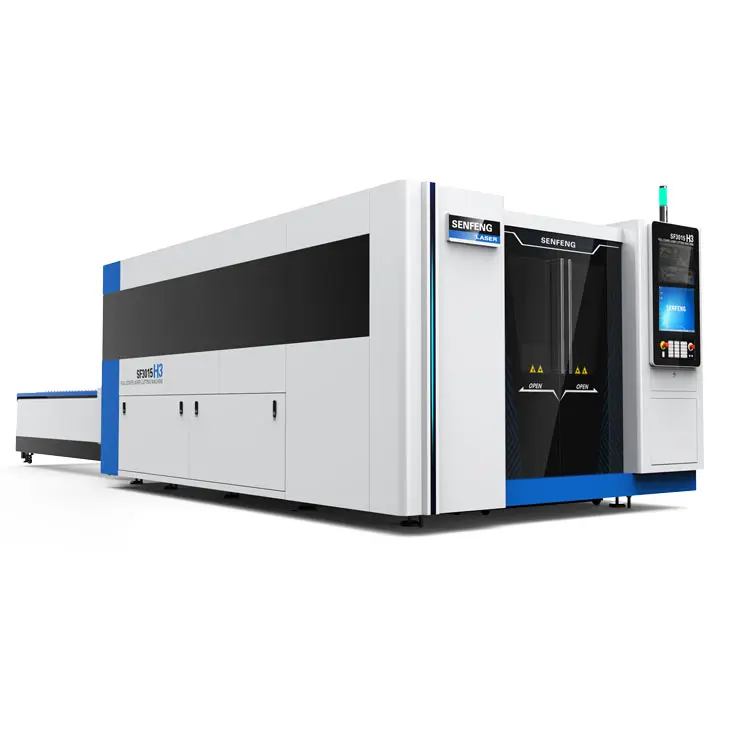

Senfeng Лидер продаж и высокая точность волокно лазерной резки из 1000KW для 12KW для резки SS CS алюминиевый латунь доставка SF; Сезон осень-зима 3015H
