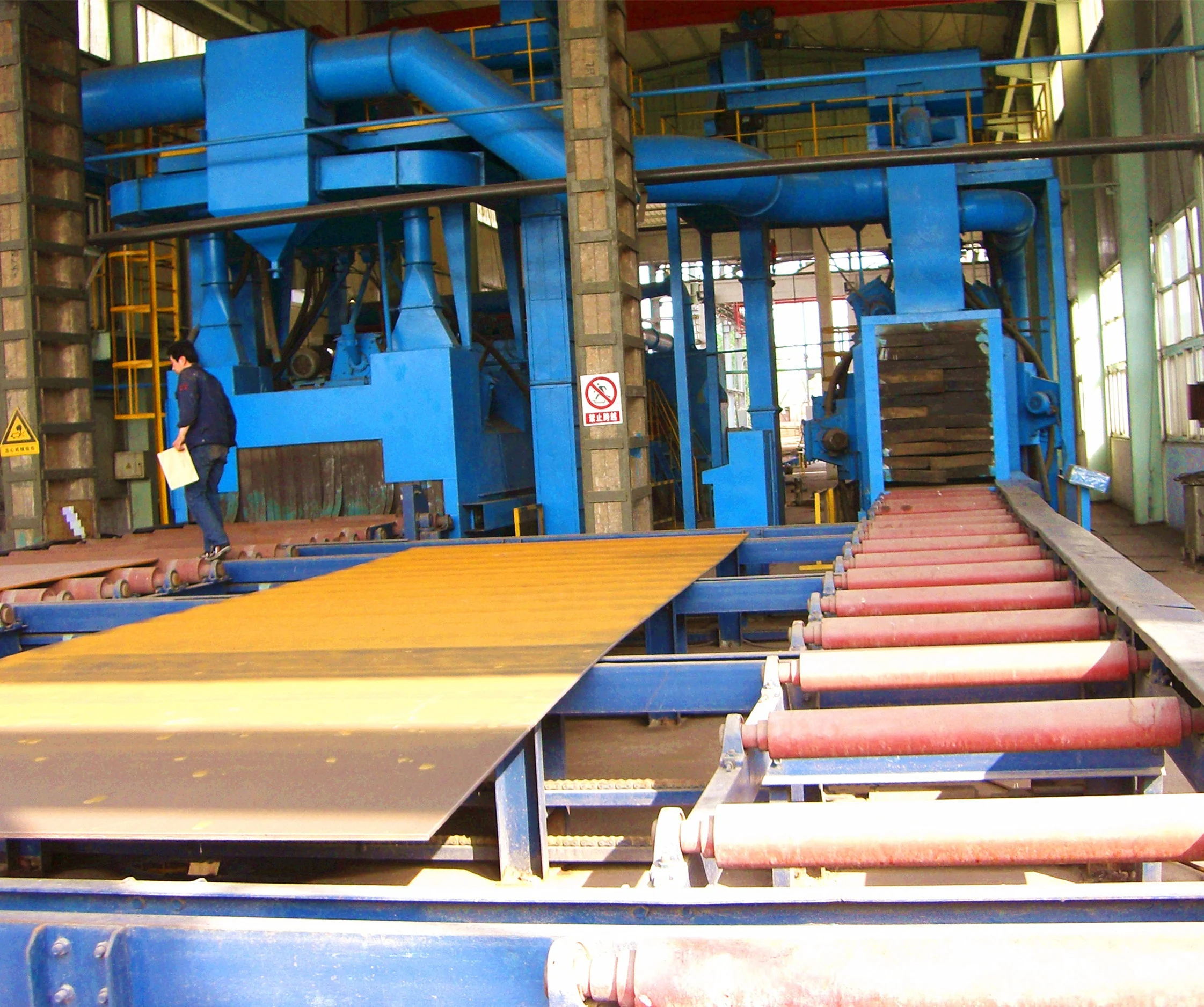

Steel Plate Pretreatment line /Shot Blasting and Painting Machine
The steel pretreatment line refers to the processing process in which the steel is shot blasted to remove rust and coated with a protective primer before processing (that is, the state of the raw material).

1)Workpiece conveying system
1 Frequency conversion stepless speed regulation, each department can operate synchronously and independently
.2. The roller table is equipped with a special material wear-resistant sheath.
3. The "V"-shaped structure of the plate chain conveyor, the steel plate is in short-term contact after painting to avoid damage to the paint film.
2)Shot blasting
1. The height measurement of the workpiece adopts photoelectric switch and brake motor
2. The workpiece width measuring device automatically adjusts the opening quantity of the pill gate.
3. The cantilever centrifugal shot blasting device is adopted, and the layout of the shot blasting device is simulated by computer. The projectile avoids the roller table, and the workpiece is covered evenly.
3)Pill cleaning
Roll sweep, side sweep and high pressure blower sweep.
4)Pill recycling purification
1. Adopt full curtain winnowing separator.
2. Use special polyester core hoist transmission belt.
3. Air-controlled projectile controller is adopted.
4. Each power point of the projectile circulation system is equipped with a fault alarm function.
5)Dust removal system
The cyclone and bag integrated dust collector are selected, and the dust emission meets the national standard.

6)Spray booth
1. Two high-pressure airless paint spraying pumps, one of which is spare.
2. Standard linear guide rail is used to support the trolley, and the two ends of the trolley travel are frequency-converted and buffered.
3. The workpiece detection and transmission mechanism are separated from the spray gun, and there is no paint mist interference, which is convenient for cleaning paint dirt.

7)Drying room
1. A variety of medium heaters (or burners) can be used, hot air circulation, so that the heat can be fully utilized.
2. The temperature of the drying room is adjustable from 40 to 70 degrees.

8)Paint mist filter device and harmful gas purification device
1. Use advanced paint mist filter cotton to filter paint mist.
2. Adopting activated carbon to absorb harmful gases.

9)Electrical control system
1. PLC control, upper computer (microcomputer) dynamic simulation monitoring.
2. Circulation system failure alarm function.
3. Time accumulation and timing function for wearing parts.



FEATURE OF A GLANCE




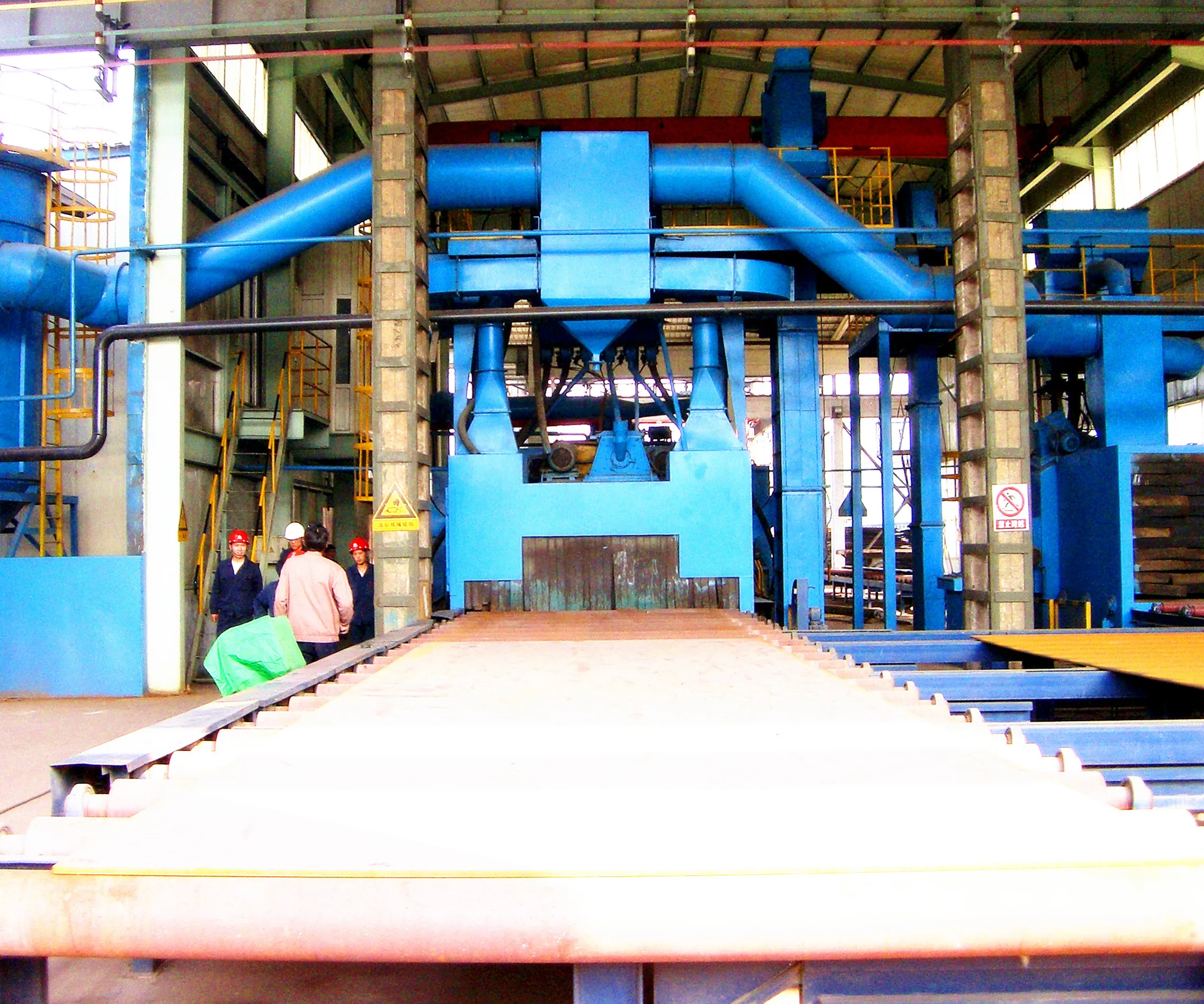

Roller Conveyor Steel Plate Pretreatment Line
warm up b lasting painting result




Product Paramenters


No
Item
unit
type I
type II
type III
1
workpiece width
mm
below 2500
below 3500
below 45000
2
Model
QXY 2000
QXY 2200
QXY 2500
QXY 3000
QXY 3200
QXY 3500
QXY 3500
QXY 4000
QXY 4500
3
width of steel plate
mm
2000/2200/25000
3000/3200/3500
3500/4000/4500
4
thickness of steel plate
m/min
3-60
3-60
3-100
5
min cross section of profile steel
mm*mm
60*80
60*80
6
max cross section of profile steel
mm*mm
1000*300
1000*300
7
shortest workpiece
mm
2400
2400
2400
8
longest workpiece
mm
12000
12000
12000
9
conveying speed
m/s
1-5
0.5-4
4-6
10
rust removal grade
ISO8501-1,1988
or GB8923-88
Bsa 2.5
11
surface roughness
µm
40-70
40-70
40-70
12
film thickness
µm
15-25
15-25
15-25
13
coating type
Quick-drying zinc-rich primer
Quick-drying zinc-rich primer
Quick-drying zinc-rich primer
14
Compressed air consumption
m3/min
5-7
5-7
5-7
15
Compressed air pressure range
MPa
0.4-0.6
0.4-0.6
0.4-0.6
16
The first addition of pills
Ton
8-10
8-10
12-16


Shot Blasting Effect
