Пользовательская Высокоточная оптическая инфракрасная германиевая Призма ATR

Пользовательская Высокоточная оптическая инфракрасная германиевая Призма ATR

Категория: >>>
Поставщик: Wuhan Especial Optic Inc.

Цена:30,00 $ - 100,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

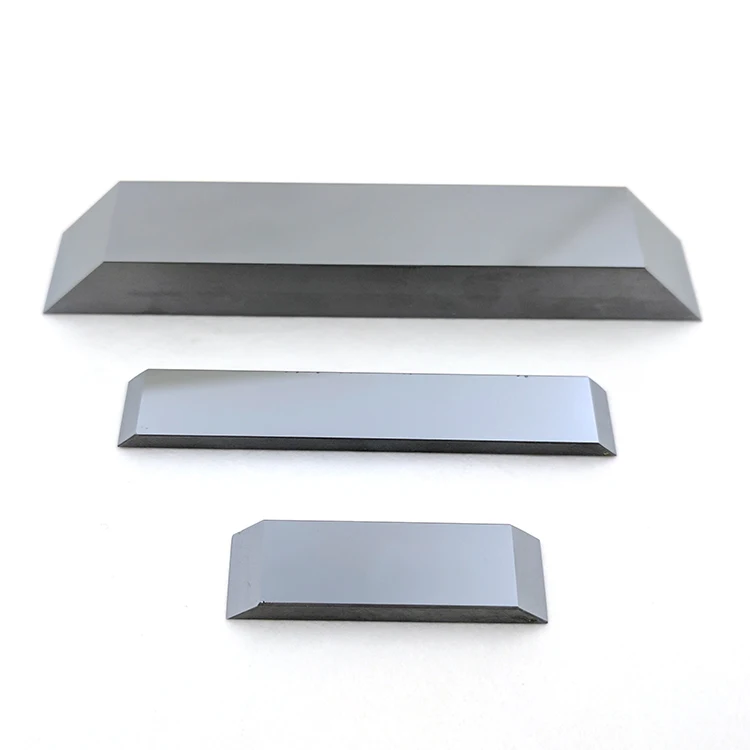

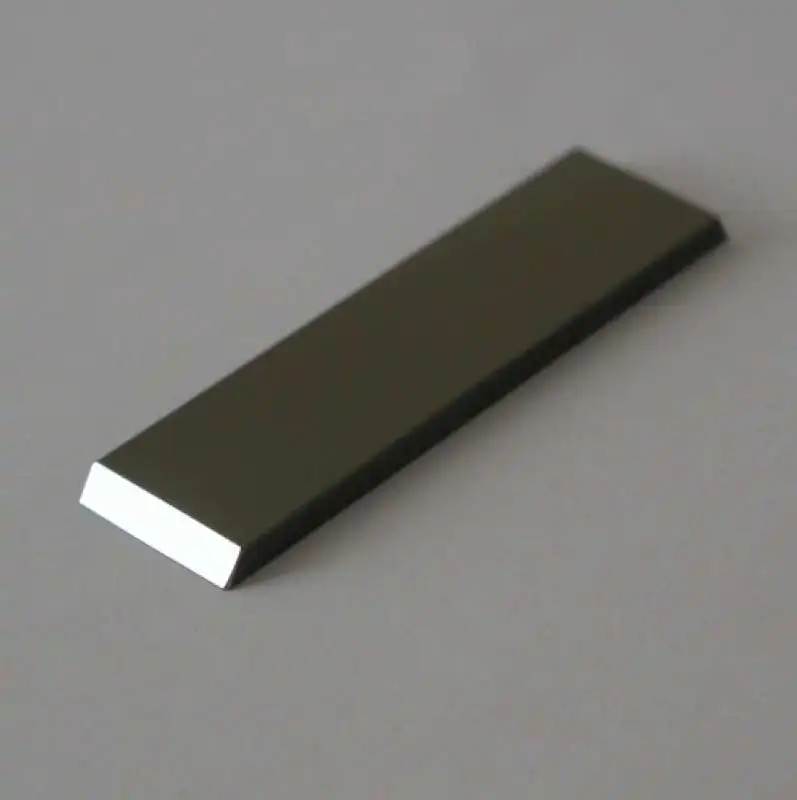

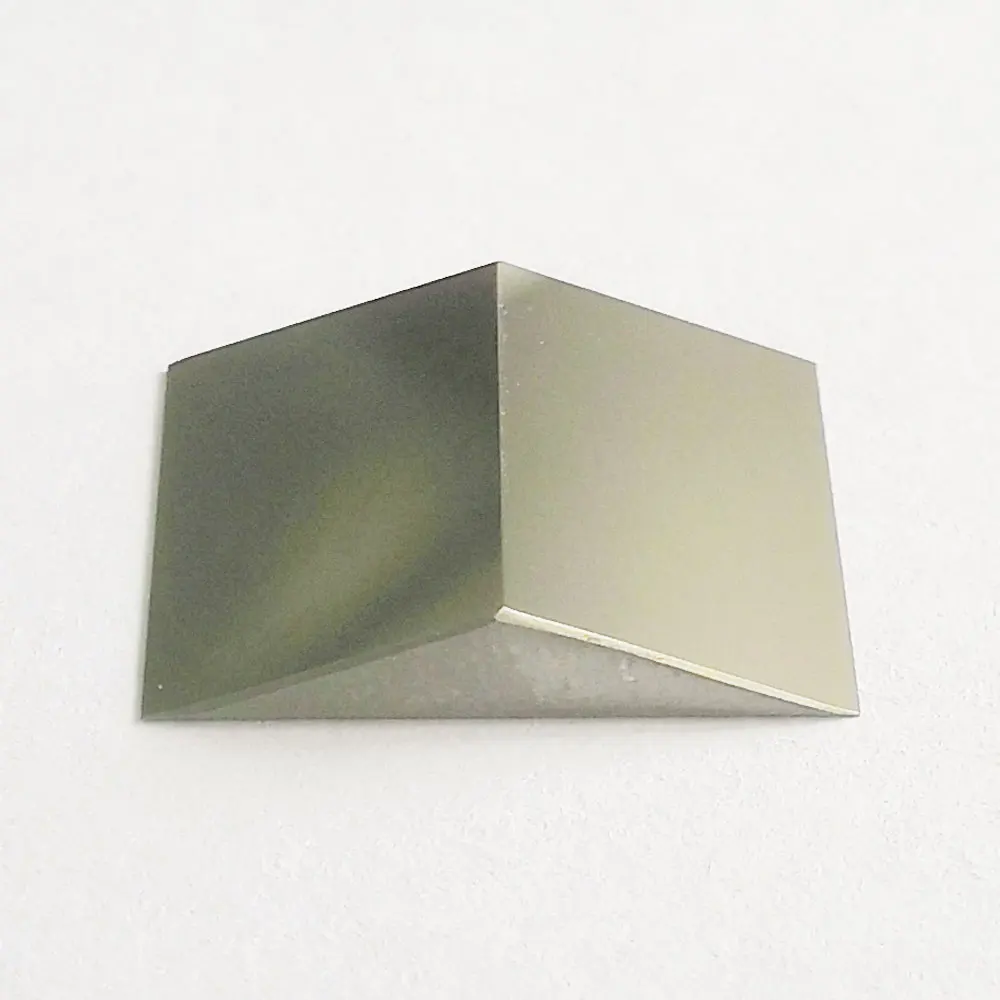

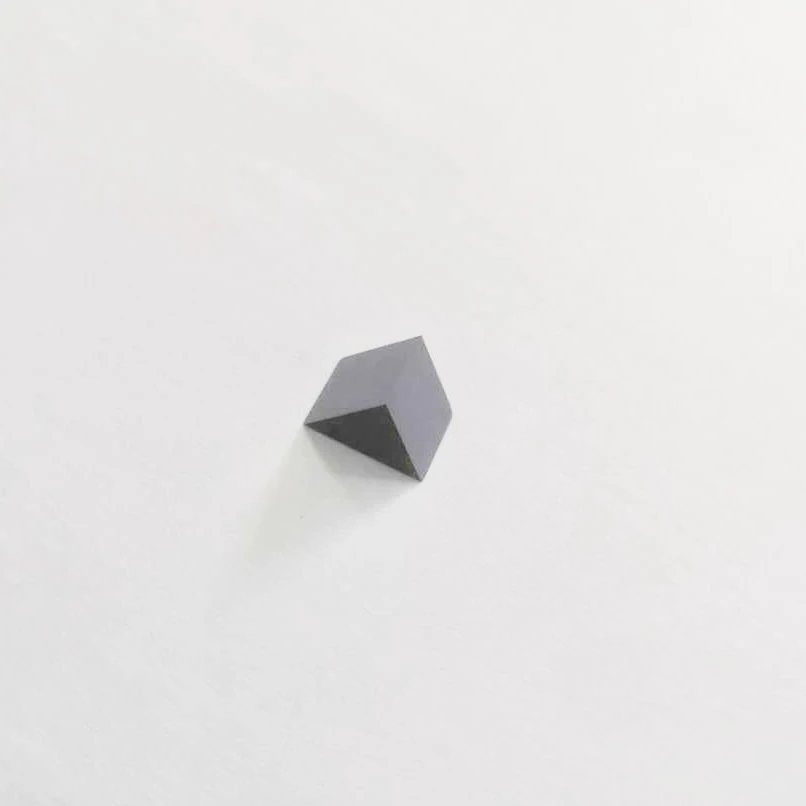

Germanium ATR Prism

Attenuated Total Refection (ATR) prisms operate by measuring the changes that occur in a totally reflected infrared beam when the beam comes in contact with a sample. WIth the ATR method, light penetration into the sample for total reflection is dependent on the refractive index of the prism and the sample, the wavelength and also the incidence angle.

Germanium (Ge) is a relatively hard, high-density, IR transmitting material that blocks UV and VIS wavelengths while allows IR from 2µm. Germanium has the highest refractive index of commonly available IR-transmitters and has low optical dispersion. This makes it desirable in aspects of lens design where its refractive index allows otherwise impossible specifications to be built.

Wuhan Especial Optic offers Silicon and ZnSe ATR prisms as well. Looking forward to working with you through top quality optics.

[Click here to get quotes]

	Standard	High Pricision
Material	Germanium
Size	5mm-350mm	5mm-300mm
Size tolerance	±0.1mm	±0.05mm
Angle Tolerance	<3'	<1′
Clear Aperture	≥90%	95%
Surface Quality	60/40	40/20, 20/10
Surface Flatness	1/2 lambda, 1/4lambda	1/10Lambda, 1/20Lambda
Parallelism	+/-3' , +/-30''	<0.5''
Bevel	<0.2mm±45°	No Bevel (The Angle is unbroken)
Coating	AR, BBAR coating or uncoated

Our Company

Wuhan Especial Optic established in 2012, compliance with ISO 9001.
WHEO is very good at developing and processing kinds of infrared optical components at ultra high precision, ultra thin, very large, ultra small and customization. Like 0.5mm thickness CaF2 window, 300mm diameter Germanium and ZnSe window. Our featured products include: Optical Protective Window (AR BBAR coating), High Reflection Mirrors (Metalic and Dielectric coating), Optical Lens (Aspheric Lens, Achromatic Lens, Cylindrical lens, Ball Lens, Powell Lens, Collimator Lens), Optical Filters (UV pass, IR pass, narrow bandpass, notch filter), Optical Prism, Galvo Mirror, Polarization rotators.

We can custom all these optical components strictly as per your requirements. For instance, surface quality, flatness, tolerance and so on.

In addition, we have various kinds of products in stock. If you need samples, please write to us at sales@wheo.cn for free sample.

Our products

Ge window

CaF2 window

ZnSe window

Silicon window

Fused Silica window

BK7/K9 window

Plano-convex Lenses

Plano-concave Lenses

Achromatic Lenses

Plano convex Lenses

Cylindrical Lens

Powell Lens

Dielectric coating Mirror

Aluminum coating mirrors

Gold coating mirror

Optical Filters

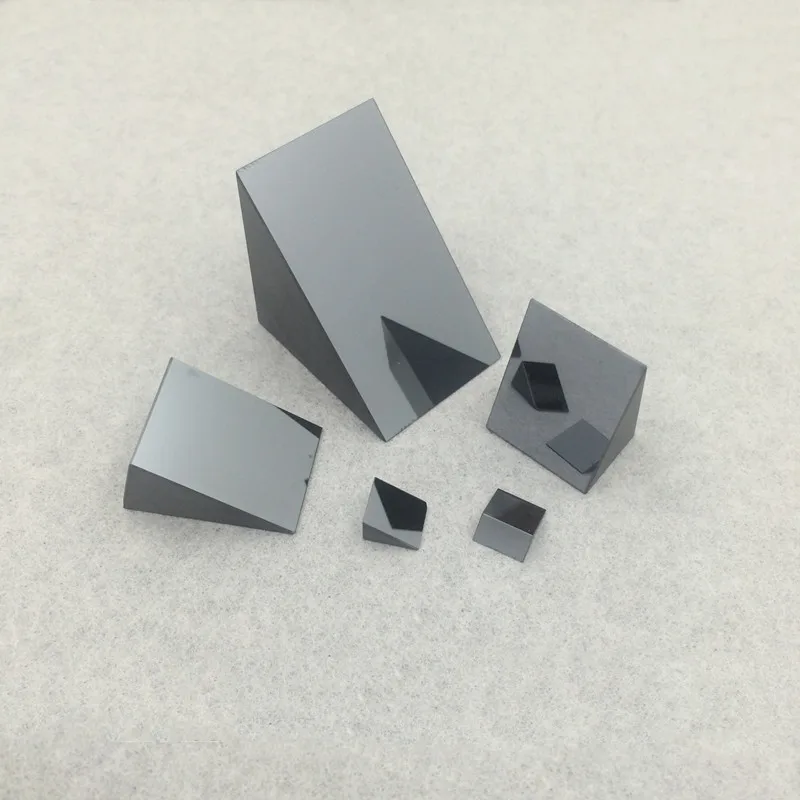

Optical Prisms

Galvo Mirrors

Our Service

a: Dimesion size : 5-300mm , thickness up to customer requirements

b: Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2, Ge, Si, Znse, ZnS and so on.

c: AR HR DLC coating or as your request

For more please visit our website: www.wheo.cn

Optical design

We can custom optical components according to your requirements.

Production

Our current production capacity includes but not limited to cutting, grinding, polishing,coatin and testing.

After-sales service

Make you satisfied during the whole procurement.

Packing & Delivery

Packing Details: First layer Tissue paper, then Protective film or Capacitor paper, Pearl cotton, Cardboard box.
Delivery Details: 7 days for stock.

3-4 weeks for custom-made products for sample.

in common, 4 weeks for mass production

FAQ

Are you factory or trader?
We're factory, engaged in optics manufacturing for over 10 years.

How to pay?

We usually draft Trade Assurance Order on Alibaba, you can pay by the most convenient way which also protect your rights.

What's the deliver time?
For inventory: the delivery time is around 5 workdays.

Customized products: the delivery time is 10 to 30 workdays, according to the quantity and precision.

How to ensure the safety of payment?
Wuhan Especial Optic is the gold supplier and supports Alibaba Trade Assurance. Payment<=5000USD, 100% in advance. Payment>5000USD, 50% T/T in advance, balance before shippment.

Can I customize the products based on my need?
Sure, we can customize all optical components based on your uique needs.

How do you ship goods?

Typically FedEx, UPS, DHL, TNT, EMS or upon request.

Wuhan Especial Optic Inc.

Contacts: David Liu

Tel: 86-027-87504830

WhatsApp&Skype: +86 18622556450

Email: David(at)wheo.cn

Website: www.wheo.cn
